Platformové váhy IXS Ďalšie fotografie

Platformové váhy IXS

Vysokorozlíšiteľná platforma s nerezovým displejom a jasným XL displejom. Vďaka rozhraniam ako RS-232, RS-485 a Bluetooth (voliteľné) je možné váhu ľahko pripojiť k existujúcim sieťam a uľahčiť výmenu údajov medzi váhou a tlačiarňou.

  • Vážiaca doska z nehrdzavejúcej ocele, základňa z lakovanej ocele

  • Hliníkový snímač zaťaženia potiahnutý silikónom s ochranou proti prachu a striekajúcej vode IP65

  • ESD odvod na ochranu pred elektrostatickým výbojom

  • Displej: nerezová oceľ, ochrana proti prachu a striekajúcej vode IP68
Zvoľte variant
Výrobca
  • Kern & Sohn GmbH
Kategória

Varianty produktu

Názov Katalógové číslo / Kód produktu
Height ( mm ) Weight ( g ) Width ( mm ) Depth ( mm ) Type Dimensions (WxDxH) Safety Data Sheet Reproducibility ( % ) Readability ( N ) Max. load ( g ) Depth weighing plate ( mm ) Width weighing plate ( mm ) Linearity Verified calibration Weighing plate (WxD)
Kusy v balení Cena bez DPH

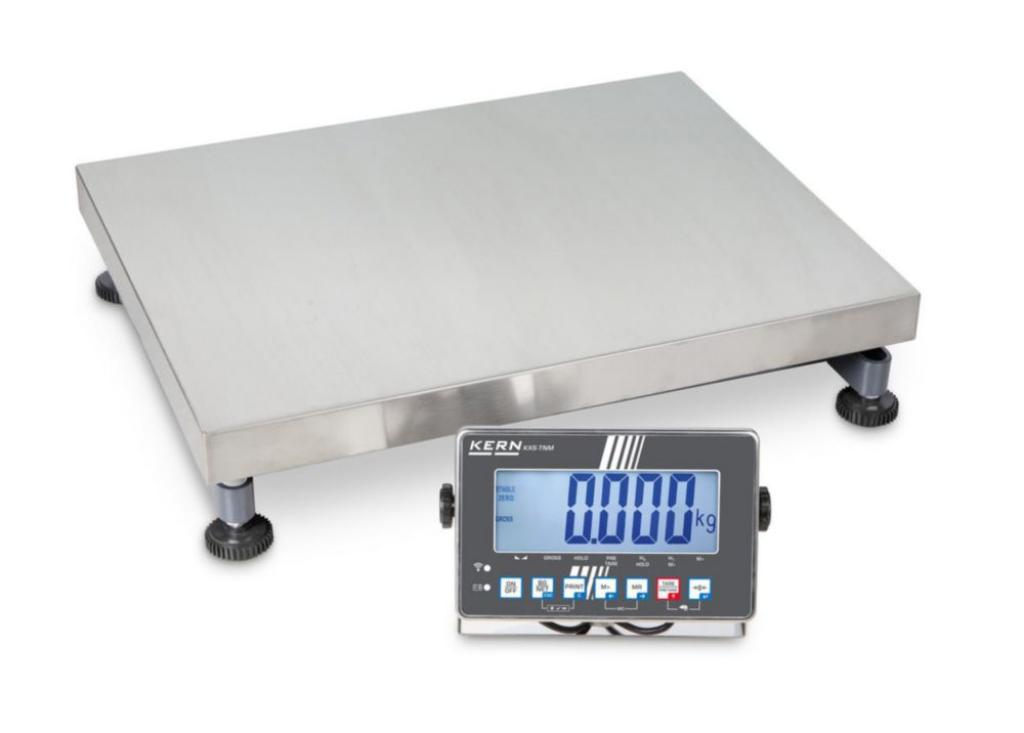

Obrázek produktové varianty IXS 100K-2LM
4660324 / IXS 100K-2LM
Height ( mm )
140 mm
Weight ( g )
36 kg
Width ( mm )
650 mm
Depth ( mm )
500 mm
Type
IXS 100K-2LM
Dimensions (WxDxH)
650 x 500 x 140 mm
Safety Data Sheet
https://sw.llg.de/search?search=4660324
Reproducibility ( % )
0.02/0.05 kg
Readability ( N )
0.02/0.05 kg
Max. load ( g )
60/150 kg
Depth weighing plate ( mm )
500 mm
Width weighing plate ( mm )
650 mm
Linearity
±0.02/0.05 kg
Verified calibration
Verifiable
Weighing plate (WxD)
650 x 500 mm
Kusy v balení
1
Na otázku

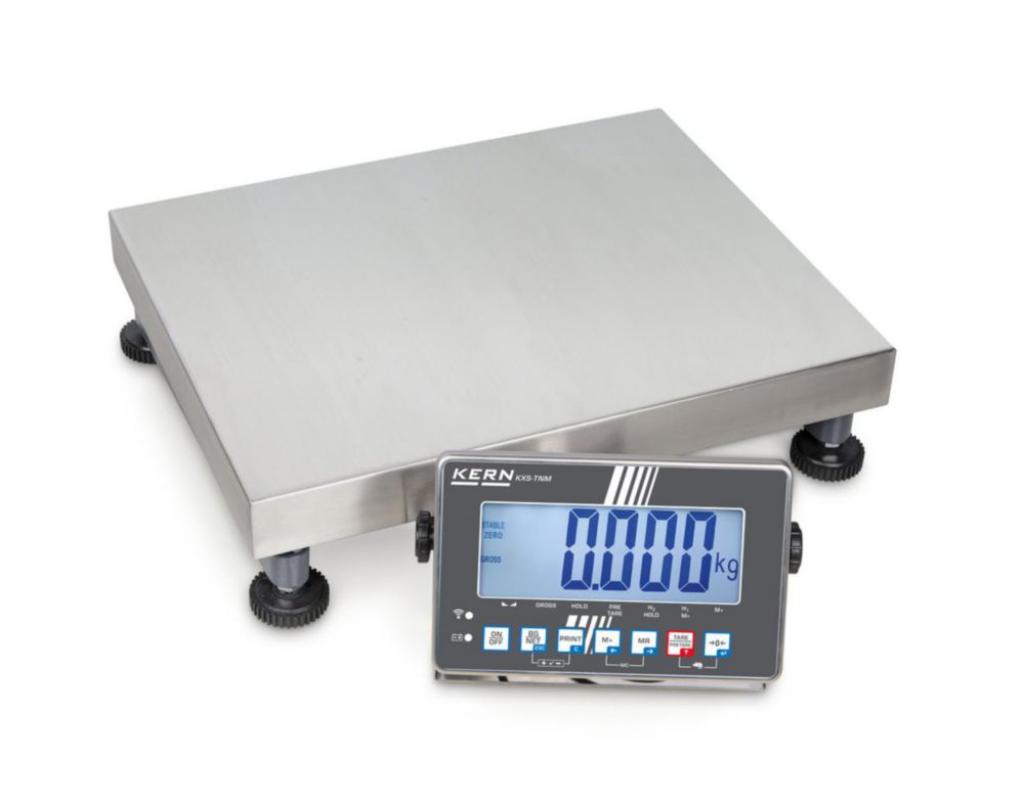

Obrázek produktové varianty IXS 100K-2M
4660325 / IXS 100K-2M
Height ( mm )
123 mm
Weight ( g )
22 kg
Width ( mm )
500 mm
Depth ( mm )
400 mm
Type
IXS 100K-2M
Dimensions (WxDxH)
500 x 400 x 123 mm
Safety Data Sheet
https://sw.llg.de/search?search=4660325
Reproducibility ( % )
0.02/0.05 kg
Readability ( N )
0.02/0.05 kg
Max. load ( g )
60/150 kg
Depth weighing plate ( mm )
400 mm
Width weighing plate ( mm )
500 mm
Linearity
±0.02/0.05 kg
Verified calibration
Verifiable
Weighing plate (WxD)
500 x 400 mm
Kusy v balení
1
Na otázku
Obrázek produktové varianty IXS 100K-3
4660326 / IXS 100K-3
Height ( mm )
123 mm
Weight ( g )
22 kg
Width ( mm )
500 mm
Depth ( mm )
400 mm
Type
IXS 100K-3
Dimensions (WxDxH)
500 x 400 x 123 mm
Safety Data Sheet
https://sw.llg.de/search?search=4660326
Reproducibility ( % )
0.005 kg
Readability ( N )
0.005 kg
Max. load ( g )
150 kg
Depth weighing plate ( mm )
400 mm
Width weighing plate ( mm )
500 mm
Linearity
±0.015 kg
Verified calibration
Not verifiable
Weighing plate (WxD)
500 x 400 mm
Kusy v balení
1
Na otázku
Obrázek produktové varianty IXS 10K-3M
4660329 / IXS 10K-3M
Height ( mm )
86 mm
Weight ( g )
6 kg
Width ( mm )
300 mm
Depth ( mm )
240 mm
Type
IXS 10K-3M
Dimensions (WxDxH)
300 x 240 x 86 mm
Safety Data Sheet
https://sw.llg.de/search?search=4660329
Reproducibility ( % )
0.002/0.005 kg
Readability ( N )
0.002/0.005 kg
Max. load ( g )
6/15 kg
Depth weighing plate ( mm )
240 mm
Width weighing plate ( mm )
300 mm
Linearity
±0.002/0.005 kg
Verified calibration
Verifiable
Weighing plate (WxD)
300 x 240 mm
Kusy v balení
1
Na otázku
Obrázek produktové varianty IXS 10K-4L
4660331 / IXS 10K-4L
Height ( mm )
89 mm
Weight ( g )
11 kg
Width ( mm )
400 mm
Depth ( mm )
300 mm
Type
IXS 10K-4L
Dimensions (WxDxH)
400 x 300 x 89 mm
Safety Data Sheet
https://sw.llg.de/search?search=4660331
Reproducibility ( % )
0.0005 kg
Readability ( N )
0.0005 kg
Max. load ( g )
15 kg
Depth weighing plate ( mm )
300 mm
Width weighing plate ( mm )
400 mm
Linearity
±0.0015 kg
Verified calibration
Not verifiable
Weighing plate (WxD)
400 x 300 mm
Kusy v balení
1
Na otázku
Obrázek produktové varianty IXS 300K-2M
4660333 / IXS 300K-2M
Height ( mm )
133 mm
Weight ( g )
36 kg
Width ( mm )
650 mm
Depth ( mm )
500 mm
Type
IXS 300K-2M
Dimensions (WxDxH)
650 x 500 x 133 mm
Safety Data Sheet
https://sw.llg.de/search?search=4660333
Reproducibility ( % )
0.05/0.1 kg
Readability ( N )
0.05/0.1 kg
Max. load ( g )
150/300 kg
Depth weighing plate ( mm )
500 mm
Width weighing plate ( mm )
650 mm
Linearity
±0.05/0.1 kg
Verified calibration
Verifiable
Weighing plate (WxD)
650 x 500 mm
Kusy v balení
1
Na otázku
Obrázek produktové varianty IXS 30K-3
4660336 / IXS 30K-3
Height ( mm )
89 mm
Weight ( g )
12 kg
Width ( mm )
400 mm
Depth ( mm )
300 mm
Type
IXS 30K-3
Dimensions (WxDxH)
400 x 300 x 89 mm
Safety Data Sheet
https://sw.llg.de/search?search=4660336
Reproducibility ( % )
0.001 kg
Readability ( N )
0.001 kg
Max. load ( g )
30 kg
Depth weighing plate ( mm )
300 mm
Width weighing plate ( mm )
400 mm
Linearity
±0.003 kg
Verified calibration
Not verifiable
Weighing plate (WxD)
400 x 300 mm
Kusy v balení
1
Na otázku
Obrázek produktové varianty IXS 30K-3L
4660337 / IXS 30K-3L
Height ( mm )
123 mm
Weight ( g )
22 kg
Width ( mm )
500 mm
Depth ( mm )
400 mm
Type
IXS 30K-3L
Dimensions (WxDxH)
500 x 400 x 123 mm
Safety Data Sheet
https://sw.llg.de/search?search=4660337
Reproducibility ( % )
0.001 kg
Readability ( N )
0.001 kg
Max. load ( g )
30 kg
Depth weighing plate ( mm )
400 mm
Width weighing plate ( mm )
500 mm
Linearity
±0.003 kg
Verified calibration
Not verifiable
Weighing plate (WxD)
500 x 400 mm
Kusy v balení
1
Na otázku

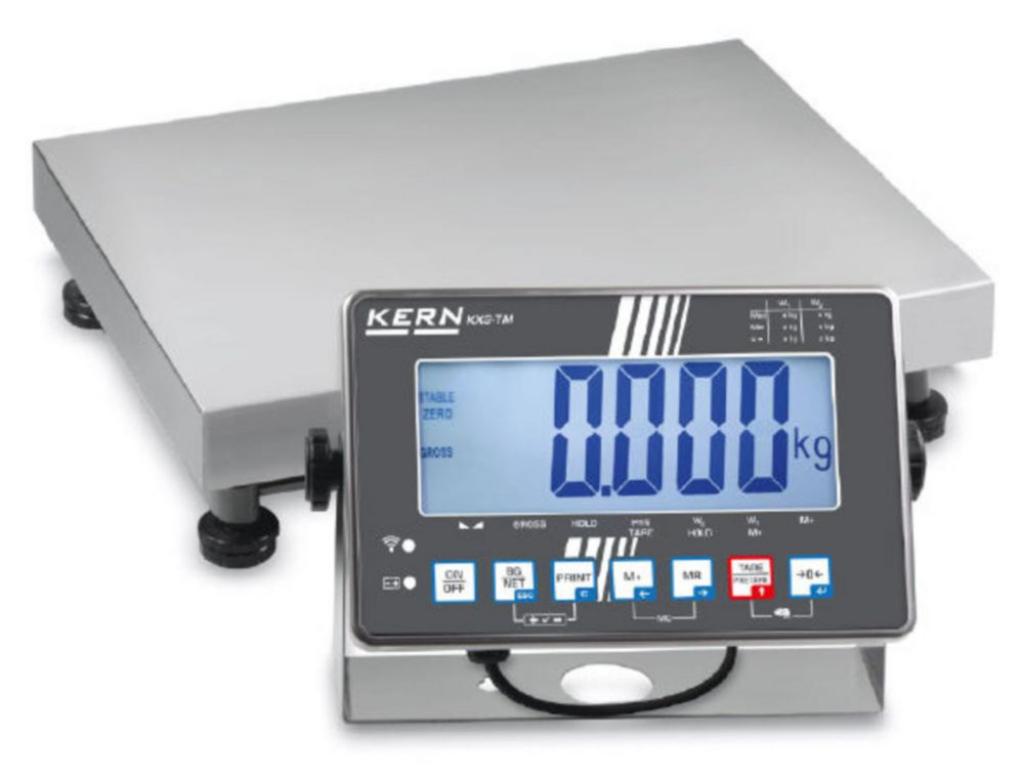

Obrázek produktové varianty IXS 60K-2M
4660339 / IXS 60K-2M
Height ( mm )
89 mm
Weight ( g )
11 kg
Width ( mm )
400 mm
Depth ( mm )
300 mm
Type
IXS 60K-2M
Dimensions (WxDxH)
400 x 300 x 89 mm
Safety Data Sheet
https://sw.llg.de/search?search=4660339
Reproducibility ( % )
0.01/0.02 kg
Readability ( N )
0.01/0.02 kg
Max. load ( g )
30/60 kg
Depth weighing plate ( mm )
300 mm
Width weighing plate ( mm )
400 mm
Linearity
±0.01/0.02 kg
Verified calibration
Verifiable
Weighing plate (WxD)
400 x 300 mm
Kusy v balení
1
Na otázku
Obrázek produktové varianty IXS 60K-3
4660340 / IXS 60K-3
Height ( mm )
89 mm
Weight ( g )
12 kg
Width ( mm )
400 mm
Depth ( mm )
300 mm
Type
IXS 60K-3
Dimensions (WxDxH)
400 x 300 x 89 mm
Safety Data Sheet
https://sw.llg.de/search?search=4660340
Reproducibility ( % )
0.002 kg
Readability ( N )
0.002 kg
Max. load ( g )
60 kg
Depth weighing plate ( mm )
300 mm
Width weighing plate ( mm )
400 mm
Linearity
±0.006 kg
Verified calibration
Not verifiable
Weighing plate (WxD)
400 x 300 mm
Kusy v balení
1
Na otázku
Obrázek produktové varianty IXS 6K-4
4660343 / IXS 6K-4
Height ( mm )
86 mm
Weight ( g )
6 kg
Width ( mm )
300 mm
Depth ( mm )
240 mm
Type
IXS 6K-4
Dimensions (WxDxH)
300 x 240 x 86 mm
Safety Data Sheet
https://sw.llg.de/search?search=4660343
Reproducibility ( % )
0.0002 kg
Readability ( N )
0.0002 kg
Max. load ( g )
6 kg
Depth weighing plate ( mm )
240 mm
Width weighing plate ( mm )
300 mm
Linearity
±0.0006 kg
Verified calibration
Not verifiable
Weighing plate (WxD)
300 x 240 mm
Kusy v balení
-
Na otázku

Technické špecifikácie

Adjusting program External
Power supply frequency 50 Hz
Material housing Stainless steel
Material weighing plate Stainless steel
Max. voltage 240 V·AC
Min. voltage 220 V
Plug type UK/CH
Power supply 220 ... 240 V·AC, 50 Hz
Type of auxiliary energy Mains connection
UNSPSC 41111509
Warranty 3 years
