Platform scales IXS More photos

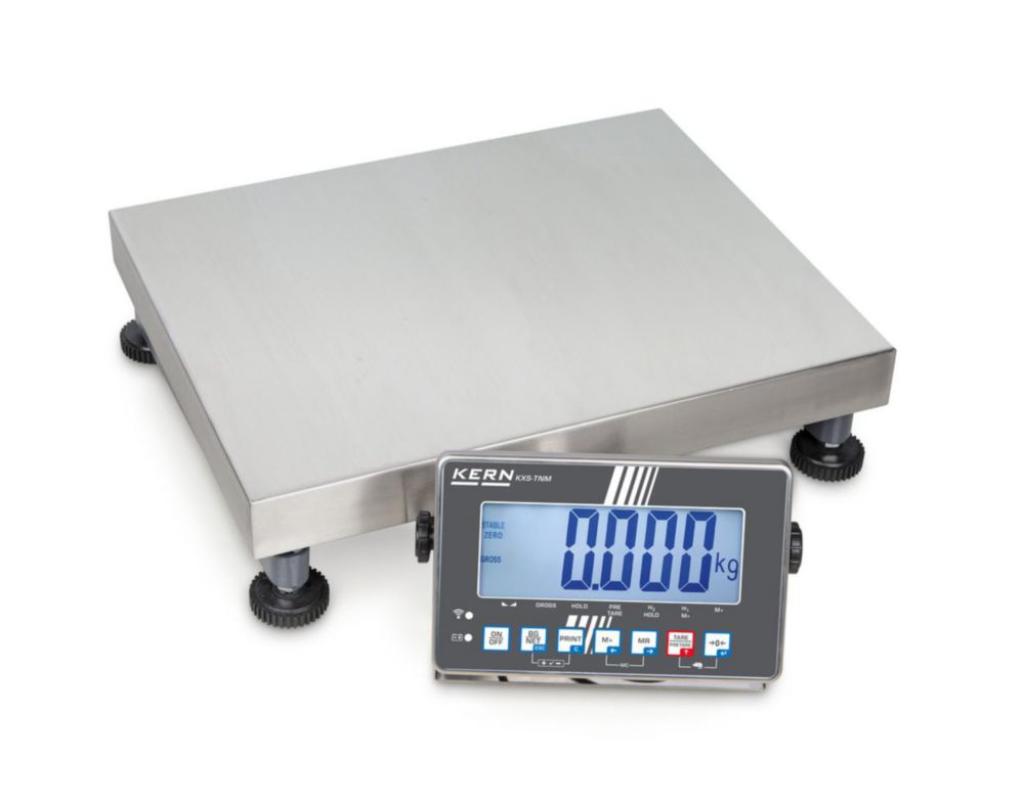

Platform scales IXS

High-resolution platform scale with stainless steel display device and bright XL display. Thanks to interfaces such as RS-232, RS-485 and Bluetooth (optional) the scale can easily be connected to existing networks and facilitates the data exchange between the scale and printer.

  • Weighing plate stainless steel, painted steel base

  • Silicone-coated aluminium load cell with protection against dust and water splashes IP65

  • ESD drain to protect against electrostatic discharge

  • Display device: stainless steel, protection against dust and water splashes IP68
Choose a variant
Manufacturer
  • Kern & Sohn GmbH
Category

Product variant

Name Hermes code and manufacturer code
Height ( mm ) Weight ( g ) Width ( mm ) Depth ( mm ) Type Dimensions (WxDxH) Reproducibility ( % ) Readability ( N ) Max. load ( g ) Depth weighing plate ( mm ) Width weighing plate ( mm ) Linearity Verified calibration Weighing plate (WxD)
Pieces in a package Price without VAT
Obrázek produktové varianty IXS 100K-2LM
4660324 / IXS 100K-2LM
Height ( mm )
140 mm
Weight ( g )
36 kg
Width ( mm )
650 mm
Depth ( mm )
500 mm
Type
IXS 100K-2LM
Dimensions (WxDxH)
650 x 500 x 140 mm
Reproducibility ( % )
0.02/0.05 kg
Readability ( N )
0.02/0.05 kg
Max. load ( g )
60/150 kg
Depth weighing plate ( mm )
500 mm
Width weighing plate ( mm )
650 mm
Linearity
±0.02/0.05 kg
Verified calibration
Verifiable
Weighing plate (WxD)
650 x 500 mm
Pieces in a package
-
Upon request
Obrázek produktové varianty IXS 100K-2M
4660325 / IXS 100K-2M
Height ( mm )
123 mm
Weight ( g )
22 kg
Width ( mm )
500 mm
Depth ( mm )
400 mm
Type
IXS 100K-2M
Dimensions (WxDxH)
500 x 400 x 123 mm
Reproducibility ( % )
0.02/0.05 kg
Readability ( N )
0.02/0.05 kg
Max. load ( g )
60/150 kg
Depth weighing plate ( mm )
400 mm
Width weighing plate ( mm )
500 mm
Linearity
±0.02/0.05 kg
Verified calibration
Verifiable
Weighing plate (WxD)
500 x 400 mm
Pieces in a package
-
Upon request
Obrázek produktové varianty IXS 100K-3
4660326 / IXS 100K-3
Height ( mm )
123 mm
Weight ( g )
22 kg
Width ( mm )
500 mm
Depth ( mm )
400 mm
Type
IXS 100K-3
Dimensions (WxDxH)
500 x 400 x 123 mm
Reproducibility ( % )
0.005 kg
Readability ( N )
0.005 kg
Max. load ( g )
150 kg
Depth weighing plate ( mm )
400 mm
Width weighing plate ( mm )
500 mm
Linearity
±0.015 kg
Verified calibration
Not verifiable
Weighing plate (WxD)
500 x 400 mm
Pieces in a package
-
Upon request
Obrázek produktové varianty IXS 10K-3M
4660329 / IXS 10K-3M
Height ( mm )
86 mm
Weight ( g )
6 kg
Width ( mm )
300 mm
Depth ( mm )
240 mm
Type
IXS 10K-3M
Dimensions (WxDxH)
300 x 240 x 86 mm
Reproducibility ( % )
0.002/0.005 kg
Readability ( N )
0.002/0.005 kg
Max. load ( g )
6/15 kg
Depth weighing plate ( mm )
240 mm
Width weighing plate ( mm )
300 mm
Linearity
±0.002/0.005 kg
Verified calibration
Verifiable
Weighing plate (WxD)
300 x 240 mm
Pieces in a package
-
Upon request
Obrázek produktové varianty IXS 10K-4L
4660331 / IXS 10K-4L
Height ( mm )
89 mm
Weight ( g )
11 kg
Width ( mm )
400 mm
Depth ( mm )
300 mm
Type
IXS 10K-4L
Dimensions (WxDxH)
400 x 300 x 89 mm
Reproducibility ( % )
0.0005 kg
Readability ( N )
0.0005 kg
Max. load ( g )
15 kg
Depth weighing plate ( mm )
300 mm
Width weighing plate ( mm )
400 mm
Linearity
±0.0015 kg
Verified calibration
Not verifiable
Weighing plate (WxD)
400 x 300 mm
Pieces in a package
-
Upon request
Obrázek produktové varianty IXS 300K-2M
4660333 / IXS 300K-2M
Height ( mm )
133 mm
Weight ( g )
36 kg
Width ( mm )
650 mm
Depth ( mm )
500 mm
Type
IXS 300K-2M
Dimensions (WxDxH)
650 x 500 x 133 mm
Reproducibility ( % )
0.05/0.1 kg
Readability ( N )
0.05/0.1 kg
Max. load ( g )
150/300 kg
Depth weighing plate ( mm )
500 mm
Width weighing plate ( mm )
650 mm
Linearity
±0.05/0.1 kg
Verified calibration
Verifiable
Weighing plate (WxD)
650 x 500 mm
Pieces in a package
-
Upon request
Obrázek produktové varianty IXS 30K-2LM
4660334 / IXS 30K-2LM
Height ( mm )
123 mm
Weight ( g )
22 kg
Width ( mm )
500 mm
Depth ( mm )
400 mm
Type
IXS 30K-2LM
Dimensions (WxDxH)
500 x 400 x 123 mm
Reproducibility ( % )
0.005/0.01 kg
Readability ( N )
0.005/0.01 kg
Max. load ( g )
15/30 kg
Depth weighing plate ( mm )
400 mm
Width weighing plate ( mm )
500 mm
Linearity
±0.005/0.01 kg
Verified calibration
Verifiable
Weighing plate (WxD)
500 x 400 mm
Pieces in a package
-
Upon request
Obrázek produktové varianty IXS 30K-3
4660336 / IXS 30K-3
Height ( mm )
89 mm
Weight ( g )
12 kg
Width ( mm )
400 mm
Depth ( mm )
300 mm
Type
IXS 30K-3
Dimensions (WxDxH)
400 x 300 x 89 mm
Reproducibility ( % )
0.001 kg
Readability ( N )
0.001 kg
Max. load ( g )
30 kg
Depth weighing plate ( mm )
300 mm
Width weighing plate ( mm )
400 mm
Linearity
±0.003 kg
Verified calibration
Not verifiable
Weighing plate (WxD)
400 x 300 mm
Pieces in a package
-
Upon request
Obrázek produktové varianty IXS 30K-3L
4660337 / IXS 30K-3L
Height ( mm )
123 mm
Weight ( g )
22 kg
Width ( mm )
500 mm
Depth ( mm )
400 mm
Type
IXS 30K-3L
Dimensions (WxDxH)
500 x 400 x 123 mm
Reproducibility ( % )
0.001 kg
Readability ( N )
0.001 kg
Max. load ( g )
30 kg
Depth weighing plate ( mm )
400 mm
Width weighing plate ( mm )
500 mm
Linearity
±0.003 kg
Verified calibration
Not verifiable
Weighing plate (WxD)
500 x 400 mm
Pieces in a package
-
Upon request
Obrázek produktové varianty IXS 60K-2M
4660339 / IXS 60K-2M
Height ( mm )
89 mm
Weight ( g )
11 kg
Width ( mm )
400 mm
Depth ( mm )
300 mm
Type
IXS 60K-2M
Dimensions (WxDxH)
400 x 300 x 89 mm
Reproducibility ( % )
0.01/0.02 kg
Readability ( N )
0.01/0.02 kg
Max. load ( g )
30/60 kg
Depth weighing plate ( mm )
300 mm
Width weighing plate ( mm )
400 mm
Linearity
±0.01/0.02 kg
Verified calibration
Verifiable
Weighing plate (WxD)
400 x 300 mm
Pieces in a package
-
Upon request
Obrázek produktové varianty IXS 60K-3
4660340 / IXS 60K-3
Height ( mm )
89 mm
Weight ( g )
12 kg
Width ( mm )
400 mm
Depth ( mm )
300 mm
Type
IXS 60K-3
Dimensions (WxDxH)
400 x 300 x 89 mm
Reproducibility ( % )
0.002 kg
Readability ( N )
0.002 kg
Max. load ( g )
60 kg
Depth weighing plate ( mm )
300 mm
Width weighing plate ( mm )
400 mm
Linearity
±0.006 kg
Verified calibration
Not verifiable
Weighing plate (WxD)
400 x 300 mm
Pieces in a package
-
Upon request
Obrázek produktové varianty IXS 60K-3L
4660341 / IXS 60K-3L
Height ( mm )
123 mm
Weight ( g )
22 kg
Width ( mm )
500 mm
Depth ( mm )
400 mm
Type
IXS 60K-3L
Dimensions (WxDxH)
500 x 400 x 123 mm
Reproducibility ( % )
0.002 kg
Readability ( N )
0.002 kg
Max. load ( g )
60 kg
Depth weighing plate ( mm )
400 mm
Width weighing plate ( mm )
500 mm
Linearity
±0.006 kg
Verified calibration
Not verifiable
Weighing plate (WxD)
500 x 400 mm
Pieces in a package
1
Upon request
Obrázek produktové varianty IXS 6K-4
4660343 / IXS 6K-4
Height ( mm )
86 mm
Weight ( g )
6 kg
Width ( mm )
300 mm
Depth ( mm )
240 mm
Type
IXS 6K-4
Dimensions (WxDxH)
300 x 240 x 86 mm
Reproducibility ( % )
0.0002 kg
Readability ( N )
0.0002 kg
Max. load ( g )
6 kg
Depth weighing plate ( mm )
240 mm
Width weighing plate ( mm )
300 mm
Linearity
±0.0006 kg
Verified calibration
Not verifiable
Weighing plate (WxD)
300 x 240 mm
Pieces in a package
1
Upon request

Technical specifications

Adjusting program External
Power supply frequency 50 Hz
Material housing Stainless steel
Material weighing plate Stainless steel
Max. voltage 240 V·AC
Min. voltage 220 V
Plug type UK/CH
Power supply 220 ... 240 V·AC, 50 Hz
Type of auxiliary energy Mains connection
UNSPSC 41111509
Warranty 3 years
