Škály platforiem IFC, IoT-Line Ďalšie fotografie

Škály platforiem IFC, IoT-Line

Univerzálny port KERN (KUP) umožňuje pripojenie externého adaptéra rozhrania KUP, ako napríklad RS-232, USB, Bluetooth, WiFi alebo Ethernet, na výmenu údajov a riadiacich príkazov bez nutnosti inštalácie. Komunikačný protokol KERN (KCP) umožňuje vyhľadávanie a diaľkové ovládanie váhy pomocou externých ovládacích zariadení alebo počítačov.

  • Veľký podsvietený LCD displej, výška číslic 48 mm

  • Hodiny v reálnom čase

  • Zjednodušená výmena batérie vďaka ľahko prístupnému puzdru

  • Vážiaca doska z nehrdzavejúcej ocele, lakovaná oceľová základňa, hliníkový snímač zaťaženia so silikónovým povlakom

  • Rozmery zobrazovacieho zariadenia (Š × H × V) 220 × 145 × 65 mm


Rozsah dodávky: Váha s plošinou, ochranný pracovný kryt, stolový stojan vrátane nástenného držiaka pre zobrazovacie zariadenie, univerzálny sieťový adaptér
Zvoľte variant
Výrobca
  • Kern & Sohn GmbH
Kategória

Varianty produktu

Názov Katalógové číslo / Kód produktu
Height ( mm ) Weight ( g ) Width ( mm ) Depth ( mm ) Type Dimensions (WxDxH) Warranty Safety Data Sheet Reproducibility ( % ) Readability ( N ) Max. load ( g ) Depth weighing plate ( mm ) Width weighing plate ( mm ) Linearity Verified calibration Weighing plate (WxD)
Kusy v balení Cena bez DPH

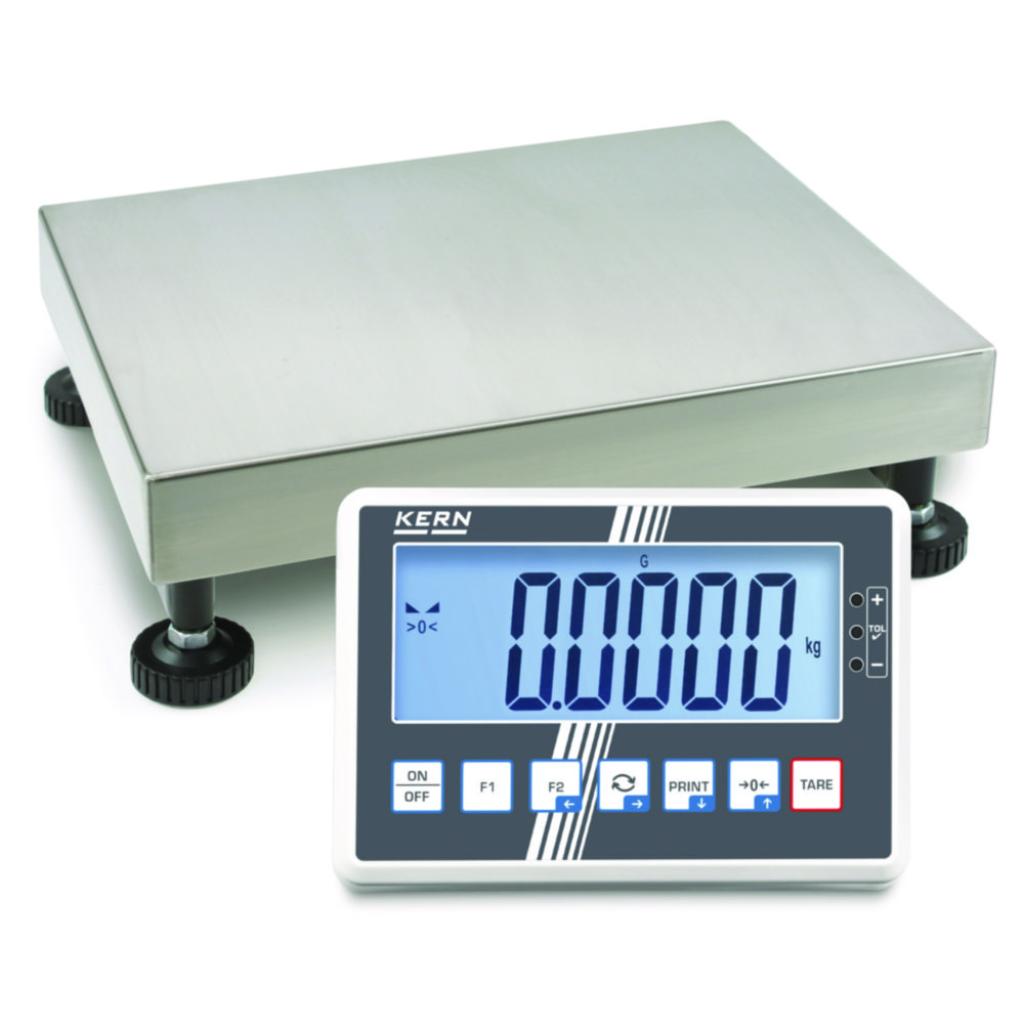

Obrázek produktové varianty IFC 10K-4L
4709011 / IFC 10K-4L
Height ( mm )
117 mm
Weight ( g )
8 kg
Width ( mm )
400 mm
Depth ( mm )
300 mm
Type
IFC 10K-4L
Dimensions (WxDxH)
400 x 300 x 117 mm
Warranty
3 years
Safety Data Sheet
https://sw.llg.de/search?search=4709011
Reproducibility ( % )
0,5 g
Readability ( N )
0,5 g
Max. load ( g )
15 kg
Depth weighing plate ( mm )
300 mm
Width weighing plate ( mm )
400 mm
Linearity
±1,5 g
Verified calibration
Not verifiable
Weighing plate (WxD)
400 x 300 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty IFC 150K20DLM
4709012 / IFC 150K20DLM
Height ( mm )
139 mm
Weight ( g )
18 kg
Width ( mm )
650 mm
Depth ( mm )
500 mm
Type
IFC 150K20DLM
Dimensions (WxDxH)
650 x 500 x 139 mm
Warranty
3 years
Safety Data Sheet
https://sw.llg.de/search?search=4709012
Reproducibility ( % )
20/50 g
Readability ( N )
20/50 g
Max. load ( g )
60/150 kg
Depth weighing plate ( mm )
500 mm
Width weighing plate ( mm )
650 mm
Linearity
±20/50 g
Verified calibration
Verifiable
Weighing plate (WxD)
650 x 500 mm
Kusy v balení
1
Na otázku
Obrázek produktové varianty IFC 150K20DM
4709013 / IFC 150K20DM
Height ( mm )
127 mm
Weight ( g )
10 kg
Width ( mm )
500 mm
Depth ( mm )
400 mm
Type
IFC 150K20DM
Dimensions (WxDxH)
500 x 400 x 127 mm
Warranty
3 years
Safety Data Sheet
https://sw.llg.de/search?search=4709013
Reproducibility ( % )
20/50 g
Readability ( N )
20/50 g
Max. load ( g )
60/150 kg
Depth weighing plate ( mm )
400 mm
Width weighing plate ( mm )
500 mm
Linearity
±20/50 g
Verified calibration
Verifiable
Weighing plate (WxD)
500 x 400 mm
Kusy v balení
1
Na otázku
Obrázek produktové varianty IFC 30K-3
4709014 / IFC 30K-3
Height ( mm )
117 mm
Weight ( g )
8 kg
Width ( mm )
400 mm
Depth ( mm )
300 mm
Type
IFC 30K-3
Dimensions (WxDxH)
400 x 300 x 117 mm
Warranty
3 years
Safety Data Sheet
https://sw.llg.de/search?search=4709014
Reproducibility ( % )
1 g
Readability ( N )
1 g
Max. load ( g )
30 kg
Depth weighing plate ( mm )
300 mm
Width weighing plate ( mm )
400 mm
Linearity
±4 g
Verified calibration
Not verifiable
Weighing plate (WxD)
400 x 300 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty IFC 30K5DM
4709015 / IFC 30K5DM
Height ( mm )
117 mm
Weight ( g )
8 kg
Width ( mm )
400 mm
Depth ( mm )
300 mm
Type
IFC 30K5DM
Dimensions (WxDxH)
400 x 300 x 117 mm
Warranty
3 years
Safety Data Sheet
https://sw.llg.de/search?search=4709015
Reproducibility ( % )
5/10 g
Readability ( N )
5/10 g
Max. load ( g )
15/30 kg
Depth weighing plate ( mm )
300 mm
Width weighing plate ( mm )
400 mm
Linearity
±5/10 g
Verified calibration
Verifiable
Weighing plate (WxD)
400 x 300 mm
Kusy v balení
1
Na otázku

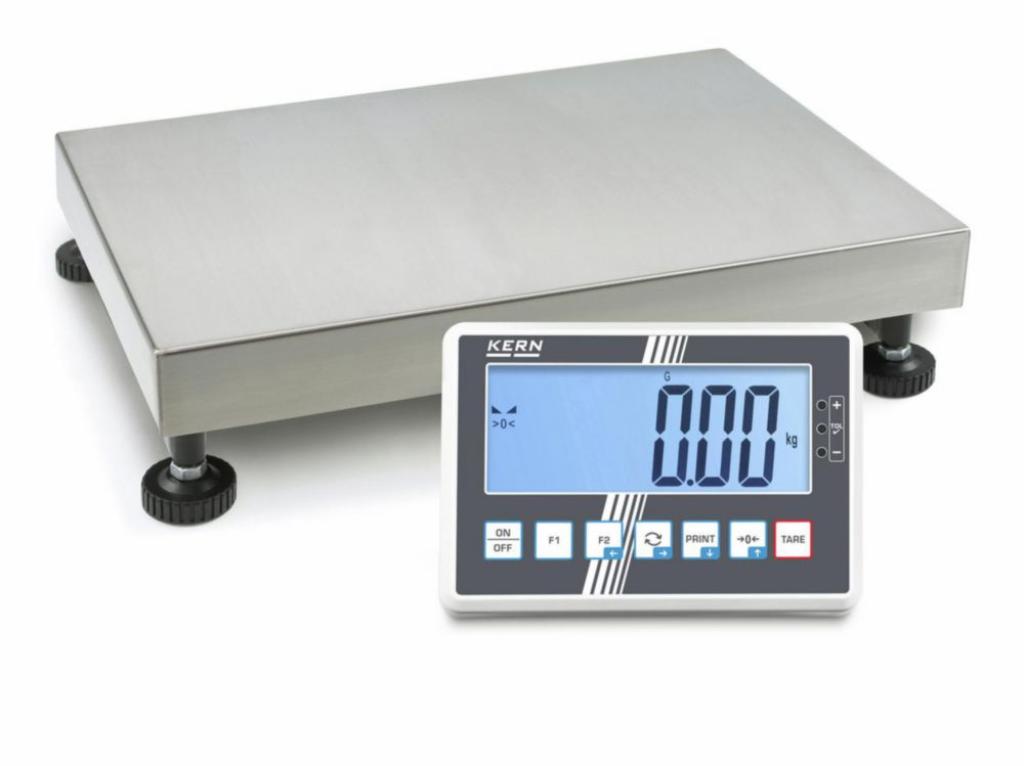

Obrázek produktové varianty IFC 600K-2
4709016 / IFC 600K-2
Height ( mm )
192 mm
Weight ( g )
40 kg
Width ( mm )
800 mm
Depth ( mm )
600 mm
Type
IFC 600K-2
Dimensions (WxDxH)
800 x 600 x 192 mm
Warranty
3 years
Safety Data Sheet
https://sw.llg.de/search?search=4709016
Reproducibility ( % )
20 g
Readability ( N )
20 g
Max. load ( g )
600 kg
Depth weighing plate ( mm )
600 mm
Width weighing plate ( mm )
800 mm
Linearity
±60 g
Verified calibration
Not verifiable
Weighing plate (WxD)
800 x 600 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty IFC 60K10DLM
4709017 / IFC 60K10DLM
Height ( mm )
127 mm
Weight ( g )
10 kg
Width ( mm )
500 mm
Depth ( mm )
400 mm
Type
IFC 60K10DLM
Dimensions (WxDxH)
500 x 400 x 127 mm
Warranty
3 years
Safety Data Sheet
https://sw.llg.de/search?search=4709017
Reproducibility ( % )
10/20 g
Readability ( N )
10/20 g
Max. load ( g )
30/60 kg
Depth weighing plate ( mm )
400 mm
Width weighing plate ( mm )
500 mm
Linearity
±10/20 g
Verified calibration
Verifiable
Weighing plate (WxD)
500 x 400 mm
Kusy v balení
-
Na otázku

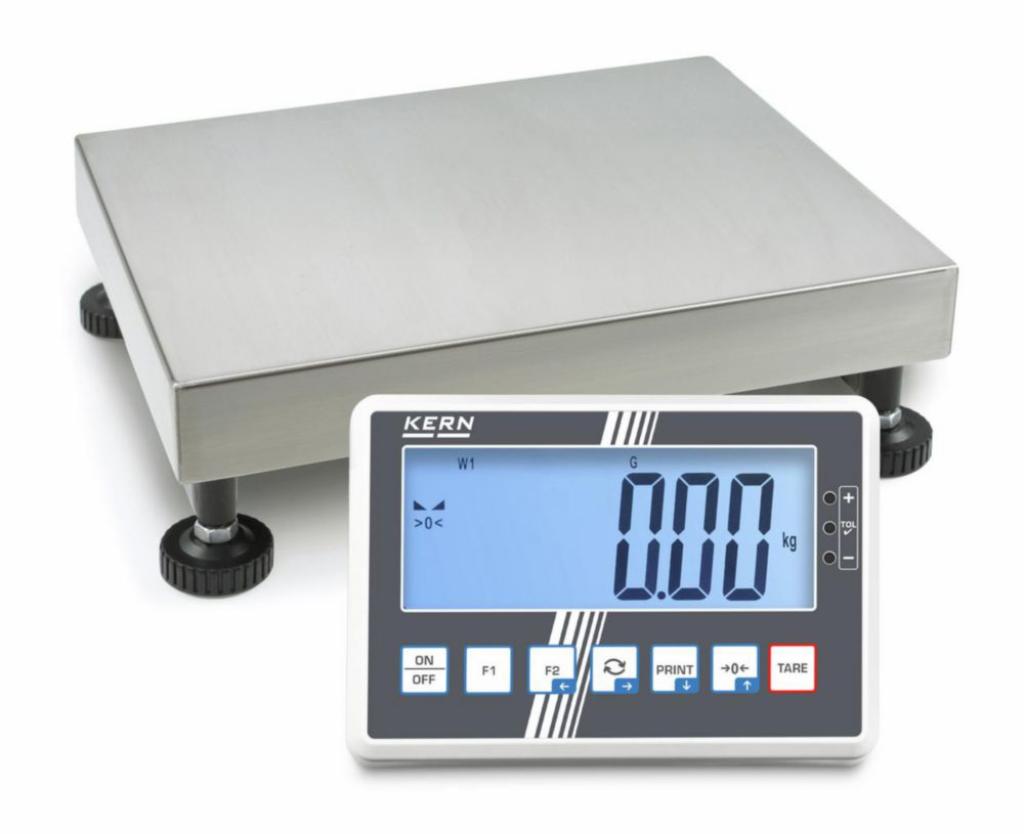

Obrázek produktové varianty IFC 60K10DM
4709018 / IFC 60K10DM
Height ( mm )
117 mm
Weight ( g )
7 kg
Width ( mm )
400 mm
Depth ( mm )
300 mm
Type
IFC 60K10DM
Dimensions (WxDxH)
400 x 300 x 117 mm
Warranty
3 years
Safety Data Sheet
https://sw.llg.de/search?search=4709018
Reproducibility ( % )
10/20 g
Readability ( N )
10/20 g
Max. load ( g )
30/60 kg
Depth weighing plate ( mm )
300 mm
Width weighing plate ( mm )
400 mm
Linearity
±10/20 g
Verified calibration
Verifiable
Weighing plate (WxD)
400 x 300 mm
Kusy v balení
1
Na otázku
Obrázek produktové varianty IFC 60K-3
4709019 / IFC 60K-3
Height ( mm )
117 mm
Weight ( g )
7 kg
Width ( mm )
400 mm
Depth ( mm )
300 mm
Type
IFC 60K-3
Dimensions (WxDxH)
400 x 300 x 117 mm
Warranty
3 years
Safety Data Sheet
https://sw.llg.de/search?search=4709019
Reproducibility ( % )
2 g
Readability ( N )
2 g
Max. load ( g )
60 kg
Depth weighing plate ( mm )
300 mm
Width weighing plate ( mm )
400 mm
Linearity
±6 g
Verified calibration
Not verifiable
Weighing plate (WxD)
400 x 300 mm
Kusy v balení
-
Na otázku

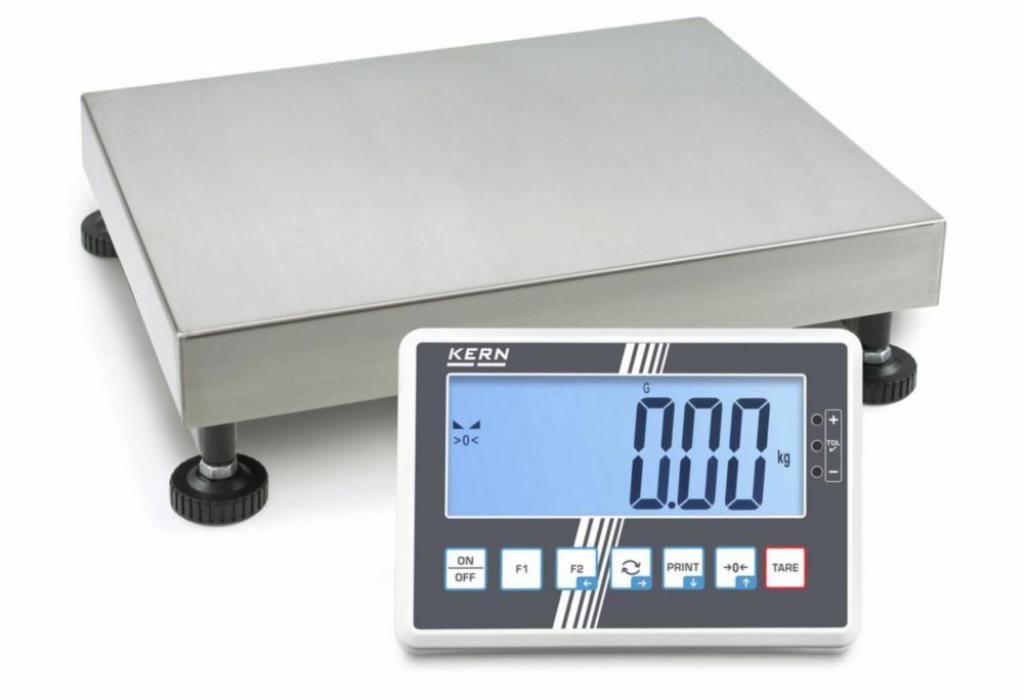

Obrázek produktové varianty IFC 60K-3L
4709020 / IFC 60K-3L
Height ( mm )
127 mm
Weight ( g )
10 kg
Width ( mm )
500 mm
Depth ( mm )
400 mm
Type
IFC 60K-3L
Dimensions (WxDxH)
500 x 400 x 127 mm
Warranty
3 years
Safety Data Sheet
https://sw.llg.de/search?search=4709020
Reproducibility ( % )
2 g
Readability ( N )
2 g
Max. load ( g )
60 kg
Depth weighing plate ( mm )
400 mm
Width weighing plate ( mm )
500 mm
Linearity
±6 g
Verified calibration
Not verifiable
Weighing plate (WxD)
500 x 400 mm
Kusy v balení
1
Na otázku

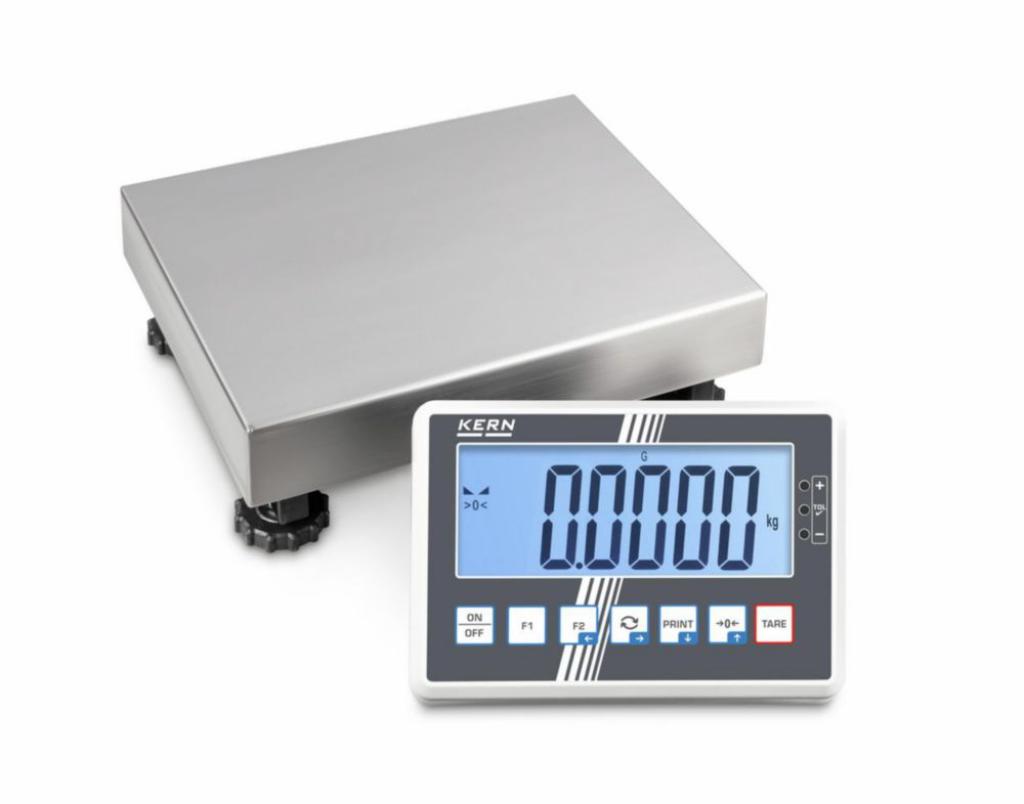

Obrázek produktové varianty IFC 10K-4
4711807 / IFC 10K-4
Height ( mm )
109 mm
Weight ( g )
5 kg
Width ( mm )
300 mm
Depth ( mm )
240 mm
Type
IFC 10K-4
Dimensions (WxDxH)
300 x 240 x 109 mm
Warranty
2 years
Safety Data Sheet
https://sw.llg.de/search?search=4711807
Reproducibility ( % )
0,5 g
Readability ( N )
0,5 g
Max. load ( g )
15 kg
Depth weighing plate ( mm )
240 mm
Width weighing plate ( mm )
300 mm
Linearity
±1,5 g
Verified calibration
Not verifiable
Weighing plate (WxD)
300 x 240 mm
Kusy v balení
1
Na otázku

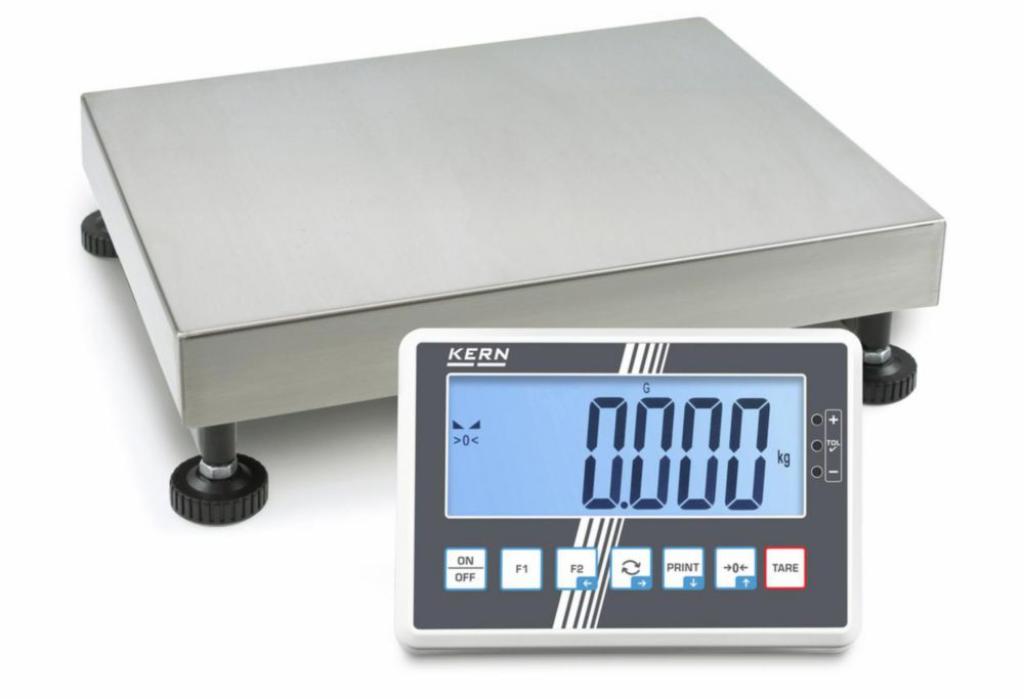

Obrázek produktové varianty IFC 150K-3
4711808 / IFC 150K-3
Height ( mm )
127 mm
Weight ( g )
11 kg
Width ( mm )
500 mm
Depth ( mm )
400 mm
Type
IFC 150K-3
Dimensions (WxDxH)
500 x 400 x 127 mm
Warranty
3 years
Safety Data Sheet
https://sw.llg.de/search?search=4711808
Reproducibility ( % )
5 g
Readability ( N )
5 g
Max. load ( g )
150 kg
Depth weighing plate ( mm )
400 mm
Width weighing plate ( mm )
500 mm
Linearity
±15 g
Verified calibration
Not verifiable
Weighing plate (WxD)
500 x 400 mm
Kusy v balení
-
Na otázku

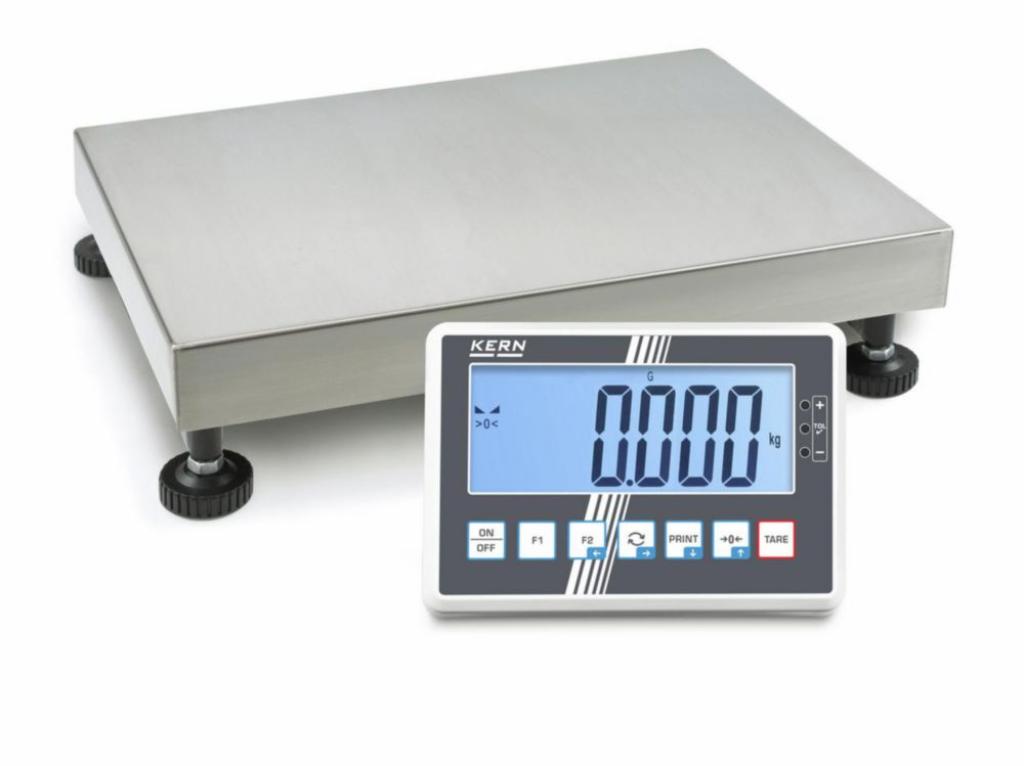

Obrázek produktové varianty IFC 150K-3L
4711809 / IFC 150K-3L
Height ( mm )
139 mm
Weight ( g )
18 kg
Width ( mm )
650 mm
Depth ( mm )
500 mm
Type
IFC 150K-3L
Dimensions (WxDxH)
650 x 500 x 139 mm
Warranty
3 years
Safety Data Sheet
https://sw.llg.de/search?search=4711809
Reproducibility ( % )
5 g
Readability ( N )
5 g
Max. load ( g )
150 kg
Depth weighing plate ( mm )
500 mm
Width weighing plate ( mm )
650 mm
Linearity
±20 g
Verified calibration
Not verifiable
Weighing plate (WxD)
650 x 500 mm
Kusy v balení
-
Na otázku

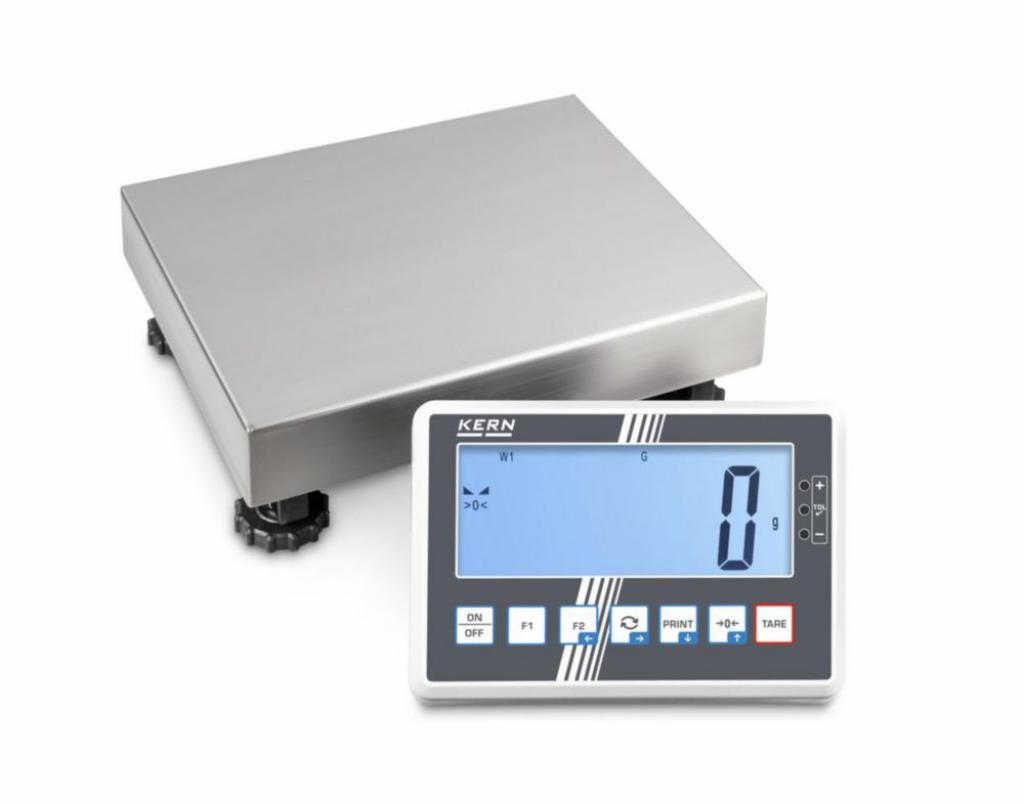

Obrázek produktové varianty IFC 15K2DLM
4711810 / IFC 15K2DLM
Height ( mm )
117 mm
Weight ( g )
7 kg
Width ( mm )
400 mm
Depth ( mm )
300 mm
Type
IFC 15K2DLM
Dimensions (WxDxH)
400 x 300 x 117 mm
Warranty
3 years
Safety Data Sheet
https://sw.llg.de/search?search=4711810
Reproducibility ( % )
2/5 g
Readability ( N )
2/5 g
Max. load ( g )
6/15 kg
Depth weighing plate ( mm )
300 mm
Width weighing plate ( mm )
400 mm
Linearity
±2/5 g
Verified calibration
Verifiable
Weighing plate (WxD)
400 x 300 mm
Kusy v balení
1
Na otázku

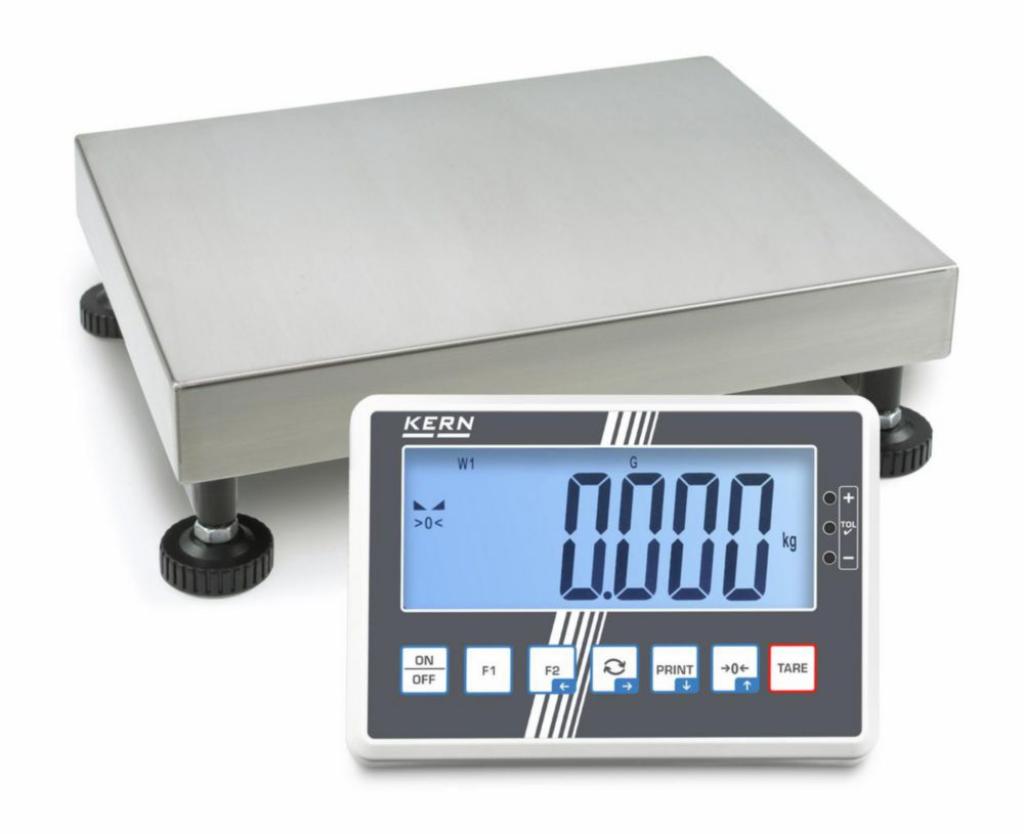

Obrázek produktové varianty IFC 15K2DM
4711811 / IFC 15K2DM
Height ( mm )
109 mm
Weight ( g )
5 kg
Width ( mm )
300 mm
Depth ( mm )
240 mm
Type
IFC 15K2DM
Dimensions (WxDxH)
300 x 240 x 109 mm
Warranty
2 years
Safety Data Sheet
https://sw.llg.de/search?search=4711811
Reproducibility ( % )
2/5 g
Readability ( N )
2/5 g
Max. load ( g )
6/15 kg
Depth weighing plate ( mm )
240 mm
Width weighing plate ( mm )
300 mm
Linearity
±2/5 g
Verified calibration
Verifiable
Weighing plate (WxD)
300 x 240 mm
Kusy v balení
1
Na otázku

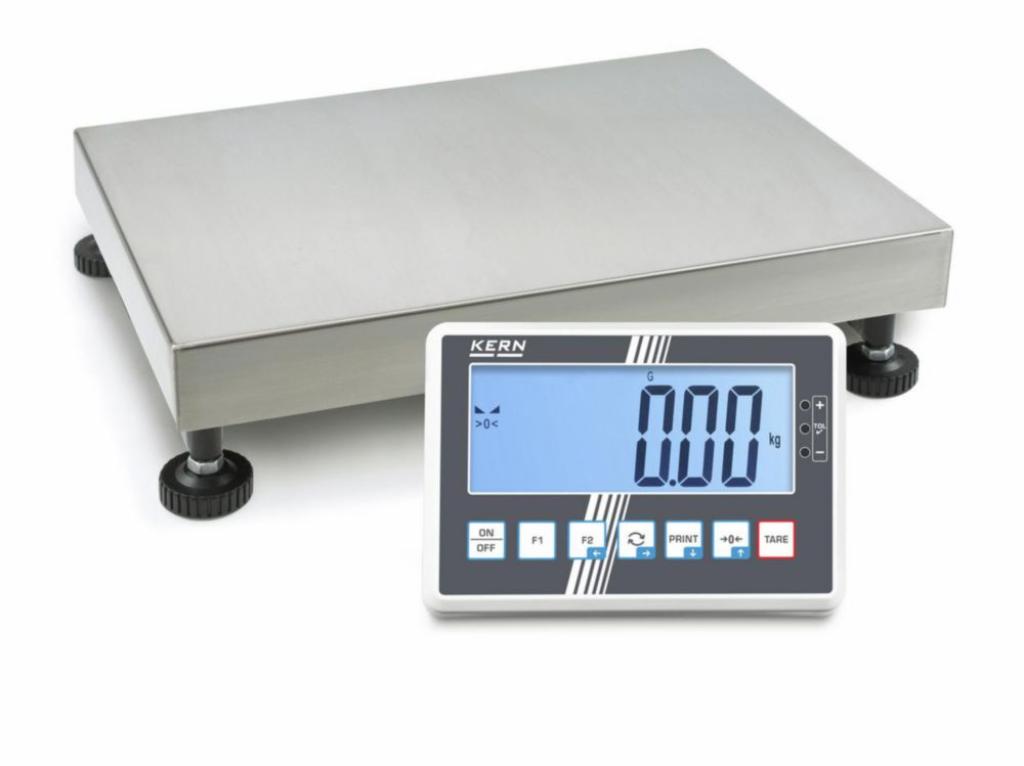

Obrázek produktové varianty IFC 300K-2
4711812 / IFC 300K-2
Height ( mm )
139 mm
Weight ( g )
20 kg
Width ( mm )
650 mm
Depth ( mm )
500 mm
Type
IFC 300K-2
Dimensions (WxDxH)
650 x 500 x 139 mm
Warranty
3 years
Safety Data Sheet
https://sw.llg.de/search?search=4711812
Reproducibility ( % )
10 g
Readability ( N )
10 g
Max. load ( g )
300 kg
Depth weighing plate ( mm )
500 mm
Width weighing plate ( mm )
650 mm
Linearity
±40 g
Verified calibration
Not verifiable
Weighing plate (WxD)
650 x 500 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty IFC 300K50DM
4711813 / IFC 300K50DM
Height ( mm )
139 mm
Weight ( g )
18 kg
Width ( mm )
650 mm
Depth ( mm )
500 mm
Type
IFC 300K50DM
Dimensions (WxDxH)
650 x 500 x 139 mm
Warranty
3 years
Safety Data Sheet
https://sw.llg.de/search?search=4711813
Reproducibility ( % )
50/100 g
Readability ( N )
50/100 g
Max. load ( g )
150/300 kg
Depth weighing plate ( mm )
500 mm
Width weighing plate ( mm )
650 mm
Linearity
±50/100 g
Verified calibration
Verifiable
Weighing plate (WxD)
650 x 500 mm
Kusy v balení
1
Na otázku

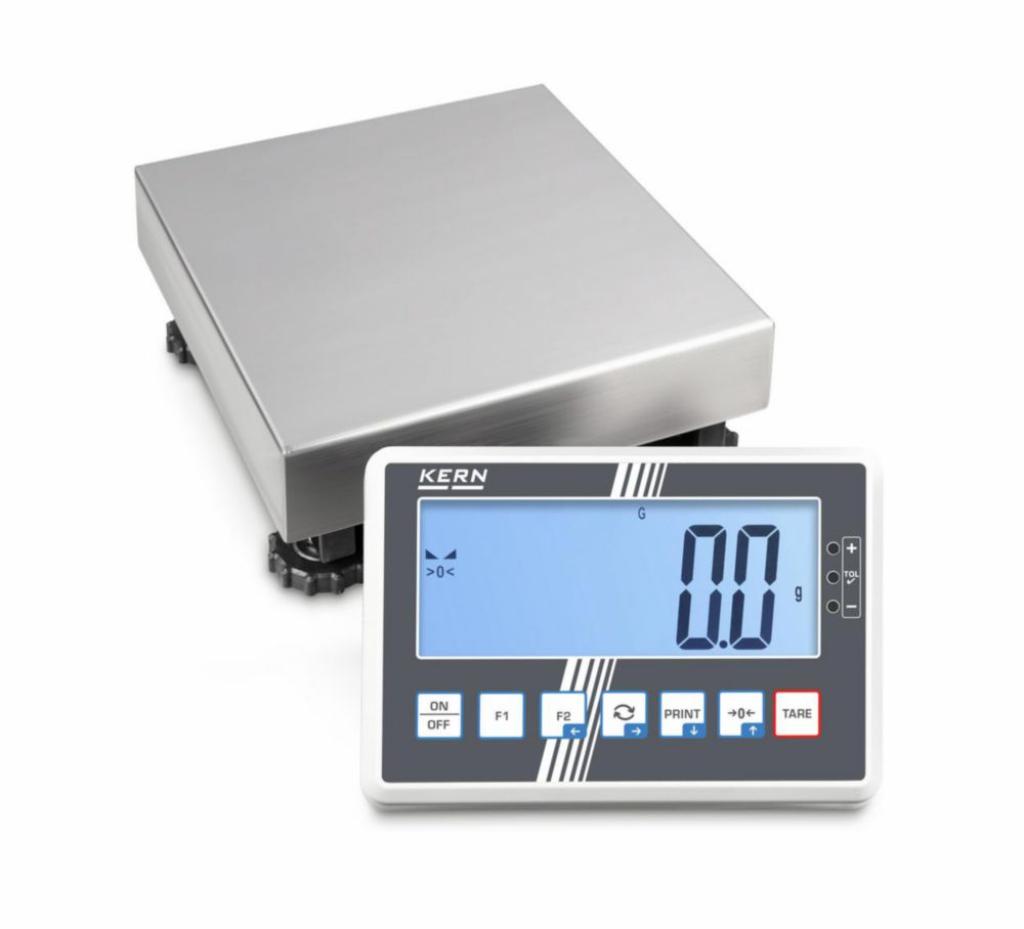

Obrázek produktové varianty IFC 3K-4
4711814 / IFC 3K-4
Height ( mm )
106 mm
Weight ( g )
4.6 kg
Width ( mm )
230 mm
Depth ( mm )
230 mm
Type
IFC 3K-4
Dimensions (WxDxH)
230 x 230 x 106 mm
Warranty
2 years
Safety Data Sheet
https://sw.llg.de/search?search=4711814
Reproducibility ( % )
0,1 g
Readability ( N )
0,1 g
Max. load ( g )
3 kg
Depth weighing plate ( mm )
230 mm
Width weighing plate ( mm )
230 mm
Linearity
±0,3 g
Verified calibration
Not verifiable
Weighing plate (WxD)
230 x 230 mm
Kusy v balení
-
Na otázku

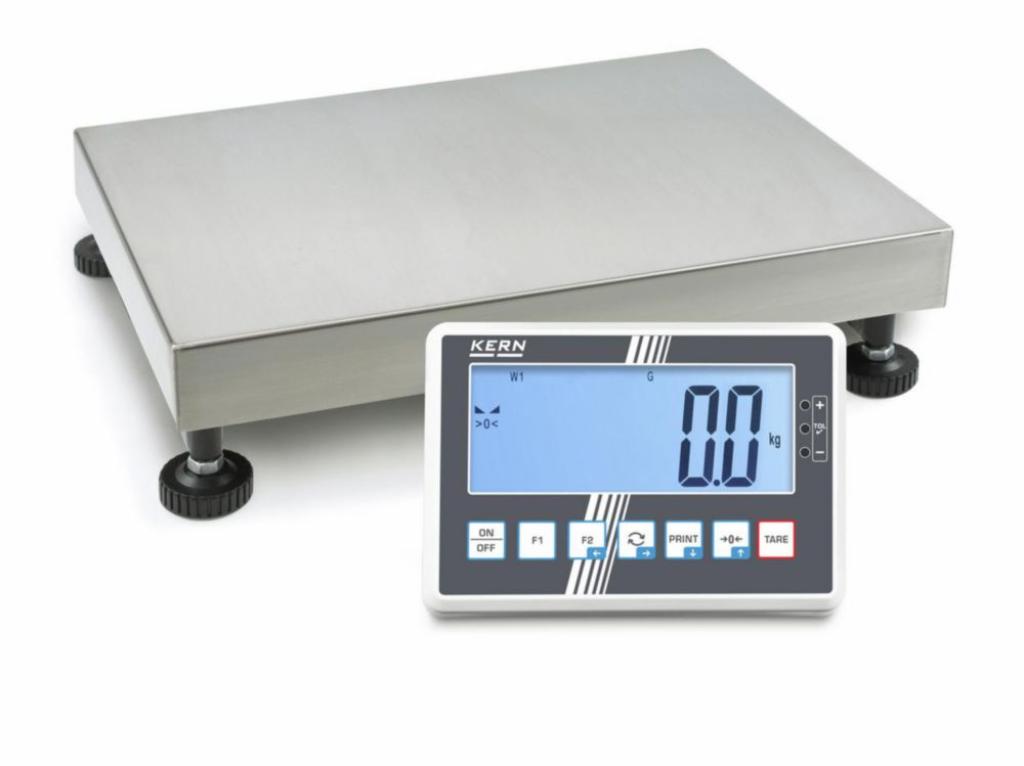

Obrázek produktové varianty IFC 600K100DM
4711815 / IFC 600K100DM
Height ( mm )
192 mm
Weight ( g )
40 kg
Width ( mm )
800 mm
Depth ( mm )
600 mm
Type
IFC 600K100DM
Dimensions (WxDxH)
800 x 600 x 192 mm
Warranty
3 years
Safety Data Sheet
https://sw.llg.de/search?search=4711815
Reproducibility ( % )
100/200 g
Readability ( N )
100/200 g
Max. load ( g )
300/600 kg
Depth weighing plate ( mm )
600 mm
Width weighing plate ( mm )
800 mm
Linearity
±100/200 g
Verified calibration
Verifiable
Weighing plate (WxD)
800 x 600 mm
Kusy v balení
1
Na otázku
Obrázek produktové varianty IFC 6K1DM
4711816 / IFC 6K1DM
Height ( mm )
109 mm
Weight ( g )
6 kg
Width ( mm )
300 mm
Depth ( mm )
240 mm
Type
IFC 6K1DM
Dimensions (WxDxH)
300 x 240 x 109 mm
Warranty
2 years
Safety Data Sheet
https://sw.llg.de/search?search=4711816
Reproducibility ( % )
1/2 g
Readability ( N )
1/2 g
Max. load ( g )
3/6 kg
Depth weighing plate ( mm )
240 mm
Width weighing plate ( mm )
300 mm
Linearity
±1/2 g
Verified calibration
Verifiable
Weighing plate (WxD)
300 x 240 mm
Kusy v balení
1
Na otázku
Obrázek produktové varianty IFC 6K-4
4711817 / IFC 6K-4
Height ( mm )
109 mm
Weight ( g )
5 kg
Width ( mm )
300 mm
Depth ( mm )
240 mm
Type
IFC 6K-4
Dimensions (WxDxH)
300 x 240 x 109 mm
Warranty
2 years
Safety Data Sheet
https://sw.llg.de/search?search=4711817
Reproducibility ( % )
0,2 g
Readability ( N )
0,2 g
Max. load ( g )
6 kg
Depth weighing plate ( mm )
240 mm
Width weighing plate ( mm )
300 mm
Linearity
±0,6 g
Verified calibration
Not verifiable
Weighing plate (WxD)
300 x 240 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty IFC 6K-4S
4711818 / IFC 6K-4S
Height ( mm )
106 mm
Weight ( g )
4.6 kg
Width ( mm )
230 mm
Depth ( mm )
230 mm
Type
IFC 6K-4S
Dimensions (WxDxH)
230 x 230 x 106 mm
Warranty
2 years
Safety Data Sheet
https://sw.llg.de/search?search=4711818
Reproducibility ( % )
0,2 g
Readability ( N )
0,2 g
Max. load ( g )
6 kg
Depth weighing plate ( mm )
230 mm
Width weighing plate ( mm )
230 mm
Linearity
±0,6 g
Verified calibration
Not verifiable
Weighing plate (WxD)
230 x 230 mm
Kusy v balení
-
Na otázku

Technické špecifikácie

Adjusting program External
Power supply frequency 50/60 Hz
Material housing Plastic
Material weighing plate Stainless steel
Max. voltage 240 V
Min. voltage 100 V
Plug type EU/CH/UK/US
Power supply 100 ... 240 V, 50/60 Hz
Type of auxiliary energy Mains connection
UNSPSC 41111509

Fotografie

Škály platforiem IFC, IoT-Line Škály platforiem IFC, IoT-Line Škály platforiem IFC, IoT-Line Škály platforiem IFC, IoT-Line Škály platforiem IFC, IoT-Line Škály platforiem IFC, IoT-Line Škály platforiem IFC, IoT-Line Škály platforiem IFC, IoT-Line Škály platforiem IFC, IoT-Line Škály platforiem IFC, IoT-Line Škály platforiem IFC, IoT-Line Škály platforiem IFC, IoT-Line Škály platforiem IFC, IoT-Line Škály platforiem IFC, IoT-Line Škály platforiem IFC, IoT-Line Škály platforiem IFC, IoT-Line Škály platforiem IFC, IoT-Line Škály platforiem IFC, IoT-Line Škály platforiem IFC, IoT-Line Škály platforiem IFC, IoT-Line Škály platforiem IFC, IoT-Line Škály platforiem IFC, IoT-Line

Otázka k produktu

Podobné produkty

Zvoľte, kam bude tovar pridaný

Prihlásenie
