Platform scales IFC, IoT-Line More photos

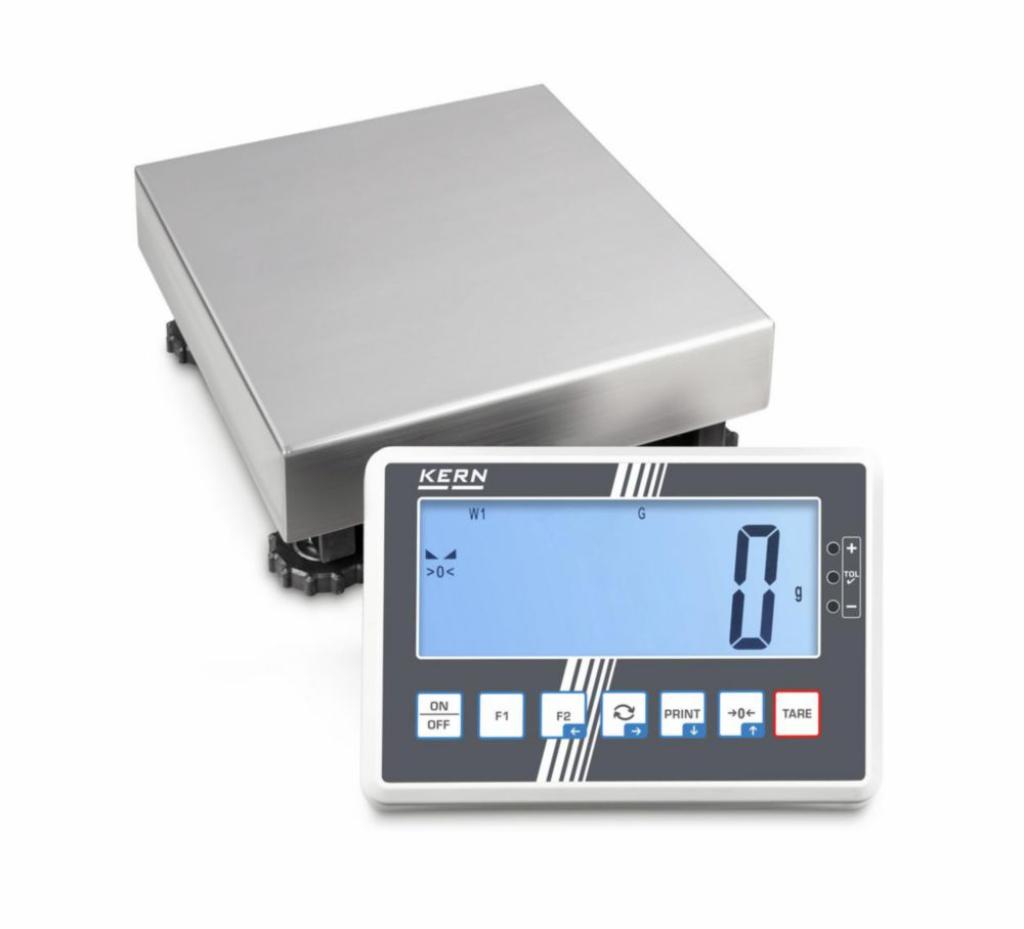

Platform scales IFC, IoT-Line

The KERN Universal Port (KUP) permits the connection of an external KUP interface adapter, such as, for example, RS-232, USB, Bluetooth, WiFi or Ethernet, for the exchange of data and control commands, without any installation outlay. The KERN Communication Protocol (KCP) permits searching and remote control of the balance using external control devices or computers.

  • Large backlit LCD display, digit height 48 mm

  • Real Time Clock

  • Simplified battery replacement through easily-accessible housing

  • Weighing plate of stainless steel, painted steel base, silicone-coated aluminium load cell

  • Dimensions of display device (W×D×H) 220 × 145 × 65 mm


Scope of supply: Platform scale, protective working cover, benchtop stand incl. wall mount for display device, universal mains adapter
Choose a variant
Manufacturer
  • Kern & Sohn GmbH
Category

Product variant

Name Hermes code and manufacturer code
Height ( mm ) Weight ( g ) Width ( mm ) Depth ( mm ) Type Dimensions (WxDxH) Warranty Safety Data Sheet Reproducibility ( % ) Readability ( N ) Max. load ( g ) Depth weighing plate ( mm ) Width weighing plate ( mm ) Linearity Verified calibration Weighing plate (WxD)
Pieces in a package Price without VAT
Obrázek produktové varianty IFC 10K-4L
4709011 / IFC 10K-4L
Height ( mm )
117 mm
Weight ( g )
8 kg
Width ( mm )
400 mm
Depth ( mm )
300 mm
Type
IFC 10K-4L
Dimensions (WxDxH)
400 x 300 x 117 mm
Warranty
3 years
Safety Data Sheet
https://sw.llg.de/search?search=4709011
Reproducibility ( % )
0,5 g
Readability ( N )
0,5 g
Max. load ( g )
15 kg
Depth weighing plate ( mm )
300 mm
Width weighing plate ( mm )
400 mm
Linearity
±1,5 g
Verified calibration
Not verifiable
Weighing plate (WxD)
400 x 300 mm
Pieces in a package
1
Upon request
Obrázek produktové varianty IFC 150K20DLM
4709012 / IFC 150K20DLM
Height ( mm )
139 mm
Weight ( g )
18 kg
Width ( mm )
650 mm
Depth ( mm )
500 mm
Type
IFC 150K20DLM
Dimensions (WxDxH)
650 x 500 x 139 mm
Warranty
3 years
Safety Data Sheet
https://sw.llg.de/search?search=4709012
Reproducibility ( % )
20/50 g
Readability ( N )
20/50 g
Max. load ( g )
60/150 kg
Depth weighing plate ( mm )
500 mm
Width weighing plate ( mm )
650 mm
Linearity
±20/50 g
Verified calibration
Verifiable
Weighing plate (WxD)
650 x 500 mm
Pieces in a package
-
Upon request
Obrázek produktové varianty IFC 150K20DM
4709013 / IFC 150K20DM
Height ( mm )
127 mm
Weight ( g )
10 kg
Width ( mm )
500 mm
Depth ( mm )
400 mm
Type
IFC 150K20DM
Dimensions (WxDxH)
500 x 400 x 127 mm
Warranty
3 years
Safety Data Sheet
https://sw.llg.de/search?search=4709013
Reproducibility ( % )
20/50 g
Readability ( N )
20/50 g
Max. load ( g )
60/150 kg
Depth weighing plate ( mm )
400 mm
Width weighing plate ( mm )
500 mm
Linearity
±20/50 g
Verified calibration
Verifiable
Weighing plate (WxD)
500 x 400 mm
Pieces in a package
-
Upon request
Obrázek produktové varianty IFC 30K-3
4709014 / IFC 30K-3
Height ( mm )
117 mm
Weight ( g )
8 kg
Width ( mm )
400 mm
Depth ( mm )
300 mm
Type
IFC 30K-3
Dimensions (WxDxH)
400 x 300 x 117 mm
Warranty
3 years
Safety Data Sheet
https://sw.llg.de/search?search=4709014
Reproducibility ( % )
1 g
Readability ( N )
1 g
Max. load ( g )
30 kg
Depth weighing plate ( mm )
300 mm
Width weighing plate ( mm )
400 mm
Linearity
±4 g
Verified calibration
Not verifiable
Weighing plate (WxD)
400 x 300 mm
Pieces in a package
1
Upon request
Obrázek produktové varianty IFC 30K5DM
4709015 / IFC 30K5DM
Height ( mm )
117 mm
Weight ( g )
8 kg
Width ( mm )
400 mm
Depth ( mm )
300 mm
Type
IFC 30K5DM
Dimensions (WxDxH)
400 x 300 x 117 mm
Warranty
3 years
Safety Data Sheet
https://sw.llg.de/search?search=4709015
Reproducibility ( % )
5/10 g
Readability ( N )
5/10 g
Max. load ( g )
15/30 kg
Depth weighing plate ( mm )
300 mm
Width weighing plate ( mm )
400 mm
Linearity
±5/10 g
Verified calibration
Verifiable
Weighing plate (WxD)
400 x 300 mm
Pieces in a package
-
Upon request
Obrázek produktové varianty IFC 600K-2
4709016 / IFC 600K-2
Height ( mm )
192 mm
Weight ( g )
40 kg
Width ( mm )
800 mm
Depth ( mm )
600 mm
Type
IFC 600K-2
Dimensions (WxDxH)
800 x 600 x 192 mm
Warranty
3 years
Safety Data Sheet
https://sw.llg.de/search?search=4709016
Reproducibility ( % )
20 g
Readability ( N )
20 g
Max. load ( g )
600 kg
Depth weighing plate ( mm )
600 mm
Width weighing plate ( mm )
800 mm
Linearity
±60 g
Verified calibration
Not verifiable
Weighing plate (WxD)
800 x 600 mm
Pieces in a package
1
Upon request
Obrázek produktové varianty IFC 60K10DLM
4709017 / IFC 60K10DLM
Height ( mm )
127 mm
Weight ( g )
10 kg
Width ( mm )
500 mm
Depth ( mm )
400 mm
Type
IFC 60K10DLM
Dimensions (WxDxH)
500 x 400 x 127 mm
Warranty
3 years
Safety Data Sheet
https://sw.llg.de/search?search=4709017
Reproducibility ( % )
10/20 g
Readability ( N )
10/20 g
Max. load ( g )
30/60 kg
Depth weighing plate ( mm )
400 mm
Width weighing plate ( mm )
500 mm
Linearity
±10/20 g
Verified calibration
Verifiable
Weighing plate (WxD)
500 x 400 mm
Pieces in a package
1
Upon request
Obrázek produktové varianty IFC 60K10DM
4709018 / IFC 60K10DM
Height ( mm )
117 mm
Weight ( g )
7 kg
Width ( mm )
400 mm
Depth ( mm )
300 mm
Type
IFC 60K10DM
Dimensions (WxDxH)
400 x 300 x 117 mm
Warranty
3 years
Safety Data Sheet
https://sw.llg.de/search?search=4709018
Reproducibility ( % )
10/20 g
Readability ( N )
10/20 g
Max. load ( g )
30/60 kg
Depth weighing plate ( mm )
300 mm
Width weighing plate ( mm )
400 mm
Linearity
±10/20 g
Verified calibration
Verifiable
Weighing plate (WxD)
400 x 300 mm
Pieces in a package
-
Upon request
Obrázek produktové varianty IFC 60K-3
4709019 / IFC 60K-3
Height ( mm )
117 mm
Weight ( g )
7 kg
Width ( mm )
400 mm
Depth ( mm )
300 mm
Type
IFC 60K-3
Dimensions (WxDxH)
400 x 300 x 117 mm
Warranty
3 years
Safety Data Sheet
https://sw.llg.de/search?search=4709019
Reproducibility ( % )
2 g
Readability ( N )
2 g
Max. load ( g )
60 kg
Depth weighing plate ( mm )
300 mm
Width weighing plate ( mm )
400 mm
Linearity
±6 g
Verified calibration
Not verifiable
Weighing plate (WxD)
400 x 300 mm
Pieces in a package
1
Upon request
Obrázek produktové varianty IFC 60K-3L
4709020 / IFC 60K-3L
Height ( mm )
127 mm
Weight ( g )
10 kg
Width ( mm )
500 mm
Depth ( mm )
400 mm
Type
IFC 60K-3L
Dimensions (WxDxH)
500 x 400 x 127 mm
Warranty
3 years
Safety Data Sheet
https://sw.llg.de/search?search=4709020
Reproducibility ( % )
2 g
Readability ( N )
2 g
Max. load ( g )
60 kg
Depth weighing plate ( mm )
400 mm
Width weighing plate ( mm )
500 mm
Linearity
±6 g
Verified calibration
Not verifiable
Weighing plate (WxD)
500 x 400 mm
Pieces in a package
-
Upon request
Obrázek produktové varianty IFC 10K-4
4711807 / IFC 10K-4
Height ( mm )
109 mm
Weight ( g )
5 kg
Width ( mm )
300 mm
Depth ( mm )
240 mm
Type
IFC 10K-4
Dimensions (WxDxH)
300 x 240 x 109 mm
Warranty
2 years
Safety Data Sheet
https://sw.llg.de/search?search=4711807
Reproducibility ( % )
0,5 g
Readability ( N )
0,5 g
Max. load ( g )
15 kg
Depth weighing plate ( mm )
240 mm
Width weighing plate ( mm )
300 mm
Linearity
±1,5 g
Verified calibration
Not verifiable
Weighing plate (WxD)
300 x 240 mm
Pieces in a package
-
Upon request
Obrázek produktové varianty IFC 150K-3
4711808 / IFC 150K-3
Height ( mm )
127 mm
Weight ( g )
11 kg
Width ( mm )
500 mm
Depth ( mm )
400 mm
Type
IFC 150K-3
Dimensions (WxDxH)
500 x 400 x 127 mm
Warranty
3 years
Safety Data Sheet
https://sw.llg.de/search?search=4711808
Reproducibility ( % )
5 g
Readability ( N )
5 g
Max. load ( g )
150 kg
Depth weighing plate ( mm )
400 mm
Width weighing plate ( mm )
500 mm
Linearity
±15 g
Verified calibration
Not verifiable
Weighing plate (WxD)
500 x 400 mm
Pieces in a package
1
Upon request
Obrázek produktové varianty IFC 150K-3L
4711809 / IFC 150K-3L
Height ( mm )
139 mm
Weight ( g )
18 kg
Width ( mm )
650 mm
Depth ( mm )
500 mm
Type
IFC 150K-3L
Dimensions (WxDxH)
650 x 500 x 139 mm
Warranty
3 years
Safety Data Sheet
https://sw.llg.de/search?search=4711809
Reproducibility ( % )
5 g
Readability ( N )
5 g
Max. load ( g )
150 kg
Depth weighing plate ( mm )
500 mm
Width weighing plate ( mm )
650 mm
Linearity
±20 g
Verified calibration
Not verifiable
Weighing plate (WxD)
650 x 500 mm
Pieces in a package
1
Upon request
Obrázek produktové varianty IFC 15K2DLM
4711810 / IFC 15K2DLM
Height ( mm )
117 mm
Weight ( g )
7 kg
Width ( mm )
400 mm
Depth ( mm )
300 mm
Type
IFC 15K2DLM
Dimensions (WxDxH)
400 x 300 x 117 mm
Warranty
3 years
Safety Data Sheet
https://sw.llg.de/search?search=4711810
Reproducibility ( % )
2/5 g
Readability ( N )
2/5 g
Max. load ( g )
6/15 kg
Depth weighing plate ( mm )
300 mm
Width weighing plate ( mm )
400 mm
Linearity
±2/5 g
Verified calibration
Verifiable
Weighing plate (WxD)
400 x 300 mm
Pieces in a package
-
Upon request
Obrázek produktové varianty IFC 15K2DM
4711811 / IFC 15K2DM
Height ( mm )
109 mm
Weight ( g )
5 kg
Width ( mm )
300 mm
Depth ( mm )
240 mm
Type
IFC 15K2DM
Dimensions (WxDxH)
300 x 240 x 109 mm
Warranty
2 years
Safety Data Sheet
https://sw.llg.de/search?search=4711811
Reproducibility ( % )
2/5 g
Readability ( N )
2/5 g
Max. load ( g )
6/15 kg
Depth weighing plate ( mm )
240 mm
Width weighing plate ( mm )
300 mm
Linearity
±2/5 g
Verified calibration
Verifiable
Weighing plate (WxD)
300 x 240 mm
Pieces in a package
-
Upon request
Obrázek produktové varianty IFC 300K-2
4711812 / IFC 300K-2
Height ( mm )
139 mm
Weight ( g )
20 kg
Width ( mm )
650 mm
Depth ( mm )
500 mm
Type
IFC 300K-2
Dimensions (WxDxH)
650 x 500 x 139 mm
Warranty
3 years
Safety Data Sheet
https://sw.llg.de/search?search=4711812
Reproducibility ( % )
10 g
Readability ( N )
10 g
Max. load ( g )
300 kg
Depth weighing plate ( mm )
500 mm
Width weighing plate ( mm )
650 mm
Linearity
±40 g
Verified calibration
Not verifiable
Weighing plate (WxD)
650 x 500 mm
Pieces in a package
1
Upon request
Obrázek produktové varianty IFC 300K50DM
4711813 / IFC 300K50DM
Height ( mm )
139 mm
Weight ( g )
18 kg
Width ( mm )
650 mm
Depth ( mm )
500 mm
Type
IFC 300K50DM
Dimensions (WxDxH)
650 x 500 x 139 mm
Warranty
3 years
Safety Data Sheet
https://sw.llg.de/search?search=4711813
Reproducibility ( % )
50/100 g
Readability ( N )
50/100 g
Max. load ( g )
150/300 kg
Depth weighing plate ( mm )
500 mm
Width weighing plate ( mm )
650 mm
Linearity
±50/100 g
Verified calibration
Verifiable
Weighing plate (WxD)
650 x 500 mm
Pieces in a package
-
Upon request
Obrázek produktové varianty IFC 3K-4
4711814 / IFC 3K-4
Height ( mm )
106 mm
Weight ( g )
4.6 kg
Width ( mm )
230 mm
Depth ( mm )
230 mm
Type
IFC 3K-4
Dimensions (WxDxH)
230 x 230 x 106 mm
Warranty
2 years
Safety Data Sheet
https://sw.llg.de/search?search=4711814
Reproducibility ( % )
0,1 g
Readability ( N )
0,1 g
Max. load ( g )
3 kg
Depth weighing plate ( mm )
230 mm
Width weighing plate ( mm )
230 mm
Linearity
±0,3 g
Verified calibration
Not verifiable
Weighing plate (WxD)
230 x 230 mm
Pieces in a package
1
Upon request
Obrázek produktové varianty IFC 600K100DM
4711815 / IFC 600K100DM
Height ( mm )
192 mm
Weight ( g )
40 kg
Width ( mm )
800 mm
Depth ( mm )
600 mm
Type
IFC 600K100DM
Dimensions (WxDxH)
800 x 600 x 192 mm
Warranty
3 years
Safety Data Sheet
https://sw.llg.de/search?search=4711815
Reproducibility ( % )
100/200 g
Readability ( N )
100/200 g
Max. load ( g )
300/600 kg
Depth weighing plate ( mm )
600 mm
Width weighing plate ( mm )
800 mm
Linearity
±100/200 g
Verified calibration
Verifiable
Weighing plate (WxD)
800 x 600 mm
Pieces in a package
-
Upon request
Obrázek produktové varianty IFC 6K1DM
4711816 / IFC 6K1DM
Height ( mm )
109 mm
Weight ( g )
6 kg
Width ( mm )
300 mm
Depth ( mm )
240 mm
Type
IFC 6K1DM
Dimensions (WxDxH)
300 x 240 x 109 mm
Warranty
2 years
Safety Data Sheet
https://sw.llg.de/search?search=4711816
Reproducibility ( % )
1/2 g
Readability ( N )
1/2 g
Max. load ( g )
3/6 kg
Depth weighing plate ( mm )
240 mm
Width weighing plate ( mm )
300 mm
Linearity
±1/2 g
Verified calibration
Verifiable
Weighing plate (WxD)
300 x 240 mm
Pieces in a package
-
Upon request
Obrázek produktové varianty IFC 6K-4
4711817 / IFC 6K-4
Height ( mm )
109 mm
Weight ( g )
5 kg
Width ( mm )
300 mm
Depth ( mm )
240 mm
Type
IFC 6K-4
Dimensions (WxDxH)
300 x 240 x 109 mm
Warranty
2 years
Safety Data Sheet
https://sw.llg.de/search?search=4711817
Reproducibility ( % )
0,2 g
Readability ( N )
0,2 g
Max. load ( g )
6 kg
Depth weighing plate ( mm )
240 mm
Width weighing plate ( mm )
300 mm
Linearity
±0,6 g
Verified calibration
Not verifiable
Weighing plate (WxD)
300 x 240 mm
Pieces in a package
1
Upon request
Obrázek produktové varianty IFC 6K-4S
4711818 / IFC 6K-4S
Height ( mm )
106 mm
Weight ( g )
4.6 kg
Width ( mm )
230 mm
Depth ( mm )
230 mm
Type
IFC 6K-4S
Dimensions (WxDxH)
230 x 230 x 106 mm
Warranty
2 years
Safety Data Sheet
https://sw.llg.de/search?search=4711818
Reproducibility ( % )
0,2 g
Readability ( N )
0,2 g
Max. load ( g )
6 kg
Depth weighing plate ( mm )
230 mm
Width weighing plate ( mm )
230 mm
Linearity
±0,6 g
Verified calibration
Not verifiable
Weighing plate (WxD)
230 x 230 mm
Pieces in a package
1
Upon request
Obrázek produktové varianty IFC 6K1DSM
6522818 / IFC 6K1DSM
Height ( mm )
106 mm
Weight ( g )
4.8 kg
Width ( mm )
230 mm
Depth ( mm )
230 mm
Type
IFC 6K1DSM
Dimensions (WxDxH)
230 x 230 x 106 mm
Warranty
2 years
Safety Data Sheet
https://sw.llg.de/search?search=6522818
Reproducibility ( % )
1/2 g
Readability ( N )
1/2 g
Max. load ( g )
3/6 kg
Depth weighing plate ( mm )
230 mm
Width weighing plate ( mm )
230 mm
Linearity
±1/2 g
Verified calibration
Verifiable
Weighing plate (WxD)
230 x 230 mm
Pieces in a package
-
Upon request

Technical specifications

Adjusting program External
Power supply frequency 50/60 Hz
Material housing Plastic
Material weighing plate Stainless steel
Max. voltage 240 V
Min. voltage 100 V
Plug type EU/CH/UK/US
Power supply 100 ... 240 V, 50/60 Hz
Type of auxiliary energy Mains connection
UNSPSC 41111509

Photos

Platform scales IFC, IoT-Line Platform scales IFC, IoT-Line Platform scales IFC, IoT-Line Platform scales IFC, IoT-Line Platform scales IFC, IoT-Line Platform scales IFC, IoT-Line Platform scales IFC, IoT-Line Platform scales IFC, IoT-Line Platform scales IFC, IoT-Line Platform scales IFC, IoT-Line Platform scales IFC, IoT-Line Platform scales IFC, IoT-Line Platform scales IFC, IoT-Line Platform scales IFC, IoT-Line Platform scales IFC, IoT-Line Platform scales IFC, IoT-Line Platform scales IFC, IoT-Line Platform scales IFC, IoT-Line Platform scales IFC, IoT-Line Platform scales IFC, IoT-Line Platform scales IFC, IoT-Line Platform scales IFC, IoT-Line Platform scales IFC, IoT-Line

Product question

Similar products

Choose where the product will be added

Login
