Viskozimetre Ubbelohde, sklenené, kinematické Ďalšie fotografie

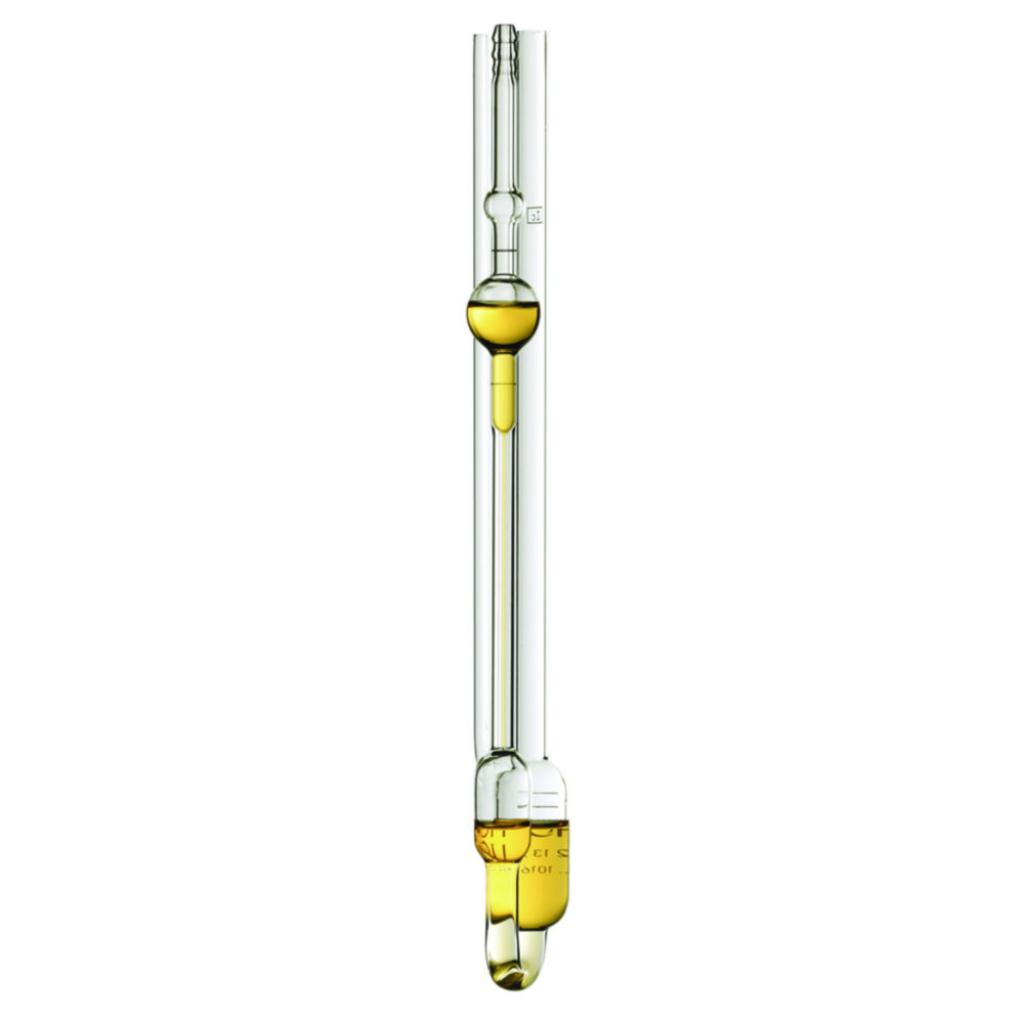

Viskozimetre Ubbelohde, sklenené, kinematické

ISO 3105, DIN 51562.
Pre manuálne (typ 501..) alebo automatické (typ 532..) meranie.
Konštanty zdokumentované v certifikáte výrobcu.
Zvoľte variant
Výrobca
  • Xylem Analytics Germany (SI)
Kategória

Varianty produktu

Názov Katalógové číslo / Kód produktu
Int. Ø ( mm ) Type Safety Data Sheet Max. measured value ( db(A) ) Min. measured value ( db(A) ) Measured range Constant Measurement No. of capillary
Kusy v balení Cena bez DPH
Obrázek produktové varianty 532 00
7023176 / 285400164
Int. Ø ( mm )
0.36 mm
Type
532 00
Safety Data Sheet
https://sw.llg.de/search?search=7023176
Max. measured value ( db(A) )
1 mm²/s
Min. measured value ( db(A) )
0.3 mm²/s
Measured range
0.3 ... 1 mm²/s
Constant
0.001
Measurement
Automatical
No. of capillary
-
Kusy v balení
1
Na otázku
Obrázek produktové varianty 532 11
7023177 / 285400172
Int. Ø ( mm )
0.95 mm
Type
532 11
Safety Data Sheet
https://sw.llg.de/search?search=7023177
Max. measured value ( db(A) )
50 mm²/s
Min. measured value ( db(A) )
5 mm²/s
Measured range
5 ... 50 mm²/s
Constant
0.05
Measurement
Automatical
No. of capillary
Ia
Kusy v balení
-
Na otázku
Obrázek produktové varianty 532 21
7023178 / 285400189
Int. Ø ( mm )
1.69 mm
Type
532 21
Safety Data Sheet
https://sw.llg.de/search?search=7023178
Max. measured value ( db(A) )
500 mm²/s
Min. measured value ( db(A) )
50 mm²/s
Measured range
50 ... 500 mm²/s
Constant
0.5
Measurement
Automatical
No. of capillary
IIa
Kusy v balení
1
Na otázku
Obrázek produktové varianty 532 31
7023179 / 285400197
Int. Ø ( mm )
3.00 mm
Type
532 31
Safety Data Sheet
https://sw.llg.de/search?search=7023179
Max. measured value ( db(A) )
5000 mm²/s
Min. measured value ( db(A) )
500 mm²/s
Measured range
500 ... 5,000 mm²/s
Constant
5
Measurement
Automatical
No. of capillary
IIIa
Kusy v balení
1
Na otázku
Obrázek produktové varianty 501 00
9268100 / 285400004
Int. Ø ( mm )
0.36 mm
Type
501 00
Safety Data Sheet
https://sw.llg.de/search?search=9268100
Max. measured value ( db(A) )
1 mm²/s
Min. measured value ( db(A) )
0.3 mm²/s
Measured range
0.3 ... 1 mm²/s
Constant
0.001
Measurement
Manual
No. of capillary
-
Kusy v balení
1
Na otázku
Obrázek produktové varianty 501 01
9268101 / 285400029
Int. Ø ( mm )
0.53 mm
Type
501 01
Safety Data Sheet
https://sw.llg.de/search?search=9268101
Max. measured value ( db(A) )
5 mm²/s
Min. measured value ( db(A) )
0.8 mm²/s
Measured range
0.8 ... 5 mm²/s
Constant
0.005
Measurement
Manual
No. of capillary
0a
Kusy v balení
1
Na otázku
Obrázek produktové varianty 501 03
9268103 / 285400012
Int. Ø ( mm )
0.47 mm
Type
501 03
Safety Data Sheet
https://sw.llg.de/search?search=9268103
Max. measured value ( db(A) )
3 mm²/s
Min. measured value ( db(A) )
0.5 mm²/s
Measured range
0.5 ... 3 mm²/s
Constant
0.003
Measurement
Manual
No. of capillary
0c
Kusy v balení
1
Na otázku
Obrázek produktové varianty 501 10
9268110 / 285400037
Int. Ø ( mm )
0.63 mm
Type
501 10
Safety Data Sheet
https://sw.llg.de/search?search=9268110
Max. measured value ( db(A) )
10 mm²/s
Min. measured value ( db(A) )
1.2 mm²/s
Measured range
1.2 ... 10 mm²/s
Constant
0.01
Measurement
Manual
No. of capillary
I
Kusy v balení
1
Na otázku
Obrázek produktové varianty 501 11
9268111 / 285400053
Int. Ø ( mm )
0.95 mm
Type
501 11
Safety Data Sheet
https://sw.llg.de/search?search=9268111
Max. measured value ( db(A) )
50 mm²/s
Min. measured value ( db(A) )
5 mm²/s
Measured range
5 ... 50 mm²/s
Constant
0.05
Measurement
Manual
No. of capillary
Ia
Kusy v balení
1
Na otázku
Obrázek produktové varianty 501 13
9268113 / 285400045
Int. Ø ( mm )
0.84 mm
Type
501 13
Safety Data Sheet
https://sw.llg.de/search?search=9268113
Max. measured value ( db(A) )
30 mm²/s
Min. measured value ( db(A) )
3 mm²/s
Measured range
3 ... 30 mm²/s
Constant
0.03
Measurement
Manual
No. of capillary
Ic
Kusy v balení
1
Na otázku
Obrázek produktové varianty 501 20
9268120 / 285400061
Int. Ø ( mm )
1.13 mm
Type
501 20
Safety Data Sheet
https://sw.llg.de/search?search=9268120
Max. measured value ( db(A) )
100 mm²/s
Min. measured value ( db(A) )
10 mm²/s
Measured range
10 ... 100 mm²/s
Constant
0.1
Measurement
Manual
No. of capillary
II
Kusy v balení
1
Na otázku
Obrázek produktové varianty 501 21
9268121 / 285400086
Int. Ø ( mm )
1.69 mm
Type
501 21
Safety Data Sheet
https://sw.llg.de/search?search=9268121
Max. measured value ( db(A) )
500 mm²/s
Min. measured value ( db(A) )
50 mm²/s
Measured range
50 ... 500 mm²/s
Constant
0.5
Measurement
Manual
No. of capillary
IIa
Kusy v balení
1
Na otázku
Obrázek produktové varianty 501 23
9268123 / 285400078
Int. Ø ( mm )
1.50 mm
Type
501 23
Safety Data Sheet
https://sw.llg.de/search?search=9268123
Max. measured value ( db(A) )
300 mm²/s
Min. measured value ( db(A) )
30 mm²/s
Measured range
30 ... 300 mm²/s
Constant
0.3
Measurement
Manual
No. of capillary
IIc
Kusy v balení
1
Na otázku
Obrázek produktové varianty 501 30
9268130 / 285400094
Int. Ø ( mm )
2.01 mm
Type
501 30
Safety Data Sheet
https://sw.llg.de/search?search=9268130
Max. measured value ( db(A) )
1000 mm²/s
Min. measured value ( db(A) )
100 mm²/s
Measured range
100 ... 1,000 mm²/s
Constant
1
Measurement
Manual
No. of capillary
III
Kusy v balení
1
Na otázku
Obrázek produktové varianty 501 31
9268131 / 285400115
Int. Ø ( mm )
3.00 mm
Type
501 31
Safety Data Sheet
https://sw.llg.de/search?search=9268131
Max. measured value ( db(A) )
5000 mm²/s
Min. measured value ( db(A) )
500 mm²/s
Measured range
500 ... 5,000 mm²/s
Constant
5
Measurement
Manual
No. of capillary
IIIa
Kusy v balení
1
Na otázku
Obrázek produktové varianty 501 33
9268133 / 285400107
Int. Ø ( mm )
2.65 mm
Type
501 33
Safety Data Sheet
https://sw.llg.de/search?search=9268133
Max. measured value ( db(A) )
3000 mm²/s
Min. measured value ( db(A) )
300 mm²/s
Measured range
300 ... 3,000 mm²/s
Constant
3
Measurement
Manual
No. of capillary
IIIc
Kusy v balení
1
Na otázku
Obrázek produktové varianty 501 40
9268140 / 285400123
Int. Ø ( mm )
3.60 mm
Type
501 40
Safety Data Sheet
https://sw.llg.de/search?search=9268140
Max. measured value ( db(A) )
10000 mm²/s
Min. measured value ( db(A) )
1000 mm²/s
Measured range
1,000 ... 10,000 mm²/s
Constant
10
Measurement
Manual
No. of capillary
IV
Kusy v balení
1
Na otázku
Obrázek produktové varianty 532 01
9268201 / 285400218
Int. Ø ( mm )
0.53 mm
Type
532 01
Safety Data Sheet
https://sw.llg.de/search?search=9268201
Max. measured value ( db(A) )
5 mm²/s
Min. measured value ( db(A) )
0.8 mm²/s
Measured range
0.8 ... 5 mm²/s
Constant
0.005
Measurement
Automatical
No. of capillary
0a
Kusy v balení
1
Na otázku
Obrázek produktové varianty 532 03
9268203 / 285400201
Int. Ø ( mm )
0.47 mm
Type
532 03
Safety Data Sheet
https://sw.llg.de/search?search=9268203
Max. measured value ( db(A) )
3 mm²/s
Min. measured value ( db(A) )
0.5 mm²/s
Measured range
0.5 ... 3 mm²/s
Constant
0.003
Measurement
Automatical
No. of capillary
0c
Kusy v balení
1
Na otázku
Obrázek produktové varianty 532 10
9268210 / 285400226
Int. Ø ( mm )
0.63 mm
Type
532 10
Safety Data Sheet
https://sw.llg.de/search?search=9268210
Max. measured value ( db(A) )
10 mm²/s
Min. measured value ( db(A) )
1.2 mm²/s
Measured range
1.2 ... 10 mm²/s
Constant
0.01
Measurement
Automatical
No. of capillary
I
Kusy v balení
1
Na otázku
Obrázek produktové varianty 532 13
9268213 / 285400234
Int. Ø ( mm )
0.84 mm
Type
532 13
Safety Data Sheet
https://sw.llg.de/search?search=9268213
Max. measured value ( db(A) )
30 mm²/s
Min. measured value ( db(A) )
3 mm²/s
Measured range
3 ... 30 mm²/s
Constant
0.03
Measurement
Automatical
No. of capillary
Ic
Kusy v balení
1
Na otázku
Obrázek produktové varianty 532 20
9268220 / 285400242
Int. Ø ( mm )
1.13 mm
Type
532 20
Safety Data Sheet
https://sw.llg.de/search?search=9268220
Max. measured value ( db(A) )
100 mm²/s
Min. measured value ( db(A) )
10 mm²/s
Measured range
10 ... 100 mm²/s
Constant
0.1
Measurement
Automatical
No. of capillary
II
Kusy v balení
1
Na otázku
Obrázek produktové varianty 532 23
9268223 / 285400259
Int. Ø ( mm )
1.50 mm
Type
532 23
Safety Data Sheet
https://sw.llg.de/search?search=9268223
Max. measured value ( db(A) )
300 mm²/s
Min. measured value ( db(A) )
30 mm²/s
Measured range
30 ... 300 mm²/s
Constant
0.3
Measurement
Automatical
No. of capillary
IIc
Kusy v balení
1
Na otázku
Obrázek produktové varianty 532 30
9268230 / 285400267
Int. Ø ( mm )
2.01 mm
Type
532 30
Safety Data Sheet
https://sw.llg.de/search?search=9268230
Max. measured value ( db(A) )
1000 mm²/s
Min. measured value ( db(A) )
100 mm²/s
Measured range
100 ... 1,000 mm²/s
Constant
1
Measurement
Automatical
No. of capillary
III
Kusy v balení
-
Na otázku
Obrázek produktové varianty 532 33
9268233 / 285400275
Int. Ø ( mm )
2.65 mm
Type
532 33
Safety Data Sheet
https://sw.llg.de/search?search=9268233
Max. measured value ( db(A) )
3000 mm²/s
Min. measured value ( db(A) )
300 mm²/s
Measured range
300 ... 3,000 mm²/s
Constant
3
Measurement
Automatical
No. of capillary
IIIc
Kusy v balení
1
Na otázku
Obrázek produktové varianty 532 40
9268240 / 285400283
Int. Ø ( mm )
3.60 mm
Type
532 40
Safety Data Sheet
https://sw.llg.de/search?search=9268240
Max. measured value ( db(A) )
10000 mm²/s
Min. measured value ( db(A) )
1000 mm²/s
Measured range
1,000 ... 10,000 mm²/s
Constant
10
Measurement
Automatical
No. of capillary
IV
Kusy v balení
-
Na otázku

Technické špecifikácie

Calibration Yes
Capacity 15 ... 20 ml g
Length 290 mm
Standard ISO 3105, DIN 51562
Type of capillary viscometer Ubbelohde
UNSPSC 41103312
