Univerzálne rúry UNplus Ďalšie fotografie

Univerzálne rúry UNplus

  • Prirodzená konvekcia


TwinDISPLAY: ControlCOCKPIT s dvoma farebnými displejmi
Podrobný popis modelu "TwinDISPLAY" nájdete na www.memmert.com.
Zvoľte variant
Výrobca
  • Memmert GmbH + Co. KG
Kategória

Varianty produktu

Názov Katalógové číslo / Kód produktu
Nominal capacity ( ml ) Weight ( g ) Type Depth int. ( mm ) Height int. ( mm ) Int. width ( mm ) Ext. depth ( mm ) Ext. height ( mm ) Ext. width ( mm ) Max. voltage ( V ) Rated capacity ( W ) Power supply Safety Data Sheet Ext. dim. (WxDxH) Int. Dim. (WxDxH) Max. no. of inserts
Kusy v balení Cena bez DPH
Obrázek produktové varianty UN30plus
9869689 / UN30PLUS
Nominal capacity ( ml )
32 l
Weight ( g )
45 kg
Type
UN30plus
Depth int. ( mm )
250 mm
Height int. ( mm )
320 mm
Int. width ( mm )
400 mm
Ext. depth ( mm )
434 mm
Ext. height ( mm )
704 mm
Ext. width ( mm )
585 mm
Max. voltage ( V )
230 V
Rated capacity ( W )
1600 W
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=9869689
Ext. dim. (WxDxH)
585 x 434 x 704 mm
Int. Dim. (WxDxH)
400 x 250 x 320 mm
Max. no. of inserts
3
Kusy v balení
1
Na otázku
Obrázek produktové varianty UN55plus
9869690 / UN55PLUS
Nominal capacity ( ml )
53 l
Weight ( g )
57 kg
Type
UN55plus
Depth int. ( mm )
330 mm
Height int. ( mm )
400 mm
Int. width ( mm )
400 mm
Ext. depth ( mm )
514 mm
Ext. height ( mm )
784 mm
Ext. width ( mm )
585 mm
Max. voltage ( V )
230 V
Rated capacity ( W )
2000 W
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=9869690
Ext. dim. (WxDxH)
585 x 514 x 784 mm
Int. Dim. (WxDxH)
400 x 330 x 400 mm
Max. no. of inserts
4
Kusy v balení
-
Na otázku
Obrázek produktové varianty UN75plus
9869691 / UN75PLUS
Nominal capacity ( ml )
74 l
Weight ( g )
66 kg
Type
UN75plus
Depth int. ( mm )
330 mm
Height int. ( mm )
560 mm
Int. width ( mm )
400 mm
Ext. depth ( mm )
514 mm
Ext. height ( mm )
944 mm
Ext. width ( mm )
585 mm
Max. voltage ( V )
230 V
Rated capacity ( W )
2500 W
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=9869691
Ext. dim. (WxDxH)
585 x 514 x 944 mm
Int. Dim. (WxDxH)
400 x 330 x 560 mm
Max. no. of inserts
6
Kusy v balení
1
Na otázku

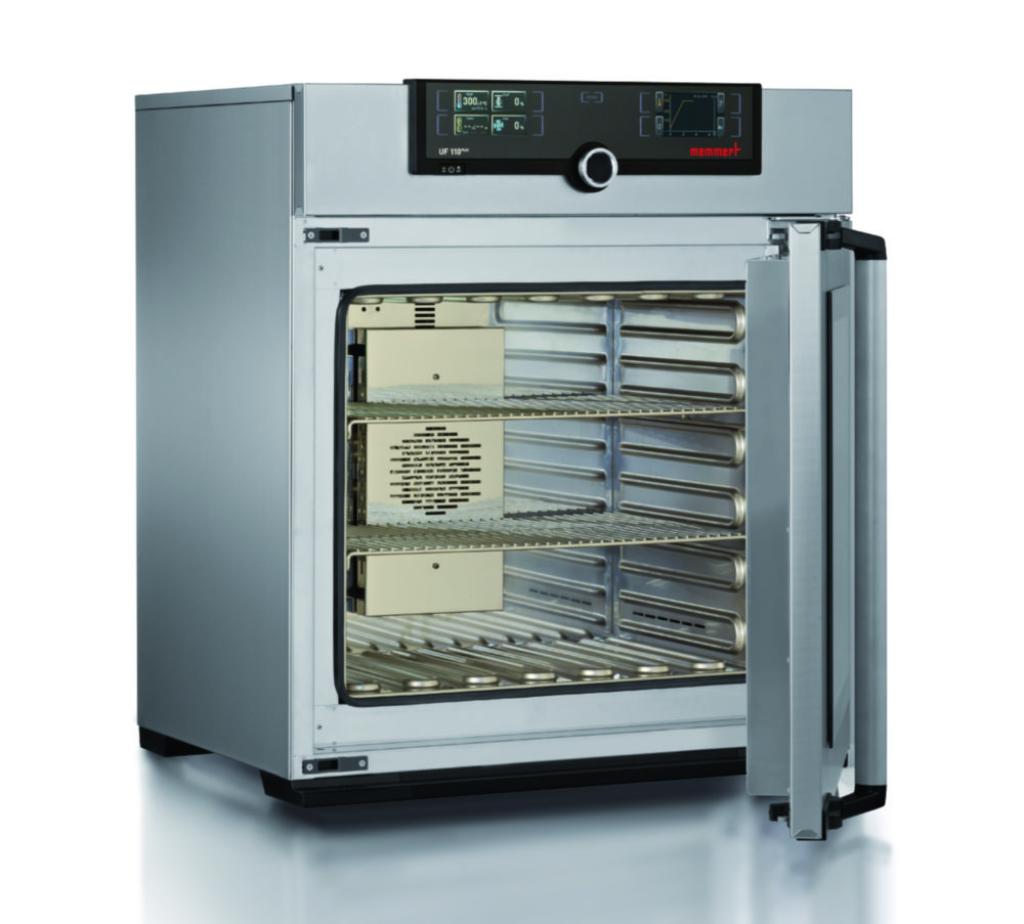

Obrázek produktové varianty UN110plus
9869692 / UN110PLUS
Nominal capacity ( ml )
108 l
Weight ( g )
74 kg
Type
UN110plus
Depth int. ( mm )
400 mm
Height int. ( mm )
480 mm
Int. width ( mm )
560 mm
Ext. depth ( mm )
584 mm
Ext. height ( mm )
864 mm
Ext. width ( mm )
745 mm
Max. voltage ( V )
230 V
Rated capacity ( W )
2800 W
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=9869692
Ext. dim. (WxDxH)
745 x 584 x 864 mm
Int. Dim. (WxDxH)
560 x 400 x 480 mm
Max. no. of inserts
5
Kusy v balení
1
Na otázku
Obrázek produktové varianty UN160plus
9869693 / UN160PLUS
Nominal capacity ( ml )
161 l
Weight ( g )
96 kg
Type
UN160plus
Depth int. ( mm )
400 mm
Height int. ( mm )
720 mm
Int. width ( mm )
560 mm
Ext. depth ( mm )
584 mm
Ext. height ( mm )
1104 mm
Ext. width ( mm )
745 mm
Max. voltage ( V )
230 V
Rated capacity ( W )
3200 W
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=9869693
Ext. dim. (WxDxH)
745 x 584 x 1,104 mm
Int. Dim. (WxDxH)
560 x 400 x 720 mm
Max. no. of inserts
8
Kusy v balení
-
Na otázku
Obrázek produktové varianty UN260plus
9869694 / UN260PLUS
Nominal capacity ( ml )
256 l
Weight ( g )
110 kg
Type
UN260plus
Depth int. ( mm )
500 mm
Height int. ( mm )
800 mm
Int. width ( mm )
640 mm
Ext. depth ( mm )
684 mm
Ext. height ( mm )
1183 mm
Ext. width ( mm )
824 mm
Max. voltage ( V )
230 V
Rated capacity ( W )
3400 W
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=9869694
Ext. dim. (WxDxH)
824 x 684 x 1,183 mm
Int. Dim. (WxDxH)
640 x 500 x 800 mm
Max. no. of inserts
9
Kusy v balení
1
Na otázku

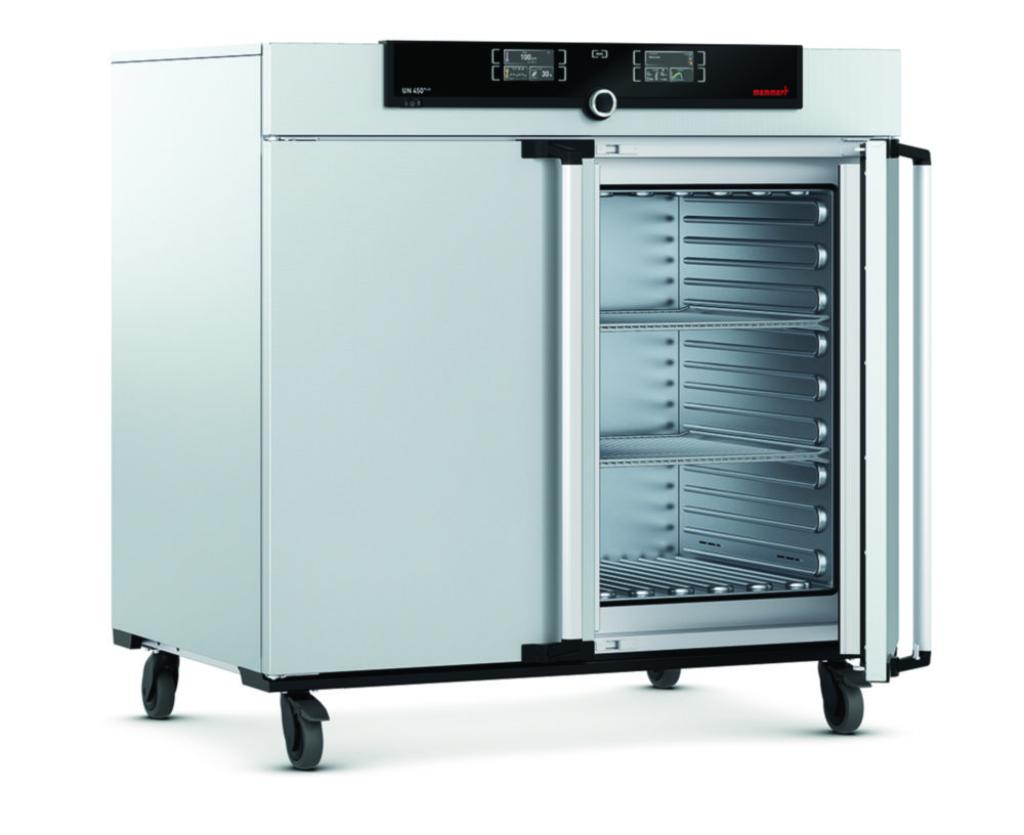

Obrázek produktové varianty UN450plus
9869695 / UN450PLUS
Nominal capacity ( ml )
449 l
Weight ( g )
161 kg
Type
UN450plus
Depth int. ( mm )
600 mm
Height int. ( mm )
720 mm
Int. width ( mm )
1040 mm
Ext. depth ( mm )
784 mm
Ext. height ( mm )
1247 mm
Ext. width ( mm )
1224 mm
Max. voltage ( V )
400 V
Rated capacity ( W )
5800 W
Power supply
400 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=9869695
Ext. dim. (WxDxH)
1,224 x 784 x 1,247 mm
Int. Dim. (WxDxH)
1,040 x 600 x 720 mm
Max. no. of inserts
8
Kusy v balení
1
Na otázku
Obrázek produktové varianty UN750plus
9869696 / UN750PLUS
Nominal capacity ( ml )
749 l
Weight ( g )
217 kg
Type
UN750plus
Depth int. ( mm )
600 mm
Height int. ( mm )
1200 mm
Int. width ( mm )
1040 mm
Ext. depth ( mm )
784 mm
Ext. height ( mm )
1720 mm
Ext. width ( mm )
1224 mm
Max. voltage ( V )
400 V
Rated capacity ( W )
7000 W
Power supply
400 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=9869696
Ext. dim. (WxDxH)
1,224 x 784 x 1,720 mm
Int. Dim. (WxDxH)
1,040 x 600 x 1,200 mm
Max. no. of inserts
14
Kusy v balení
1
Na otázku

Technické špecifikácie

Power supply frequency 50/60 Hz
Material interior Stainless steel 1.4301
Max. temperature 300 °C
Min. temperature +5 °C
Plug type EU
Temperature addition RT
Temperature RT+5 ... 300 °C
Type of auxiliary energy Mains connection
UNSPSC 41104510
With timer Yes
