Zobraziť katalóg
Univerzálne rúry UFplus Ďalšie fotografie

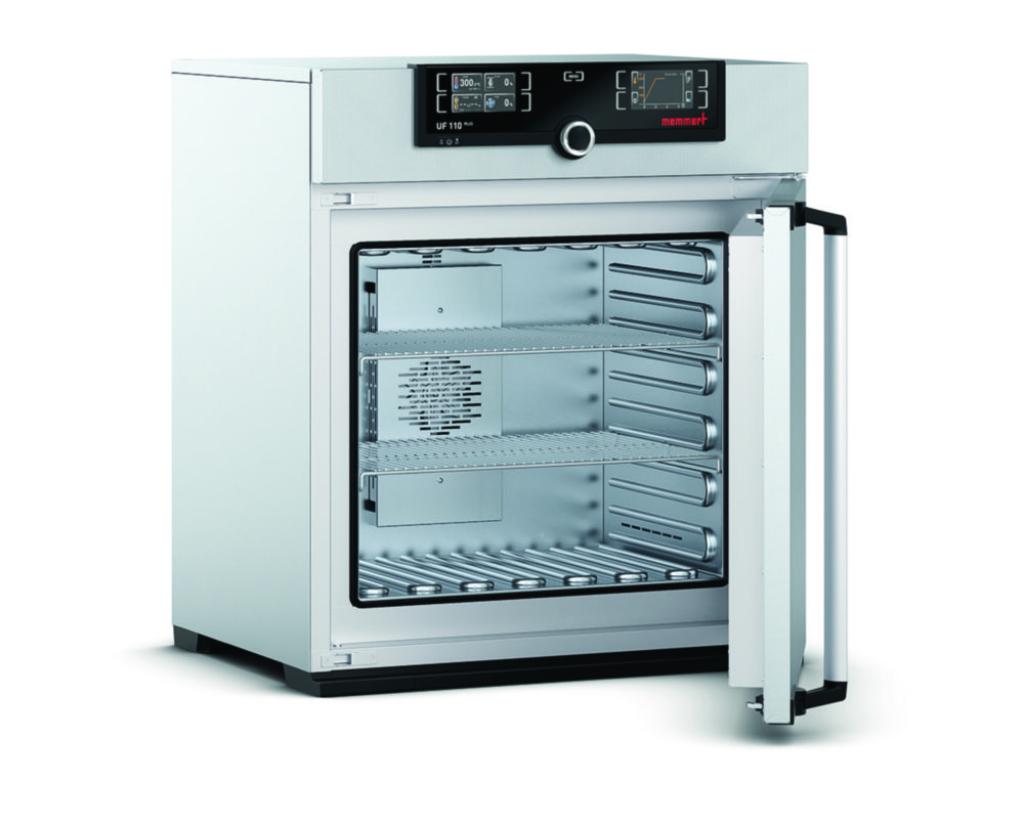

Univerzálne rúry UFplus

  • Nútená cirkulácia vzduchu


TwinDISPLAY: ControlCOCKPIT s dvoma farebnými displejmi
Podrobný popis modelu "TwinDISPLAY" nájdete na www.memmert.com.
Zvoľte variant
Výrobca
  • Memmert GmbH + Co. KG
Kategória

Varianty produktu

Názov Katalógové číslo / Kód produktu
Nominal capacity ( ml ) Weight ( g ) Type Depth int. ( mm ) Height int. ( mm ) Int. width ( mm ) Ext. depth ( mm ) Ext. height ( mm ) Ext. width ( mm ) Max. voltage ( V ) Rated capacity ( W ) Power supply Safety Data Sheet Ext. dim. (WxDxH) Int. Dim. (WxDxH) Max. no. of inserts
Kusy v balení Cena bez DPH
Obrázek produktové varianty UF30plus
9869705 / UF30PLUS
Nominal capacity ( ml )
32 l
Weight ( g )
45 kg
Type
UF30plus
Depth int. ( mm )
250 mm
Height int. ( mm )
320 mm
Int. width ( mm )
400 mm
Ext. depth ( mm )
434 mm
Ext. height ( mm )
704 mm
Ext. width ( mm )
585 mm
Max. voltage ( V )
230 V
Rated capacity ( W )
1600 W
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=9869705
Ext. dim. (WxDxH)
585 x 434 x 704 mm
Int. Dim. (WxDxH)
400 x 250 x 320 mm
Max. no. of inserts
3
Kusy v balení
1
Na otázku
Obrázek produktové varianty UF55plus
9869706 / UF55PLUS
Nominal capacity ( ml )
53 l
Weight ( g )
57 kg
Type
UF55plus
Depth int. ( mm )
330 mm
Height int. ( mm )
400 mm
Int. width ( mm )
400 mm
Ext. depth ( mm )
514 mm
Ext. height ( mm )
784 mm
Ext. width ( mm )
585 mm
Max. voltage ( V )
230 V
Rated capacity ( W )
2000 W
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=9869706
Ext. dim. (WxDxH)
585 x 514 x 784 mm
Int. Dim. (WxDxH)
400 x 330 x 400 mm
Max. no. of inserts
4
Kusy v balení
1
Na otázku
Obrázek produktové varianty UF75plus
9869707 / UF75PLUS
Nominal capacity ( ml )
74 l
Weight ( g )
66 kg
Type
UF75plus
Depth int. ( mm )
330 mm
Height int. ( mm )
560 mm
Int. width ( mm )
400 mm
Ext. depth ( mm )
514 mm
Ext. height ( mm )
944 mm
Ext. width ( mm )
585 mm
Max. voltage ( V )
230 V
Rated capacity ( W )
2500 W
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=9869707
Ext. dim. (WxDxH)
585 x 514 x 944 mm
Int. Dim. (WxDxH)
400 x 330 x 560 mm
Max. no. of inserts
6
Kusy v balení
1
Na otázku
Obrázek produktové varianty UF110plus
9869708 / UF110PLUS
Nominal capacity ( ml )
108 l
Weight ( g )
74 kg
Type
UF110plus
Depth int. ( mm )
400 mm
Height int. ( mm )
480 mm
Int. width ( mm )
560 mm
Ext. depth ( mm )
584 mm
Ext. height ( mm )
864 mm
Ext. width ( mm )
745 mm
Max. voltage ( V )
230 V
Rated capacity ( W )
2800 W
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=9869708
Ext. dim. (WxDxH)
745 x 584 x 864 mm
Int. Dim. (WxDxH)
560 x 400 x 480 mm
Max. no. of inserts
5
Kusy v balení
1
Na otázku
Obrázek produktové varianty UF160plus
9869709 / UF160PLUS
Nominal capacity ( ml )
161 l
Weight ( g )
96 kg
Type
UF160plus
Depth int. ( mm )
400 mm
Height int. ( mm )
720 mm
Int. width ( mm )
560 mm
Ext. depth ( mm )
584 mm
Ext. height ( mm )
1104 mm
Ext. width ( mm )
745 mm
Max. voltage ( V )
230 V
Rated capacity ( W )
3200 W
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=9869709
Ext. dim. (WxDxH)
745 x 584 x 1,104 mm
Int. Dim. (WxDxH)
560 x 400 x 720 mm
Max. no. of inserts
8
Kusy v balení
1
Na otázku
Obrázek produktové varianty UF260plus
9869710 / UF260PLUS
Nominal capacity ( ml )
256 l
Weight ( g )
110 kg
Type
UF260plus
Depth int. ( mm )
500 mm
Height int. ( mm )
800 mm
Int. width ( mm )
640 mm
Ext. depth ( mm )
684 mm
Ext. height ( mm )
1183 mm
Ext. width ( mm )
824 mm
Max. voltage ( V )
230 V
Rated capacity ( W )
3400 W
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=9869710
Ext. dim. (WxDxH)
824 x 684 x 1,183 mm
Int. Dim. (WxDxH)
640 x 500 x 800 mm
Max. no. of inserts
9
Kusy v balení
1
Na otázku
Obrázek produktové varianty UF450plus
9869711 / UF450PLUS
Nominal capacity ( ml )
449 l
Weight ( g )
161 kg
Type
UF450plus
Depth int. ( mm )
600 mm
Height int. ( mm )
720 mm
Int. width ( mm )
1040 mm
Ext. depth ( mm )
784 mm
Ext. height ( mm )
1247 mm
Ext. width ( mm )
1224 mm
Max. voltage ( V )
400 V
Rated capacity ( W )
5800 W
Power supply
400 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=9869711
Ext. dim. (WxDxH)
1,224 x 784 x 1,247 mm
Int. Dim. (WxDxH)
1,040 x 600 x 720 mm
Max. no. of inserts
8
Kusy v balení
1
Na otázku
Obrázek produktové varianty UF750plus
9869712 / UF750PLUS
Nominal capacity ( ml )
749 l
Weight ( g )
217 kg
Type
UF750plus
Depth int. ( mm )
600 mm
Height int. ( mm )
1200 mm
Int. width ( mm )
1040 mm
Ext. depth ( mm )
784 mm
Ext. height ( mm )
1720 mm
Ext. width ( mm )
1224 mm
Max. voltage ( V )
400 V
Rated capacity ( W )
7000 W
Power supply
400 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=9869712
Ext. dim. (WxDxH)
1,224 x 784 x 1,720 mm
Int. Dim. (WxDxH)
1,040 x 600 x 1,200 mm
Max. no. of inserts
14
Kusy v balení
1
Na otázku
Obrázek produktové varianty UF1060plus
9869713 / UF1060PLUS
Nominal capacity ( ml )
1060 l
Weight ( g )
252 kg
Type
UF1060plus
Depth int. ( mm )
850 mm
Height int. ( mm )
1200 mm
Int. width ( mm )
1040 mm
Ext. depth ( mm )
1035 mm
Ext. height ( mm )
1720 mm
Ext. width ( mm )
1224 mm
Max. voltage ( V )
400 V
Rated capacity ( W )
7000 W
Power supply
400 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=9869713
Ext. dim. (WxDxH)
1,224 x 1,035 x 1,720 mm
Int. Dim. (WxDxH)
1,040 x 850 x 1,200 mm
Max. no. of inserts
14
Kusy v balení
1
Na otázku

Technické špecifikácie

Power supply frequency 50/60 Hz
Material interior Stainless steel 1.4301
Max. temperature 300 °C
Min. temperature +10 °C
Plug type EU
Temperature addition RT
Temperature RT+10 ... 300 °C
Type of auxiliary energy Mains connection
UNSPSC 41104510
With timer Yes

Fotografie

Univerzálne rúry UFplus
