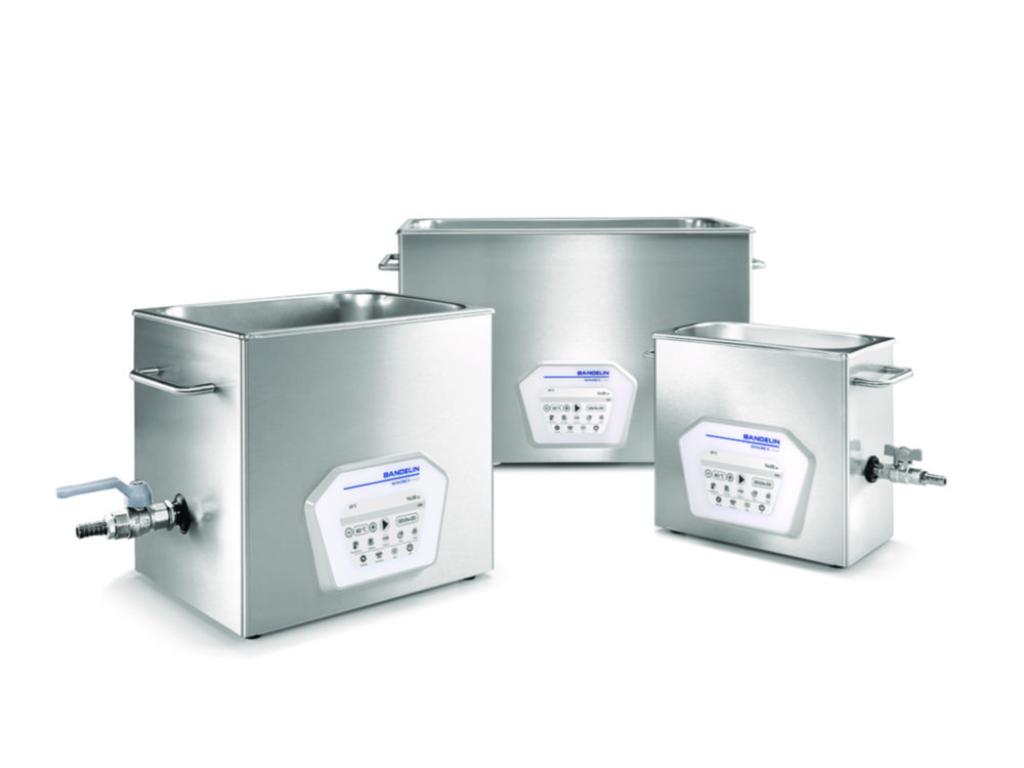

Ultrazvukové kúpele SONOREX smart ST Ďalšie fotografie

Ultrazvukové kúpele SONOREX smart ST

Tieto všestranné zariadenia s intuitívnym dotykovým displejom ponúkajú podrobné možnosti nastavenia každého parametra, presné monitorovanie a zaznamenávanie procesov a pamäť programu na spoľahlivo reprodukovateľné výsledky. Vďaka dlhej životnosti a mnohým funkciám, ako sú pulz, interval, nastavenie výkonu, rýchle odplynenie a bezpečnostné vypnutie, je vaša každodenná práca výrazne jednoduchšia.

S funkciou varovania a vypnutia
S ochranou proti chodu nasucho
Možnosť nastavenia od 10 do 100 %
Trvanie procesu s presnosťou na sekundu, s automatickým vypnutím
Režim ECO na zníženie spotreby energie
Jednotlivé programy možno uložiť
Možnosť výberu rôznych jazykov
Dokumentácia procesu prostredníctvom dokovacej stanice DST 01 (voliteľná) s USB a Ethernetom




Zvoľte variant
Výrobca
  • Bandelin electronic
Kategória

Varianty produktu

Názov Katalógové číslo / Kód produktu
Nominal capacity ( ml ) Weight ( g ) Type Depth int. ( mm ) Height int. ( mm ) Int. width ( mm ) Ext. depth ( mm ) Ext. height ( mm ) Ext. width ( mm ) Max. voltage ( V ) Plug type Ultrasonic power ( W ) Power supply Safety Data Sheet Heating capacity ( W ) Ext. dim. (WxDxH) Int. Dim. (WxDxH)
Kusy v balení Cena bez DPH

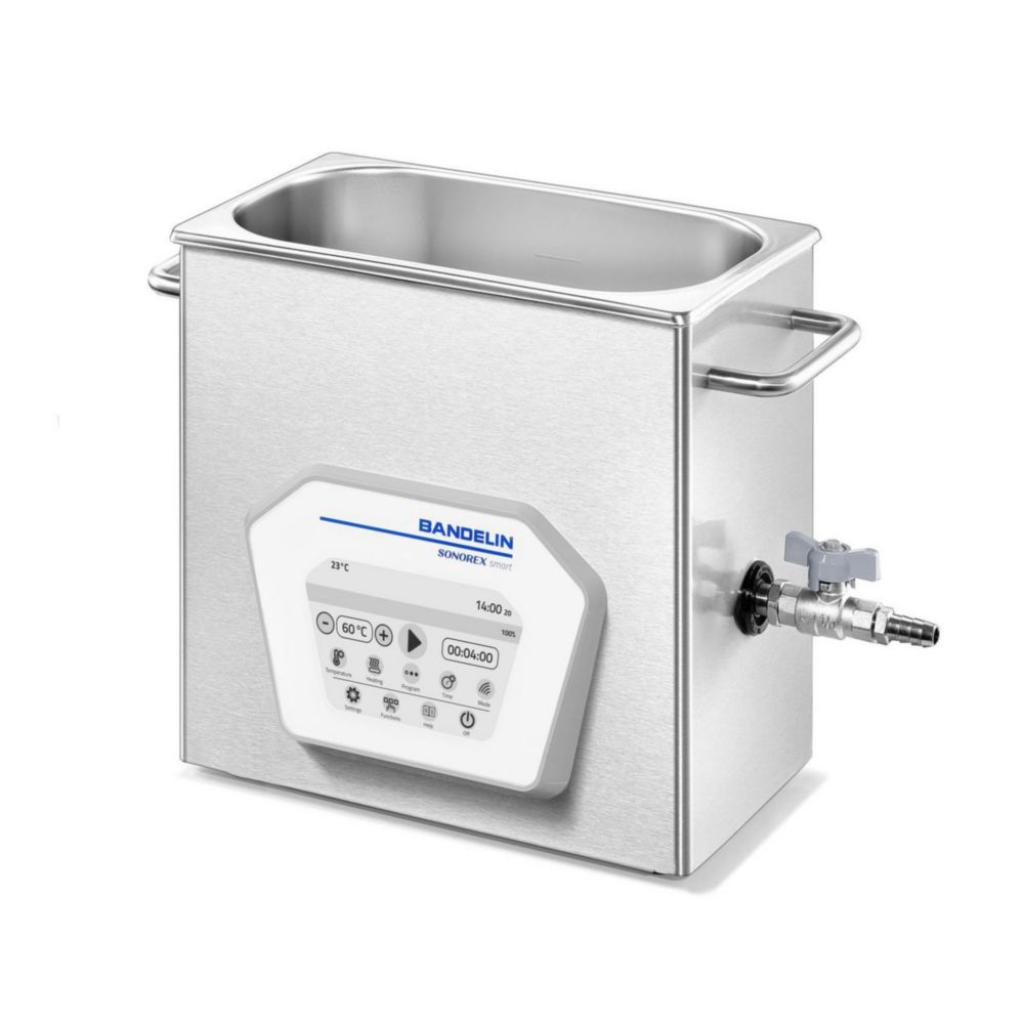

Obrázek produktové varianty smart ST 102 H
4709932 / 7100
Nominal capacity ( ml )
3.0 l
Weight ( g )
4.4 kg
Type
smart ST 102 H
Depth int. ( mm )
140 mm
Height int. ( mm )
100 mm
Int. width ( mm )
240 mm
Ext. depth ( mm )
160 mm
Ext. height ( mm )
250 mm
Ext. width ( mm )
260 mm
Max. voltage ( V )
230 V
Plug type
EU
Ultrasonic power ( W )
120 W
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4709932
Heating capacity ( W )
140 W
Ext. dim. (WxDxH)
260 x 160 x 250 mm
Int. Dim. (WxDxH)
240 x 140 x 100 mm
Kusy v balení
-
Na otázku

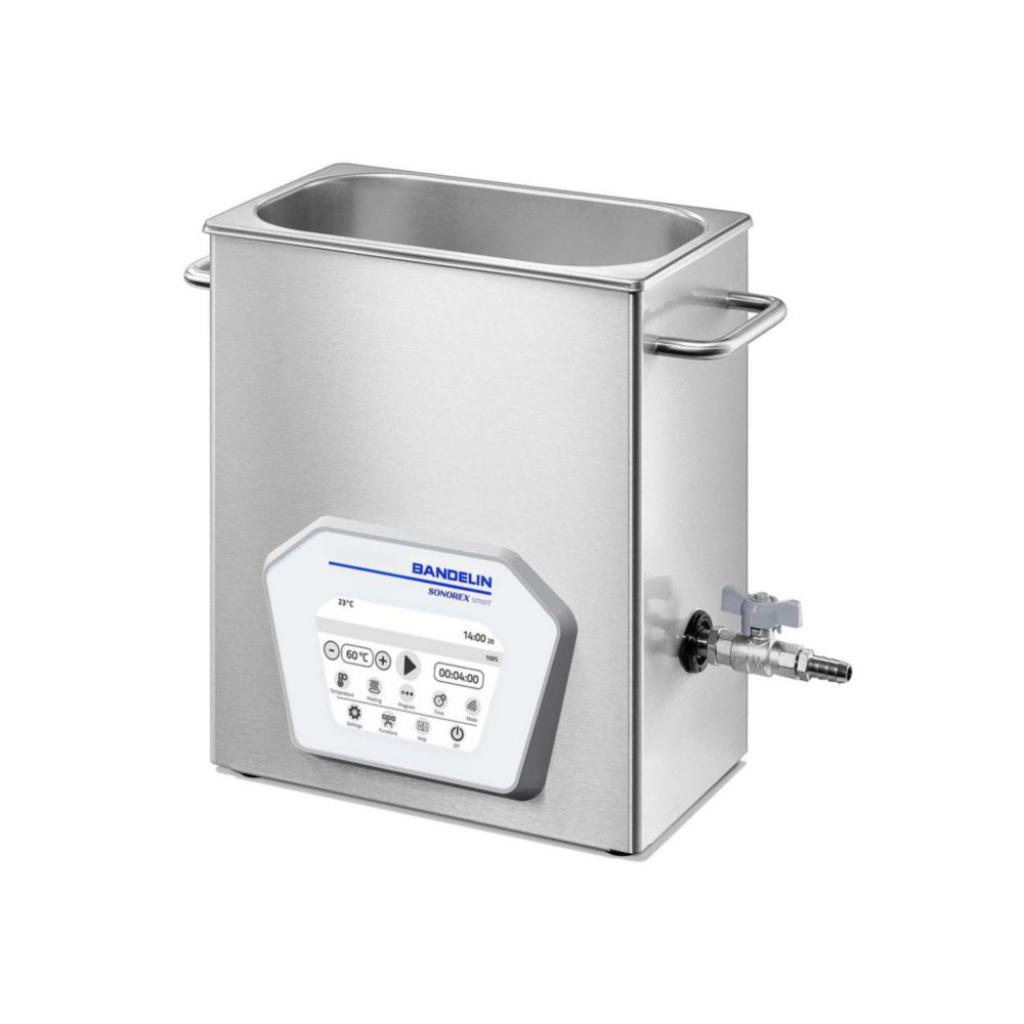

Obrázek produktové varianty smart ST 103 H
4709933 / 7101
Nominal capacity ( ml )
4.0 l
Weight ( g )
4.5 kg
Type
smart ST 103 H
Depth int. ( mm )
140 mm
Height int. ( mm )
150 mm
Int. width ( mm )
240 mm
Ext. depth ( mm )
160 mm
Ext. height ( mm )
300 mm
Ext. width ( mm )
325 mm
Max. voltage ( V )
230 V
Plug type
EU
Ultrasonic power ( W )
140 W
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4709933
Heating capacity ( W )
200 W
Ext. dim. (WxDxH)
325 x 160 x 300 mm
Int. Dim. (WxDxH)
240 x 140 x 150 mm
Kusy v balení
-
Na otázku

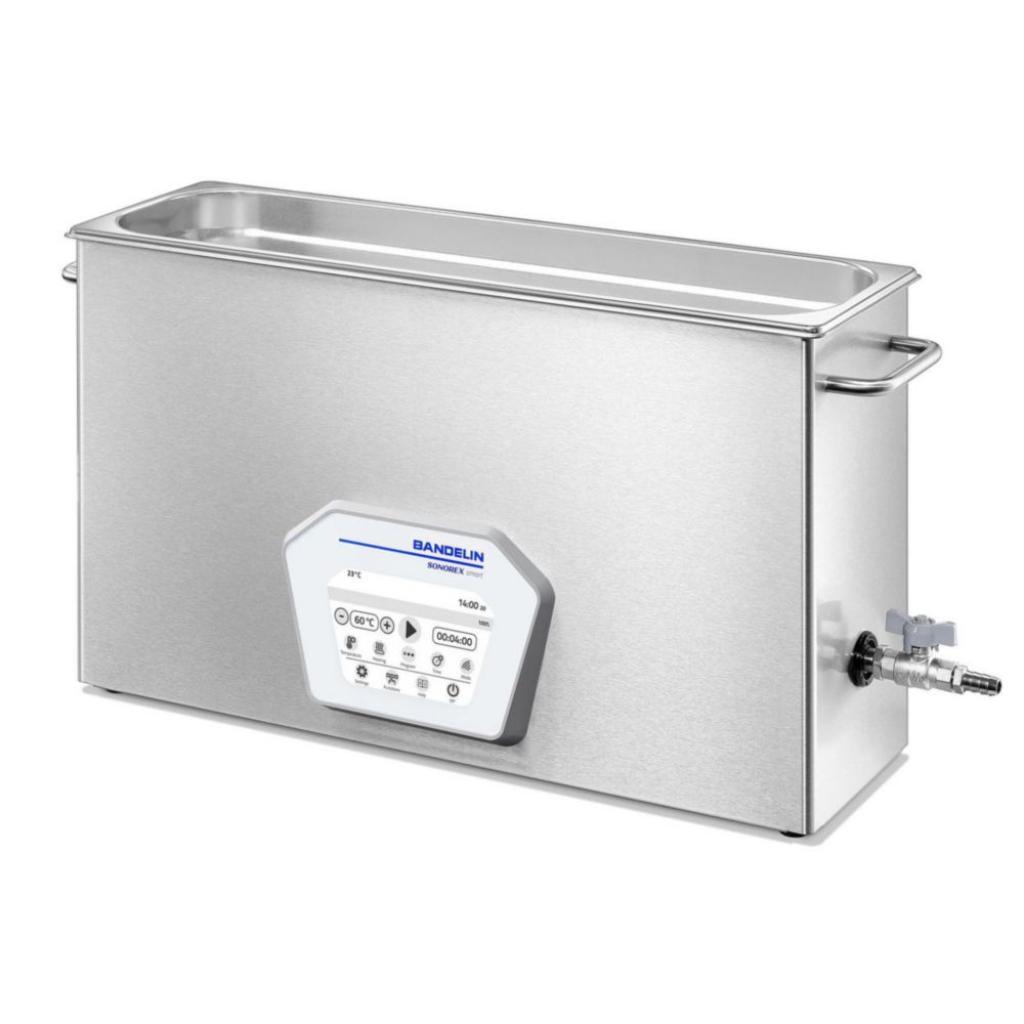

Obrázek produktové varianty smart ST 156 BH
4709934 / 7102
Nominal capacity ( ml )
9.0 l
Weight ( g )
7.5 kg
Type
smart ST 156 BH
Depth int. ( mm )
140 mm
Height int. ( mm )
150 mm
Int. width ( mm )
500 mm
Ext. depth ( mm )
165 mm
Ext. height ( mm )
300 mm
Ext. width ( mm )
530 mm
Max. voltage ( V )
230 V
Plug type
EU
Ultrasonic power ( W )
215 W
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4709934
Heating capacity ( W )
600 W
Ext. dim. (WxDxH)
530 x 165 x 300 mm
Int. Dim. (WxDxH)
500 x 140 x 150 mm
Kusy v balení
1
Na otázku

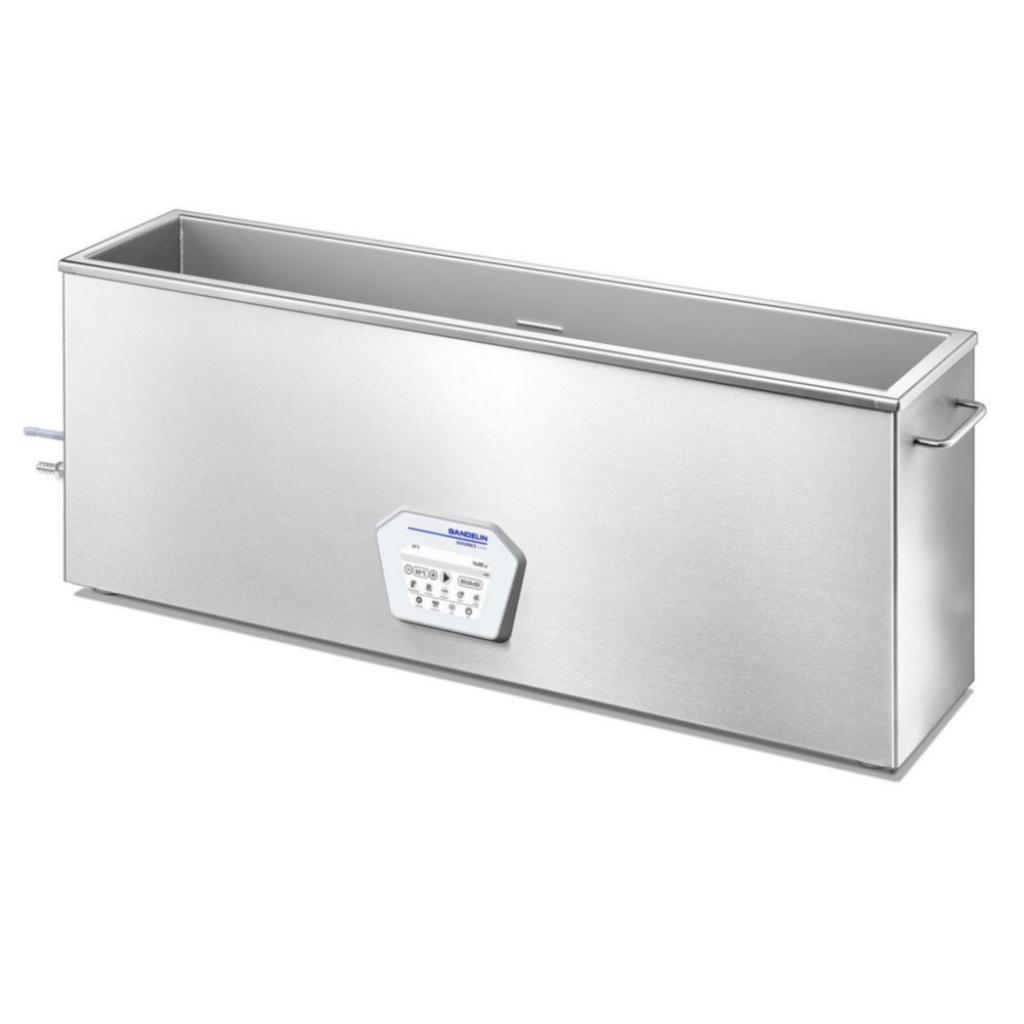

Obrázek produktové varianty smart ST 170 H
4709935 / 7103
Nominal capacity ( ml )
39.0 l
Weight ( g )
26.5 kg
Type
smart ST 170 H
Depth int. ( mm )
200 mm
Height int. ( mm )
200 mm
Int. width ( mm )
1000 mm
Ext. depth ( mm )
250 mm
Ext. height ( mm )
400 mm
Ext. width ( mm )
1050 mm
Max. voltage ( V )
230 V
Plug type
EU
Ultrasonic power ( W )
380 W
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4709935
Heating capacity ( W )
1600 W
Ext. dim. (WxDxH)
1,050 x 250 x 400 mm
Int. Dim. (WxDxH)
1,000 x 200 x 200 mm
Kusy v balení
1
Na otázku

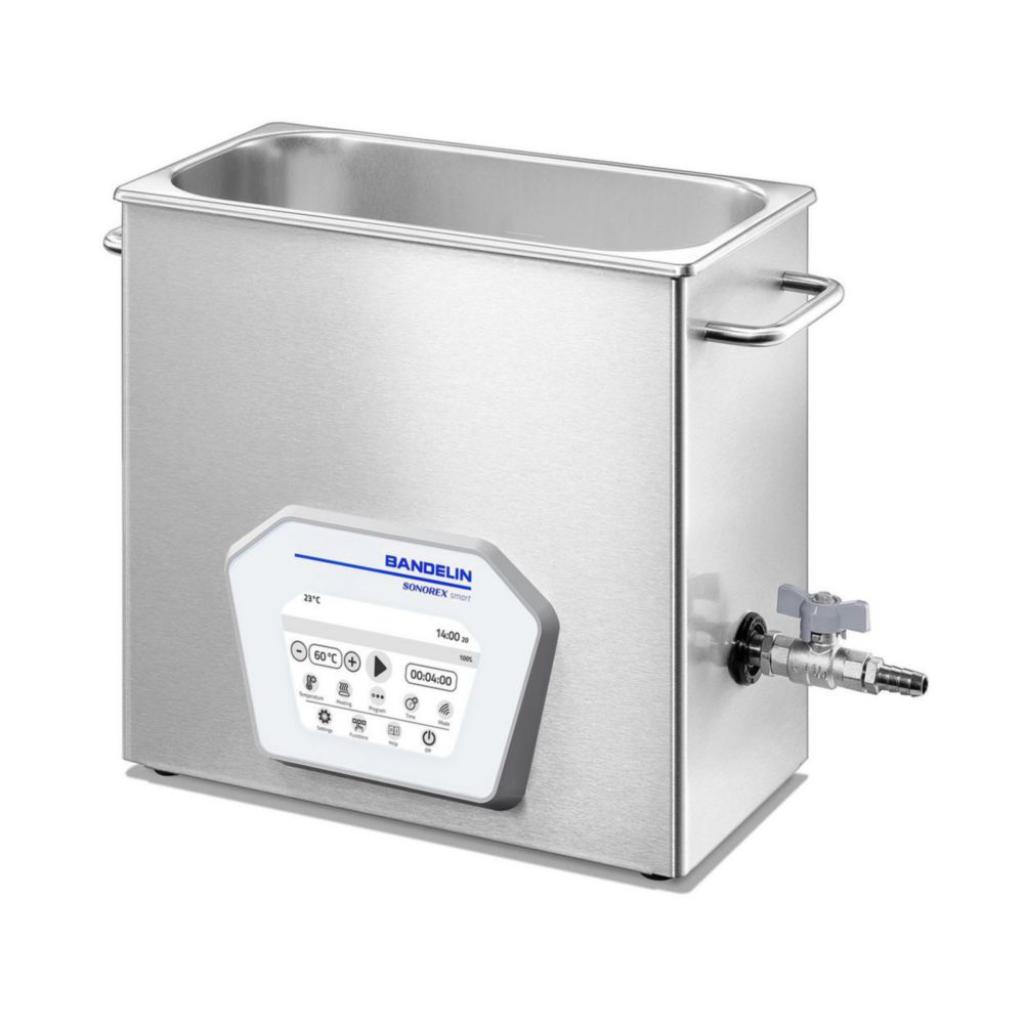

Obrázek produktové varianty smart ST 255 H
4709936 / 7104
Nominal capacity ( ml )
5.5 l
Weight ( g )
5.1 kg
Type
smart ST 255 H
Depth int. ( mm )
150 mm
Height int. ( mm )
150 mm
Int. width ( mm )
300 mm
Ext. depth ( mm )
175 mm
Ext. height ( mm )
300 mm
Ext. width ( mm )
325 mm
Max. voltage ( V )
230 V
Plug type
EU
Ultrasonic power ( W )
160 W
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4709936
Heating capacity ( W )
280 W
Ext. dim. (WxDxH)
325 x 175 x 300 mm
Int. Dim. (WxDxH)
300 x 150 x 150 mm
Kusy v balení
-
Na otázku

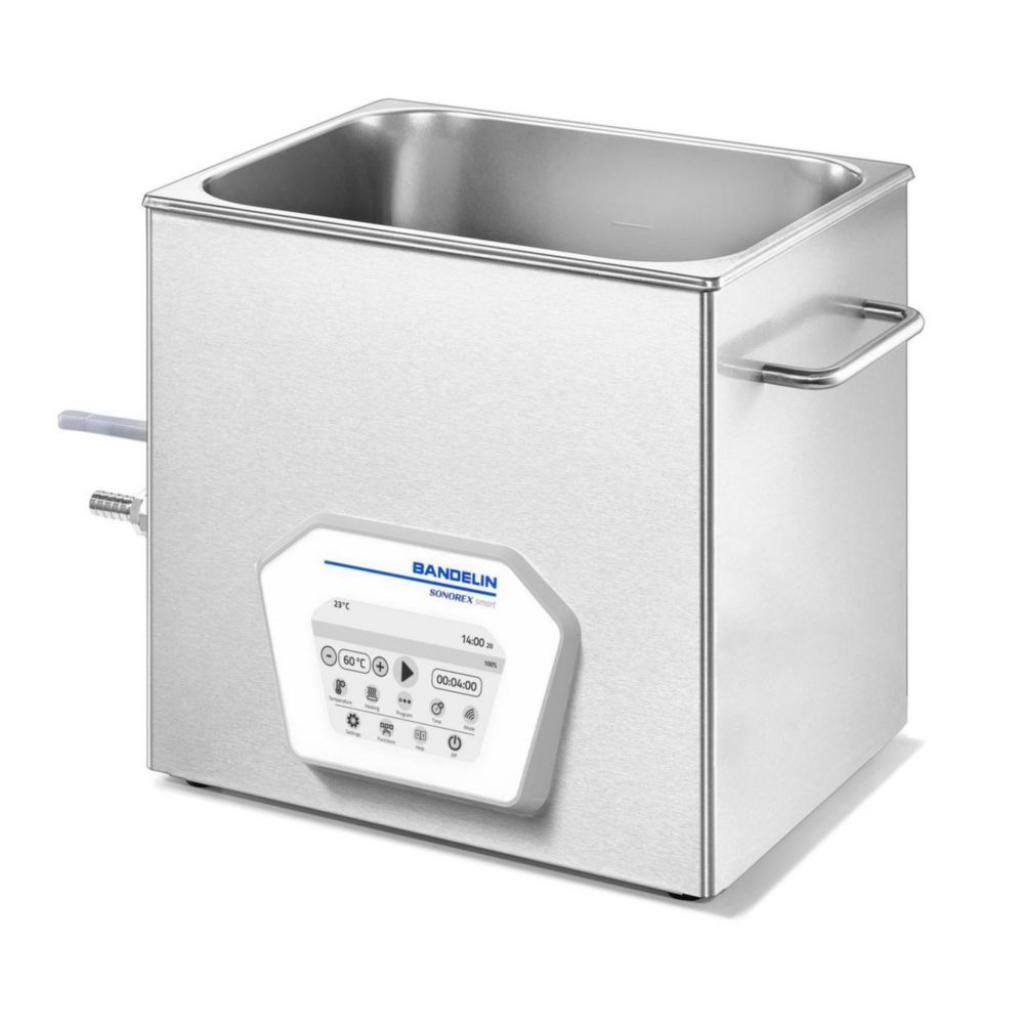

Obrázek produktové varianty smart ST 510 H
4709937 / 7105
Nominal capacity ( ml )
9.7 l
Weight ( g )
7.9 kg
Type
smart ST 510 H
Depth int. ( mm )
240 mm
Height int. ( mm )
150 mm
Int. width ( mm )
300 mm
Ext. depth ( mm )
265 mm
Ext. height ( mm )
300 mm
Ext. width ( mm )
325 mm
Max. voltage ( V )
230 V
Plug type
EU
Ultrasonic power ( W )
160 W
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4709937
Heating capacity ( W )
400 W
Ext. dim. (WxDxH)
325 x 265 x 300 mm
Int. Dim. (WxDxH)
300 x 240 x 150 mm
Kusy v balení
-
Na otázku

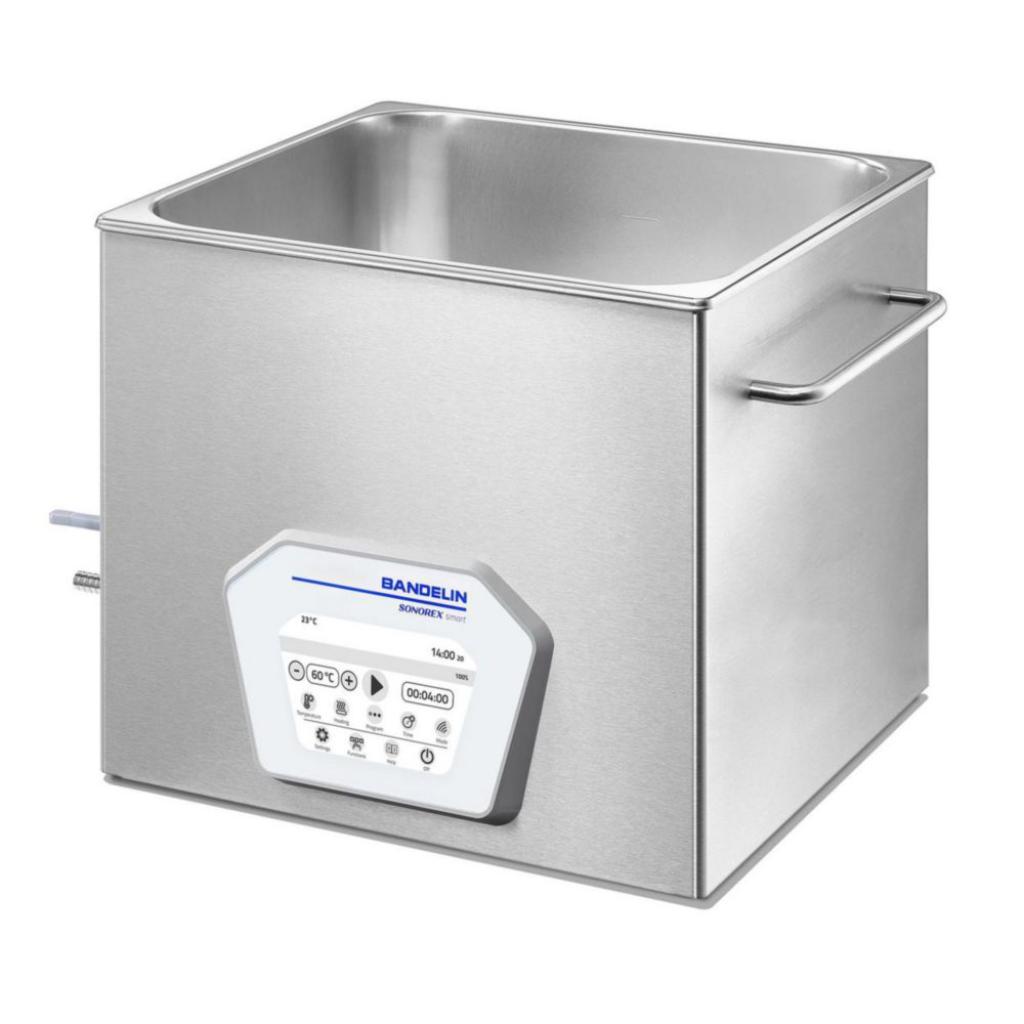

Obrázek produktové varianty smart ST 514 H
4709938 / 7106
Nominal capacity ( ml )
13.5 l
Weight ( g )
8.8 kg
Type
smart ST 514 H
Depth int. ( mm )
300 mm
Height int. ( mm )
150 mm
Int. width ( mm )
325 mm
Ext. depth ( mm )
325 mm
Ext. height ( mm )
300 mm
Ext. width ( mm )
355 mm
Max. voltage ( V )
230 V
Plug type
EU
Ultrasonic power ( W )
215 W
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4709938
Heating capacity ( W )
600 W
Ext. dim. (WxDxH)
355 x 325 x 300 mm
Int. Dim. (WxDxH)
325 x 300 x 150 mm
Kusy v balení
1
Na otázku

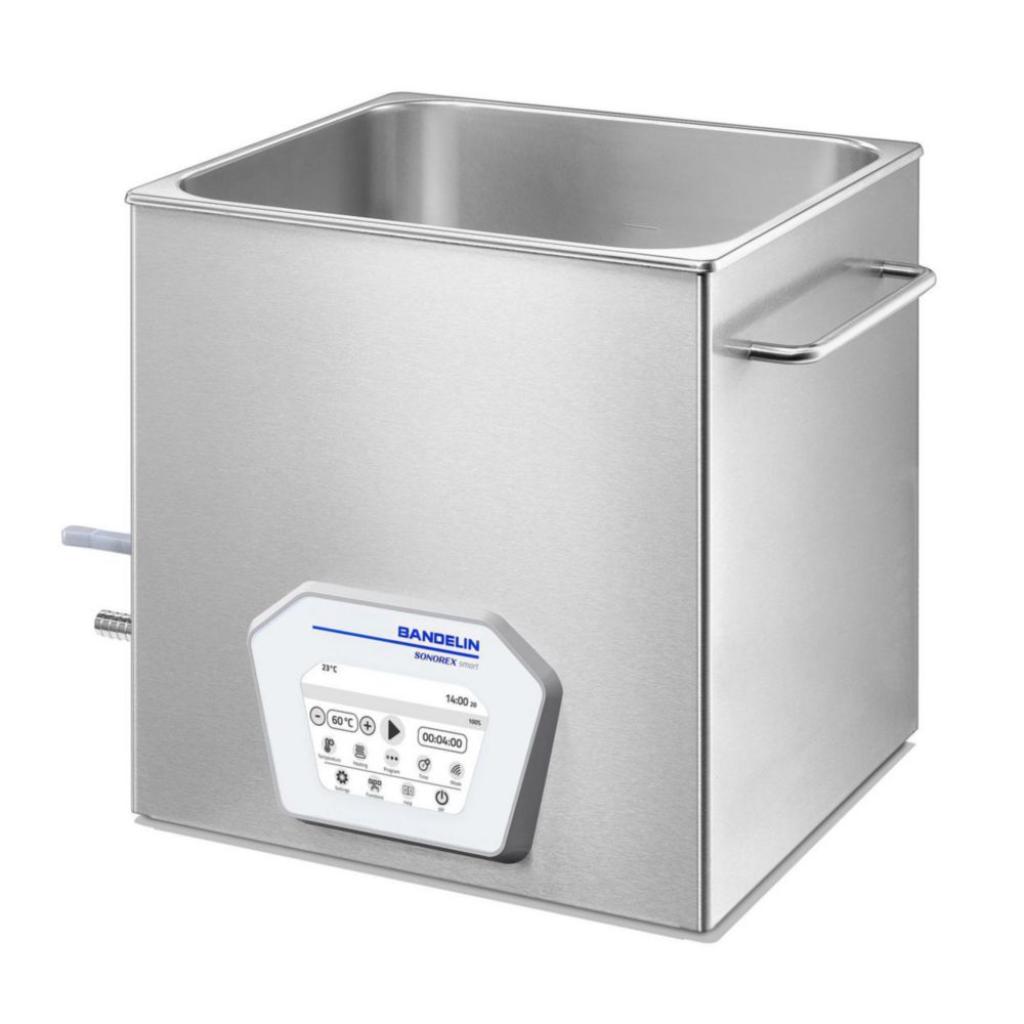

Obrázek produktové varianty smart ST 514 BH
4709939 / 7107
Nominal capacity ( ml )
18.7 l
Weight ( g )
10.3 kg
Type
smart ST 514 BH
Depth int. ( mm )
300 mm
Height int. ( mm )
200 mm
Int. width ( mm )
325 mm
Ext. depth ( mm )
325 mm
Ext. height ( mm )
350 mm
Ext. width ( mm )
355 mm
Max. voltage ( V )
230 V
Plug type
EU
Ultrasonic power ( W )
215 W
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4709939
Heating capacity ( W )
600 W
Ext. dim. (WxDxH)
355 x 325 x 350 mm
Int. Dim. (WxDxH)
325 x 300 x 200 mm
Kusy v balení
-
Na otázku

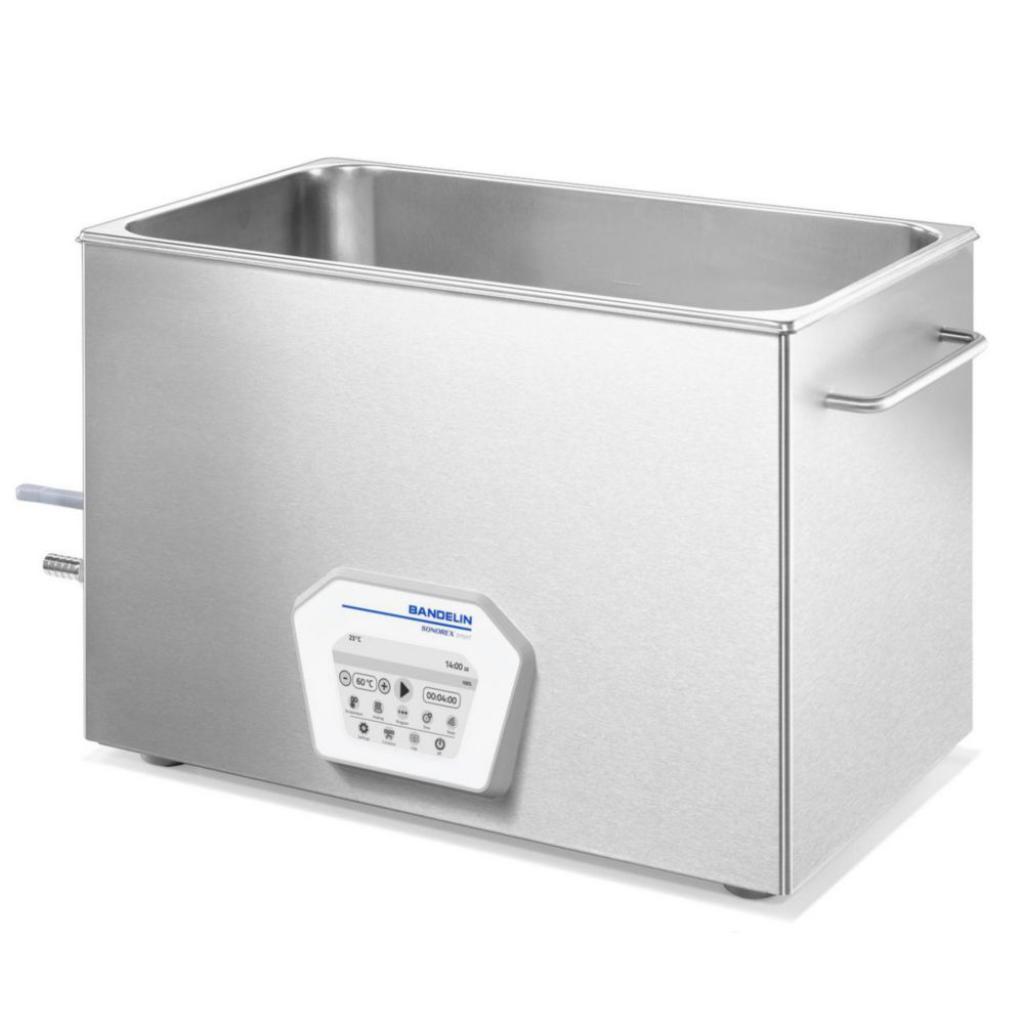

Obrázek produktové varianty smart ST 1028 H
4709940 / 7108
Nominal capacity ( ml )
28.0 l
Weight ( g )
15.1 kg
Type
smart ST 1028 H
Depth int. ( mm )
300 mm
Height int. ( mm )
200 mm
Int. width ( mm )
500 mm
Ext. depth ( mm )
325 mm
Ext. height ( mm )
400 mm
Ext. width ( mm )
535 mm
Max. voltage ( V )
230 V
Plug type
EU
Ultrasonic power ( W )
300 W
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4709940
Heating capacity ( W )
1300 W
Ext. dim. (WxDxH)
535 x 325 x 400 mm
Int. Dim. (WxDxH)
500 x 300 x 200 mm
Kusy v balení
1
Na otázku

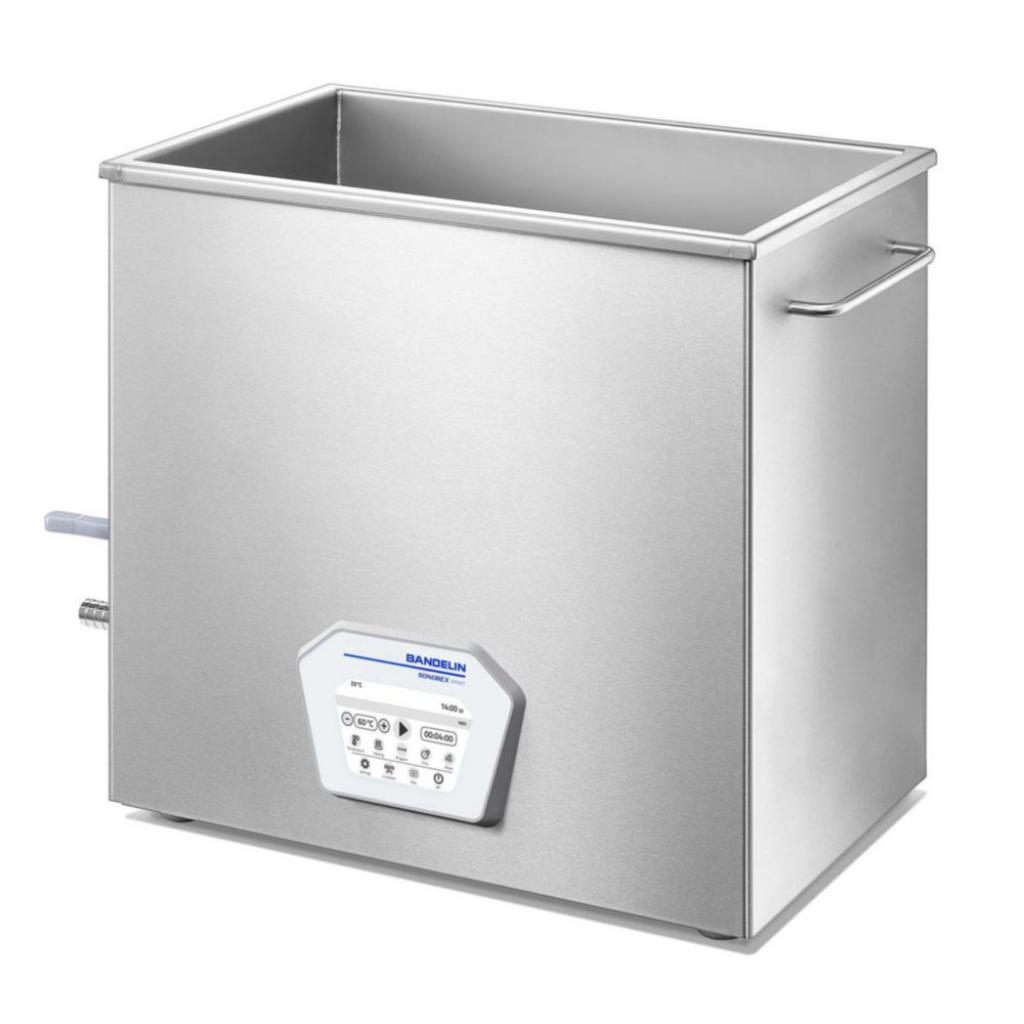

Obrázek produktové varianty smart ST 1028 CH
4709941 / 7109
Nominal capacity ( ml )
45.0 l
Weight ( g )
23.8 kg
Type
smart ST 1028 CH
Depth int. ( mm )
300 mm
Height int. ( mm )
300 mm
Int. width ( mm )
500 mm
Ext. depth ( mm )
340 mm
Ext. height ( mm )
500 mm
Ext. width ( mm )
540 mm
Max. voltage ( V )
230 V
Plug type
EU
Ultrasonic power ( W )
300 W
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4709941
Heating capacity ( W )
1450 W
Ext. dim. (WxDxH)
540 x 340 x 500 mm
Int. Dim. (WxDxH)
500 x 300 x 300 mm
Kusy v balení
-
Na otázku

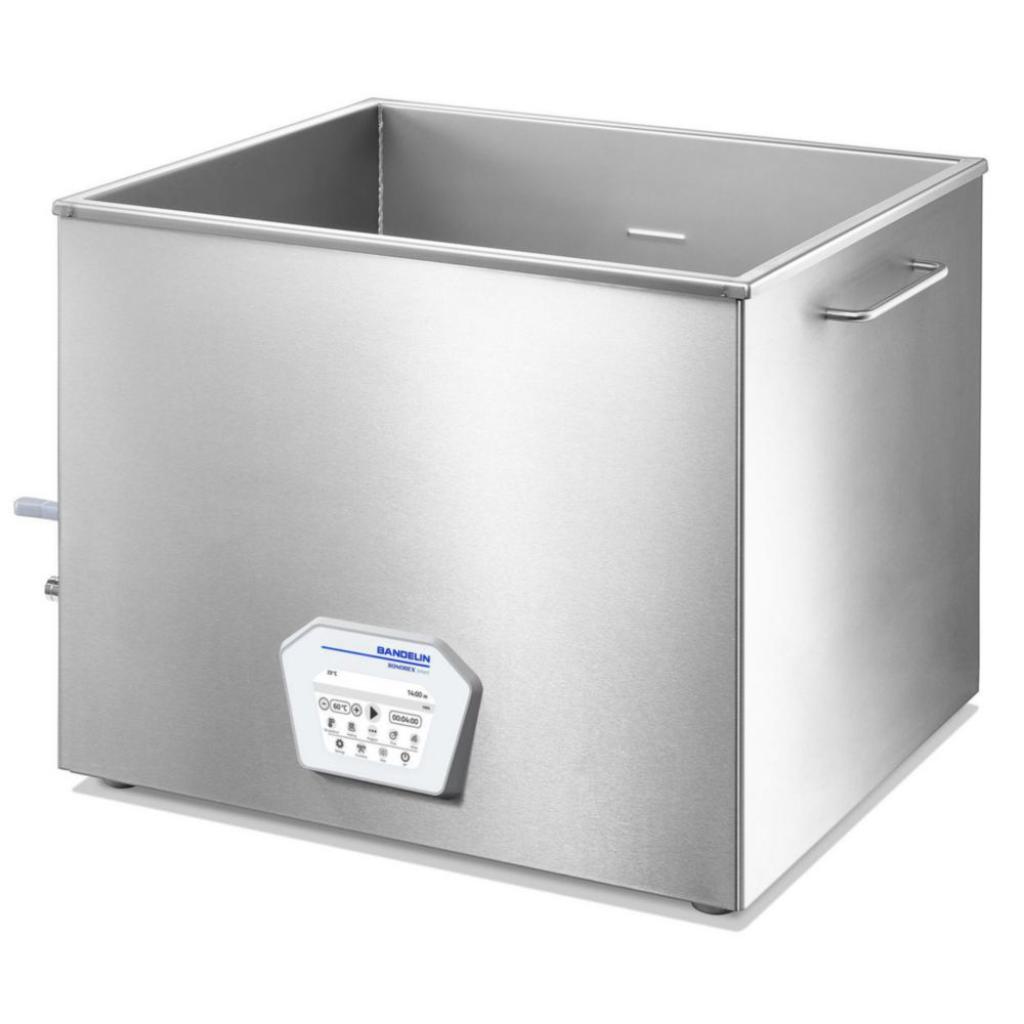

Obrázek produktové varianty smart ST 1050 CH
4709942 / 7110
Nominal capacity ( ml )
90.0 l
Weight ( g )
37.5 kg
Type
smart ST 1050 CH
Depth int. ( mm )
500 mm
Height int. ( mm )
300 mm
Int. width ( mm )
600 mm
Ext. depth ( mm )
540 mm
Ext. height ( mm )
500 mm
Ext. width ( mm )
640 mm
Max. voltage ( V )
230 V
Plug type
EU
Ultrasonic power ( W )
600 W
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4709942
Heating capacity ( W )
1950 W
Ext. dim. (WxDxH)
640 x 540 x 500 mm
Int. Dim. (WxDxH)
600 x 500 x 300 mm
Kusy v balení
1
Na otázku
Obrázek produktové varianty smart ST 102 H
4710003 / 7100-CH
Nominal capacity ( ml )
3.0 l
Weight ( g )
4.4 kg
Type
smart ST 102 H
Depth int. ( mm )
140 mm
Height int. ( mm )
100 mm
Int. width ( mm )
240 mm
Ext. depth ( mm )
160 mm
Ext. height ( mm )
250 mm
Ext. width ( mm )
260 mm
Max. voltage ( V )
230 V
Plug type
CH
Ultrasonic power ( W )
120 W
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4710003
Heating capacity ( W )
140 W
Ext. dim. (WxDxH)
260 x 160 x 250 mm
Int. Dim. (WxDxH)
240 x 140 x 100 mm
Kusy v balení
1
Na otázku
Obrázek produktové varianty smart ST 102 H
4710004 / 7100-GB
Nominal capacity ( ml )
3.0 l
Weight ( g )
4.4 kg
Type
smart ST 102 H
Depth int. ( mm )
140 mm
Height int. ( mm )
100 mm
Int. width ( mm )
240 mm
Ext. depth ( mm )
160 mm
Ext. height ( mm )
250 mm
Ext. width ( mm )
260 mm
Max. voltage ( V )
230 V
Plug type
UK
Ultrasonic power ( W )
120 W
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4710004
Heating capacity ( W )
140 W
Ext. dim. (WxDxH)
260 x 160 x 250 mm
Int. Dim. (WxDxH)
240 x 140 x 100 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty smart ST 102 H
4710005 / 7100-1
Nominal capacity ( ml )
3.0 l
Weight ( g )
4.4 kg
Type
smart ST 102 H
Depth int. ( mm )
140 mm
Height int. ( mm )
100 mm
Int. width ( mm )
240 mm
Ext. depth ( mm )
160 mm
Ext. height ( mm )
250 mm
Ext. width ( mm )
260 mm
Max. voltage ( V )
115 V
Plug type
US
Ultrasonic power ( W )
120 W
Power supply
115 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4710005
Heating capacity ( W )
140 W
Ext. dim. (WxDxH)
260 x 160 x 250 mm
Int. Dim. (WxDxH)
240 x 140 x 100 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty smart ST 103 H
4710006 / 7101-CH
Nominal capacity ( ml )
4.0 l
Weight ( g )
4.5 kg
Type
smart ST 103 H
Depth int. ( mm )
140 mm
Height int. ( mm )
150 mm
Int. width ( mm )
240 mm
Ext. depth ( mm )
160 mm
Ext. height ( mm )
300 mm
Ext. width ( mm )
325 mm
Max. voltage ( V )
230 V
Plug type
CH
Ultrasonic power ( W )
140 W
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4710006
Heating capacity ( W )
200 W
Ext. dim. (WxDxH)
325 x 160 x 300 mm
Int. Dim. (WxDxH)
240 x 140 x 150 mm
Kusy v balení
1
Na otázku
Obrázek produktové varianty smart ST 103 H
4710007 / 7101-GB
Nominal capacity ( ml )
4.0 l
Weight ( g )
4.5 kg
Type
smart ST 103 H
Depth int. ( mm )
140 mm
Height int. ( mm )
150 mm
Int. width ( mm )
240 mm
Ext. depth ( mm )
160 mm
Ext. height ( mm )
300 mm
Ext. width ( mm )
325 mm
Max. voltage ( V )
230 V
Plug type
UK
Ultrasonic power ( W )
140 W
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4710007
Heating capacity ( W )
200 W
Ext. dim. (WxDxH)
325 x 160 x 300 mm
Int. Dim. (WxDxH)
240 x 140 x 150 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty smart ST 103 H
4710008 / 7101-1
Nominal capacity ( ml )
4.0 l
Weight ( g )
4.5 kg
Type
smart ST 103 H
Depth int. ( mm )
140 mm
Height int. ( mm )
150 mm
Int. width ( mm )
240 mm
Ext. depth ( mm )
160 mm
Ext. height ( mm )
300 mm
Ext. width ( mm )
325 mm
Max. voltage ( V )
115 V
Plug type
US
Ultrasonic power ( W )
140 W
Power supply
115 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4710008
Heating capacity ( W )
200 W
Ext. dim. (WxDxH)
325 x 160 x 300 mm
Int. Dim. (WxDxH)
240 x 140 x 150 mm
Kusy v balení
1
Na otázku
Obrázek produktové varianty smart ST 156 BH
4710009 / 7102-CH
Nominal capacity ( ml )
9.0 l
Weight ( g )
7.5 kg
Type
smart ST 156 BH
Depth int. ( mm )
140 mm
Height int. ( mm )
150 mm
Int. width ( mm )
500 mm
Ext. depth ( mm )
165 mm
Ext. height ( mm )
300 mm
Ext. width ( mm )
530 mm
Max. voltage ( V )
230 V
Plug type
CH
Ultrasonic power ( W )
215 W
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4710009
Heating capacity ( W )
600 W
Ext. dim. (WxDxH)
530 x 165 x 300 mm
Int. Dim. (WxDxH)
500 x 140 x 150 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty smart ST 156 BH
4710010 / 7102-GB
Nominal capacity ( ml )
9.0 l
Weight ( g )
7.5 kg
Type
smart ST 156 BH
Depth int. ( mm )
140 mm
Height int. ( mm )
150 mm
Int. width ( mm )
500 mm
Ext. depth ( mm )
165 mm
Ext. height ( mm )
300 mm
Ext. width ( mm )
530 mm
Max. voltage ( V )
230 V
Plug type
UK
Ultrasonic power ( W )
215 W
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4710010
Heating capacity ( W )
600 W
Ext. dim. (WxDxH)
530 x 165 x 300 mm
Int. Dim. (WxDxH)
500 x 140 x 150 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty smart ST 156 BH
4710011 / 7102-1
Nominal capacity ( ml )
9.0 l
Weight ( g )
7.5 kg
Type
smart ST 156 BH
Depth int. ( mm )
140 mm
Height int. ( mm )
150 mm
Int. width ( mm )
500 mm
Ext. depth ( mm )
165 mm
Ext. height ( mm )
300 mm
Ext. width ( mm )
530 mm
Max. voltage ( V )
115 V
Plug type
US
Ultrasonic power ( W )
215 W
Power supply
115 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4710011
Heating capacity ( W )
600 W
Ext. dim. (WxDxH)
530 x 165 x 300 mm
Int. Dim. (WxDxH)
500 x 140 x 150 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty smart ST 170 H
4710012 / 7103-CH
Nominal capacity ( ml )
39.0 l
Weight ( g )
26.5 kg
Type
smart ST 170 H
Depth int. ( mm )
200 mm
Height int. ( mm )
200 mm
Int. width ( mm )
1000 mm
Ext. depth ( mm )
250 mm
Ext. height ( mm )
400 mm
Ext. width ( mm )
1050 mm
Max. voltage ( V )
230 V
Plug type
CH
Ultrasonic power ( W )
380 W
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4710012
Heating capacity ( W )
1600 W
Ext. dim. (WxDxH)
1,050 x 250 x 400 mm
Int. Dim. (WxDxH)
1,000 x 200 x 200 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty smart ST 170 H
4710013 / 7103-GB
Nominal capacity ( ml )
39.0 l
Weight ( g )
26.5 kg
Type
smart ST 170 H
Depth int. ( mm )
200 mm
Height int. ( mm )
200 mm
Int. width ( mm )
1000 mm
Ext. depth ( mm )
250 mm
Ext. height ( mm )
400 mm
Ext. width ( mm )
1050 mm
Max. voltage ( V )
230 V
Plug type
UK
Ultrasonic power ( W )
380 W
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4710013
Heating capacity ( W )
1600 W
Ext. dim. (WxDxH)
1,050 x 250 x 400 mm
Int. Dim. (WxDxH)
1,000 x 200 x 200 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty smart ST 170 H
4710014 / 7103-1
Nominal capacity ( ml )
39.0 l
Weight ( g )
26.5 kg
Type
smart ST 170 H
Depth int. ( mm )
200 mm
Height int. ( mm )
200 mm
Int. width ( mm )
1000 mm
Ext. depth ( mm )
250 mm
Ext. height ( mm )
400 mm
Ext. width ( mm )
1050 mm
Max. voltage ( V )
115 V
Plug type
US
Ultrasonic power ( W )
380 W
Power supply
115 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4710014
Heating capacity ( W )
1600 W
Ext. dim. (WxDxH)
1,050 x 250 x 400 mm
Int. Dim. (WxDxH)
1,000 x 200 x 200 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty smart ST 225 H
4710015 / 7104-CH
Nominal capacity ( ml )
5.5 l
Weight ( g )
5.1 kg
Type
smart ST 225 H
Depth int. ( mm )
150 mm
Height int. ( mm )
150 mm
Int. width ( mm )
300 mm
Ext. depth ( mm )
175 mm
Ext. height ( mm )
300 mm
Ext. width ( mm )
325 mm
Max. voltage ( V )
230 V
Plug type
CH
Ultrasonic power ( W )
160 W
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4710015
Heating capacity ( W )
280 W
Ext. dim. (WxDxH)
325 x 175 x 300 mm
Int. Dim. (WxDxH)
300 x 150 x 150 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty smart ST 225 H
4710016 / 7104-GB
Nominal capacity ( ml )
5.5 l
Weight ( g )
5.1 kg
Type
smart ST 225 H
Depth int. ( mm )
150 mm
Height int. ( mm )
150 mm
Int. width ( mm )
300 mm
Ext. depth ( mm )
175 mm
Ext. height ( mm )
300 mm
Ext. width ( mm )
325 mm
Max. voltage ( V )
230 V
Plug type
UK
Ultrasonic power ( W )
160 W
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4710016
Heating capacity ( W )
280 W
Ext. dim. (WxDxH)
325 x 175 x 300 mm
Int. Dim. (WxDxH)
300 x 150 x 150 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty smart ST 225 H
4710017 / 7104-1
Nominal capacity ( ml )
5.5 l
Weight ( g )
5.1 kg
Type
smart ST 225 H
Depth int. ( mm )
150 mm
Height int. ( mm )
150 mm
Int. width ( mm )
300 mm
Ext. depth ( mm )
175 mm
Ext. height ( mm )
300 mm
Ext. width ( mm )
325 mm
Max. voltage ( V )
115 V
Plug type
US
Ultrasonic power ( W )
160 W
Power supply
115 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4710017
Heating capacity ( W )
280 W
Ext. dim. (WxDxH)
325 x 175 x 300 mm
Int. Dim. (WxDxH)
300 x 150 x 150 mm
Kusy v balení
1
Na otázku
Obrázek produktové varianty smart ST 510 H
4710018 / 7105-CH
Nominal capacity ( ml )
9.7 l
Weight ( g )
7.9 kg
Type
smart ST 510 H
Depth int. ( mm )
240 mm
Height int. ( mm )
150 mm
Int. width ( mm )
300 mm
Ext. depth ( mm )
265 mm
Ext. height ( mm )
300 mm
Ext. width ( mm )
325 mm
Max. voltage ( V )
230 V
Plug type
CH
Ultrasonic power ( W )
160 W
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4710018
Heating capacity ( W )
400 W
Ext. dim. (WxDxH)
325 x 265 x 300 mm
Int. Dim. (WxDxH)
300 x 240 x 150 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty smart ST 510 H
4710019 / 7105-GB
Nominal capacity ( ml )
9.7 l
Weight ( g )
7.9 kg
Type
smart ST 510 H
Depth int. ( mm )
240 mm
Height int. ( mm )
150 mm
Int. width ( mm )
300 mm
Ext. depth ( mm )
265 mm
Ext. height ( mm )
300 mm
Ext. width ( mm )
325 mm
Max. voltage ( V )
230 V
Plug type
UK
Ultrasonic power ( W )
160 W
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4710019
Heating capacity ( W )
400 W
Ext. dim. (WxDxH)
325 x 265 x 300 mm
Int. Dim. (WxDxH)
300 x 240 x 150 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty smart ST 510 H
4710020 / 7105-1
Nominal capacity ( ml )
9.7 l
Weight ( g )
7.9 kg
Type
smart ST 510 H
Depth int. ( mm )
240 mm
Height int. ( mm )
150 mm
Int. width ( mm )
300 mm
Ext. depth ( mm )
265 mm
Ext. height ( mm )
300 mm
Ext. width ( mm )
325 mm
Max. voltage ( V )
115 V
Plug type
US
Ultrasonic power ( W )
160 W
Power supply
115 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4710020
Heating capacity ( W )
400 W
Ext. dim. (WxDxH)
325 x 265 x 300 mm
Int. Dim. (WxDxH)
300 x 240 x 150 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty smart ST 514 H
4710021 / 7106-CH
Nominal capacity ( ml )
13.5 l
Weight ( g )
8.8 kg
Type
smart ST 514 H
Depth int. ( mm )
300 mm
Height int. ( mm )
150 mm
Int. width ( mm )
325 mm
Ext. depth ( mm )
325 mm
Ext. height ( mm )
300 mm
Ext. width ( mm )
355 mm
Max. voltage ( V )
230 V
Plug type
CH
Ultrasonic power ( W )
215 W
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4710021
Heating capacity ( W )
600 W
Ext. dim. (WxDxH)
355 x 325 x 300 mm
Int. Dim. (WxDxH)
325 x 300 x 150 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty smart ST 514 H
4710022 / 7106-GB
Nominal capacity ( ml )
13.5 l
Weight ( g )
8.8 kg
Type
smart ST 514 H
Depth int. ( mm )
300 mm
Height int. ( mm )
150 mm
Int. width ( mm )
325 mm
Ext. depth ( mm )
325 mm
Ext. height ( mm )
300 mm
Ext. width ( mm )
355 mm
Max. voltage ( V )
230 V
Plug type
UK
Ultrasonic power ( W )
215 W
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4710022
Heating capacity ( W )
600 W
Ext. dim. (WxDxH)
355 x 325 x 300 mm
Int. Dim. (WxDxH)
325 x 300 x 150 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty smart ST 514 H
4710023 / 7106-1
Nominal capacity ( ml )
13.5 l
Weight ( g )
8.8 kg
Type
smart ST 514 H
Depth int. ( mm )
300 mm
Height int. ( mm )
150 mm
Int. width ( mm )
325 mm
Ext. depth ( mm )
325 mm
Ext. height ( mm )
300 mm
Ext. width ( mm )
355 mm
Max. voltage ( V )
115 V
Plug type
US
Ultrasonic power ( W )
215 W
Power supply
115 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4710023
Heating capacity ( W )
600 W
Ext. dim. (WxDxH)
355 x 325 x 300 mm
Int. Dim. (WxDxH)
325 x 300 x 150 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty smart ST 514 BH
4710024 / 7107-CH
Nominal capacity ( ml )
18.7 l
Weight ( g )
10.3 kg
Type
smart ST 514 BH
Depth int. ( mm )
300 mm
Height int. ( mm )
200 mm
Int. width ( mm )
325 mm
Ext. depth ( mm )
325 mm
Ext. height ( mm )
350 mm
Ext. width ( mm )
355 mm
Max. voltage ( V )
230 V
Plug type
CH
Ultrasonic power ( W )
215 W
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4710024
Heating capacity ( W )
600 W
Ext. dim. (WxDxH)
355 x 325 x 350 mm
Int. Dim. (WxDxH)
325 x 300 x 200 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty smart ST 514 BH
4710025 / 7107-GB
Nominal capacity ( ml )
18.7 l
Weight ( g )
10.3 kg
Type
smart ST 514 BH
Depth int. ( mm )
300 mm
Height int. ( mm )
200 mm
Int. width ( mm )
325 mm
Ext. depth ( mm )
325 mm
Ext. height ( mm )
350 mm
Ext. width ( mm )
355 mm
Max. voltage ( V )
230 V
Plug type
UK
Ultrasonic power ( W )
215 W
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4710025
Heating capacity ( W )
600 W
Ext. dim. (WxDxH)
355 x 325 x 350 mm
Int. Dim. (WxDxH)
325 x 300 x 200 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty smart ST 514 BH
4710026 / 7107-1
Nominal capacity ( ml )
18.7 l
Weight ( g )
10.3 kg
Type
smart ST 514 BH
Depth int. ( mm )
300 mm
Height int. ( mm )
200 mm
Int. width ( mm )
325 mm
Ext. depth ( mm )
325 mm
Ext. height ( mm )
350 mm
Ext. width ( mm )
355 mm
Max. voltage ( V )
115 V
Plug type
US
Ultrasonic power ( W )
215 W
Power supply
115 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4710026
Heating capacity ( W )
600 W
Ext. dim. (WxDxH)
355 x 325 x 350 mm
Int. Dim. (WxDxH)
325 x 300 x 200 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty smart ST 1028 H
4710027 / 7108-CH
Nominal capacity ( ml )
28.0 l
Weight ( g )
15.1 kg
Type
smart ST 1028 H
Depth int. ( mm )
300 mm
Height int. ( mm )
200 mm
Int. width ( mm )
500 mm
Ext. depth ( mm )
325 mm
Ext. height ( mm )
400 mm
Ext. width ( mm )
535 mm
Max. voltage ( V )
230 V
Plug type
CH
Ultrasonic power ( W )
300 W
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4710027
Heating capacity ( W )
1300 W
Ext. dim. (WxDxH)
535 x 325 x 400 mm
Int. Dim. (WxDxH)
500 x 300 x 200 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty smart ST 1028 H
4710028 / 7108-GB
Nominal capacity ( ml )
28.0 l
Weight ( g )
15.1 kg
Type
smart ST 1028 H
Depth int. ( mm )
300 mm
Height int. ( mm )
200 mm
Int. width ( mm )
500 mm
Ext. depth ( mm )
325 mm
Ext. height ( mm )
400 mm
Ext. width ( mm )
535 mm
Max. voltage ( V )
230 V
Plug type
UK
Ultrasonic power ( W )
300 W
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4710028
Heating capacity ( W )
1300 W
Ext. dim. (WxDxH)
535 x 325 x 400 mm
Int. Dim. (WxDxH)
500 x 300 x 200 mm
Kusy v balení
1
Na otázku
Obrázek produktové varianty smart ST 1028 H
4710029 / 7108-1
Nominal capacity ( ml )
28.0 l
Weight ( g )
15.1 kg
Type
smart ST 1028 H
Depth int. ( mm )
300 mm
Height int. ( mm )
200 mm
Int. width ( mm )
500 mm
Ext. depth ( mm )
325 mm
Ext. height ( mm )
400 mm
Ext. width ( mm )
535 mm
Max. voltage ( V )
115 V
Plug type
US
Ultrasonic power ( W )
300 W
Power supply
115 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4710029
Heating capacity ( W )
1300 W
Ext. dim. (WxDxH)
535 x 325 x 400 mm
Int. Dim. (WxDxH)
500 x 300 x 200 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty smart ST 1028 CH
4710030 / 7109-CH
Nominal capacity ( ml )
45.0 l
Weight ( g )
23.8 kg
Type
smart ST 1028 CH
Depth int. ( mm )
300 mm
Height int. ( mm )
300 mm
Int. width ( mm )
500 mm
Ext. depth ( mm )
340 mm
Ext. height ( mm )
500 mm
Ext. width ( mm )
540 mm
Max. voltage ( V )
230 V
Plug type
CH
Ultrasonic power ( W )
300 W
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4710030
Heating capacity ( W )
1450 W
Ext. dim. (WxDxH)
540 x 340 x 500 mm
Int. Dim. (WxDxH)
500 x 300 x 300 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty smart ST 1028 CH
4710031 / 7109-GB
Nominal capacity ( ml )
45.0 l
Weight ( g )
23.8 kg
Type
smart ST 1028 CH
Depth int. ( mm )
300 mm
Height int. ( mm )
300 mm
Int. width ( mm )
500 mm
Ext. depth ( mm )
340 mm
Ext. height ( mm )
500 mm
Ext. width ( mm )
540 mm
Max. voltage ( V )
230 V
Plug type
UK
Ultrasonic power ( W )
300 W
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4710031
Heating capacity ( W )
1450 W
Ext. dim. (WxDxH)
540 x 340 x 500 mm
Int. Dim. (WxDxH)
500 x 300 x 300 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty smart ST 1028 CH
4710032 / 7109-1
Nominal capacity ( ml )
45.0 l
Weight ( g )
23.8 kg
Type
smart ST 1028 CH
Depth int. ( mm )
300 mm
Height int. ( mm )
300 mm
Int. width ( mm )
500 mm
Ext. depth ( mm )
340 mm
Ext. height ( mm )
500 mm
Ext. width ( mm )
540 mm
Max. voltage ( V )
115 V
Plug type
US
Ultrasonic power ( W )
300 W
Power supply
115 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4710032
Heating capacity ( W )
1450 W
Ext. dim. (WxDxH)
540 x 340 x 500 mm
Int. Dim. (WxDxH)
500 x 300 x 300 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty smart ST 1050 CH
4710033 / 7110-CH
Nominal capacity ( ml )
90.0 l
Weight ( g )
37.5 kg
Type
smart ST 1050 CH
Depth int. ( mm )
500 mm
Height int. ( mm )
300 mm
Int. width ( mm )
600 mm
Ext. depth ( mm )
540 mm
Ext. height ( mm )
500 mm
Ext. width ( mm )
640 mm
Max. voltage ( V )
230 V
Plug type
CH
Ultrasonic power ( W )
300 W
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4710033
Heating capacity ( W )
1950 W
Ext. dim. (WxDxH)
640 x 540 x 500 mm
Int. Dim. (WxDxH)
600 x 500 x 300 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty smart ST 1050 CH
4710034 / 7110-GB
Nominal capacity ( ml )
90.0 l
Weight ( g )
37.5 kg
Type
smart ST 1050 CH
Depth int. ( mm )
500 mm
Height int. ( mm )
300 mm
Int. width ( mm )
600 mm
Ext. depth ( mm )
540 mm
Ext. height ( mm )
500 mm
Ext. width ( mm )
640 mm
Max. voltage ( V )
230 V
Plug type
UK
Ultrasonic power ( W )
300 W
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4710034
Heating capacity ( W )
1950 W
Ext. dim. (WxDxH)
640 x 540 x 500 mm
Int. Dim. (WxDxH)
600 x 500 x 300 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty smart ST 1050 CH
4710035 / 7110-1
Nominal capacity ( ml )
90.0 l
Weight ( g )
37.5 kg
Type
smart ST 1050 CH
Depth int. ( mm )
500 mm
Height int. ( mm )
300 mm
Int. width ( mm )
600 mm
Ext. depth ( mm )
540 mm
Ext. height ( mm )
500 mm
Ext. width ( mm )
640 mm
Max. voltage ( V )
115 V
Plug type
US
Ultrasonic power ( W )
300 W
Power supply
115 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4710035
Heating capacity ( W )
1950 W
Ext. dim. (WxDxH)
640 x 540 x 500 mm
Int. Dim. (WxDxH)
600 x 500 x 300 mm
Kusy v balení
-
Na otázku

Technické špecifikácie

Power supply frequency 50/60 Hz
IP code IP 32
Max. temperature 80 °C
Min. temperature 20 °C
Operation Touchscreen
Temperature 20 ... 80 °C
Type of auxiliary energy Mains connection
Ultrasonic frequency 40 kHz
UNSPSC 41102929
Warranty 2 years
With stopcock Yes

Fotografie

Ultrazvukové kúpele SONOREX smart ST Ultrazvukové kúpele SONOREX smart ST Ultrazvukové kúpele SONOREX smart ST Ultrazvukové kúpele SONOREX smart ST Ultrazvukové kúpele SONOREX smart ST Ultrazvukové kúpele SONOREX smart ST Ultrazvukové kúpele SONOREX smart ST Ultrazvukové kúpele SONOREX smart ST Ultrazvukové kúpele SONOREX smart ST Ultrazvukové kúpele SONOREX smart ST Ultrazvukové kúpele SONOREX smart ST Ultrazvukové kúpele SONOREX smart ST

Otázka k produktu

Podobné produkty

Zvoľte, kam bude tovar pridaný

Prihlásenie
