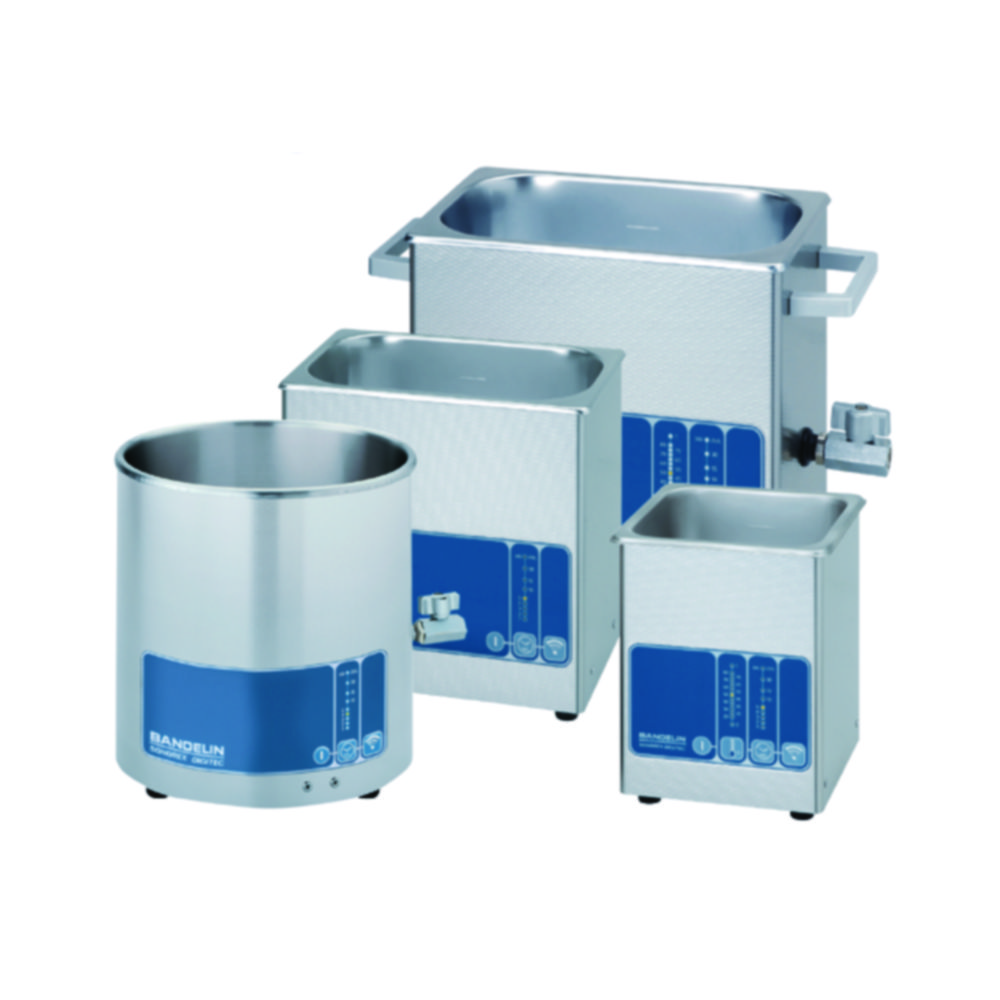

Ultrazvukové kúpele SONOREX DIGITEC, s ohrevom Ďalšie fotografie

Ultrazvukové kúpele SONOREX DIGITEC, s ohrevom

S vyhrievaním, nastaviteľný rozsah teplôt od 20 do 80 °C.
Zvoľte variant
Výrobca
  • Bandelin electronic
Kategória

Varianty produktu

Názov Katalógové číslo / Kód produktu
Nominal capacity ( ml ) Weight ( g ) Type Depth int. ( mm ) Height int. ( mm ) Int. width ( mm ) With stopcock Ext. depth ( mm ) Ext. height ( mm ) Ext. width ( mm ) Plug type Ultrasonic power ( W ) Safety Data Sheet Heating capacity ( W ) Ext. dim. (WxDxH) Int. Dim. (WxDxH)
Kusy v balení Cena bez DPH
Obrázek produktové varianty DT 514 H
4679291 / 3211-GB
Nominal capacity ( ml )
13.5 l
Weight ( g )
8.8 kg
Type
DT 514 H
Depth int. ( mm )
300 mm
Height int. ( mm )
150 mm
Int. width ( mm )
325 mm
With stopcock
Yes
Ext. depth ( mm )
325 mm
Ext. height ( mm )
305 mm
Ext. width ( mm )
355 mm
Plug type
UK
Ultrasonic power ( W )
215 W
Safety Data Sheet
https://sw.llg.de/search?search=4679291
Heating capacity ( W )
600 W
Ext. dim. (WxDxH)
355 x 325 x 305 mm
Int. Dim. (WxDxH)
325 x 300 x 150 mm
Kusy v balení
-
Na otázku

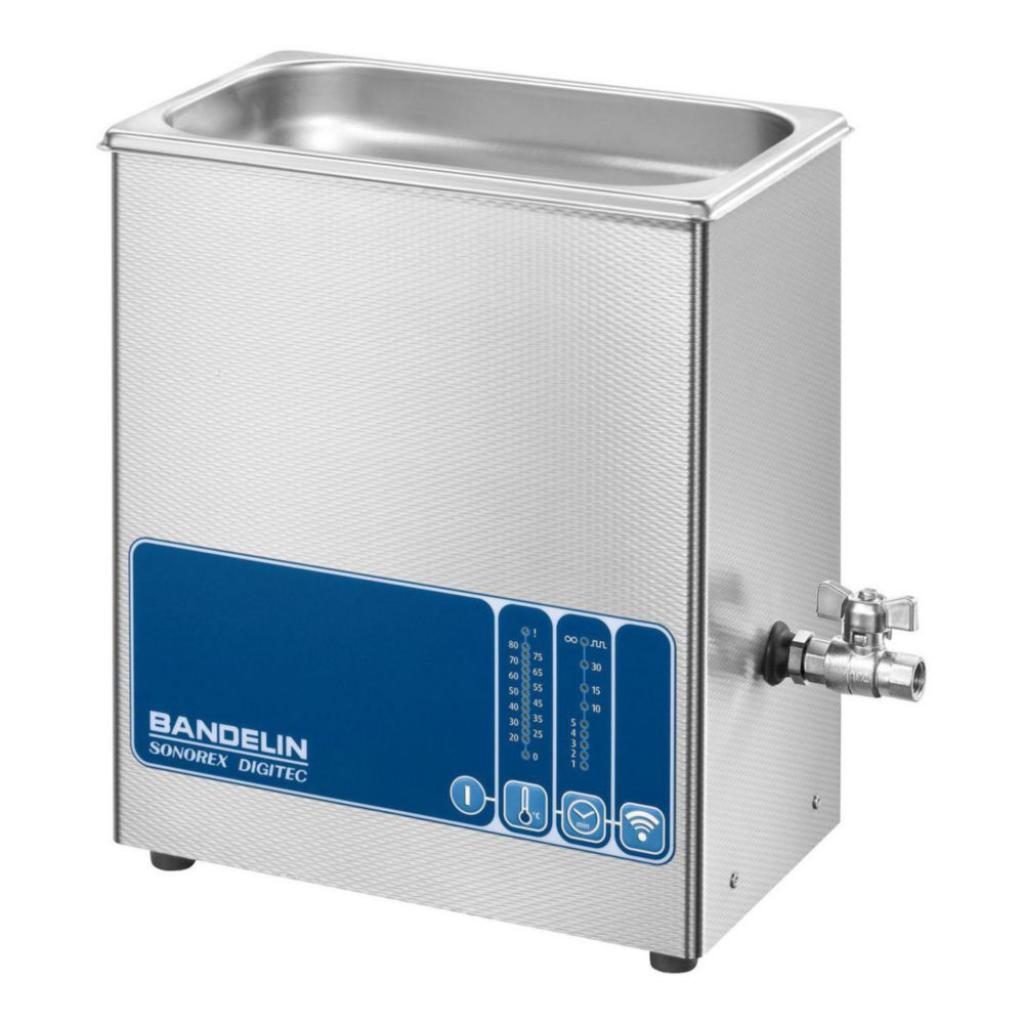

Obrázek produktové varianty DT 103 H
6290060 / 3201-GB
Nominal capacity ( ml )
4.0 l
Weight ( g )
4.6 kg
Type
DT 103 H
Depth int. ( mm )
140 mm
Height int. ( mm )
150 mm
Int. width ( mm )
240 mm
With stopcock
Yes
Ext. depth ( mm )
160 mm
Ext. height ( mm )
310 mm
Ext. width ( mm )
260 mm
Plug type
UK
Ultrasonic power ( W )
140 W
Safety Data Sheet
https://sw.llg.de/search?search=6290060
Heating capacity ( W )
200 W
Ext. dim. (WxDxH)
260 x 160 x 310 mm
Int. Dim. (WxDxH)
240 x 140 x 150 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty DT 31 H
6317023 / 3220-GB
Nominal capacity ( ml )
0.9 l
Weight ( g )
1.9 kg
Type
DT 31 H
Depth int. ( mm )
85 mm
Height int. ( mm )
60 mm
Int. width ( mm )
190 mm
With stopcock
No
Ext. depth ( mm )
100 mm
Ext. height ( mm )
180 mm
Ext. width ( mm )
205 mm
Plug type
UK
Ultrasonic power ( W )
40 W
Safety Data Sheet
https://sw.llg.de/search?search=6317023
Heating capacity ( W )
70 W
Ext. dim. (WxDxH)
205 x 100 x 180 mm
Int. Dim. (WxDxH)
190 x 85 x 60 mm
Kusy v balení
-
Na otázku

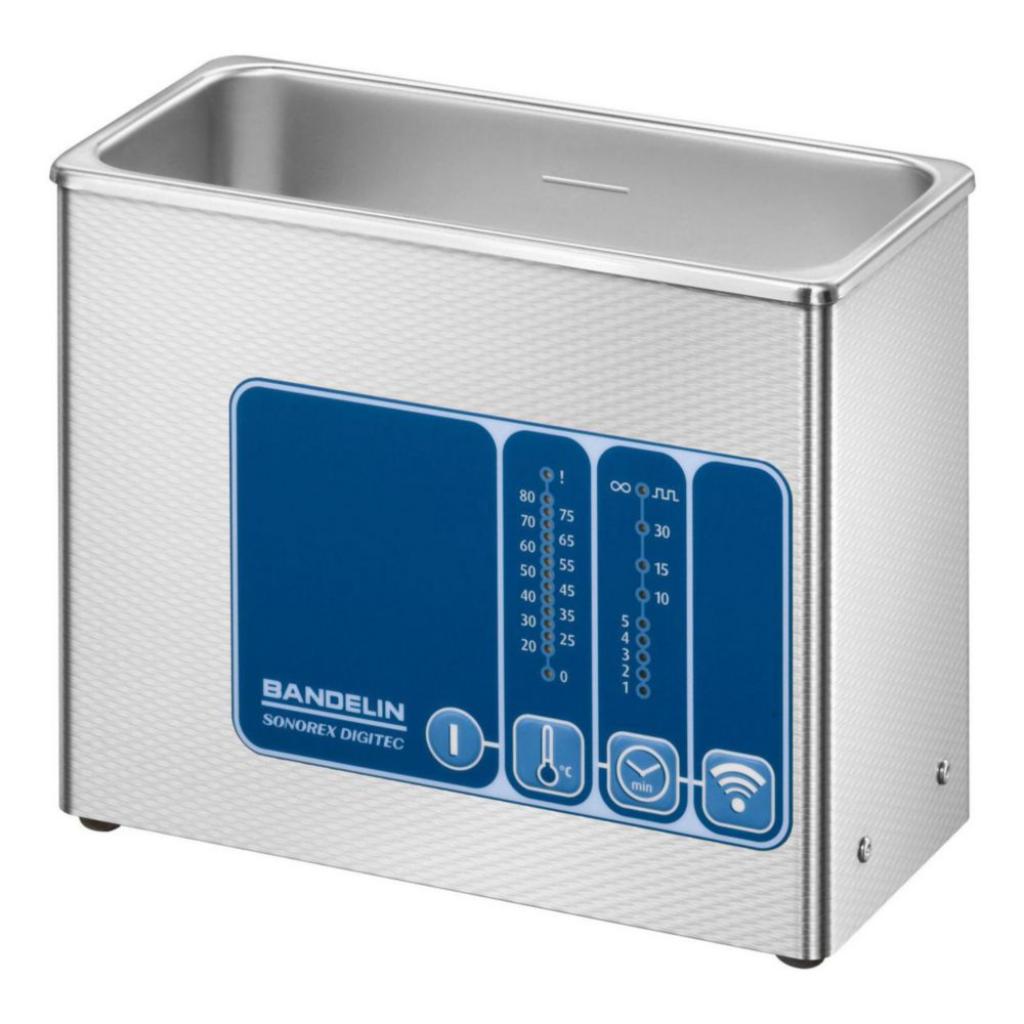

Obrázek produktové varianty DT 31 H
9877831 / 3220
Nominal capacity ( ml )
0.9 l
Weight ( g )
1.9 kg
Type
DT 31 H
Depth int. ( mm )
85 mm
Height int. ( mm )
60 mm
Int. width ( mm )
190 mm
With stopcock
No
Ext. depth ( mm )
100 mm
Ext. height ( mm )
180 mm
Ext. width ( mm )
205 mm
Plug type
EU
Ultrasonic power ( W )
40 W
Safety Data Sheet
https://sw.llg.de/search?search=9877831
Heating capacity ( W )
70 W
Ext. dim. (WxDxH)
205 x 100 x 180 mm
Int. Dim. (WxDxH)
190 x 85 x 60 mm
Kusy v balení
-
Na otázku

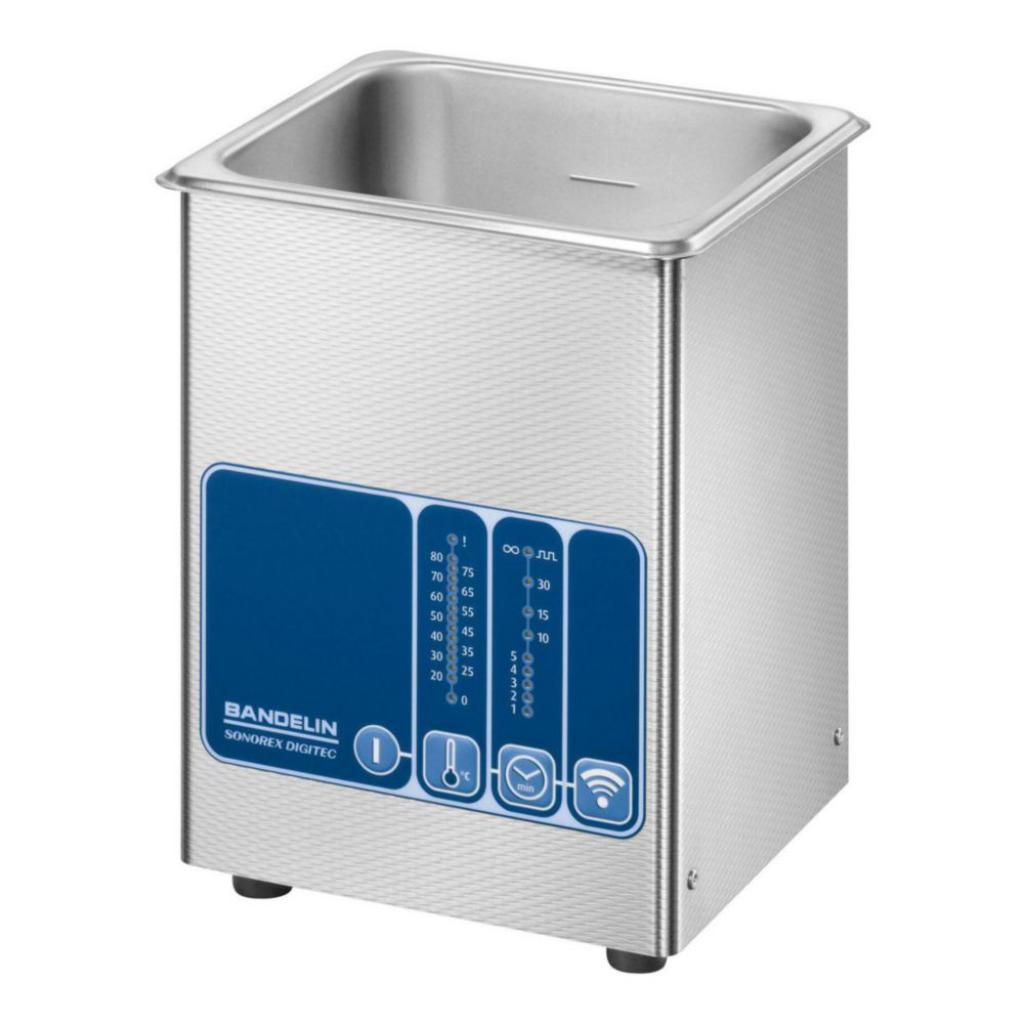

Obrázek produktové varianty DT 52 H
9877833 / 3225
Nominal capacity ( ml )
1.8 l
Weight ( g )
2.9 kg
Type
DT 52 H
Depth int. ( mm )
140 mm
Height int. ( mm )
100 mm
Int. width ( mm )
150 mm
With stopcock
No
Ext. depth ( mm )
165 mm
Ext. height ( mm )
230 mm
Ext. width ( mm )
175 mm
Plug type
EU
Ultrasonic power ( W )
60 W
Safety Data Sheet
https://sw.llg.de/search?search=9877833
Heating capacity ( W )
140 W
Ext. dim. (WxDxH)
175 x 165 x 230 mm
Int. Dim. (WxDxH)
150 x 140 x 100 mm
Kusy v balení
-
Na otázku

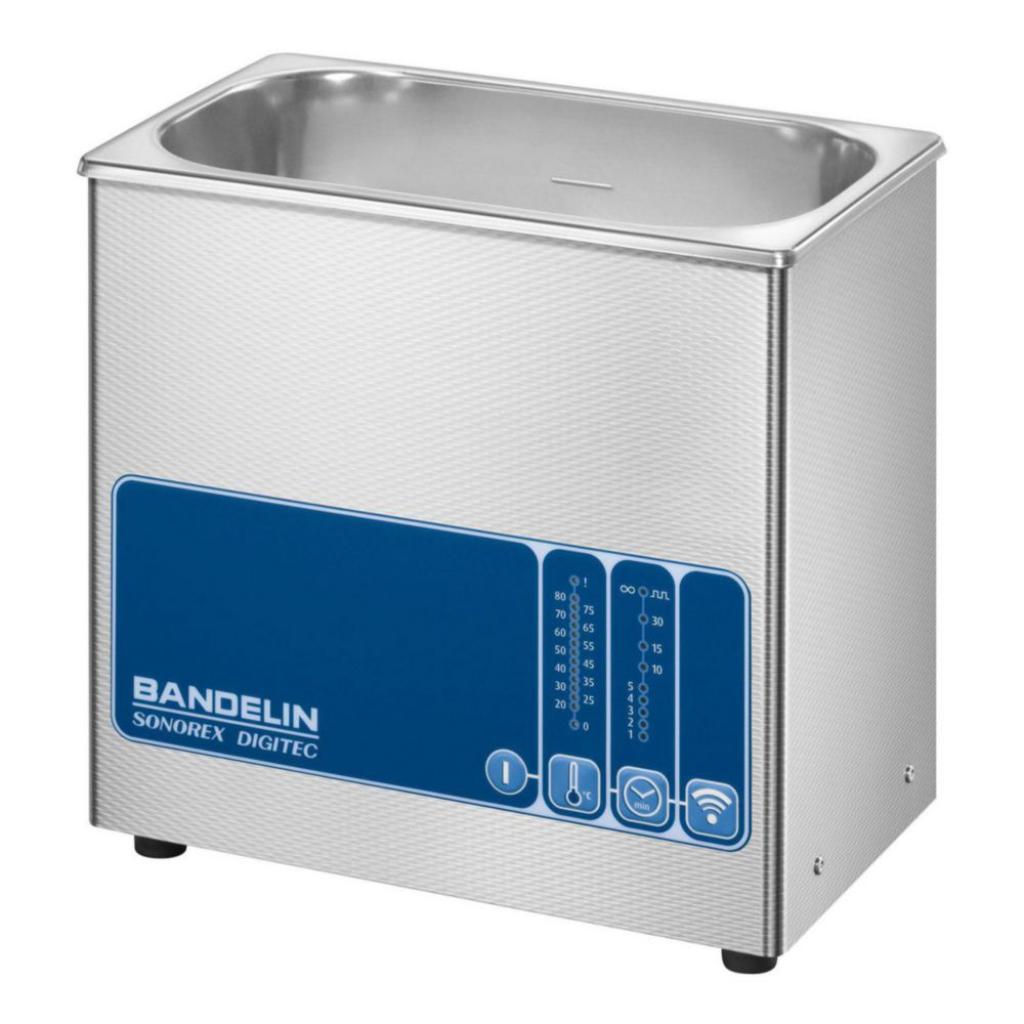

Obrázek produktové varianty DT 100 H
9877835 / 3230
Nominal capacity ( ml )
3.0 l
Weight ( g )
3.6 kg
Type
DT 100 H
Depth int. ( mm )
140 mm
Height int. ( mm )
100 mm
Int. width ( mm )
240 mm
With stopcock
No
Ext. depth ( mm )
160 mm
Ext. height ( mm )
250 mm
Ext. width ( mm )
260 mm
Plug type
EU
Ultrasonic power ( W )
80 W
Safety Data Sheet
https://sw.llg.de/search?search=9877835
Heating capacity ( W )
140 W
Ext. dim. (WxDxH)
260 x 160 x 250 mm
Int. Dim. (WxDxH)
240 x 140 x 100 mm
Kusy v balení
-
Na otázku

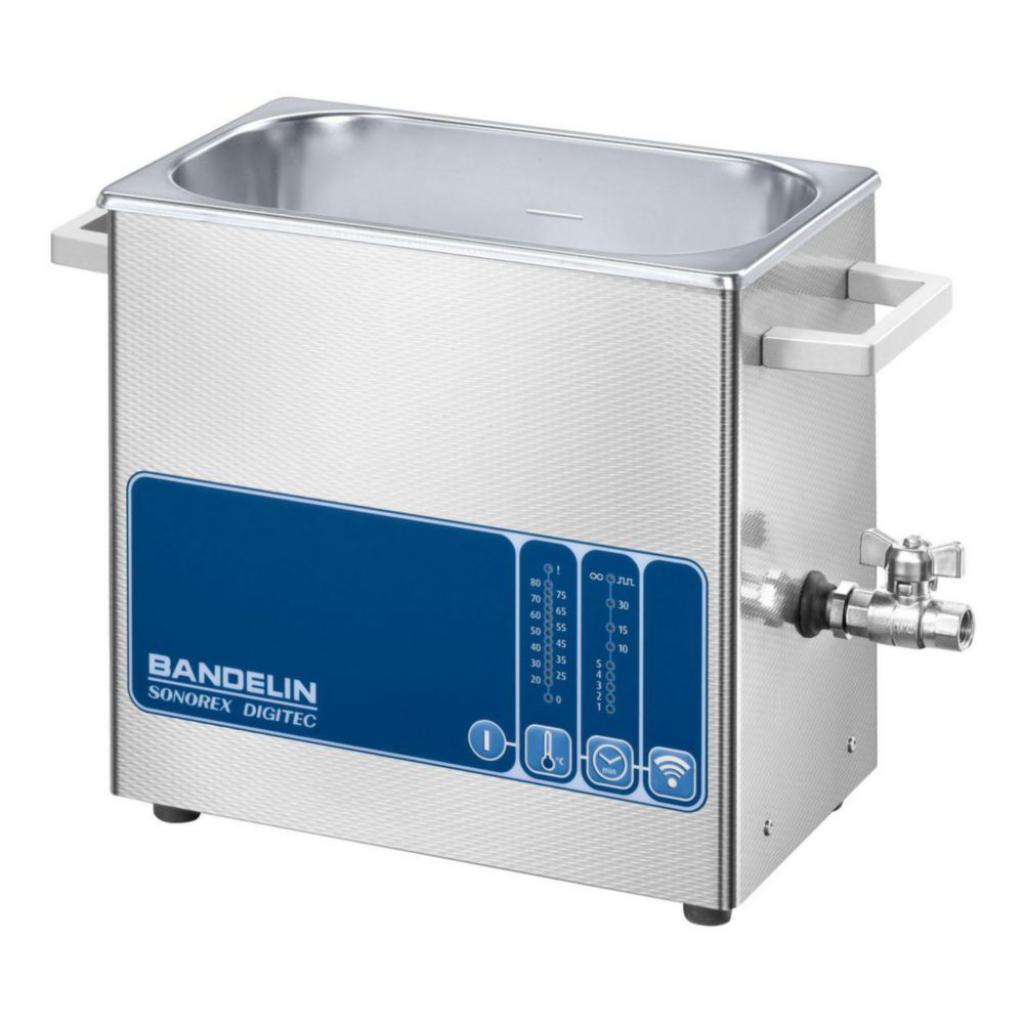

Obrázek produktové varianty DT 102 H
9877836 / 3235
Nominal capacity ( ml )
3.0 l
Weight ( g )
4.3 kg
Type
DT 102 H
Depth int. ( mm )
140 mm
Height int. ( mm )
100 mm
Int. width ( mm )
240 mm
With stopcock
Yes
Ext. depth ( mm )
160 mm
Ext. height ( mm )
250 mm
Ext. width ( mm )
260 mm
Plug type
EU
Ultrasonic power ( W )
120 W
Safety Data Sheet
https://sw.llg.de/search?search=9877836
Heating capacity ( W )
140 W
Ext. dim. (WxDxH)
260 x 160 x 250 mm
Int. Dim. (WxDxH)
240 x 140 x 100 mm
Kusy v balení
1
Na otázku
Obrázek produktové varianty DT 103 H
9877837 / 3201
Nominal capacity ( ml )
4.0 l
Weight ( g )
4.6 kg
Type
DT 103 H
Depth int. ( mm )
140 mm
Height int. ( mm )
150 mm
Int. width ( mm )
240 mm
With stopcock
Yes
Ext. depth ( mm )
160 mm
Ext. height ( mm )
310 mm
Ext. width ( mm )
260 mm
Plug type
EU
Ultrasonic power ( W )
140 W
Safety Data Sheet
https://sw.llg.de/search?search=9877837
Heating capacity ( W )
200 W
Ext. dim. (WxDxH)
260 x 160 x 310 mm
Int. Dim. (WxDxH)
240 x 140 x 150 mm
Kusy v balení
-
Na otázku

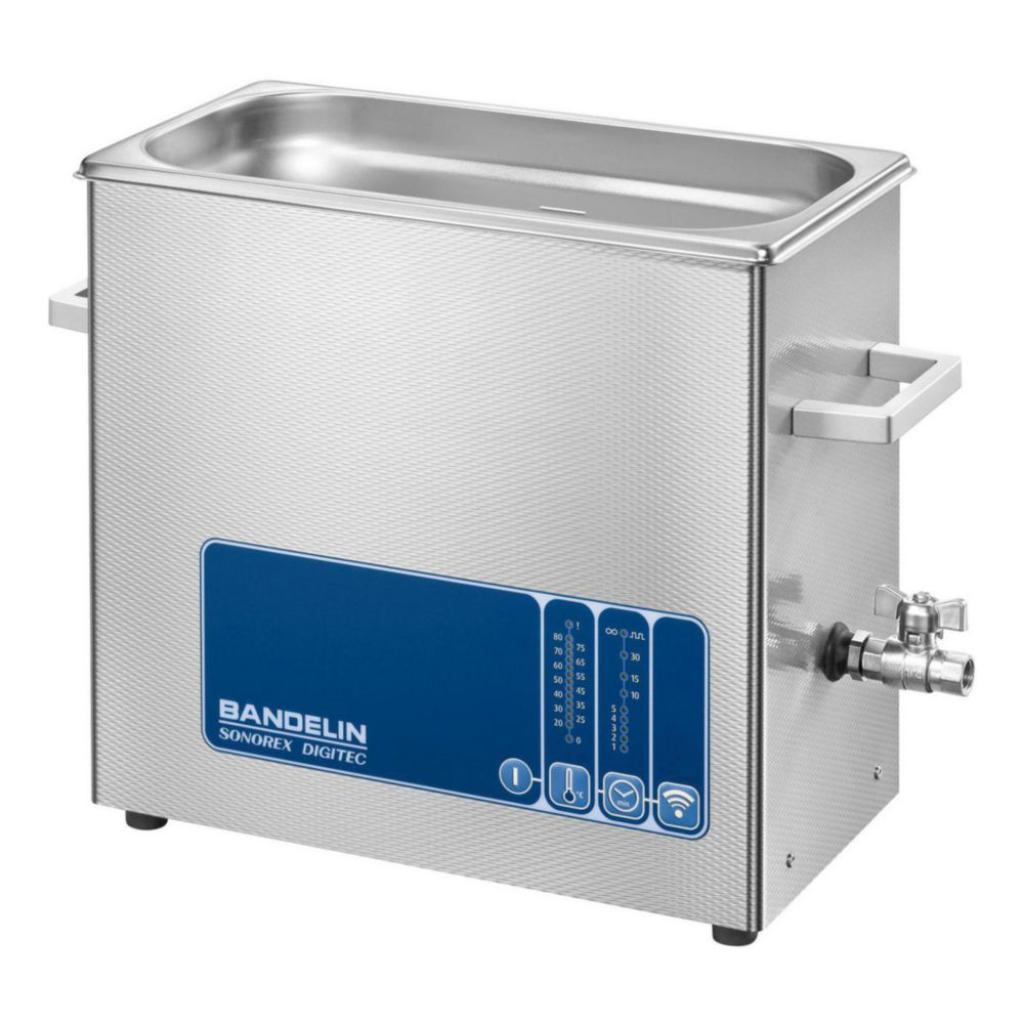

Obrázek produktové varianty DT 255 H
9877840 / 3240
Nominal capacity ( ml )
5.5 l
Weight ( g )
5.3 kg
Type
DT 255 H
Depth int. ( mm )
150 mm
Height int. ( mm )
150 mm
Int. width ( mm )
300 mm
With stopcock
Yes
Ext. depth ( mm )
175 mm
Ext. height ( mm )
295 mm
Ext. width ( mm )
325 mm
Plug type
EU
Ultrasonic power ( W )
160 W
Safety Data Sheet
https://sw.llg.de/search?search=9877840
Heating capacity ( W )
280 W
Ext. dim. (WxDxH)
325 x 175 x 295 mm
Int. Dim. (WxDxH)
300 x 150 x 150 mm
Kusy v balení
-
Na otázku

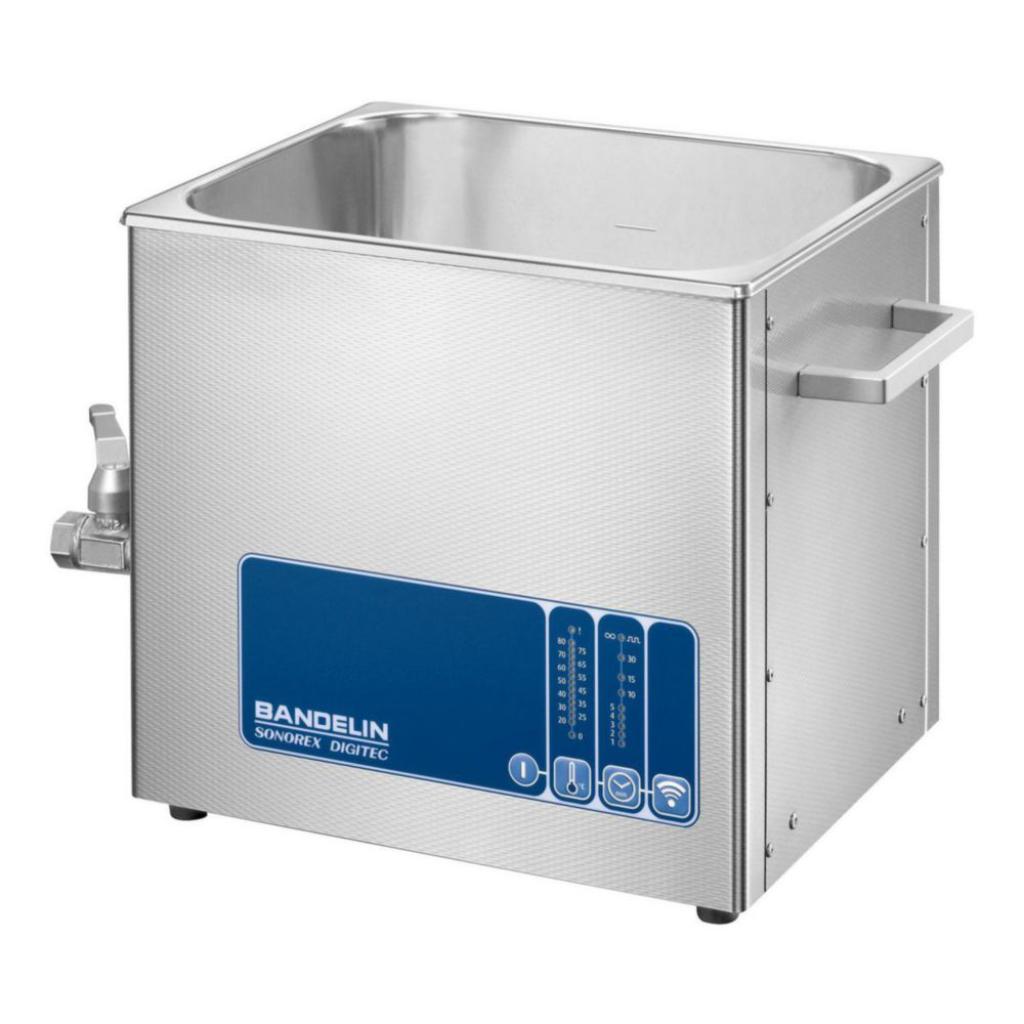

Obrázek produktové varianty DT 510 H
9877842 / 3206
Nominal capacity ( ml )
9.7 l
Weight ( g )
7.6 kg
Type
DT 510 H
Depth int. ( mm )
240 mm
Height int. ( mm )
150 mm
Int. width ( mm )
300 mm
With stopcock
Yes
Ext. depth ( mm )
265 mm
Ext. height ( mm )
305 mm
Ext. width ( mm )
325 mm
Plug type
EU
Ultrasonic power ( W )
160 W
Safety Data Sheet
https://sw.llg.de/search?search=9877842
Heating capacity ( W )
400 W
Ext. dim. (WxDxH)
325 x 265 x 305 mm
Int. Dim. (WxDxH)
300 x 240 x 150 mm
Kusy v balení
-
Na otázku

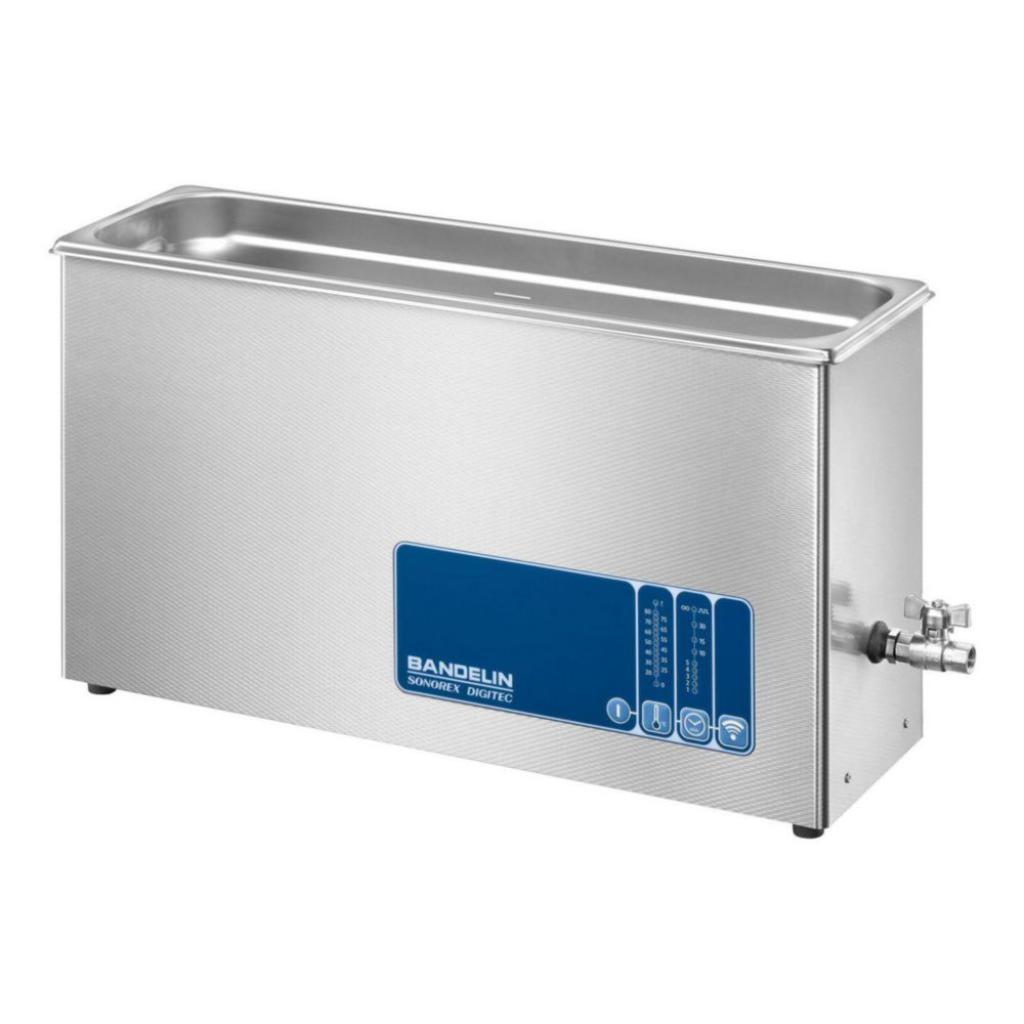

Obrázek produktové varianty DT 156 BH
9877849 / 3221
Nominal capacity ( ml )
9.0 l
Weight ( g )
7.3 kg
Type
DT 156 BH
Depth int. ( mm )
140 mm
Height int. ( mm )
150 mm
Int. width ( mm )
500 mm
With stopcock
Yes
Ext. depth ( mm )
165 mm
Ext. height ( mm )
300 mm
Ext. width ( mm )
530 mm
Plug type
EU
Ultrasonic power ( W )
215 W
Safety Data Sheet
https://sw.llg.de/search?search=9877849
Heating capacity ( W )
600 W
Ext. dim. (WxDxH)
530 x 165 x 300 mm
Int. Dim. (WxDxH)
500 x 140 x 150 mm
Kusy v balení
-
Na otázku

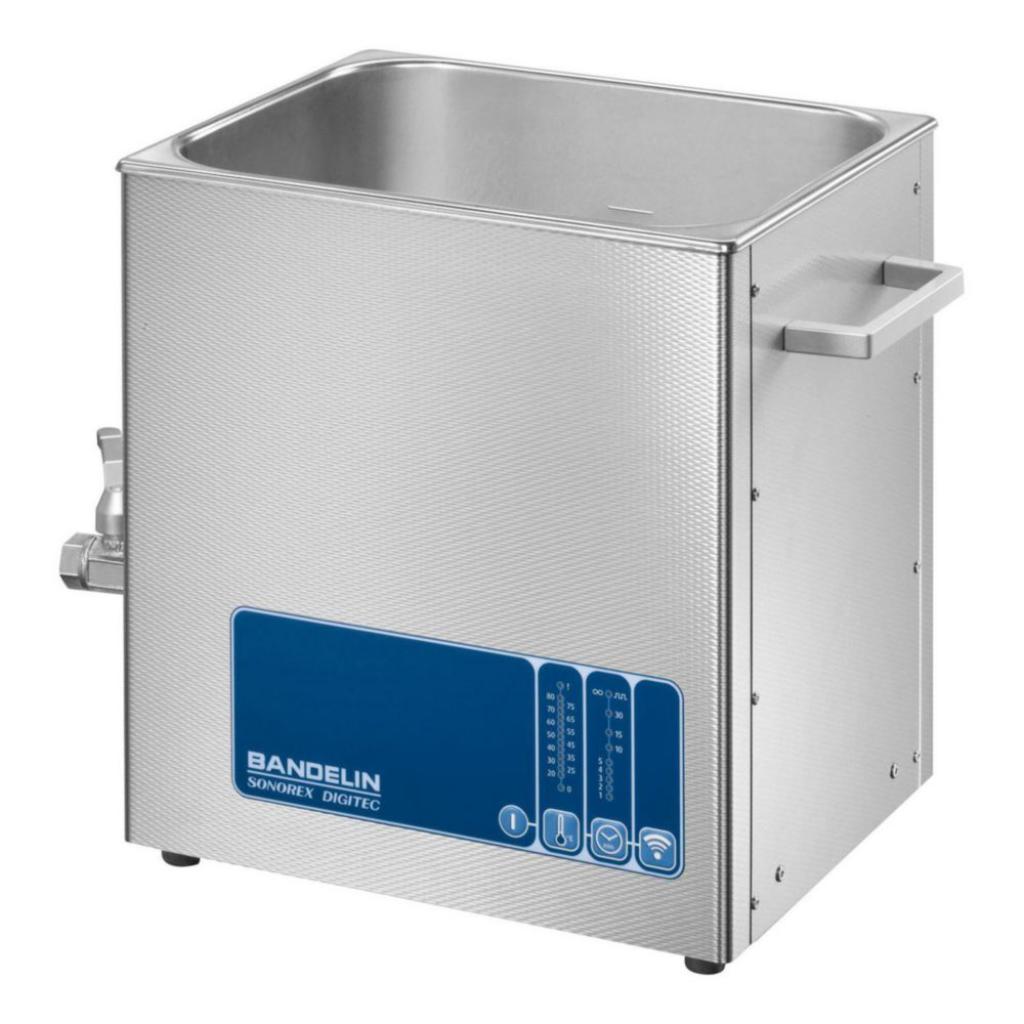

Obrázek produktové varianty DT 512 H
9877850 / 3226
Nominal capacity ( ml )
13.0 l
Weight ( g )
8.0 kg
Type
DT 512 H
Depth int. ( mm )
240 mm
Height int. ( mm )
200 mm
Int. width ( mm )
300 mm
With stopcock
Yes
Ext. depth ( mm )
265 mm
Ext. height ( mm )
350 mm
Ext. width ( mm )
325 mm
Plug type
EU
Ultrasonic power ( W )
215 W
Safety Data Sheet
https://sw.llg.de/search?search=9877850
Heating capacity ( W )
400 W
Ext. dim. (WxDxH)
325 x 265 x 350 mm
Int. Dim. (WxDxH)
300 x 240 x 200 mm
Kusy v balení
1
Na otázku

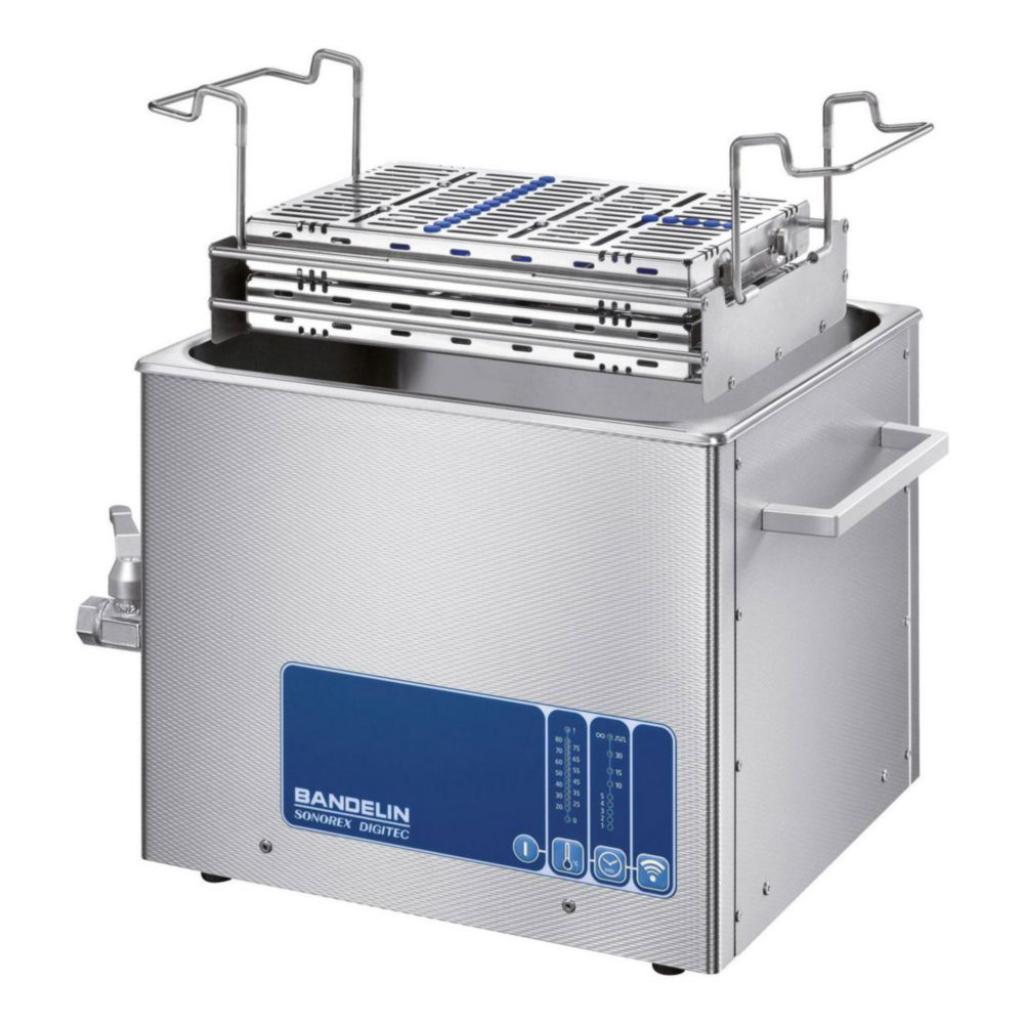

Obrázek produktové varianty DT 514 H
9877852 / 3211
Nominal capacity ( ml )
13.5 l
Weight ( g )
8.8 kg
Type
DT 514 H
Depth int. ( mm )
300 mm
Height int. ( mm )
150 mm
Int. width ( mm )
325 mm
With stopcock
Yes
Ext. depth ( mm )
325 mm
Ext. height ( mm )
305 mm
Ext. width ( mm )
355 mm
Plug type
EU
Ultrasonic power ( W )
215 W
Safety Data Sheet
https://sw.llg.de/search?search=9877852
Heating capacity ( W )
600 W
Ext. dim. (WxDxH)
355 x 325 x 305 mm
Int. Dim. (WxDxH)
325 x 300 x 150 mm
Kusy v balení
-
Na otázku

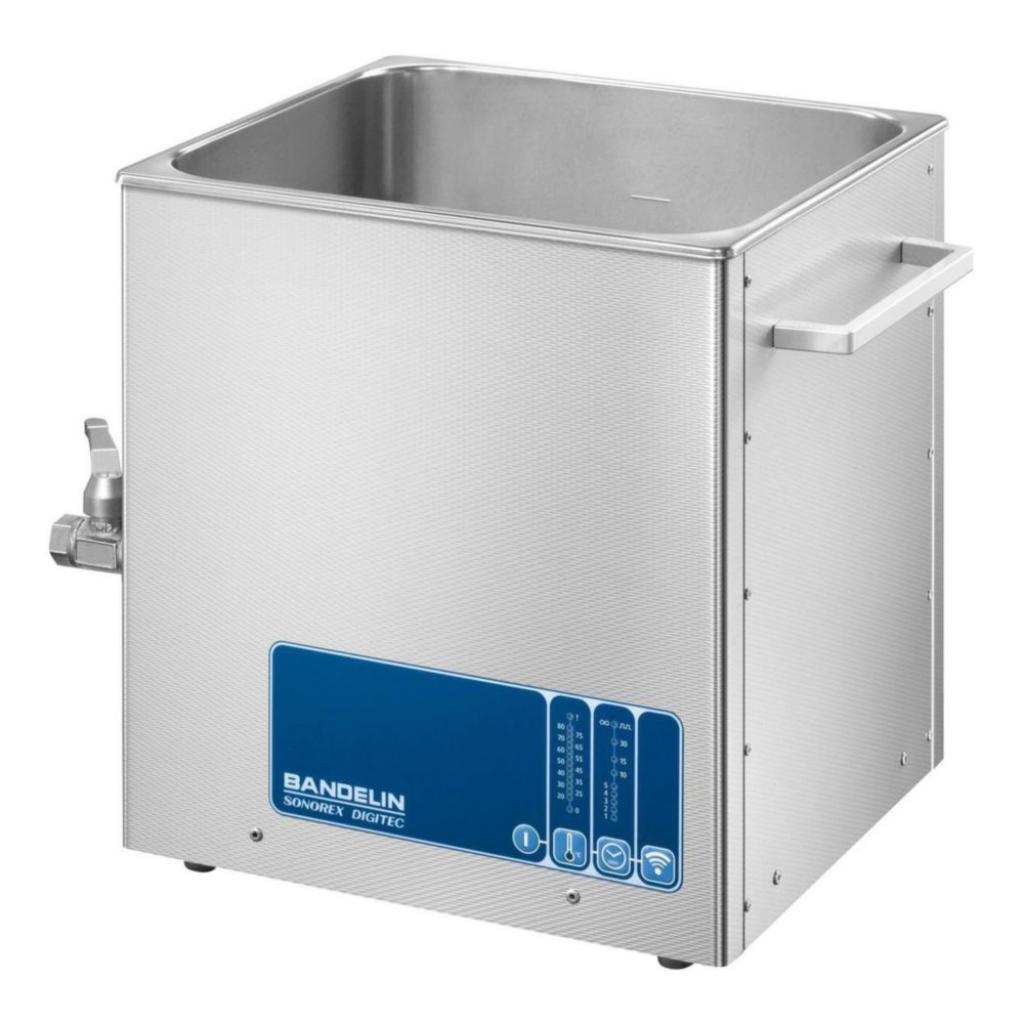

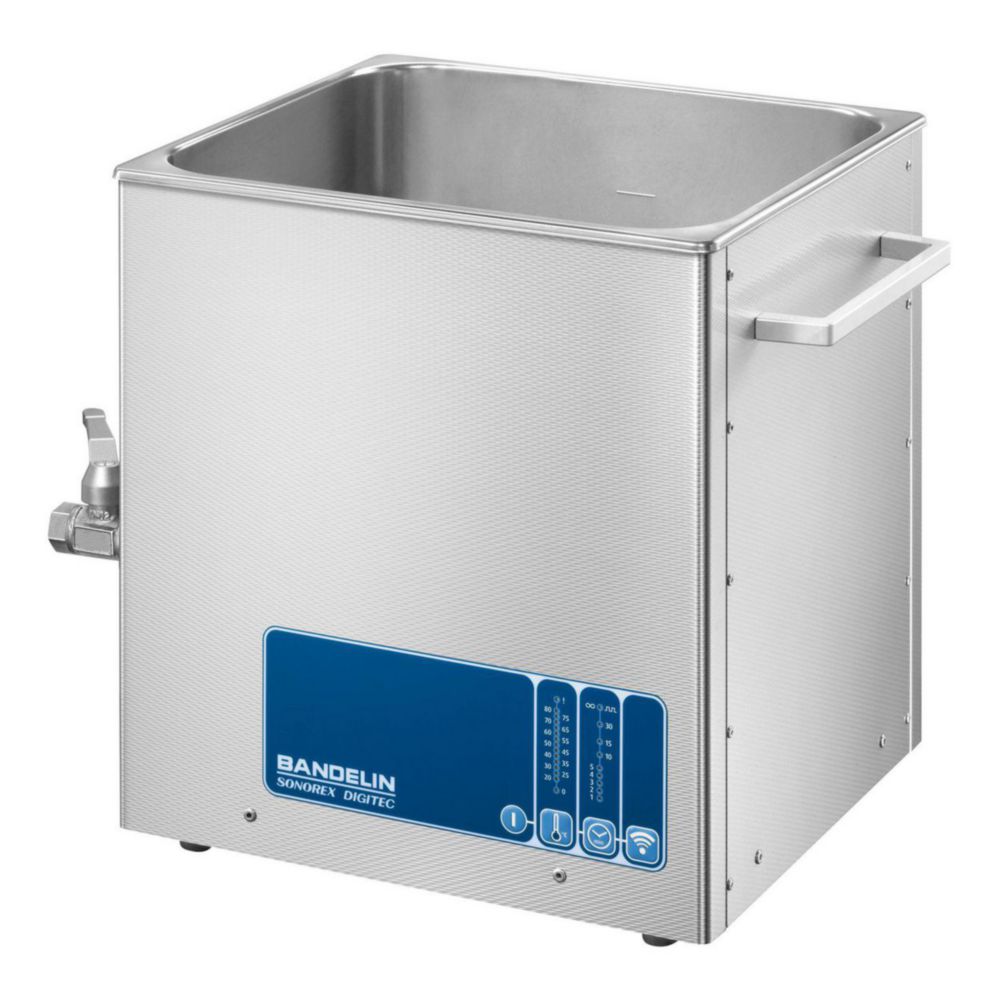

Obrázek produktové varianty DT 514 BH
9877853 / 3216
Nominal capacity ( ml )
18.7 l
Weight ( g )
9.8 kg
Type
DT 514 BH
Depth int. ( mm )
300 mm
Height int. ( mm )
200 mm
Int. width ( mm )
325 mm
With stopcock
Yes
Ext. depth ( mm )
325 mm
Ext. height ( mm )
385 mm
Ext. width ( mm )
355 mm
Plug type
EU
Ultrasonic power ( W )
215 W
Safety Data Sheet
https://sw.llg.de/search?search=9877853
Heating capacity ( W )
600 W
Ext. dim. (WxDxH)
355 x 325 x 385 mm
Int. Dim. (WxDxH)
325 x 300 x 200 mm
Kusy v balení
-
Na otázku

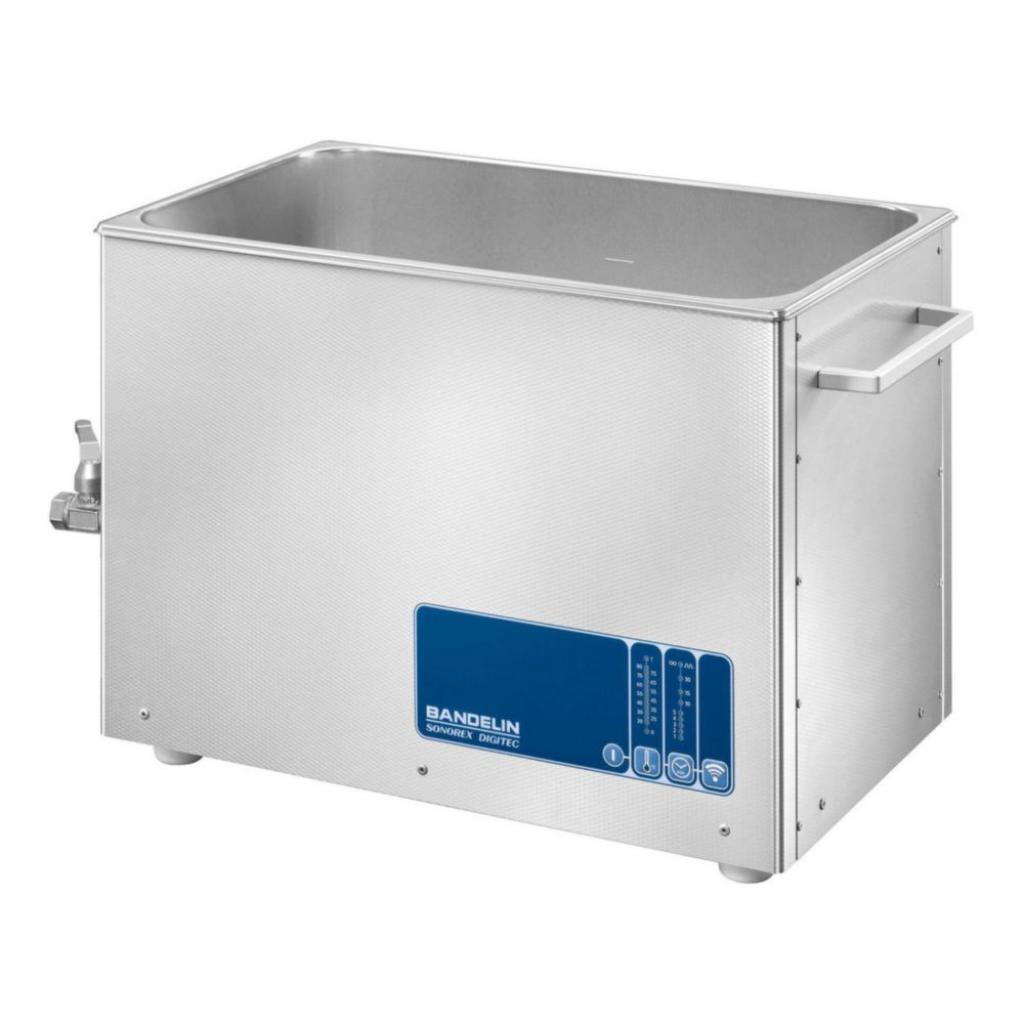

Obrázek produktové varianty DT 1028 H
9877855 / 3231
Nominal capacity ( ml )
28.0 l
Weight ( g )
14.7 kg
Type
DT 1028 H
Depth int. ( mm )
300 mm
Height int. ( mm )
200 mm
Int. width ( mm )
500 mm
With stopcock
Yes
Ext. depth ( mm )
325 mm
Ext. height ( mm )
400 mm
Ext. width ( mm )
535 mm
Plug type
EU
Ultrasonic power ( W )
300 W
Safety Data Sheet
https://sw.llg.de/search?search=9877855
Heating capacity ( W )
1300 W
Ext. dim. (WxDxH)
535 x 325 x 400 mm
Int. Dim. (WxDxH)
500 x 300 x 200 mm
Kusy v balení
-
Na otázku

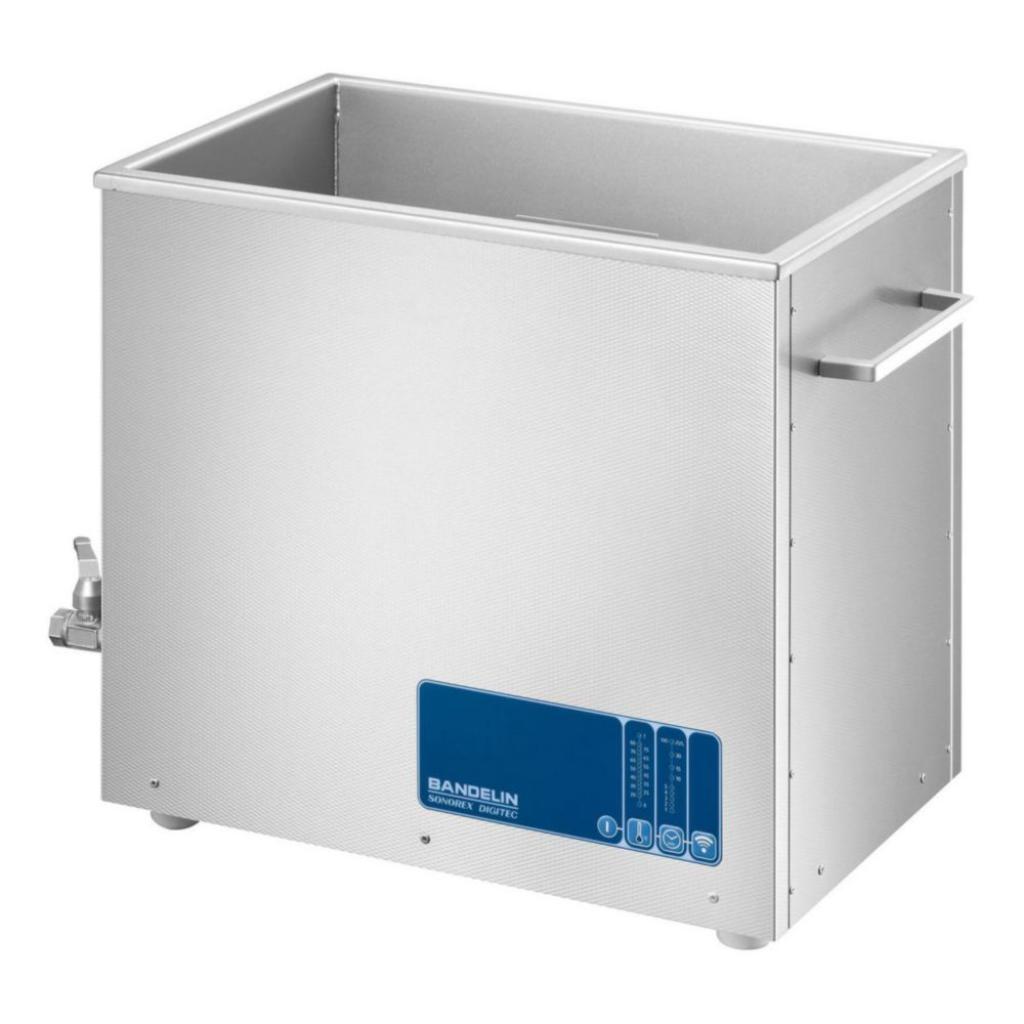

Obrázek produktové varianty DT 1028 CH
9877857 / 3266
Nominal capacity ( ml )
45.0 l
Weight ( g )
23.7 kg
Type
DT 1028 CH
Depth int. ( mm )
300 mm
Height int. ( mm )
300 mm
Int. width ( mm )
500 mm
With stopcock
Yes
Ext. depth ( mm )
340 mm
Ext. height ( mm )
500 mm
Ext. width ( mm )
540 mm
Plug type
EU
Ultrasonic power ( W )
300 W
Safety Data Sheet
https://sw.llg.de/search?search=9877857
Heating capacity ( W )
1450 W
Ext. dim. (WxDxH)
540 x 340 x 500 mm
Int. Dim. (WxDxH)
500 x 300 x 300 mm
Kusy v balení
-
Na otázku

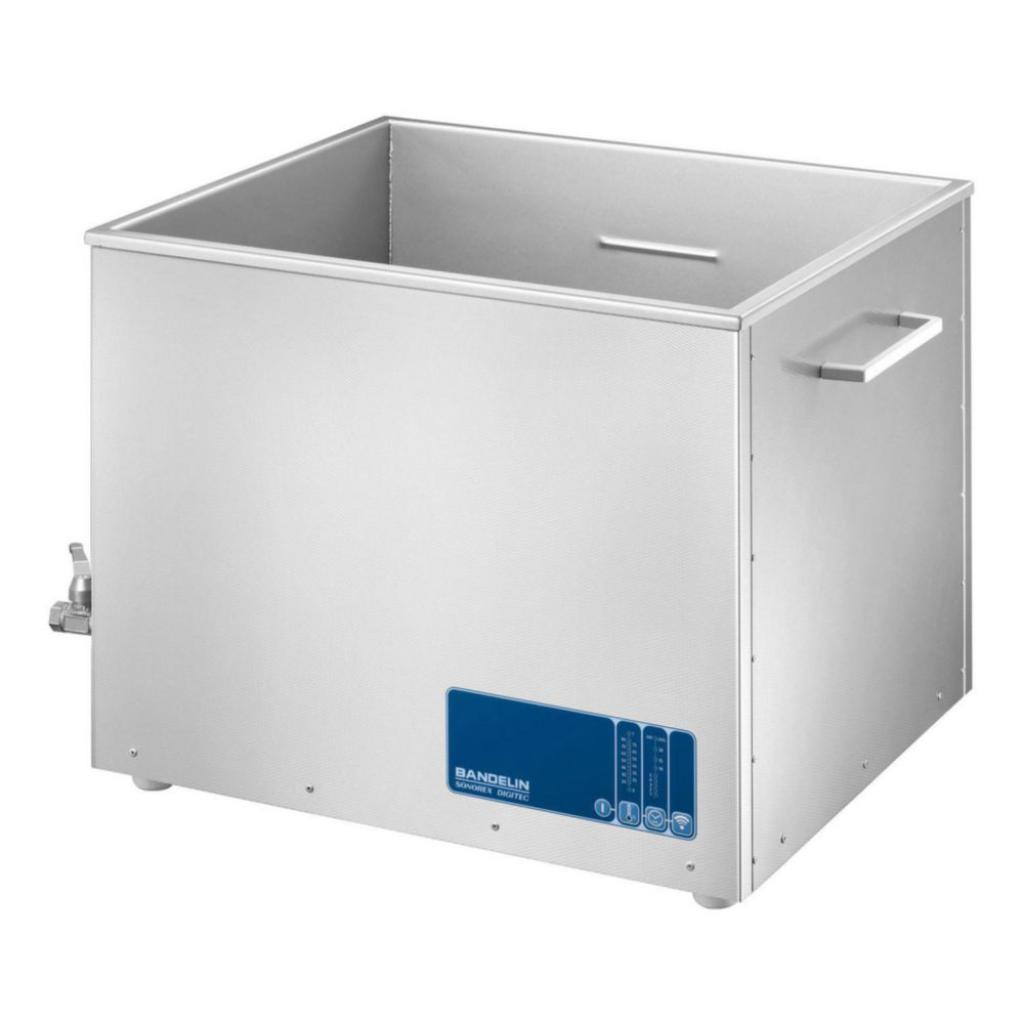

Obrázek produktové varianty DT 1050 CH
9877860 / 3271
Nominal capacity ( ml )
90.0 l
Weight ( g )
37.0 kg
Type
DT 1050 CH
Depth int. ( mm )
500 mm
Height int. ( mm )
300 mm
Int. width ( mm )
600 mm
With stopcock
Yes
Ext. depth ( mm )
540 mm
Ext. height ( mm )
530 mm
Ext. width ( mm )
640 mm
Plug type
EU
Ultrasonic power ( W )
600 W
Safety Data Sheet
https://sw.llg.de/search?search=9877860
Heating capacity ( W )
1950 W
Ext. dim. (WxDxH)
640 x 540 x 530 mm
Int. Dim. (WxDxH)
600 x 500 x 300 mm
Kusy v balení
-
Na otázku

Technické špecifikácie

Power supply frequency 50/60 Hz
IP code IP 33
Max. temperature 80 °C
Max. voltage 230 V
Min. temperature 20 °C
Power supply 230 V, 50/60 Hz
Temperature 20 ... 80 °C
Type of auxiliary energy Mains connection
Ultrasonic frequency 35 kHz
UNSPSC 41102929

Fotografie

Ultrazvukové kúpele SONOREX DIGITEC, s ohrevom Ultrazvukové kúpele SONOREX DIGITEC, s ohrevom Ultrazvukové kúpele SONOREX DIGITEC, s ohrevom Ultrazvukové kúpele SONOREX DIGITEC, s ohrevom Ultrazvukové kúpele SONOREX DIGITEC, s ohrevom Ultrazvukové kúpele SONOREX DIGITEC, s ohrevom Ultrazvukové kúpele SONOREX DIGITEC, s ohrevom Ultrazvukové kúpele SONOREX DIGITEC, s ohrevom Ultrazvukové kúpele SONOREX DIGITEC, s ohrevom Ultrazvukové kúpele SONOREX DIGITEC, s ohrevom Ultrazvukové kúpele SONOREX DIGITEC, s ohrevom Ultrazvukové kúpele SONOREX DIGITEC, s ohrevom Ultrazvukové kúpele SONOREX DIGITEC, s ohrevom Ultrazvukové kúpele SONOREX DIGITEC, s ohrevom Ultrazvukové kúpele SONOREX DIGITEC, s ohrevom Ultrazvukové kúpele SONOREX DIGITEC, s ohrevom Ultrazvukové kúpele SONOREX DIGITEC, s ohrevom Ultrazvukové kúpele SONOREX DIGITEC, s ohrevom

Otázka k produktu

Podobné produkty

Zvoľte, kam bude tovar pridaný

Prihlásenie
