Rotačné odparovače Hei-VAP Ultimate Control, s ručným zdvihom Ďalšie fotografie

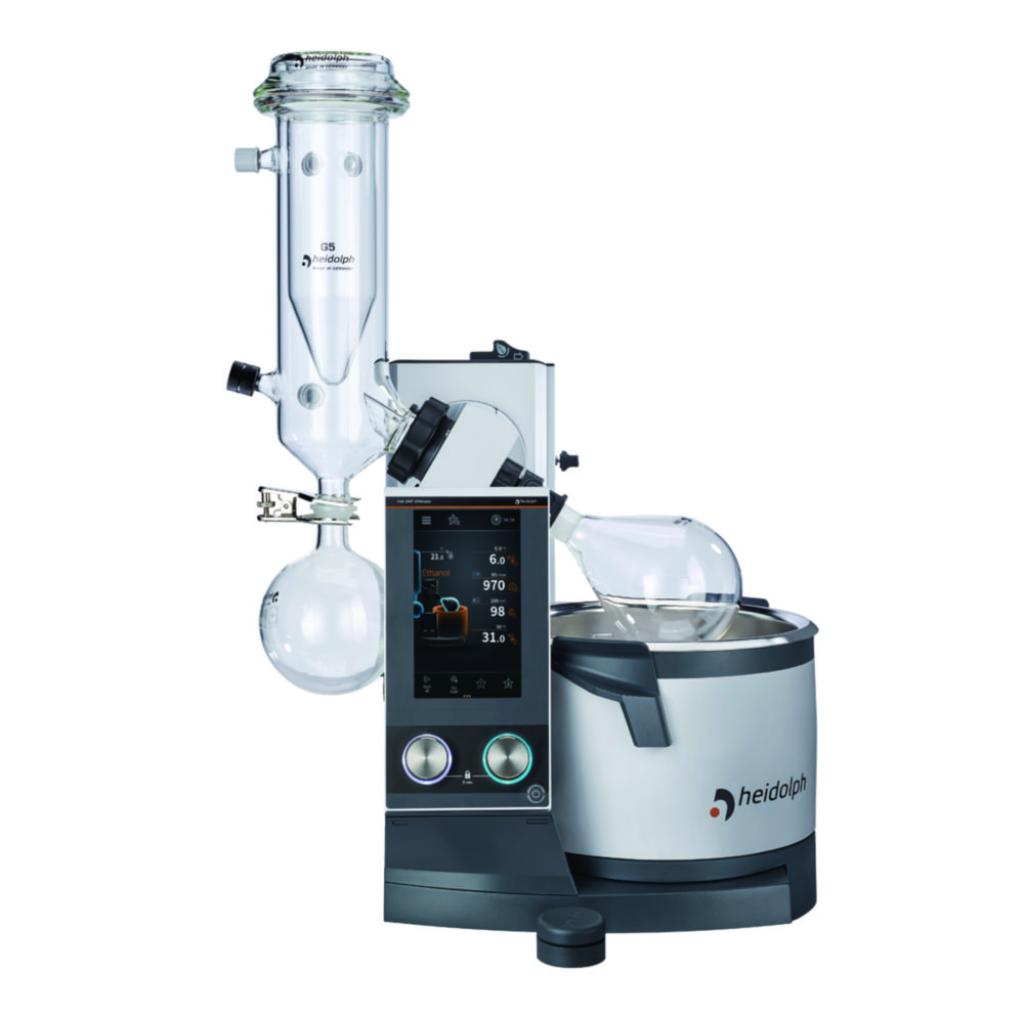

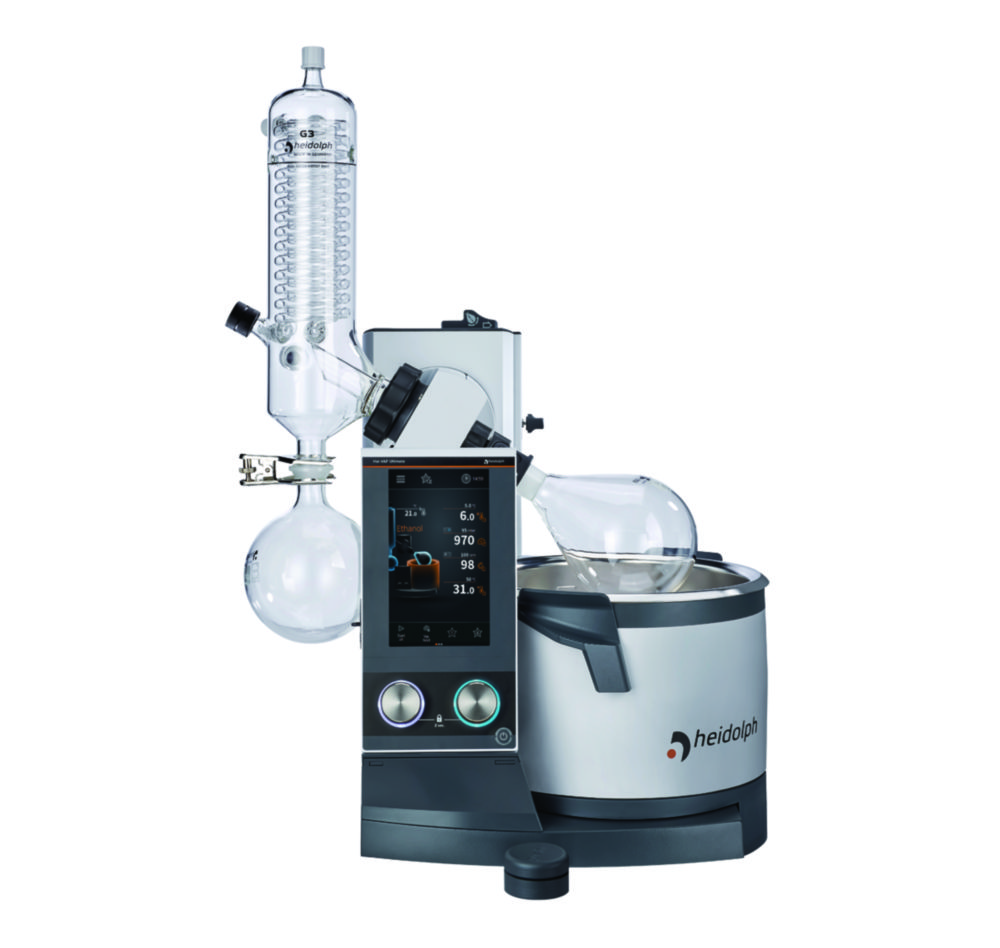

Rotačné odparovače Hei-VAP Ultimate Control, s ručným zdvihom

This devices are central control units for regulation of all process parameter: vacuum, cooling temperature, rotation and heating bath temperature.

  • Available as hand or motor lift

  • 7'' touch display for controlling the entire system including the vacuum and the cooling temperature

  • For precise monitoring, the pictogram on the-display also symbolizes active functions

  • Separate knobs for quick access: the right one for direct vacuum control, the left one for the rotation

  • Setting of values either via the touch display or the separate quick access knobs

  • Direct access to two favorites on the start screen

  • Expandable solvent library: user defined favorites can be transfered to other devices using a USB stick

  • User defined evaporation processes (ramps) can be defined and saved

  • Automatic evaporation with the Dynamic AUTOaccurate Program (DAA)

  • USB, Micro SD and LAN-/RS 232 interfaces (Lab 4.0-ready)


Scope of supply: Flask clamp Easy-Clip, vapour tube, ventilation cap, heating bath, 1-l receiving flask, 1-l evaporating flask, Control-Box. Supplied condensor as indicated.
Zvoľte variant
Výrobca
  • Heidolph Scientific
Kategória

Varianty produktu

Názov Katalógové číslo / Kód produktu
Type Safety Data Sheet Glassware
Kusy v balení Cena bez DPH
Obrázek produktové varianty G5 Studená pasca
4669035 / 575-02500-00
Type
G5
Safety Data Sheet
https://sw.llg.de/search?search=4669035
Glassware
Without coating
Kusy v balení
1
Na otázku
Obrázek produktové varianty G5B Studená pasca
4669040 / 575-02510-00
Type
G5B
Safety Data Sheet
https://sw.llg.de/search?search=4669040
Glassware
Coated
Kusy v balení
1
Na otázku

Technické špecifikácie

Condenser Vertical
Cooling surface 1400 cm²
Lift Manual
Max. speed 280 1/min
Max. temperature 210 °C
Max. voltage 230 V
Max. volume bath 4.5 l
Min. speed 10 1/min
Plug type EU
Power supply 230 V
Speed 10 ... 280 1/min
Temperature addition RT
Temperature RT ... 210 °C
Type of auxiliary energy Mains connection
UNSPSC 41104804
