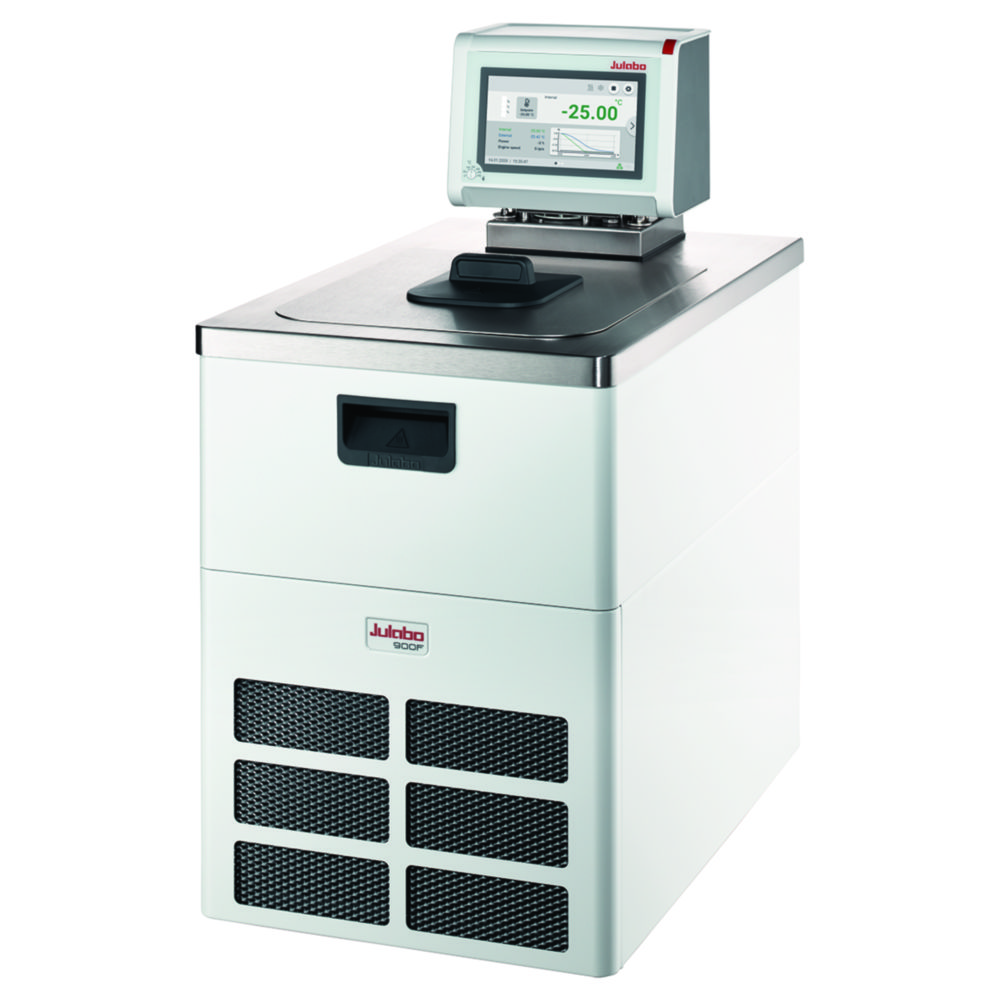

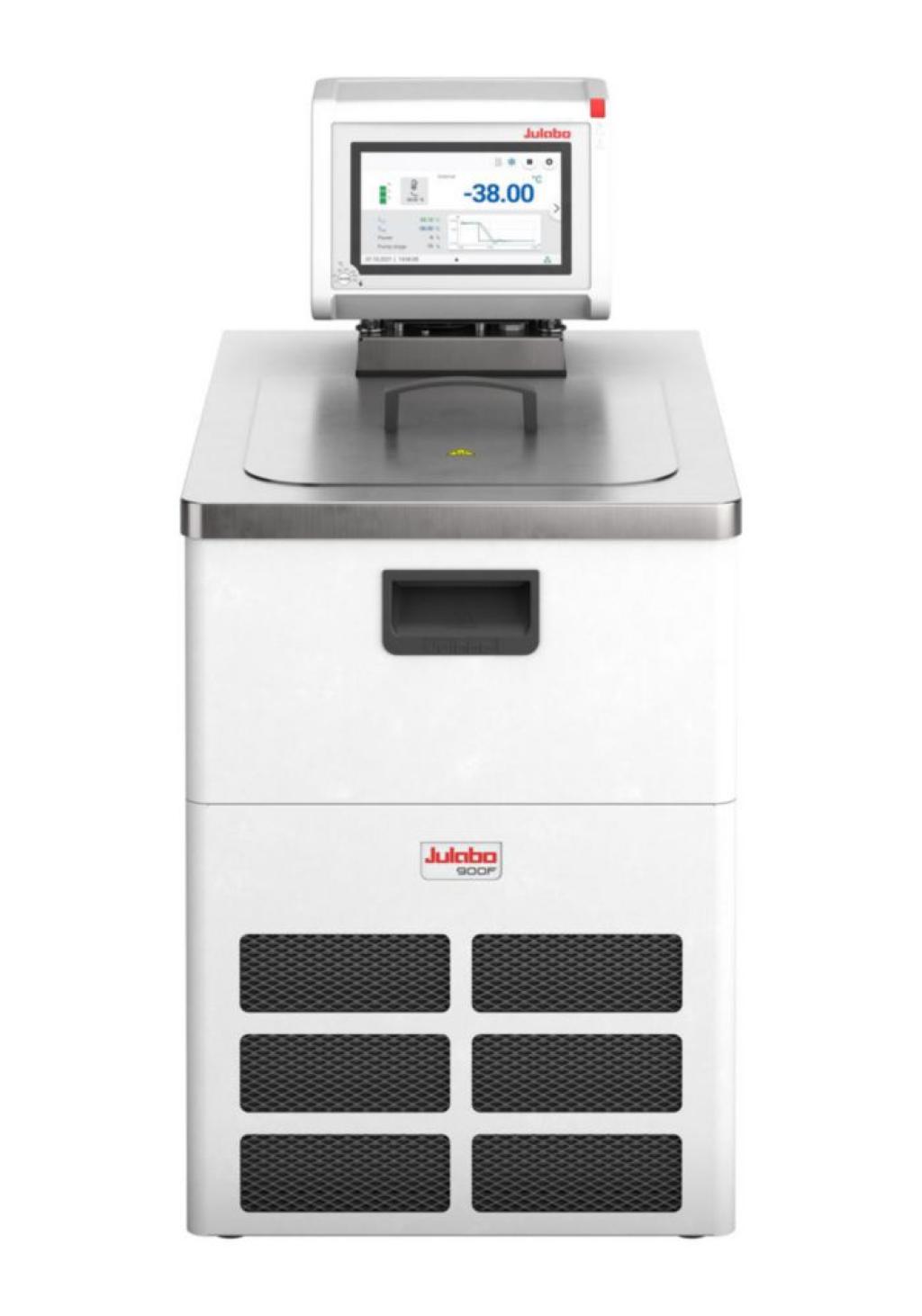

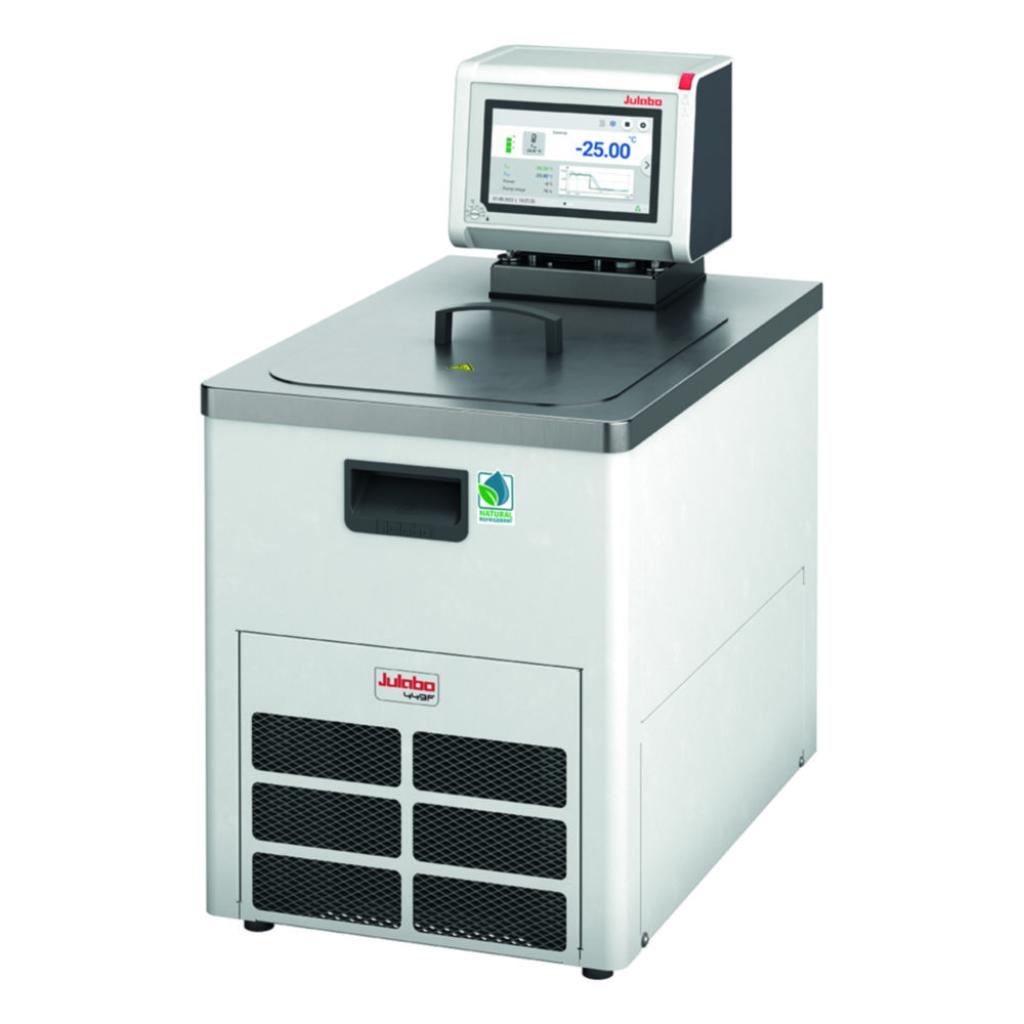

Chladiace obehové čerpadlá MAGIO™ MS/MX

Chladiace obehové čerpadlá na presnú a spoľahlivú reguláciu teploty v náročných externých aplikáciách, napr. v základnom výskume, pri testovaní materiálov a v technických zariadeniach.

7" dotykový TFT displej s vysokým rozlíšením a viacjazyčným používateľským rozhraním

Pripojenie externého čerpadla (M16x1)

Integrovaný programátor pre 8 x 60 programových krokov

Plynule nastaviteľné, mimoriadne výkonné tlakové a sacie čerpadlo

Externé pripojenie Pt100

Rozhranie USB

Rozhranie RS232/RS485

Rozhranie Ethernet

Modbus

Pripojenia pre elektromagnetický ventil

Stredne kontaktné časti z nehrdzavejúcej ocele

2 hadicové olivy, každá vhodná pre hadicu s vnútorným priemerom 8 a 12 mm v balení

Trieda III (FL) podľa DIN 12876-1

Zvoľte variant

Výrobca

Julabo GmbH

Kategória

Chladenie - termostaty

Varianty produktu

Názov

Katalógové číslo / Kód produktu

Weight ( g )	Type	Min. temperature ( °C )	Ext. depth ( mm )	Ext. height ( mm )	Ext. width ( mm )	Depth opening ( mm )	Width opening ( mm )	Safety Data Sheet	Temperature	Heating capacity ( W )	Ext. dim. (WxDxH)	Max. volume bath ( l )	Cooling capacity at 20 °C ( kW )	Volume bath	Opening (WxD)	Bath depth ( mm )	Min. volume bath ( l )	Refrigerant

Kusy v balení

Cena bez DPH

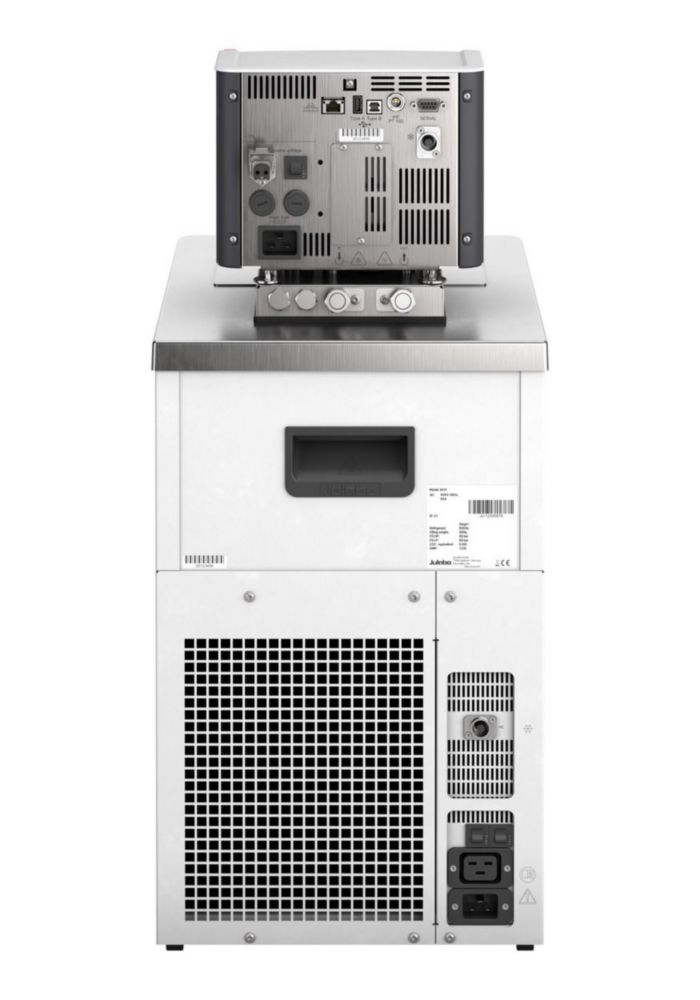

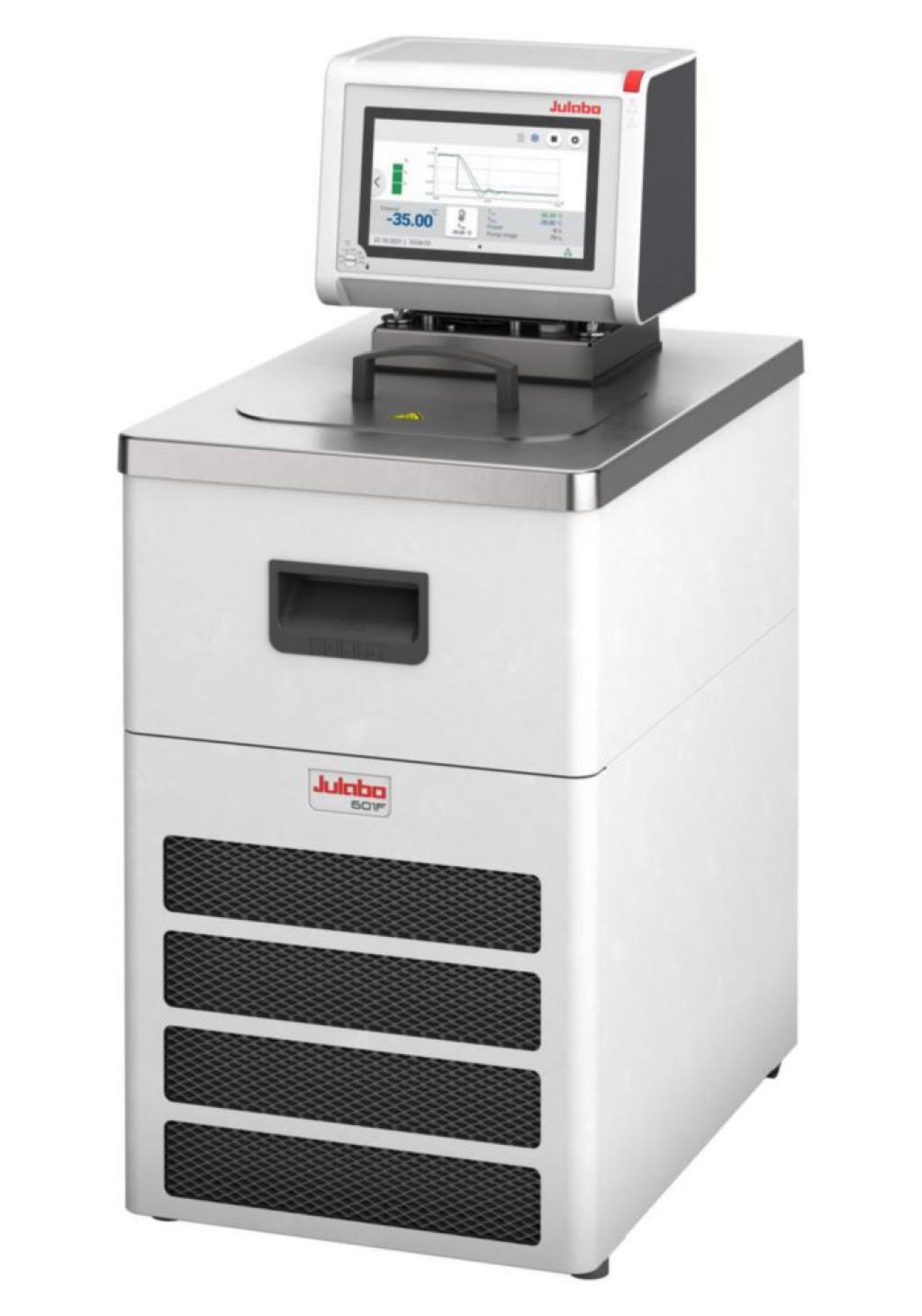

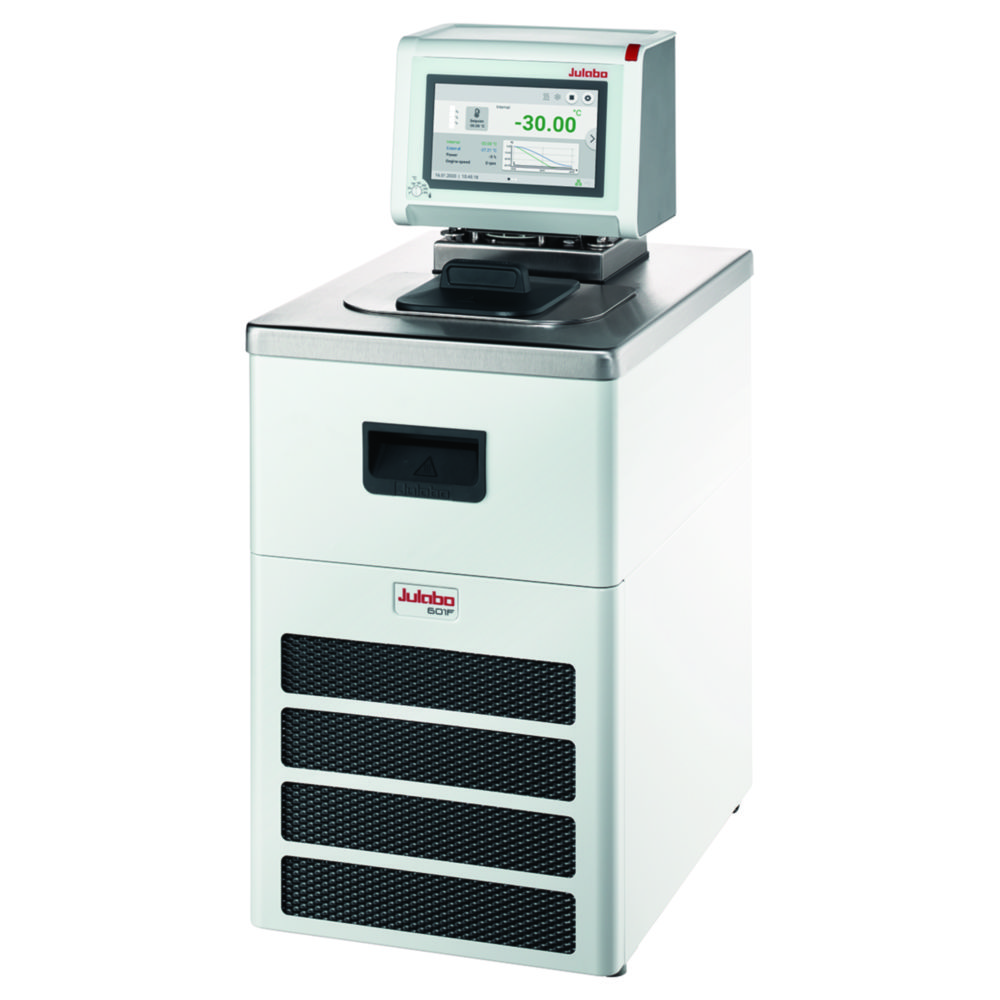

MS-601F

4678306 / 9032705

Weight ( g )

41.5 kg

Type

MS-601F

Min. temperature ( °C )

-35 °C

Ext. depth ( mm )

470 mm

Ext. height ( mm )

740 mm

Ext. width ( mm )

330 mm

Depth opening ( mm )

150 mm

Width opening ( mm )

220 mm

Safety Data Sheet

https://sw.llg.de/search?search=4678306

Temperature

-35 ... 200 °C

Heating capacity ( W )

2 kW

Ext. dim. (WxDxH)

330 x 470 x 740 mm

Max. volume bath ( l )

10 l

Cooling capacity at 20 °C ( kW )

0,6 kW

Volume bath

8 ... 10 l

Opening (WxD)

220 x 150 mm

Bath depth ( mm )

200 mm

Min. volume bath ( l )

8 l

Refrigerant

R449A

Kusy v balení

Na otázku

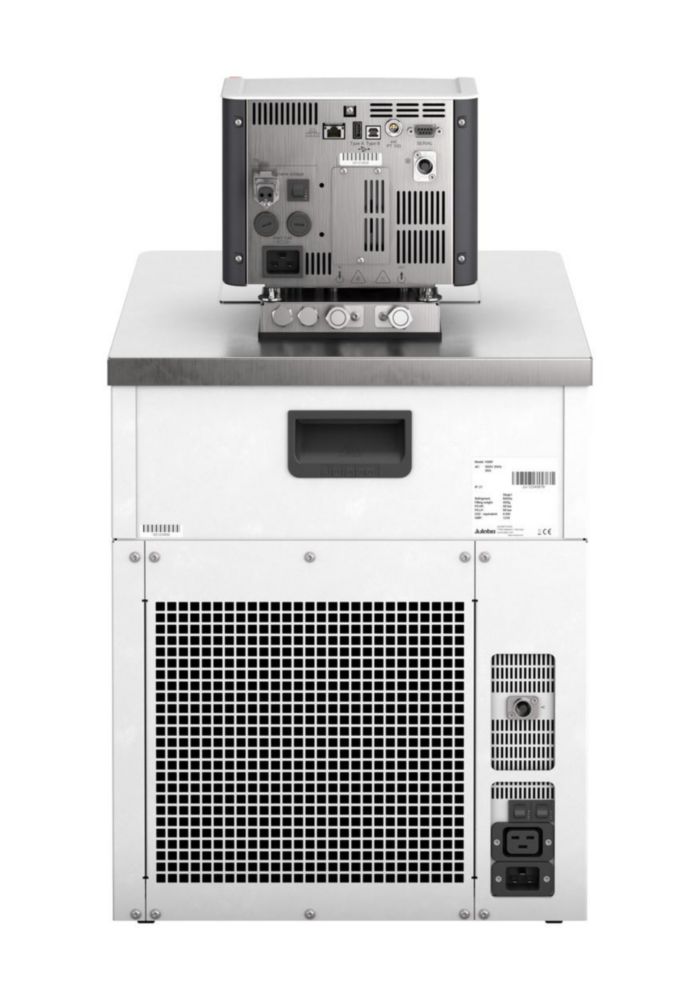

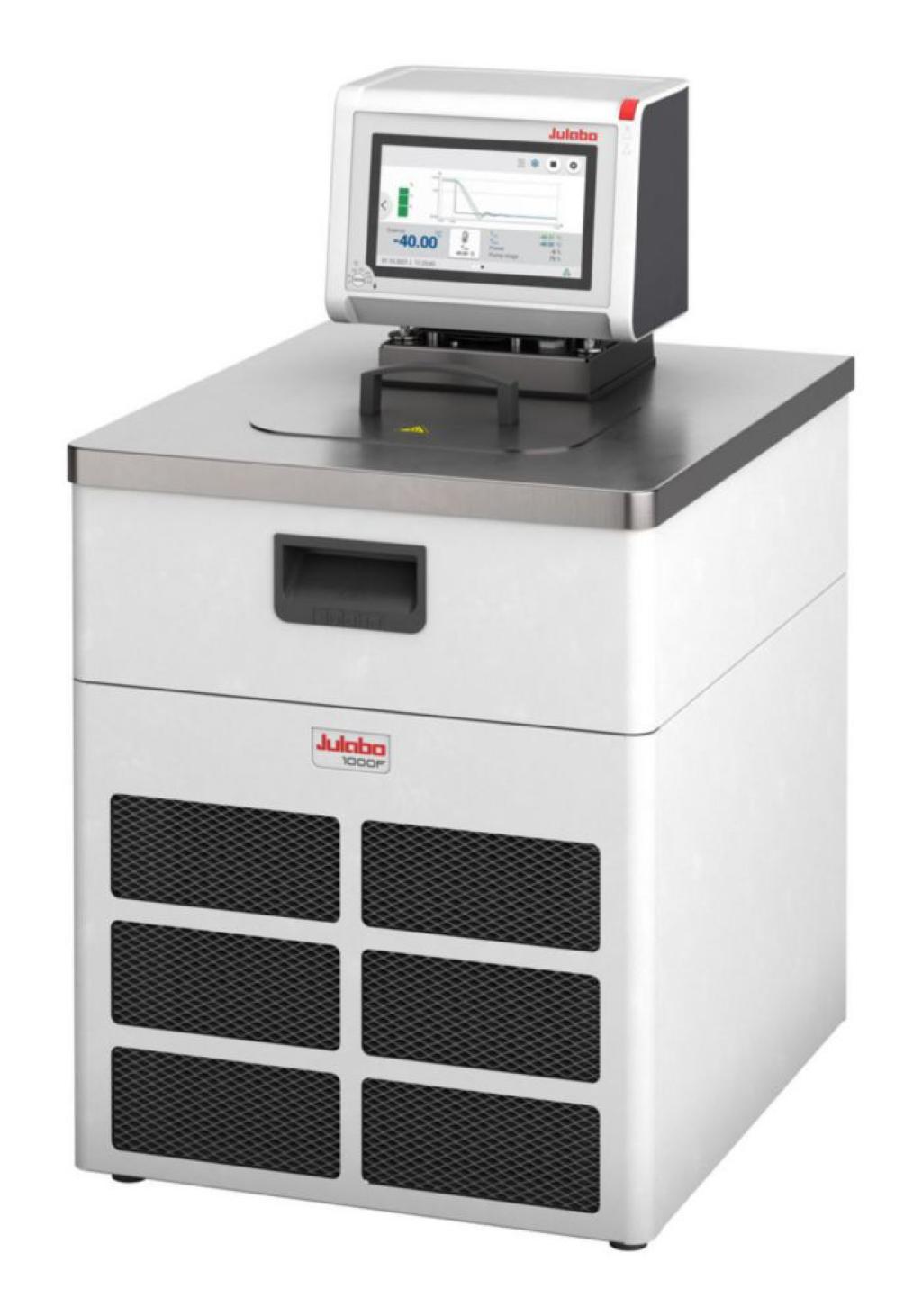

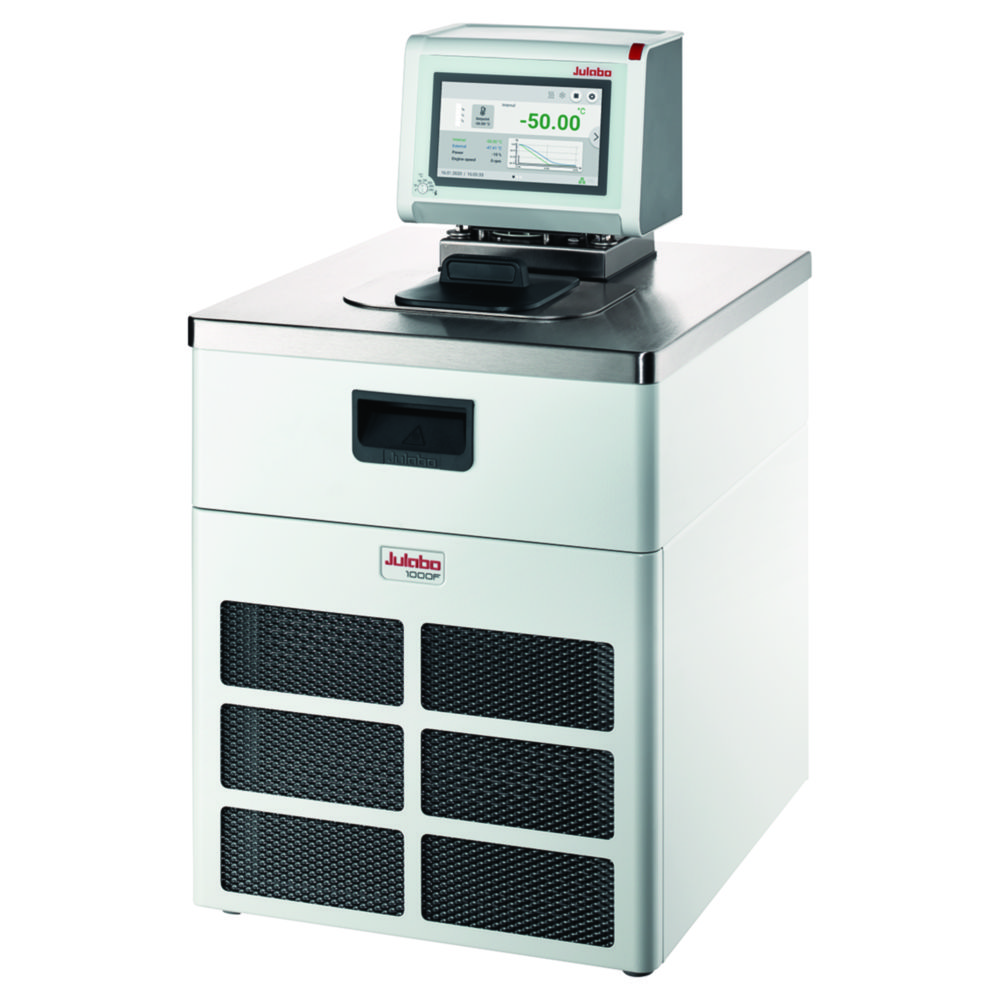

MS-1000F

4678308 / 9032707

Weight ( g )

54.1 kg

Type

MS-1000F

Min. temperature ( °C )

-50 °C

Ext. depth ( mm )

490 mm

Ext. height ( mm )

740 mm

Ext. width ( mm )

420 mm

Depth opening ( mm )

130 mm

Width opening ( mm )

180 mm

Safety Data Sheet

https://sw.llg.de/search?search=4678308

Temperature

-50 ... 200 °C

Heating capacity ( W )

2 kW

Ext. dim. (WxDxH)

420 x 490 x 740 mm

Max. volume bath ( l )

7.5 l

Cooling capacity at 20 °C ( kW )

1,0 kW

Volume bath

5 ... 7.5 l

Opening (WxD)

180 x 130 mm

Bath depth ( mm )

150 mm

Min. volume bath ( l )

5 l

Refrigerant

R449A

Kusy v balení

Na otázku

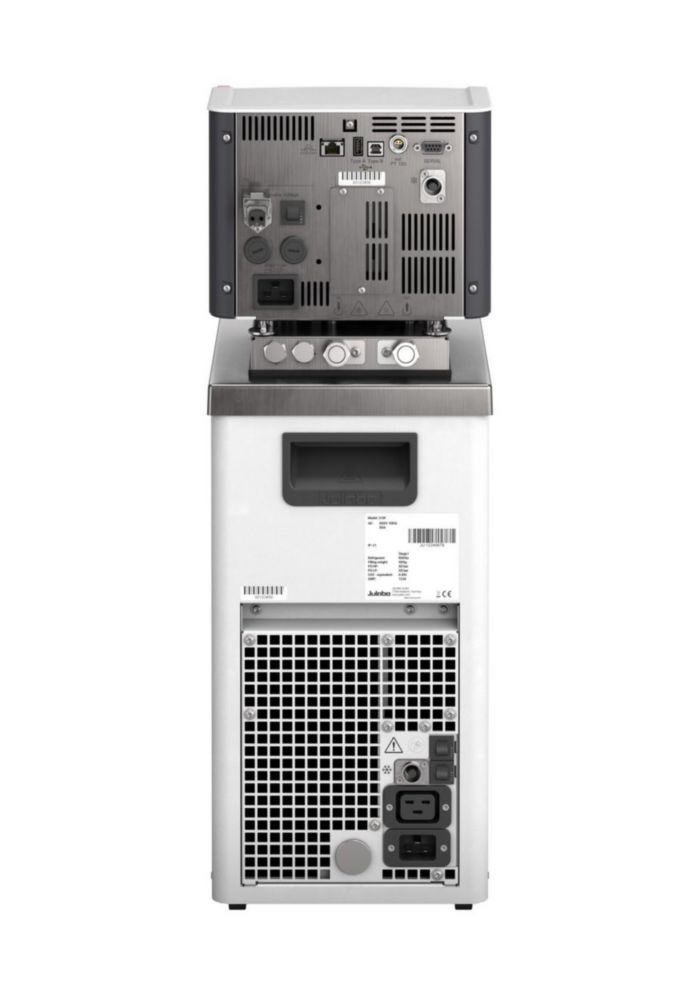

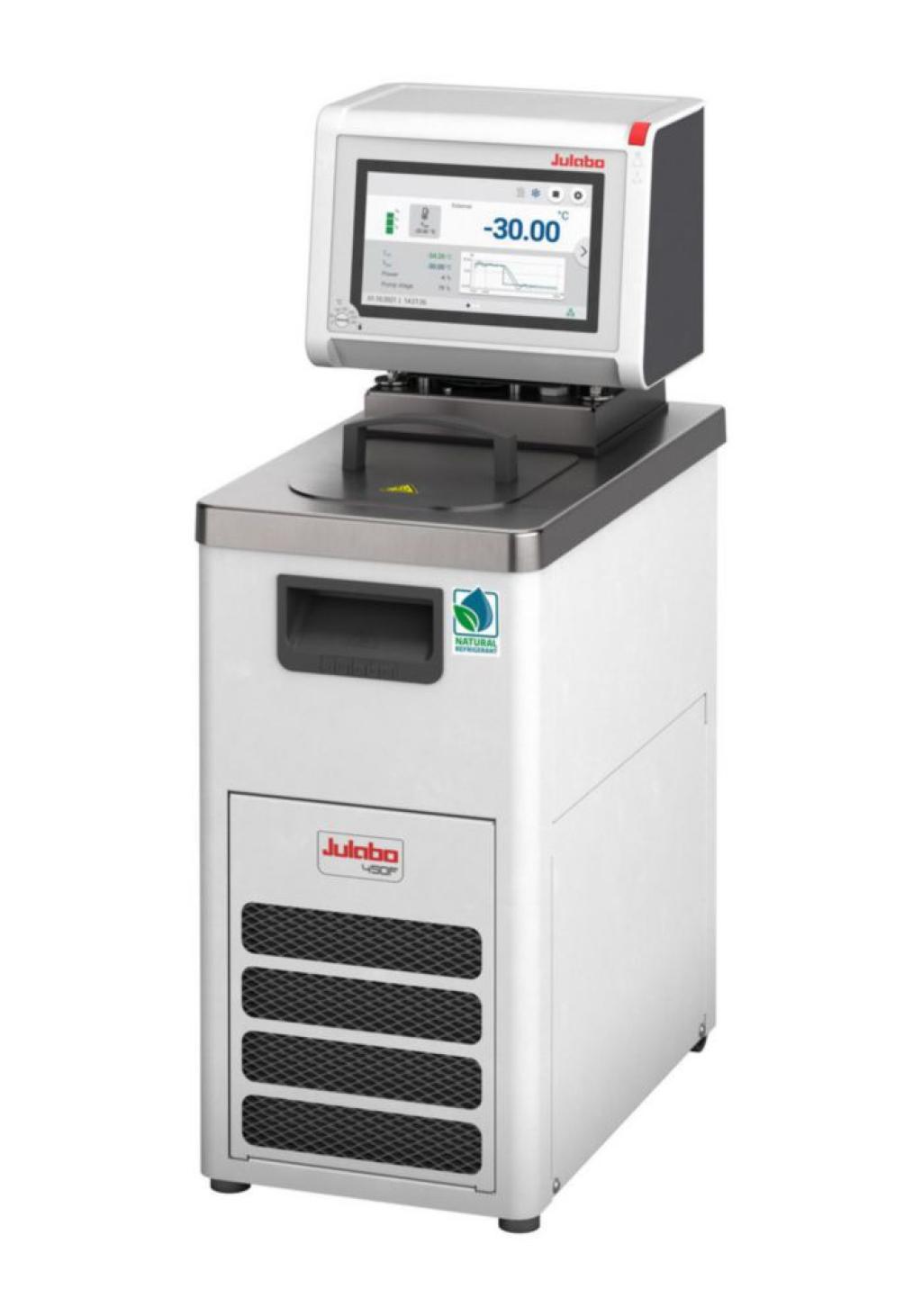

MS-450F

4685646 / 9032714.N1

Weight ( g )

29 kg

Type

MS-450F

Min. temperature ( °C )

-30 °C

Ext. depth ( mm )

400 mm

Ext. height ( mm )

650 mm

Ext. width ( mm )

230 mm

Depth opening ( mm )

150 mm

Width opening ( mm )

130 mm

Safety Data Sheet

https://sw.llg.de/search?search=4685646

Temperature

-30 ... 200 °C

Heating capacity ( W )

2 kW

Ext. dim. (WxDxH)

230 x 400 x 650 mm

Max. volume bath ( l )

4 l

Cooling capacity at 20 °C ( kW )

0,4 kW

Volume bath

3 ... 4 l

Opening (WxD)

130 x 150 mm

Bath depth ( mm )

150 mm

Min. volume bath ( l )

3 l

Refrigerant

R290

Kusy v balení

Na otázku

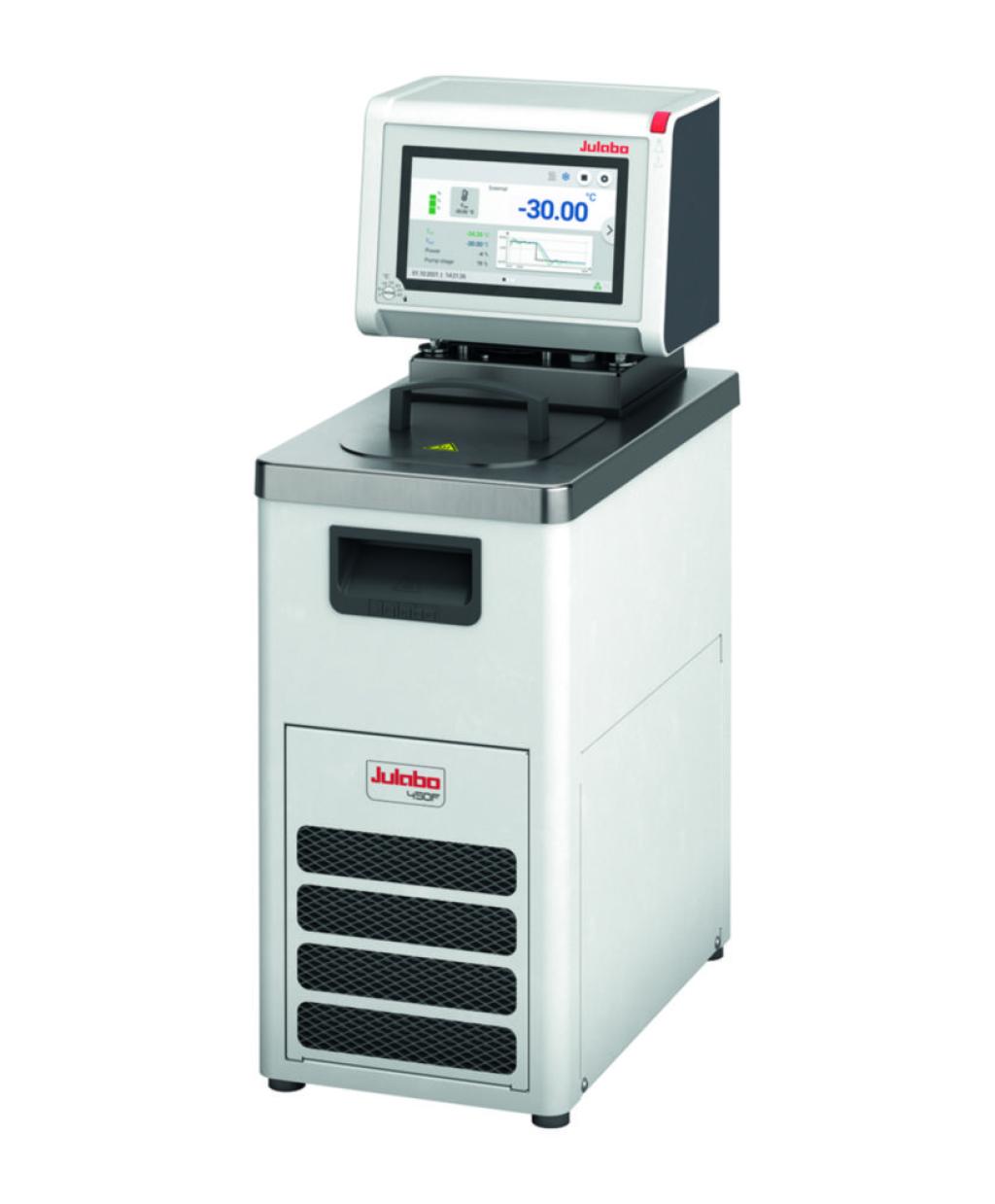

MS-450F

4685647 / 9032714.S1

Weight ( g )

29 kg

Type

MS-450F

Min. temperature ( °C )

-30 °C

Ext. depth ( mm )

400 mm

Ext. height ( mm )

650 mm

Ext. width ( mm )

230 mm

Depth opening ( mm )

150 mm

Width opening ( mm )

130 mm

Safety Data Sheet

https://sw.llg.de/search?search=4685647

Temperature

-30 ... 200 °C

Heating capacity ( W )

2 kW

Ext. dim. (WxDxH)

230 x 400 x 650 mm

Max. volume bath ( l )

4 l

Cooling capacity at 20 °C ( kW )

0,4 kW

Volume bath

3 ... 4 l

Opening (WxD)

130 x 150 mm

Bath depth ( mm )

150 mm

Min. volume bath ( l )

3 l

Refrigerant

R449A

Kusy v balení

Na otázku

MS-449F

4687387 / 9032716.N1

Weight ( g )

42 kg

Type

MS-449F

Min. temperature ( °C )

-30 °C

Ext. depth ( mm )

590 mm

Ext. height ( mm )

690 mm

Ext. width ( mm )

370 mm

Depth opening ( mm )

350 mm

Width opening ( mm )

280 mm

Safety Data Sheet

https://sw.llg.de/search?search=4687387

Temperature

-30 ... 200 °C

Heating capacity ( W )

2 kW

Ext. dim. (WxDxH)

370 x 590 x 690 mm

Max. volume bath ( l )

26 l

Cooling capacity at 20 °C ( kW )

0,4 kW

Volume bath

18 ... 26 l

Opening (WxD)

280 x 350 mm

Bath depth ( mm )

200 mm

Min. volume bath ( l )

18 l

Refrigerant

R290

Kusy v balení

Na otázku

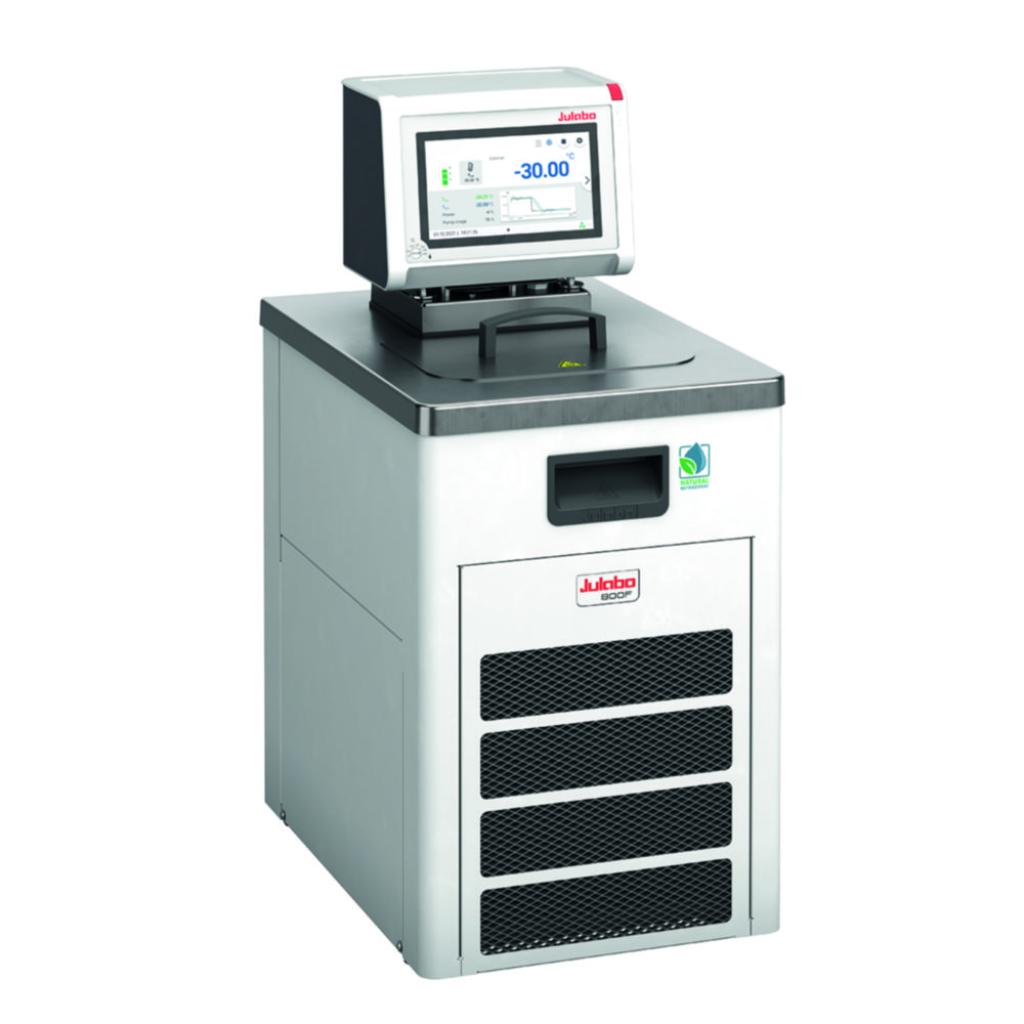

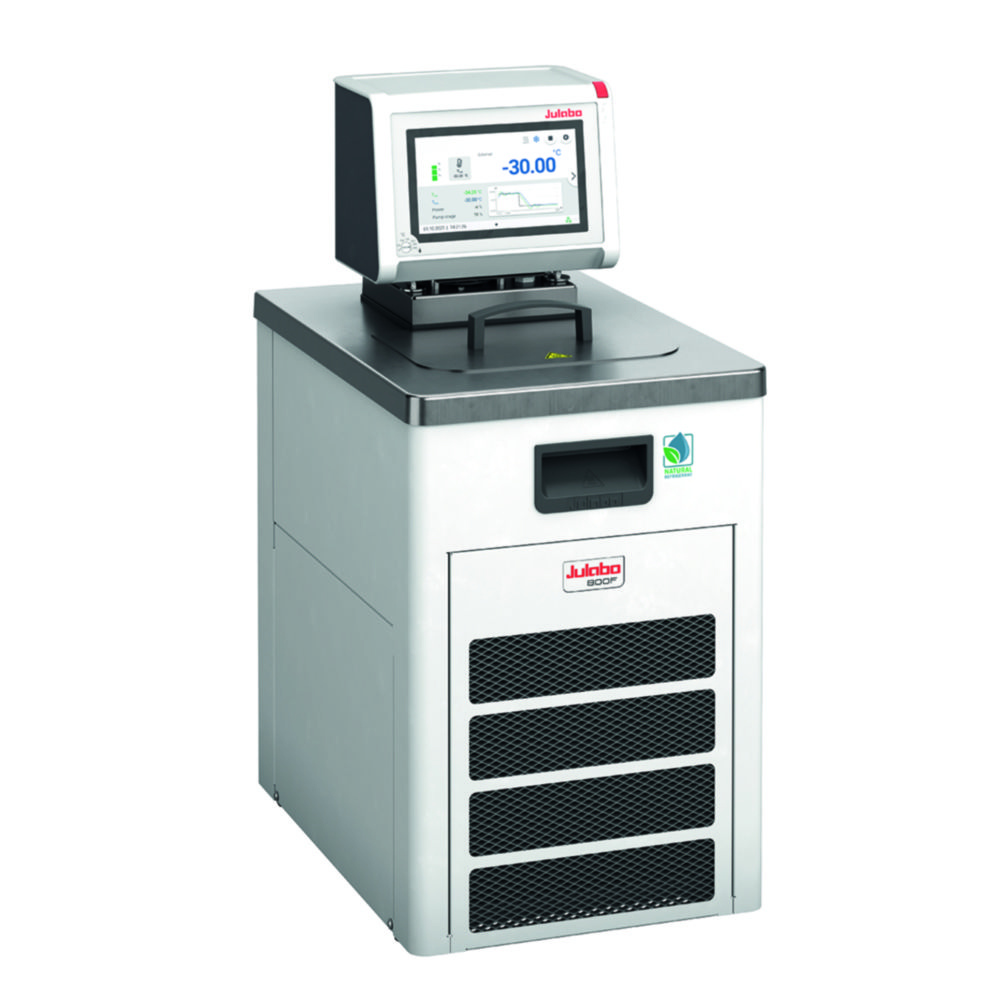

MS-800F

4692244 / 9032715.N1

Weight ( g )

44 kg

Type

MS-800F

Min. temperature ( °C )

-40 °C

Ext. depth ( mm )

470 mm

Ext. height ( mm )

700 mm

Ext. width ( mm )

330 mm

Depth opening ( mm )

130 mm

Width opening ( mm )

180 mm

Safety Data Sheet

https://sw.llg.de/search?search=4692244

Temperature

-40 ... 200 °C

Heating capacity ( W )

2 kW

Ext. dim. (WxDxH)

330 x 470 x 700 mm

Max. volume bath ( l )

7.5 l

Cooling capacity at 20 °C ( kW )

0,8 kW

Volume bath

5 ... 7.5 l

Opening (WxD)

180 x 130 mm

Bath depth ( mm )

150 mm

Min. volume bath ( l )

5 l

Refrigerant

R1270

Kusy v balení

Na otázku

MS-1200F

4692245 / 9032717.N1

Weight ( g )

44 kg

Type

MS-1200F

Min. temperature ( °C )

-50 °C

Ext. depth ( mm )

470 mm

Ext. height ( mm )

700 mm

Ext. width ( mm )

330 mm

Depth opening ( mm )

130 mm

Width opening ( mm )

180 mm

Safety Data Sheet

https://sw.llg.de/search?search=4692245

Temperature

-50 ... 200 °C

Heating capacity ( W )

2 kW

Ext. dim. (WxDxH)

330 x 470 x 700 mm

Max. volume bath ( l )

7.5 l

Cooling capacity at 20 °C ( kW )

1,2 kW

Volume bath

5 ... 7.5 l

Opening (WxD)

180 x 130 mm

Bath depth ( mm )

150 mm

Min. volume bath ( l )

5 l

Refrigerant

R1270

Kusy v balení

Na otázku

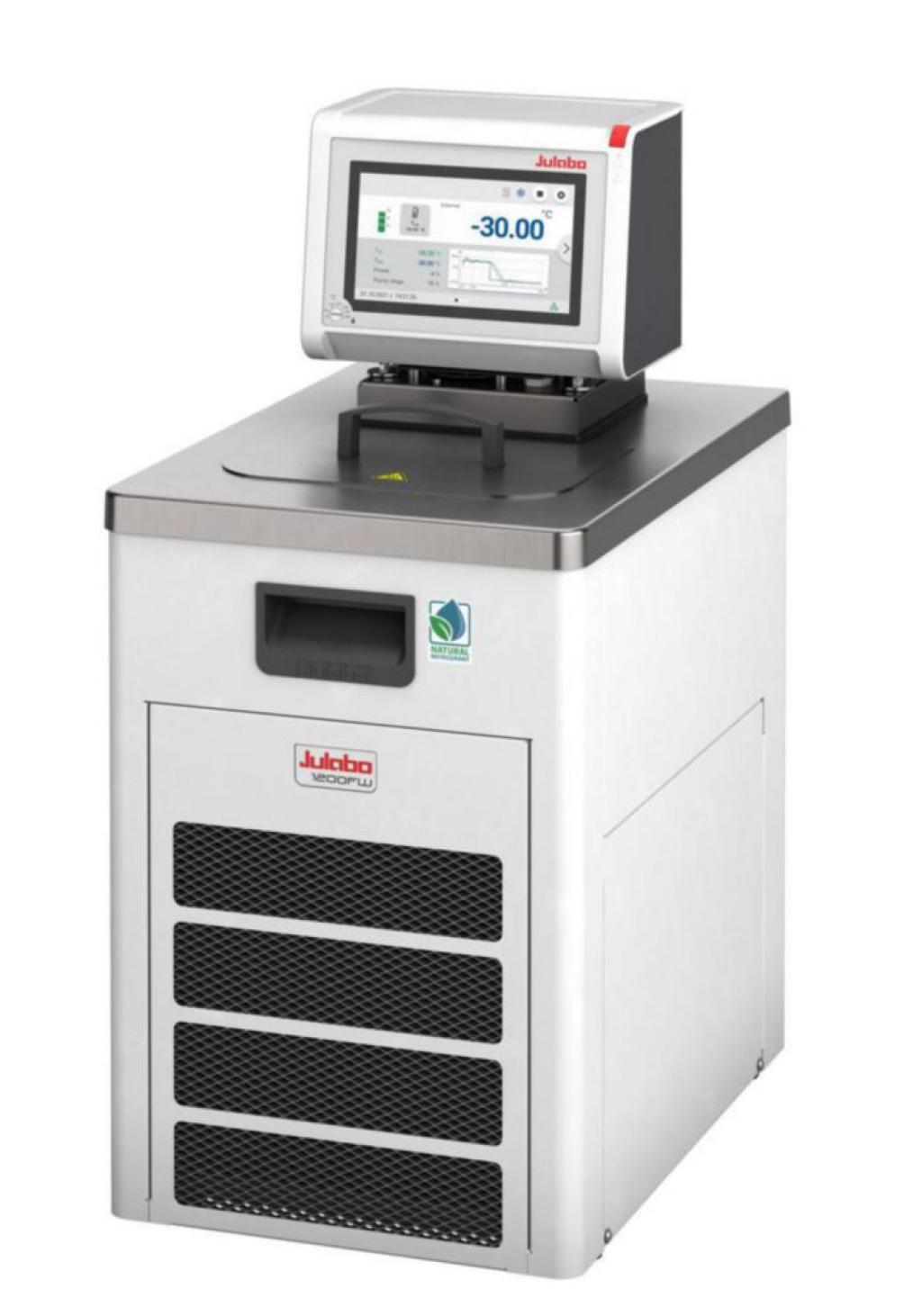

MS-1200FW

4693949 / 9032728.N1

Weight ( g )

44 kg

Type

MS-1200FW

Min. temperature ( °C )

-50 °C

Ext. depth ( mm )

470 mm

Ext. height ( mm )

700 mm

Ext. width ( mm )

330 mm

Depth opening ( mm )

130 mm

Width opening ( mm )

180 mm

Safety Data Sheet

https://sw.llg.de/search?search=4693949

Temperature

-50 ... 200 °C

Heating capacity ( W )

2 kW

Ext. dim. (WxDxH)

330 x 470 x 700 mm

Max. volume bath ( l )

7.5 l

Cooling capacity at 20 °C ( kW )

1,2 kW

Volume bath

5 ... 7.5 l

Opening (WxD)

180 x 130 mm

Bath depth ( mm )

150 mm

Min. volume bath ( l )

5 l

Refrigerant

R1270

Kusy v balení

Na otázku

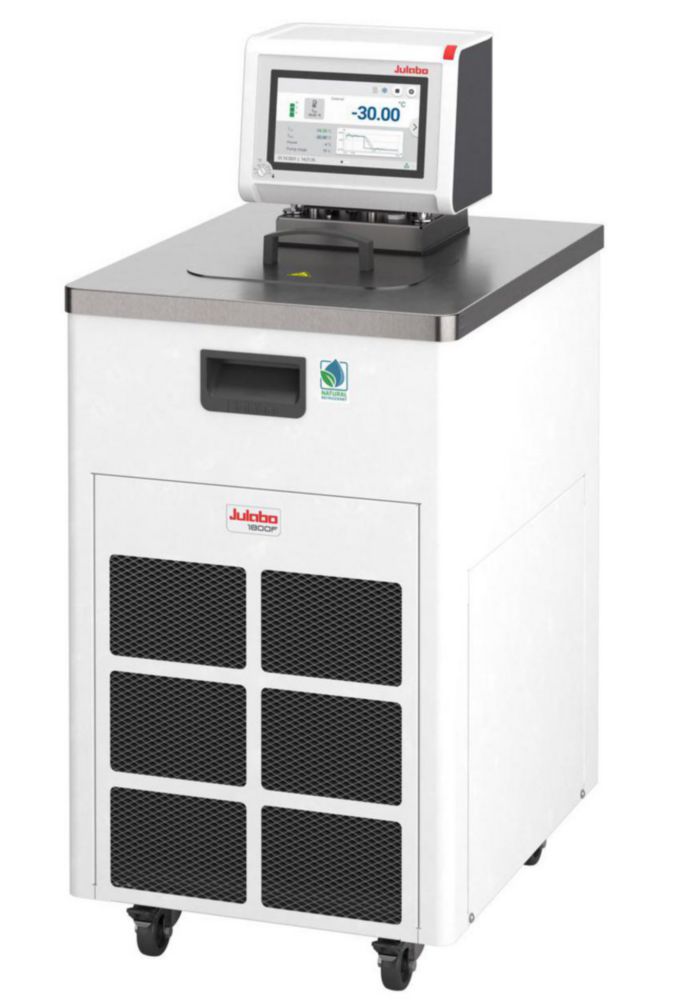

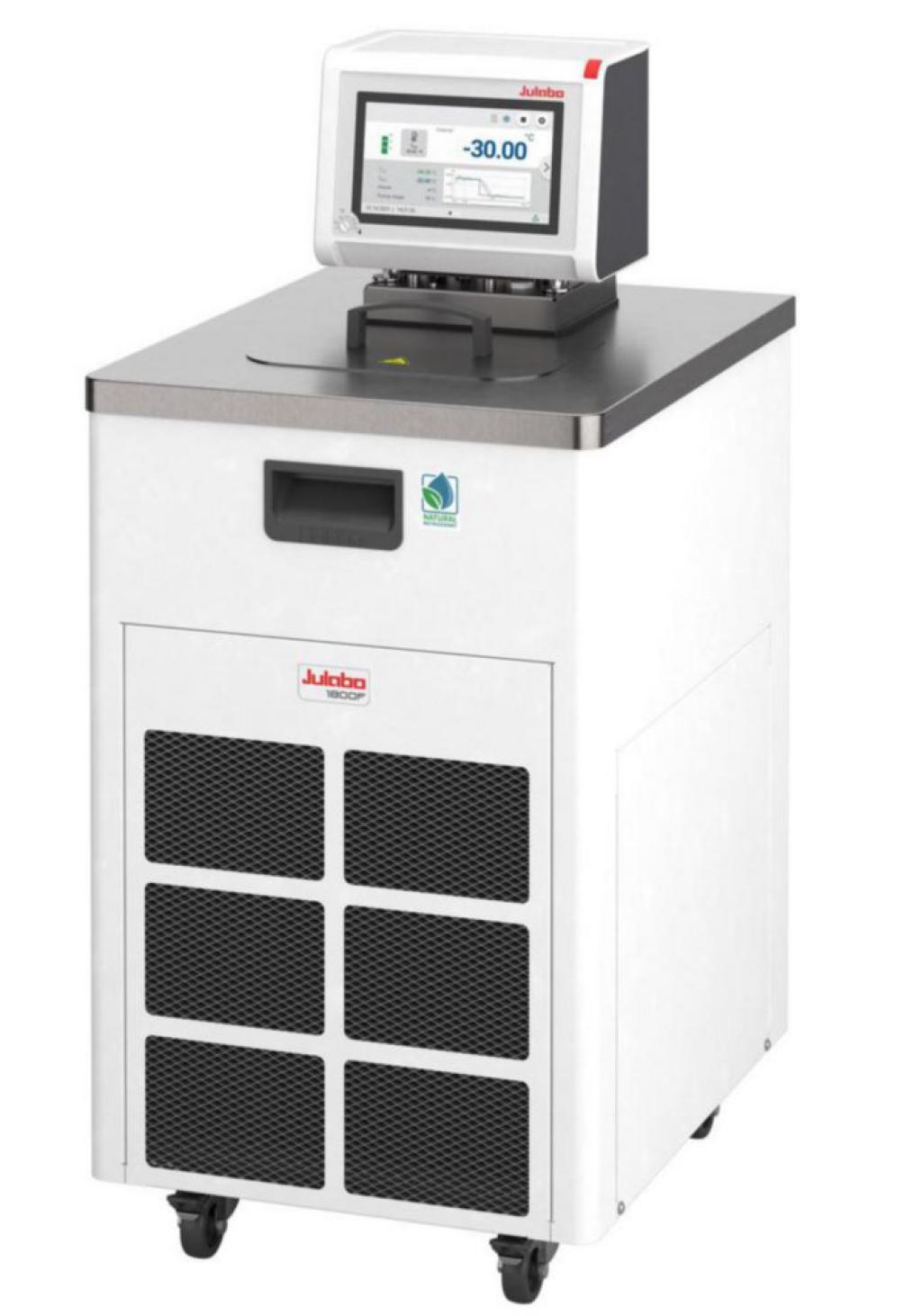

MX-1800F

4693950 / 9033751.N1

Weight ( g )

61 kg

Type

MX-1800F

Min. temperature ( °C )

-50 °C

Ext. depth ( mm )

500 mm

Ext. height ( mm )

890 mm

Ext. width ( mm )

400 mm

Depth opening ( mm )

130 mm

Width opening ( mm )

180 mm

Safety Data Sheet

https://sw.llg.de/search?search=4693950

Temperature

-50 ... 200 °C

Heating capacity ( W )

3 kW

Ext. dim. (WxDxH)

400 x 500 x 890 mm

Max. volume bath ( l )

11 l

Cooling capacity at 20 °C ( kW )

1,8 kW

Volume bath

6.5 ... 11 l

Opening (WxD)

180 x 130 mm

Bath depth ( mm )

200 mm

Min. volume bath ( l )

6.5 l

Refrigerant

R1270

Kusy v balení

Na otázku

MX-2500F

4693951 / 9033752.N1

Weight ( g )

61 kg

Type

MX-2500F

Min. temperature ( °C )

-50 °C

Ext. depth ( mm )

500 mm

Ext. height ( mm )

890 mm

Ext. width ( mm )

400 mm

Depth opening ( mm )

130 mm

Width opening ( mm )

180 mm

Safety Data Sheet

https://sw.llg.de/search?search=4693951

Temperature

-50 ... 200 °C

Heating capacity ( W )

3 kW

Ext. dim. (WxDxH)

400 x 500 x 890 mm

Max. volume bath ( l )

11 l

Cooling capacity at 20 °C ( kW )

2,5 kW

Volume bath

6.5 ... 11 l

Opening (WxD)

180 x 130 mm

Bath depth ( mm )

200 mm

Min. volume bath ( l )

6.5 l

Refrigerant

R1270

Kusy v balení

Na otázku

MS-310F

9858405 / 9032713.S1

Weight ( g )

29 kg

Type

MS-310F

Min. temperature ( °C )

-30 °C

Ext. depth ( mm )

400 mm

Ext. height ( mm )

650 mm

Ext. width ( mm )

230 mm

Depth opening ( mm )

150 mm

Width opening ( mm )

130 mm

Safety Data Sheet

https://sw.llg.de/search?search=9858405

Temperature

-30 ... 200 °C

Heating capacity ( W )

2 kW

Ext. dim. (WxDxH)

230 x 400 x 650 mm

Max. volume bath ( l )

4 l

Cooling capacity at 20 °C ( kW )

0,26 kW

Volume bath

3 ... 4 l

Opening (WxD)

130 x 150 mm

Bath depth ( mm )

150 mm

Min. volume bath ( l )

3 l

Refrigerant

R449A

Kusy v balení

Na otázku

MS-310F

9858406 / 9032713.N1

Weight ( g )

29 kg

Type

MS-310F

Min. temperature ( °C )

-30 °C

Ext. depth ( mm )

400 mm

Ext. height ( mm )

650 mm

Ext. width ( mm )

230 mm

Depth opening ( mm )

150 mm

Width opening ( mm )

130 mm

Safety Data Sheet

https://sw.llg.de/search?search=9858406

Temperature

-30 ... 200 °C

Heating capacity ( W )

2 kW

Ext. dim. (WxDxH)

230 x 400 x 650 mm

Max. volume bath ( l )

4 l

Cooling capacity at 20 °C ( kW )

0,26 kW

Volume bath

3 ... 4 l

Opening (WxD)

130 x 150 mm

Bath depth ( mm )

150 mm

Min. volume bath ( l )

3 l

Refrigerant

R290

Kusy v balení

Na otázku

Technické špecifikácie

Power supply frequency	50/60 Hz
IP code	IP 20
Material bath	Stainless steel
Max. delivery pressure	0.92 bar
Max. suction pressure	0.4 bar
Max. temperature	200 °C
Max. voltage	230 V
Min. voltage	200 V
Power supply	200 ... 230 V, 50/60 Hz
Temperature stability	±0,01 °C
Type of auxiliary energy	Mains connection
UNSPSC	41103701
With lid	Yes
With timer	Yes
