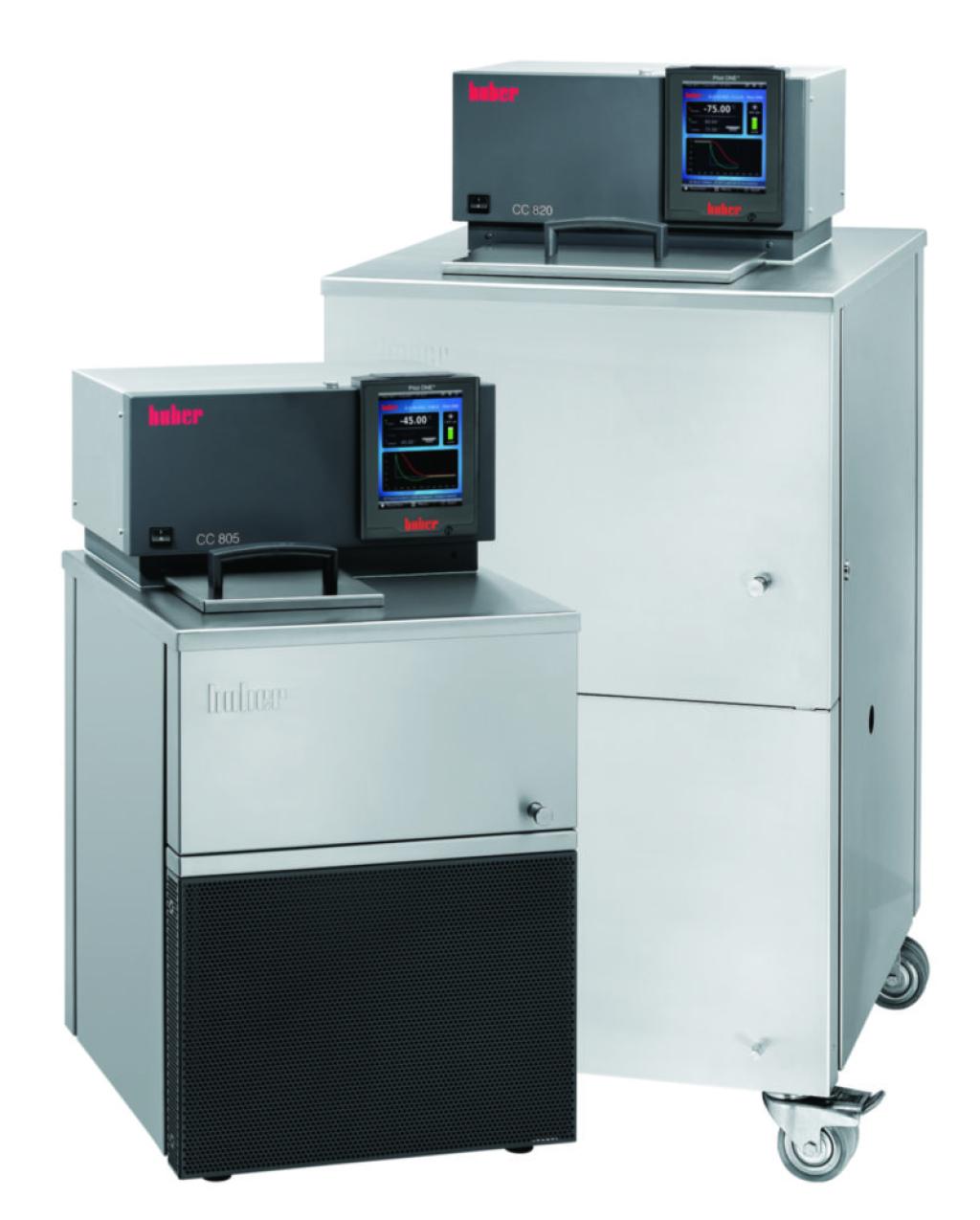

Chladiace obehové čerpadlá do -90 °C Ďalšie fotografie

Chladiace obehové čerpadlá do -90 °C

CC-805 je lacnou alternatívou pre aplikácie s nízkymi teplotami, keď sa vyžaduje nízky výkon.
Option: Prírodné chladivo na vyžiadanie
Zvoľte variant
Výrobca
  • Peter Huber Kältemaschinenbau
Kategória

Varianty produktu

Názov Katalógové číslo / Kód produktu
Weight ( g ) Type Min. temperature ( °C ) Ext. depth ( mm ) Ext. height ( mm ) Ext. width ( mm ) Power supply frequency ( Hz ) Max. voltage ( V ) Max. temperature ( °C ) Min. voltage ( V ) Depth opening ( mm ) Width opening ( mm ) Power supply Safety Data Sheet Temperature Heating capacity ( W ) Ext. dim. (WxDxH) Max. volume bath ( l ) Cooling capacity at 20 °C ( kW ) Volume bath Opening (WxD) Bath depth ( mm )
Kusy v balení Cena bez DPH
Obrázek produktové varianty CC-902
9857400 / 2026.0005.01
Weight ( g )
129 kg
Type
CC-902
Min. temperature ( °C )
-90 °C
Ext. depth ( mm )
600 mm
Ext. height ( mm )
911 mm
Ext. width ( mm )
550 mm
Power supply frequency ( Hz )
50 Hz
Max. voltage ( V )
230 V
Max. temperature ( °C )
200 °C
Min. voltage ( V )
-
Depth opening ( mm )
110 mm
Width opening ( mm )
120 mm
Power supply
230 V, 50 Hz
Safety Data Sheet
https://sw.llg.de/search?search=9857400
Temperature
-90 ... 200 °C
Heating capacity ( W )
1.5 kW
Ext. dim. (WxDxH)
550 x 600 x 911 mm
Max. volume bath ( l )
5 l
Cooling capacity at 20 °C ( kW )
1,2 kW
Volume bath
5 l
Opening (WxD)
120 x 110 mm
Bath depth ( mm )
150 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty CC-805
9859250 / 2024.0001.01
Weight ( g )
77 kg
Type
CC-805
Min. temperature ( °C )
-80 °C
Ext. depth ( mm )
480 mm
Ext. height ( mm )
764 mm
Ext. width ( mm )
410 mm
Power supply frequency ( Hz )
50/60 Hz
Max. voltage ( V )
240 V
Max. temperature ( °C )
100 °C
Min. voltage ( V )
220 V
Depth opening ( mm )
110 mm
Width opening ( mm )
120 mm
Power supply
220 ... 240 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=9859250
Temperature
-80 ... 100 °C
Heating capacity ( W )
1.6 kW
Ext. dim. (WxDxH)
410 x 480 x 764 mm
Max. volume bath ( l )
5 l
Cooling capacity at 20 °C ( kW )
0,5 kW
Volume bath
5 l
Opening (WxD)
120 x 110 mm
Bath depth ( mm )
150 mm
Kusy v balení
1
Na otázku
Obrázek produktové varianty CC-820
9859251 / 2025.0001.01
Weight ( g )
150 kg
Type
CC-820
Min. temperature ( °C )
-80 °C
Ext. depth ( mm )
629 mm
Ext. height ( mm )
1102 mm
Ext. width ( mm )
539 mm
Power supply frequency ( Hz )
50 Hz
Max. voltage ( V )
400 V
Max. temperature ( °C )
100 °C
Min. voltage ( V )
-
Depth opening ( mm )
150 mm
Width opening ( mm )
270 mm
Power supply
400 V, 50 Hz
Safety Data Sheet
https://sw.llg.de/search?search=9859251
Temperature
-80 ... 100 °C
Heating capacity ( W )
3 kW
Ext. dim. (WxDxH)
539 x 629 x 1,102 mm
Max. volume bath ( l )
17 l
Cooling capacity at 20 °C ( kW )
1,2 kW
Volume bath
17 l
Opening (WxD)
270 x 150 mm
Bath depth ( mm )
200 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty CC-820w
9859252 / 2025.0002.01
Weight ( g )
150 kg
Type
CC-820w
Min. temperature ( °C )
-80 °C
Ext. depth ( mm )
629 mm
Ext. height ( mm )
1102 mm
Ext. width ( mm )
539 mm
Power supply frequency ( Hz )
50 Hz
Max. voltage ( V )
400 V
Max. temperature ( °C )
100 °C
Min. voltage ( V )
-
Depth opening ( mm )
150 mm
Width opening ( mm )
270 mm
Power supply
400 V, 50 Hz
Safety Data Sheet
https://sw.llg.de/search?search=9859252
Temperature
-80 ... 100 °C
Heating capacity ( W )
3 kW
Ext. dim. (WxDxH)
539 x 629 x 1,102 mm
Max. volume bath ( l )
17 l
Cooling capacity at 20 °C ( kW )
1,2 kW
Volume bath
17 l
Opening (WxD)
270 x 150 mm
Bath depth ( mm )
200 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty CC-905
9859253 / 2027.0001.01
Weight ( g )
171 kg
Type
CC-905
Min. temperature ( °C )
-90 °C
Ext. depth ( mm )
706 mm
Ext. height ( mm )
1136 mm
Ext. width ( mm )
605 mm
Power supply frequency ( Hz )
50 Hz
Max. voltage ( V )
400 V
Max. temperature ( °C )
200 °C
Min. voltage ( V )
-
Depth opening ( mm )
260 mm
Width opening ( mm )
260 mm
Power supply
400 V, 50 Hz
Safety Data Sheet
https://sw.llg.de/search?search=9859253
Temperature
-90 ... 200 °C
Heating capacity ( W )
3 kW
Ext. dim. (WxDxH)
605 x 706 x 1,136 mm
Max. volume bath ( l )
26 l
Cooling capacity at 20 °C ( kW )
2 kW
Volume bath
26 l
Opening (WxD)
260 x 260 mm
Bath depth ( mm )
200 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty CC-905w
9859254 / 2027.0002.01
Weight ( g )
175 kg
Type
CC-905w
Min. temperature ( °C )
-90 °C
Ext. depth ( mm )
706 mm
Ext. height ( mm )
1136 mm
Ext. width ( mm )
605 mm
Power supply frequency ( Hz )
50 Hz
Max. voltage ( V )
400 V
Max. temperature ( °C )
200 °C
Min. voltage ( V )
-
Depth opening ( mm )
260 mm
Width opening ( mm )
260 mm
Power supply
400 V, 50 Hz
Safety Data Sheet
https://sw.llg.de/search?search=9859254
Temperature
-90 ... 200 °C
Heating capacity ( W )
3 kW
Ext. dim. (WxDxH)
605 x 706 x 1,136 mm
Max. volume bath ( l )
26 l
Cooling capacity at 20 °C ( kW )
2 kW
Volume bath
26 l
Opening (WxD)
260 x 260 mm
Bath depth ( mm )
200 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty CC-906w
9859255 / 2036.0001.01
Weight ( g )
201 kg
Type
CC-906w
Min. temperature ( °C )
-90 °C
Ext. depth ( mm )
706 mm
Ext. height ( mm )
1136 mm
Ext. width ( mm )
605 mm
Power supply frequency ( Hz )
50 Hz
Max. voltage ( V )
400 V
Max. temperature ( °C )
200 °C
Min. voltage ( V )
-
Depth opening ( mm )
260 mm
Width opening ( mm )
260 mm
Power supply
400 V, 50 Hz
Safety Data Sheet
https://sw.llg.de/search?search=9859255
Temperature
-90 ... 200 °C
Heating capacity ( W )
3 kW
Ext. dim. (WxDxH)
605 x 706 x 1,136 mm
Max. volume bath ( l )
30 l
Cooling capacity at 20 °C ( kW )
3 kW
Volume bath
30 l
Opening (WxD)
260 x 260 mm
Bath depth ( mm )
200 mm
Kusy v balení
-
Na otázku

Technické špecifikácie

IP code IP 20
Max. delivery pressure 0.7 bar
Max. suction capacity 18.5 l/min
Max. suction pressure 0.4 bar
Operation Touchscreen
Temperature stability ±0,02 K °C
Type of auxiliary energy Mains connection
Type of display TFT
UNSPSC 41103701
With lid Yes
