Chladiace obehové čerpadlá do -55 °C Ďalšie fotografie

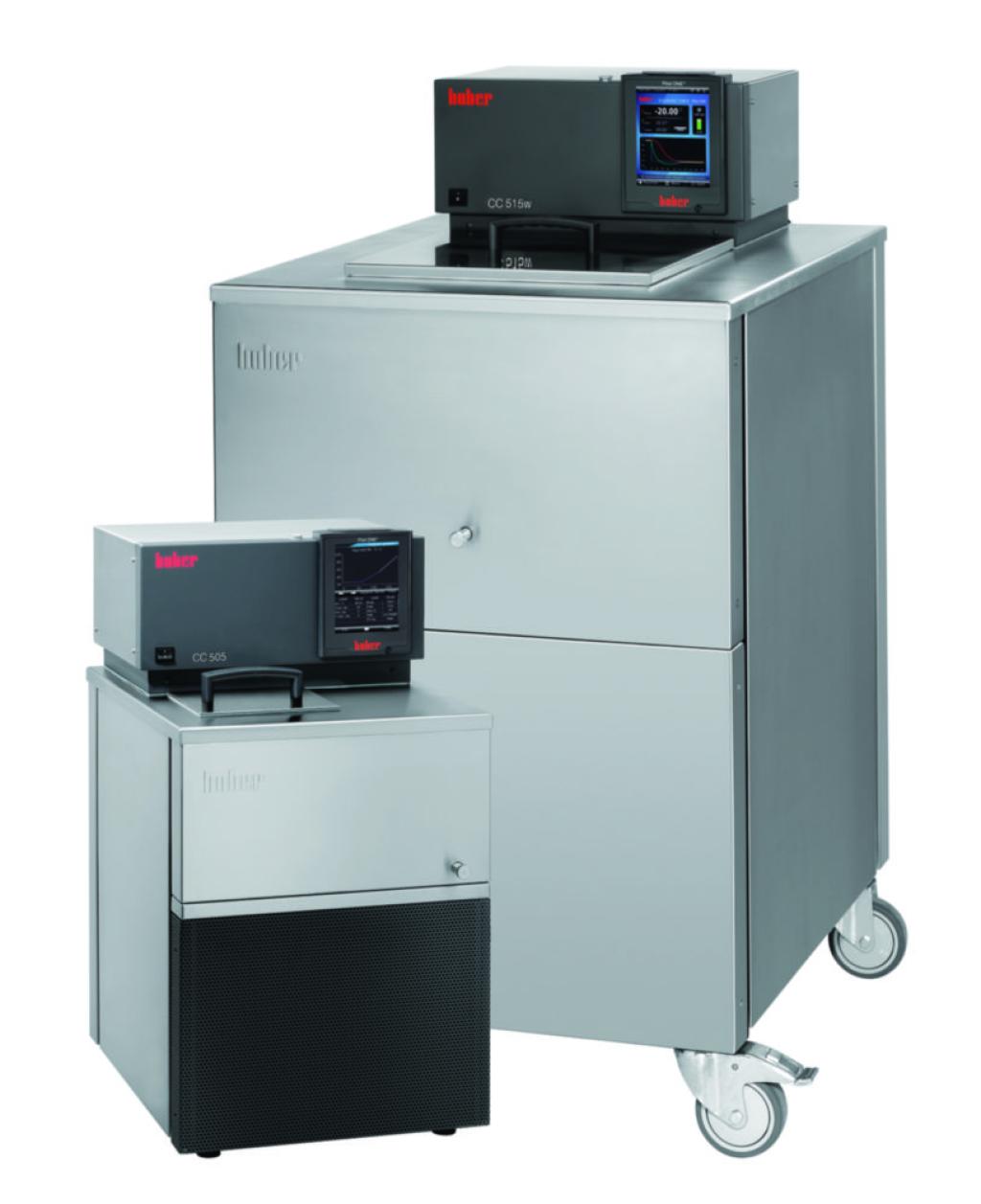

Chladiace obehové čerpadlá do -55 °C

Kompaktný dizajn a vysoký chladiaci výkon pri nízkych teplotách.
Option: Prírodné chladivo na vyžiadanie
Zvoľte variant
Výrobca
  • Peter Huber Kältemaschinenbau
Kategória

Varianty produktu

Názov Katalógové číslo / Kód produktu
Weight ( g ) Type Min. temperature ( °C ) Ext. depth ( mm ) Ext. height ( mm ) Ext. width ( mm ) Power supply frequency ( Hz ) Max. voltage ( V ) Min. voltage ( V ) Depth opening ( mm ) Width opening ( mm ) Power supply Safety Data Sheet Temperature Heating capacity ( W ) Ext. dim. (WxDxH) Max. volume bath ( l ) Cooling capacity at 20 °C ( kW ) Volume bath Opening (WxD) Bath depth ( mm ) Refrigerant
Kusy v balení Cena bez DPH
Obrázek produktové varianty CC-508
6310464 / 2045.0001.01
Weight ( g )
68 kg
Type
CC-508
Min. temperature ( °C )
-55 °C
Ext. depth ( mm )
480 mm
Ext. height ( mm )
764 mm
Ext. width ( mm )
410 mm
Power supply frequency ( Hz )
50 Hz
Max. voltage ( V )
240 V
Min. voltage ( V )
220 V
Depth opening ( mm )
110 mm
Width opening ( mm )
120 mm
Power supply
220 ... 240 V, 50 Hz
Safety Data Sheet
https://sw.llg.de/search?search=6310464
Temperature
-55 ... 200 °C
Heating capacity ( W )
3 kW
Ext. dim. (WxDxH)
410 x 480 x 764 mm
Max. volume bath ( l )
5 l
Cooling capacity at 20 °C ( kW )
1,5 kW
Volume bath
5 l
Opening (WxD)
120 x 110 mm
Bath depth ( mm )
160 mm
Refrigerant
R1270
Kusy v balení
1
Na otázku
Obrázek produktové varianty CC-508w
9857401 / 2045.0004.01
Weight ( g )
69 kg
Type
CC-508w
Min. temperature ( °C )
-55 °C
Ext. depth ( mm )
480 mm
Ext. height ( mm )
765 mm
Ext. width ( mm )
410 mm
Power supply frequency ( Hz )
50 Hz
Max. voltage ( V )
240 V
Min. voltage ( V )
220 V
Depth opening ( mm )
110 mm
Width opening ( mm )
120 mm
Power supply
220 ... 240 V, 50 Hz
Safety Data Sheet
https://sw.llg.de/search?search=9857401
Temperature
-55 ... 200 °C
Heating capacity ( W )
3 kW
Ext. dim. (WxDxH)
410 x 480 x 765 mm
Max. volume bath ( l )
5 l
Cooling capacity at 20 °C ( kW )
1,5 kW
Volume bath
5 l
Opening (WxD)
120 x 110 mm
Bath depth ( mm )
160 mm
Refrigerant
R1270
Kusy v balení
1
Na otázku
Obrázek produktové varianty CC-505
9859241 / 2044.0001.01
Weight ( g )
65 kg
Type
CC-505
Min. temperature ( °C )
-50 °C
Ext. depth ( mm )
480 mm
Ext. height ( mm )
764 mm
Ext. width ( mm )
410 mm
Power supply frequency ( Hz )
50/60 Hz
Max. voltage ( V )
240 V
Min. voltage ( V )
220 V
Depth opening ( mm )
110 mm
Width opening ( mm )
120 mm
Power supply
220 ... 240 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=9859241
Temperature
-50 ... 200 °C
Heating capacity ( W )
2 kW
Ext. dim. (WxDxH)
410 x 480 x 764 mm
Max. volume bath ( l )
5 l
Cooling capacity at 20 °C ( kW )
1,2 kW
Volume bath
5 l
Opening (WxD)
120 x 110 mm
Bath depth ( mm )
150 mm
Refrigerant
R452A
Kusy v balení
-
Na otázku
Obrázek produktové varianty CC-505wl
9859242 / 2044.0002.01
Weight ( g )
62 kg
Type
CC-505wl
Min. temperature ( °C )
-50 °C
Ext. depth ( mm )
480 mm
Ext. height ( mm )
764 mm
Ext. width ( mm )
410 mm
Power supply frequency ( Hz )
50/60 Hz
Max. voltage ( V )
240 V
Min. voltage ( V )
220 V
Depth opening ( mm )
110 mm
Width opening ( mm )
120 mm
Power supply
220 ... 240 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=9859242
Temperature
-50 ... 200 °C
Heating capacity ( W )
2 kW
Ext. dim. (WxDxH)
410 x 480 x 764 mm
Max. volume bath ( l )
5 l
Cooling capacity at 20 °C ( kW )
1,2 kW
Volume bath
5 l
Opening (WxD)
120 x 110 mm
Bath depth ( mm )
150 mm
Refrigerant
R452A
Kusy v balení
-
Na otázku
Obrázek produktové varianty CC-510w
9859245 / 2020.0002.01
Weight ( g )
106 kg
Type
CC-510w
Min. temperature ( °C )
-50 °C
Ext. depth ( mm )
515 mm
Ext. height ( mm )
1014 mm
Ext. width ( mm )
455 mm
Power supply frequency ( Hz )
50 Hz
Max. voltage ( V )
400 V
Min. voltage ( V )
-
Depth opening ( mm )
150 mm
Width opening ( mm )
270 mm
Power supply
400 V, 50 Hz
Safety Data Sheet
https://sw.llg.de/search?search=9859245
Temperature
-50 ... 200 °C
Heating capacity ( W )
3 kW
Ext. dim. (WxDxH)
455 x 515 x 1,014 mm
Max. volume bath ( l )
18 l
Cooling capacity at 20 °C ( kW )
2,4 kW
Volume bath
18 l
Opening (WxD)
270 x 150 mm
Bath depth ( mm )
200 mm
Refrigerant
R452A
Kusy v balení
1
Na otázku
Obrázek produktové varianty CC-515w
9859246 / 2021.0005.01
Weight ( g )
105 kg
Type
CC-515w
Min. temperature ( °C )
-55 °C
Ext. depth ( mm )
515 mm
Ext. height ( mm )
1014 mm
Ext. width ( mm )
455 mm
Power supply frequency ( Hz )
50 Hz
Max. voltage ( V )
400 V
Min. voltage ( V )
-
Depth opening ( mm )
150 mm
Width opening ( mm )
270 mm
Power supply
400 V, 50 Hz
Safety Data Sheet
https://sw.llg.de/search?search=9859246
Temperature
-55 ... 200 °C
Heating capacity ( W )
3 kW
Ext. dim. (WxDxH)
455 x 515 x 1,014 mm
Max. volume bath ( l )
18 l
Cooling capacity at 20 °C ( kW )
3,3 kW
Volume bath
18 l
Opening (WxD)
270 x 150 mm
Bath depth ( mm )
200 mm
Refrigerant
R452A
Kusy v balení
-
Na otázku
Obrázek produktové varianty CC-515
9859247 / 2021.0001.01
Weight ( g )
139 kg
Type
CC-515
Min. temperature ( °C )
-55 °C
Ext. depth ( mm )
706 mm
Ext. height ( mm )
1136 mm
Ext. width ( mm )
605 mm
Power supply frequency ( Hz )
50 Hz
Max. voltage ( V )
400 V
Min. voltage ( V )
-
Depth opening ( mm )
260 mm
Width opening ( mm )
260 mm
Power supply
400 V, 50 Hz
Safety Data Sheet
https://sw.llg.de/search?search=9859247
Temperature
-55 ... 200 °C
Heating capacity ( W )
3 kW
Ext. dim. (WxDxH)
605 x 706 x 1,136 mm
Max. volume bath ( l )
26 l
Cooling capacity at 20 °C ( kW )
3,3 kW
Volume bath
26 l
Opening (WxD)
260 x 260 mm
Bath depth ( mm )
200 mm
Refrigerant
R452A
Kusy v balení
1
Na otázku
Obrázek produktové varianty CC-520w
9859248 / 2022.0001.01
Weight ( g )
161 kg
Type
CC-520w
Min. temperature ( °C )
-55 °C
Ext. depth ( mm )
629 mm
Ext. height ( mm )
1102 mm
Ext. width ( mm )
539 mm
Power supply frequency ( Hz )
50 Hz
Max. voltage ( V )
400 V
Min. voltage ( V )
-
Depth opening ( mm )
150 mm
Width opening ( mm )
270 mm
Power supply
400 V, 50 Hz
Safety Data Sheet
https://sw.llg.de/search?search=9859248
Temperature
-55 ... 200 °C
Heating capacity ( W )
3 kW
Ext. dim. (WxDxH)
539 x 629 x 1,102 mm
Max. volume bath ( l )
17 l
Cooling capacity at 20 °C ( kW )
5 kW
Volume bath
17 l
Opening (WxD)
270 x 150 mm
Bath depth ( mm )
200 mm
Refrigerant
R452A
Kusy v balení
-
Na otázku
Obrázek produktové varianty CC-525w
9859249 / 2023.0001.01
Weight ( g )
163 kg
Type
CC-525w
Min. temperature ( °C )
-55 °C
Ext. depth ( mm )
629 mm
Ext. height ( mm )
1102 mm
Ext. width ( mm )
539 mm
Power supply frequency ( Hz )
50 Hz
Max. voltage ( V )
400 V
Min. voltage ( V )
-
Depth opening ( mm )
150 mm
Width opening ( mm )
270 mm
Power supply
400 V, 50 Hz
Safety Data Sheet
https://sw.llg.de/search?search=9859249
Temperature
-55 ... 200 °C
Heating capacity ( W )
3 kW
Ext. dim. (WxDxH)
539 x 629 x 1,102 mm
Max. volume bath ( l )
17 l
Cooling capacity at 20 °C ( kW )
7 kW
Volume bath
17 l
Opening (WxD)
270 x 150 mm
Bath depth ( mm )
200 mm
Refrigerant
R452A
Kusy v balení
-
Na otázku
Obrázek produktové varianty CC-510
9859256 / 2020.0010.01
Weight ( g )
141 kg
Type
CC-510
Min. temperature ( °C )
-50 °C
Ext. depth ( mm )
706 mm
Ext. height ( mm )
1136 mm
Ext. width ( mm )
605 mm
Power supply frequency ( Hz )
50 Hz
Max. voltage ( V )
400 V
Min. voltage ( V )
-
Depth opening ( mm )
260 mm
Width opening ( mm )
260 mm
Power supply
400 V, 50 Hz
Safety Data Sheet
https://sw.llg.de/search?search=9859256
Temperature
-50 ... 200 °C
Heating capacity ( W )
3 kW
Ext. dim. (WxDxH)
605 x 706 x 1,136 mm
Max. volume bath ( l )
18 l
Cooling capacity at 20 °C ( kW )
2,1 kW
Volume bath
18 l
Opening (WxD)
260 x 260 mm
Bath depth ( mm )
200 mm
Refrigerant
R452A
Kusy v balení
-
Na otázku

Technické špecifikácie

IP code IP 20
Max. delivery pressure 0.7 bar
Max. suction capacity 18.5 l/min
Max. suction pressure 0.4 bar
Max. temperature 200 °C
Operation Touchscreen
Temperature stability ±0,02 K °C
Type of auxiliary energy Mains connection
Type of display TFT
UNSPSC 41103701
With lid Yes
