Platformové váhy SXC, IoT-Line Ďalšie fotografie

Platformové váhy SXC, IoT-Line

Platformová váha z nehrdzavejúcej ocele s až štyrmi dátovými rozhraniami a voliteľnou pamäťou alibi pre zvýšené hygienické požiadavky v potravinárskom priemysle. Komunikačný protokol KERN (KCP) umožňuje vyhľadávanie a diaľkové ovládanie váhy pomocou externých ovládacích zariadení alebo počítačov.

  • Veľký podsvietený LCD displej

  • Platforma vyrobená výlučne z nehrdzavejúcej ocele, hermeticky zváraná nehrdzavejúca oceľová snímacia bunka s ochranou proti prachu a striekajúcej vode IP68

  • Zobrazovacie zariadenie: nerezová oceľ, ochrana proti prachu a striekajúcej vode IP68

  • Rozmery zobrazovacieho zariadenia (Š×H×V): 232×150×80 mm
Zvoľte variant
Výrobca
  • Kern & Sohn GmbH
Kategória

Varianty produktu

Názov Katalógové číslo / Kód produktu
Height ( mm ) Weight ( g ) Width ( mm ) Depth ( mm ) Type Dimensions (WxDxH) Safety Data Sheet Reproducibility ( % ) Readability ( N ) Max. load ( g ) Depth weighing plate ( mm ) Width weighing plate ( mm ) Linearity Verified calibration Weighing plate (WxD)
Kusy v balení Cena bez DPH
Obrázek produktové varianty SXC 100K-2
4711876 / SXC 100K-2
Height ( mm )
126 mm
Weight ( g )
12 kg
Width ( mm )
500 mm
Depth ( mm )
400 mm
Type
SXC 100K-2
Dimensions (WxDxH)
500 x 400 x 126 mm
Safety Data Sheet
https://sw.llg.de/search?search=4711876
Reproducibility ( % )
0.01 kg
Readability ( N )
0.01 kg
Max. load ( g )
150 kg
Depth weighing plate ( mm )
400 mm
Width weighing plate ( mm )
500 mm
Linearity
±0,03 kg
Verified calibration
Not verifiable
Weighing plate (WxD)
500 x 400 mm
Kusy v balení
1
Na otázku

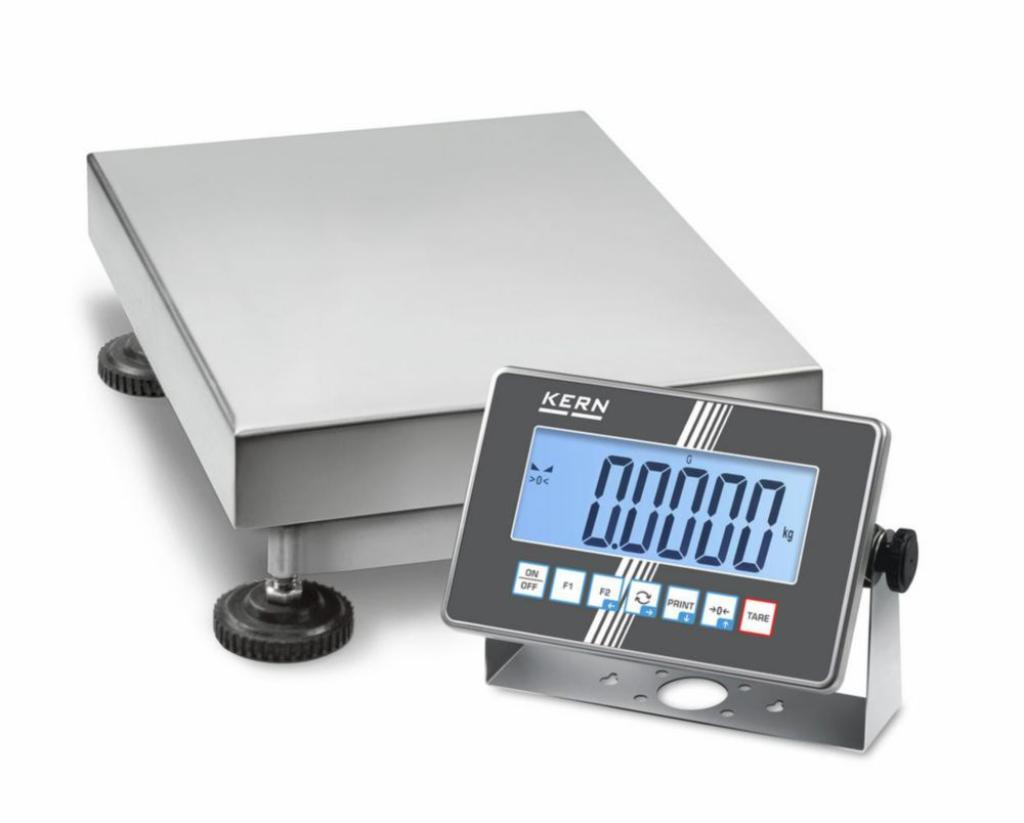

Obrázek produktové varianty SXC 100K-2L
4711877 / SXC 100K-2L
Height ( mm )
139 mm
Weight ( g )
20 kg
Width ( mm )
650 mm
Depth ( mm )
500 mm
Type
SXC 100K-2L
Dimensions (WxDxH)
650 x 500 x 139 mm
Safety Data Sheet
https://sw.llg.de/search?search=4711877
Reproducibility ( % )
0.01 kg
Readability ( N )
0.01 kg
Max. load ( g )
150 kg
Depth weighing plate ( mm )
500 mm
Width weighing plate ( mm )
650 mm
Linearity
±0,03 kg
Verified calibration
Not verifiable
Weighing plate (WxD)
650 x 500 mm
Kusy v balení
1
Na otázku
Obrázek produktové varianty SXC 100K-2LM
4711878 / SXC 100K-2LM
Height ( mm )
139 mm
Weight ( g )
20 kg
Width ( mm )
650 mm
Depth ( mm )
500 mm
Type
SXC 100K-2LM
Dimensions (WxDxH)
650 x 500 x 139 mm
Safety Data Sheet
https://sw.llg.de/search?search=4711878
Reproducibility ( % )
0.02/0.05 kg
Readability ( N )
0.02/0.05 kg
Max. load ( g )
60/150 kg
Depth weighing plate ( mm )
500 mm
Width weighing plate ( mm )
650 mm
Linearity
±0,02/0,05 kg
Verified calibration
Verifiable
Weighing plate (WxD)
650 x 500 mm
Kusy v balení
1
Na otázku

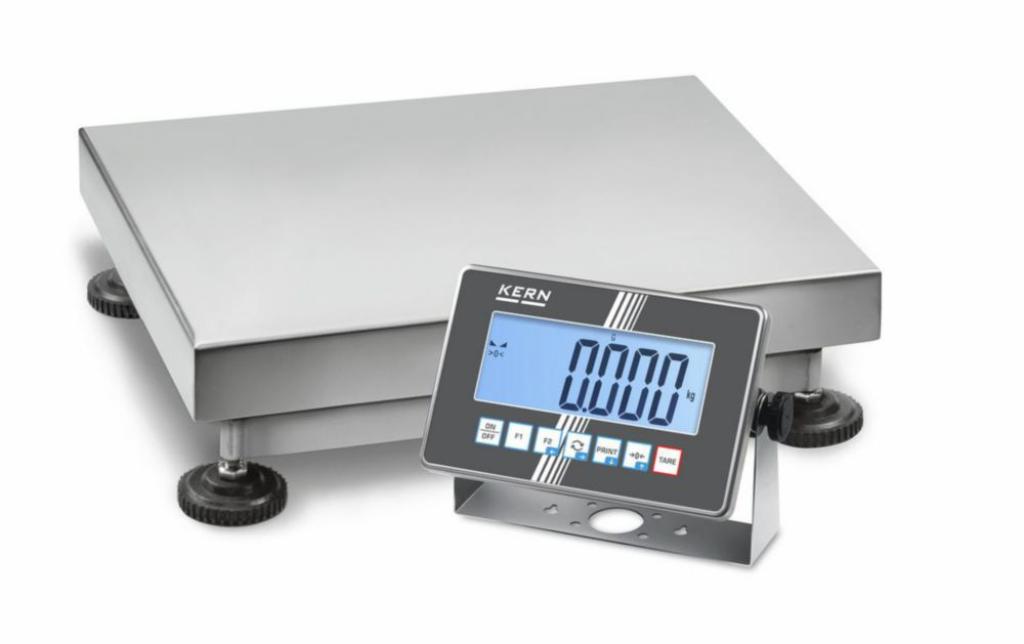

Obrázek produktové varianty SXC 100K-2M
4711879 / SXC 100K-2M
Height ( mm )
126 mm
Weight ( g )
12 kg
Width ( mm )
500 mm
Depth ( mm )
400 mm
Type
SXC 100K-2M
Dimensions (WxDxH)
500 x 400 x 126 mm
Safety Data Sheet
https://sw.llg.de/search?search=4711879
Reproducibility ( % )
0.02/0.05 kg
Readability ( N )
0.02/0.05 kg
Max. load ( g )
60/150 kg
Depth weighing plate ( mm )
400 mm
Width weighing plate ( mm )
500 mm
Linearity
±0,02/0,05 kg
Verified calibration
Verifiable
Weighing plate (WxD)
500 x 400 mm
Kusy v balení
1
Na otázku
Obrázek produktové varianty SXC 10K-3
4711880 / SXC 10K-3
Height ( mm )
107 mm
Weight ( g )
7 kg
Width ( mm )
300 mm
Depth ( mm )
240 mm
Type
SXC 10K-3
Dimensions (WxDxH)
300 x 240 x 107 mm
Safety Data Sheet
https://sw.llg.de/search?search=4711880
Reproducibility ( % )
0.001 kg
Readability ( N )
0.001 kg
Max. load ( g )
15 kg
Depth weighing plate ( mm )
240 mm
Width weighing plate ( mm )
300 mm
Linearity
±0,003 kg
Verified calibration
Not verifiable
Weighing plate (WxD)
300 x 240 mm
Kusy v balení
1
Na otázku
Obrázek produktové varianty SXC 10K-3L
4711881 / SXC 10K-3L
Height ( mm )
111 mm
Weight ( g )
12 kg
Width ( mm )
400 mm
Depth ( mm )
300 mm
Type
SXC 10K-3L
Dimensions (WxDxH)
400 x 300 x 111 mm
Safety Data Sheet
https://sw.llg.de/search?search=4711881
Reproducibility ( % )
0.001 kg
Readability ( N )
0.001 kg
Max. load ( g )
15 kg
Depth weighing plate ( mm )
300 mm
Width weighing plate ( mm )
400 mm
Linearity
±0,003 kg
Verified calibration
Not verifiable
Weighing plate (WxD)
400 x 300 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty SXC 10K-3LM
4711882 / SXC 10K-3LM
Height ( mm )
111 mm
Weight ( g )
8 kg
Width ( mm )
400 mm
Depth ( mm )
300 mm
Type
SXC 10K-3LM
Dimensions (WxDxH)
400 x 300 x 111 mm
Safety Data Sheet
https://sw.llg.de/search?search=4711882
Reproducibility ( % )
0.002/0.005 kg
Readability ( N )
0.002/0.005 kg
Max. load ( g )
6/15 kg
Depth weighing plate ( mm )
300 mm
Width weighing plate ( mm )
400 mm
Linearity
±0,002/0,005 kg
Verified calibration
Verifiable
Weighing plate (WxD)
400 x 300 mm
Kusy v balení
1
Na otázku
Obrázek produktové varianty SXC 10K-3M
4711883 / SXC 10K-3M
Height ( mm )
107 mm
Weight ( g )
7 kg
Width ( mm )
300 mm
Depth ( mm )
240 mm
Type
SXC 10K-3M
Dimensions (WxDxH)
300 x 240 x 107 mm
Safety Data Sheet
https://sw.llg.de/search?search=4711883
Reproducibility ( % )
0.002/0.005 kg
Readability ( N )
0.002/0.005 kg
Max. load ( g )
6/15 kg
Depth weighing plate ( mm )
240 mm
Width weighing plate ( mm )
300 mm
Linearity
±0,002/0,005 kg
Verified calibration
Verifiable
Weighing plate (WxD)
300 x 240 mm
Kusy v balení
1
Na otázku
Obrázek produktové varianty SXC 30K-3
4711884 / SXC 30K-3
Height ( mm )
111 mm
Weight ( g )
12 kg
Width ( mm )
400 mm
Depth ( mm )
300 mm
Type
SXC 30K-3
Dimensions (WxDxH)
400 x 300 x 111 mm
Safety Data Sheet
https://sw.llg.de/search?search=4711884
Reproducibility ( % )
0.002 kg
Readability ( N )
0.002 kg
Max. load ( g )
30 kg
Depth weighing plate ( mm )
300 mm
Width weighing plate ( mm )
400 mm
Linearity
±0,006 kg
Verified calibration
Not verifiable
Weighing plate (WxD)
400 x 300 mm
Kusy v balení
1
Na otázku
Obrázek produktové varianty SXC 30K-3L
4711885 / SXC 30K-3L
Height ( mm )
120 mm
Weight ( g )
22 kg
Width ( mm )
500 mm
Depth ( mm )
400 mm
Type
SXC 30K-3L
Dimensions (WxDxH)
500 x 400 x 120 mm
Safety Data Sheet
https://sw.llg.de/search?search=4711885
Reproducibility ( % )
0.002 kg
Readability ( N )
0.002 kg
Max. load ( g )
30 kg
Depth weighing plate ( mm )
400 mm
Width weighing plate ( mm )
500 mm
Linearity
±0,006 kg
Verified calibration
Not verifiable
Weighing plate (WxD)
500 x 400 mm
Kusy v balení
1
Na otázku
Obrázek produktové varianty SXC 30K-3LM
4711886 / SXC 30K-3LM
Height ( mm )
120 mm
Weight ( g )
12 kg
Width ( mm )
500 mm
Depth ( mm )
400 mm
Type
SXC 30K-3LM
Dimensions (WxDxH)
500 x 400 x 120 mm
Safety Data Sheet
https://sw.llg.de/search?search=4711886
Reproducibility ( % )
0.005/0.01 kg
Readability ( N )
0.005/0.01 kg
Max. load ( g )
15/30 kg
Depth weighing plate ( mm )
400 mm
Width weighing plate ( mm )
500 mm
Linearity
±0,005/0,01 kg
Verified calibration
Verifiable
Weighing plate (WxD)
500 x 400 mm
Kusy v balení
1
Na otázku
Obrázek produktové varianty SXC 30K-3M
4711887 / SXC 30K-3M
Height ( mm )
111 mm
Weight ( g )
11 kg
Width ( mm )
400 mm
Depth ( mm )
300 mm
Type
SXC 30K-3M
Dimensions (WxDxH)
400 x 300 x 111 mm
Safety Data Sheet
https://sw.llg.de/search?search=4711887
Reproducibility ( % )
0.005/0.01 kg
Readability ( N )
0.005/0.01 kg
Max. load ( g )
15/30 kg
Depth weighing plate ( mm )
300 mm
Width weighing plate ( mm )
400 mm
Linearity
±0,005/0,01 kg
Verified calibration
Verifiable
Weighing plate (WxD)
400 x 300 mm
Kusy v balení
1
Na otázku

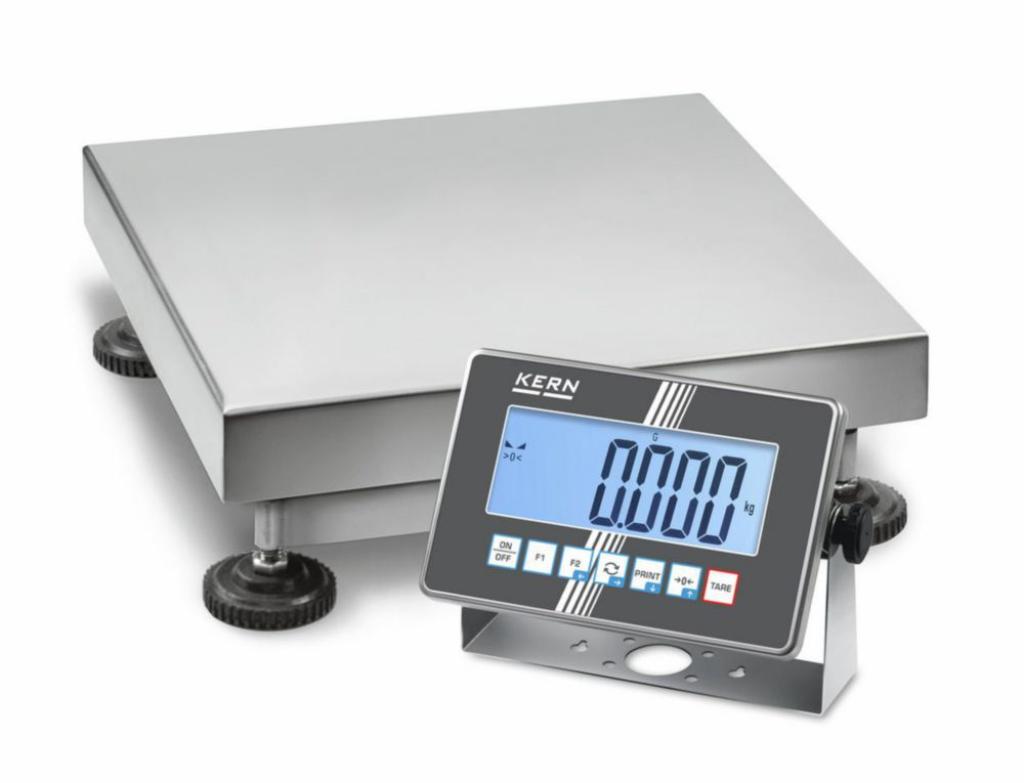

Obrázek produktové varianty SXC 60K-2LM
4711888 / SXC 60K-2LM
Height ( mm )
126 mm
Weight ( g )
12 kg
Width ( mm )
500 mm
Depth ( mm )
400 mm
Type
SXC 60K-2LM
Dimensions (WxDxH)
500 x 400 x 126 mm
Safety Data Sheet
https://sw.llg.de/search?search=4711888
Reproducibility ( % )
0.01/0.02 kg
Readability ( N )
0.01/0.02 kg
Max. load ( g )
30/60 kg
Depth weighing plate ( mm )
400 mm
Width weighing plate ( mm )
500 mm
Linearity
±0,01/0,02 kg
Verified calibration
Verifiable
Weighing plate (WxD)
500 x 400 mm
Kusy v balení
1
Na otázku

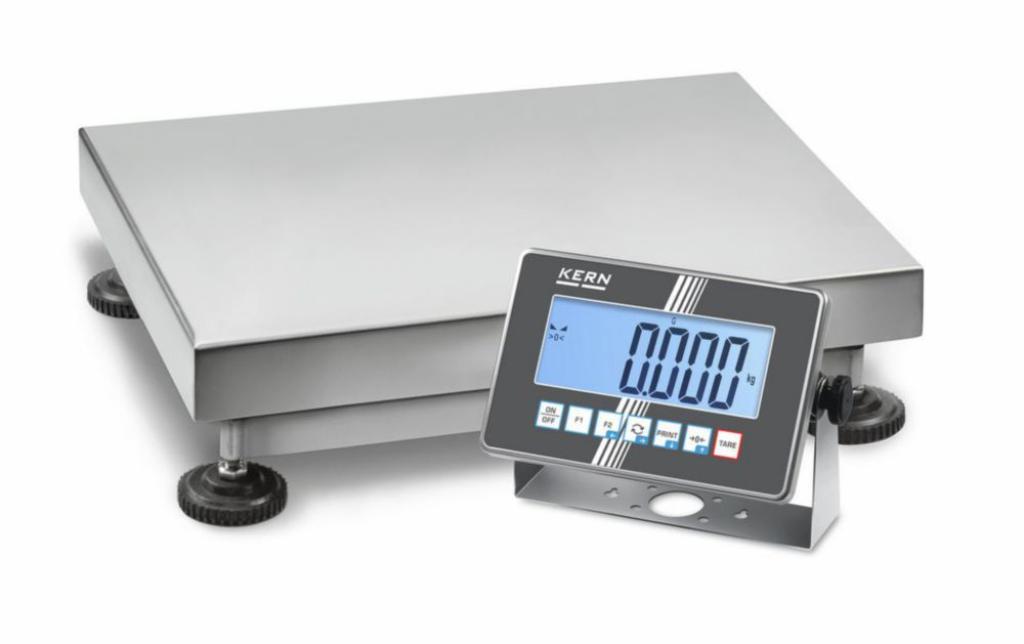

Obrázek produktové varianty SXC 60K-2M
4711889 / SXC 60K-2M
Height ( mm )
123 mm
Weight ( g )
11 kg
Width ( mm )
400 mm
Depth ( mm )
300 mm
Type
SXC 60K-2M
Dimensions (WxDxH)
400 x 300 x 123 mm
Safety Data Sheet
https://sw.llg.de/search?search=4711889
Reproducibility ( % )
0.01/0.02 kg
Readability ( N )
0.01/0.02 kg
Max. load ( g )
30/60 kg
Depth weighing plate ( mm )
300 mm
Width weighing plate ( mm )
400 mm
Linearity
±0,01/0,02 kg
Verified calibration
Verifiable
Weighing plate (WxD)
400 x 300 mm
Kusy v balení
1
Na otázku
Obrázek produktové varianty SXC 60K-3
4711890 / SXC 60K-3
Height ( mm )
123 mm
Weight ( g )
12 kg
Width ( mm )
400 mm
Depth ( mm )
300 mm
Type
SXC 60K-3
Dimensions (WxDxH)
400 x 300 x 123 mm
Safety Data Sheet
https://sw.llg.de/search?search=4711890
Reproducibility ( % )
0.005 kg
Readability ( N )
0.005 kg
Max. load ( g )
60 kg
Depth weighing plate ( mm )
300 mm
Width weighing plate ( mm )
400 mm
Linearity
±0,015 kg
Verified calibration
Not verifiable
Weighing plate (WxD)
400 x 300 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty SXC 6K-3M
4711891 / SXC 6K-3M
Height ( mm )
107 mm
Weight ( g )
7 kg
Width ( mm )
300 mm
Depth ( mm )
240 mm
Type
SXC 6K-3M
Dimensions (WxDxH)
300 x 240 x 107 mm
Safety Data Sheet
https://sw.llg.de/search?search=4711891
Reproducibility ( % )
0.001/0.002 kg
Readability ( N )
0.001/0.002 kg
Max. load ( g )
3/6 kg
Depth weighing plate ( mm )
240 mm
Width weighing plate ( mm )
300 mm
Linearity
±0,001/0,002 kg
Verified calibration
Verifiable
Weighing plate (WxD)
300 x 240 mm
Kusy v balení
1
Na otázku

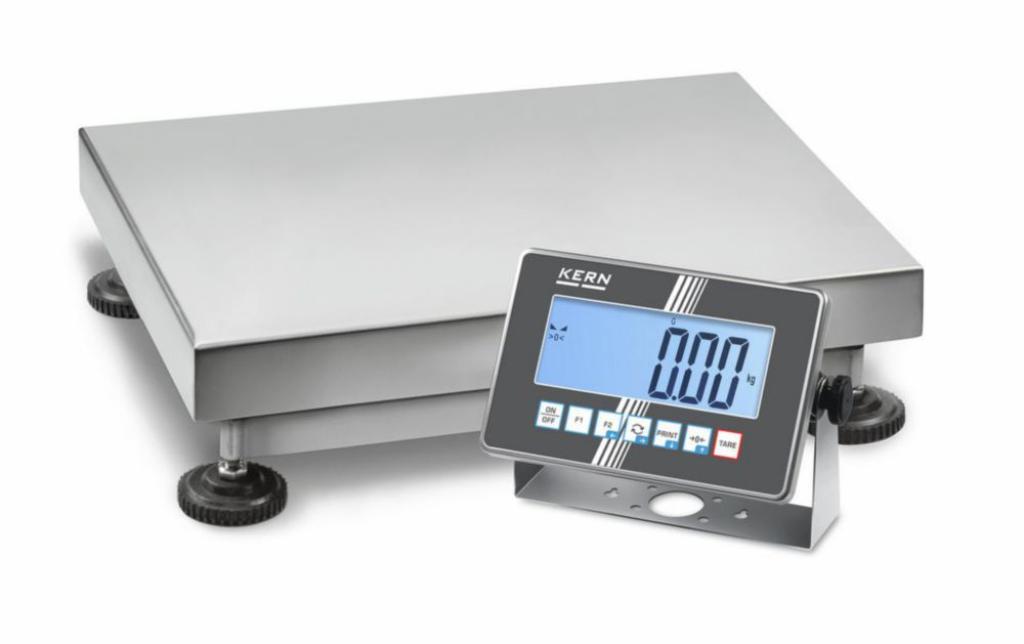

Obrázek produktové varianty SXC 6K-4
4711892 / SXC 6K-4
Height ( mm )
107 mm
Weight ( g )
6 kg
Width ( mm )
300 mm
Depth ( mm )
240 mm
Type
SXC 6K-4
Dimensions (WxDxH)
300 x 240 x 107 mm
Safety Data Sheet
https://sw.llg.de/search?search=4711892
Reproducibility ( % )
0.0005 kg
Readability ( N )
0.0005 kg
Max. load ( g )
6 kg
Depth weighing plate ( mm )
240 mm
Width weighing plate ( mm )
300 mm
Linearity
±0,0,015 kg
Verified calibration
Not verifiable
Weighing plate (WxD)
300 x 240 mm
Kusy v balení
1
Na otázku

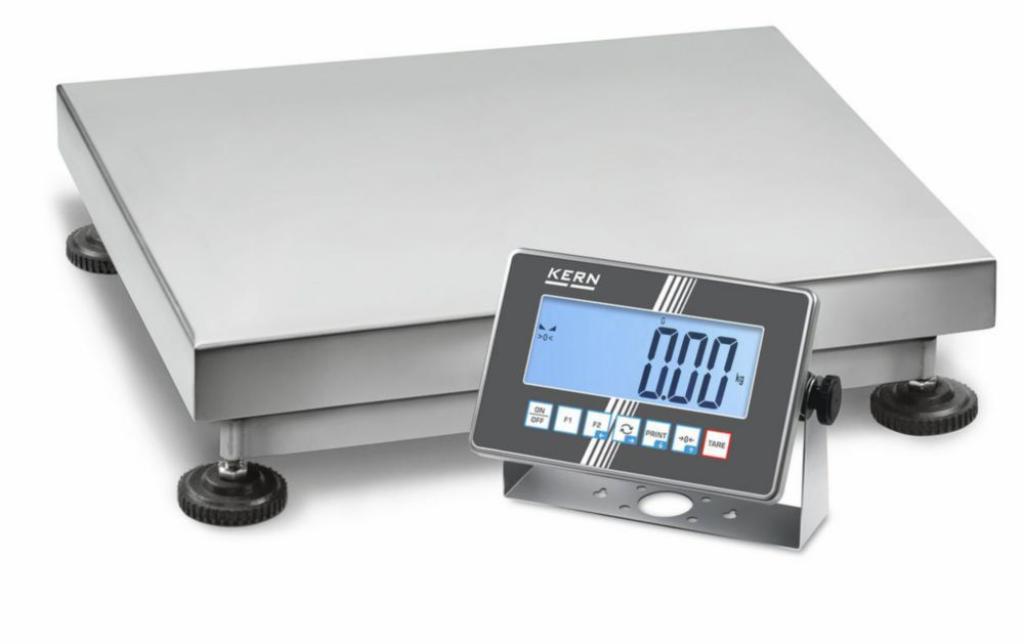

Obrázek produktové varianty SXC 60K-3L
6522912 / SXC 60K-3L
Height ( mm )
126 mm
Weight ( g )
22 kg
Width ( mm )
500 mm
Depth ( mm )
400 mm
Type
SXC 60K-3L
Dimensions (WxDxH)
500 x 400 x 126 mm
Safety Data Sheet
https://sw.llg.de/search?search=6522912
Reproducibility ( % )
0.005 kg
Readability ( N )
0.005 kg
Max. load ( g )
60 kg
Depth weighing plate ( mm )
400 mm
Width weighing plate ( mm )
500 mm
Linearity
±0,015 kg
Verified calibration
Not verifiable
Weighing plate (WxD)
500 x 400 mm
Kusy v balení
1
Na otázku

Technické špecifikácie

Adjusting program External
IP code IP 68
Material housing Stainless steel
Material weighing plate Stainless steel
Max. voltage 240 V
Min. voltage 110 V
Plug type EU
Power supply 110 ... 240 V
Type of auxiliary energy Mains connection
UNSPSC 41111509
Warranty 3 years

Fotografie

Platformové váhy SXC, IoT-Line Platformové váhy SXC, IoT-Line Platformové váhy SXC, IoT-Line Platformové váhy SXC, IoT-Line Platformové váhy SXC, IoT-Line Platformové váhy SXC, IoT-Line Platformové váhy SXC, IoT-Line Platformové váhy SXC, IoT-Line Platformové váhy SXC, IoT-Line Platformové váhy SXC, IoT-Line Platformové váhy SXC, IoT-Line Platformové váhy SXC, IoT-Line Platformové váhy SXC, IoT-Line Platformové váhy SXC, IoT-Line Platformové váhy SXC, IoT-Line Platformové váhy SXC, IoT-Line Platformové váhy SXC, IoT-Line Platformové váhy SXC, IoT-Line

Otázka k produktu

Podobné produkty

Zvoľte, kam bude tovar pridaný

Prihlásenie
