Zobraziť katalóg
Platformové váhy SFB Ďalšie fotografie

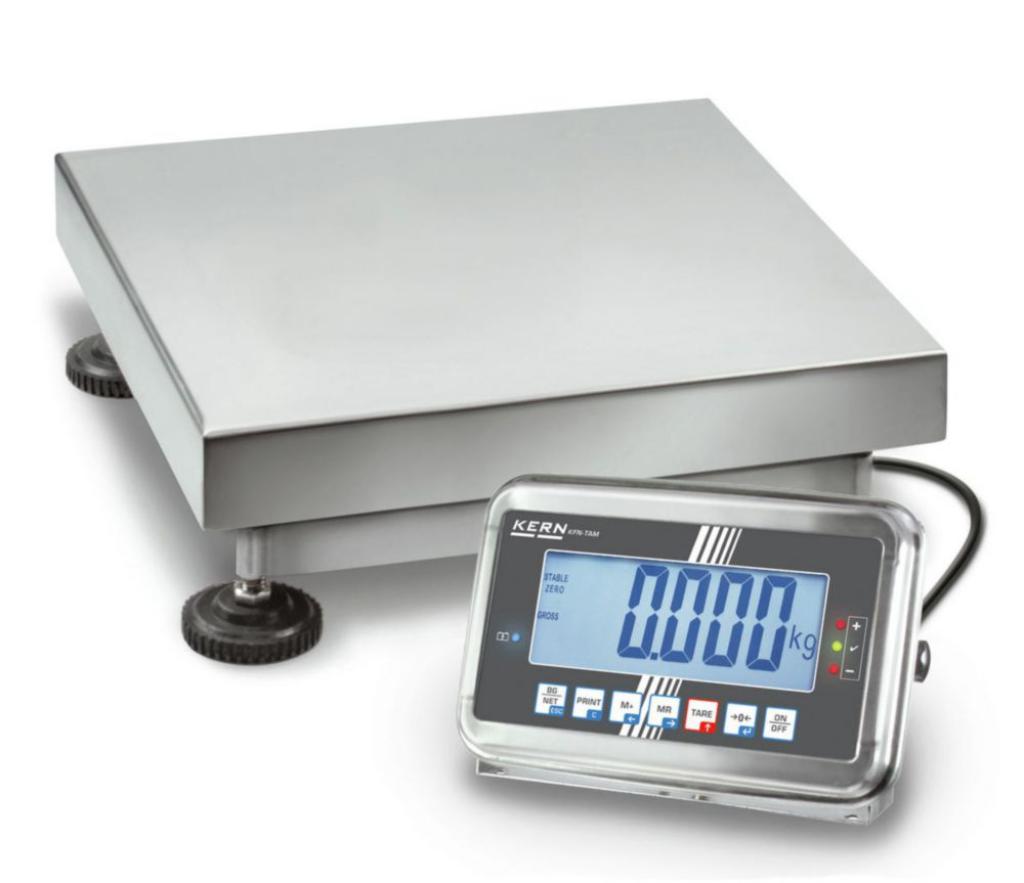

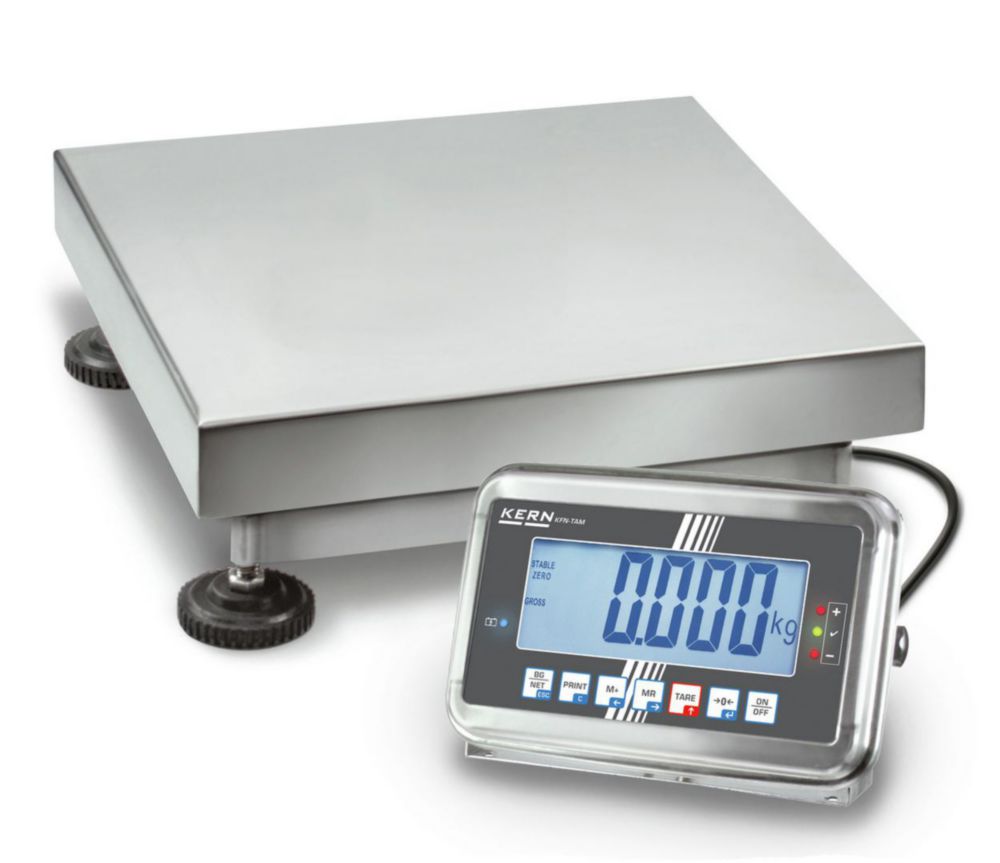

Platformové váhy SFB

Platformová váha pre použitie v priemysle.

  • Veľký podsvietený LCD displej

  • Silikónom potiahnutá nerezová snímacia bunka, ochrana proti prachu a striekajúcej vode IP67

  • Zobrazovacie zariadenie: nerezová oceľ, ochrana proti prachu a striekajúcej vode IP65, (len batériový prevádzka)

  • Rozmery zobrazovacieho zariadenia (Š×H×V): 266×165×96 mm
Zvoľte variant
Výrobca
  • Kern & Sohn GmbH
Kategória

Varianty produktu

Názov Katalógové číslo / Kód produktu
Height ( mm ) Weight ( g ) Width ( mm ) Depth ( mm ) Type Dimensions (WxDxH) Safety Data Sheet Reproducibility ( % ) Readability ( N ) Max. load ( g ) Depth weighing plate ( mm ) Width weighing plate ( mm ) Linearity Verified calibration Weighing plate (WxD)
Kusy v balení Cena bez DPH

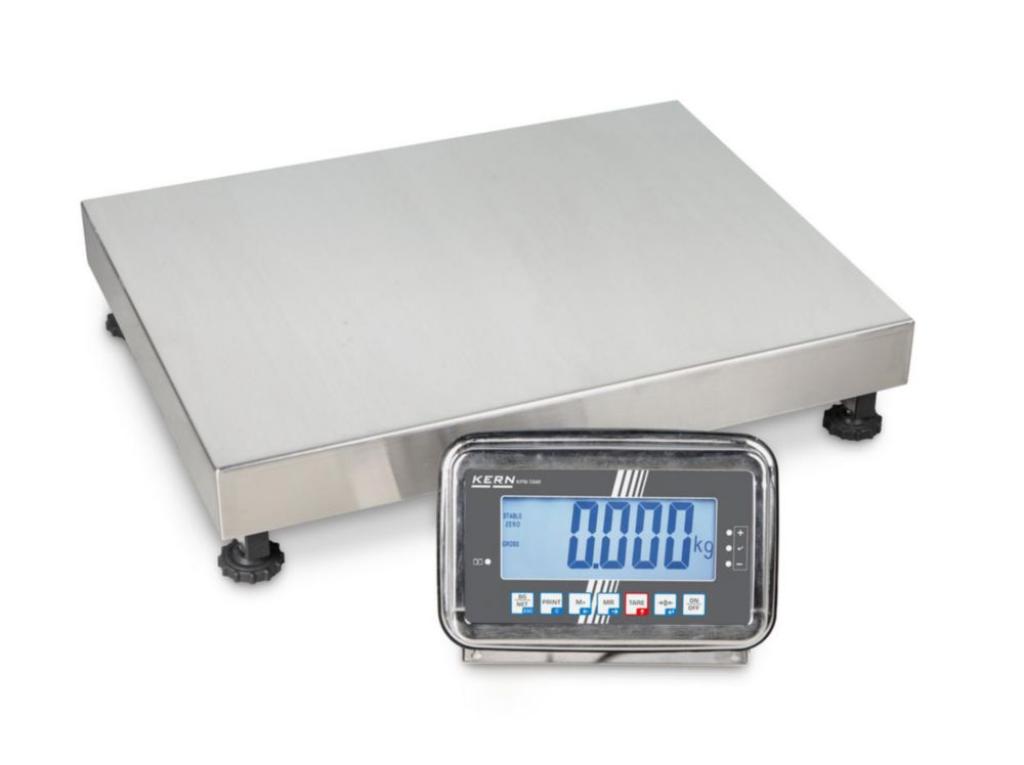

Obrázek produktové varianty SFB 100K-2XL
4660445 / SFB 100K-2XL
Height ( mm )
139 mm
Weight ( g )
24 kg
Width ( mm )
650 mm
Depth ( mm )
500 mm
Type
SFB 100K-2XL
Dimensions (WxDxH)
650 x 500 x 139 mm
Safety Data Sheet
-
Reproducibility ( % )
0.01 kg
Readability ( N )
0.01 kg
Max. load ( g )
100 kg
Depth weighing plate ( mm )
500 mm
Width weighing plate ( mm )
650 mm
Linearity
±0.02 kg
Verified calibration
Not verifiable
Weighing plate (WxD)
650 x 500 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty SFB 60K-2XLM
4660452 / SFB 60K-2XLM
Height ( mm )
120 mm
Weight ( g )
14 kg
Width ( mm )
500 mm
Depth ( mm )
400 mm
Type
SFB 60K-2XLM
Dimensions (WxDxH)
500 x 400 x 120 mm
Safety Data Sheet
-
Reproducibility ( % )
0.02 kg
Readability ( N )
0.02 kg
Max. load ( g )
60 kg
Depth weighing plate ( mm )
400 mm
Width weighing plate ( mm )
500 mm
Linearity
±0.02 kg
Verified calibration
Verifiable
Weighing plate (WxD)
500 x 400 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty SFB 100K-2LM
7940109 / SFB 100K-2LM
Height ( mm )
120 mm
Weight ( g )
14 kg
Width ( mm )
500 mm
Depth ( mm )
400 mm
Type
SFB 100K-2LM
Dimensions (WxDxH)
500 x 400 x 120 mm
Safety Data Sheet
https://sw.llg.de/search?search=7940109
Reproducibility ( % )
0.05 kg
Readability ( N )
0.05 kg
Max. load ( g )
150 kg
Depth weighing plate ( mm )
400 mm
Width weighing plate ( mm )
500 mm
Linearity
±0.05 kg
Verified calibration
Verifiable
Weighing plate (WxD)
500 x 400 mm
Kusy v balení
1
Na otázku
Obrázek produktové varianty SFB 50K-3XL
7940533 / SFB 50K-3XL
Height ( mm )
120 mm
Weight ( g )
13 kg
Width ( mm )
500 mm
Depth ( mm )
400 mm
Type
SFB 50K-3XL
Dimensions (WxDxH)
500 x 400 x 120 mm
Safety Data Sheet
https://sw.llg.de/search?search=7940533
Reproducibility ( % )
0.005 kg
Readability ( N )
0.005 kg
Max. load ( g )
50 kg
Depth weighing plate ( mm )
400 mm
Width weighing plate ( mm )
500 mm
Linearity
±0.01 kg
Verified calibration
Not verifiable
Weighing plate (WxD)
500 x 400 mm
Kusy v balení
-
Na otázku

Technické špecifikácie

Adjusting program External
Battery/ rechargeable battery 6 V, Pb
Electrochemical system Pb
Material housing Stainless steel
Material weighing plate Stainless steel
Max. voltage battery/ rechargeable battery 6 V
Max. voltage 230 V·AC
Min. voltage 110 V
Plug type EU/UK/US
Power supply 110 ... 230 V·AC
Type of auxiliary energy Mains connection/rechargeable battery
UNSPSC 41111509
Warranty 3 years

Fotografie

Platformové váhy SFB Platformové váhy SFB Platformové váhy SFB Platformové váhy SFB
