Platformové váhy IXC, IoT-Line Ďalšie fotografie

Platformové váhy IXC, IoT-Line

Platformové váhy z nehrdzavejúcej ocele s až štyrmi rozhraniami. Komunikačný protokol KERN (KCP) umožňuje vyhľadávanie a diaľkové ovládanie váhy pomocou externých ovládacích zariadení alebo počítačov (možné len cez dátové rozhranie RS-232).

  • Veľký podsvietený LCD displej

  • Vážiaca doska z nehrdzavejúcej ocele, základňa z lakovanej ocele

  • Silikónom potiahnutá hliníková snímacia bunka s ochranou proti prachu a striekajúcej vode IP65

  • Displej: nerezová oceľ, ochrana proti prachu a striekajúcej vode IP68

  • Rozmery zobrazovacieho zariadenia (Š×H×V): 232×150×80 mm
Zvoľte variant
Výrobca
  • Kern & Sohn GmbH
Kategória

Varianty produktu

Názov Katalógové číslo / Kód produktu
Height ( mm ) Weight ( g ) Width ( mm ) Depth ( mm ) Type Dimensions (WxDxH) Safety Data Sheet Reproducibility ( % ) Readability ( N ) Max. load ( g ) Depth weighing plate ( mm ) Width weighing plate ( mm ) Linearity Verified calibration Weighing plate (WxD)
Kusy v balení Cena bez DPH
Obrázek produktové varianty IXC 100K-2LM
4711819 / IXC 100K-2LM
Height ( mm )
139 mm
Weight ( g )
18 kg
Width ( mm )
650 mm
Depth ( mm )
500 mm
Type
IXC 100K-2LM
Dimensions (WxDxH)
650 x 500 x 139 mm
Safety Data Sheet
https://sw.llg.de/search?search=4711819
Reproducibility ( % )
0.02/0.05 kg
Readability ( N )
0.02/0.05 kg
Max. load ( g )
60/150 kg
Depth weighing plate ( mm )
500 mm
Width weighing plate ( mm )
650 mm
Linearity
±0,02/0,05 kg
Verified calibration
Verifiable
Weighing plate (WxD)
650 x 500 mm
Kusy v balení
-
Na otázku

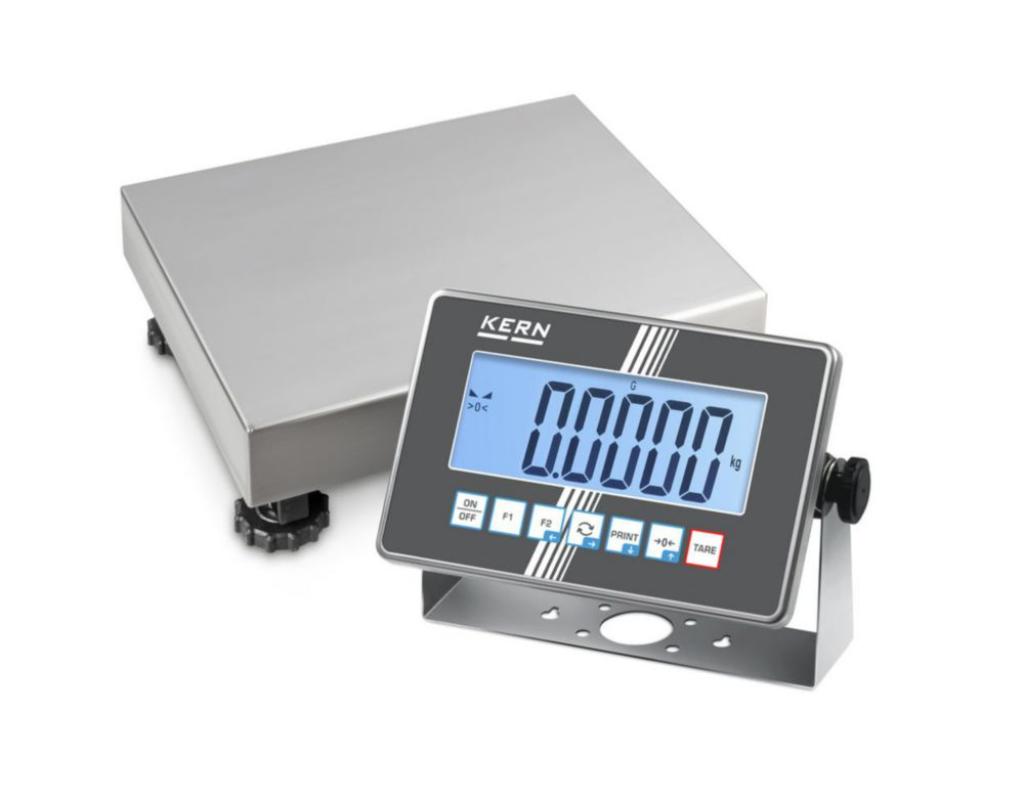

Obrázek produktové varianty IXC 100K-2M
4711820 / IXC 100K-2M
Height ( mm )
127 mm
Weight ( g )
11 kg
Width ( mm )
500 mm
Depth ( mm )
400 mm
Type
IXC 100K-2M
Dimensions (WxDxH)
500 x 400 x 127 mm
Safety Data Sheet
https://sw.llg.de/search?search=4711820
Reproducibility ( % )
0.02/0.05 kg
Readability ( N )
0.02/0.05 kg
Max. load ( g )
60/150 kg
Depth weighing plate ( mm )
400 mm
Width weighing plate ( mm )
500 mm
Linearity
±0,02/0,05 kg
Verified calibration
Verifiable
Weighing plate (WxD)
500 x 400 mm
Kusy v balení
-
Na otázku

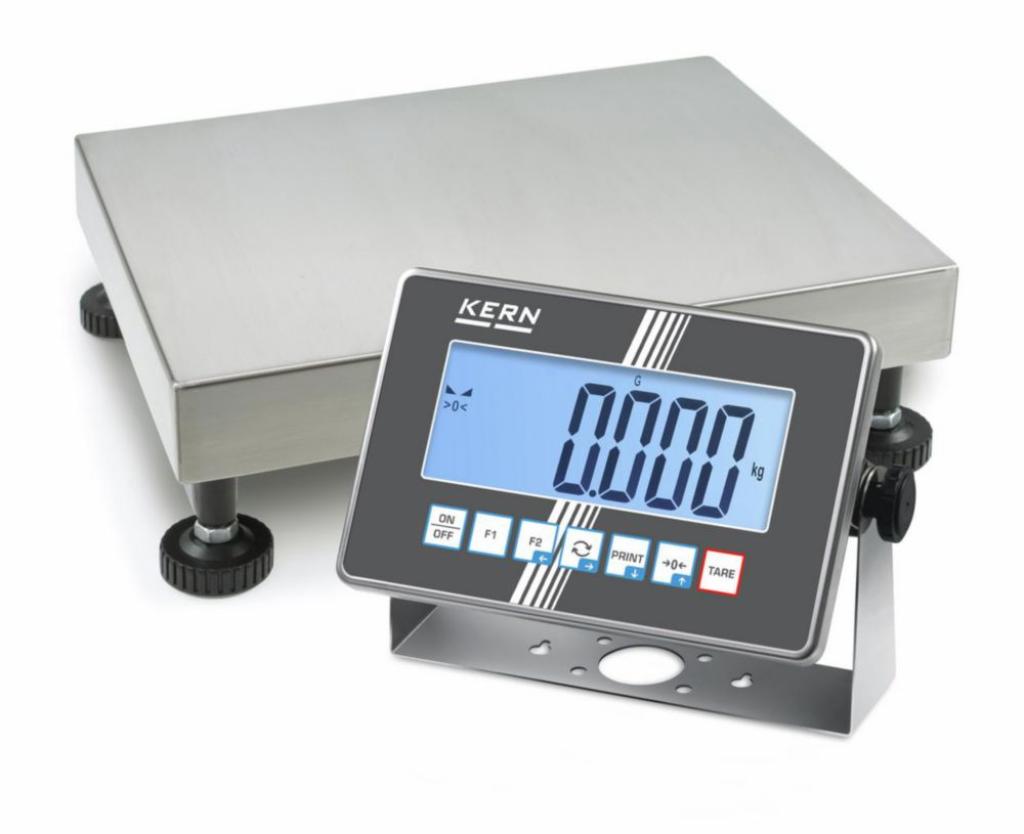

Obrázek produktové varianty IXC 100K-3
4711821 / IXC 100K-3
Height ( mm )
127 mm
Weight ( g )
11 kg
Width ( mm )
500 mm
Depth ( mm )
400 mm
Type
IXC 100K-3
Dimensions (WxDxH)
500 x 400 x 127 mm
Safety Data Sheet
https://sw.llg.de/search?search=4711821
Reproducibility ( % )
0.005 kg
Readability ( N )
0.005 kg
Max. load ( g )
150 kg
Depth weighing plate ( mm )
400 mm
Width weighing plate ( mm )
500 mm
Linearity
±0,015 kg
Verified calibration
Not verifiable
Weighing plate (WxD)
500 x 400 mm
Kusy v balení
-
Na otázku

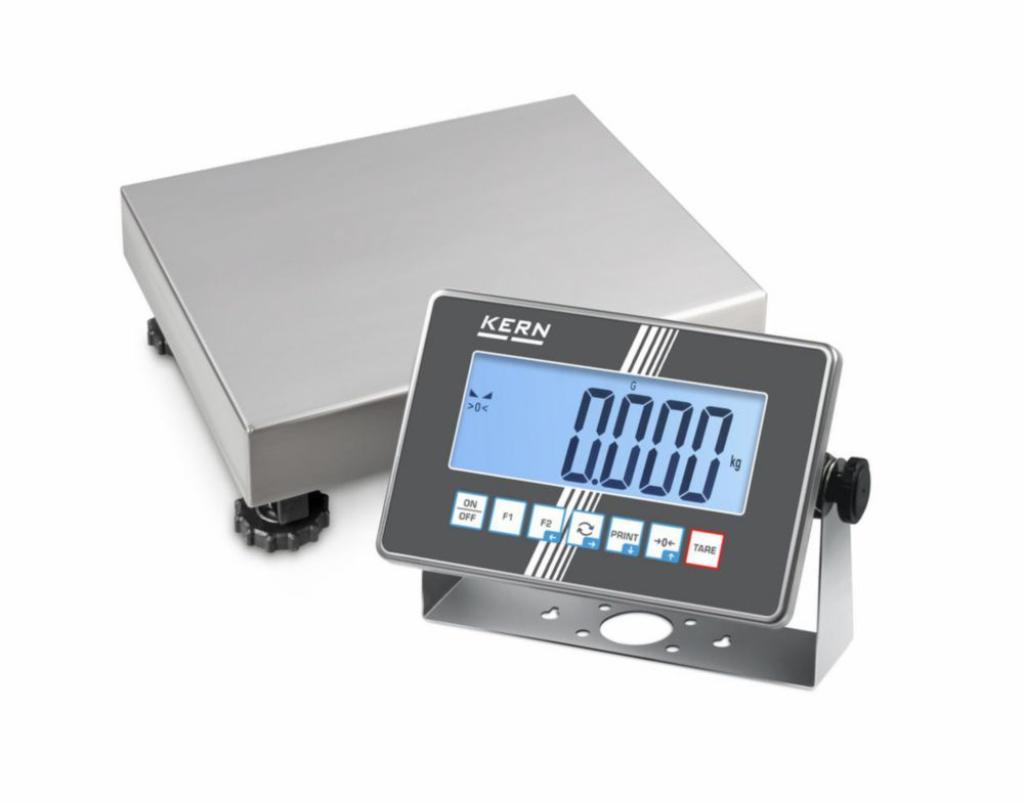

Obrázek produktové varianty IXC 100K-3L
4711822 / IXC 100K-3L
Height ( mm )
139 mm
Weight ( g )
19 kg
Width ( mm )
650 mm
Depth ( mm )
500 mm
Type
IXC 100K-3L
Dimensions (WxDxH)
650 x 500 x 139 mm
Safety Data Sheet
https://sw.llg.de/search?search=4711822
Reproducibility ( % )
0.005 kg
Readability ( N )
0.005 kg
Max. load ( g )
150 kg
Depth weighing plate ( mm )
500 mm
Width weighing plate ( mm )
650 mm
Linearity
±0,015 kg
Verified calibration
Not verifiable
Weighing plate (WxD)
650 x 500 mm
Kusy v balení
1
Na otázku

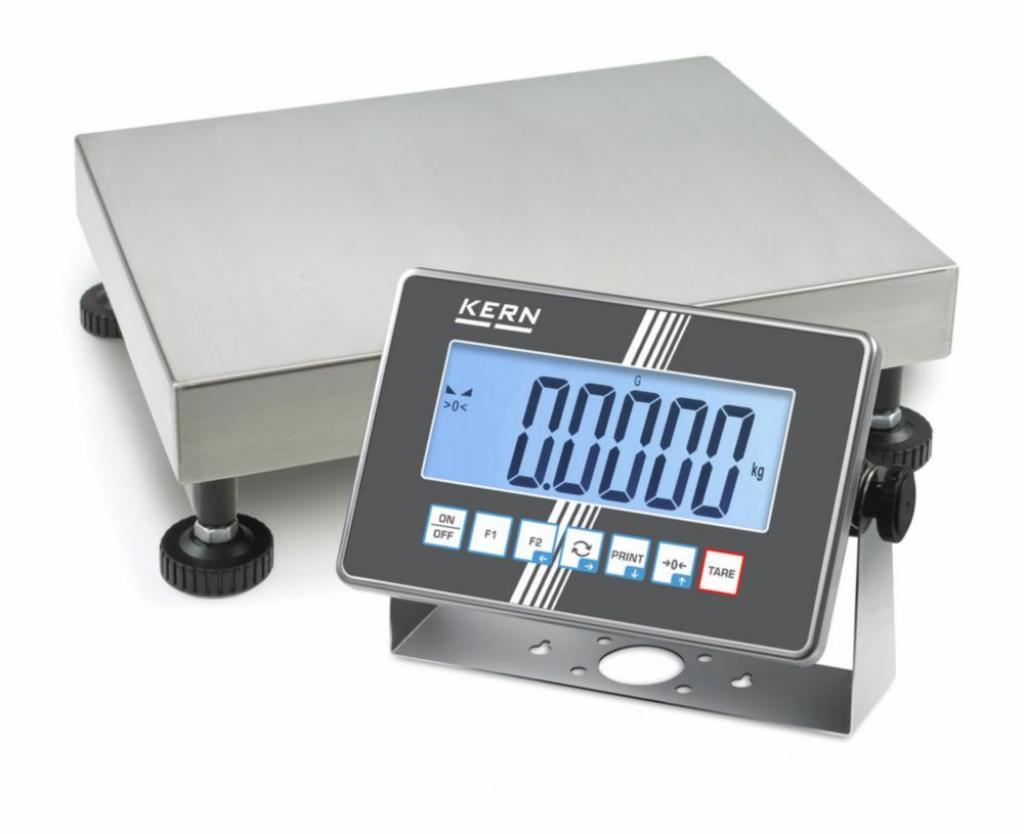

Obrázek produktové varianty IXC 10K-3M
4711823 / IXC 10K-3M
Height ( mm )
109 mm
Weight ( g )
6 kg
Width ( mm )
300 mm
Depth ( mm )
240 mm
Type
IXC 10K-3M
Dimensions (WxDxH)
300 x 240 x 109 mm
Safety Data Sheet
https://sw.llg.de/search?search=4711823
Reproducibility ( % )
0.002/0.005 kg
Readability ( N )
0.002/0.005 kg
Max. load ( g )
6/15 kg
Depth weighing plate ( mm )
240 mm
Width weighing plate ( mm )
300 mm
Linearity
±0,002/0,005 kg
Verified calibration
Verifiable
Weighing plate (WxD)
300 x 240 mm
Kusy v balení
1
Na otázku
Obrázek produktové varianty IXC 10K-4
4711824 / IXC 10K-4
Height ( mm )
109 mm
Weight ( g )
6 kg
Width ( mm )
300 mm
Depth ( mm )
240 mm
Type
IXC 10K-4
Dimensions (WxDxH)
300 x 240 x 109 mm
Safety Data Sheet
https://sw.llg.de/search?search=4711824
Reproducibility ( % )
0.0005 kg
Readability ( N )
0.0005 kg
Max. load ( g )
15 kg
Depth weighing plate ( mm )
240 mm
Width weighing plate ( mm )
300 mm
Linearity
±0,0,015 kg
Verified calibration
Not verifiable
Weighing plate (WxD)
300 x 240 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty IXC 10K-4L
4711825 / IXC 10K-4L
Height ( mm )
117 mm
Weight ( g )
7 kg
Width ( mm )
400 mm
Depth ( mm )
300 mm
Type
IXC 10K-4L
Dimensions (WxDxH)
400 x 300 x 117 mm
Safety Data Sheet
https://sw.llg.de/search?search=4711825
Reproducibility ( % )
0.0005 kg
Readability ( N )
0.0005 kg
Max. load ( g )
15 kg
Depth weighing plate ( mm )
300 mm
Width weighing plate ( mm )
400 mm
Linearity
±0,0,015 kg
Verified calibration
Not verifiable
Weighing plate (WxD)
400 x 300 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty IXC 300K-2M
4711826 / IXC 300K-2M
Height ( mm )
139 mm
Weight ( g )
20 kg
Width ( mm )
650 mm
Depth ( mm )
500 mm
Type
IXC 300K-2M
Dimensions (WxDxH)
650 x 500 x 139 mm
Safety Data Sheet
https://sw.llg.de/search?search=4711826
Reproducibility ( % )
0.05/0.1 kg
Readability ( N )
0.05/0.1 kg
Max. load ( g )
150/300 kg
Depth weighing plate ( mm )
500 mm
Width weighing plate ( mm )
650 mm
Linearity
±0,05/0,1 kg
Verified calibration
Verifiable
Weighing plate (WxD)
650 x 500 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty IXC 300K-3
4711827 / IXC 300K-3
Height ( mm )
139 mm
Weight ( g )
20 kg
Width ( mm )
650 mm
Depth ( mm )
500 mm
Type
IXC 300K-3
Dimensions (WxDxH)
650 x 500 x 139 mm
Safety Data Sheet
https://sw.llg.de/search?search=4711827
Reproducibility ( % )
0.01 kg
Readability ( N )
0.01 kg
Max. load ( g )
300 kg
Depth weighing plate ( mm )
500 mm
Width weighing plate ( mm )
650 mm
Linearity
±0,03 kg
Verified calibration
Not verifiable
Weighing plate (WxD)
650 x 500 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty IXC 30K-3
4711828 / IXC 30K-3
Height ( mm )
117 mm
Weight ( g )
8 kg
Width ( mm )
400 mm
Depth ( mm )
300 mm
Type
IXC 30K-3
Dimensions (WxDxH)
400 x 300 x 117 mm
Safety Data Sheet
https://sw.llg.de/search?search=4711828
Reproducibility ( % )
0.001 kg
Readability ( N )
0.001 kg
Max. load ( g )
30 kg
Depth weighing plate ( mm )
300 mm
Width weighing plate ( mm )
400 mm
Linearity
±0,003 kg
Verified calibration
Not verifiable
Weighing plate (WxD)
400 x 300 mm
Kusy v balení
1
Na otázku
Obrázek produktové varianty IXC 30K-3L
4711829 / IXC 30K-3L
Height ( mm )
127 mm
Weight ( g )
11 kg
Width ( mm )
500 mm
Depth ( mm )
400 mm
Type
IXC 30K-3L
Dimensions (WxDxH)
500 x 400 x 127 mm
Safety Data Sheet
https://sw.llg.de/search?search=4711829
Reproducibility ( % )
0.001 kg
Readability ( N )
0.001 kg
Max. load ( g )
30 kg
Depth weighing plate ( mm )
400 mm
Width weighing plate ( mm )
500 mm
Linearity
±0,003 kg
Verified calibration
Not verifiable
Weighing plate (WxD)
500 x 400 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty IXC 30K-3LM
4711830 / IXC 30K-3LM
Height ( mm )
127 mm
Weight ( g )
11 kg
Width ( mm )
500 mm
Depth ( mm )
400 mm
Type
IXC 30K-3LM
Dimensions (WxDxH)
500 x 400 x 127 mm
Safety Data Sheet
https://sw.llg.de/search?search=4711830
Reproducibility ( % )
0.005/0.01 kg
Readability ( N )
0.005/0.01 kg
Max. load ( g )
15/30 kg
Depth weighing plate ( mm )
400 mm
Width weighing plate ( mm )
500 mm
Linearity
±0,005/0,01 kg
Verified calibration
Verifiable
Weighing plate (WxD)
500 x 400 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty IXC 30K-3M
4711831 / IXC 30K-3M
Height ( mm )
117 mm
Weight ( g )
7 kg
Width ( mm )
400 mm
Depth ( mm )
300 mm
Type
IXC 30K-3M
Dimensions (WxDxH)
400 x 300 x 117 mm
Safety Data Sheet
https://sw.llg.de/search?search=4711831
Reproducibility ( % )
0.005/0.01 kg
Readability ( N )
0.005/0.01 kg
Max. load ( g )
15/30 kg
Depth weighing plate ( mm )
300 mm
Width weighing plate ( mm )
400 mm
Linearity
±0,005/0,01 kg
Verified calibration
Verifiable
Weighing plate (WxD)
400 x 300 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty IXC 60K-2LM
4711832 / IXC 60K-2LM
Height ( mm )
127 mm
Weight ( g )
11 kg
Width ( mm )
500 mm
Depth ( mm )
400 mm
Type
IXC 60K-2LM
Dimensions (WxDxH)
500 x 400 x 127 mm
Safety Data Sheet
https://sw.llg.de/search?search=4711832
Reproducibility ( % )
0.01/0.02 kg
Readability ( N )
0.01/0.02 kg
Max. load ( g )
30/60 kg
Depth weighing plate ( mm )
400 mm
Width weighing plate ( mm )
500 mm
Linearity
±0,01/0,02 kg
Verified calibration
Verifiable
Weighing plate (WxD)
500 x 400 mm
Kusy v balení
-
Na otázku

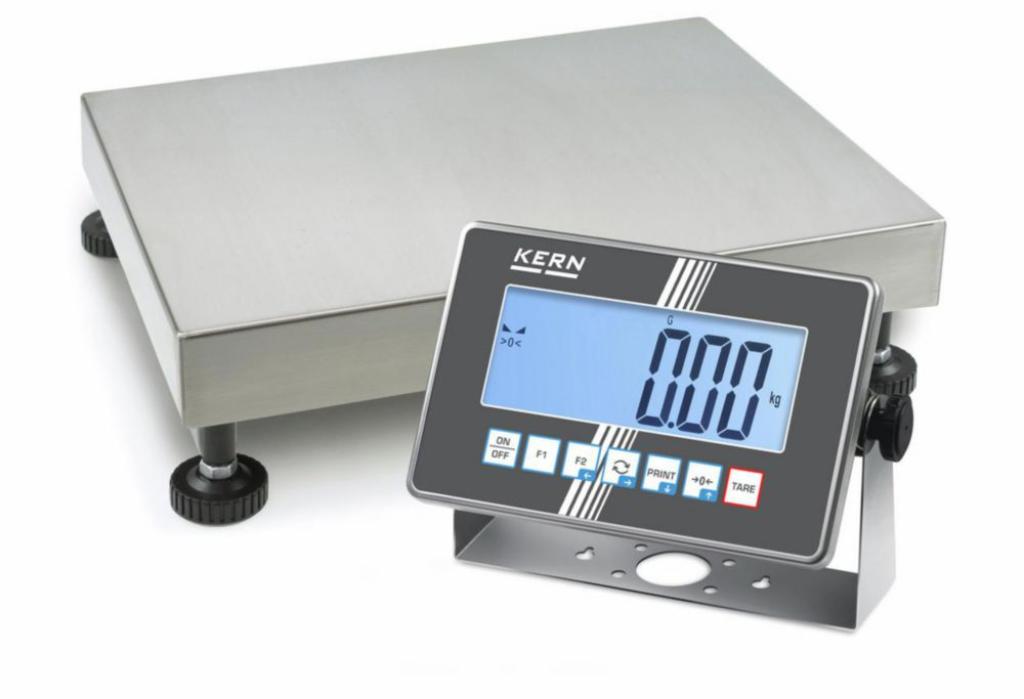

Obrázek produktové varianty IXC 60K-2M
4711833 / IXC 60K-2M
Height ( mm )
117 mm
Weight ( g )
7 kg
Width ( mm )
400 mm
Depth ( mm )
300 mm
Type
IXC 60K-2M
Dimensions (WxDxH)
400 x 300 x 117 mm
Safety Data Sheet
https://sw.llg.de/search?search=4711833
Reproducibility ( % )
0.01/0.02 kg
Readability ( N )
0.01/0.02 kg
Max. load ( g )
30/60 kg
Depth weighing plate ( mm )
300 mm
Width weighing plate ( mm )
400 mm
Linearity
±0,01/0,02 kg
Verified calibration
Verifiable
Weighing plate (WxD)
400 x 300 mm
Kusy v balení
1
Na otázku
Obrázek produktové varianty IXC 60K-3
4711834 / IXC 60K-3
Height ( mm )
117 mm
Weight ( g )
7 kg
Width ( mm )
400 mm
Depth ( mm )
300 mm
Type
IXC 60K-3
Dimensions (WxDxH)
400 x 300 x 117 mm
Safety Data Sheet
https://sw.llg.de/search?search=4711834
Reproducibility ( % )
0.002 kg
Readability ( N )
0.002 kg
Max. load ( g )
60 kg
Depth weighing plate ( mm )
300 mm
Width weighing plate ( mm )
400 mm
Linearity
±0,006 kg
Verified calibration
Not verifiable
Weighing plate (WxD)
400 x 300 mm
Kusy v balení
-
Na otázku

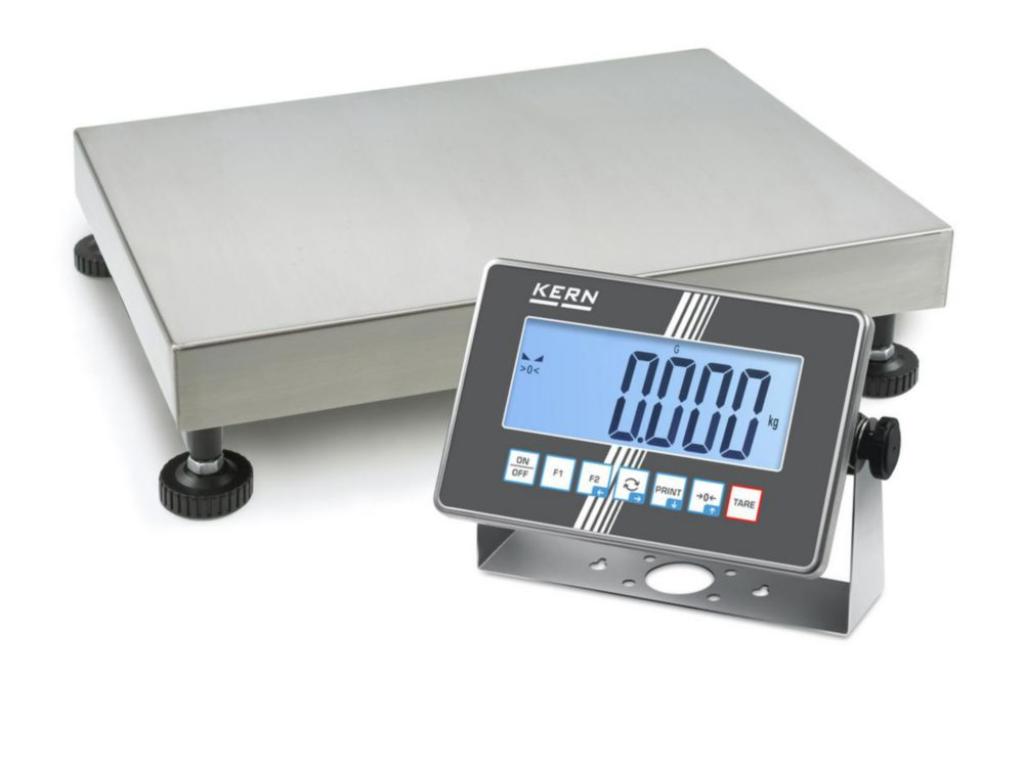

Obrázek produktové varianty IXC 60K-3L
4711835 / IXC 60K-3L
Height ( mm )
127 mm
Weight ( g )
11 kg
Width ( mm )
500 mm
Depth ( mm )
400 mm
Type
IXC 60K-3L
Dimensions (WxDxH)
500 x 400 x 127 mm
Safety Data Sheet
https://sw.llg.de/search?search=4711835
Reproducibility ( % )
0.002 kg
Readability ( N )
0.002 kg
Max. load ( g )
60 kg
Depth weighing plate ( mm )
400 mm
Width weighing plate ( mm )
500 mm
Linearity
±0,006 kg
Verified calibration
Not verifiable
Weighing plate (WxD)
500 x 400 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty IXC 6K-3M
4711836 / IXC 6K-3M
Height ( mm )
109 mm
Weight ( g )
6 kg
Width ( mm )
300 mm
Depth ( mm )
240 mm
Type
IXC 6K-3M
Dimensions (WxDxH)
300 x 240 x 109 mm
Safety Data Sheet
https://sw.llg.de/search?search=4711836
Reproducibility ( % )
0.001/0.002 kg
Readability ( N )
0.001/0.002 kg
Max. load ( g )
3/6 kg
Depth weighing plate ( mm )
240 mm
Width weighing plate ( mm )
300 mm
Linearity
±0,001/0,002 kg
Verified calibration
Verifiable
Weighing plate (WxD)
300 x 240 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty IXC 6K-4
4711837 / IXC 6K-4
Height ( mm )
109 mm
Weight ( g )
6 kg
Width ( mm )
300 mm
Depth ( mm )
240 mm
Type
IXC 6K-4
Dimensions (WxDxH)
300 x 240 x 109 mm
Safety Data Sheet
https://sw.llg.de/search?search=4711837
Reproducibility ( % )
0.0002 kg
Readability ( N )
0.0002 kg
Max. load ( g )
6 kg
Depth weighing plate ( mm )
240 mm
Width weighing plate ( mm )
300 mm
Linearity
±0,0,006 kg
Verified calibration
Not verifiable
Weighing plate (WxD)
300 x 240 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty IXC 10K-3LM
6523617 / IXC 10K-3LM
Height ( mm )
117 mm
Weight ( g )
7 kg
Width ( mm )
400 mm
Depth ( mm )
300 mm
Type
IXC 10K-3LM
Dimensions (WxDxH)
400 x 300 x 117 mm
Safety Data Sheet
https://sw.llg.de/search?search=6523617
Reproducibility ( % )
0.002/0.005 kg
Readability ( N )
0.002/0.005 kg
Max. load ( g )
6/15 kg
Depth weighing plate ( mm )
300 mm
Width weighing plate ( mm )
400 mm
Linearity
±0,002/0,005 kg
Verified calibration
Verifiable
Weighing plate (WxD)
400 x 300 mm
Kusy v balení
-
Na otázku

Technické špecifikácie

Adjusting program External
Material housing Stainless steel
Material weighing plate Stainless steel
Max. voltage 240 V
Min. voltage 110 V
Plug type EU
Power supply 110 ... 240 V
Type of auxiliary energy Mains connection
UNSPSC 41111509
Warranty 3 years

Fotografie

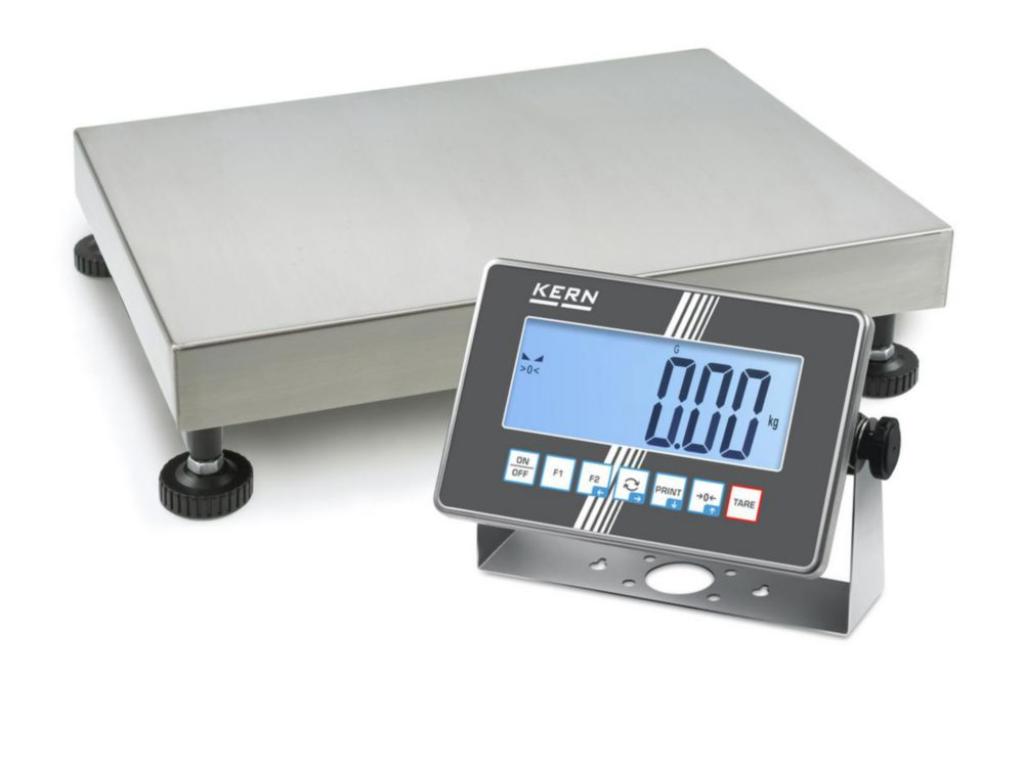

Platformové váhy IXC, IoT-Line Platformové váhy IXC, IoT-Line Platformové váhy IXC, IoT-Line Platformové váhy IXC, IoT-Line Platformové váhy IXC, IoT-Line Platformové váhy IXC, IoT-Line Platformové váhy IXC, IoT-Line Platformové váhy IXC, IoT-Line Platformové váhy IXC, IoT-Line Platformové váhy IXC, IoT-Line Platformové váhy IXC, IoT-Line Platformové váhy IXC, IoT-Line Platformové váhy IXC, IoT-Line Platformové váhy IXC, IoT-Line Platformové váhy IXC, IoT-Line Platformové váhy IXC, IoT-Line Platformové váhy IXC, IoT-Line Platformové váhy IXC, IoT-Line Platformové váhy IXC, IoT-Line Platformové váhy IXC, IoT-Line

Otázka k produktu

Podobné produkty

Zvoľte, kam bude tovar pridaný

Prihlásenie
