Zobraziť katalóg
Platformové váhy IOC Ďalšie fotografie

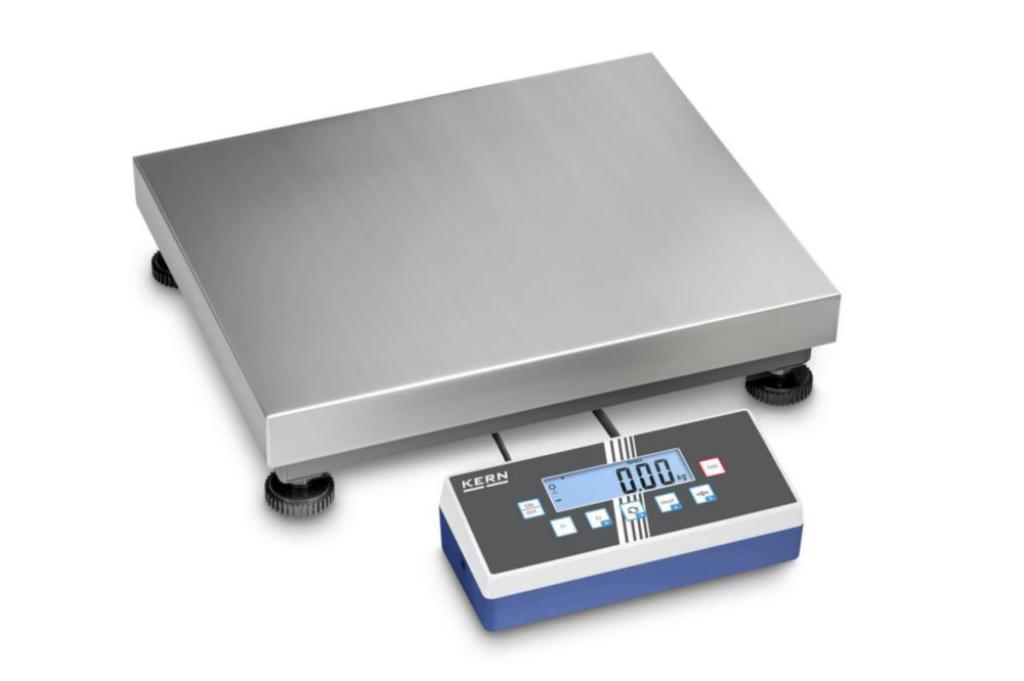

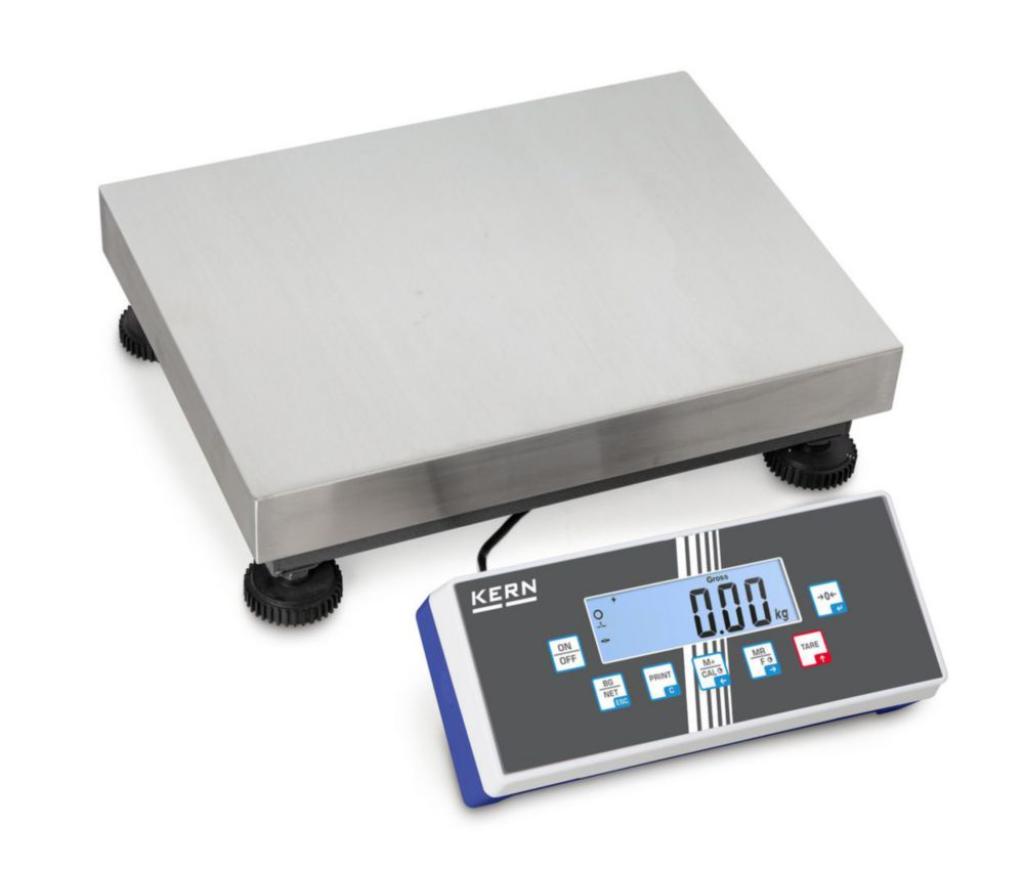

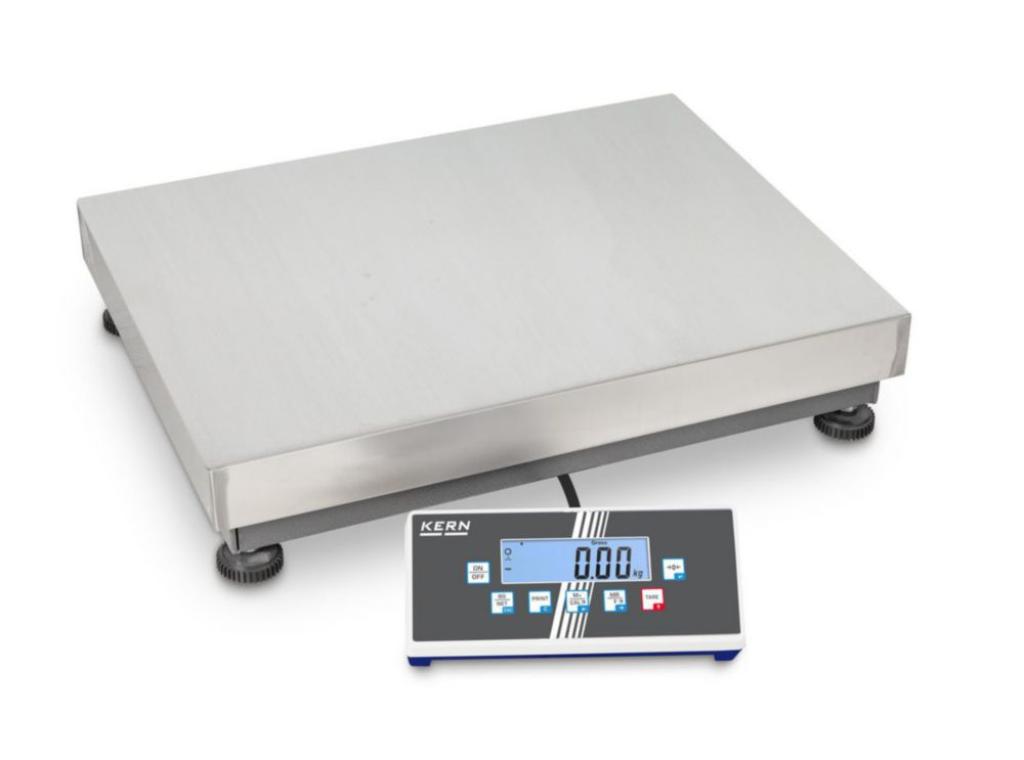

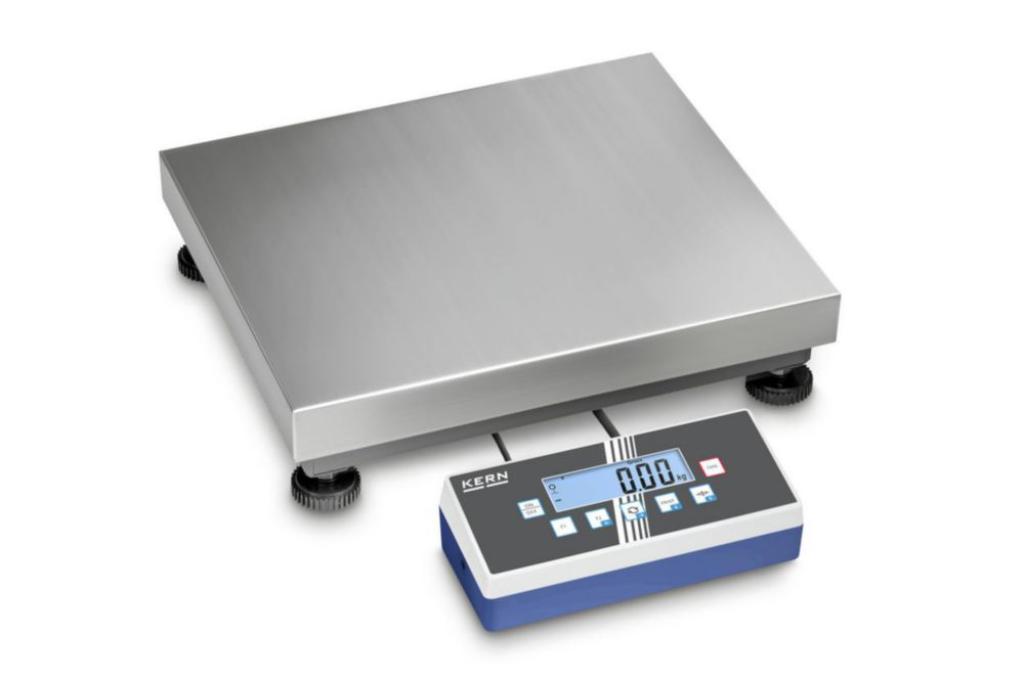

Platformové váhy IOC

Komunikačný protokol KERN (KCP) umožňuje vyhľadávanie a diaľkové ovládanie váhy pomocou externých ovládacích zariadení alebo počítačov (možné iba prostredníctvom dátového rozhrania RS-232).

  • Veľký LCD displej

  • Vážiaca doska z nehrdzavejúcej ocele, základňa z lakovanej ocele

  • Hliníkový snímač zaťaženia potiahnutý silikónom s ochranou proti prachu a striekajúcej vode IP65

  • Indikátor vyrovnania a vyrovnávacie nožičky pre presné vyrovnanie

  • Rozmery zobrazovacieho zariadenia (Š×H×V): 268×115×80 mm

  • Dátové rozhranie RS-232
Zvoľte variant
Výrobca
  • Kern & Sohn GmbH
Kategória

Varianty produktu

Názov Katalógové číslo / Kód produktu
Height ( mm ) Weight ( g ) Width ( mm ) Depth ( mm ) Type Dimensions (WxDxH) Warranty Safety Data Sheet Reproducibility ( % ) Readability ( N ) Max. load ( g ) Depth weighing plate ( mm ) Width weighing plate ( mm ) Linearity Verified calibration Weighing plate (WxD)
Kusy v balení Cena bez DPH
Obrázek produktové varianty IOC 60K-2LM
4662822 / IOC 60K-2LM
Height ( mm )
120 mm
Weight ( g )
12 kg
Width ( mm )
500 mm
Depth ( mm )
400 mm
Type
IOC 60K-2LM
Dimensions (WxDxH)
500 x 400 x 120 mm
Warranty
2 years
Safety Data Sheet
https://sw.llg.de/search?search=4662822
Reproducibility ( % )
0.01/0.02 kg
Readability ( N )
0.01/0.02 kg
Max. load ( g )
30/60 kg
Depth weighing plate ( mm )
400 mm
Width weighing plate ( mm )
500 mm
Linearity
±0.01/0.02 kg
Verified calibration
Verifiable
Weighing plate (WxD)
500 x 400 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty IOC 300K-2M
4664260 / IOC 300K-2M
Height ( mm )
150 mm
Weight ( g )
22 kg
Width ( mm )
650 mm
Depth ( mm )
500 mm
Type
IOC 300K-2M
Dimensions (WxDxH)
650 x 500 x 150 mm
Warranty
3 years
Safety Data Sheet
https://sw.llg.de/search?search=4664260
Reproducibility ( % )
0.05/0.1 kg
Readability ( N )
0.05/0.1 kg
Max. load ( g )
150/300 kg
Depth weighing plate ( mm )
500 mm
Width weighing plate ( mm )
650 mm
Linearity
±0.05/0.1 kg
Verified calibration
Verifiable
Weighing plate (WxD)
650 x 500 mm
Kusy v balení
1
Na otázku
Obrázek produktové varianty IOC 100K-2M
4670699 / IOC 100K-2M
Height ( mm )
120 mm
Weight ( g )
12 kg
Width ( mm )
500 mm
Depth ( mm )
400 mm
Type
IOC 100K-2M
Dimensions (WxDxH)
500 x 400 x 120 mm
Warranty
2 years
Safety Data Sheet
https://sw.llg.de/search?search=4670699
Reproducibility ( % )
0.02/0.05 kg
Readability ( N )
0.02/0.05 kg
Max. load ( g )
60/150 kg
Depth weighing plate ( mm )
400 mm
Width weighing plate ( mm )
500 mm
Linearity
±0.02/0.05 kg
Verified calibration
Verifiable
Weighing plate (WxD)
500 x 400 mm
Kusy v balení
1
Na otázku
Obrázek produktové varianty IOC 30K-3M
6313714 / IOC 30K-3M
Height ( mm )
110 mm
Weight ( g )
8 kg
Width ( mm )
400 mm
Depth ( mm )
300 mm
Type
IOC 30K-3M
Dimensions (WxDxH)
400 x 300 x 110 mm
Warranty
2 years
Safety Data Sheet
https://sw.llg.de/search?search=6313714
Reproducibility ( % )
0.005/0.01 kg
Readability ( N )
0.005/0.01 kg
Max. load ( g )
15/30 kg
Depth weighing plate ( mm )
300 mm
Width weighing plate ( mm )
400 mm
Linearity
±0.005/0.01 kg
Verified calibration
Verifiable
Weighing plate (WxD)
400 x 300 mm
Kusy v balení
1
Na otázku
Obrázek produktové varianty IOC 6K-3M
6316779 / IOC 6K-3M
Height ( mm )
110 mm
Weight ( g )
6 kg
Width ( mm )
300 mm
Depth ( mm )
300 mm
Type
IOC 6K-3M
Dimensions (WxDxH)
300 x 300 x 110 mm
Warranty
2 years
Safety Data Sheet
https://sw.llg.de/search?search=6316779
Reproducibility ( % )
0.001/0.002 kg
Readability ( N )
0.001/0.002 kg
Max. load ( g )
3/6 kg
Depth weighing plate ( mm )
300 mm
Width weighing plate ( mm )
300 mm
Linearity
±0.001/0.002 kg
Verified calibration
Verifiable
Weighing plate (WxD)
300 x 300 mm
Kusy v balení
1
Na otázku
Obrázek produktové varianty IOC 10K-3M
6317346 / IOC 10K-3M
Height ( mm )
110 mm
Weight ( g )
6 kg
Width ( mm )
300 mm
Depth ( mm )
240 mm
Type
IOC 10K-3M
Dimensions (WxDxH)
300 x 240 x 110 mm
Warranty
2 years
Safety Data Sheet
https://sw.llg.de/search?search=6317346
Reproducibility ( % )
0.002/0.005 kg
Readability ( N )
0.002/0.005 kg
Max. load ( g )
6/15 kg
Depth weighing plate ( mm )
240 mm
Width weighing plate ( mm )
300 mm
Linearity
±0.002/0.005 kg
Verified calibration
Verifiable
Weighing plate (WxD)
300 x 240 mm
Kusy v balení
1
Na otázku
Obrázek produktové varianty IOC 10K-4L
6322995 / IOC 10K-4L
Height ( mm )
110 mm
Weight ( g )
8 kg
Width ( mm )
400 mm
Depth ( mm )
300 mm
Type
IOC 10K-4L
Dimensions (WxDxH)
400 x 300 x 110 mm
Warranty
2 years
Safety Data Sheet
https://sw.llg.de/search?search=6322995
Reproducibility ( % )
0.0002/0.0005 kg
Readability ( N )
0.0002/0.0005 kg
Max. load ( g )
6/15 kg
Depth weighing plate ( mm )
300 mm
Width weighing plate ( mm )
400 mm
Linearity
±0.0006/0.0015 kg
Verified calibration
Not verifiable
Weighing plate (WxD)
400 x 300 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty IOC 30K-4
6322996 / IOC 30K-4
Height ( mm )
110 mm
Weight ( g )
8 kg
Width ( mm )
400 mm
Depth ( mm )
300 mm
Type
IOC 30K-4
Dimensions (WxDxH)
400 x 300 x 110 mm
Warranty
2 years
Safety Data Sheet
https://sw.llg.de/search?search=6322996
Reproducibility ( % )
0.0005/0.001 kg
Readability ( N )
0.0005/0.001 kg
Max. load ( g )
15/30 kg
Depth weighing plate ( mm )
300 mm
Width weighing plate ( mm )
400 mm
Linearity
±0.0015/0.003 kg
Verified calibration
Not verifiable
Weighing plate (WxD)
400 x 300 mm
Kusy v balení
1
Na otázku
Obrázek produktové varianty IOC 60K-3L
6327206 / IOC 60K-3L
Height ( mm )
120 mm
Weight ( g )
12 kg
Width ( mm )
500 mm
Depth ( mm )
400 mm
Type
IOC 60K-3L
Dimensions (WxDxH)
500 x 400 x 120 mm
Warranty
3 years
Safety Data Sheet
https://sw.llg.de/search?search=6327206
Reproducibility ( % )
0.001/0.002 kg
Readability ( N )
0.001/0.002 kg
Max. load ( g )
30/60 kg
Depth weighing plate ( mm )
400 mm
Width weighing plate ( mm )
500 mm
Linearity
±0.003/0.006 kg
Verified calibration
Not verifiable
Weighing plate (WxD)
500 x 400 mm
Kusy v balení
1
Na otázku
Obrázek produktové varianty IOC 60K-3
6491898 / IOC 60K-3
Height ( mm )
110 mm
Weight ( g )
8 kg
Width ( mm )
400 mm
Depth ( mm )
300 mm
Type
IOC 60K-3
Dimensions (WxDxH)
400 x 300 x 110 mm
Warranty
2 years
Safety Data Sheet
https://sw.llg.de/search?search=6491898
Reproducibility ( % )
0.001/0.002 kg
Readability ( N )
0.001/0.002 kg
Max. load ( g )
30/60 kg
Depth weighing plate ( mm )
300 mm
Width weighing plate ( mm )
400 mm
Linearity
±0.003/0.006 kg
Verified calibration
Not verifiable
Weighing plate (WxD)
400 x 300 mm
Kusy v balení
1
Na otázku

Technické špecifikácie

Adjusting program External
Power supply frequency 50/60 Hz
IP code IP 65
Material housing Plastic
Material weighing plate Stainless steel
Max. voltage 240 V·AC
Min. voltage 100 V
Plug type EU/UK/US
Power supply 100 ... 240 V·AC, 50/60 Hz
Type of auxiliary energy Mains connection
UNSPSC 41111509
