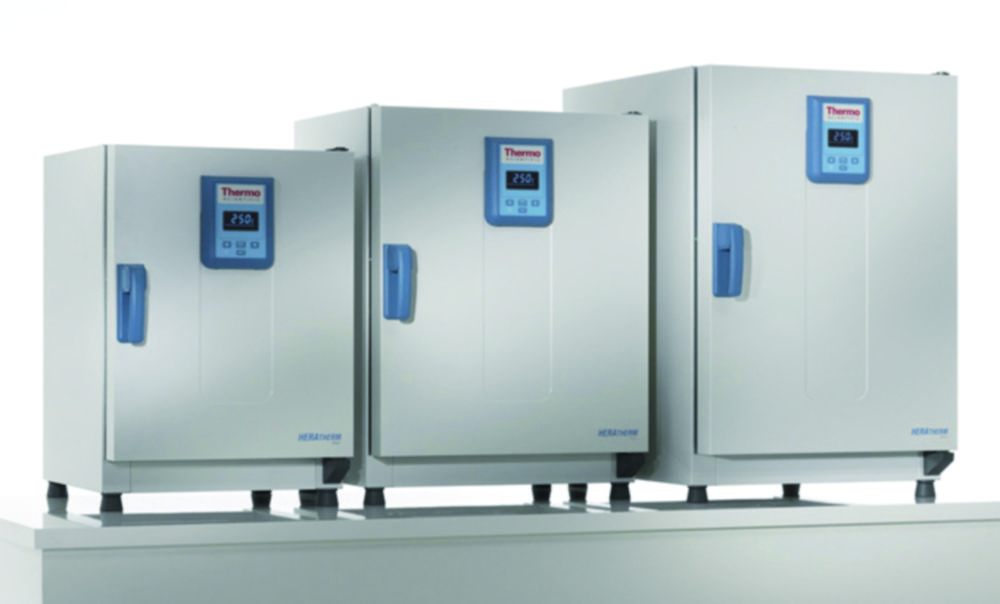

Rúry Heratherm™ General Protocol, s gravitačnou konvekciou Ďalšie fotografie

Rúry Heratherm™ General Protocol, s gravitačnou konvekciou

  • Modely s gravitačnou konvekciou sú navrhnuté tak, aby chránili citlivé vzorky a zároveň ponúkali rovnomernosť teploty ±4 °C a stabilitu teploty ±0,4 °C pri 150 °C.

  • Uzamykateľné kolieska pre ľahkú mobilitu a stabilitu (len podlahové modely)
Zvoľte variant
Výrobca
  • Thermo Elect.LED GmbH (Kendro)
Kategória

Varianty produktu

Názov Katalógové číslo / Kód produktu
Nominal capacity ( ml ) Weight ( g ) Type Depth int. ( mm ) Height int. ( mm ) Int. width ( mm ) Ext. depth ( mm ) Ext. height ( mm ) Ext. width ( mm ) Max. voltage ( V ) Max. temperature ( °C ) Rated capacity ( W ) Power supply Safety Data Sheet Temperature Ext. dim. (WxDxH) Int. Dim. (WxDxH) Temperature stability ( °C ) Max. no. of inserts
Kusy v balení Cena bez DPH
Obrázek produktové varianty OGS60
4009206 / 51028139
Nominal capacity ( ml )
65 l
Weight ( g )
42 kg
Type
OGS60
Depth int. ( mm )
415 mm
Height int. ( mm )
480 mm
Int. width ( mm )
328 mm
Ext. depth ( mm )
565 mm
Ext. height ( mm )
720 mm
Ext. width ( mm )
530 mm
Max. voltage ( V )
230 V
Max. temperature ( °C )
250 °C
Rated capacity ( W )
1800 W
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4009206
Temperature
RT+10 ... 250 °C
Ext. dim. (WxDxH)
530 x 565 x 720 mm
Int. Dim. (WxDxH)
328 x 415 x 480 mm
Temperature stability ( °C )
±0,4 °C
Max. no. of inserts
13
Kusy v balení
-
Na otázku
Obrázek produktové varianty OGS100
4009207 / 51028140
Nominal capacity ( ml )
105 l
Weight ( g )
53 kg
Type
OGS100
Depth int. ( mm )
414 mm
Height int. ( mm )
580 mm
Int. width ( mm )
438 mm
Ext. depth ( mm )
565 mm
Ext. height ( mm )
820 mm
Ext. width ( mm )
640 mm
Max. voltage ( V )
230 V
Max. temperature ( °C )
250 °C
Rated capacity ( W )
3100 W
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4009207
Temperature
RT+10 ... 250 °C
Ext. dim. (WxDxH)
640 x 565 x 820 mm
Int. Dim. (WxDxH)
438 x 414 x 580 mm
Temperature stability ( °C )
±0,4 °C
Max. no. of inserts
16
Kusy v balení
-
Na otázku
Obrázek produktové varianty OGS180
4009208 / 51028141
Nominal capacity ( ml )
176 l
Weight ( g )
66 kg
Type
OGS180
Depth int. ( mm )
589 mm
Height int. ( mm )
680 mm
Int. width ( mm )
438 mm
Ext. depth ( mm )
738 mm
Ext. height ( mm )
920 mm
Ext. width ( mm )
640 mm
Max. voltage ( V )
230 V
Max. temperature ( °C )
250 °C
Rated capacity ( W )
3100 W
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4009208
Temperature
RT+10 ... 250 °C
Ext. dim. (WxDxH)
640 x 738 x 920 mm
Int. Dim. (WxDxH)
438 x 589 x 680 mm
Temperature stability ( °C )
±0,4 °C
Max. no. of inserts
19
Kusy v balení
-
Na otázku
Obrázek produktové varianty OGS400
9534156 / 51029328
Nominal capacity ( ml )
419 l
Weight ( g )
136 kg
Type
OGS400
Depth int. ( mm )
590 mm
Height int. ( mm )
1335 mm
Int. width ( mm )
600 mm
Ext. depth ( mm )
770 mm
Ext. height ( mm )
1545 mm
Ext. width ( mm )
778 mm
Max. voltage ( V )
230 V
Max. temperature ( °C )
250 °C
Rated capacity ( W )
2400 W
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=9534156
Temperature
RT+10 ... 250 °C
Ext. dim. (WxDxH)
778 x 770 x 1,545 mm
Int. Dim. (WxDxH)
600 x 590 x 1,335 mm
Temperature stability ( °C )
±0,5 °C
Max. no. of inserts
39
Kusy v balení
-
Na otázku
Obrázek produktové varianty OGS750
9534159 / 51029340
Nominal capacity ( ml )
774 l
Weight ( g )
182 kg
Type
OGS750
Depth int. ( mm )
590 mm
Height int. ( mm )
1335 mm
Int. width ( mm )
1060 mm
Ext. depth ( mm )
770 mm
Ext. height ( mm )
1545 mm
Ext. width ( mm )
1261 mm
Max. voltage ( V )
230 V
Max. temperature ( °C )
250 °C
Rated capacity ( W )
3000 W
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=9534159
Temperature
RT+10 ... 250 °C
Ext. dim. (WxDxH)
1,261 x 770 x 1,545 mm
Int. Dim. (WxDxH)
1,060 x 590 x 1,335 mm
Temperature stability ( °C )
±0,5 °C
Max. no. of inserts
39
Kusy v balení
1
Na otázku
Obrázek produktové varianty OGS750
9534161 / 51029342
Nominal capacity ( ml )
774 l
Weight ( g )
182 kg
Type
OGS750
Depth int. ( mm )
590 mm
Height int. ( mm )
1335 mm
Int. width ( mm )
1060 mm
Ext. depth ( mm )
770 mm
Ext. height ( mm )
1545 mm
Ext. width ( mm )
1261 mm
Max. voltage ( V )
400 V·3/N/PE
Max. temperature ( °C )
300 °C
Rated capacity ( W )
6350 W
Power supply
400 V·3/N/PE, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=9534161
Temperature
RT+10 ... 300 °C
Ext. dim. (WxDxH)
1,261 x 770 x 1,545 mm
Int. Dim. (WxDxH)
1,060 x 590 x 1,335 mm
Temperature stability ( °C )
±0,5 °C
Max. no. of inserts
39
Kusy v balení
-
Na otázku

Technické špecifikácie

Power supply frequency 50/60 Hz
IP code IP 20
Material interior Stainless steel
Min. temperature +10 °C
Temperature addition RT
Type of auxiliary energy Mains connection
UNSPSC 41104510
With timer Yes
