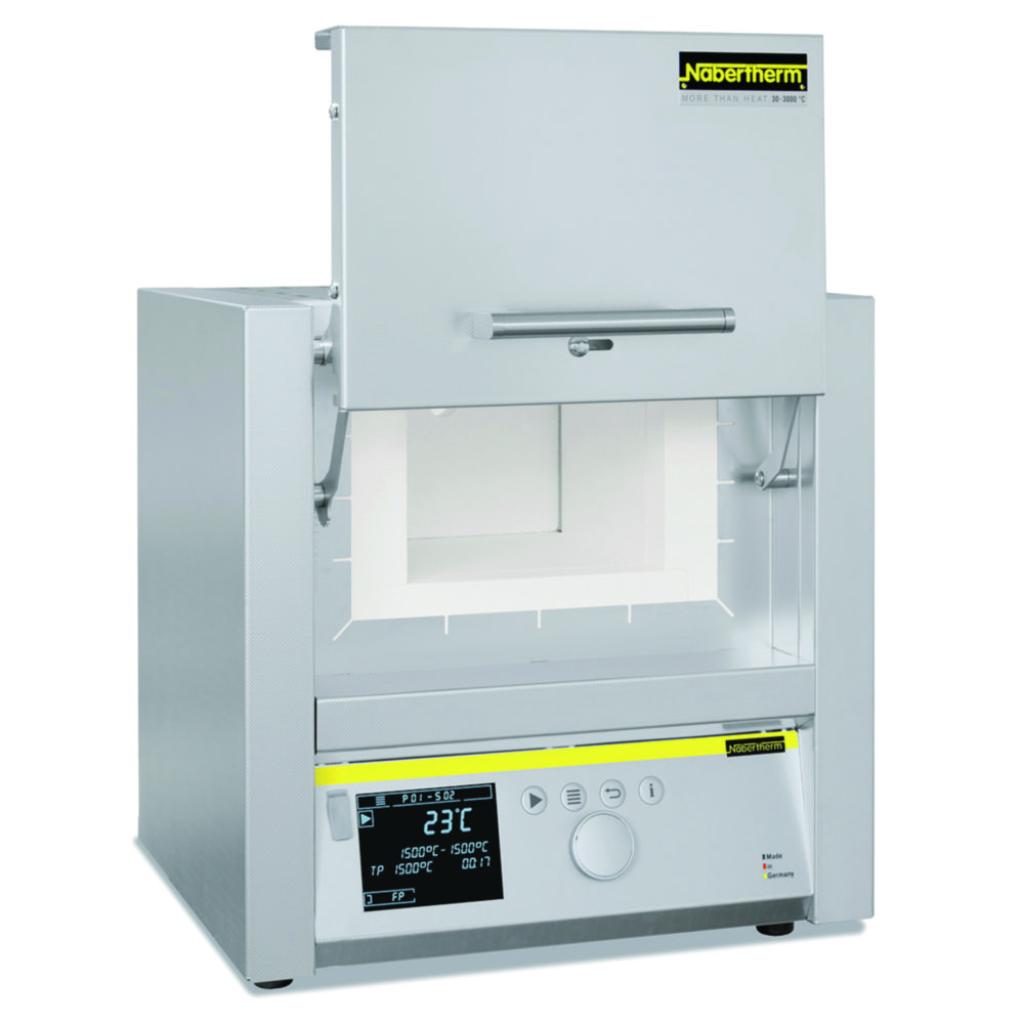

Muflové pece série LT, max. 1100 °C, so zdvíhacími dvierkami Ďalšie fotografie

Muflové pece série LT, max. 1100 °C, so zdvíhacími dvierkami

  • Keramické vykurovacie dosky s integrovaným vykurovacím drôtom, chránené proti striekajúcej vode a výfuku, ľahko vymeniteľné

  • Vykurovanie z dvoch strán (tri strany pre vnútorné objekty 24, 40 a 60 l)

  • Horúca strana dverí výťahu je otočená smerom od obsluhy
Zvoľte variant
Výrobca
  • Nabertherm GmbH
Kategória

Varianty produktu

Názov Katalógové číslo / Kód produktu
Nominal capacity ( ml ) Weight ( g ) Type Depth int. ( mm ) Height int. ( mm ) Int. width ( mm ) Ext. depth ( mm ) Ext. height ( mm ) Ext. width ( mm ) Max. voltage ( V ) Plug type Rated capacity ( W ) Power supply Safety Data Sheet Ext. dim. (WxDxH) Int. Dim. (WxDxH)
Kusy v balení Cena bez DPH
Obrázek produktové varianty LT 3/11/C550
4660517 / L-035H1AO
Nominal capacity ( ml )
3 l
Weight ( g )
20 kg
Type
LT 3/11/C550
Depth int. ( mm )
140 mm
Height int. ( mm )
100 mm
Int. width ( mm )
160 mm
Ext. depth ( mm )
330 mm
Ext. height ( mm )
405 mm
Ext. width ( mm )
385 mm
Max. voltage ( V )
230 V·1/N/PE
Plug type
EU
Rated capacity ( W )
1200 W
Power supply
230 V·1/N/PE, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4660517
Ext. dim. (WxDxH)
385 x 330 x 405 mm
Int. Dim. (WxDxH)
160 x 140 x 100 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty LT 15/11/B510
6237183 / L-155H1AL
Nominal capacity ( ml )
15 l
Weight ( g )
40 kg
Type
LT 15/11/B510
Depth int. ( mm )
340 mm
Height int. ( mm )
170 mm
Int. width ( mm )
230 mm
Ext. depth ( mm )
555 mm
Ext. height ( mm )
515 mm
Ext. width ( mm )
415 mm
Max. voltage ( V )
230 V·1/N/PE
Plug type
EU
Rated capacity ( W )
3200 W
Power supply
230 V·1/N/PE, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=6237183
Ext. dim. (WxDxH)
415 x 555 x 515 mm
Int. Dim. (WxDxH)
230 x 340 x 170 mm
Kusy v balení
1
Na otázku
Obrázek produktové varianty LT 40/11/B510
6239613 / L-405H1DL
Nominal capacity ( ml )
40 l
Weight ( g )
65 kg
Type
LT 40/11/B510
Depth int. ( mm )
490 mm
Height int. ( mm )
250 mm
Int. width ( mm )
320 mm
Ext. depth ( mm )
705 mm
Ext. height ( mm )
580 mm
Ext. width ( mm )
530 mm
Max. voltage ( V )
400 V·3/N/PE
Plug type
CEE
Rated capacity ( W )
6000 W
Power supply
400 V·3/N/PE, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=6239613
Ext. dim. (WxDxH)
530 x 705 x 580 mm
Int. Dim. (WxDxH)
320 x 490 x 250 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty LT 9/11/B510
6241499 / L-095H1AL
Nominal capacity ( ml )
9 l
Weight ( g )
35 kg
Type
LT 9/11/B510
Depth int. ( mm )
240 mm
Height int. ( mm )
170 mm
Int. width ( mm )
230 mm
Ext. depth ( mm )
455 mm
Ext. height ( mm )
515 mm
Ext. width ( mm )
415 mm
Max. voltage ( V )
230 V·1/N/PE
Plug type
EU
Rated capacity ( W )
3000 W
Power supply
230 V·1/N/PE, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=6241499
Ext. dim. (WxDxH)
415 x 455 x 515 mm
Int. Dim. (WxDxH)
230 x 240 x 170 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty LT 3/11/B510
6241787 / L-035H1AL
Nominal capacity ( ml )
3 l
Weight ( g )
20 kg
Type
LT 3/11/B510
Depth int. ( mm )
140 mm
Height int. ( mm )
100 mm
Int. width ( mm )
160 mm
Ext. depth ( mm )
330 mm
Ext. height ( mm )
405 mm
Ext. width ( mm )
385 mm
Max. voltage ( V )
230 V·1/N/PE
Plug type
EU
Rated capacity ( W )
1200 W
Power supply
230 V·1/N/PE, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=6241787
Ext. dim. (WxDxH)
385 x 330 x 405 mm
Int. Dim. (WxDxH)
160 x 140 x 100 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty LT 5/11/C550
6252776 / L-055H1AO
Nominal capacity ( ml )
5 l
Weight ( g )
30 kg
Type
LT 5/11/C550
Depth int. ( mm )
170 mm
Height int. ( mm )
130 mm
Int. width ( mm )
200 mm
Ext. depth ( mm )
390 mm
Ext. height ( mm )
460 mm
Ext. width ( mm )
385 mm
Max. voltage ( V )
230 V·1/N/PE
Plug type
EU
Rated capacity ( W )
2400 W
Power supply
230 V·1/N/PE, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=6252776
Ext. dim. (WxDxH)
385 x 390 x 460 mm
Int. Dim. (WxDxH)
200 x 170 x 130 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty LT 5/11/B510
6260949 / L-055H1AL
Nominal capacity ( ml )
5 l
Weight ( g )
30 kg
Type
LT 5/11/B510
Depth int. ( mm )
170 mm
Height int. ( mm )
130 mm
Int. width ( mm )
200 mm
Ext. depth ( mm )
390 mm
Ext. height ( mm )
460 mm
Ext. width ( mm )
385 mm
Max. voltage ( V )
230 V·1/N/PE
Plug type
EU
Rated capacity ( W )
2400 W
Power supply
230 V·1/N/PE, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=6260949
Ext. dim. (WxDxH)
385 x 390 x 460 mm
Int. Dim. (WxDxH)
200 x 170 x 130 mm
Kusy v balení
1
Na otázku
Obrázek produktové varianty LT 24/11/B510
6274993 / L-245H1DL
Nominal capacity ( ml )
24 l
Weight ( g )
55 kg
Type
LT 24/11/B510
Depth int. ( mm )
340 mm
Height int. ( mm )
250 mm
Int. width ( mm )
280 mm
Ext. depth ( mm )
555 mm
Ext. height ( mm )
580 mm
Ext. width ( mm )
490 mm
Max. voltage ( V )
400 V·3/N/PE
Plug type
CEE
Rated capacity ( W )
4500 W
Power supply
400 V·3/N/PE, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=6274993
Ext. dim. (WxDxH)
490 x 555 x 580 mm
Int. Dim. (WxDxH)
280 x 340 x 250 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty LT 24/11/C550
6321313 / L-245H1DO
Nominal capacity ( ml )
24 l
Weight ( g )
55 kg
Type
LT 24/11/C550
Depth int. ( mm )
340 mm
Height int. ( mm )
250 mm
Int. width ( mm )
280 mm
Ext. depth ( mm )
555 mm
Ext. height ( mm )
580 mm
Ext. width ( mm )
490 mm
Max. voltage ( V )
400 V·3/N/PE
Plug type
CEE
Rated capacity ( W )
4500 W
Power supply
400 V·3/N/PE, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=6321313
Ext. dim. (WxDxH)
490 x 555 x 580 mm
Int. Dim. (WxDxH)
280 x 340 x 250 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty LT 60/11/B510
6491584 / L-606H1DL
Nominal capacity ( ml )
60 l
Weight ( g )
83 kg
Type
LT 60/11/B510
Depth int. ( mm )
490 mm
Height int. ( mm )
330 mm
Int. width ( mm )
380 mm
Ext. depth ( mm )
705 mm
Ext. height ( mm )
660 mm
Ext. width ( mm )
610 mm
Max. voltage ( V )
400 V·3/N/PE
Plug type
CEE
Rated capacity ( W )
9800 W
Power supply
400 V·3/N/PE, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=6491584
Ext. dim. (WxDxH)
610 x 705 x 660 mm
Int. Dim. (WxDxH)
380 x 490 x 330 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty LT 60/11/C550
6491586 / L-606H1DO
Nominal capacity ( ml )
60 l
Weight ( g )
83 kg
Type
LT 60/11/C550
Depth int. ( mm )
490 mm
Height int. ( mm )
330 mm
Int. width ( mm )
380 mm
Ext. depth ( mm )
705 mm
Ext. height ( mm )
660 mm
Ext. width ( mm )
610 mm
Max. voltage ( V )
400 V·3/N/PE
Plug type
CEE
Rated capacity ( W )
9800 W
Power supply
400 V·3/N/PE, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=6491586
Ext. dim. (WxDxH)
610 x 705 x 660 mm
Int. Dim. (WxDxH)
380 x 490 x 330 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty LT 9/11/C550
7643278 / L-095H1AO
Nominal capacity ( ml )
9 l
Weight ( g )
35 kg
Type
LT 9/11/C550
Depth int. ( mm )
240 mm
Height int. ( mm )
170 mm
Int. width ( mm )
230 mm
Ext. depth ( mm )
455 mm
Ext. height ( mm )
515 mm
Ext. width ( mm )
415 mm
Max. voltage ( V )
230 V·1/N/PE
Plug type
EU
Rated capacity ( W )
3000 W
Power supply
230 V·1/N/PE, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=7643278
Ext. dim. (WxDxH)
415 x 455 x 515 mm
Int. Dim. (WxDxH)
230 x 240 x 170 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty LT 15/11/C550
7658613 / L-155H1AO
Nominal capacity ( ml )
15 l
Weight ( g )
40 kg
Type
LT 15/11/C550
Depth int. ( mm )
340 mm
Height int. ( mm )
170 mm
Int. width ( mm )
230 mm
Ext. depth ( mm )
555 mm
Ext. height ( mm )
515 mm
Ext. width ( mm )
415 mm
Max. voltage ( V )
230 V·1/N/PE
Plug type
EU
Rated capacity ( W )
3200 W
Power supply
230 V·1/N/PE, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=7658613
Ext. dim. (WxDxH)
415 x 555 x 515 mm
Int. Dim. (WxDxH)
230 x 340 x 170 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty LT 40/11/C550
7671219 / L-405H1DO
Nominal capacity ( ml )
40 l
Weight ( g )
65 kg
Type
LT 40/11/C550
Depth int. ( mm )
490 mm
Height int. ( mm )
250 mm
Int. width ( mm )
320 mm
Ext. depth ( mm )
705 mm
Ext. height ( mm )
580 mm
Ext. width ( mm )
530 mm
Max. voltage ( V )
400 V·3/N/PE
Plug type
CEE
Rated capacity ( W )
6000 W
Power supply
400 V·3/N/PE, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=7671219
Ext. dim. (WxDxH)
530 x 705 x 580 mm
Int. Dim. (WxDxH)
320 x 490 x 250 mm
Kusy v balení
-
Na otázku

Technické špecifikácie

Type of door Lift door
Power supply frequency 50/60 Hz
Max. temperature 1100 °C
Type of auxiliary energy Mains connection
UNSPSC 40101805
