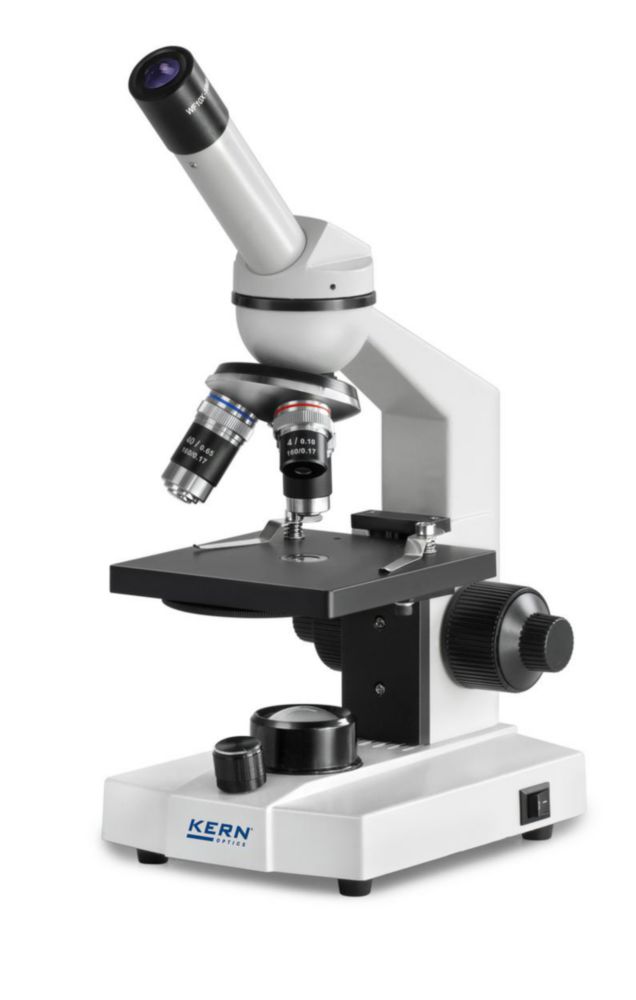

Svetelné mikroskopy Vzdelávacia línia Základný OBS Ďalšie fotografie

Svetelné mikroskopy Vzdelávacia línia Základný OBS

Školský mikroskop na prvé kroky v mikroskopii a na použitie na hodinách biológie.

  • Tubus otočný o 360°

  • Nastavenie dioptrií na oboch stranách pre binokulárne modely

  • 3 achromatické objektívy 4x, 10x, 40x v balení (60x a 100x voliteľne ako príslušenstvo)

  • Koaxiálne predostrenie a jemné zaostrenie

  • Jednoduchý kondenzor N.A. 0,65 alebo kondenzor ABBE 1,25 N.A. zaostrený pomocou klonov

  • Stmievateľné 0,5 W LED osvetlenie (dobíjateľné)

  • Možnosť prevádzky na batérie (OBS 101-106)


Rozsah dodávky:
Svetelný mikroskop, protiprachový kryt, návod na použitie, sieťový adaptér
Zvoľte variant
Výrobca
  • Kern & Sohn GmbH
Kategória

Varianty produktu

Názov Katalógové číslo / Kód produktu
Type Type of auxiliary energy Safety Data Sheet Max. voltage battery/ rechargeable battery ( V ) No. of batteries/ rechargeable batteries Electrochemical system Designation ANSI Condenser Inclination angle tube Revolving nosepiece Tube Depth stage ( mm ) Interpupillary distance Max. interpupillary distance ( mm ) Min. interpupillary distance ( mm ) Stage (WxD) Width stage ( mm ) Battery/ rechargeable battery
Kusy v balení Cena bez DPH

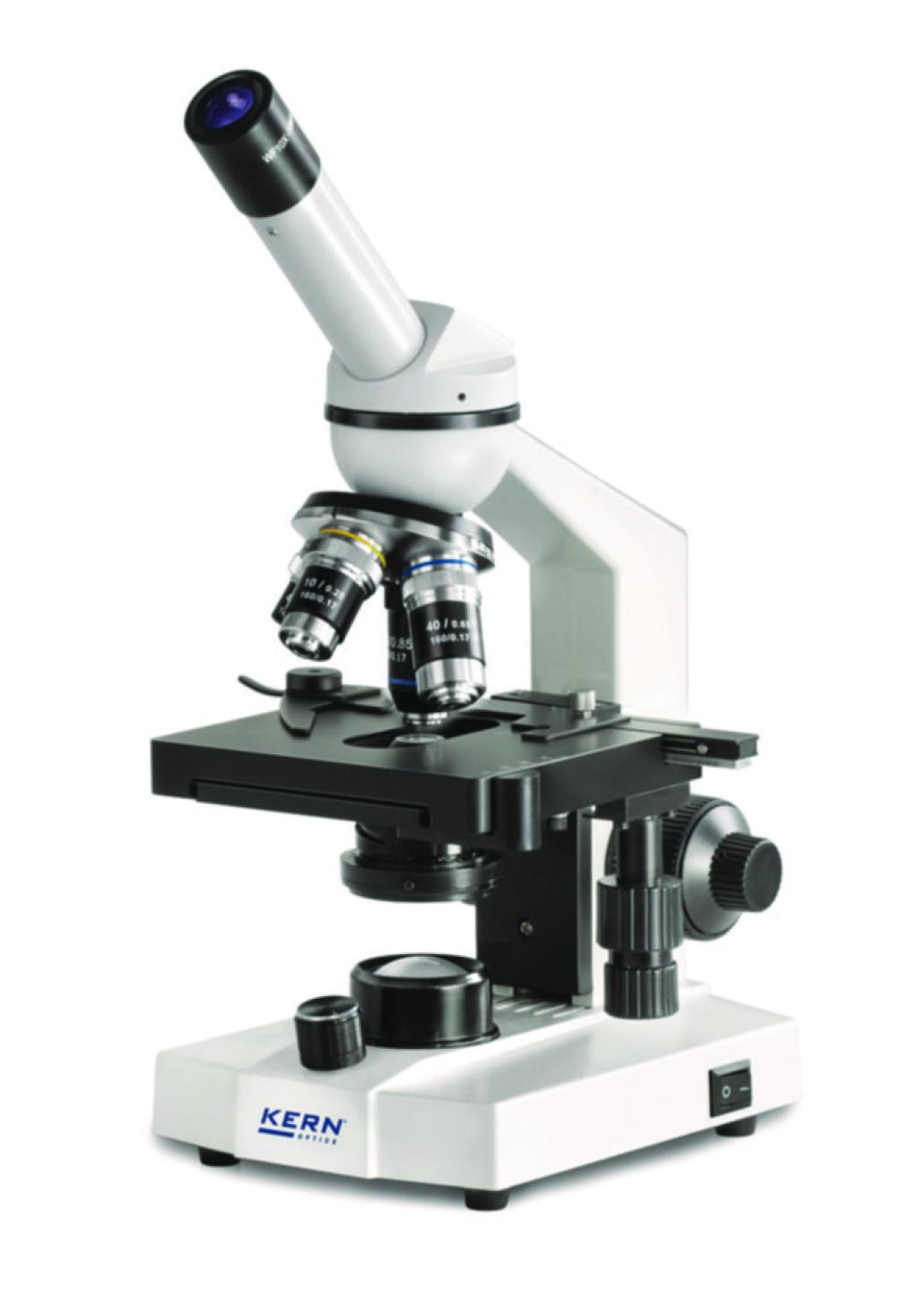

Obrázek produktové varianty OBS 105
4681238 / OBS 105
Type
OBS 105
Type of auxiliary energy
Battery/mains connection
Safety Data Sheet
https://sw.llg.de/search?search=4681238
Max. voltage battery/ rechargeable battery ( V )
1.2 V
No. of batteries/ rechargeable batteries
3
Electrochemical system
NiMH
Designation ANSI
AA
Condenser
Abbe N.A. 1,25
Inclination angle tube
45°
Revolving nosepiece
4-fold
Tube
Monocular
Depth stage ( mm )
125 mm
Interpupillary distance
-
Max. interpupillary distance ( mm )
-
Min. interpupillary distance ( mm )
-
Stage (WxD)
115 x 125 mm
Width stage ( mm )
115 mm
Battery/ rechargeable battery
3 x 1.2 V, AA, NiMH
Kusy v balení
-
Na otázku

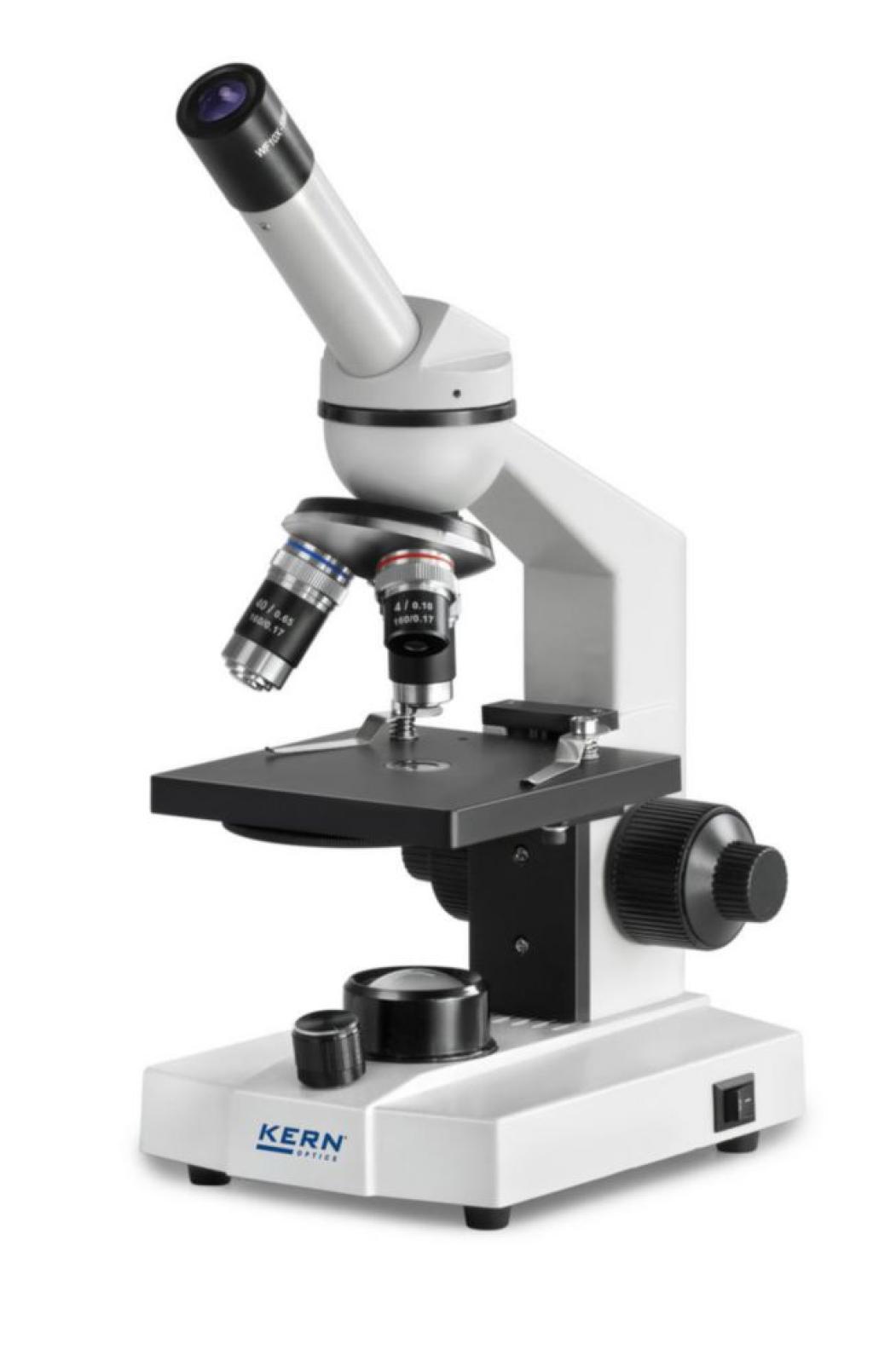

Obrázek produktové varianty OBS 102
4691074 / OBS 102
Type
OBS 102
Type of auxiliary energy
Battery/mains connection
Safety Data Sheet
https://sw.llg.de/search?search=4691074
Max. voltage battery/ rechargeable battery ( V )
1.2 V
No. of batteries/ rechargeable batteries
3
Electrochemical system
NiMH
Designation ANSI
AA
Condenser
N.A. 0,65
Inclination angle tube
45°
Revolving nosepiece
3-fold
Tube
Monocular
Depth stage ( mm )
120 mm
Interpupillary distance
-
Max. interpupillary distance ( mm )
-
Min. interpupillary distance ( mm )
-
Stage (WxD)
110 x 120 mm
Width stage ( mm )
110 mm
Battery/ rechargeable battery
3 x 1.2 V, AA, NiMH
Kusy v balení
-
Na otázku
Obrázek produktové varianty OBS 111
4691076 / OBS 111
Type
OBS 111
Type of auxiliary energy
Mains connection
Safety Data Sheet
https://sw.llg.de/search?search=4691076
Max. voltage battery/ rechargeable battery ( V )
-
No. of batteries/ rechargeable batteries
-
Electrochemical system
-
Designation ANSI
-
Condenser
N.A. 0,65
Inclination angle tube
45°
Revolving nosepiece
3-fold
Tube
Monocular
Depth stage ( mm )
120 mm
Interpupillary distance
-
Max. interpupillary distance ( mm )
-
Min. interpupillary distance ( mm )
-
Stage (WxD)
110 x 120 mm
Width stage ( mm )
110 mm
Battery/ rechargeable battery
-
Kusy v balení
-
Na otázku

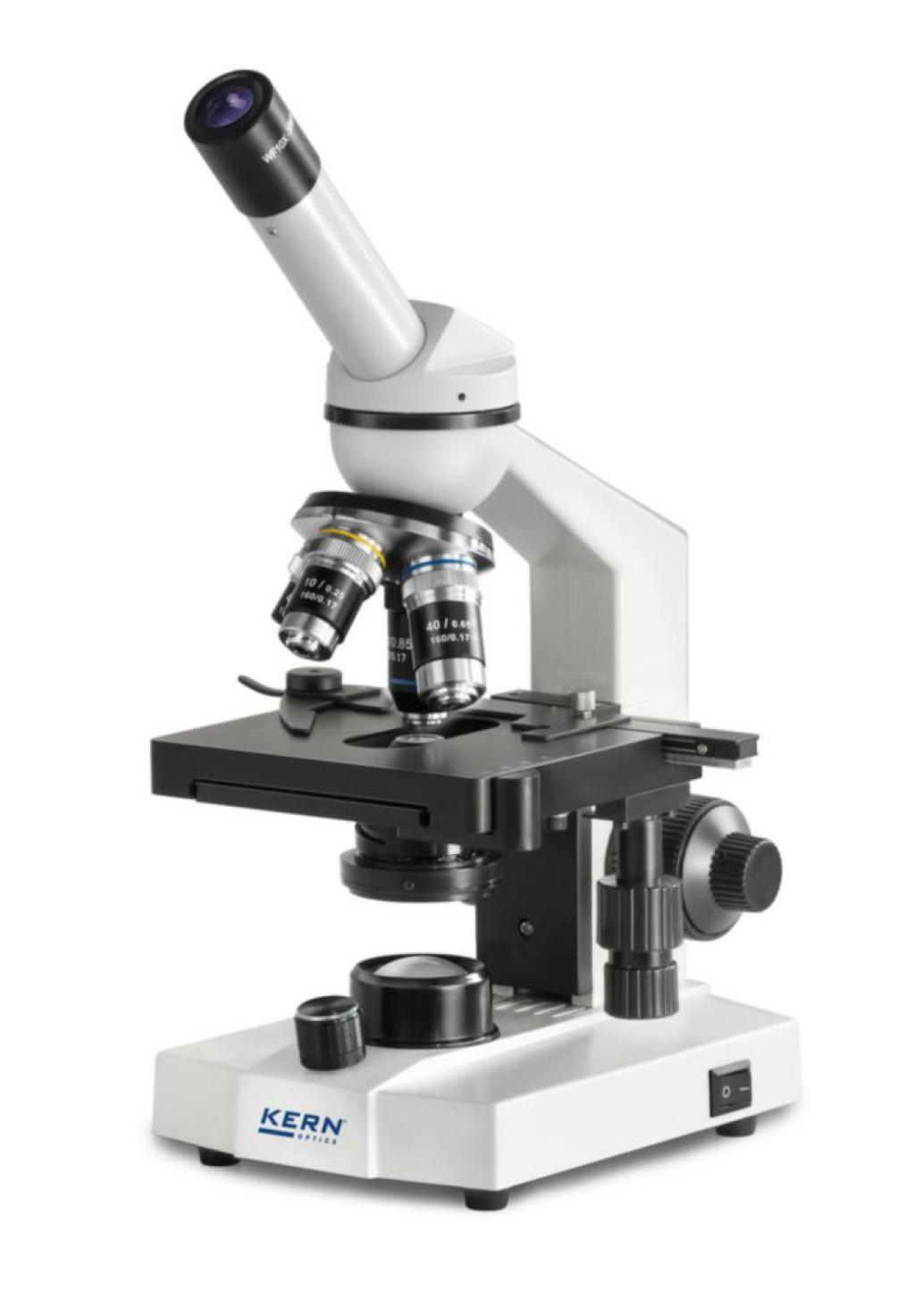

Obrázek produktové varianty OBS 113
4691078 / OBS 113
Type
OBS 113
Type of auxiliary energy
Mains connection
Safety Data Sheet
https://sw.llg.de/search?search=4691078
Max. voltage battery/ rechargeable battery ( V )
-
No. of batteries/ rechargeable batteries
-
Electrochemical system
-
Designation ANSI
-
Condenser
Abbe N.A. 1,25
Inclination angle tube
45°
Revolving nosepiece
4-fold
Tube
Monocular
Depth stage ( mm )
120 mm
Interpupillary distance
-
Max. interpupillary distance ( mm )
-
Min. interpupillary distance ( mm )
-
Stage (WxD)
110 x 120 mm
Width stage ( mm )
110 mm
Battery/ rechargeable battery
-
Kusy v balení
-
Na otázku
Obrázek produktové varianty OBS 115
4691079 / OBS 115
Type
OBS 115
Type of auxiliary energy
Mains connection
Safety Data Sheet
https://sw.llg.de/search?search=4691079
Max. voltage battery/ rechargeable battery ( V )
-
No. of batteries/ rechargeable batteries
-
Electrochemical system
-
Designation ANSI
-
Condenser
Abbe N.A. 1,25
Inclination angle tube
45°
Revolving nosepiece
4-fold
Tube
Monocular
Depth stage ( mm )
125 mm
Interpupillary distance
-
Max. interpupillary distance ( mm )
-
Min. interpupillary distance ( mm )
-
Stage (WxD)
115 x 125 mm
Width stage ( mm )
115 mm
Battery/ rechargeable battery
-
Kusy v balení
-
Na otázku
Obrázek produktové varianty OBS 101
6285893 / OBS 101
Type
OBS 101
Type of auxiliary energy
Battery/mains connection
Safety Data Sheet
https://sw.llg.de/search?search=6285893
Max. voltage battery/ rechargeable battery ( V )
1.2 V
No. of batteries/ rechargeable batteries
3
Electrochemical system
NiMH
Designation ANSI
AA
Condenser
N.A. 0,65
Inclination angle tube
45°
Revolving nosepiece
3-fold
Tube
Monocular
Depth stage ( mm )
120 mm
Interpupillary distance
-
Max. interpupillary distance ( mm )
-
Min. interpupillary distance ( mm )
-
Stage (WxD)
110 x 120 mm
Width stage ( mm )
110 mm
Battery/ rechargeable battery
3 x 1.2 V, AA, NiMH
Kusy v balení
1
Na otázku

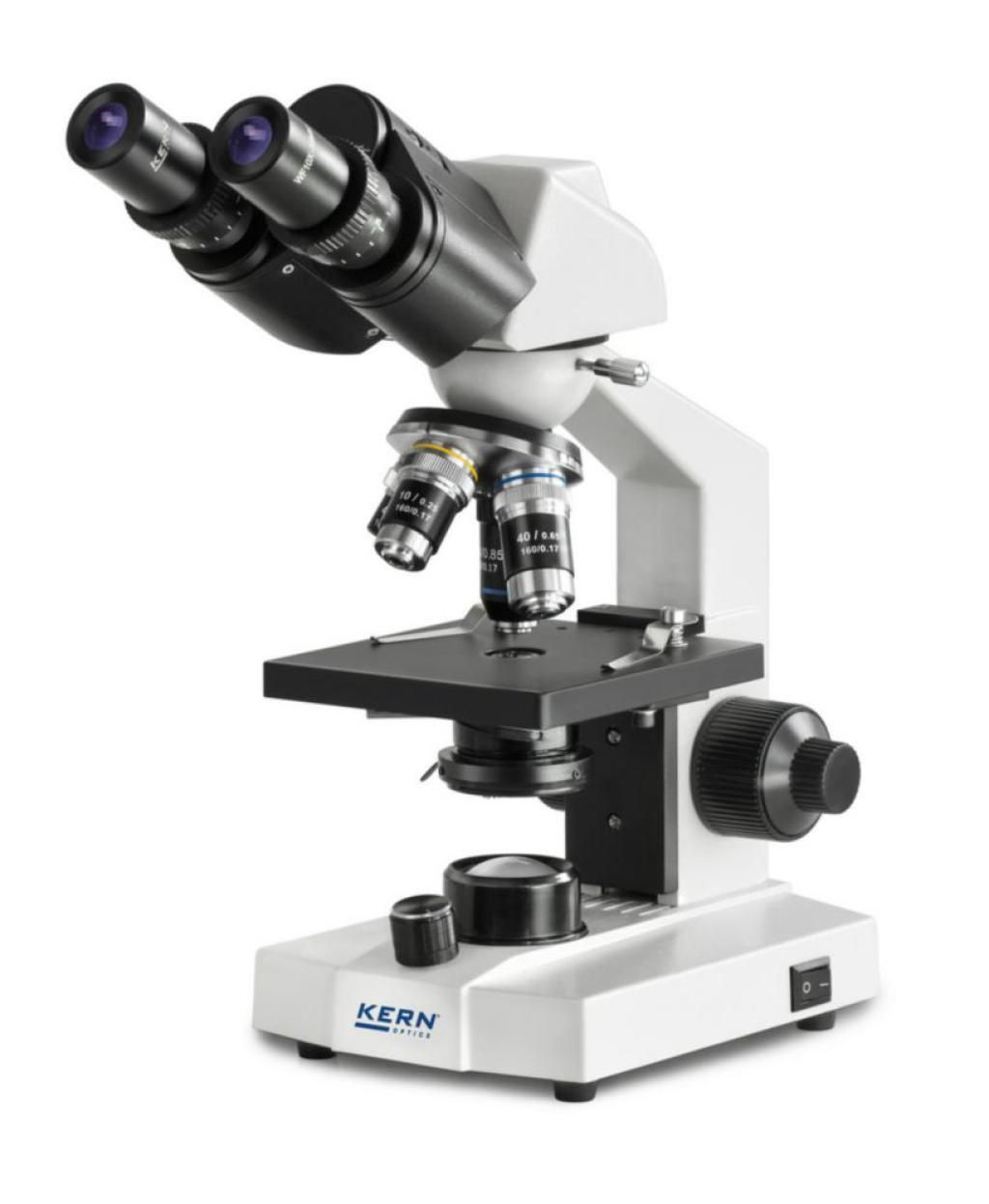

Obrázek produktové varianty OBS 104
6285894 / OBS 104
Type
OBS 104
Type of auxiliary energy
Battery/mains connection
Safety Data Sheet
https://sw.llg.de/search?search=6285894
Max. voltage battery/ rechargeable battery ( V )
1.2 V
No. of batteries/ rechargeable batteries
3
Electrochemical system
NiMH
Designation ANSI
AA
Condenser
Abbe N.A. 1,25
Inclination angle tube
30°
Revolving nosepiece
4-fold
Tube
Binocular
Depth stage ( mm )
120 mm
Interpupillary distance
55 ... 75 mm
Max. interpupillary distance ( mm )
75 mm
Min. interpupillary distance ( mm )
55 mm
Stage (WxD)
110 x 120 mm
Width stage ( mm )
110 mm
Battery/ rechargeable battery
3 x 1.2 V, AA, NiMH
Kusy v balení
-
Na otázku

Technické špecifikácie

Depth 300 mm
Dimensions (WxDxH) 130 x 300 x 310 mm
Height 310 mm
Light type LED
Magnification eyepieces WF 10x/18 mm
Magnification objectives 4x, 10x, 40x
Max. voltage 240 V
Min. voltage 100 V
Plug type EU
Power supply 100 ... 240 V
Type of illumination Transmitted light
Warranty 2 years
Weight 3 kg
Width 130 mm
