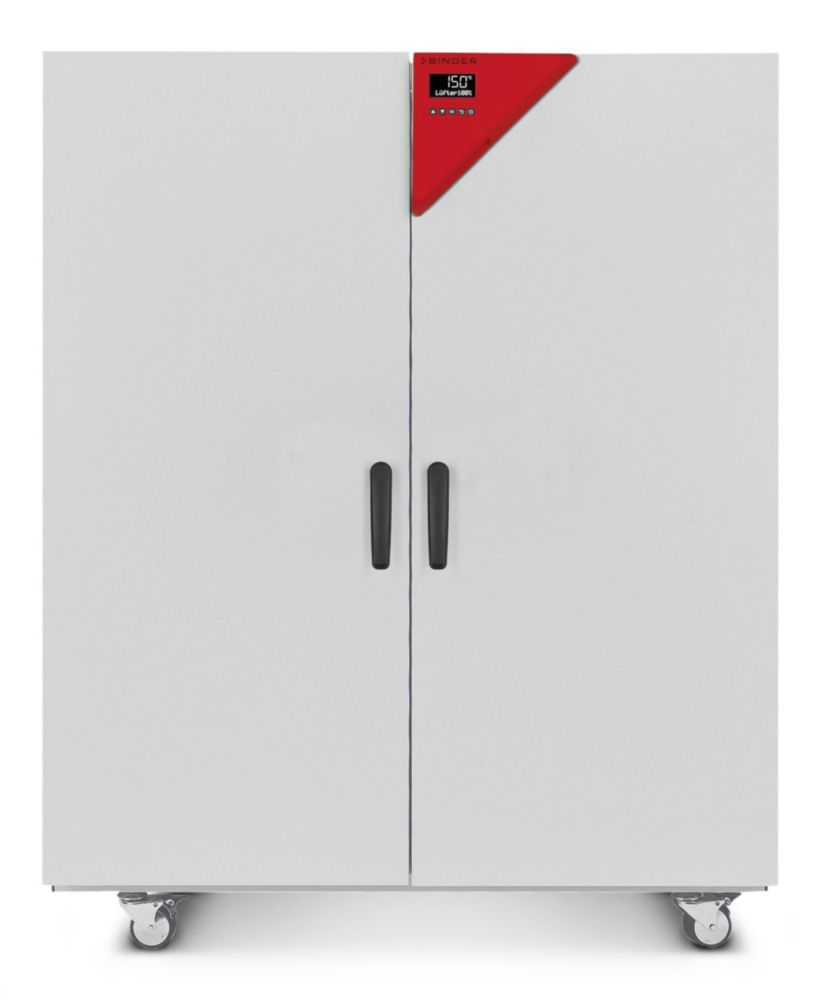

Inkubátory BD Avantgarde.Line Ďalšie fotografie

Inkubátory BD Avantgarde.Line

  • Inkubátory s prirodzenou konvekciou
Zvoľte variant
Výrobca
  • BINDER GmbH
Kategória

Varianty produktu

Názov Katalógové číslo / Kód produktu
Nominal capacity ( ml ) Weight ( g ) Type Depth int. ( mm ) Height int. ( mm ) Int. width ( mm ) Ext. depth ( mm ) Ext. height ( mm ) Ext. width ( mm ) Power supply frequency ( Hz ) Max. voltage ( V ) Plug type Rated capacity ( W ) Power supply Safety Data Sheet Ext. dim. (WxDxH) Int. Dim. (WxDxH) Temperature stability ( °C ) Max. no. of inserts
Kusy v balení Cena bez DPH
Obrázek produktové varianty BD 56UL
4705500 / 9010-0324
Nominal capacity ( ml )
57 l
Weight ( g )
39 kg
Type
BD 56UL
Depth int. ( mm )
380 mm
Height int. ( mm )
420 mm
Int. width ( mm )
360 mm
Ext. depth ( mm )
565 mm
Ext. height ( mm )
625 mm
Ext. width ( mm )
560 mm
Power supply frequency ( Hz )
60 Hz
Max. voltage ( V )
120 V
Plug type
US
Rated capacity ( W )
0.3 kW
Power supply
120 V, 60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4705500
Ext. dim. (WxDxH)
560 x 565 x 625 mm
Int. Dim. (WxDxH)
360 x 380 x 420 mm
Temperature stability ( °C )
±0,1 K (37 °C)
Max. no. of inserts
4
Kusy v balení
-
Na otázku
Obrázek produktové varianty BD 115UL
4705501 / 9010-0326
Nominal capacity ( ml )
112 l
Weight ( g )
54 kg
Type
BD 115UL
Depth int. ( mm )
420 mm
Height int. ( mm )
530 mm
Int. width ( mm )
510 mm
Ext. depth ( mm )
605 mm
Ext. height ( mm )
705 mm
Ext. width ( mm )
710 mm
Power supply frequency ( Hz )
60 Hz
Max. voltage ( V )
120 V
Plug type
US
Rated capacity ( W )
0.35 kW
Power supply
120 V, 60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4705501
Ext. dim. (WxDxH)
710 x 605 x 705 mm
Int. Dim. (WxDxH)
510 x 420 x 530 mm
Temperature stability ( °C )
±0,1 K (37 °C)
Max. no. of inserts
5
Kusy v balení
-
Na otázku
Obrázek produktové varianty BD 260UL
4705502 / 9010-0330
Nominal capacity ( ml )
253 l
Weight ( g )
85 kg
Type
BD 260UL
Depth int. ( mm )
545 mm
Height int. ( mm )
760 mm
Int. width ( mm )
610 mm
Ext. depth ( mm )
760 mm
Ext. height ( mm )
940 mm
Ext. width ( mm )
810 mm
Power supply frequency ( Hz )
60 Hz
Max. voltage ( V )
120 V
Plug type
US
Rated capacity ( W )
0.95 kW
Power supply
120 V, 60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4705502
Ext. dim. (WxDxH)
810 x 760 x 940 mm
Int. Dim. (WxDxH)
610 x 545 x 760 mm
Temperature stability ( °C )
±0,2 K (37 °C)
Max. no. of inserts
8
Kusy v balení
-
Na otázku
Obrázek produktové varianty BD 720UL
4705504 / 9010-0332
Nominal capacity ( ml )
737 l
Weight ( g )
169 kg
Type
BD 720UL
Depth int. ( mm )
600 mm
Height int. ( mm )
1280 mm
Int. width ( mm )
960 mm
Ext. depth ( mm )
870 mm
Ext. height ( mm )
1590 mm
Ext. width ( mm )
1165 mm
Power supply frequency ( Hz )
50/60 Hz
Max. voltage ( V )
240 V
Plug type
US
Rated capacity ( W )
1.75 kW
Power supply
240 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4705504
Ext. dim. (WxDxH)
1,165 x 870 x 1,590 mm
Int. Dim. (WxDxH)
960 x 600 x 1,280 mm
Temperature stability ( °C )
±0,1 K (37 °C)
Max. no. of inserts
16
Kusy v balení
-
Na otázku

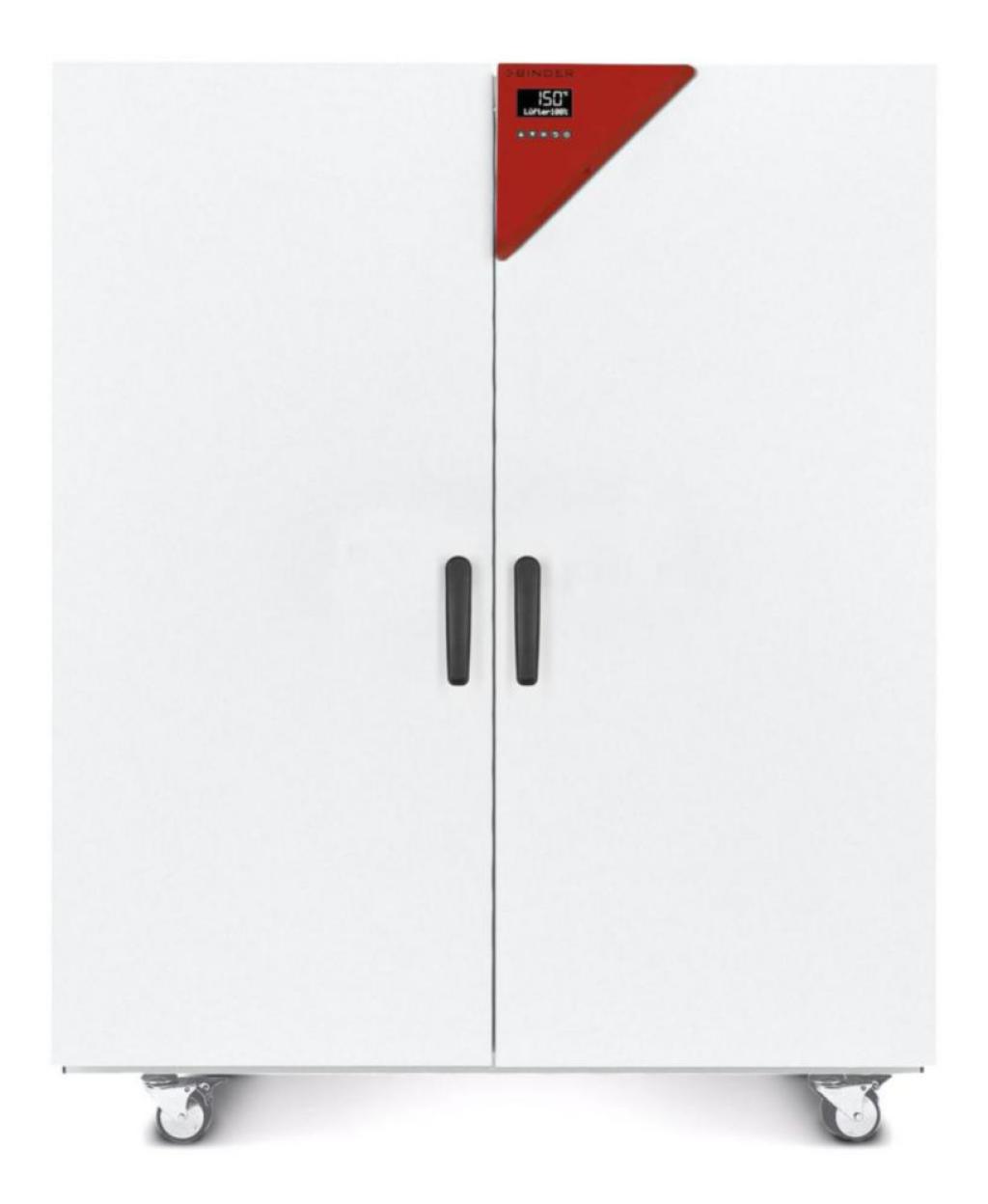

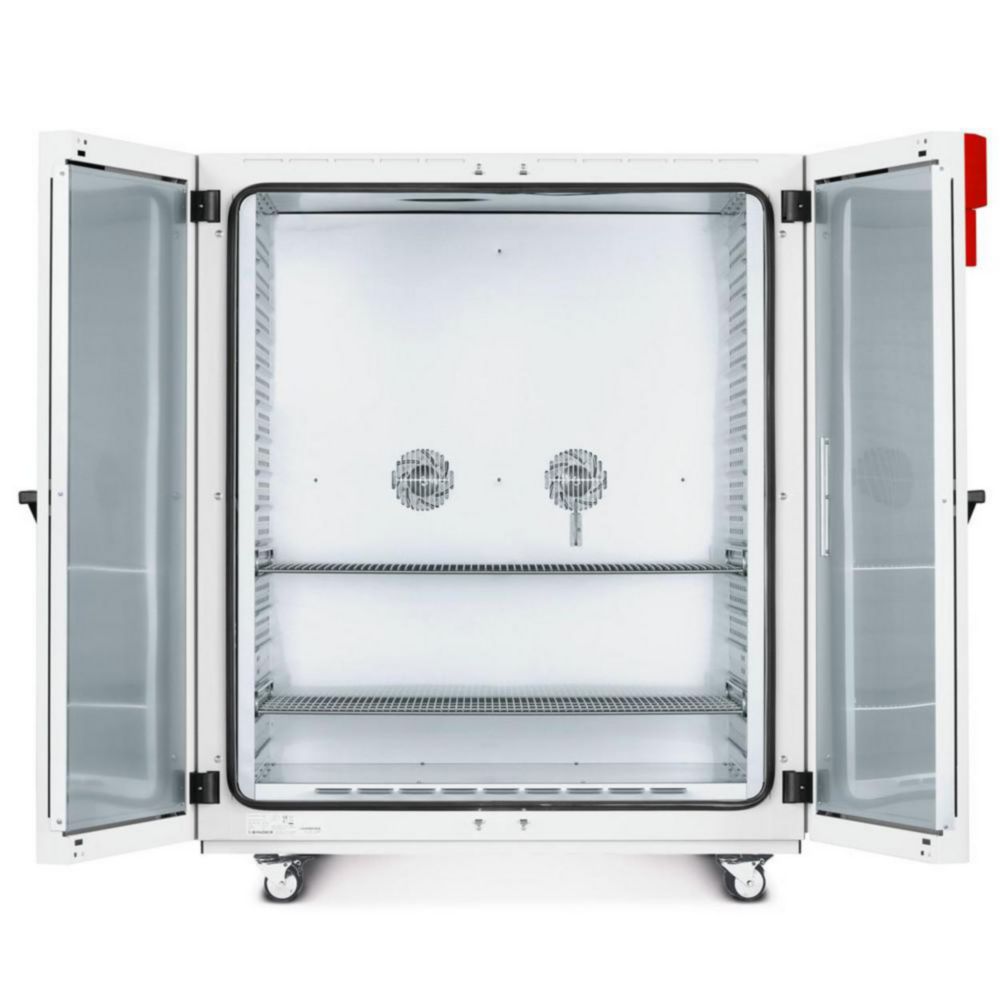

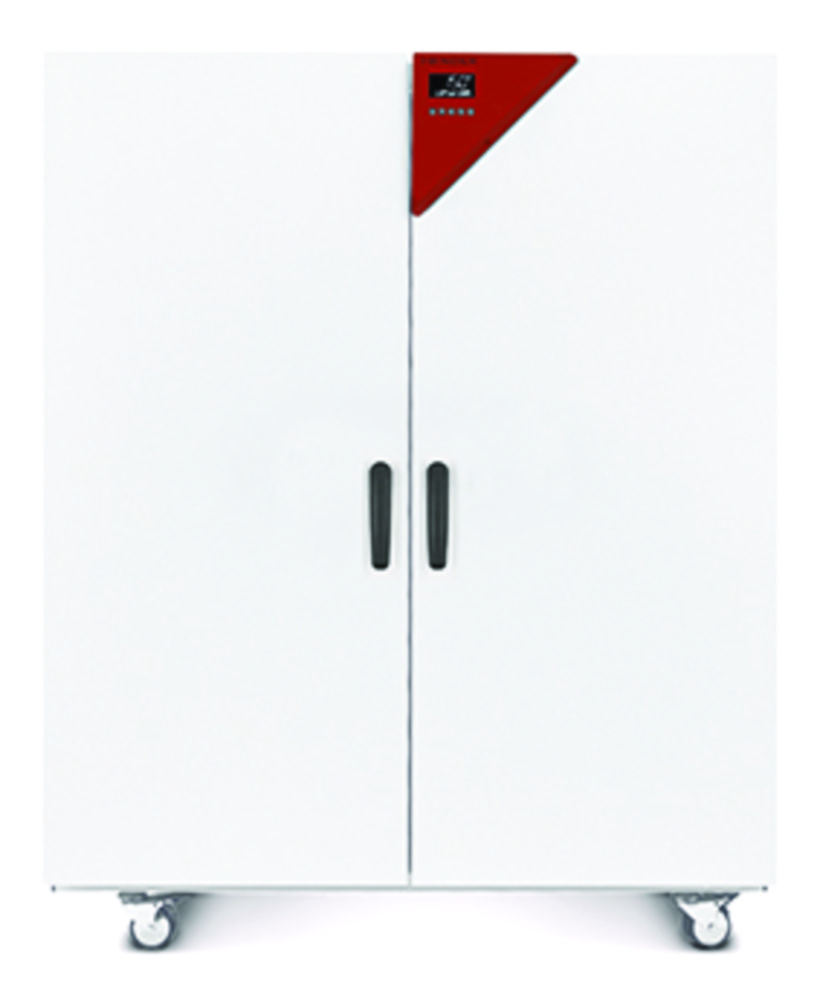

Obrázek produktové varianty BD 720
6274532 / 9010-0331
Nominal capacity ( ml )
737 l
Weight ( g )
169 kg
Type
BD 720
Depth int. ( mm )
600 mm
Height int. ( mm )
1280 mm
Int. width ( mm )
960 mm
Ext. depth ( mm )
870 mm
Ext. height ( mm )
1590 mm
Ext. width ( mm )
1165 mm
Power supply frequency ( Hz )
50/60 Hz
Max. voltage ( V )
230 V
Plug type
EU
Rated capacity ( W )
1.65 kW
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=6274532
Ext. dim. (WxDxH)
1,165 x 870 x 1,590 mm
Int. Dim. (WxDxH)
960 x 600 x 1,280 mm
Temperature stability ( °C )
±0,1 K (37 °C)
Max. no. of inserts
16
Kusy v balení
1
Na otázku

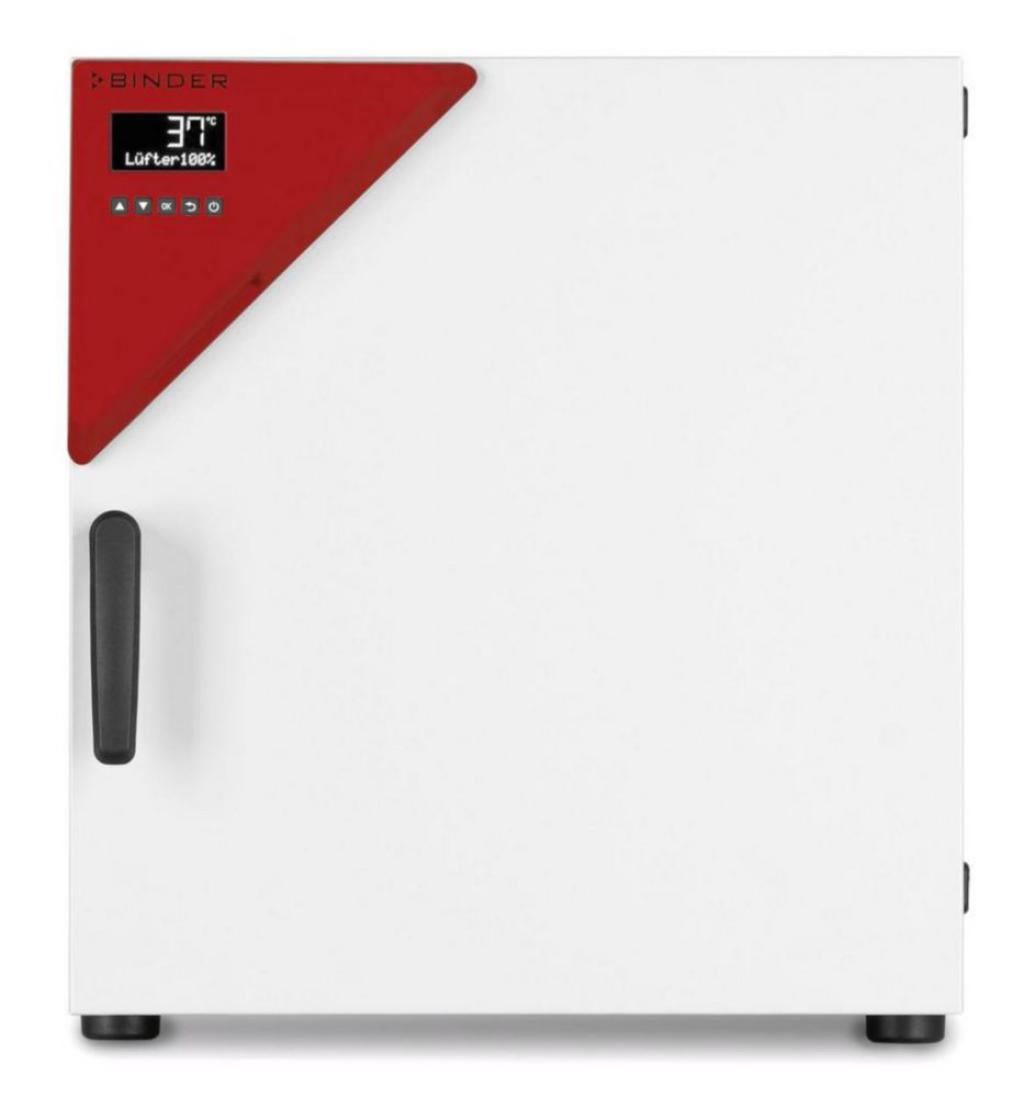

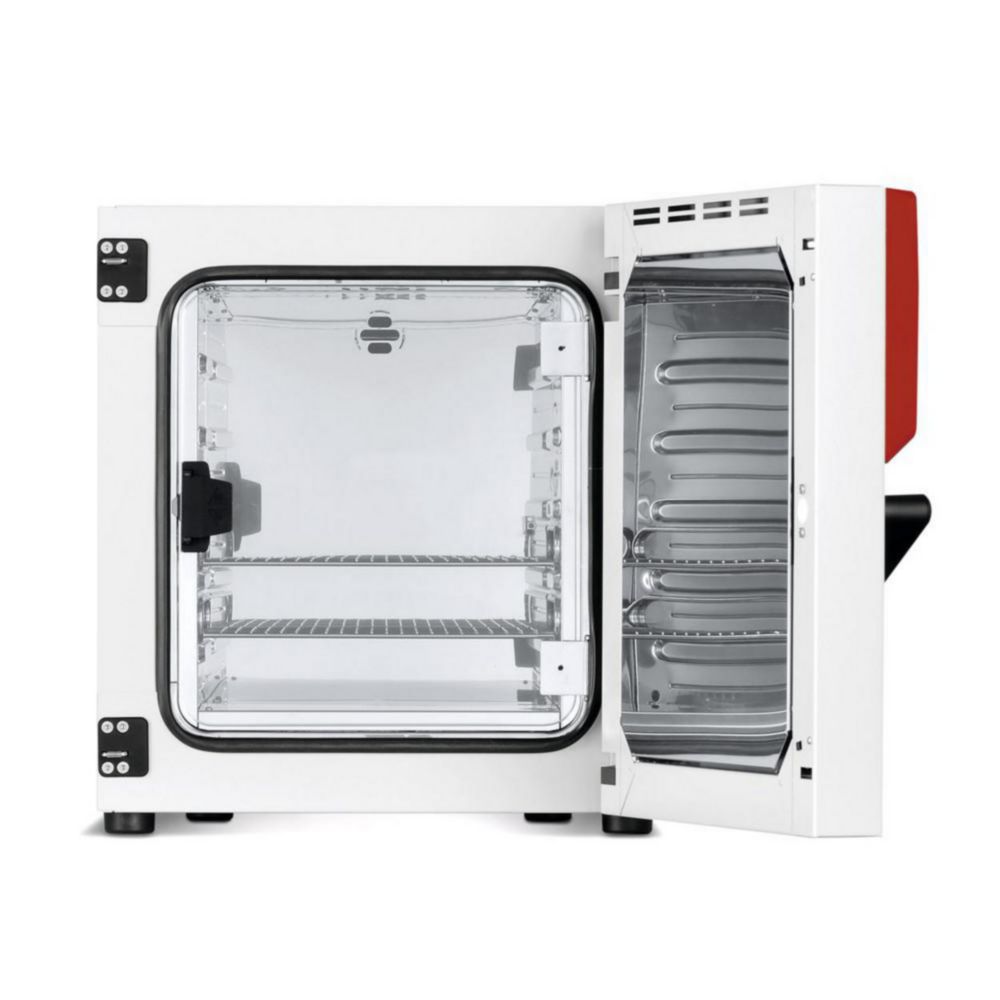

Obrázek produktové varianty BD 56
6280269 / 9010-0323
Nominal capacity ( ml )
57 l
Weight ( g )
39 kg
Type
BD 56
Depth int. ( mm )
380 mm
Height int. ( mm )
420 mm
Int. width ( mm )
360 mm
Ext. depth ( mm )
565 mm
Ext. height ( mm )
625 mm
Ext. width ( mm )
560 mm
Power supply frequency ( Hz )
50/60 Hz
Max. voltage ( V )
230 V
Plug type
EU
Rated capacity ( W )
0.3 kW
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=6280269
Ext. dim. (WxDxH)
560 x 565 x 625 mm
Int. Dim. (WxDxH)
360 x 380 x 420 mm
Temperature stability ( °C )
±0,1 K (37 °C)
Max. no. of inserts
4
Kusy v balení
1
Na otázku

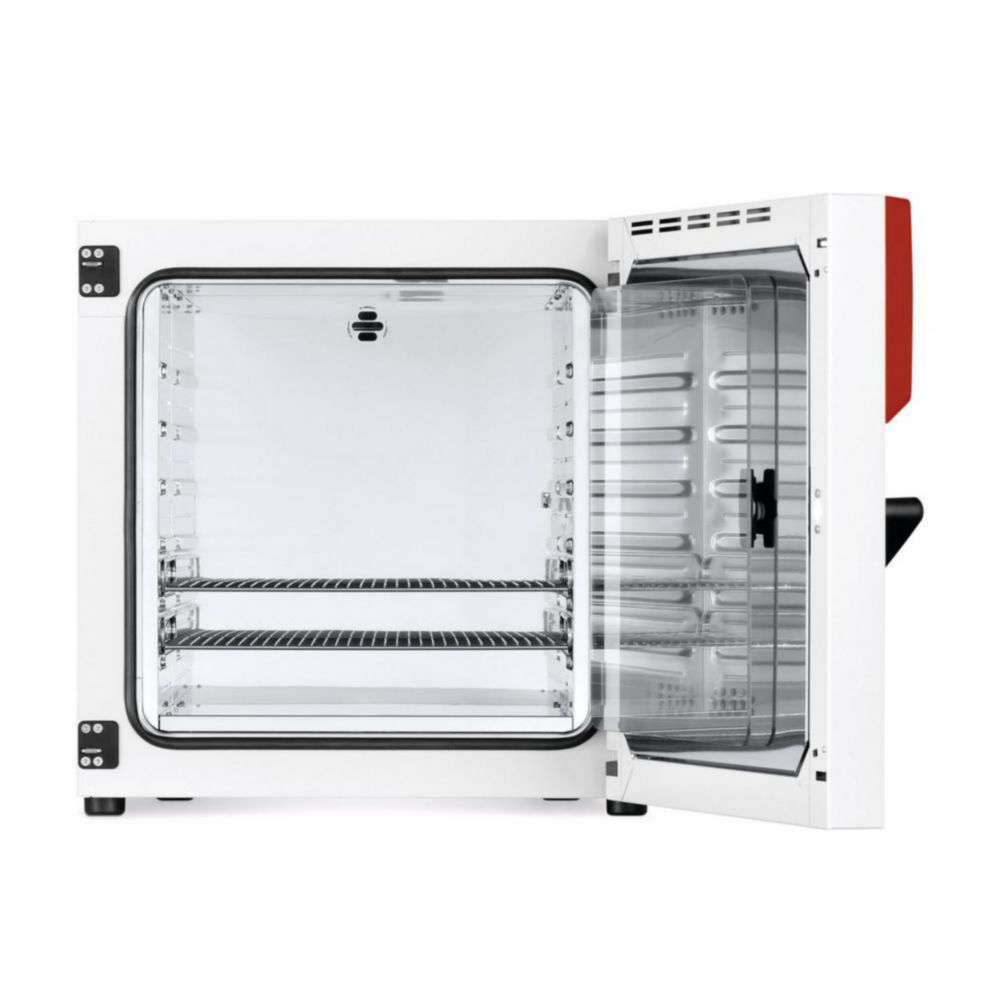

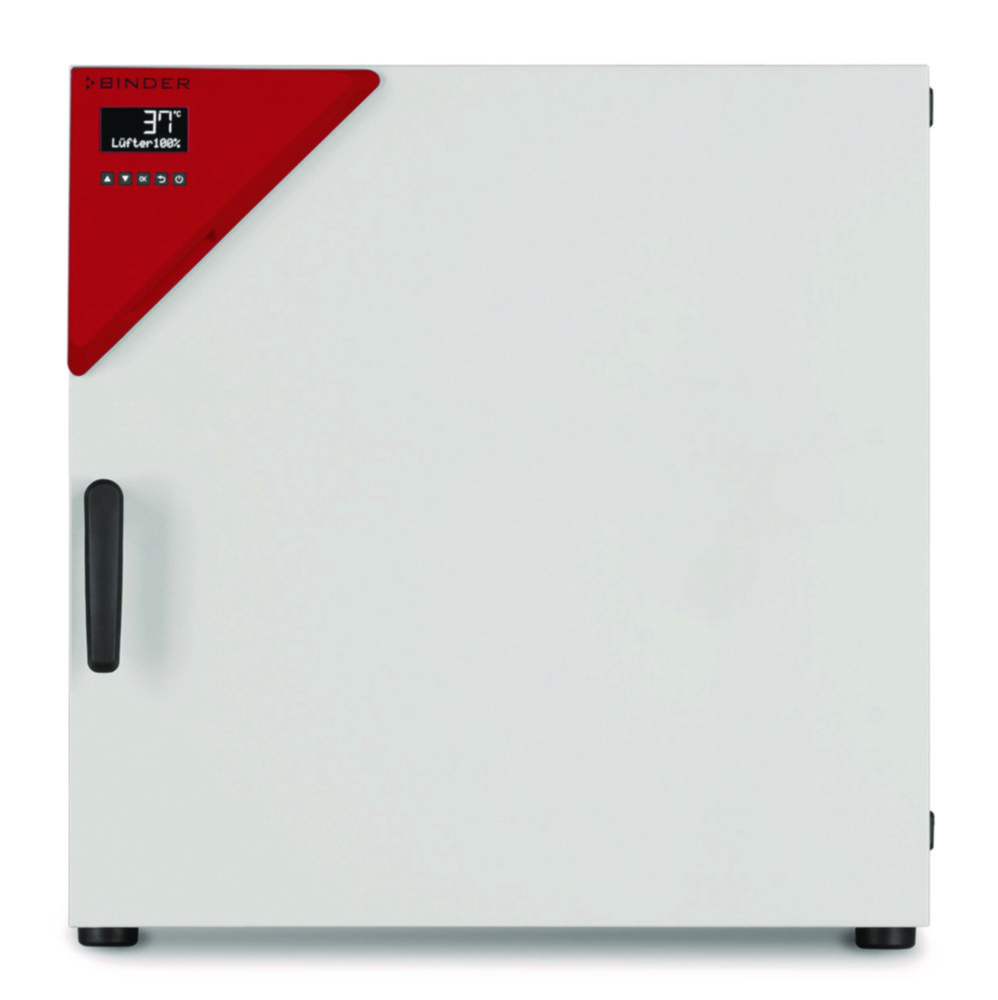

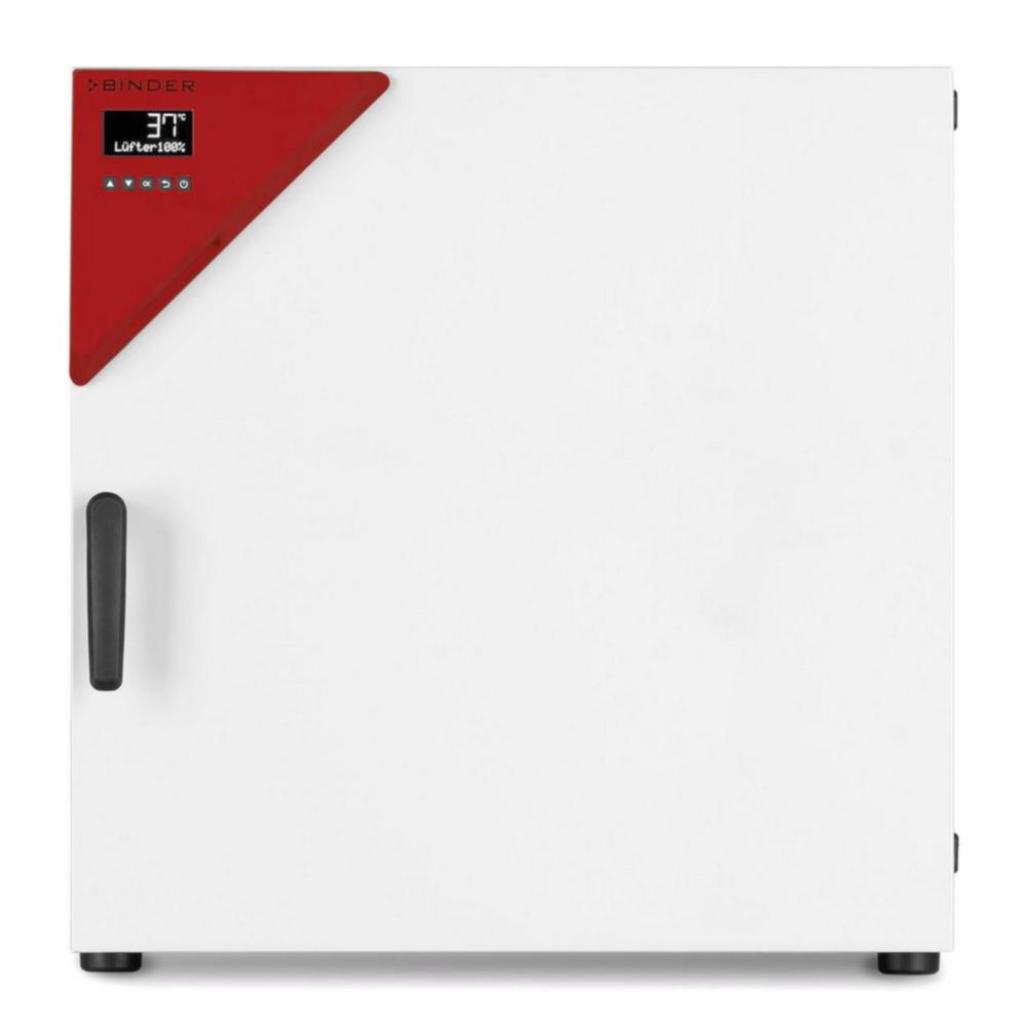

Obrázek produktové varianty BD 115
6280290 / 9010-0325
Nominal capacity ( ml )
112 l
Weight ( g )
54 kg
Type
BD 115
Depth int. ( mm )
420 mm
Height int. ( mm )
530 mm
Int. width ( mm )
510 mm
Ext. depth ( mm )
605 mm
Ext. height ( mm )
705 mm
Ext. width ( mm )
710 mm
Power supply frequency ( Hz )
50/60 Hz
Max. voltage ( V )
230 V
Plug type
EU
Rated capacity ( W )
0.35 kW
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=6280290
Ext. dim. (WxDxH)
710 x 605 x 705 mm
Int. Dim. (WxDxH)
510 x 420 x 530 mm
Temperature stability ( °C )
±0,1 K (37 °C)
Max. no. of inserts
5
Kusy v balení
1
Na otázku

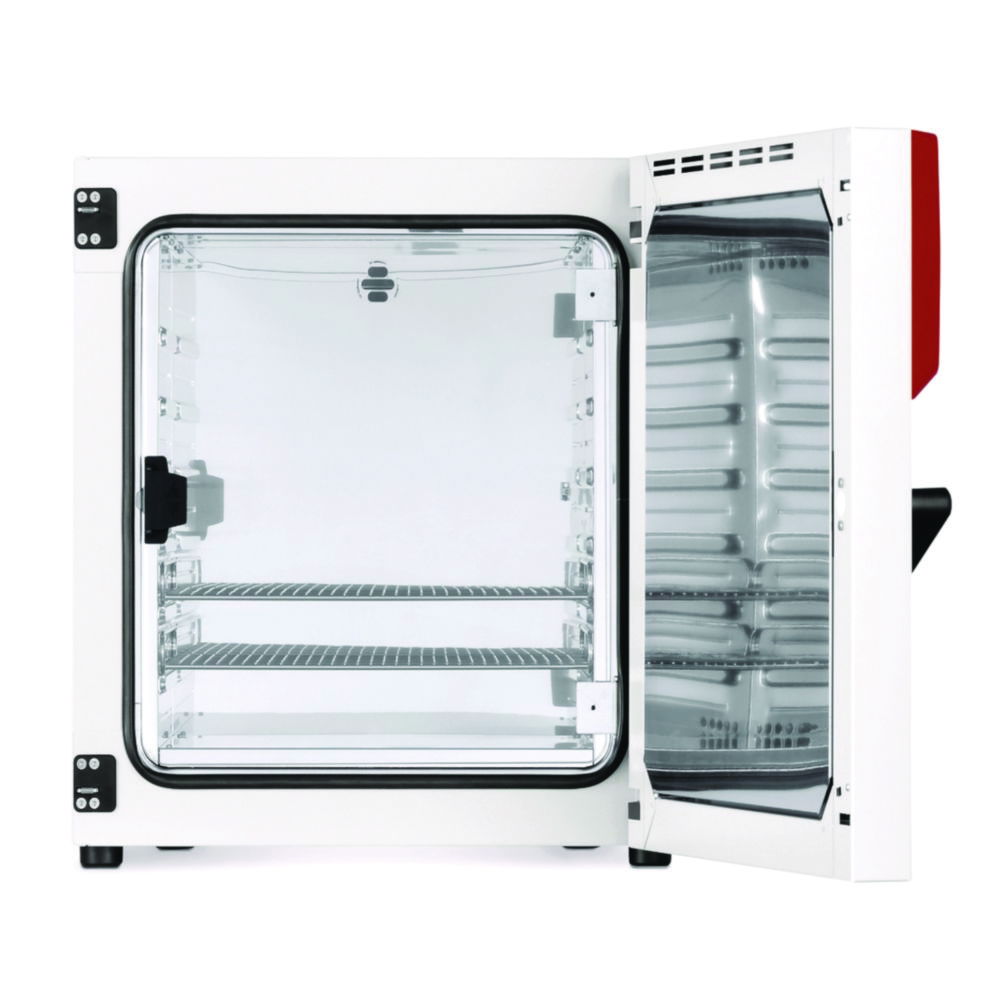

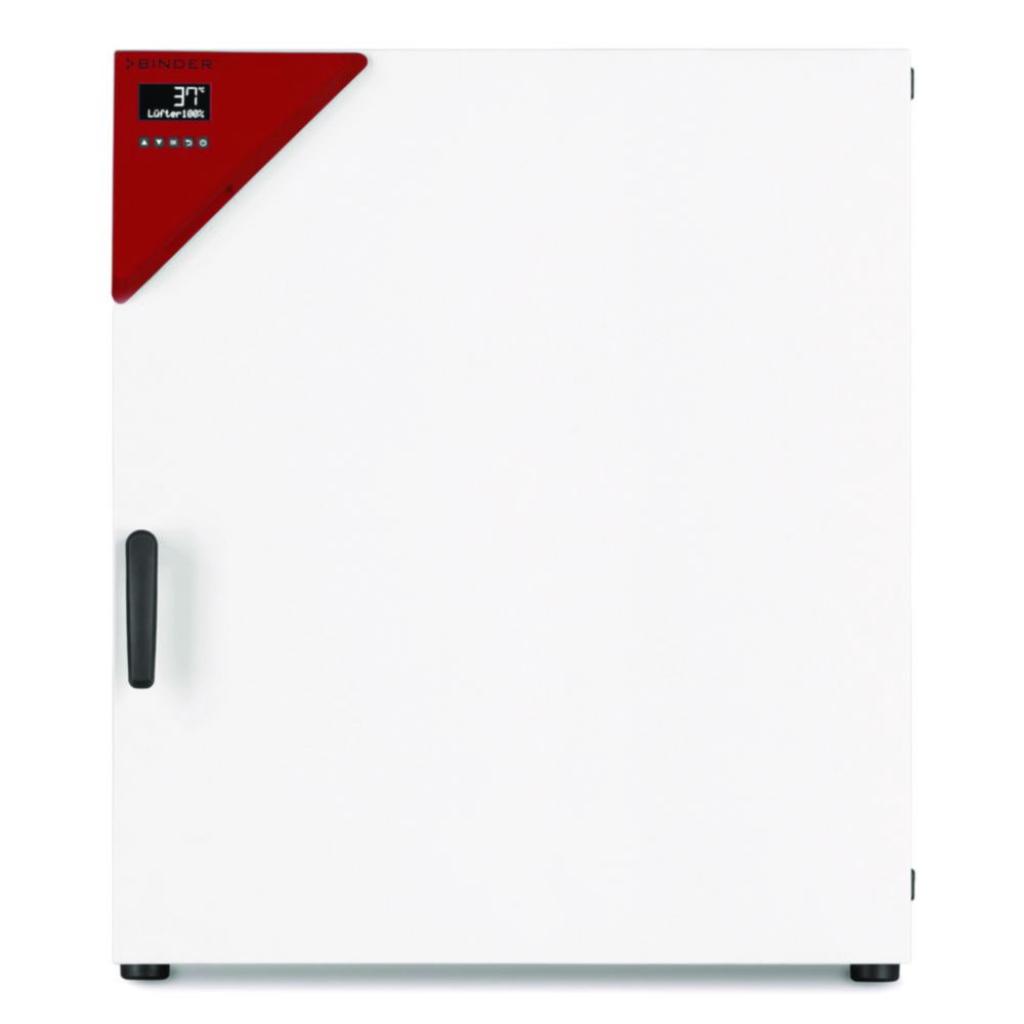

Obrázek produktové varianty BD 260
6280291 / 9010-0329
Nominal capacity ( ml )
253 l
Weight ( g )
85 kg
Type
BD 260
Depth int. ( mm )
545 mm
Height int. ( mm )
760 mm
Int. width ( mm )
610 mm
Ext. depth ( mm )
760 mm
Ext. height ( mm )
940 mm
Ext. width ( mm )
810 mm
Power supply frequency ( Hz )
50/60 Hz
Max. voltage ( V )
230 V
Plug type
EU
Rated capacity ( W )
0.85 kW
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=6280291
Ext. dim. (WxDxH)
810 x 760 x 940 mm
Int. Dim. (WxDxH)
610 x 545 x 760 mm
Temperature stability ( °C )
±0,2 K (37 °C)
Max. no. of inserts
8
Kusy v balení
1
Na otázku

Technické špecifikácie

IP code IP 20
Max. temperature 100 °C
Min. temperature +5 °C
Temperature addition RT
Temperature RT+5 ... 100 °C
Type of auxiliary energy Mains connection
UNSPSC 41104400
With timer Yes
