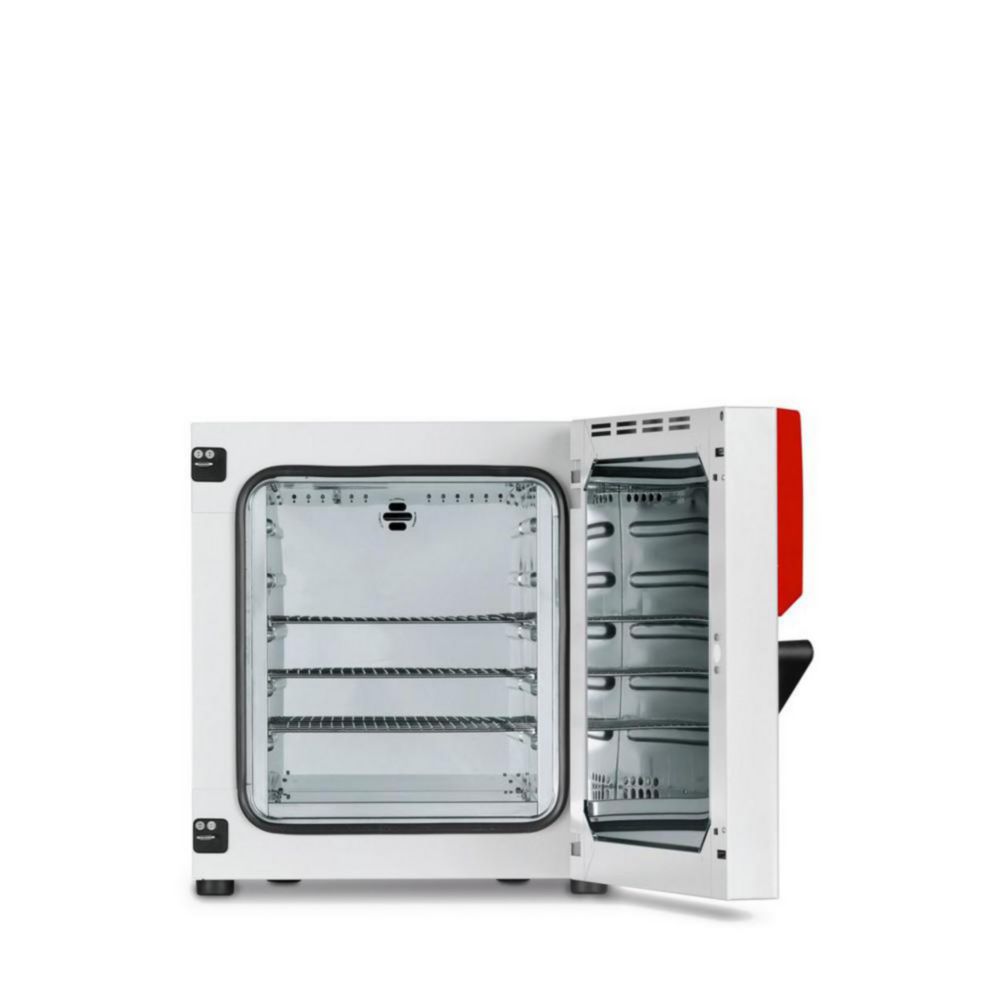

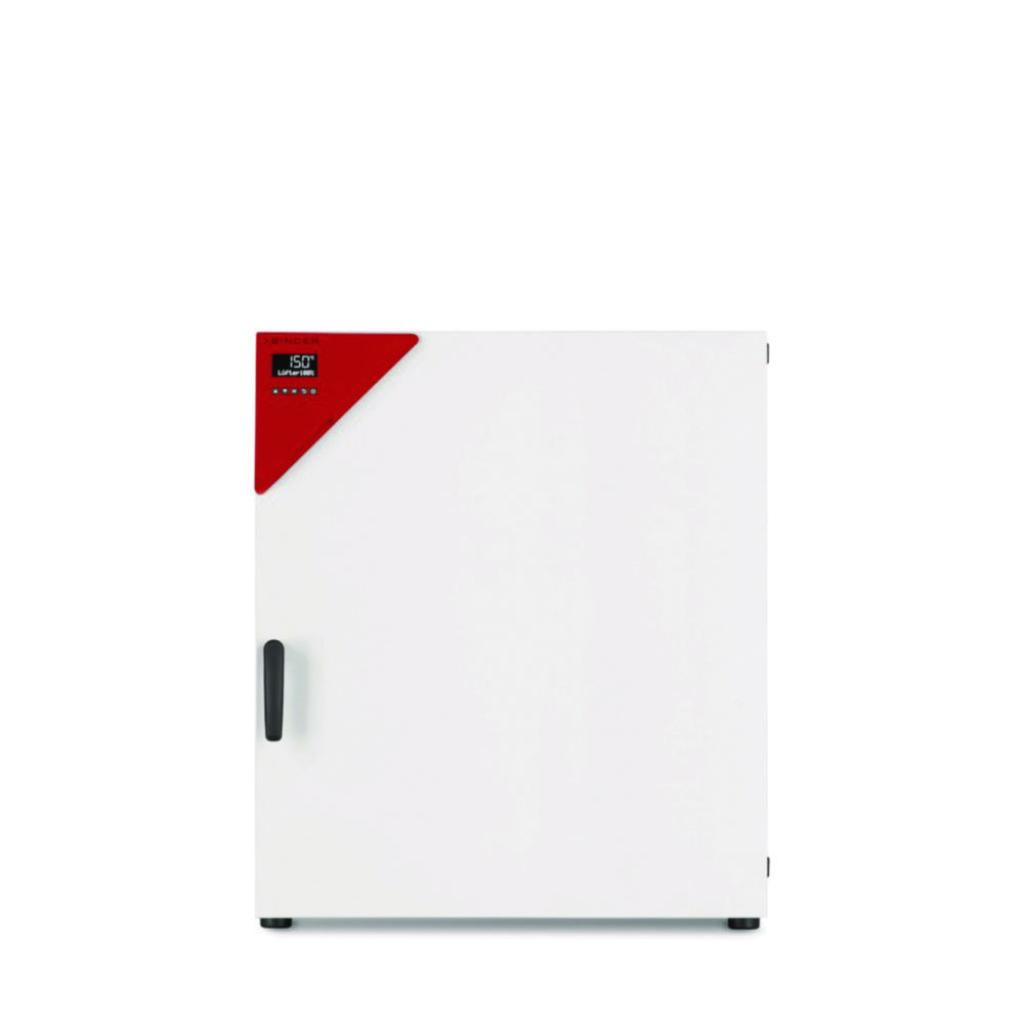

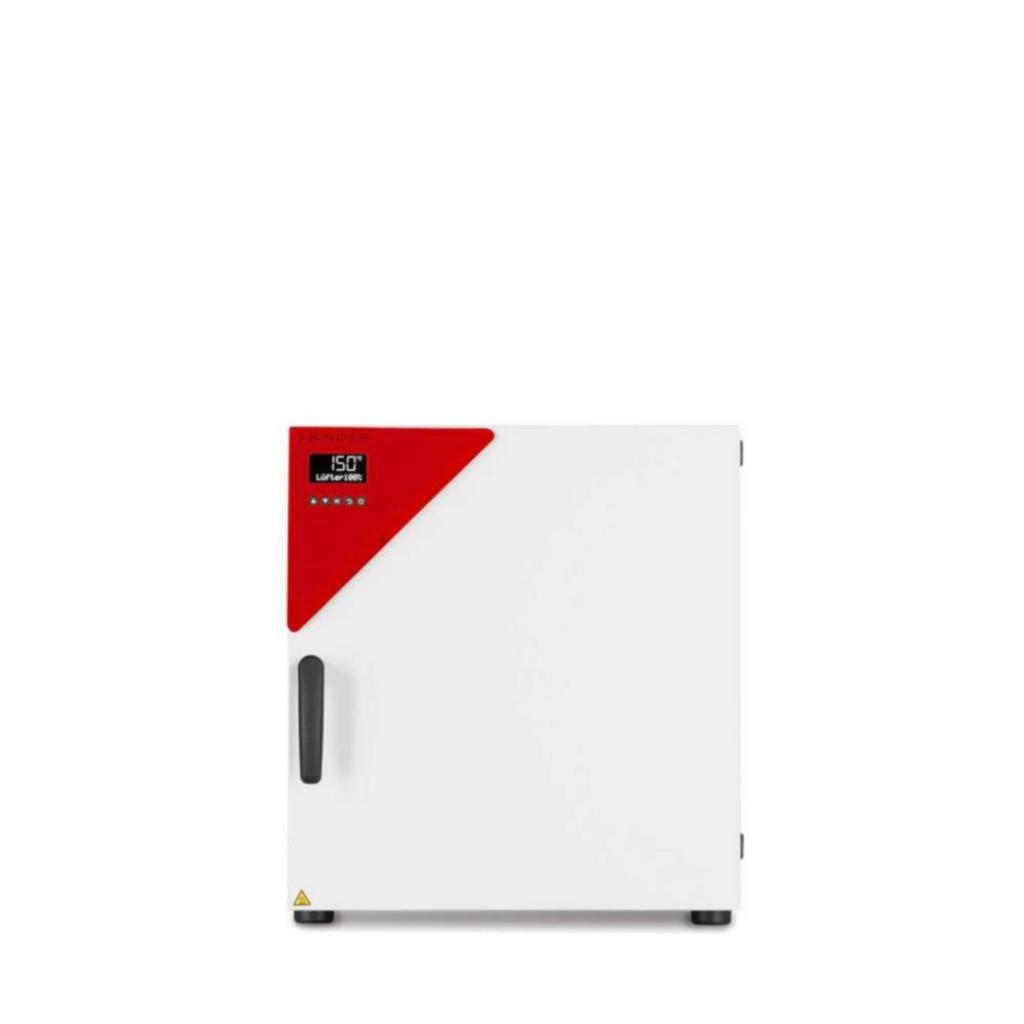

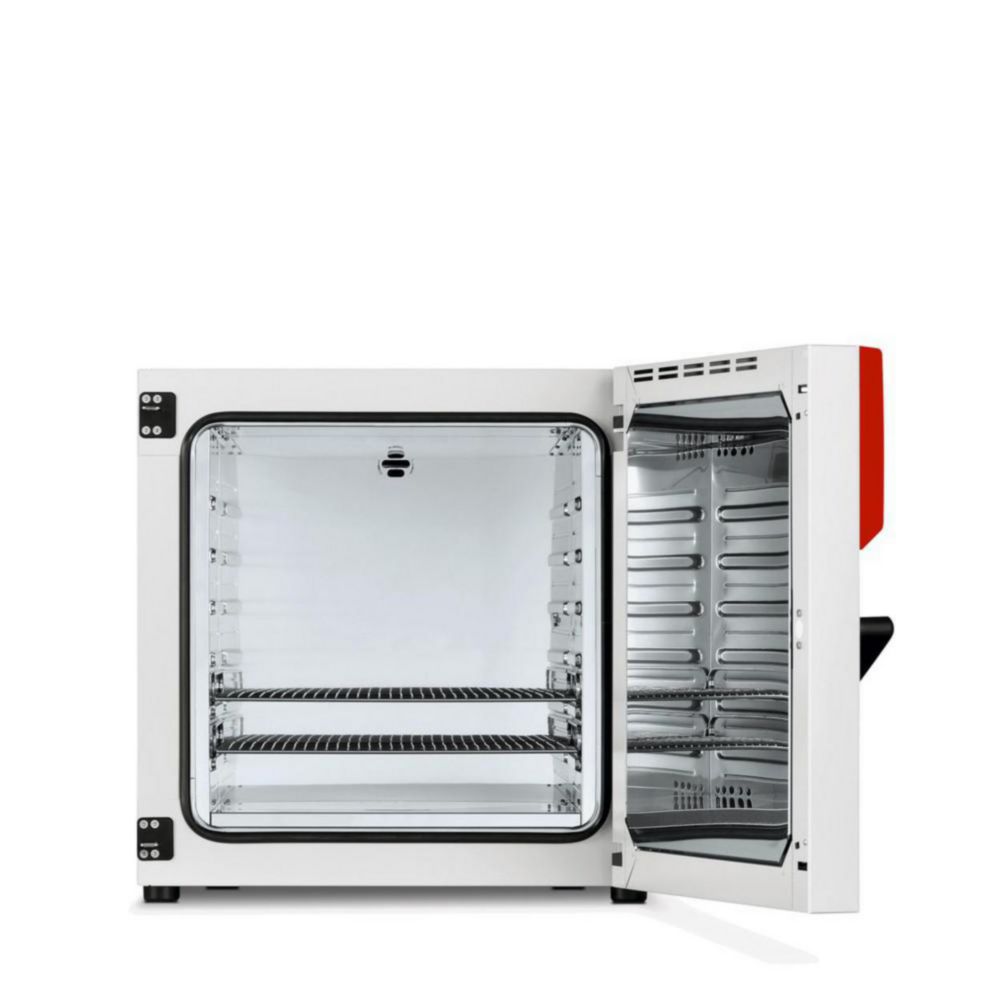

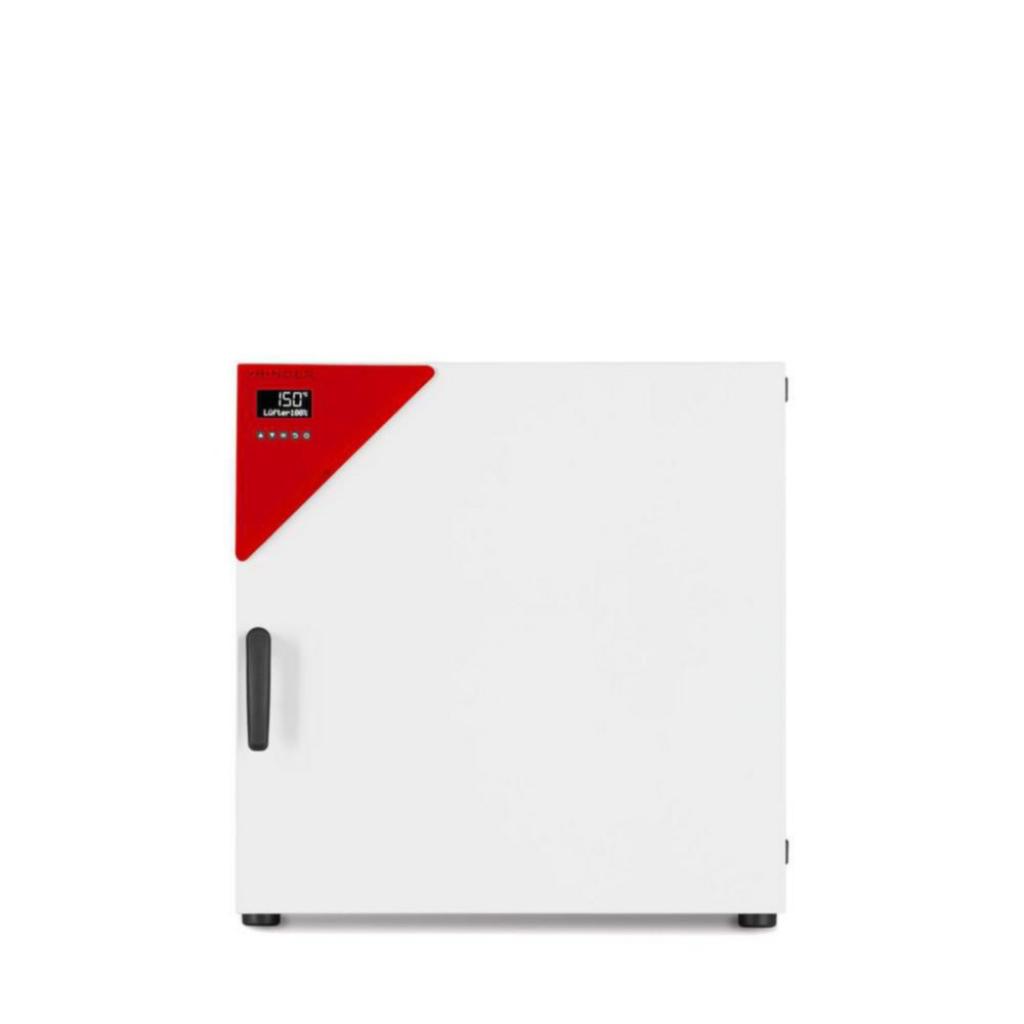

Sušiace a vykurovacie komory FED Avantgarde.Line Ďalšie fotografie

Sušiace a vykurovacie komory FED Avantgarde.Line

  • S nútenou konvekciou

  • Ovládač s LCD displejom a rozšírenými funkciami časovača

  • Nastaviteľná rýchlosť ventilátora

  • Ethernetové rozhranie
Zvoľte variant
Výrobca
  • BINDER GmbH
Kategória

Varianty produktu

Názov Katalógové číslo / Kód produktu
Nominal capacity ( ml ) Weight ( g ) Type Min. temperature ( °C ) Depth int. ( mm ) Height int. ( mm ) Int. width ( mm ) Ext. depth ( mm ) Ext. height ( mm ) Ext. width ( mm ) Power supply frequency ( Hz ) Max. voltage ( V ) Plug type Rated capacity ( W ) Power supply Safety Data Sheet Temperature Ext. dim. (WxDxH) Int. Dim. (WxDxH) Temperature stability ( °C ) Max. no. of inserts
Kusy v balení Cena bez DPH

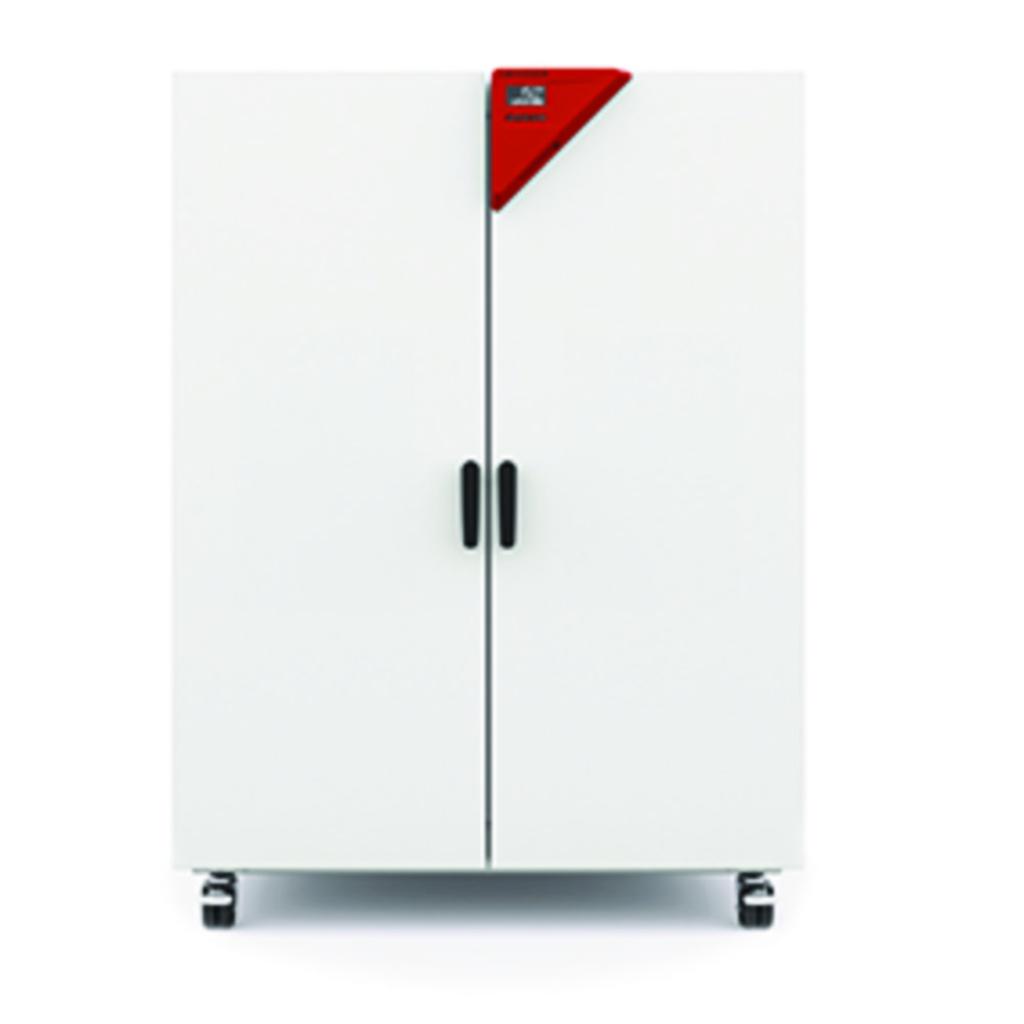

Obrázek produktové varianty FED 720
4668970 / 9010-0301
Nominal capacity ( ml )
741 l
Weight ( g )
166 kg
Type
FED 720
Min. temperature ( °C )
+12 °C
Depth int. ( mm )
570 mm
Height int. ( mm )
1300 mm
Int. width ( mm )
1000 mm
Ext. depth ( mm )
870 mm
Ext. height ( mm )
1590 mm
Ext. width ( mm )
1165 mm
Power supply frequency ( Hz )
50/60 Hz
Max. voltage ( V )
400 V·3/N/PE
Plug type
CEE
Rated capacity ( W )
4.5 kW
Power supply
400 V·3/N/PE, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4668970
Temperature
RT+12 ... 300 °C
Ext. dim. (WxDxH)
1,165 x 870 x 1,590 mm
Int. Dim. (WxDxH)
1,000 x 570 x 1,300 mm
Temperature stability ( °C )
±0,6 K (150 °C)
Max. no. of inserts
16
Kusy v balení
-
Na otázku
Obrázek produktové varianty FED 56UL
4705569 / 9010-0296
Nominal capacity ( ml )
60 l
Weight ( g )
39 kg
Type
FED 56UL
Min. temperature ( °C )
+10 °C
Depth int. ( mm )
345 mm
Height int. ( mm )
440 mm
Int. width ( mm )
400 mm
Ext. depth ( mm )
565 mm
Ext. height ( mm )
625 mm
Ext. width ( mm )
560 mm
Power supply frequency ( Hz )
60 Hz
Max. voltage ( V )
120 V
Plug type
US
Rated capacity ( W )
1.2 kW
Power supply
120 V, 60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4705569
Temperature
RT+10 ... 300 °C
Ext. dim. (WxDxH)
560 x 565 x 625 mm
Int. Dim. (WxDxH)
400 x 345 x 440 mm
Temperature stability ( °C )
±0,3 K (150 °C)
Max. no. of inserts
4
Kusy v balení
-
Na otázku
Obrázek produktové varianty FED 115UL
4705570 / 9010-0294
Nominal capacity ( ml )
116 l
Weight ( g )
54 kg
Type
FED 115UL
Min. temperature ( °C )
+10 °C
Depth int. ( mm )
385 mm
Height int. ( mm )
550 mm
Int. width ( mm )
550 mm
Ext. depth ( mm )
605 mm
Ext. height ( mm )
705 mm
Ext. width ( mm )
710 mm
Power supply frequency ( Hz )
60 Hz
Max. voltage ( V )
120 V
Plug type
US
Rated capacity ( W )
1.4 kW
Power supply
120 V, 60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4705570
Temperature
RT+10 ... 300 °C
Ext. dim. (WxDxH)
710 x 605 x 705 mm
Int. Dim. (WxDxH)
550 x 385 x 550 mm
Temperature stability ( °C )
±0,3 K (150 °C)
Max. no. of inserts
5
Kusy v balení
-
Na otázku
Obrázek produktové varianty FED 260UL
4705571 / 9010-0300
Nominal capacity ( ml )
259 l
Weight ( g )
85 kg
Type
FED 260UL
Min. temperature ( °C )
+10 °C
Depth int. ( mm )
515 mm
Height int. ( mm )
780 mm
Int. width ( mm )
650 mm
Ext. depth ( mm )
760 mm
Ext. height ( mm )
940 mm
Ext. width ( mm )
810 mm
Power supply frequency ( Hz )
60 Hz
Max. voltage ( V )
120 V
Plug type
US
Rated capacity ( W )
2.5 kW
Power supply
120 V, 60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4705571
Temperature
RT+10 ... 300 °C
Ext. dim. (WxDxH)
810 x 760 x 940 mm
Int. Dim. (WxDxH)
650 x 515 x 780 mm
Temperature stability ( °C )
±0,4 K (150 °C)
Max. no. of inserts
8
Kusy v balení
-
Na otázku
Obrázek produktové varianty FED 720UL
4705572 / 9010-0302
Nominal capacity ( ml )
741 l
Weight ( g )
166 kg
Type
FED 720UL
Min. temperature ( °C )
+12 °C
Depth int. ( mm )
570 mm
Height int. ( mm )
1300 mm
Int. width ( mm )
1000 mm
Ext. depth ( mm )
870 mm
Ext. height ( mm )
1590 mm
Ext. width ( mm )
1165 mm
Power supply frequency ( Hz )
60 Hz
Max. voltage ( V )
208 V
Plug type
US
Rated capacity ( W )
4.5 kW
Power supply
208 V, 60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4705572
Temperature
RT+12 ... 300 °C
Ext. dim. (WxDxH)
1,165 x 870 x 1,590 mm
Int. Dim. (WxDxH)
1,000 x 570 x 1,300 mm
Temperature stability ( °C )
±0,6 K (150 °C)
Max. no. of inserts
16
Kusy v balení
1
Na otázku

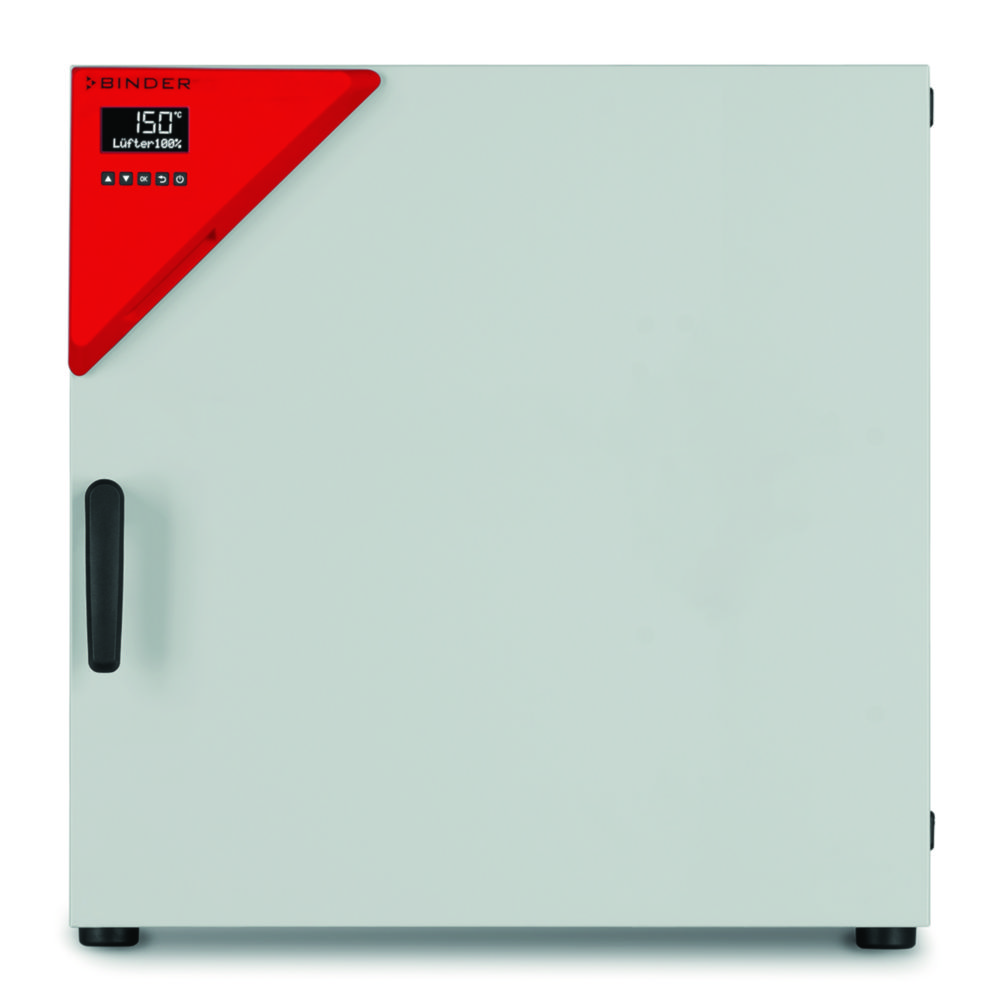

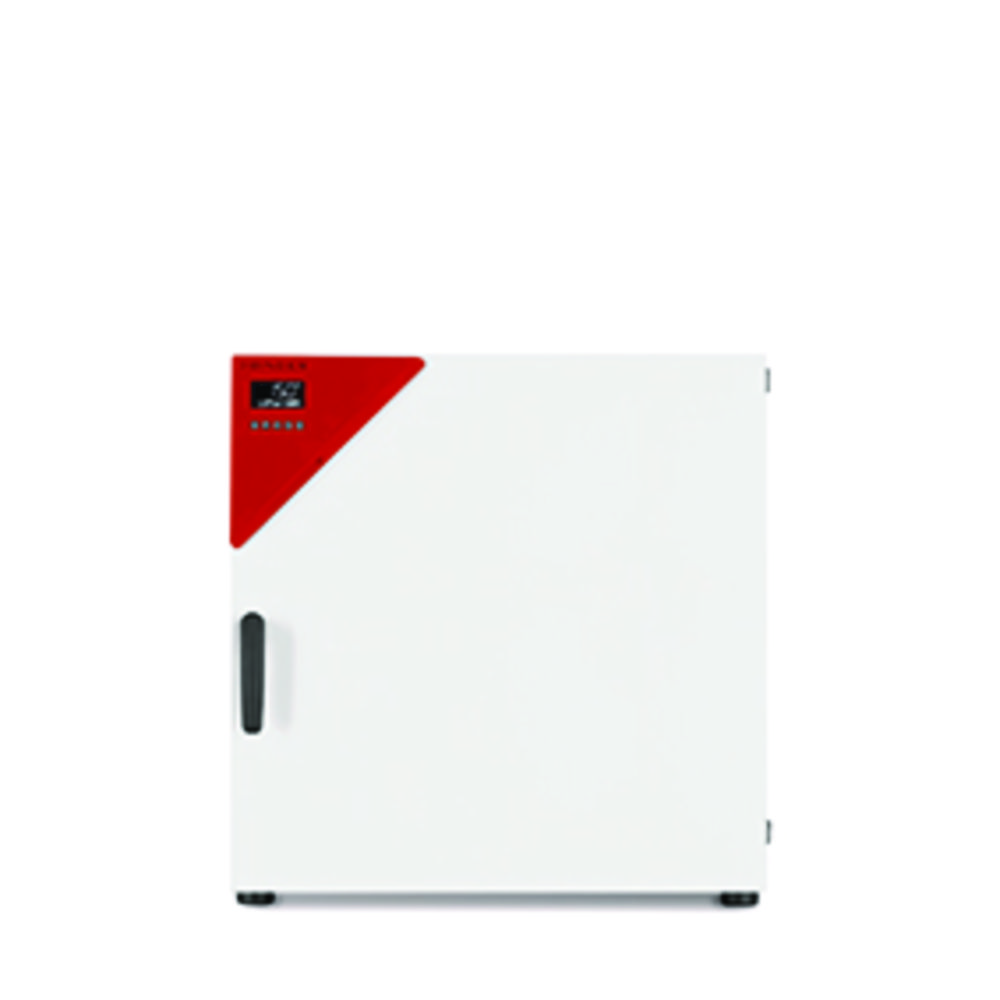

Obrázek produktové varianty FED 115
6280284 / 9010-0293
Nominal capacity ( ml )
116 l
Weight ( g )
54 kg
Type
FED 115
Min. temperature ( °C )
+10 °C
Depth int. ( mm )
385 mm
Height int. ( mm )
550 mm
Int. width ( mm )
550 mm
Ext. depth ( mm )
605 mm
Ext. height ( mm )
705 mm
Ext. width ( mm )
710 mm
Power supply frequency ( Hz )
50/60 Hz
Max. voltage ( V )
230 V
Plug type
EU
Rated capacity ( W )
1.3 kW
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=6280284
Temperature
RT+10 ... 300 °C
Ext. dim. (WxDxH)
710 x 605 x 705 mm
Int. Dim. (WxDxH)
550 x 385 x 550 mm
Temperature stability ( °C )
±0,3 K (150 °C)
Max. no. of inserts
5
Kusy v balení
1
Na otázku

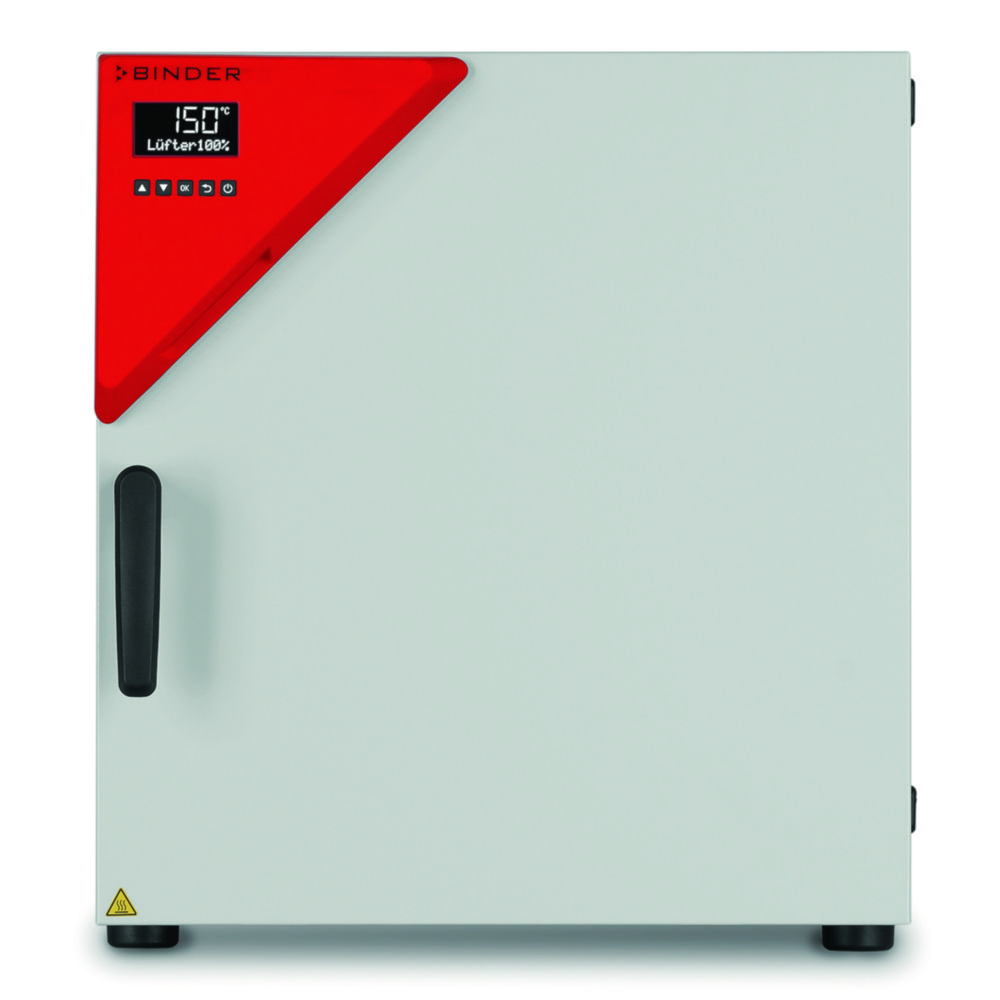

Obrázek produktové varianty FED 56
6280295 / 9010-0295
Nominal capacity ( ml )
60 l
Weight ( g )
39 kg
Type
FED 56
Min. temperature ( °C )
+10 °C
Depth int. ( mm )
345 mm
Height int. ( mm )
440 mm
Int. width ( mm )
400 mm
Ext. depth ( mm )
565 mm
Ext. height ( mm )
625 mm
Ext. width ( mm )
560 mm
Power supply frequency ( Hz )
50/60 Hz
Max. voltage ( V )
230 V
Plug type
EU
Rated capacity ( W )
1.1 kW
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=6280295
Temperature
RT+10 ... 300 °C
Ext. dim. (WxDxH)
560 x 565 x 625 mm
Int. Dim. (WxDxH)
400 x 345 x 440 mm
Temperature stability ( °C )
±0,3 K (150 °C)
Max. no. of inserts
4
Kusy v balení
1
Na otázku

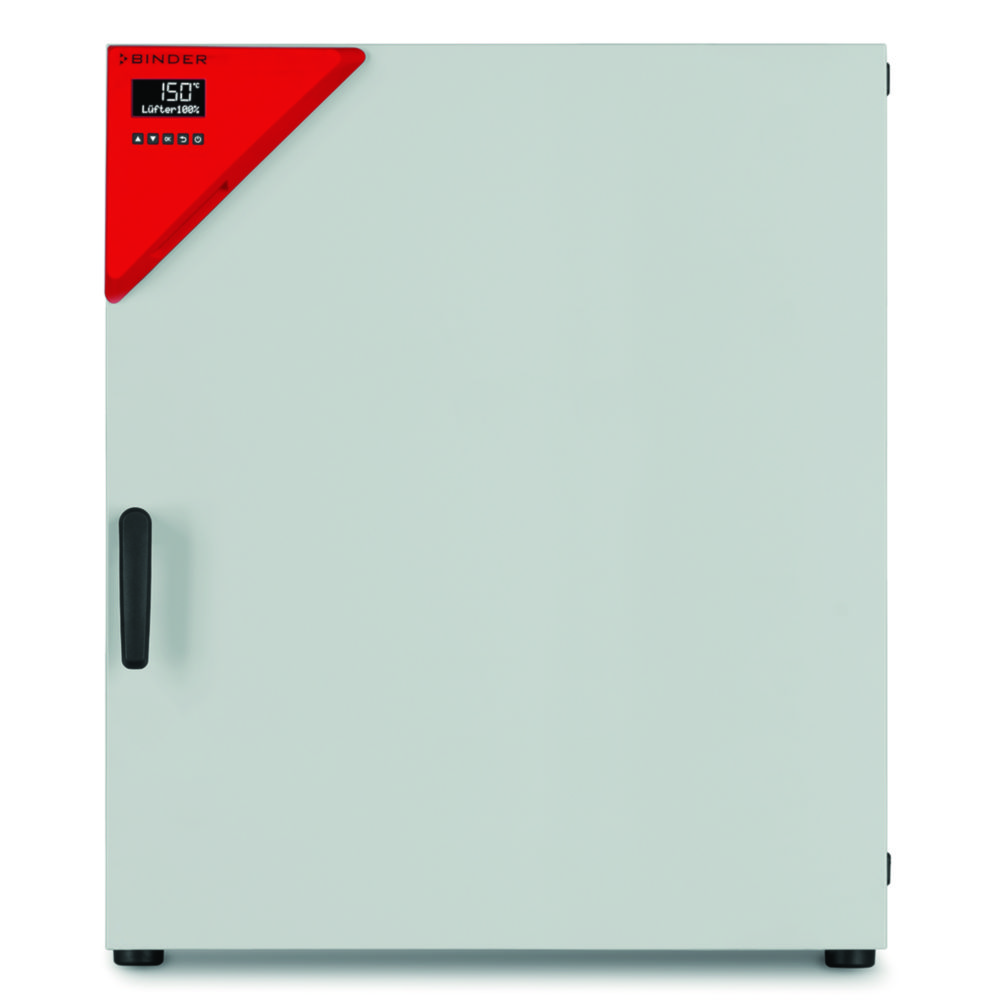

Obrázek produktové varianty FED 260
6280296 / 9010-0299
Nominal capacity ( ml )
259 l
Weight ( g )
85 kg
Type
FED 260
Min. temperature ( °C )
+10 °C
Depth int. ( mm )
515 mm
Height int. ( mm )
780 mm
Int. width ( mm )
650 mm
Ext. depth ( mm )
760 mm
Ext. height ( mm )
940 mm
Ext. width ( mm )
810 mm
Power supply frequency ( Hz )
50/60 Hz
Max. voltage ( V )
230 V
Plug type
EU
Rated capacity ( W )
2.3 kW
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=6280296
Temperature
RT+10 ... 300 °C
Ext. dim. (WxDxH)
810 x 760 x 940 mm
Int. Dim. (WxDxH)
650 x 515 x 780 mm
Temperature stability ( °C )
±0,4 K (150 °C)
Max. no. of inserts
8
Kusy v balení
1
Na otázku

Technické špecifikácie

IP code IP 20
Material interior Stainless steel
Max. temperature 300 °C
Temperature addition RT
Type of auxiliary energy Mains connection
UNSPSC 41104510
With timer Yes
