Disperzné hlavy pre sériu T 25 ULTRA-TURRAX® Ďalšie fotografie

Disperzné hlavy pre sériu T 25 ULTRA-TURRAX®

Plastové disperzné hlavice: Autoklávovateľné. Disperzné hlavice z nehrdzavejúcej ocele: Maximálna jemnosť: emulzie 1 µm až 10 µm a suspenzie 5 µm až 50 µm, sterilizovateľné všetkými metódami. Nástroje ST sa odporúčajú na použitie s tkanivami a inými vláknitými materiálmi.
Zvoľte variant
Výrobca
  • IKA-Werke GmbH & Co.KG
Kategória

Varianty produktu

Názov Katalógové číslo / Kód produktu
Material Type For Max. temperature ( °C ) Safety Data Sheet Immersion depth Ø rotor ( mm ) Max. working volume ( ml ) Min. working volume ( ml ) Working volume Final fineness emulsion ( µm ) Final fineness suspension ( µm ) Max. immersion depth ( mm ) Min. immersion depth ( mm ) Stator Ø ( mm )
Kusy v balení Cena bez DPH
Obrázek produktové varianty S 25-KD-18 G
4653931 / 0020002971
Material
FFKM/PTFE/Stainless steel
Type
S 25-KD-18 G
For
T 25 easy clean, T 25 digital, T 25 mini control
Max. temperature ( °C )
150 °C
Safety Data Sheet
https://sw.llg.de/search?search=4653931
Immersion depth
40 ... 185 mm
Ø rotor ( mm )
12.6 mm
Max. working volume ( ml )
1500 ml
Min. working volume ( ml )
10 ml
Working volume
10 ... 1,500 ml
Final fineness emulsion ( µm )
1 ... 10 µm
Final fineness suspension ( µm )
10 ... 50 µm
Max. immersion depth ( mm )
185 mm
Min. immersion depth ( mm )
40 mm
Stator Ø ( mm )
18 mm
Kusy v balení
1
Na otázku
Obrázek produktové varianty S 25-KD-25 G
4653932 / 0020002972
Material
FFKM/PTFE/Stainless steel
Type
S 25-KD-25 G
For
T 25 easy clean, T 25 digital
Max. temperature ( °C )
150 °C
Safety Data Sheet
https://sw.llg.de/search?search=4653932
Immersion depth
40 ... 185 mm
Ø rotor ( mm )
17 mm
Max. working volume ( ml )
2000 ml
Min. working volume ( ml )
50 ml
Working volume
50 ... 2,000 ml
Final fineness emulsion ( µm )
1 ... 10 µm
Final fineness suspension ( µm )
15 ... 50 µm
Max. immersion depth ( mm )
185 mm
Min. immersion depth ( mm )
40 mm
Stator Ø ( mm )
25 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty S 25-KD-18 G-ST
4653933 / 0020002973
Material
FFKM/PTFE/Stainless steel
Type
S 25-KD-18 G-ST
For
T 25 easy clean, T 25 digital, T 25 mini control
Max. temperature ( °C )
150 °C
Safety Data Sheet
https://sw.llg.de/search?search=4653933
Immersion depth
40 ... 185 mm
Ø rotor ( mm )
13.4 mm
Max. working volume ( ml )
1500 ml
Min. working volume ( ml )
10 ml
Working volume
10 ... 1,500 ml
Final fineness emulsion ( µm )
1 ... 10 µm
Final fineness suspension ( µm )
10 ... 50 µm
Max. immersion depth ( mm )
185 mm
Min. immersion depth ( mm )
40 mm
Stator Ø ( mm )
18 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty S 25-KD-25 G-ST
4653934 / 0020002974
Material
FFKM/PTFE/Stainless steel
Type
S 25-KD-25 G-ST
For
T 25 easy clean, T 25 digital
Max. temperature ( °C )
150 °C
Safety Data Sheet
https://sw.llg.de/search?search=4653934
Immersion depth
40 ... 185 mm
Ø rotor ( mm )
20 mm
Max. working volume ( ml )
2000 ml
Min. working volume ( ml )
50 ml
Working volume
50 ... 2,000 ml
Final fineness emulsion ( µm )
1 ... 10 µm
Final fineness suspension ( µm )
15 ... 50 µm
Max. immersion depth ( mm )
185 mm
Min. immersion depth ( mm )
40 mm
Stator Ø ( mm )
25 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty S 25-KD-25 F
4653935 / 0020002975
Material
FFKM/PTFE/Stainless steel
Type
S 25-KD-25 F
For
T 25 easy clean, T 25 digital
Max. temperature ( °C )
150 °C
Safety Data Sheet
https://sw.llg.de/search?search=4653935
Immersion depth
40 ... 185 mm
Ø rotor ( mm )
18 mm
Max. working volume ( ml )
2000 ml
Min. working volume ( ml )
100 ml
Working volume
100 ... 2,000 ml
Final fineness emulsion ( µm )
1 ... 5 µm
Final fineness suspension ( µm )
5 ... 25 µm
Max. immersion depth ( mm )
185 mm
Min. immersion depth ( mm )
40 mm
Stator Ø ( mm )
25 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty S 25 KV 2802
4672743 / 0020008825
Material
FFKM/SiC/Stainless steel
Type
S 25 KV 2802
For
T 25 easy clean, T 25 digital, T 25 mini control
Max. temperature ( °C )
220 °C
Safety Data Sheet
https://sw.llg.de/search?search=4672743
Immersion depth
40 ... 225 mm
Ø rotor ( mm )
30 mm
Max. working volume ( ml )
2000 ml
Min. working volume ( ml )
100 ml
Working volume
100 ... 2,000 ml
Final fineness emulsion ( µm )
-
Final fineness suspension ( µm )
-
Max. immersion depth ( mm )
225 mm
Min. immersion depth ( mm )
40 mm
Stator Ø ( mm )
39 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty S 25 KD-LR-25 G
4679593 / 0025007321
Material
FFKM/PTFE/Stainless steel
Type
S 25 KD-LR-25 G
For
T 25 digital LR
Max. temperature ( °C )
150 °C
Safety Data Sheet
https://sw.llg.de/search?search=4679593
Immersion depth
40 ... 220 mm
Ø rotor ( mm )
17 mm
Max. working volume ( ml )
2000 ml
Min. working volume ( ml )
50 ml
Working volume
50 ... 2,000 ml
Final fineness emulsion ( µm )
1 ... 10 µm
Final fineness suspension ( µm )
15 ... 50 µm
Max. immersion depth ( mm )
220 mm
Min. immersion depth ( mm )
40 mm
Stator Ø ( mm )
25 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty S 25 KD-LR-25 F
4679594 / 0025007322
Material
FFKM/PTFE/Stainless steel
Type
S 25 KD-LR-25 F
For
T 25 digital LR
Max. temperature ( °C )
150 °C
Safety Data Sheet
https://sw.llg.de/search?search=4679594
Immersion depth
40 ... 220 mm
Ø rotor ( mm )
18 mm
Max. working volume ( ml )
2000 ml
Min. working volume ( ml )
100 ml
Working volume
100 ... 2,000 ml
Final fineness emulsion ( µm )
1 ... 5 µm
Final fineness suspension ( µm )
5 ... 25 µm
Max. immersion depth ( mm )
220 mm
Min. immersion depth ( mm )
40 mm
Stator Ø ( mm )
25 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty S 25 N - 25 G - ST
6257274 / 0004447500
Material
PTFE/Stainless steel
Type
S 25 N - 25 G - ST
For
T 25 easy clean, T 25 digital
Max. temperature ( °C )
180 °C
Safety Data Sheet
https://sw.llg.de/search?search=6257274
Immersion depth
40 ... 165 mm
Ø rotor ( mm )
20 mm
Max. working volume ( ml )
2000 ml
Min. working volume ( ml )
50 ml
Working volume
50 ... 2,000 ml
Final fineness emulsion ( µm )
1 ... 10 µm
Final fineness suspension ( µm )
15 ... 50 µm
Max. immersion depth ( mm )
165 mm
Min. immersion depth ( mm )
40 mm
Stator Ø ( mm )
25 mm
Kusy v balení
1
Na otázku
Obrázek produktové varianty S 25 N - 10 G - ST
7970905 / 0004447100
Material
PTFE/Stainless steel
Type
S 25 N - 10 G - ST
For
T 25 easy clean, T 25 digital, T 25 mini control
Max. temperature ( °C )
180 °C
Safety Data Sheet
https://sw.llg.de/search?search=7970905
Immersion depth
22 ... 85 mm
Ø rotor ( mm )
7.5 mm
Max. working volume ( ml )
100 ml
Min. working volume ( ml )
1 ml
Working volume
1 ... 100 ml
Final fineness emulsion ( µm )
1 ... 10 µm
Final fineness suspension ( µm )
10 ... 50 µm
Max. immersion depth ( mm )
85 mm
Min. immersion depth ( mm )
22 mm
Stator Ø ( mm )
10 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty S 25 N - 18 G - ST
7970906 / 0004447300
Material
PTFE/Stainless steel
Type
S 25 N - 18 G - ST
For
T 25 easy clean, T 25 digital, T 25 mini control
Max. temperature ( °C )
180 °C
Safety Data Sheet
https://sw.llg.de/search?search=7970906
Immersion depth
40 ... 165 mm
Ø rotor ( mm )
13.4 mm
Max. working volume ( ml )
1500 ml
Min. working volume ( ml )
10 ml
Working volume
10 ... 1,500 ml
Final fineness emulsion ( µm )
1 ... 10 µm
Final fineness suspension ( µm )
10 ... 50 µm
Max. immersion depth ( mm )
165 mm
Min. immersion depth ( mm )
40 mm
Stator Ø ( mm )
18 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty S 25 N - 8 G - ST
7981562 / 0004446900
Material
PTFE/Stainless steel
Type
S 25 N - 8 G - ST
For
T 25 easy clean, T 25 digital, T 25 mini control
Max. temperature ( °C )
180 °C
Safety Data Sheet
https://sw.llg.de/search?search=7981562
Immersion depth
27 ... 85 mm
Ø rotor ( mm )
6.1 mm
Max. working volume ( ml )
50 ml
Min. working volume ( ml )
1 ml
Working volume
1 ... 50 ml
Final fineness emulsion ( µm )
1 ... 10 µm
Final fineness suspension ( µm )
10 ... 50 µm
Max. immersion depth ( mm )
85 mm
Min. immersion depth ( mm )
27 mm
Stator Ø ( mm )
8 mm
Kusy v balení
-
Na otázku

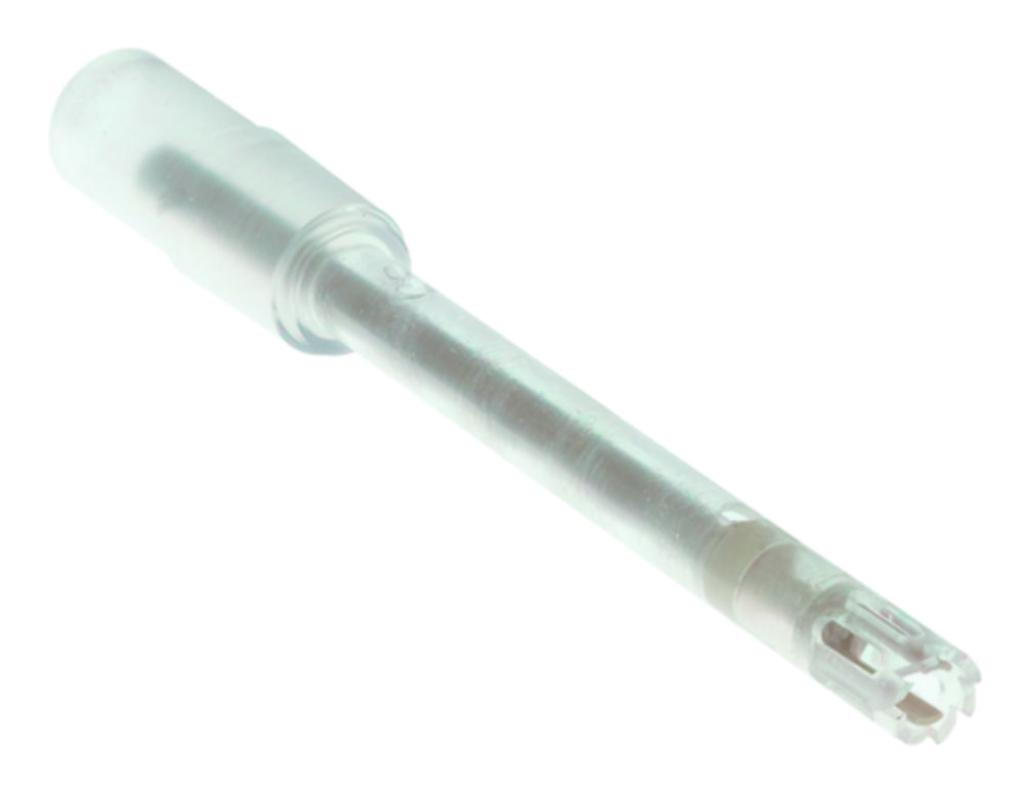

Obrázek produktové varianty S 25 D-10 G-KS
9570859 / 0003452200
Material
PC/PEEK
Type
S 25 D-10 G-KS
For
T 25 easy clean, T 25 digital, T 25 mini control
Max. temperature ( °C )
100 °C
Safety Data Sheet
https://sw.llg.de/search?search=9570859
Immersion depth
15 ... 85 mm
Ø rotor ( mm )
6.75 mm
Max. working volume ( ml )
100 ml
Min. working volume ( ml )
10 ml
Working volume
10 ... 100 ml
Final fineness emulsion ( µm )
-
Final fineness suspension ( µm )
-
Max. immersion depth ( mm )
85 mm
Min. immersion depth ( mm )
15 mm
Stator Ø ( mm )
10 mm
Kusy v balení
-
Na otázku

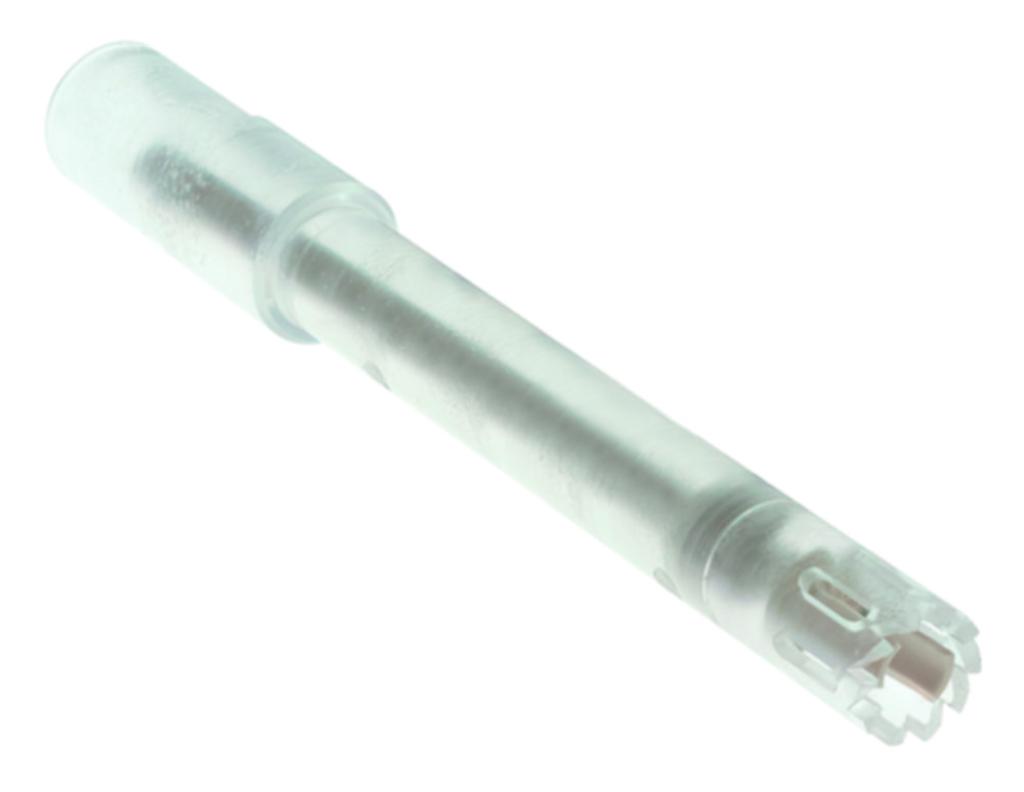

Obrázek produktové varianty S 25 D-14 G-KS
9570861 / 0003452100
Material
PC/PEEK
Type
S 25 D-14 G-KS
For
T 25 easy clean, T 25 digital, T 25 mini control
Max. temperature ( °C )
100 °C
Safety Data Sheet
https://sw.llg.de/search?search=9570861
Immersion depth
15 ... 85 mm
Ø rotor ( mm )
9.5 mm
Max. working volume ( ml )
500 ml
Min. working volume ( ml )
10 ml
Working volume
10 ... 500 ml
Final fineness emulsion ( µm )
-
Final fineness suspension ( µm )
-
Max. immersion depth ( mm )
85 mm
Min. immersion depth ( mm )
15 mm
Stator Ø ( mm )
14 mm
Kusy v balení
-
Na otázku

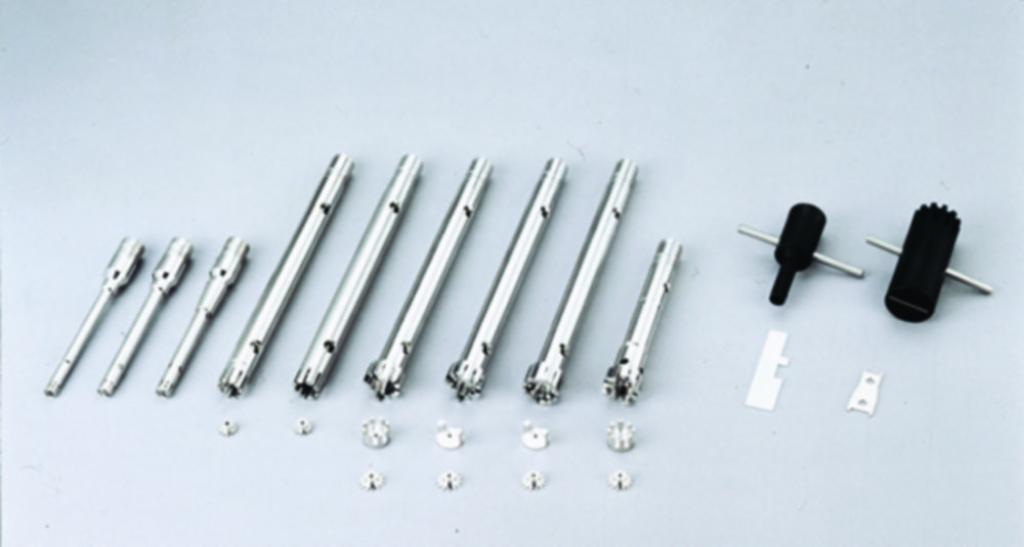

Obrázek produktové varianty S 25 N - 8 G
9571098 / 0001024200
Material
PTFE/Stainless steel
Type
S 25 N - 8 G
For
T 25 easy clean, T 25 digital, T 25 mini control
Max. temperature ( °C )
180 °C
Safety Data Sheet
https://sw.llg.de/search?search=9571098
Immersion depth
27 ... 85 mm
Ø rotor ( mm )
6.1 mm
Max. working volume ( ml )
50 ml
Min. working volume ( ml )
1 ml
Working volume
1 ... 50 ml
Final fineness emulsion ( µm )
1 ... 10 µm
Final fineness suspension ( µm )
10 ... 50 µm
Max. immersion depth ( mm )
85 mm
Min. immersion depth ( mm )
27 mm
Stator Ø ( mm )
8 mm
Kusy v balení
-
Na otázku

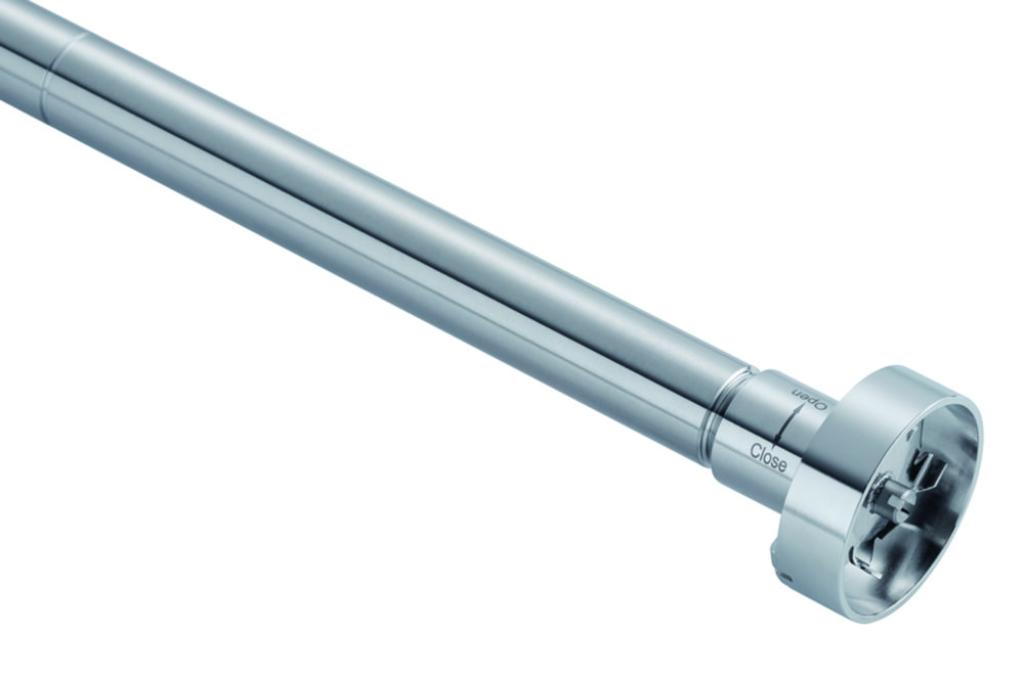

Obrázek produktové varianty S 25 KV-18 G
9571117 / 0002348000
Material
FFKM/SiC/Stainless steel
Type
S 25 KV-18 G
For
T 25 easy clean, T 25 digital, T 25 mini control
Max. temperature ( °C )
220 °C
Safety Data Sheet
https://sw.llg.de/search?search=9571117
Immersion depth
40 ... 225 mm
Ø rotor ( mm )
12.7 mm
Max. working volume ( ml )
1500 ml
Min. working volume ( ml )
10 ml
Working volume
10 ... 1,500 ml
Final fineness emulsion ( µm )
1 ... 10 µm
Final fineness suspension ( µm )
10 ... 50 µm
Max. immersion depth ( mm )
225 mm
Min. immersion depth ( mm )
40 mm
Stator Ø ( mm )
18 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty S 25 N - 18 G
9571119 / 0000593400
Material
PTFE/Stainless steel
Type
S 25 N - 18 G
For
T 25 easy clean, T 25 digital, T 25 mini control
Max. temperature ( °C )
180 °C
Safety Data Sheet
https://sw.llg.de/search?search=9571119
Immersion depth
40 ... 165 mm
Ø rotor ( mm )
12.7 mm
Max. working volume ( ml )
1500 ml
Min. working volume ( ml )
10 ml
Working volume
10 ... 1,500 ml
Final fineness emulsion ( µm )
1 ... 10 µm
Final fineness suspension ( µm )
10 ... 50 µm
Max. immersion depth ( mm )
165 mm
Min. immersion depth ( mm )
40 mm
Stator Ø ( mm )
18 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty S 25 KV-25 G
9571198 / 0002466900
Material
FFKM/SiC/Stainless steel
Type
S 25 KV-25 G
For
T 25 easy clean, T 25 digital
Max. temperature ( °C )
220 °C
Safety Data Sheet
https://sw.llg.de/search?search=9571198
Immersion depth
40 ... 225 mm
Ø rotor ( mm )
17 mm
Max. working volume ( ml )
2000 ml
Min. working volume ( ml )
50 ml
Working volume
50 ... 2,000 ml
Final fineness emulsion ( µm )
1 ... 10 µm
Final fineness suspension ( µm )
15 ... 50 µm
Max. immersion depth ( mm )
225 mm
Min. immersion depth ( mm )
40 mm
Stator Ø ( mm )
25 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty S 25 KV- 25 F
9571199 / 0002404000
Material
FFKM/SiC/Stainless steel
Type
S 25 KV- 25 F
For
T 25 easy clean, T 25 digital
Max. temperature ( °C )
220 °C
Safety Data Sheet
https://sw.llg.de/search?search=9571199
Immersion depth
40 ... 225 mm
Ø rotor ( mm )
18 mm
Max. working volume ( ml )
2000 ml
Min. working volume ( ml )
100 ml
Working volume
100 ... 2,000 ml
Final fineness emulsion ( µm )
1 ... 5 µm
Final fineness suspension ( µm )
5 ... 25 µm
Max. immersion depth ( mm )
225 mm
Min. immersion depth ( mm )
40 mm
Stator Ø ( mm )
25 mm
Kusy v balení
-
Na otázku

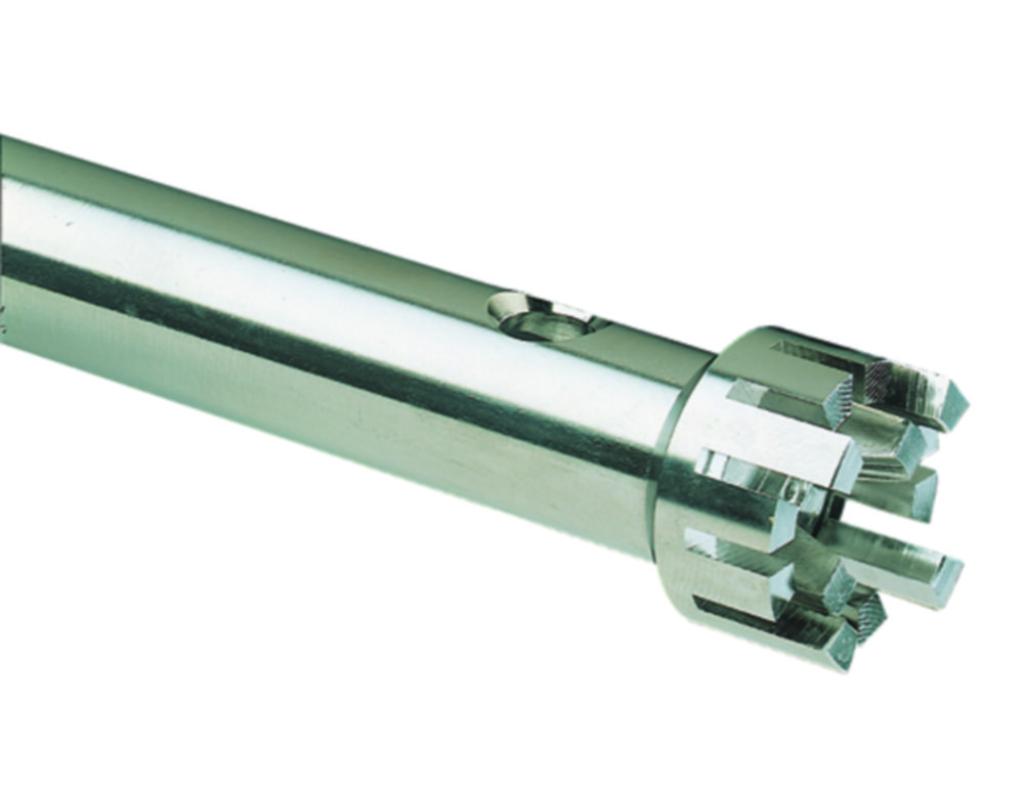

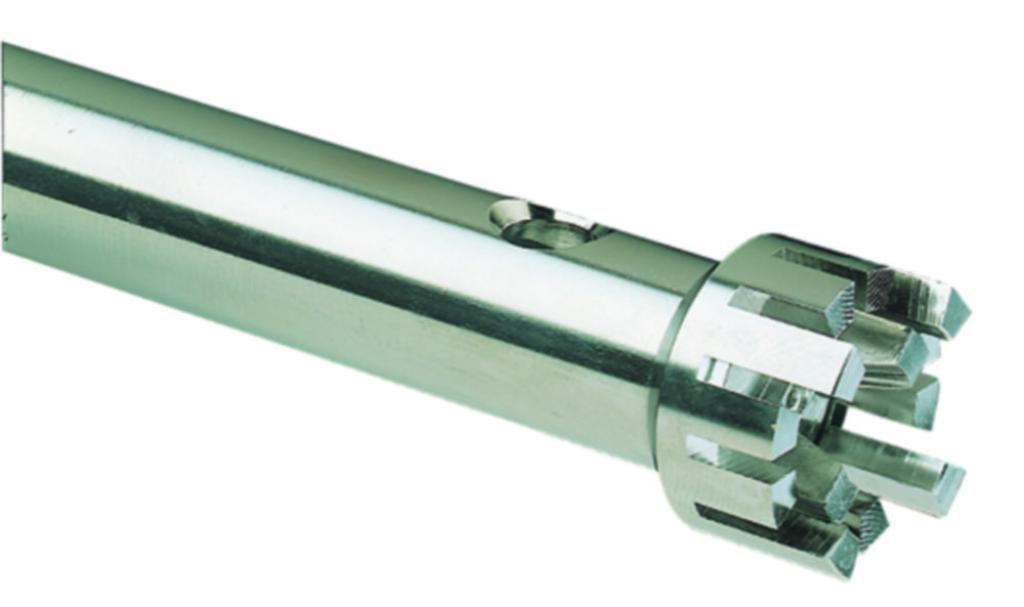

Obrázek produktové varianty S 25 N - 25 G
9571200 / 0001713300
Material
PTFE/Stainless steel
Type
S 25 N - 25 G
For
T 25 easy clean, T 25 digital
Max. temperature ( °C )
180 °C
Safety Data Sheet
https://sw.llg.de/search?search=9571200
Immersion depth
40 ... 165 mm
Ø rotor ( mm )
17 mm
Max. working volume ( ml )
2000 ml
Min. working volume ( ml )
50 ml
Working volume
50 ... 2,000 ml
Final fineness emulsion ( µm )
1 ... 10 µm
Final fineness suspension ( µm )
15 ... 50 µm
Max. immersion depth ( mm )
165 mm
Min. immersion depth ( mm )
40 mm
Stator Ø ( mm )
25 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty S 25 N - 25 F
9571201 / 0001713800
Material
PTFE/Stainless steel
Type
S 25 N - 25 F
For
T 25 easy clean, T 25 digital
Max. temperature ( °C )
180 °C
Safety Data Sheet
https://sw.llg.de/search?search=9571201
Immersion depth
40 ... 165 mm
Ø rotor ( mm )
18 mm
Max. working volume ( ml )
2000 ml
Min. working volume ( ml )
100 ml
Working volume
100 ... 2,000 ml
Final fineness emulsion ( µm )
1 ... 5 µm
Final fineness suspension ( µm )
5 ... 25 µm
Max. immersion depth ( mm )
165 mm
Min. immersion depth ( mm )
40 mm
Stator Ø ( mm )
25 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty S 25 N - 10 G
9571207 / 0000594000
Material
PTFE/Stainless steel
Type
S 25 N - 10 G
For
T 25 easy clean, T 25 digital, T 25 mini control
Max. temperature ( °C )
180 °C
Safety Data Sheet
https://sw.llg.de/search?search=9571207
Immersion depth
22 ... 85 mm
Ø rotor ( mm )
7.5 mm
Max. working volume ( ml )
100 ml
Min. working volume ( ml )
1 ml
Working volume
1 ... 100 ml
Final fineness emulsion ( µm )
1 ... 10 µm
Final fineness suspension ( µm )
10 ... 50 µm
Max. immersion depth ( mm )
85 mm
Min. immersion depth ( mm )
22 mm
Stator Ø ( mm )
10 mm
Kusy v balení
-
Na otázku

Technické špecifikácie

UNSPSC 41101520

Fotografie

Disperzné hlavy pre sériu T 25 ULTRA-TURRAX® Disperzné hlavy pre sériu T 25 ULTRA-TURRAX® Disperzné hlavy pre sériu T 25 ULTRA-TURRAX® Disperzné hlavy pre sériu T 25 ULTRA-TURRAX® Disperzné hlavy pre sériu T 25 ULTRA-TURRAX® Disperzné hlavy pre sériu T 25 ULTRA-TURRAX®

Otázka k produktu

Podobné produkty

Zvoľte, kam bude tovar pridaný

Prihlásenie
