Zobraziť katalóg
Bunky na meranie absorpcie, prietokové meranie, UV rozsah, 2 skrutkové svorky Ďalšie fotografie

Bunky na meranie absorpcie, prietokové meranie, UV rozsah, 2 skrutkové svorky

M 6 x 1 a FEP rúrky (vonkajší priemer 1,9 mm, vnútorný priemer 1,1 mm, dĺžka 500 mm).
Zvoľte variant
Výrobca
  • Hellma GmbH & Co. KG
Kategória

Varianty produktu

Názov Katalógové číslo / Kód produktu
Material UNSPSC Int. width ( mm ) Ext. depth ( mm ) Capacity ( g ) Safety Data Sheet Ext. dim. (WxDxH) Wavelength ( nm ) Path length ( mm ) Type of cuvette Centre height ( mm )
Kusy v balení Cena bez DPH
Obrázek produktové varianty [LLG] Cells for absorption measurement, flow-through measurement, UV-range, 2 screw terminals
6059697 / 1767005-15-40
Material
Quartz glass
UNSPSC
41-12-18-13
Int. width ( mm )
3.5 mm
Ext. depth ( mm )
12.5 mm
Capacity ( g )
195 µl
Safety Data Sheet
https://sw.llg.de/search?search=6059697
Ext. dim. (WxDxH)
12.5 x 12.5 x 35 mm
Wavelength ( nm )
200...2500 nm
Path length ( mm )
5 mm
Type of cuvette
Semi-Micro
Centre height ( mm )
15 mm
Kusy v balení
-
Na otázku
Obrázek produktové varianty [LLG] Cells for absorption measurement, flow-through measurement, UV-range, 2 screw terminals
6206587 / 170700-0.2-40
Material
Quartz glass
UNSPSC
41-12-18-13
Int. width ( mm )
3.5 mm
Ext. depth ( mm )
12.5 mm
Capacity ( g )
12 µl
Safety Data Sheet
https://sw.llg.de/search?search=6206587
Ext. dim. (WxDxH)
12.5 x 12.5 x 35 mm
Wavelength ( nm )
200...2500 nm
Path length ( mm )
0,2 mm
Type of cuvette
Micro
Centre height ( mm )
-
Kusy v balení
1
Na otázku
Obrázek produktové varianty [LLG] Cells for absorption measurement, flow-through measurement, UV-range, 2 screw terminals
6231336 / 1767001550-40
Material
Quartz glass
UNSPSC
41-12-18-13
Int. width ( mm )
3.5 mm
Ext. depth ( mm )
52.5 mm
Capacity ( g )
1,950 µl
Safety Data Sheet
https://sw.llg.de/search?search=6231336
Ext. dim. (WxDxH)
12.5 x 52.5 x 35 mm
Wavelength ( nm )
200...2500 nm
Path length ( mm )
50 mm
Type of cuvette
Semi-Micro
Centre height ( mm )
15 mm
Kusy v balení
1
Na otázku
Obrázek produktové varianty [LLG] Cells for absorption measurement, flow-through measurement, UV-range, 2 screw terminals
6300086 / 178-710-10-40
Material
Quartz glass
UNSPSC
41-12-18-13
Int. width ( mm )
3 mm
Ext. depth ( mm )
12.5 mm
Capacity ( g )
80 µl
Safety Data Sheet
https://sw.llg.de/search?search=6300086
Ext. dim. (WxDxH)
12.5 x 12.5 x 35 mm
Wavelength ( nm )
200...2500 nm
Path length ( mm )
10 mm
Type of cuvette
Micro
Centre height ( mm )
15 mm
Kusy v balení
1
Na otázku
Obrázek produktové varianty [LLG] Cells for absorption measurement, flow-through measurement, UV-range, 2 screw terminals
6300696 / 1767005-85-40
Material
Quartz glass
UNSPSC
41-12-18-13
Int. width ( mm )
3.5 mm
Ext. depth ( mm )
12.5 mm
Capacity ( g )
195 µl
Safety Data Sheet
https://sw.llg.de/search?search=6300696
Ext. dim. (WxDxH)
12.5 x 12.5 x 35 mm
Wavelength ( nm )
200...2500 nm
Path length ( mm )
5 mm
Type of cuvette
Semi-Micro
Centre height ( mm )
8.5 mm
Kusy v balení
1
Na otázku
Obrázek produktové varianty [LLG] Cells for absorption measurement, flow-through measurement, UV-range, 2 screw terminals
6320154 / 1787118510-20
Material
Special optical glass
UNSPSC
41121813
Int. width ( mm )
2 mm
Ext. depth ( mm )
12.5 mm
Capacity ( g )
30 µl
Safety Data Sheet
https://sw.llg.de/search?search=6320154
Ext. dim. (WxDxH)
12.5 x 12.5 x 35 mm
Wavelength ( nm )
320...2500 nm
Path length ( mm )
10 mm
Type of cuvette
-
Centre height ( mm )
8.5 mm
Kusy v balení
1
Na otázku
Obrázek produktové varianty [LLG] Cells for absorption measurement, flow-through measurement, UV-range, 2 screw terminals
7601951 / 1787108510-40
Material
Quartz glass
UNSPSC
41-12-18-13
Int. width ( mm )
3 mm
Ext. depth ( mm )
12.5 mm
Capacity ( g )
80 µl
Safety Data Sheet
https://sw.llg.de/search?search=7601951
Ext. dim. (WxDxH)
12.5 x 12.5 x 35 mm
Wavelength ( nm )
200...2500 nm
Path length ( mm )
10 mm
Type of cuvette
Micro
Centre height ( mm )
8.5 mm
Kusy v balení
1
Na otázku
Obrázek produktové varianty [LLG] Cells for absorption measurement, flow-through measurement, UV-range, 2 screw terminals
9144660 / 170700-0.1-40
Material
Quartz glass
UNSPSC
41121813
Int. width ( mm )
3.5 mm
Ext. depth ( mm )
12.5 mm
Capacity ( g )
6 µl
Safety Data Sheet
https://sw.llg.de/search?search=9144660
Ext. dim. (WxDxH)
12.5 x 12.5 x 35 mm
Wavelength ( nm )
200...2500 nm
Path length ( mm )
0,1 mm
Type of cuvette
Micro
Centre height ( mm )
-
Kusy v balení
1
Na otázku
Obrázek produktové varianty [LLG] Cells for absorption measurement, flow-through measurement, UV-range, 2 screw terminals
9144662 / 170700-0.5-40
Material
Quartz glass
UNSPSC
41121813
Int. width ( mm )
3.5 mm
Ext. depth ( mm )
12.5 mm
Capacity ( g )
31 µl
Safety Data Sheet
https://sw.llg.de/search?search=9144662
Ext. dim. (WxDxH)
12.5 x 12.5 x 35 mm
Wavelength ( nm )
200...2500 nm
Path length ( mm )
0,5 mm
Type of cuvette
Micro
Centre height ( mm )
-
Kusy v balení
1
Na otázku

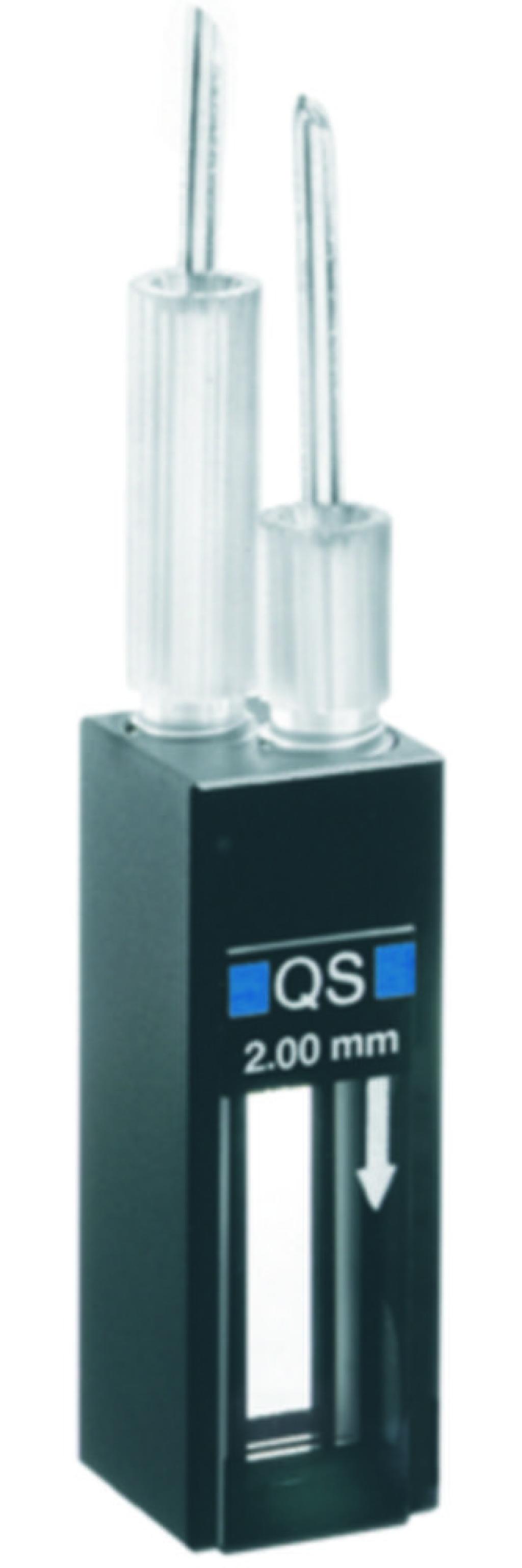

Obrázek produktové varianty [LLG] Cells for absorption measurement, flow-through measurement, UV-range, 2 screw terminals
9144663 / 170-700-2-40
Material
Quartz glass
UNSPSC
41121813
Int. width ( mm )
3.5 mm
Ext. depth ( mm )
12.5 mm
Capacity ( g )
124 µl
Safety Data Sheet
https://sw.llg.de/search?search=9144663
Ext. dim. (WxDxH)
12.5 x 12.5 x 35 mm
Wavelength ( nm )
200...2500 nm
Path length ( mm )
2 mm
Type of cuvette
Micro
Centre height ( mm )
-
Kusy v balení
1
Na otázku

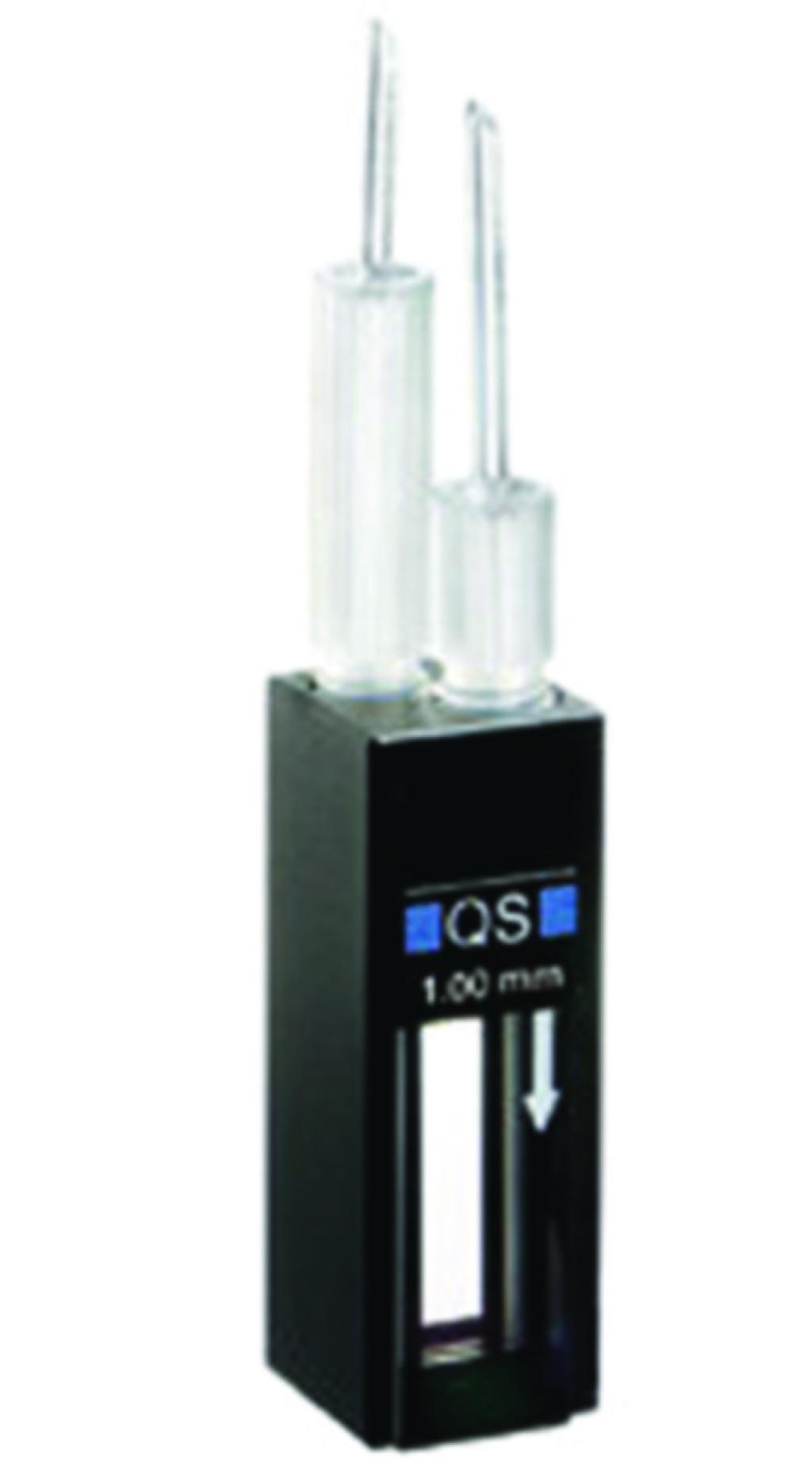

Obrázek produktové varianty [LLG] Cells for absorption measurement, flow-through measurement, UV-range, 2 screw terminals
9144664 / 170-700-1-40
Material
Quartz glass
UNSPSC
41121813
Int. width ( mm )
3.5 mm
Ext. depth ( mm )
12.5 mm
Capacity ( g )
62 µl
Safety Data Sheet
https://sw.llg.de/search?search=9144664
Ext. dim. (WxDxH)
12.5 x 12.5 x 35 mm
Wavelength ( nm )
200...2500 nm
Path length ( mm )
1 mm
Type of cuvette
Micro
Centre height ( mm )
-
Kusy v balení
-
Na otázku
Obrázek produktové varianty [LLG] Cells for absorption measurement, flow-through measurement, UV-range, 2 screw terminals
9144666 / 1767008510-40
Material
Quartz glass
UNSPSC
41121813
Int. width ( mm )
3.5 mm
Ext. depth ( mm )
12.5 mm
Capacity ( g )
390 µl
Safety Data Sheet
https://sw.llg.de/search?search=9144666
Ext. dim. (WxDxH)
12.5 x 12.5 x 35 mm
Wavelength ( nm )
200...2500 nm
Path length ( mm )
10 mm
Type of cuvette
Semi-Micro
Centre height ( mm )
8.5 mm
Kusy v balení
1
Na otázku

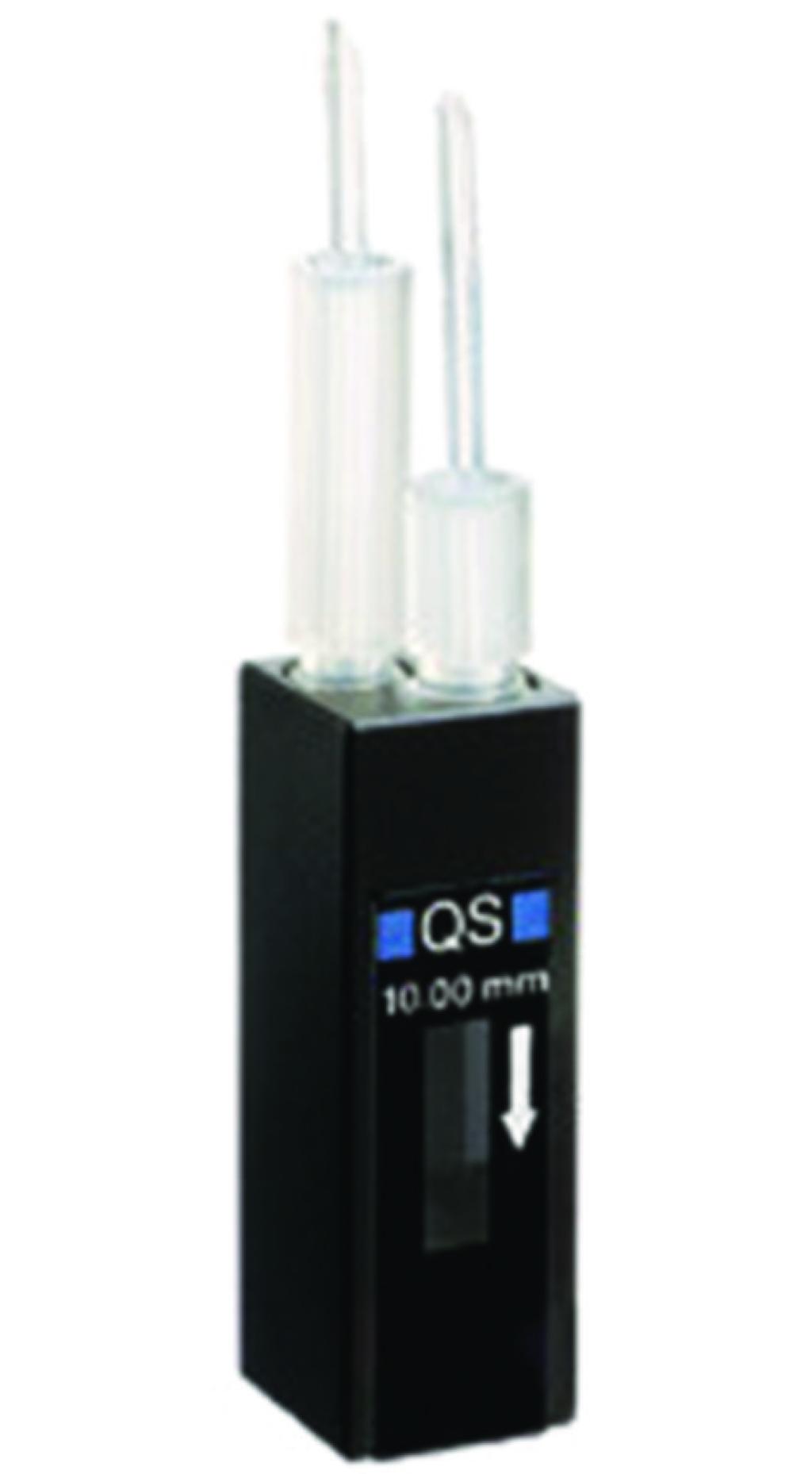

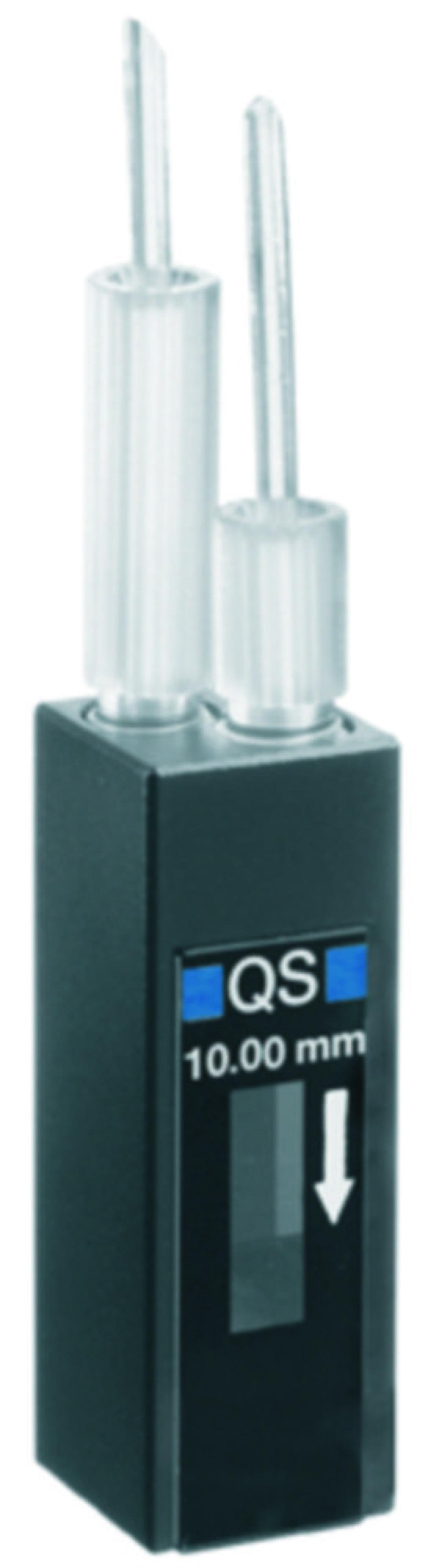

Obrázek produktové varianty [LLG] Cells for absorption measurement, flow-through measurement, UV-range, 2 screw terminals
9144667 / 1767001510-40
Material
Quartz glass
UNSPSC
41121813
Int. width ( mm )
3.5 mm
Ext. depth ( mm )
12.5 mm
Capacity ( g )
390 µl
Safety Data Sheet
https://sw.llg.de/search?search=9144667
Ext. dim. (WxDxH)
12.5 x 12.5 x 35 mm
Wavelength ( nm )
200...2500 nm
Path length ( mm )
10 mm
Type of cuvette
Semi-Micro
Centre height ( mm )
15 mm
Kusy v balení
-
Na otázku

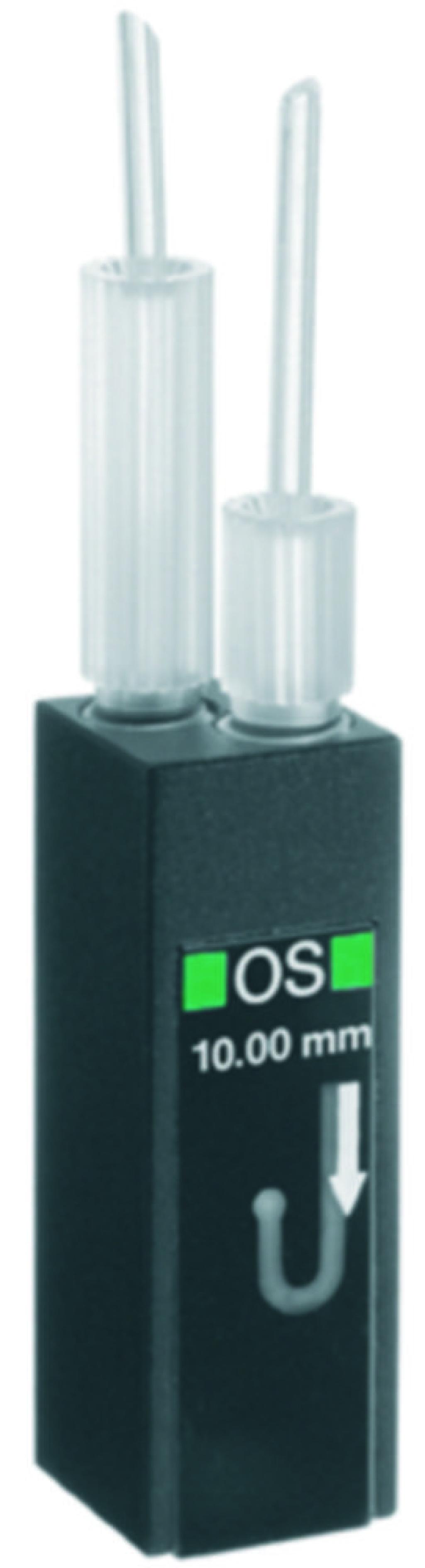

Obrázek produktové varianty [LLG] Cells for absorption measurement, flow-through measurement, UV-range, 2 screw terminals
9144672 / 178712-10-20
Material
Special optical glass
UNSPSC
41121813
Int. width ( mm )
1.5 mm
Ext. depth ( mm )
12.5 mm
Capacity ( g )
18 µl
Safety Data Sheet
https://sw.llg.de/search?search=9144672
Ext. dim. (WxDxH)
12.5 x 12.5 x 35 mm
Wavelength ( nm )
320...2500 nm
Path length ( mm )
10 mm
Type of cuvette
-
Centre height ( mm )
8.5 mm
Kusy v balení
1
Na otázku

Technické špecifikácie

Ext. height 35 mm
Ext. width 12.5 mm

Fotografie

Bunky na meranie absorpcie, prietokové meranie, UV rozsah, 2 skrutkové svorky Bunky na meranie absorpcie, prietokové meranie, UV rozsah, 2 skrutkové svorky Bunky na meranie absorpcie, prietokové meranie, UV rozsah, 2 skrutkové svorky Bunky na meranie absorpcie, prietokové meranie, UV rozsah, 2 skrutkové svorky Bunky na meranie absorpcie, prietokové meranie, UV rozsah, 2 skrutkové svorky Bunky na meranie absorpcie, prietokové meranie, UV rozsah, 2 skrutkové svorky
