<sub>CO2</sub> inkubátory CB Ďalšie fotografie

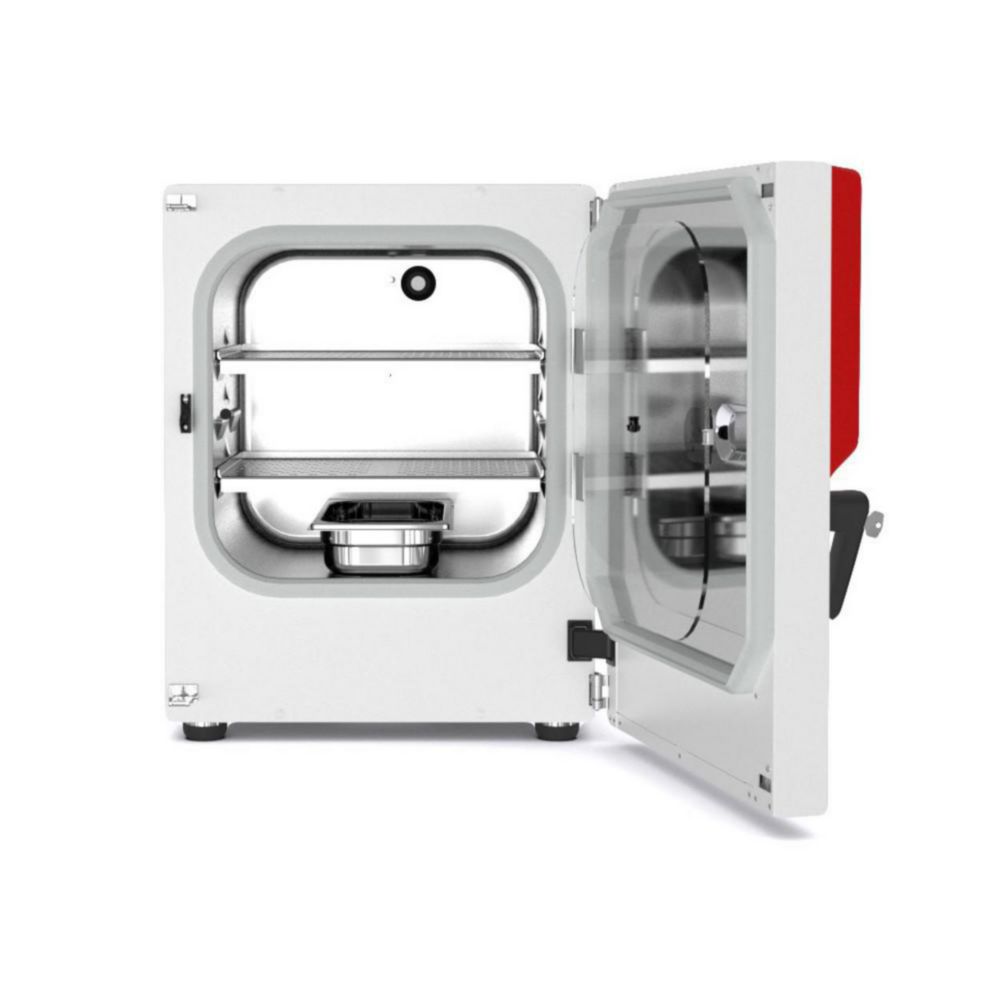

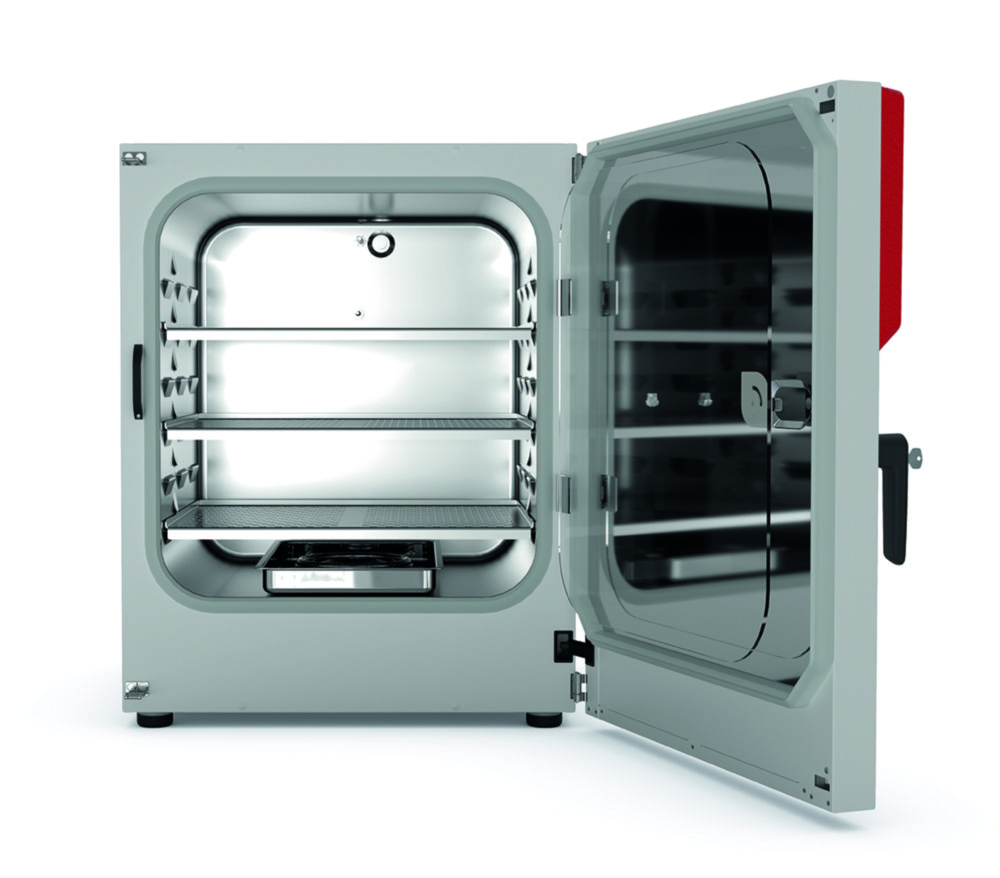

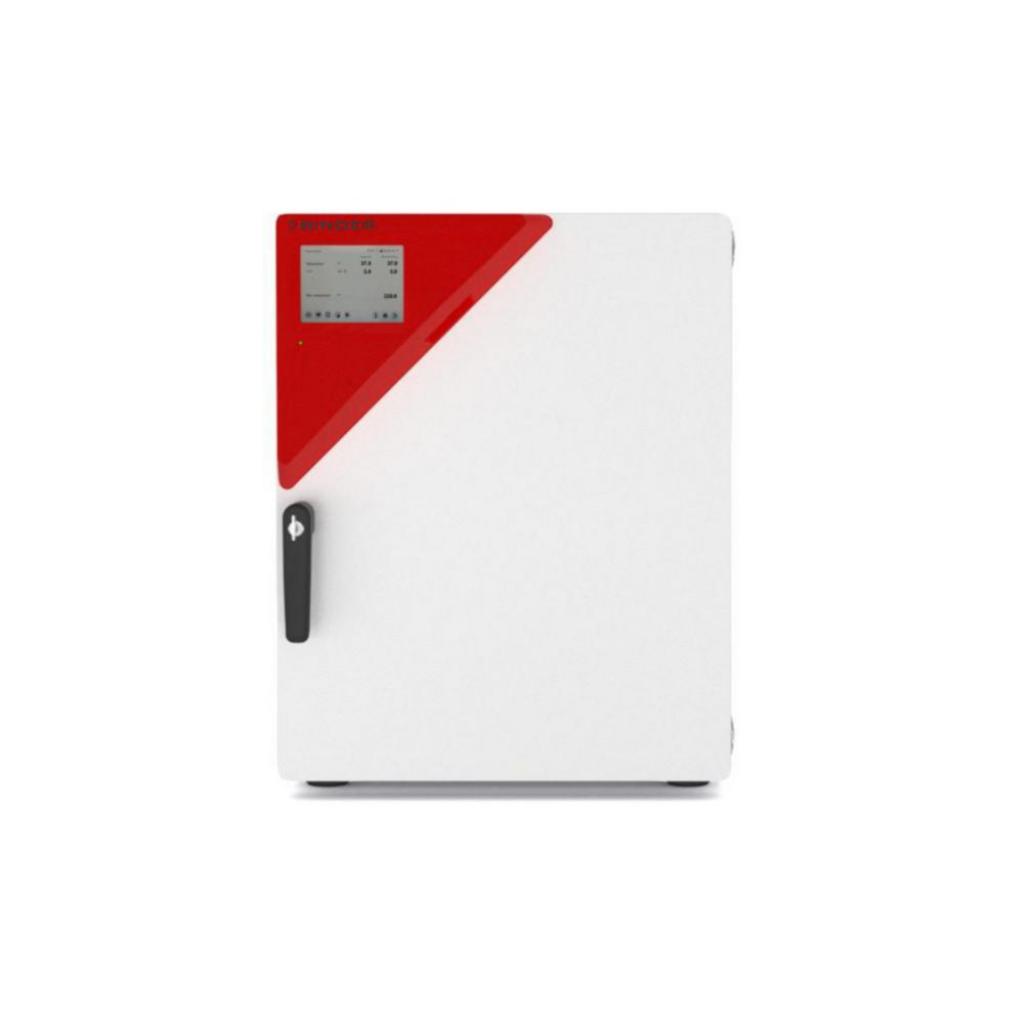

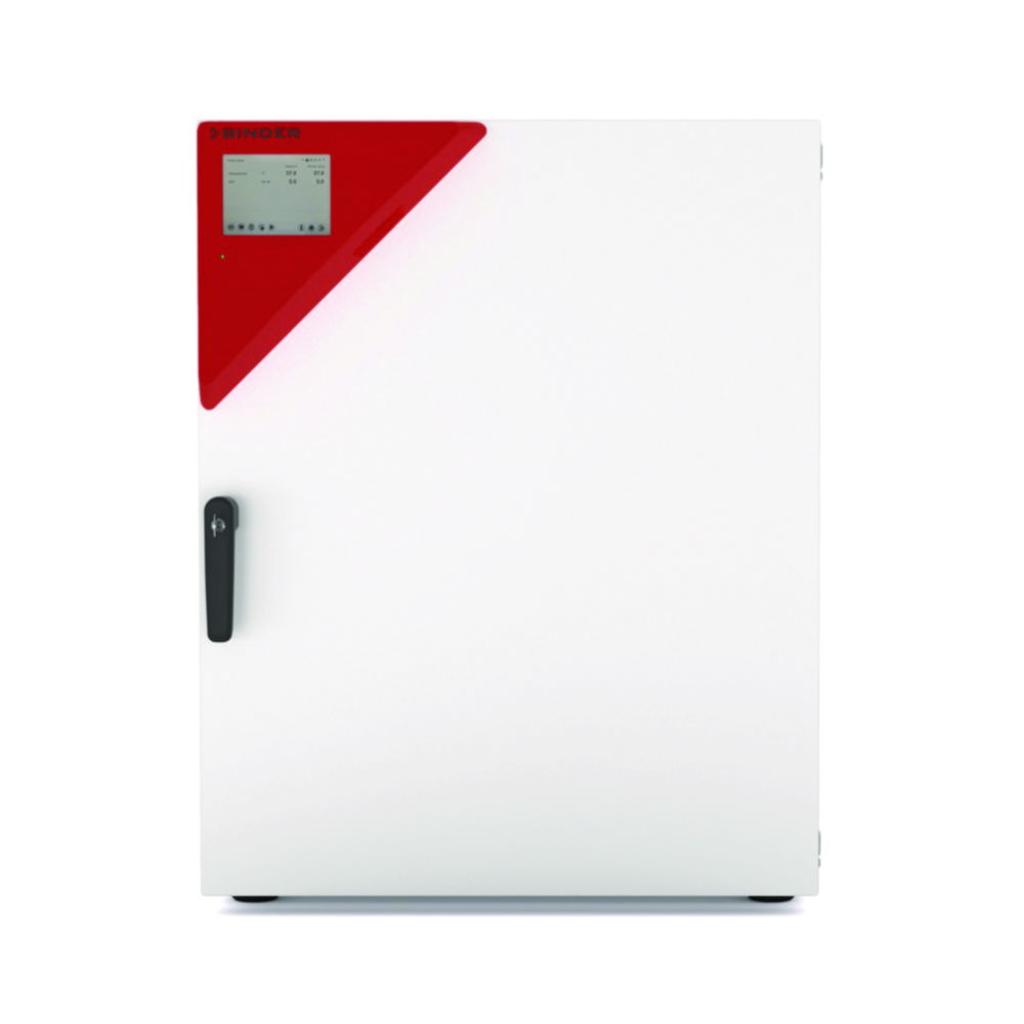

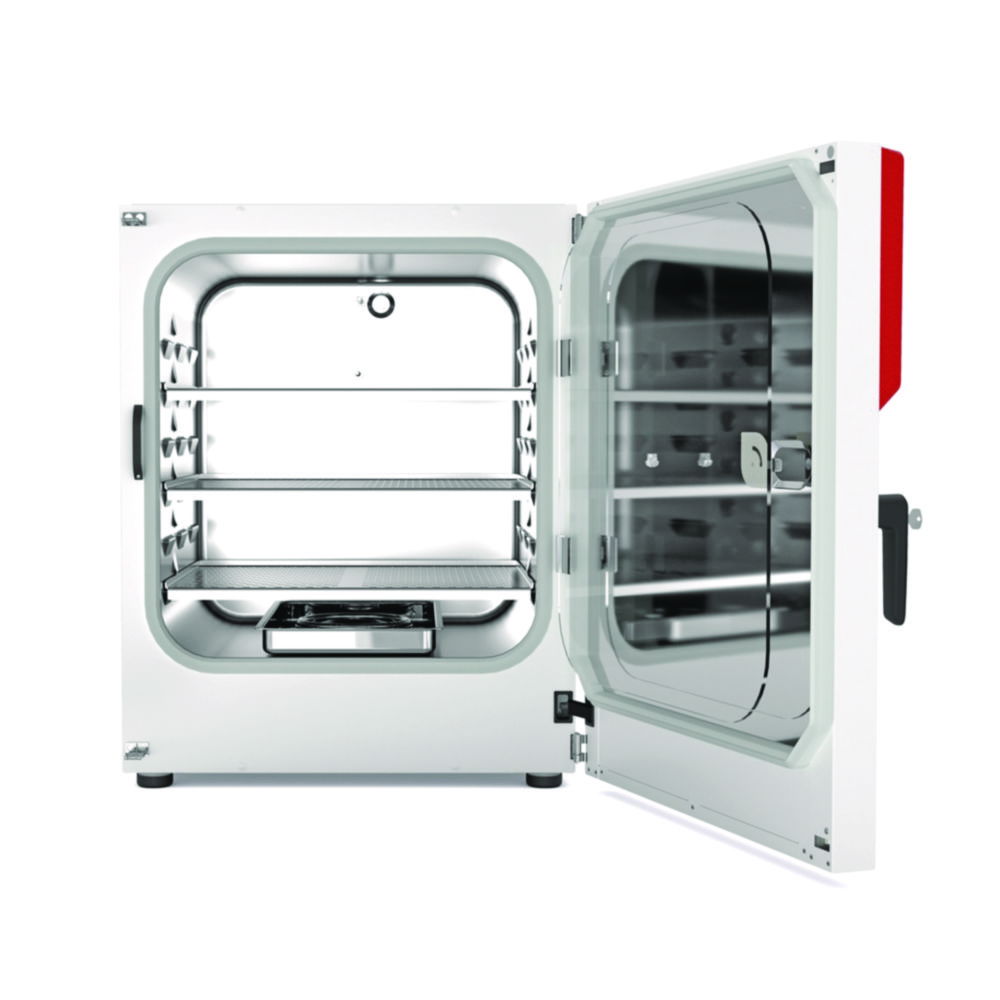

CO2 inkubátory CB

  • Zvlhčovací systém s ochranou proti kondenzácii

  • Dotykový ovládač

  • SystémCO2 s ochranou proti zlyhaniu na ochranu pH bunkových kultúr
Zvoľte variant
Výrobca
  • BINDER GmbH
Kategória

Varianty produktu

Názov Katalógové číslo / Kód produktu
Nominal capacity ( ml ) Weight ( g ) Type Min. temperature ( &deg;C ) Depth int. ( mm ) Height int. ( mm ) Int. width ( mm ) Ext. depth ( mm ) Ext. height ( mm ) Ext. width ( mm ) Max. voltage ( V ) Min. voltage ( V ) Rated capacity ( W ) Power supply Safety Data Sheet Temperature Ext. dim. (WxDxH) Int. Dim. (WxDxH) Max. no. of inserts
Kusy v balení Cena bez DPH
Obrázek produktové varianty CB 260
4717823 / 9040-0207
Nominal capacity ( ml )
267 l
Weight ( g )
125 kg
Type
CB 260
Min. temperature ( &deg;C )
+5 &deg;C
Depth int. ( mm )
575 mm
Height int. ( mm )
750 mm
Int. width ( mm )
620 mm
Ext. depth ( mm )
785 mm
Ext. height ( mm )
1020 mm
Ext. width ( mm )
740 mm
Max. voltage ( V )
230 V
Min. voltage ( V )
200 V
Rated capacity ( W )
1.5 kW
Power supply
200 ... 230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4717823
Temperature
RT+5 ... 50 °C
Ext. dim. (WxDxH)
740 x 785 x 1,020 mm
Int. Dim. (WxDxH)
620 x 575 x 750 mm
Max. no. of inserts
8
Kusy v balení
1
Na otázku
Obrázek produktové varianty CB 170
4717827 / 9040-0199
Nominal capacity ( ml )
170 l
Weight ( g )
95 kg
Type
CB 170
Min. temperature ( &deg;C )
+4 &deg;C
Depth int. ( mm )
500 mm
Height int. ( mm )
600 mm
Int. width ( mm )
560 mm
Ext. depth ( mm )
715 mm
Ext. height ( mm )
870 mm
Ext. width ( mm )
680 mm
Max. voltage ( V )
230 V
Min. voltage ( V )
200 V
Rated capacity ( W )
1.4 kW
Power supply
200 ... 230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4717827
Temperature
RT+4 ... 50 °C
Ext. dim. (WxDxH)
680 x 715 x 870 mm
Int. Dim. (WxDxH)
560 x 500 x 600 mm
Max. no. of inserts
6
Kusy v balení
1
Na otázku
Obrázek produktové varianty CB 56
4717830 / 9040-0197
Nominal capacity ( ml )
53 l
Weight ( g )
53 kg
Type
CB 56
Min. temperature ( &deg;C )
+4 &deg;C
Depth int. ( mm )
330 mm
Height int. ( mm )
400 mm
Int. width ( mm )
400 mm
Ext. depth ( mm )
545 mm
Ext. height ( mm )
674 mm
Ext. width ( mm )
528 mm
Max. voltage ( V )
230 V
Min. voltage ( V )
200 V
Rated capacity ( W )
0.8 kW
Power supply
200 ... 230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4717830
Temperature
RT+4 ... 50 °C
Ext. dim. (WxDxH)
528 x 545 x 674 mm
Int. Dim. (WxDxH)
400 x 330 x 400 mm
Max. no. of inserts
3
Kusy v balení
1
Na otázku
Obrázek produktové varianty CB 56UL
4717833 / 9040-0198
Nominal capacity ( ml )
53 l
Weight ( g )
53 kg
Type
CB 56UL
Min. temperature ( &deg;C )
+4 &deg;C
Depth int. ( mm )
330 mm
Height int. ( mm )
400 mm
Int. width ( mm )
400 mm
Ext. depth ( mm )
545 mm
Ext. height ( mm )
674 mm
Ext. width ( mm )
528 mm
Max. voltage ( V )
120 V
Min. voltage ( V )
100 V
Rated capacity ( W )
0.8 kW
Power supply
100 ... 120 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4717833
Temperature
RT+4 ... 50 °C
Ext. dim. (WxDxH)
528 x 545 x 674 mm
Int. Dim. (WxDxH)
400 x 330 x 400 mm
Max. no. of inserts
3
Kusy v balení
-
Na otázku
Obrázek produktové varianty CB 260UL
4717834 / 9040-0209
Nominal capacity ( ml )
267 l
Weight ( g )
125 kg
Type
CB 260UL
Min. temperature ( &deg;C )
+5 &deg;C
Depth int. ( mm )
575 mm
Height int. ( mm )
750 mm
Int. width ( mm )
620 mm
Ext. depth ( mm )
785 mm
Ext. height ( mm )
1020 mm
Ext. width ( mm )
740 mm
Max. voltage ( V )
120 V
Min. voltage ( V )
100 V
Rated capacity ( W )
1.5 kW
Power supply
100 ... 120 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=4717834
Temperature
RT+5 ... 50 °C
Ext. dim. (WxDxH)
740 x 785 x 1,020 mm
Int. Dim. (WxDxH)
620 x 575 x 750 mm
Max. no. of inserts
8
Kusy v balení
-
Na otázku

Technické špecifikácie

CO₂ range 0 ... 20 %
Power supply frequency 50/60 Hz
Material interior Stainless steel
Max. CO₂ 20 %
Max. relative humidity 95 %
Max. temperature 50 °C
Min. CO₂ 0 %
Min. relative humidity 90 %
Relative humidity 90 ... 95 %
Temperature stability ±0,1 K (37 °C) °C
Temperature addition RT
Type of auxiliary energy Mains connection
UNSPSC 41104425
