Temperature, humidity, pressure and CO<sub>2</sub> logger LOG220E More photos

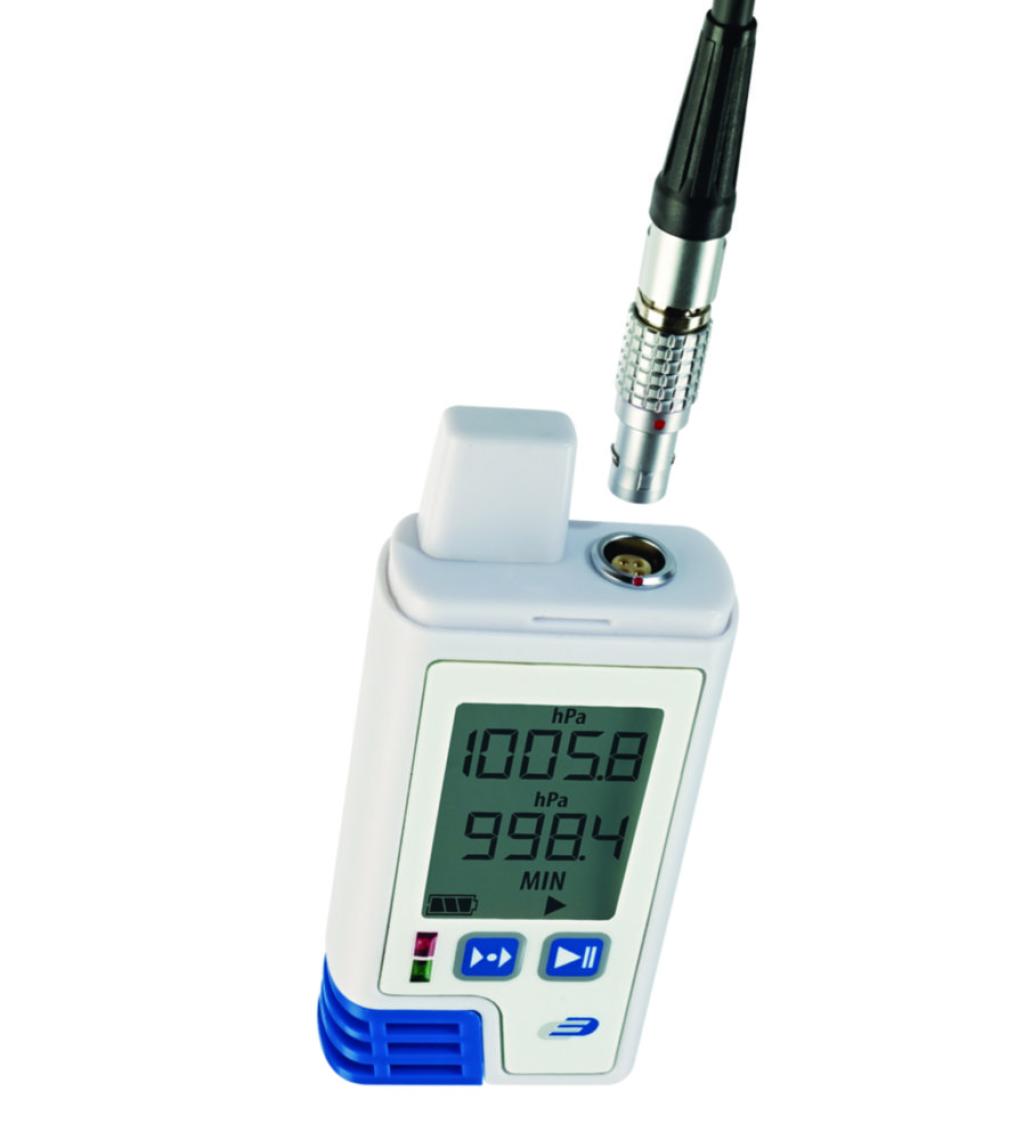

Temperature, humidity, pressure and CO2 logger LOG220E

Data logger for temperature, humidity and pressure recording with an external connection for a CO2 sensor or humidity, pressure and temperature sensor.
  • Freely adjustable recording interval from 10 seconds to 24 hours

  • Min- and Max-values can be reset in the display

  • Time marking function ("Time Marker") during data recording

  • With movement sensor for shock recording

  • Memory for approx. 60000 measurements

  • Automatic output as PDF file, device can also be used without software

  • No driver installation needed

  • Status and alarm LEDs, with buzzer

  • Display can be switched off

  • Battery life > 4 years at > 15 min measuring interval

  • USB interface for data transfer

  • Software available for download on the manufacturer's website (free of charge)


Temperature, pressure humidity and CO2 sensors are available separately.

Scope of supply: Data logger, wall mount, battery (1/2 AA 3.6 V), USB cover, screws and dowels
Choose a variant
Manufacturer
  • DOSTMANN electronic GmbH
Category

Product variant

Name Hermes code and manufacturer code Pieces in a package Price without VAT
Obrázek produktové varianty LOG220E
6311947 / 5005-0222
Pieces in a package
1
Upon request

Technical specifications

Air pressure 300 ... 1,100 hPa
Depth 20 mm
Dimensions (WxDxH) 42 x 20 x 91.5 mm
Height 91.5 mm
Max. air pressure 1100 hPa
Max. measuring cycle 24 h min
Max. relative humidity 100 %
Max. temp. (external) 850 °C
Max. temperature 70 °C
Measuring cycle 10 sec ... 24 h
Min. air pressure 300 hPa
Min. measuring cycle 10 sec
Min. relative humidity 0 %
Min. temp. (external) -200 °C
Min. temperature -40 °C
Relative humidity 0 ... 100 %
Resolution 0.1 °C
Resolution air pressure 0.1 hPa
Resolution rel. humidity 0.1 %
Temperature external -200 ... 850 °C
Temperature -40 ... 70 °C
Type LOG220E
Type of auxiliary energy Battery
UNSPSC 41110000
Weight 70 g
Width 42 mm
With external sensor No
Safety Data Sheet https://sw.llg.de/search?search=6311947
