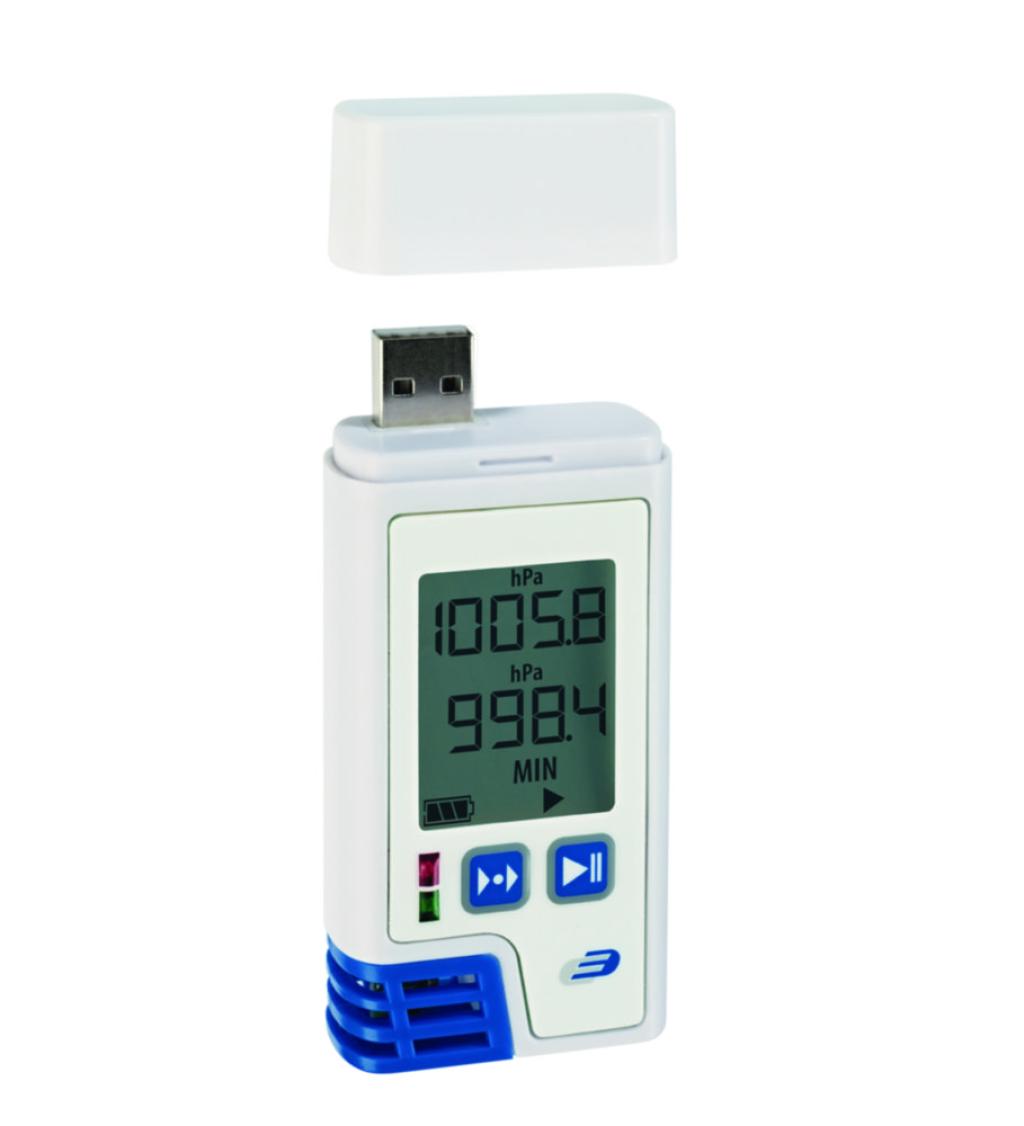

Temperature/Humidity/Pressure data logger LOG 220 More photos

Temperature/Humidity/Pressure data logger LOG 220

  • PDF-data logger with display

  • Memory size: 60000 measurements

  • Usable without software (default settings) (5-minute-interval, without alarm settings)

  • Automatic PDF creation

  • Free adjustable recording interval (10 seconds to 24 hours)

  • Max-Min-Display memory (resettable)

  • Time marking functions for measuring results

  • Movement sensor for shock recording e.g.: door or windows closing

  • Battery lifetime approx. 4 years (recording interval >15 minutes)

  • Includes wall mount

  • Status- and Alarm-LEDs

  • Battery: 1/2 AA, 3.6 V


Free software LogConnect, for configuring (alarms, interval, changing display settings) or LogGraph2 for comfortable graphical and tabular display of measured values, incl. drag and zoom. Software is available as download.
Choose a variant
Manufacturer
  • DOSTMANN electronic GmbH
Category

Product variant

Name Hermes code and manufacturer code Pieces in a package Price without VAT
Obrázek produktové varianty LOG220
6284759 / 5005-0220
Pieces in a package
1
Upon request

Technical specifications

Air pressure 300 ... 1,100 hPa
Depth 20 mm
Dimensions (WxDxH) 42 x 20 x 91.5 mm
Height 91.5 mm
Max. air pressure 1100 hPa
Max. relative humidity 100 %
Max. temperature 70 °C
Min. air pressure 300 hPa
Min. relative humidity 0 %
Min. temperature -40 °C
Relative humidity 0 ... 100 %
Resolution 0.1 °C
Resolution air pressure 0.1 hPa
Resolution rel. humidity 0.1 %
Temperature -40 ... 70 °C
Type LOG220
Type of auxiliary energy Battery
UNSPSC 41112405
Weight 70 g
Width 42 mm
With external sensor No
Safety Data Sheet https://sw.llg.de/search?search=6284759
