Scroll pump SCSpro 15 More photos

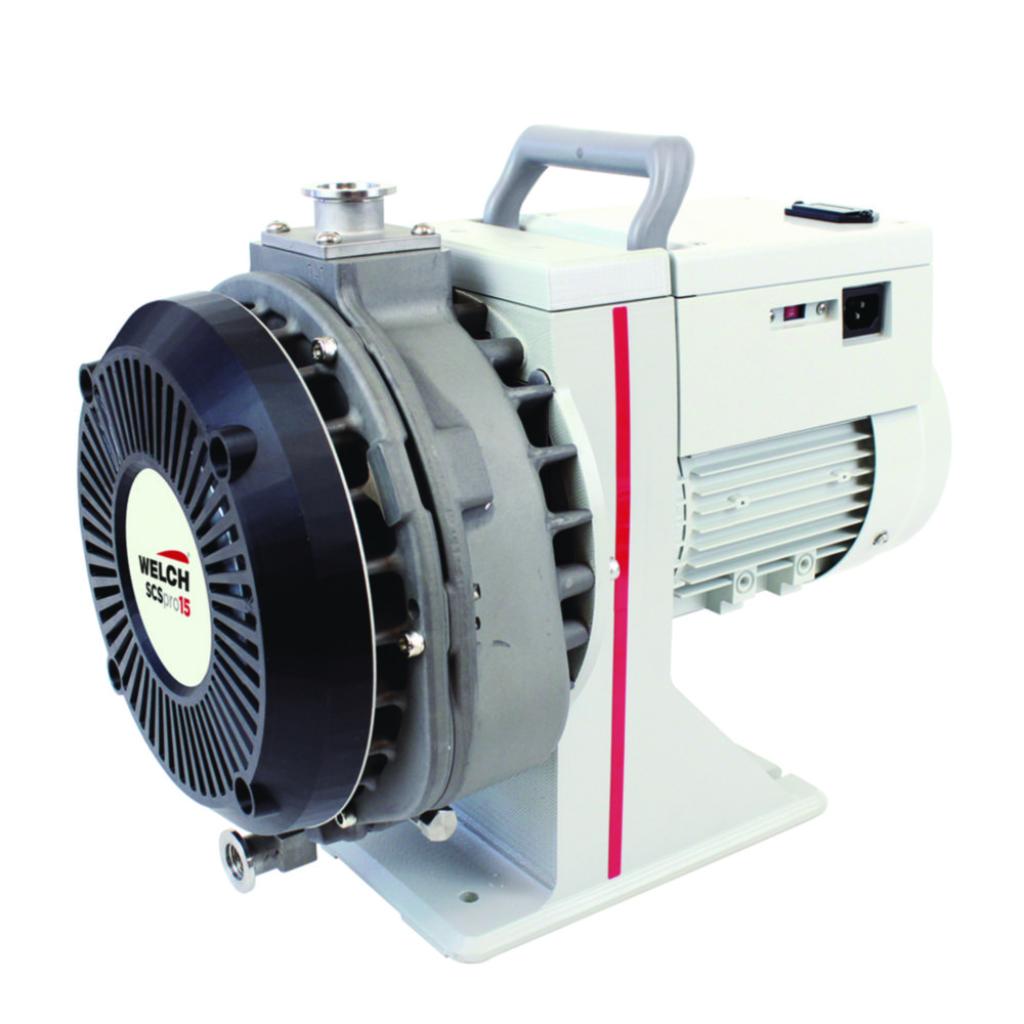

Scroll pump SCSpro 15

This oil-free scroll pump with self-cleaning air flush is the alternative solution to oil-sealed rotary vane pumps. The vacuum is generated by the continuous inclusion of gas pockets, which pass from the inlet to the outlet opening via a two-sided spiral mechanism.

Self-cleaning function during operation without affecting the vacuum
Continuous operation between ultimate vacuum pressure and atmosphere
Robust dual voltage/frequency motor
Made of high-quality materials
Integrated hour meter for accurate servicing
Built-in handle for easy transport
Modular design allows fast, easy maintenance
Choose a variant
Manufacturer
  • Gardner Denver Thomas GmbH
Category

Product variant

Name Hermes code and manufacturer code Pieces in a package Price without VAT
Obrázek produktové varianty SCSpro 15
6522023 / 5152-00
Pieces in a package
-
Upon request

Technical specifications

Connection pressure side KF DN 16
Connection suction side KF DN 25
Depth 429 mm
Dimensions (WxDxH) 244 x 429 x 353 mm
Flow rate 233 l/min
Power supply frequency 50/60 Hz
Height 353 mm
Max. voltage 230 V
Noise level 53 db(A)
Plug type EU/UK
Power supply 230 V, 50/60 Hz
Type SCSpro 15
Type of auxiliary energy Mains connection
Ultimate vacuum 0.012 mbar
Weight 25 kg
Width 244 mm

Photos

Scroll pump SCSpro 15
