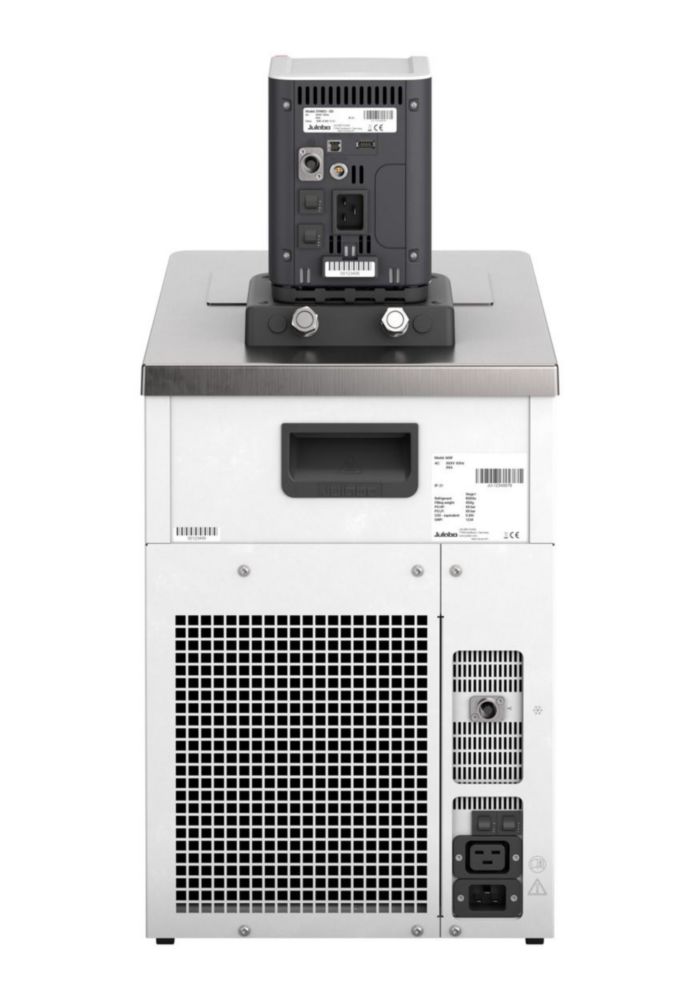

Refrigerated circulators DYNEO™ DD

Refrigerated circulators are suitable for temperature control for internal and external applications. Operation is simple and intuitive via the central rotary knob on the front of the unit.

3.5" TFT colour display with multilingual user interface

Integrated programmer for 8 x 60 program steps

Easy pump switching between internal and external circulation

External pump connections (M16x1)

Infinitely adjustable pressure pump

USB connection

Space-saving cooling coil design yields more usable space in the bath tank

External Pt100 connection

Stainless steel bath tank including bath lid and drain tap

Removable ventilation grid

2 hose olives each suitable for hose inner diameter 8 and 12 mm included

Class III (FL) acc. to DIN 12876-1

Choose a variant

Manufacturer

Julabo GmbH

Product variant

Name

Hermes code and manufacturer code

Weight ( g )	Type	Min. temperature ( °C )	Ext. depth ( mm )	Ext. height ( mm )	Ext. width ( mm )	Max. temperature ( °C )	Depth opening ( mm )	Width opening ( mm )	Safety Data Sheet	IP code	Temperature	Ext. dim. (WxDxH)	Max. volume bath ( l )	Cooling capacity at 20 °C ( kW )	Volume bath	Opening (WxD)	Bath depth ( mm )	Min. volume bath ( l )	Refrigerant

Pieces in a package

Price without VAT

DD-200F

4663225 / 9021701

Weight ( g )

25.7 kg

Type

DD-200F

Min. temperature ( °C )

-20 °C

Ext. depth ( mm )

390 mm

Ext. height ( mm )

650 mm

Ext. width ( mm )

230 mm

Max. temperature ( °C )

200 °C

Depth opening ( mm )

150 mm

Width opening ( mm )

130 mm

Safety Data Sheet

IP code

IP 21

Temperature

-20 ... 200 °C

Ext. dim. (WxDxH)

230 x 390 x 650 mm

Max. volume bath ( l )

4 l

Cooling capacity at 20 °C ( kW )

0,2 kW

Volume bath

3 ... 4 l

Opening (WxD)

130 x 150 mm

Bath depth ( mm )

150 mm

Min. volume bath ( l )

3 l

Refrigerant

R134a

Pieces in a package

Upon request

DD-201F

4663226 / 9021702

Weight ( g )

24.7 kg

Type

DD-201F

Min. temperature ( °C )

-20 °C

Ext. depth ( mm )

410 mm

Ext. height ( mm )

440 mm

Ext. width ( mm )

440 mm

Max. temperature ( °C )

200 °C

Depth opening ( mm )

150 mm

Width opening ( mm )

130 mm

Safety Data Sheet

IP code

Temperature

-20 ... 200 °C

Ext. dim. (WxDxH)

440 x 410 x 440 mm

Max. volume bath ( l )

4 l

Cooling capacity at 20 °C ( kW )

0,2 kW

Volume bath

3 ... 4 l

Opening (WxD)

130 x 150 mm

Bath depth ( mm )

150 mm

Min. volume bath ( l )

3 l

Refrigerant

R134a

Pieces in a package

Upon request

DD-300F

4663227 / 9021703

Weight ( g )

27.7 kg

Type

DD-300F

Min. temperature ( °C )

-25 °C

Ext. depth ( mm )

420 mm

Ext. height ( mm )

660 mm

Ext. width ( mm )

240 mm

Max. temperature ( °C )

200 °C

Depth opening ( mm )

150 mm

Width opening ( mm )

130 mm

Safety Data Sheet

IP code

Temperature

-25 ... 200 °C

Ext. dim. (WxDxH)

240 x 420 x 660 mm

Max. volume bath ( l )

4 l

Cooling capacity at 20 °C ( kW )

0,3 kW

Volume bath

3 ... 4 l

Opening (WxD)

130 x 150 mm

Bath depth ( mm )

150 mm

Min. volume bath ( l )

3 l

Refrigerant

R134a

Pieces in a package

Upon request

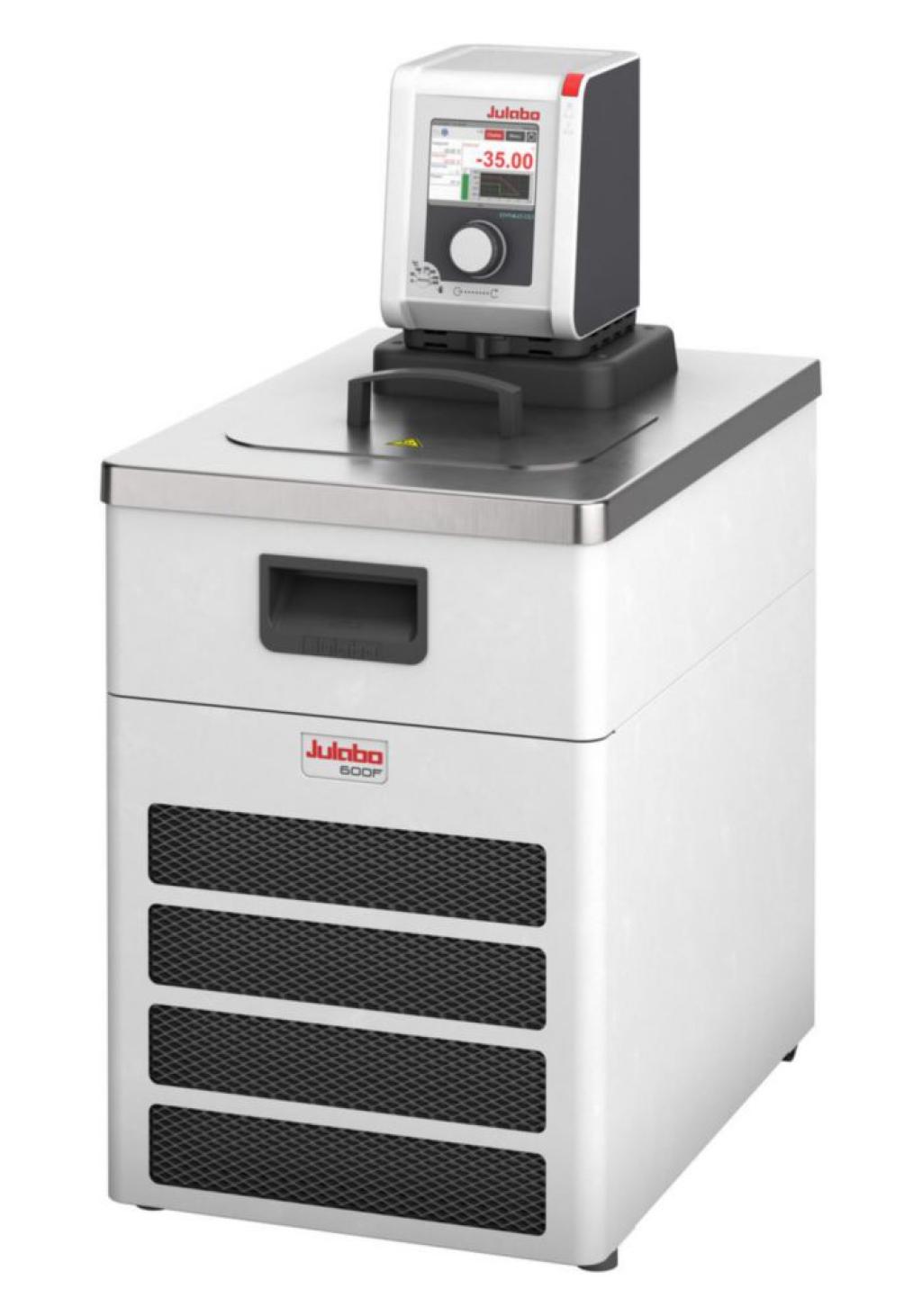

DD-600F

4663228 / 9021704

Weight ( g )

35.7 kg

Type

DD-600F

Min. temperature ( °C )

-35 °C

Ext. depth ( mm )

470 mm

Ext. height ( mm )

690 mm

Ext. width ( mm )

330 mm

Max. temperature ( °C )

200 °C

Depth opening ( mm )

150 mm

Width opening ( mm )

220 mm

Safety Data Sheet

IP code

IP 21

Temperature

-35 ... 200 °C

Ext. dim. (WxDxH)

330 x 470 x 690 mm

Max. volume bath ( l )

7.5 l

Cooling capacity at 20 °C ( kW )

0,6 kW

Volume bath

5 ... 7.5 l

Opening (WxD)

220 x 150 mm

Bath depth ( mm )

150 mm

Min. volume bath ( l )

5 l

Refrigerant

R449A

Pieces in a package

Upon request

DD-601F

4663229 / 9021705

Weight ( g )

38.2 kg

Type

DD-601F

Min. temperature ( °C )

-35 °C

Ext. depth ( mm )

470 mm

Ext. height ( mm )

740 mm

Ext. width ( mm )

330 mm

Max. temperature ( °C )

200 °C

Depth opening ( mm )

150 mm

Width opening ( mm )

220 mm

Safety Data Sheet

IP code

Temperature

-35 ... 200 °C

Ext. dim. (WxDxH)

330 x 470 x 740 mm

Max. volume bath ( l )

10 l

Cooling capacity at 20 °C ( kW )

0,6 kW

Volume bath

8 ... 10 l

Opening (WxD)

220 x 150 mm

Bath depth ( mm )

200 mm

Min. volume bath ( l )

8 l

Refrigerant

R449A

Pieces in a package

Upon request

DD-900F

4663230 / 9021706

Weight ( g )

51.7 kg

Type

DD-900F

Min. temperature ( °C )

-38 °C

Ext. depth ( mm )

Ext. height ( mm )

Ext. width ( mm )

Max. temperature ( °C )

200 °C

Depth opening ( mm )

350 mm

Width opening ( mm )

260 mm

Safety Data Sheet

IP code

IP 21

Temperature

-38 ... 200 °C

Ext. dim. (WxDxH)

Max. volume bath ( l )

30 l

Cooling capacity at 20 °C ( kW )

0,9 kW

Volume bath

21 ... 30 l

Opening (WxD)

260 x 350 mm

Bath depth ( mm )

200 mm

Min. volume bath ( l )

21 l

Refrigerant

R449A

Pieces in a package

Upon request

DD-1000F

4663231 / 9021707

Weight ( g )

51.2 kg

Type

DD-1000F

Min. temperature ( °C )

-50 °C

Ext. depth ( mm )

490 mm

Ext. height ( mm )

740 mm

Ext. width ( mm )

420 mm

Max. temperature ( °C )

200 °C

Depth opening ( mm )

130 mm

Width opening ( mm )

180 mm

Safety Data Sheet

IP code

Temperature

-50 ... 200 °C

Ext. dim. (WxDxH)

420 x 490 x 740 mm

Max. volume bath ( l )

7.5 l

Cooling capacity at 20 °C ( kW )

1 kW

Volume bath

5 ... 7.5 l

Opening (WxD)

180 x 130 mm

Bath depth ( mm )

150 mm

Min. volume bath ( l )

5 l

Refrigerant

R449A

Pieces in a package

Upon request

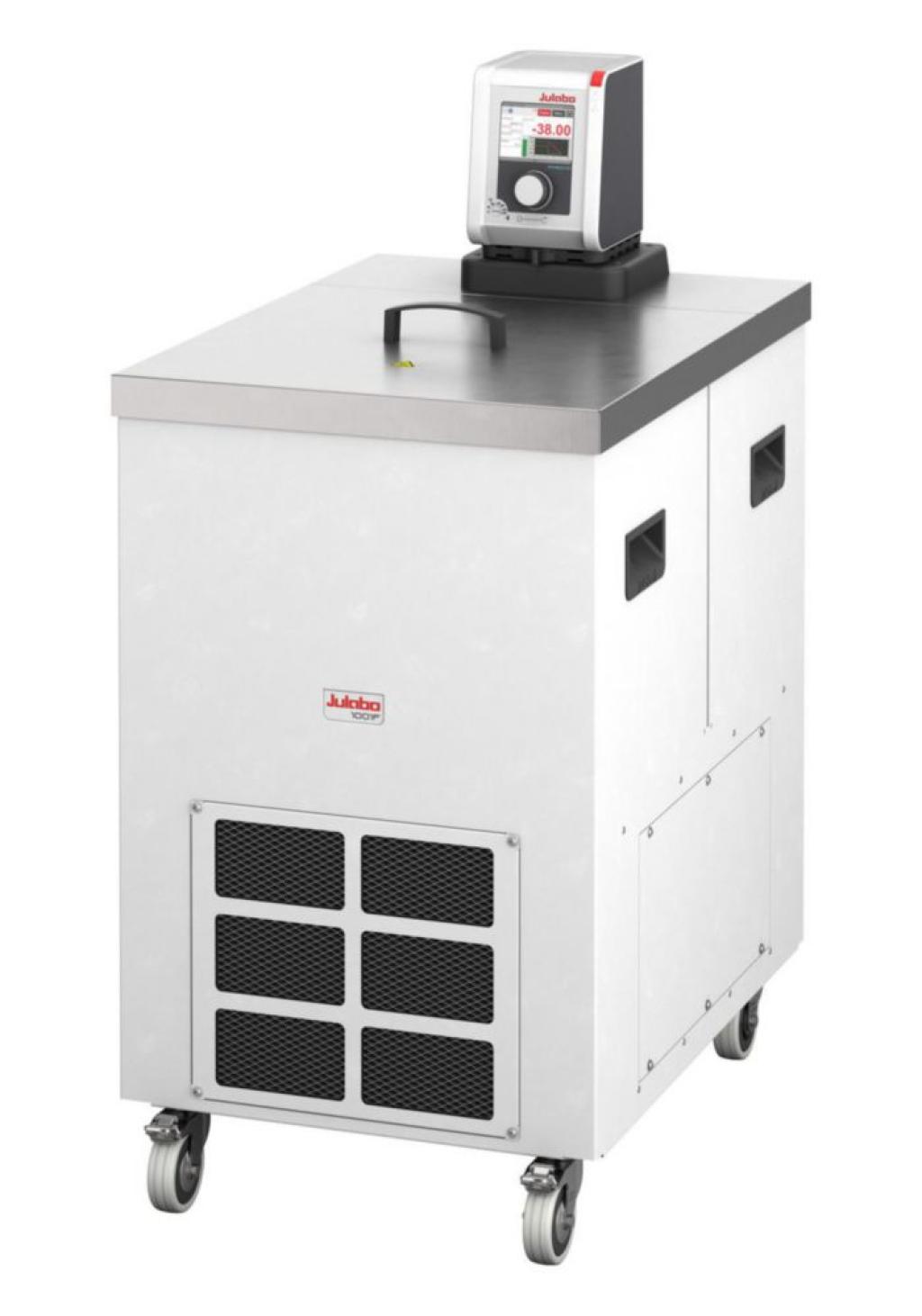

DD-1001F

4663232 / 9021708

Weight ( g )

73.7 kg

Type

DD-1001F

Min. temperature ( °C )

-38 °C

Ext. depth ( mm )

Ext. height ( mm )

Ext. width ( mm )

Max. temperature ( °C )

200 °C

Depth opening ( mm )

410 mm

Width opening ( mm )

350 mm

Safety Data Sheet

IP code

IP 21

Temperature

-38 ... 200 °C

Ext. dim. (WxDxH)

Max. volume bath ( l )

56 l

Cooling capacity at 20 °C ( kW )

1,0 kW

Volume bath

42 ... 56 l

Opening (WxD)

350 x 410 mm

Bath depth ( mm )

300 mm

Min. volume bath ( l )

42 l

Refrigerant

R449A

Pieces in a package

Upon request

DD-310F

4685634 / 9021713.N1

Weight ( g )

25.4 kg

Type

DD-310F

Min. temperature ( °C )

-30 °C

Ext. depth ( mm )

400 mm

Ext. height ( mm )

650 mm

Ext. width ( mm )

230 mm

Max. temperature ( °C )

200 °C

Depth opening ( mm )

150 mm

Width opening ( mm )

130 mm

Safety Data Sheet

https://sw.llg.de/search?search=4685634

IP code

IP 21

Temperature

-30 ... 200 °C

Ext. dim. (WxDxH)

230 x 400 x 650 mm

Max. volume bath ( l )

4 l

Cooling capacity at 20 °C ( kW )

0,3 kW

Volume bath

3 ... 4 l

Opening (WxD)

130 x 150 mm

Bath depth ( mm )

150 mm

Min. volume bath ( l )

3 l

Refrigerant

R290

Pieces in a package

Upon request

DD-310F

4685637 / 9021713.S1

Weight ( g )

25.4 kg

Type

DD-310F

Min. temperature ( °C )

-30 °C

Ext. depth ( mm )

400 mm

Ext. height ( mm )

650 mm

Ext. width ( mm )

230 mm

Max. temperature ( °C )

200 °C

Depth opening ( mm )

150 mm

Width opening ( mm )

130 mm

Safety Data Sheet

https://sw.llg.de/search?search=4685637

IP code

IP 21

Temperature

-30 ... 200 °C

Ext. dim. (WxDxH)

230 x 400 x 650 mm

Max. volume bath ( l )

4 l

Cooling capacity at 20 °C ( kW )

0,3 kW

Volume bath

3 ... 4 l

Opening (WxD)

130 x 150 mm

Bath depth ( mm )

150 mm

Min. volume bath ( l )

3 l

Refrigerant

R449A

Pieces in a package

Upon request

DD-450F

4685640 / 9021714.N1

Weight ( g )

27.4 kg

Type

DD-450F

Min. temperature ( °C )

-30 °C

Ext. depth ( mm )

400 mm

Ext. height ( mm )

650 mm

Ext. width ( mm )

230 mm

Max. temperature ( °C )

200 °C

Depth opening ( mm )

150 mm

Width opening ( mm )

130 mm

Safety Data Sheet

https://sw.llg.de/search?search=4685640

IP code

IP 21

Temperature

-30 ... 200 °C

Ext. dim. (WxDxH)

230 x 400 x 650 mm

Max. volume bath ( l )

4 l

Cooling capacity at 20 °C ( kW )

0,44 kW

Volume bath

3 ... 4 l

Opening (WxD)

130 x 150 mm

Bath depth ( mm )

150 mm

Min. volume bath ( l )

3 l

Refrigerant

R290

Pieces in a package

Upon request

DD-450F

4685643 / 9021714.S1

Weight ( g )

27.4 kg

Type

DD-450F

Min. temperature ( °C )

-30 °C

Ext. depth ( mm )

400 mm

Ext. height ( mm )

650 mm

Ext. width ( mm )

230 mm

Max. temperature ( °C )

200 °C

Depth opening ( mm )

150 mm

Width opening ( mm )

130 mm

Safety Data Sheet

https://sw.llg.de/search?search=4685643

IP code

IP 21

Temperature

-30 ... 200 °C

Ext. dim. (WxDxH)

230 x 400 x 650 mm

Max. volume bath ( l )

4 l

Cooling capacity at 20 °C ( kW )

0,44 kW

Volume bath

3 ... 4 l

Opening (WxD)

130 x 150 mm

Bath depth ( mm )

150 mm

Min. volume bath ( l )

3 l

Refrigerant

R449A

Pieces in a package

Upon request

DD-449F

4687384 / 9021716.N1

Weight ( g )

39.5 kg

Type

DD-449F

Min. temperature ( °C )

-32 °C

Ext. depth ( mm )

590 mm

Ext. height ( mm )

690 mm

Ext. width ( mm )

370 mm

Max. temperature ( °C )

200 °C

Depth opening ( mm )

350 mm

Width opening ( mm )

280 mm

Safety Data Sheet

https://sw.llg.de/search?search=4687384

IP code

IP 21

Temperature

-32 ... 200 °C

Ext. dim. (WxDxH)

370 x 590 x 690 mm

Max. volume bath ( l )

26 l

Cooling capacity at 20 °C ( kW )

0,44 kW

Volume bath

20 ... 26 l

Opening (WxD)

280 x 350 mm

Bath depth ( mm )

200 mm

Min. volume bath ( l )

20 l

Refrigerant

R290

Pieces in a package

Upon request

DD-800F

4692238 / 9021715.N1

Weight ( g )

42 kg

Type

DD-800F

Min. temperature ( °C )

-40 °C

Ext. depth ( mm )

470 mm

Ext. height ( mm )

700 mm

Ext. width ( mm )

330 mm

Max. temperature ( °C )

200 °C

Depth opening ( mm )

130 mm

Width opening ( mm )

180 mm

Safety Data Sheet

https://sw.llg.de/search?search=4692238

IP code

Temperature

-40 ... 200 °C

Ext. dim. (WxDxH)

330 x 470 x 700 mm

Max. volume bath ( l )

7.5 l

Cooling capacity at 20 °C ( kW )

0,84 kW

Volume bath

5 ... 7.5 l

Opening (WxD)

180 x 130 mm

Bath depth ( mm )

150 mm

Min. volume bath ( l )

5 l

Refrigerant

R1270

Pieces in a package

Upon request

DD-1200F

4692241 / 9021717.N1

Weight ( g )

44 kg

Type

DD-1200F

Min. temperature ( °C )

-50 °C

Ext. depth ( mm )

470 mm

Ext. height ( mm )

700 mm

Ext. width ( mm )

330 mm

Max. temperature ( °C )

200 °C

Depth opening ( mm )

130 mm

Width opening ( mm )

180 mm

Safety Data Sheet

https://sw.llg.de/search?search=4692241

IP code

Temperature

-50 ... 200 °C

Ext. dim. (WxDxH)

330 x 470 x 700 mm

Max. volume bath ( l )

7.5 l

Cooling capacity at 20 °C ( kW )

1,24 kW

Volume bath

5 ... 7.5 l

Opening (WxD)

180 x 130 mm

Bath depth ( mm )

150 mm

Min. volume bath ( l )

5 l

Refrigerant

R1270

Pieces in a package

Upon request

DD-200F

4693943 / 9021701.N1

Weight ( g )

25.7 kg

Type

DD-200F

Min. temperature ( °C )

-20 °C

Ext. depth ( mm )

390 mm

Ext. height ( mm )

650 mm

Ext. width ( mm )

230 mm

Max. temperature ( °C )

200 °C

Depth opening ( mm )

150 mm

Width opening ( mm )

130 mm

Safety Data Sheet

https://sw.llg.de/search?search=4693943

IP code

IP 21

Temperature

-20 ... 200 °C

Ext. dim. (WxDxH)

230 x 390 x 650 mm

Max. volume bath ( l )

4 l

Cooling capacity at 20 °C ( kW )

0,2 kW

Volume bath

3 ... 4 l

Opening (WxD)

130 x 150 mm

Bath depth ( mm )

150 mm

Min. volume bath ( l )

3 l

Refrigerant

R290

Pieces in a package

Upon request

DD-1200FW

4693946 / 9021728.N1

Weight ( g )

44 kg

Type

DD-1200FW

Min. temperature ( °C )

-50 °C

Ext. depth ( mm )

470 mm

Ext. height ( mm )

700 mm

Ext. width ( mm )

330 mm

Max. temperature ( °C )

200 °C

Depth opening ( mm )

130 mm

Width opening ( mm )

180 mm

Safety Data Sheet

https://sw.llg.de/search?search=4693946

IP code

IP 21

Temperature

-50 ... 200 °C

Ext. dim. (WxDxH)

330 x 470 x 700 mm

Max. volume bath ( l )

7.5 l

Cooling capacity at 20 °C ( kW )

1,24 kW

Volume bath

5 ... 7.5 l

Opening (WxD)

180 x 130 mm

Bath depth ( mm )

150 mm

Min. volume bath ( l )

5 l

Refrigerant

R1270

Pieces in a package

Upon request

DD-1201F

4716003 / 9021718.N1

Weight ( g )

68 kg

Type

DD-1201F

Min. temperature ( °C )

-40 °C

Ext. depth ( mm )

640 mm

Ext. height ( mm )

950 mm

Ext. width ( mm )

450 mm

Max. temperature ( °C )

100 °C

Depth opening ( mm )

400 mm

Width opening ( mm )

350 mm

Safety Data Sheet

https://sw.llg.de/search?search=4716003

IP code

IP 21

Temperature

-40 ... 100 °C

Ext. dim. (WxDxH)

450 x 640 x 950 mm

Max. volume bath ( l )

56 l

Cooling capacity at 20 °C ( kW )

1,25 kW

Volume bath

48 ... 56 l

Opening (WxD)

350 x 400 mm

Bath depth ( mm )

300 mm

Min. volume bath ( l )

48 l

Refrigerant

R1270

Pieces in a package

Upon request

Technical specifications

Heating capacity	2 kW
Material bath	Stainless steel
Max. delivery pressure	0.7 bar
Temperature stability	±0,01 °C
Type of auxiliary energy	Mains connection
Type of display	TFT
UNSPSC	41103701
With lid	Yes
With timer	Yes
