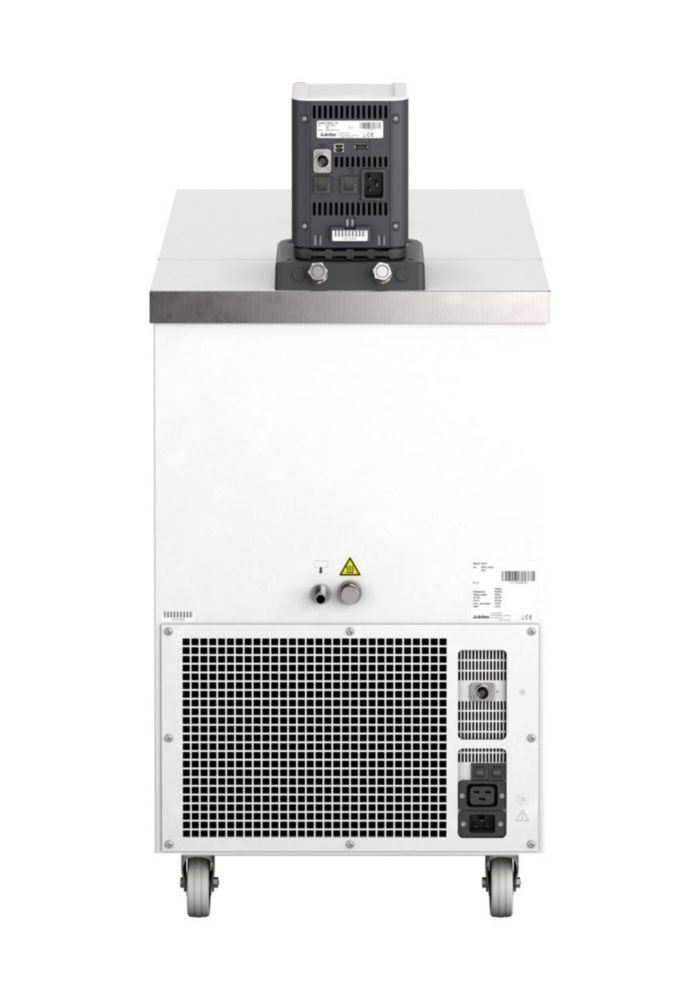

Refrigerated circulators CORIO™ CD

Refrigerated circulators are suitable for internal and external standard temperature applications as well as routine work in laboratories and industry.

Bright, white, easy-to-read display

Easy pump switching between internal and external circulation

External pump connections (M16x1)

USB connection

Space-saving cooling coil design yields more usable space in the bath tank

Stainless steel bath tank including bath lid and drain tap

Removable ventilation grid

Refrigeration unit without lateral ventilation openings

2 hose olives each suitable for hose inner diameter 8 and 12 mm included

Class III (FL) acc. to DIN 12876-1

Choose a variant

Manufacturer

Julabo GmbH

Product variant

Name

Hermes code and manufacturer code

Weight ( g )	Type	Min. temperature ( °C )	Ext. depth ( mm )	Ext. height ( mm )	Ext. width ( mm )	Plug type	Max. temperature ( °C )	Depth opening ( mm )	Width opening ( mm )	Safety Data Sheet	Temperature	Ext. dim. (WxDxH)	Max. volume bath ( l )	Cooling capacity at 20 °C ( kW )	Volume bath	Opening (WxD)	Bath depth ( mm )	Min. volume bath ( l )	Refrigerant

Pieces in a package

Price without VAT

CD-200F

4658008 / 9012701

Weight ( g )

26 kg

Type

CD-200F

Min. temperature ( °C )

-20 °C

Ext. depth ( mm )

390 mm

Ext. height ( mm )

650 mm

Ext. width ( mm )

230 mm

Plug type

Max. temperature ( °C )

150 °C

Depth opening ( mm )

150 mm

Width opening ( mm )

130 mm

Safety Data Sheet

Temperature

-20 ... 150 °C

Ext. dim. (WxDxH)

230 x 390 x 650 mm

Max. volume bath ( l )

4 l

Cooling capacity at 20 °C ( kW )

0,22 kW

Volume bath

3 ... 4 l

Opening (WxD)

130 x 150 mm

Bath depth ( mm )

150 mm

Min. volume bath ( l )

3 l

Refrigerant

R134a

Pieces in a package

Upon request

CD-201F

4658009 / 9012702

Weight ( g )

25 kg

Type

CD-201F

Min. temperature ( °C )

-20 °C

Ext. depth ( mm )

410 mm

Ext. height ( mm )

440 mm

Ext. width ( mm )

440 mm

Plug type

Max. temperature ( °C )

150 °C

Depth opening ( mm )

150 mm

Width opening ( mm )

130 mm

Safety Data Sheet

Temperature

-20 ... 150 °C

Ext. dim. (WxDxH)

440 x 410 x 440 mm

Max. volume bath ( l )

4 l

Cooling capacity at 20 °C ( kW )

0,22 kW

Volume bath

3 ... 4 l

Opening (WxD)

130 x 150 mm

Bath depth ( mm )

150 mm

Min. volume bath ( l )

3 l

Refrigerant

R134a

Pieces in a package

Upon request

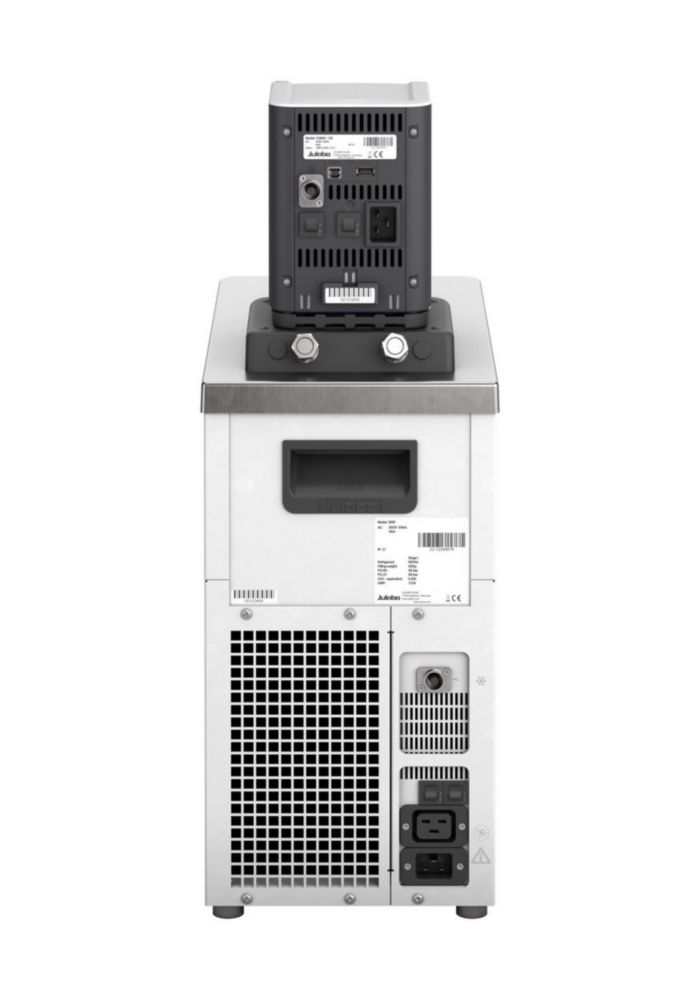

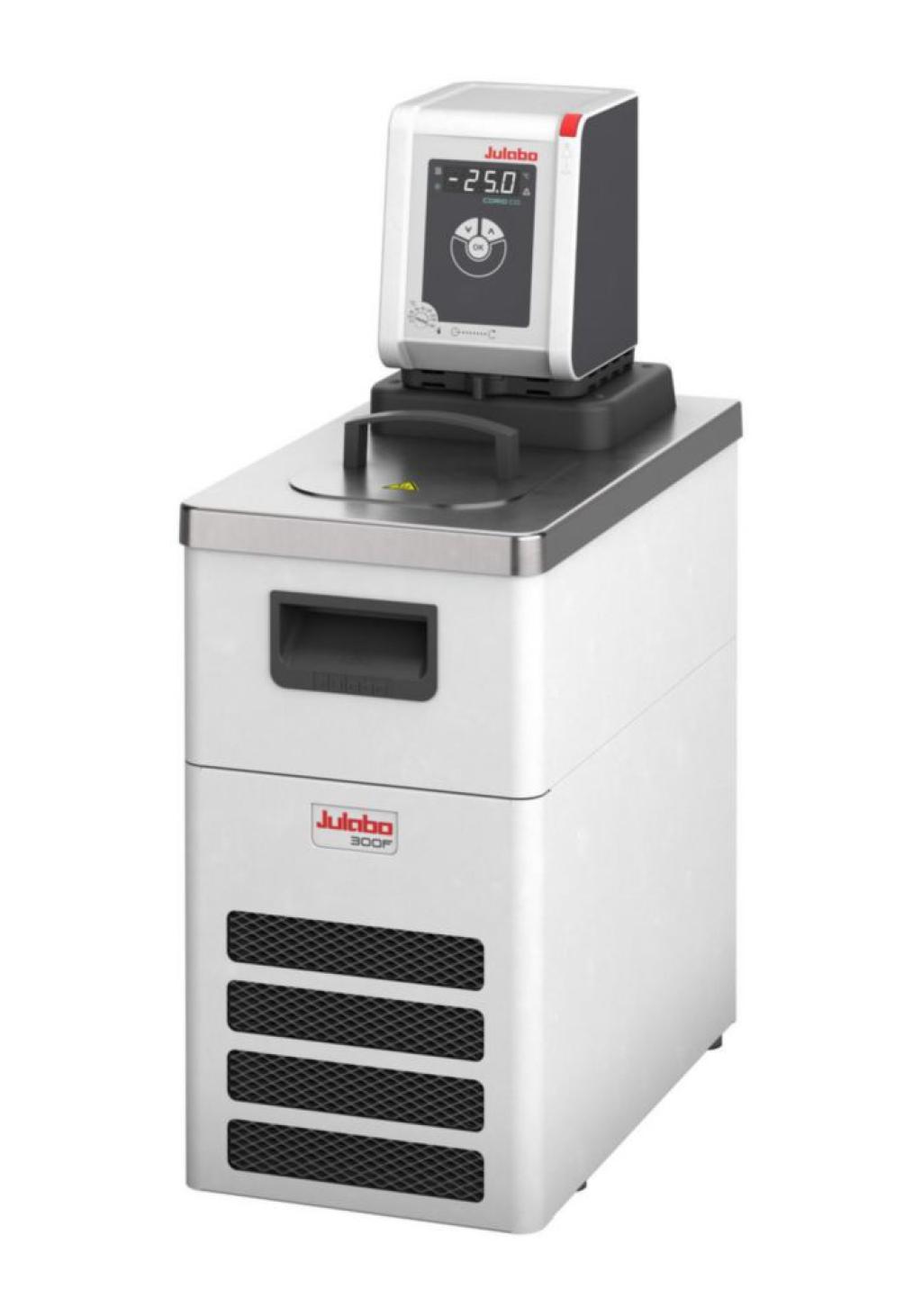

CD-300F

4658010 / 9012703

Weight ( g )

28 kg

Type

CD-300F

Min. temperature ( °C )

-25 °C

Ext. depth ( mm )

420 mm

Ext. height ( mm )

660 mm

Ext. width ( mm )

240 mm

Plug type

Max. temperature ( °C )

150 °C

Depth opening ( mm )

150 mm

Width opening ( mm )

130 mm

Safety Data Sheet

Temperature

-25 ... 150 °C

Ext. dim. (WxDxH)

240 x 420 x 660 mm

Max. volume bath ( l )

4 l

Cooling capacity at 20 °C ( kW )

0,31 kW

Volume bath

3 ... 4 l

Opening (WxD)

130 x 150 mm

Bath depth ( mm )

150 mm

Min. volume bath ( l )

3 l

Refrigerant

R134a

Pieces in a package

Upon request

CD-600F

4658011 / 9012704

Weight ( g )

36 kg

Type

CD-600F

Min. temperature ( °C )

-35 °C

Ext. depth ( mm )

470 mm

Ext. height ( mm )

690 mm

Ext. width ( mm )

330 mm

Plug type

Max. temperature ( °C )

150 °C

Depth opening ( mm )

150 mm

Width opening ( mm )

220 mm

Safety Data Sheet

Temperature

-35 ... 150 °C

Ext. dim. (WxDxH)

330 x 470 x 690 mm

Max. volume bath ( l )

7.5 l

Cooling capacity at 20 °C ( kW )

0,6 kW

Volume bath

5 ... 7.5 l

Opening (WxD)

220 x 150 mm

Bath depth ( mm )

150 mm

Min. volume bath ( l )

5 l

Refrigerant

R449A

Pieces in a package

Upon request

CD-310F

4685626 / 9012713.N1

Weight ( g )

25.2 kg

Type

CD-310F

Min. temperature ( °C )

-30 °C

Ext. depth ( mm )

400 mm

Ext. height ( mm )

650 mm

Ext. width ( mm )

230 mm

Plug type

Max. temperature ( °C )

150 °C

Depth opening ( mm )

150 mm

Width opening ( mm )

130 mm

Safety Data Sheet

https://sw.llg.de/search?search=4685626

Temperature

-30 ... 150 °C

Ext. dim. (WxDxH)

230 x 400 x 650 mm

Max. volume bath ( l )

4 l

Cooling capacity at 20 °C ( kW )

0,31 kW

Volume bath

3 ... 4 l

Opening (WxD)

130 x 150 mm

Bath depth ( mm )

150 mm

Min. volume bath ( l )

3 l

Refrigerant

R290

Pieces in a package

Upon request

CD-310F

4685627 / 9012713.S1

Weight ( g )

25.2 kg

Type

CD-310F

Min. temperature ( °C )

-30 °C

Ext. depth ( mm )

400 mm

Ext. height ( mm )

650 mm

Ext. width ( mm )

230 mm

Plug type

Max. temperature ( °C )

150 °C

Depth opening ( mm )

150 mm

Width opening ( mm )

130 mm

Safety Data Sheet

https://sw.llg.de/search?search=4685627

Temperature

-30 ... 150 °C

Ext. dim. (WxDxH)

230 x 400 x 650 mm

Max. volume bath ( l )

4 l

Cooling capacity at 20 °C ( kW )

0,31 kW

Volume bath

3 ... 4 l

Opening (WxD)

130 x 150 mm

Bath depth ( mm )

150 mm

Min. volume bath ( l )

3 l

Refrigerant

R449A

Pieces in a package

Upon request

CD-450F

4685628 / 9012714.N1

Weight ( g )

25.1 kg

Type

CD-450F

Min. temperature ( °C )

-30 °C

Ext. depth ( mm )

400 mm

Ext. height ( mm )

650 mm

Ext. width ( mm )

230 mm

Plug type

Max. temperature ( °C )

150 °C

Depth opening ( mm )

150 mm

Width opening ( mm )

130 mm

Safety Data Sheet

https://sw.llg.de/search?search=4685628

Temperature

-30 ... 150 °C

Ext. dim. (WxDxH)

230 x 400 x 650 mm

Max. volume bath ( l )

4 l

Cooling capacity at 20 °C ( kW )

0,45 kW

Volume bath

3 ... 4 l

Opening (WxD)

130 x 150 mm

Bath depth ( mm )

150 mm

Min. volume bath ( l )

3 l

Refrigerant

R290

Pieces in a package

Upon request

CD-450F

4685629 / 9012714.S1

Weight ( g )

25.1 kg

Type

CD-450F

Min. temperature ( °C )

-30 °C

Ext. depth ( mm )

400 mm

Ext. height ( mm )

650 mm

Ext. width ( mm )

230 mm

Plug type

Max. temperature ( °C )

150 °C

Depth opening ( mm )

150 mm

Width opening ( mm )

130 mm

Safety Data Sheet

https://sw.llg.de/search?search=4685629

Temperature

-30 ... 150 °C

Ext. dim. (WxDxH)

230 x 400 x 650 mm

Max. volume bath ( l )

4 l

Cooling capacity at 20 °C ( kW )

0,45 kW

Volume bath

3 ... 4 l

Opening (WxD)

130 x 150 mm

Bath depth ( mm )

150 mm

Min. volume bath ( l )

3 l

Refrigerant

R449A

Pieces in a package

Upon request

CD-449F

4687382 / 9012716.N1

Weight ( g )

39.5 kg

Type

CD-449F

Min. temperature ( °C )

-32 °C

Ext. depth ( mm )

590 mm

Ext. height ( mm )

690 mm

Ext. width ( mm )

370 mm

Plug type

Max. temperature ( °C )

150 °C

Depth opening ( mm )

350 mm

Width opening ( mm )

280 mm

Safety Data Sheet

https://sw.llg.de/search?search=4687382

Temperature

-32 ... 150 °C

Ext. dim. (WxDxH)

370 x 590 x 690 mm

Max. volume bath ( l )

26 l

Cooling capacity at 20 °C ( kW )

0,45 kW

Volume bath

20 ... 26 l

Opening (WxD)

280 x 350 mm

Bath depth ( mm )

200 mm

Min. volume bath ( l )

20 l

Refrigerant

R290

Pieces in a package

Upon request

CD-800F

4692234 / 9012715.N1

Weight ( g )

42 kg

Type

CD-800F

Min. temperature ( °C )

-40 °C

Ext. depth ( mm )

470 mm

Ext. height ( mm )

700 mm

Ext. width ( mm )

330 mm

Plug type

Max. temperature ( °C )

150 °C

Depth opening ( mm )

130 mm

Width opening ( mm )

180 mm

Safety Data Sheet

https://sw.llg.de/search?search=4692234

Temperature

-40 ... 150 °C

Ext. dim. (WxDxH)

330 x 470 x 700 mm

Max. volume bath ( l )

7.5 l

Cooling capacity at 20 °C ( kW )

0,85 kW

Volume bath

5 ... 7.5 l

Opening (WxD)

180 x 130 mm

Bath depth ( mm )

150 mm

Min. volume bath ( l )

5 l

Refrigerant

R1270

Pieces in a package

Upon request

CD-1200F

4692235 / 9012717.N1

Weight ( g )

42 kg

Type

CD-1200F

Min. temperature ( °C )

-40 °C

Ext. depth ( mm )

470 mm

Ext. height ( mm )

700 mm

Ext. width ( mm )

330 mm

Plug type

Max. temperature ( °C )

150 °C

Depth opening ( mm )

130 mm

Width opening ( mm )

180 mm

Safety Data Sheet

https://sw.llg.de/search?search=4692235

Temperature

-40 ... 150 °C

Ext. dim. (WxDxH)

330 x 470 x 700 mm

Max. volume bath ( l )

7.5 l

Cooling capacity at 20 °C ( kW )

1,25 kW

Volume bath

5 ... 7.5 l

Opening (WxD)

180 x 130 mm

Bath depth ( mm )

150 mm

Min. volume bath ( l )

5 l

Refrigerant

R1270

Pieces in a package

Upon request

CD-200F

4693939 / 9012701.N1

Weight ( g )

26 kg

Type

CD-200F

Min. temperature ( °C )

-20 °C

Ext. depth ( mm )

390 mm

Ext. height ( mm )

650 mm

Ext. width ( mm )

230 mm

Plug type

Max. temperature ( °C )

150 °C

Depth opening ( mm )

150 mm

Width opening ( mm )

130 mm

Safety Data Sheet

https://sw.llg.de/search?search=4693939

Temperature

-20 ... 150 °C

Ext. dim. (WxDxH)

230 x 390 x 650 mm

Max. volume bath ( l )

4 l

Cooling capacity at 20 °C ( kW )

0,22 kW

Volume bath

3 ... 4 l

Opening (WxD)

130 x 150 mm

Bath depth ( mm )

150 mm

Min. volume bath ( l )

3 l

Refrigerant

R290

Pieces in a package

Upon request

CD-1201F

4716006 / 9012718.N1

Weight ( g )

68 kg

Type

CD-1201F

Min. temperature ( °C )

-40 °C

Ext. depth ( mm )

640 mm

Ext. height ( mm )

950 mm

Ext. width ( mm )

450 mm

Plug type

Max. temperature ( °C )

100 °C

Depth opening ( mm )

400 mm

Width opening ( mm )

350 mm

Safety Data Sheet

https://sw.llg.de/search?search=4716006

Temperature

-40 ... 100 °C

Ext. dim. (WxDxH)

450 x 640 x 950 mm

Max. volume bath ( l )

56 l

Cooling capacity at 20 °C ( kW )

1,25 kW

Volume bath

48 ... 56 l

Opening (WxD)

350 x 400 mm

Bath depth ( mm )

300 mm

Min. volume bath ( l )

48 l

Refrigerant

R1270

Pieces in a package

Upon request

CD-601F

6283539 / 9012705

Weight ( g )

38.5 kg

Type

CD-601F

Min. temperature ( °C )

-35 °C

Ext. depth ( mm )

470 mm

Ext. height ( mm )

740 mm

Ext. width ( mm )

330 mm

Plug type

Max. temperature ( °C )

150 °C

Depth opening ( mm )

150 mm

Width opening ( mm )

220 mm

Safety Data Sheet

https://sw.llg.de/search?search=6283539

Temperature

-35 ... 150 °C

Ext. dim. (WxDxH)

330 x 470 x 740 mm

Max. volume bath ( l )

10 l

Cooling capacity at 20 °C ( kW )

0,6 kW

Volume bath

8 ... 10 l

Opening (WxD)

220 x 150 mm

Bath depth ( mm )

200 mm

Min. volume bath ( l )

8 l

Refrigerant

R449A

Pieces in a package

Upon request

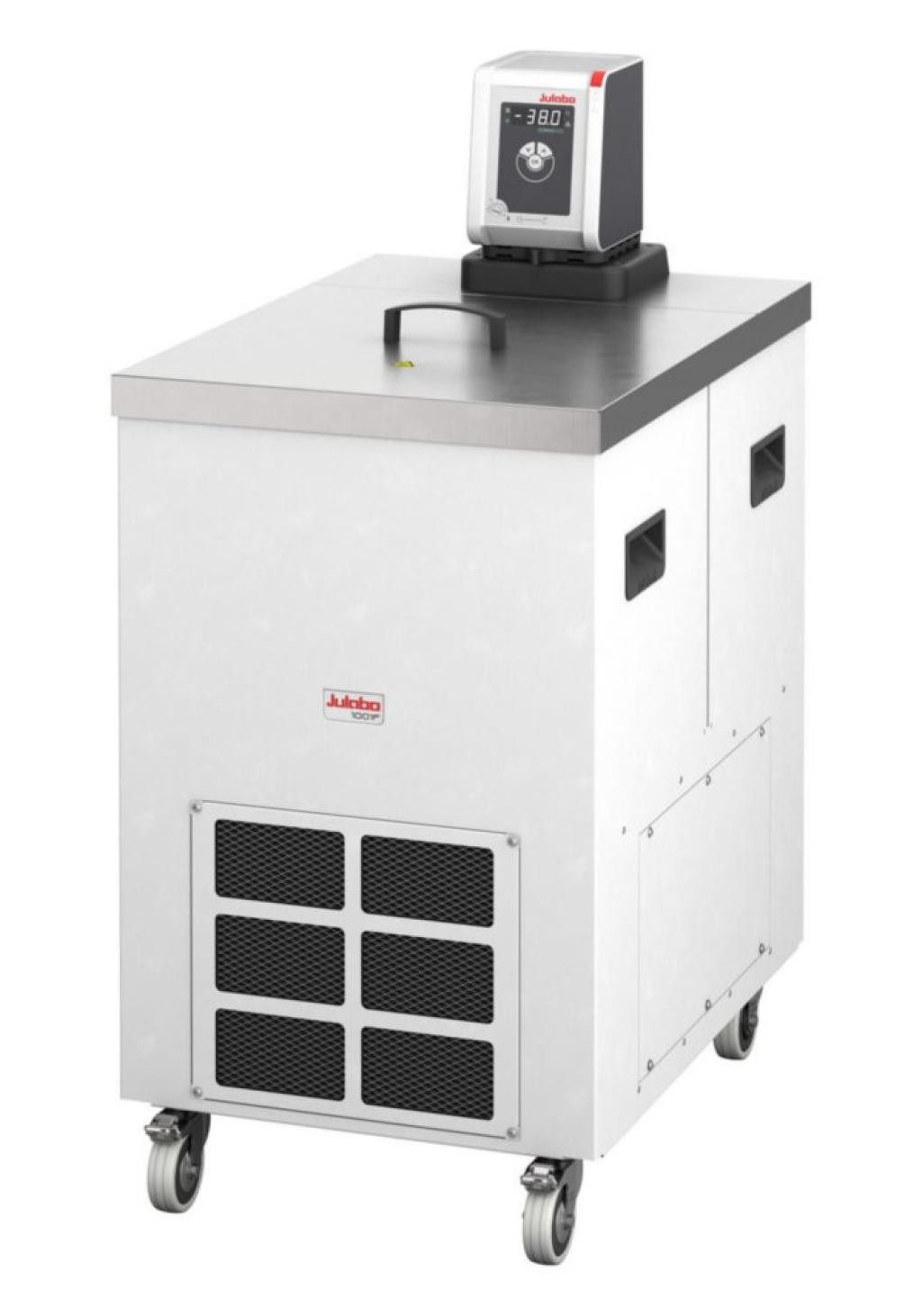

CD-900F

6283540 / 9012706

Weight ( g )

Type

CD-900F

Min. temperature ( °C )

-38 °C

Ext. depth ( mm )

620 mm

Ext. height ( mm )

750 mm

Ext. width ( mm )

390 mm

Plug type

Max. temperature ( °C )

150 °C

Depth opening ( mm )

350 mm

Width opening ( mm )

260 mm

Safety Data Sheet

https://sw.llg.de/search?search=6283540

Temperature

-38 ... 150 °C

Ext. dim. (WxDxH)

390 x 620 x 750 mm

Max. volume bath ( l )

30 l

Cooling capacity at 20 °C ( kW )

0,9 kW

Volume bath

21 ... 30 l

Opening (WxD)

260 x 350 mm

Bath depth ( mm )

200 mm

Min. volume bath ( l )

21 l

Refrigerant

R449A

Pieces in a package

Upon request

CD-1000F

6283541 / 9012707

Weight ( g )

51.5 kg

Type

CD-1000F

Min. temperature ( °C )

-40 °C

Ext. depth ( mm )

490 mm

Ext. height ( mm )

740 mm

Ext. width ( mm )

420 mm

Plug type

Max. temperature ( °C )

150 °C

Depth opening ( mm )

130 mm

Width opening ( mm )

180 mm

Safety Data Sheet

https://sw.llg.de/search?search=6283541

Temperature

-40 ... 150 °C

Ext. dim. (WxDxH)

420 x 490 x 740 mm

Max. volume bath ( l )

7.5 l

Cooling capacity at 20 °C ( kW )

1,0 kW

Volume bath

5 ... 7.5 l

Opening (WxD)

180 x 130 mm

Bath depth ( mm )

150 mm

Min. volume bath ( l )

5 l

Refrigerant

R449A

Pieces in a package

Upon request

CD-1001F

6283542 / 9012708

Weight ( g )

74 kg

Type

CD-1001F

Min. temperature ( °C )

-38 °C

Ext. depth ( mm )

640 mm

Ext. height ( mm )

950 mm

Ext. width ( mm )

450 mm

Plug type

Max. temperature ( °C )

100 °C

Depth opening ( mm )

410 mm

Width opening ( mm )

350 mm

Safety Data Sheet

https://sw.llg.de/search?search=6283542

Temperature

-38 ... 100 °C

Ext. dim. (WxDxH)

450 x 640 x 950 mm

Max. volume bath ( l )

56 l

Cooling capacity at 20 °C ( kW )

1,0 kW

Volume bath

48 ... 56 l

Opening (WxD)

350 x 410 mm

Bath depth ( mm )

300 mm

Min. volume bath ( l )

48 l

Refrigerant

R449A

Pieces in a package

Upon request

CD-200F

6319052 / 9012701.04

Weight ( g )

26 kg

Type

CD-200F

Min. temperature ( °C )

-20 °C

Ext. depth ( mm )

390 mm

Ext. height ( mm )

650 mm

Ext. width ( mm )

230 mm

Plug type

Max. temperature ( °C )

150 °C

Depth opening ( mm )

150 mm

Width opening ( mm )

130 mm

Safety Data Sheet

https://sw.llg.de/search?search=6319052

Temperature

-20 ... 150 °C

Ext. dim. (WxDxH)

230 x 390 x 650 mm

Max. volume bath ( l )

4 l

Cooling capacity at 20 °C ( kW )

0,22 kW

Volume bath

3 ... 4 l

Opening (WxD)

130 x 150 mm

Bath depth ( mm )

150 mm

Min. volume bath ( l )

3 l

Refrigerant

R134a

Pieces in a package

Upon request

CD-201F

6491494 / 9012702.04

Weight ( g )

25 kg

Type

CD-201F

Min. temperature ( °C )

-20 °C

Ext. depth ( mm )

410 mm

Ext. height ( mm )

440 mm

Ext. width ( mm )

440 mm

Plug type

Max. temperature ( °C )

150 °C

Depth opening ( mm )

150 mm

Width opening ( mm )

130 mm

Safety Data Sheet

https://sw.llg.de/search?search=6491494

Temperature

-20 ... 150 °C

Ext. dim. (WxDxH)

440 x 410 x 440 mm

Max. volume bath ( l )

4 l

Cooling capacity at 20 °C ( kW )

0,22 kW

Volume bath

3 ... 4 l

Opening (WxD)

130 x 150 mm

Bath depth ( mm )

150 mm

Min. volume bath ( l )

3 l

Refrigerant

R134a

Pieces in a package

Upon request

CD-200F

6495697 / 9012701.03

Weight ( g )

26 kg

Type

CD-200F

Min. temperature ( °C )

-20 °C

Ext. depth ( mm )

390 mm

Ext. height ( mm )

650 mm

Ext. width ( mm )

230 mm

Plug type

Max. temperature ( °C )

150 °C

Depth opening ( mm )

150 mm

Width opening ( mm )

130 mm

Safety Data Sheet

https://sw.llg.de/search?search=6495697

Temperature

-20 ... 150 °C

Ext. dim. (WxDxH)

230 x 390 x 650 mm

Max. volume bath ( l )

4 l

Cooling capacity at 20 °C ( kW )

0,22 kW

Volume bath

3 ... 4 l

Opening (WxD)

130 x 150 mm

Bath depth ( mm )

150 mm

Min. volume bath ( l )

3 l

Refrigerant

R134a

Pieces in a package

Upon request

Technical specifications

Heating capacity	2 kW
IP code	IP 21
Material bath	Stainless steel
Max. delivery pressure	0.35 bar
Temperature stability	±0,03 °C
Type of auxiliary energy	Mains connection
UNSPSC	41103701
With lid	Yes
With timer	Yes
