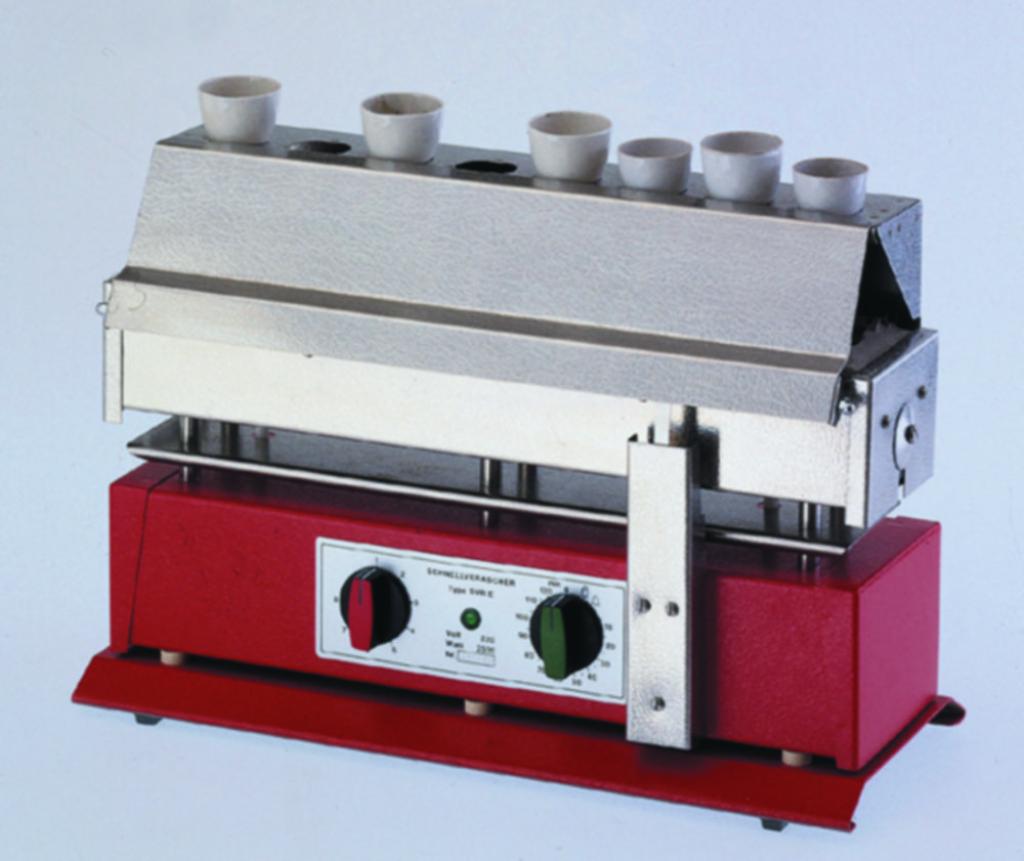

Rapid incinerator More photos

Rapid incinerator

For individual and series incineration of solids and liquids. Upper platform with 8 openings of 34mm diameter, for porcelain crucibles up to 50mm diameter. Upper platform and housing made of stainless steel. With 120 minute timer with audible signal after timed period and separate continuous operation switch. A safety switch switches the mains supply off/on automatically on opening/closing the incinerator chamber. With 1.8 metre cable and earthed plug.

Type SVR/E
With electronic temeprature control which allows stepless heating adjustment from 10 to 100 %. Complete for use.

Type SVD 95
With digital temperature adjustment and display. Complete for use.
Choose a variant
Manufacturer
  • Harry Gestigkeit GmbH
Category

Product variant

Name Hermes code and manufacturer code
Weight ( g ) Type Safety Data Sheet
Pieces in a package Price without VAT
Obrázek produktové varianty SVR/E
9884140 / SVR/E
Weight ( g )
8 kg
Type
SVR/E
Safety Data Sheet
https://sw.llg.de/search?search=9884140
Pieces in a package
-
Upon request
Obrázek produktové varianty SVD 95
9884141 / SVD95P
Weight ( g )
7.8 kg
Type
SVD 95
Safety Data Sheet
https://sw.llg.de/search?search=9884141
Pieces in a package
-
Upon request

Technical specifications

Depth 180 mm
Dimensions (WxDxH) 450 x 180 x 310 mm
Power supply frequency 50/60 Hz
Heating capacity 2500 W
Height 310 mm
Max. temperature 950 °C
Max. voltage 230 V
Plug type EU
Power supply 230 V, 50/60 Hz
Temperature 950 °C
Type of auxiliary energy Mains connection
UNSPSC 40101800
Width 450 mm
