Precision balance Type PLS/PLJ More photos

Precision balance Type PLS/PLJ

  • ergonomically optimised keypad for left and right-handed users
  • ring-shaped glass draught shield standard for all models with a weighing plate size of 110 mm dia. Removable metal cover with pipette opening. Weighing space 150 mm dia., height 60 mm
  • The PLJ with a weighing plate size of 110 mm dia. also includes a rectangular draft shield with a weighing chamber of 160 x 140 x 205 mm
  • count/weight switchover at the press of a button
  • precise counting. The automatic optimisation of reference weight gradually improves the average value of the piece weight. The automatic optimisation of reference weight gradually improves the average value of the piece weight
  • weighing with tolerance range Input of an upper/lower limit value. A visual signal assists with portion division, dispensing or grading
  • percentage determination makes it possible to store a given weight value (100%) and to determine deviations from this target value in %
  • density determination of liquids and solids with immediate display of the density on the display
  • pre-Tare function for manual deduction of a known container weight. Useful for checking fill-levels
Choose a variant
Manufacturer
  • Kern & Sohn GmbH
Category

Product variant

Name Hermes code and manufacturer code
Height ( mm ) Type Dimensions (WxDxH) Safety Data Sheet Reproducibility ( % ) Readability ( N ) Max. load ( g ) Adjusting program Depth weighing plate ( mm ) Width weighing plate ( mm ) Linearity Verified calibration Weighing plate (WxD) With draft shield
Pieces in a package Price without VAT
Obrázek produktové varianty PLJ 420-3F
6257142 / PLJ 420-3F
Height ( mm )
160 mm
Type
PLJ 420-3F
Dimensions (WxDxH)
210 x 340 x 160 mm
Safety Data Sheet
https://sw.llg.de/search?search=6257142
Reproducibility ( % )
0,001 g
Readability ( N )
0,001 g
Max. load ( g )
420 g
Adjusting program
Internal
Depth weighing plate ( mm )
110 mm
Width weighing plate ( mm )
-
Linearity
±0,003 g
Verified calibration
Not verifiable
Weighing plate (WxD)
Ø 110 mm
With draft shield
Yes
Pieces in a package
-
Upon request

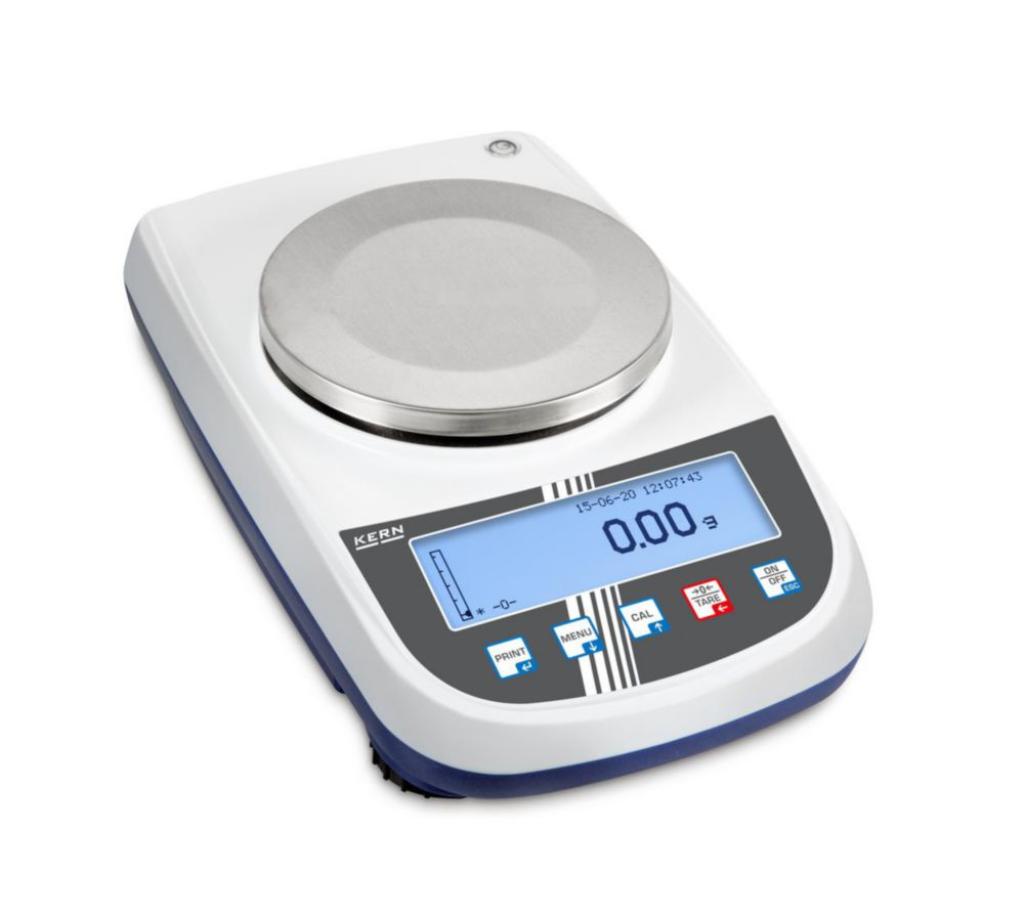

Obrázek produktové varianty PLJ 6200-2AM
6266315 / PLJ 6200-2AM
Height ( mm )
120 mm
Type
PLJ 6200-2AM
Dimensions (WxDxH)
210 x 340 x 120 mm
Safety Data Sheet
https://sw.llg.de/search?search=6266315
Reproducibility ( % )
0,01 g
Readability ( N )
0,01 g
Max. load ( g )
6200 g
Adjusting program
Internal
Depth weighing plate ( mm )
160 mm
Width weighing plate ( mm )
-
Linearity
±0,03 g
Verified calibration
Verifiable
Weighing plate (WxD)
Ø 160 mm
With draft shield
No
Pieces in a package
-
Upon request
Obrázek produktové varianty PLJ 2000-3A
6270252 / PLJ 2000-3A
Height ( mm )
330 mm
Type
PLJ 2000-3A
Dimensions (WxDxH)
210 x 340 x 330 mm
Safety Data Sheet
https://sw.llg.de/search?search=6270252
Reproducibility ( % )
0,002 g
Readability ( N )
0,001 g
Max. load ( g )
2100 g
Adjusting program
Internal
Depth weighing plate ( mm )
110 mm
Width weighing plate ( mm )
-
Linearity
±0,004 g
Verified calibration
Not verifiable
Weighing plate (WxD)
Ø 110 mm
With draft shield
Yes
Pieces in a package
1
Upon request

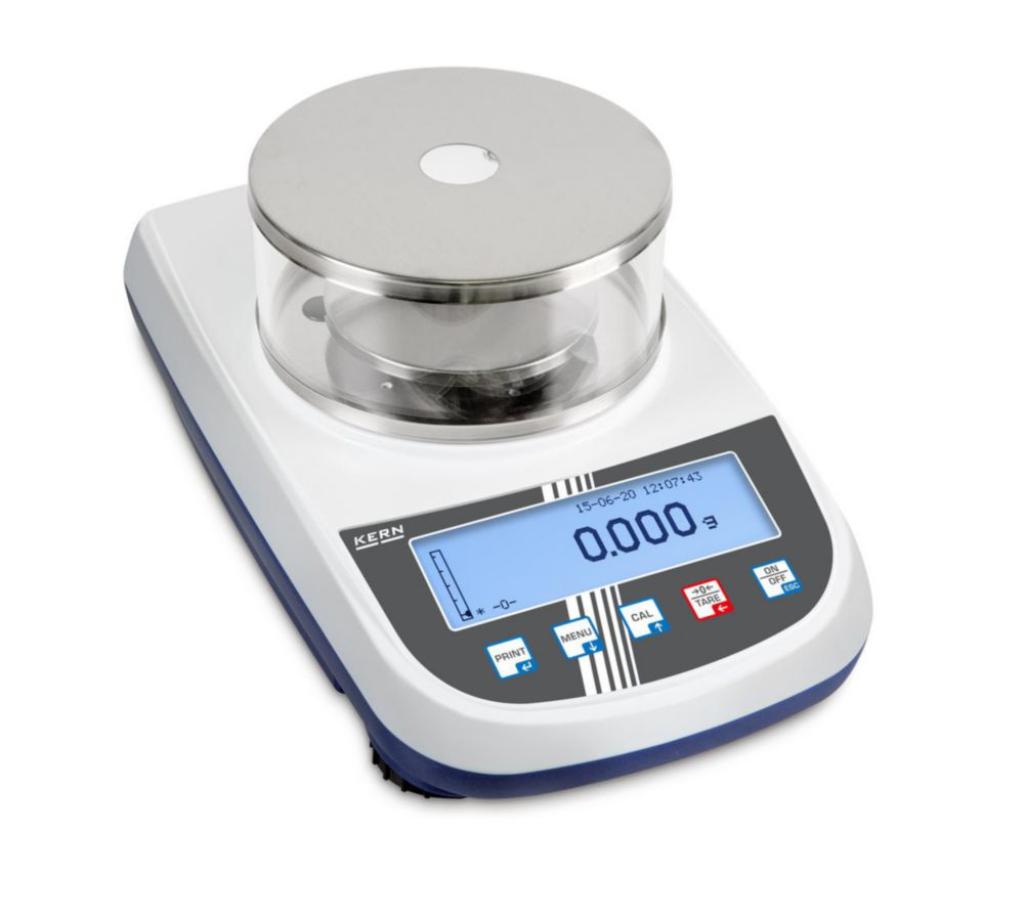

Obrázek produktové varianty PLJ 720-3AM
6284455 / PLJ 720-3AM
Height ( mm )
160 mm
Type
PLJ 720-3AM
Dimensions (WxDxH)
210 x 340 x 160 mm
Safety Data Sheet
https://sw.llg.de/search?search=6284455
Reproducibility ( % )
0,001 g
Readability ( N )
0,001 g
Max. load ( g )
720 g
Adjusting program
Internal
Depth weighing plate ( mm )
110 mm
Width weighing plate ( mm )
-
Linearity
±0,002 g
Verified calibration
Verifiable
Weighing plate (WxD)
Ø 110 mm
With draft shield
Yes
Pieces in a package
1
Upon request
Obrázek produktové varianty PLJ 6200-2A
7627832 / PLJ 6200-2A
Height ( mm )
120 mm
Type
PLJ 6200-2A
Dimensions (WxDxH)
210 x 340 x 120 mm
Safety Data Sheet
https://sw.llg.de/search?search=7627832
Reproducibility ( % )
0,01 g
Readability ( N )
0,01 g
Max. load ( g )
6200 g
Adjusting program
Internal
Depth weighing plate ( mm )
160 mm
Width weighing plate ( mm )
-
Linearity
±0,03 g
Verified calibration
Not verifiable
Weighing plate (WxD)
Ø 160 mm
With draft shield
No
Pieces in a package
1
Upon request
Obrázek produktové varianty PLJ 1200-3A
7655341 / PLJ 1200-3A
Height ( mm )
160 mm
Type
PLJ 1200-3A
Dimensions (WxDxH)
210 x 340 x 160 mm
Safety Data Sheet
https://sw.llg.de/search?search=7655341
Reproducibility ( % )
0,001 g
Readability ( N )
0,001 g
Max. load ( g )
1200 g
Adjusting program
Internal
Depth weighing plate ( mm )
110 mm
Width weighing plate ( mm )
-
Linearity
±0,003 g
Verified calibration
Not verifiable
Weighing plate (WxD)
Ø 110 mm
With draft shield
Yes
Pieces in a package
1
Upon request
Obrázek produktové varianty PLJ 720-3A
7656106 / PLJ 720-3A
Height ( mm )
160 mm
Type
PLJ 720-3A
Dimensions (WxDxH)
210 x 340 x 160 mm
Safety Data Sheet
https://sw.llg.de/search?search=7656106
Reproducibility ( % )
0,001 g
Readability ( N )
0,001 g
Max. load ( g )
720 g
Adjusting program
Internal
Depth weighing plate ( mm )
110 mm
Width weighing plate ( mm )
-
Linearity
±0,002 g
Verified calibration
Not verifiable
Weighing plate (WxD)
Ø 110 mm
With draft shield
Yes
Pieces in a package
1
Upon request
Obrázek produktové varianty PLJ 4200-2F
7970683 / PLJ 4200-2F
Height ( mm )
120 mm
Type
PLJ 4200-2F
Dimensions (WxDxH)
210 x 340 x 120 mm
Safety Data Sheet
https://sw.llg.de/search?search=7970683
Reproducibility ( % )
0,02 g
Readability ( N )
0,01 g
Max. load ( g )
4200 g
Adjusting program
Internal
Depth weighing plate ( mm )
160 mm
Width weighing plate ( mm )
-
Linearity
±0,04 g
Verified calibration
Not verifiable
Weighing plate (WxD)
Ø 160 mm
With draft shield
No
Pieces in a package
1
Upon request
Obrázek produktové varianty PLS 720-3A
9901413 / PLS 720-3A
Height ( mm )
160 mm
Type
PLS 720-3A
Dimensions (WxDxH)
210 x 340 x 160 mm
Safety Data Sheet
-
Reproducibility ( % )
0,001 g
Readability ( N )
0,001 g
Max. load ( g )
720 g
Adjusting program
External
Depth weighing plate ( mm )
110 mm
Width weighing plate ( mm )
-
Linearity
±0,002 g
Verified calibration
Not verifiable
Weighing plate (WxD)
Ø 110 mm
With draft shield
Yes
Pieces in a package
1
Upon request
Obrázek produktové varianty PLS 1200-3A
9901414 / PLS 1200-3A
Height ( mm )
160 mm
Type
PLS 1200-3A
Dimensions (WxDxH)
210 x 340 x 160 mm
Safety Data Sheet
https://sw.llg.de/search?search=9901414
Reproducibility ( % )
0,001 g
Readability ( N )
0,001 g
Max. load ( g )
1200 g
Adjusting program
External
Depth weighing plate ( mm )
110 mm
Width weighing plate ( mm )
-
Linearity
±0,003 g
Verified calibration
Not verifiable
Weighing plate (WxD)
Ø 110 mm
With draft shield
Yes
Pieces in a package
1
Upon request
Obrázek produktové varianty PLS 6200-2A
9901418 / PLS 6200-2A
Height ( mm )
120 mm
Type
PLS 6200-2A
Dimensions (WxDxH)
210 x 340 x 120 mm
Safety Data Sheet
https://sw.llg.de/search?search=9901418
Reproducibility ( % )
0,01 g
Readability ( N )
0,01 g
Max. load ( g )
6200 g
Adjusting program
External
Depth weighing plate ( mm )
160 mm
Width weighing plate ( mm )
-
Linearity
±0,03 g
Verified calibration
Not verifiable
Weighing plate (WxD)
Ø 160 mm
With draft shield
No
Pieces in a package
1
Upon request
Obrázek produktové varianty PLS 4200-2F
9901422 / PLS 4200-2F
Height ( mm )
120 mm
Type
PLS 4200-2F
Dimensions (WxDxH)
210 x 340 x 120 mm
Safety Data Sheet
https://sw.llg.de/search?search=9901422
Reproducibility ( % )
0,01 g
Readability ( N )
0,01 g
Max. load ( g )
4200 g
Adjusting program
External
Depth weighing plate ( mm )
160 mm
Width weighing plate ( mm )
-
Linearity
±0,04 g
Verified calibration
Not verifiable
Weighing plate (WxD)
Ø 160 mm
With draft shield
No
Pieces in a package
-
Upon request
Obrázek produktové varianty PLS 420-3F
9901442 / PLS 420-3F
Height ( mm )
160 mm
Type
PLS 420-3F
Dimensions (WxDxH)
210 x 340 x 160 mm
Safety Data Sheet
https://sw.llg.de/search?search=9901442
Reproducibility ( % )
0,001 g
Readability ( N )
0,001 g
Max. load ( g )
420 g
Adjusting program
External
Depth weighing plate ( mm )
110 mm
Width weighing plate ( mm )
-
Linearity
±0,004 g
Verified calibration
Not verifiable
Weighing plate (WxD)
Ø 110 mm
With draft shield
Yes
Pieces in a package
1
Upon request
Obrázek produktové varianty PLS 8000-2A
9901443 / PLS 8000-2A
Height ( mm )
120 mm
Type
PLS 8000-2A
Dimensions (WxDxH)
210 x 340 x 120 mm
Safety Data Sheet
https://sw.llg.de/search?search=9901443
Reproducibility ( % )
0,01 g
Readability ( N )
0,01 g
Max. load ( g )
8200 g
Adjusting program
External
Depth weighing plate ( mm )
160 mm
Width weighing plate ( mm )
-
Linearity
±0,04 g
Verified calibration
Not verifiable
Weighing plate (WxD)
Ø 160 mm
With draft shield
No
Pieces in a package
1
Upon request
Obrázek produktové varianty PLS 20000-1F
9901444 / PLS 20000-1F
Height ( mm )
120 mm
Type
PLS 20000-1F
Dimensions (WxDxH)
210 x 340 x 120 mm
Safety Data Sheet
https://sw.llg.de/search?search=9901444
Reproducibility ( % )
0,1 g
Readability ( N )
0,1 g
Max. load ( g )
20000 g
Adjusting program
External
Depth weighing plate ( mm )
175 mm
Width weighing plate ( mm )
200 mm
Linearity
±0,4 g
Verified calibration
Not verifiable
Weighing plate (WxD)
200 x 175 mm
With draft shield
No
Pieces in a package
1
Upon request

Technical specifications

Depth 340 mm
Power supply frequency 50/60 Hz
Max. voltage 240 V
Min. voltage 100 V
Plug type EU/UK/CH/US/AUS
Power supply 100 ... 240 V, 50/60 Hz
Type of auxiliary energy Mains connection
UNSPSC 41111517
Width 210 mm
