Precision balance Type PFB More photos

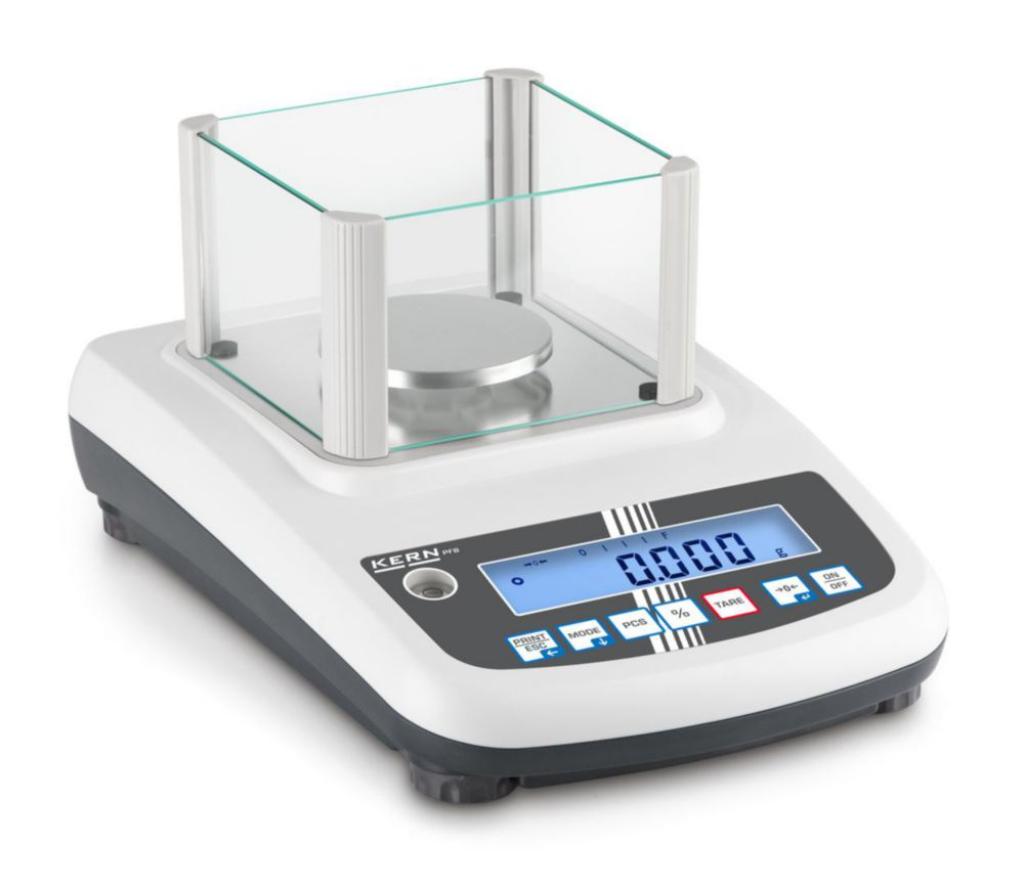

Precision balance Type PFB

  • Easy use: All primary functions have their own key on the keypad
  • Compact size, practical for small spaces
  • Capacity display: A bar lights up to show how much of the weighing range is still available
  • Draft shield standard for models with weighing plate sizes diam. 80 mm and 120 mm
  • Protective working cover
Choose a variant
Manufacturer
  • Kern & Sohn GmbH
Category

Product variant

Name Hermes code and manufacturer code
Height ( mm ) UNSPSC Weight ( g ) Type Power supply frequency ( Hz ) Plug type Dimensions (WxDxH) Power supply Safety Data Sheet Reproducibility ( % ) Readability ( N ) Max. load ( g ) Depth weighing plate ( mm ) Width weighing plate ( mm ) Linearity Weighing plate (WxD) With draft shield
Pieces in a package Price without VAT
Obrázek produktové varianty PFB 6000-2
4664415 / PFB 6000-2
Height ( mm )
90 mm
UNSPSC
41111517
Weight ( g )
1.8 kg
Type
PFB 6000-2
Power supply frequency ( Hz )
50 Hz
Plug type
EU/CH/UK/US
Dimensions (WxDxH)
210 x 315 x 90 mm
Power supply
100 ... 240 V, 50 Hz
Safety Data Sheet
-
Reproducibility ( % )
0,05 g
Readability ( N )
0,01 g
Max. load ( g )
6000 g
Depth weighing plate ( mm )
180 mm
Width weighing plate ( mm )
190 mm
Linearity
±0,07 g
Weighing plate (WxD)
190 x 180 mm
With draft shield
No
Pieces in a package
1
Upon request
Obrázek produktové varianty PFB 600-2
4671691 / PFB 600-2
Height ( mm )
160 mm
UNSPSC
41111517
Weight ( g )
1.4 kg
Type
PFB 600-2
Power supply frequency ( Hz )
50 Hz
Plug type
EU/CH/UK/US
Dimensions (WxDxH)
210 x 315 x 160 mm
Power supply
100 ... 240 V, 50 Hz
Safety Data Sheet
-
Reproducibility ( % )
0,01 g
Readability ( N )
0,01 g
Max. load ( g )
600 g
Depth weighing plate ( mm )
120 mm
Width weighing plate ( mm )
-
Linearity
±0,02 g
Weighing plate (WxD)
Ø 120 mm
With draft shield
Yes
Pieces in a package
1
Upon request
Obrázek produktové varianty PFB 120-3
6236765 / PFB 120-3
Height ( mm )
160 mm
UNSPSC
41-11-15-17
Weight ( g )
1.4 kg
Type
PFB 120-3
Power supply frequency ( Hz )
50 Hz
Plug type
EU/CH/UK/US
Dimensions (WxDxH)
210 x 315 x 160 mm
Power supply
100 ... 240 V, 50 Hz
Safety Data Sheet
https://sw.llg.de/search?search=6236765
Reproducibility ( % )
0,002 g
Readability ( N )
0,001 g
Max. load ( g )
120 g
Depth weighing plate ( mm )
80 mm
Width weighing plate ( mm )
-
Linearity
±0,003 g
Weighing plate (WxD)
Ø 80 mm
With draft shield
Yes
Pieces in a package
1
Upon request
Obrázek produktové varianty PFB 1200-2
6239586 / PFB 1200-2
Height ( mm )
160 mm
UNSPSC
41111517
Weight ( g )
1.4 kg
Type
PFB 1200-2
Power supply frequency ( Hz )
50 Hz
Plug type
EU/CH/UK/US
Dimensions (WxDxH)
210 x 315 x 160 mm
Power supply
100 ... 240 V, 50 Hz
Safety Data Sheet
https://sw.llg.de/search?search=6239586
Reproducibility ( % )
0,02 g
Readability ( N )
0,01 g
Max. load ( g )
1200 g
Depth weighing plate ( mm )
120 mm
Width weighing plate ( mm )
-
Linearity
±0,03 g
Weighing plate (WxD)
Ø 120 mm
With draft shield
Yes
Pieces in a package
1
Upon request
Obrázek produktové varianty PFB 2000-2
6251776 / PFB 2000-2
Height ( mm )
160 mm
UNSPSC
41111517
Weight ( g )
1.4 kg
Type
PFB 2000-2
Power supply frequency ( Hz )
50 Hz
Plug type
EU/CH/UK/US
Dimensions (WxDxH)
210 x 315 x 160 mm
Power supply
100 ... 240 V, 50 Hz
Safety Data Sheet
https://sw.llg.de/search?search=6251776
Reproducibility ( % )
0,02 g
Readability ( N )
0,01 g
Max. load ( g )
2000 g
Depth weighing plate ( mm )
120 mm
Width weighing plate ( mm )
-
Linearity
±0,04 g
Weighing plate (WxD)
Ø 120 mm
With draft shield
Yes
Pieces in a package
1
Upon request
Obrázek produktové varianty PFB 300-3
6255442 / PFB 300-3
Height ( mm )
160 mm
UNSPSC
41111517
Weight ( g )
1.2 kg
Type
PFB 300-3
Power supply frequency ( Hz )
50 Hz
Plug type
EU/CH/UK/US
Dimensions (WxDxH)
210 x 315 x 160 mm
Power supply
100 ... 240 V, 50 Hz
Safety Data Sheet
https://sw.llg.de/search?search=6255442
Reproducibility ( % )
0,003 g
Readability ( N )
0,001 g
Max. load ( g )
300 g
Depth weighing plate ( mm )
80 mm
Width weighing plate ( mm )
-
Linearity
±0,005 g
Weighing plate (WxD)
Ø 80 mm
With draft shield
Yes
Pieces in a package
1
Upon request
Obrázek produktové varianty PFB 200-3
6255671 / PFB 200-3
Height ( mm )
160 mm
UNSPSC
41111517
Weight ( g )
1.2 kg
Type
PFB 200-3
Power supply frequency ( Hz )
50 Hz
Plug type
EU/CH/UK/US
Dimensions (WxDxH)
210 x 315 x 160 mm
Power supply
100 ... 240 V, 50 Hz
Safety Data Sheet
https://sw.llg.de/search?search=6255671
Reproducibility ( % )
0,002 g
Readability ( N )
0,001 g
Max. load ( g )
200 g
Depth weighing plate ( mm )
80 mm
Width weighing plate ( mm )
-
Linearity
±0,004 g
Weighing plate (WxD)
Ø 80 mm
With draft shield
Yes
Pieces in a package
1
Upon request
Obrázek produktové varianty PFB 3000-2
6284456 / PFB 3000-2
Height ( mm )
160 mm
UNSPSC
41111517
Weight ( g )
1.4 kg
Type
PFB 3000-2
Power supply frequency ( Hz )
50 Hz
Plug type
EU/CH/UK/US
Dimensions (WxDxH)
210 x 315 x 160 mm
Power supply
100 ... 240 V, 50 Hz
Safety Data Sheet
https://sw.llg.de/search?search=6284456
Reproducibility ( % )
0,03 g
Readability ( N )
0,01 g
Max. load ( g )
3000 g
Depth weighing plate ( mm )
120 mm
Width weighing plate ( mm )
-
Linearity
±0,05 g
Weighing plate (WxD)
Ø 120 mm
With draft shield
Yes
Pieces in a package
1
Upon request
Obrázek produktové varianty PFB 600-3
6521978 / PFB 600-3
Height ( mm )
160 mm
UNSPSC
41111517
Weight ( g )
1.4 kg
Type
PFB 600-3
Power supply frequency ( Hz )
50/60 Hz
Plug type
EU/UK/CH/US/AUS
Dimensions (WxDxH)
210 x 315 x 160 mm
Power supply
100 ... 240 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=6521978
Reproducibility ( % )
0,005 g
Readability ( N )
0.001 g
Max. load ( g )
600 g
Depth weighing plate ( mm )
120 mm
Width weighing plate ( mm )
-
Linearity
±0,005 g
Weighing plate (WxD)
Ø 120 mm
With draft shield
Yes
Pieces in a package
-
Upon request
Obrázek produktové varianty PFB 6000-1
7652719 / PFB 6000-1
Height ( mm )
90 mm
UNSPSC
41111517
Weight ( g )
2 kg
Type
PFB 6000-1
Power supply frequency ( Hz )
50 Hz
Plug type
EU/CH/UK/US
Dimensions (WxDxH)
210 x 315 x 90 mm
Power supply
100 ... 240 V, 50 Hz
Safety Data Sheet
https://sw.llg.de/search?search=7652719
Reproducibility ( % )
0,1 g
Readability ( N )
0,1 g
Max. load ( g )
6000 g
Depth weighing plate ( mm )
180 mm
Width weighing plate ( mm )
190 mm
Linearity
±0,2 g
Weighing plate (WxD)
190 x 180 mm
With draft shield
No
Pieces in a package
1
Upon request

Technical specifications

Adjusting program External
Depth 315 mm
Material housing Plastic
Material weighing plate Stainless steel
Max. voltage 240 V
Min. voltage 100 V
Type of auxiliary energy Mains connection
Type of display LCD
Verified calibration Not verifiable
Warranty 2 years
Width 210 mm
