Platform scales IFB More photos

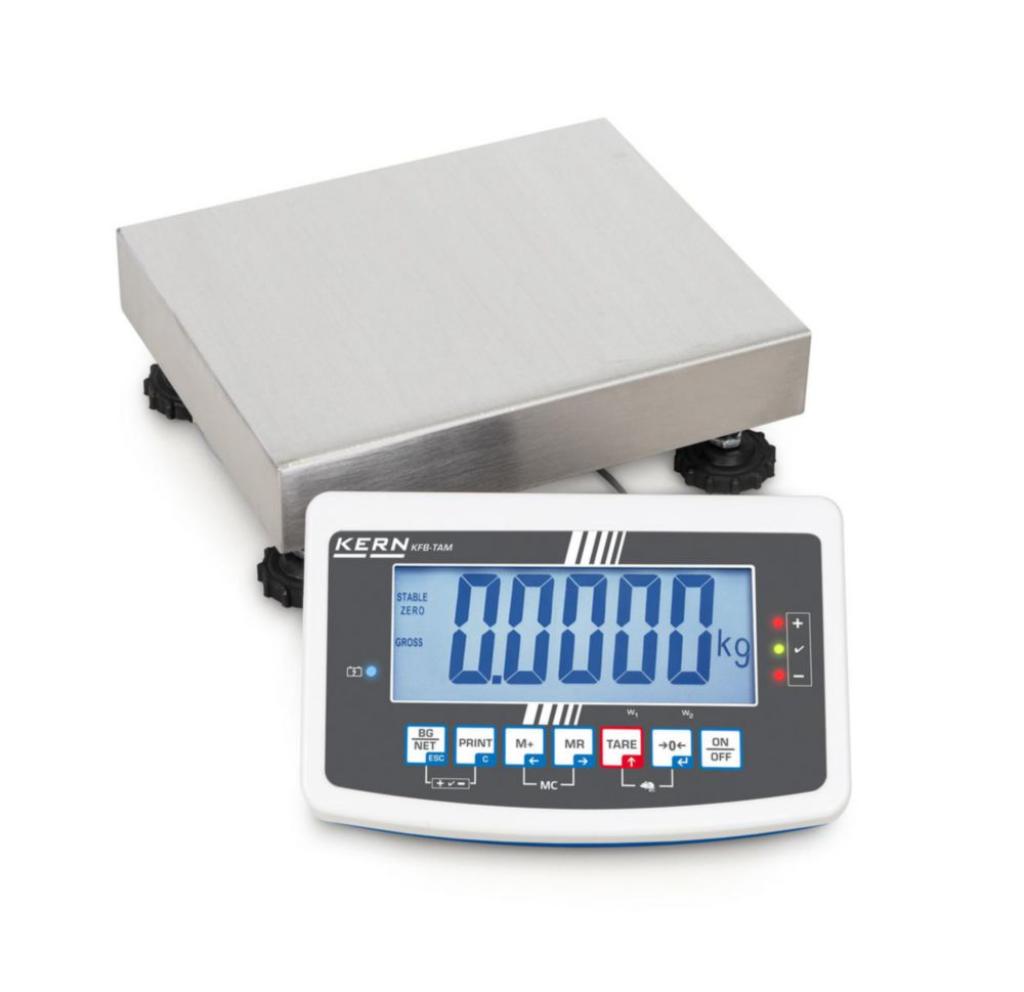

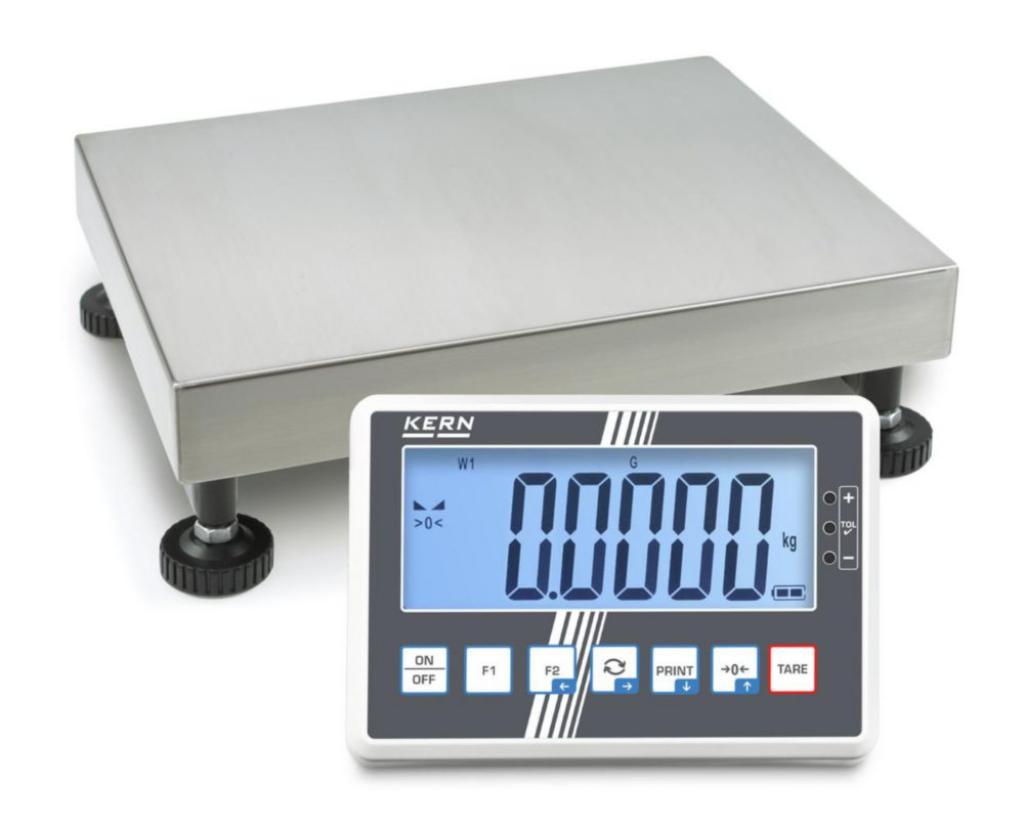

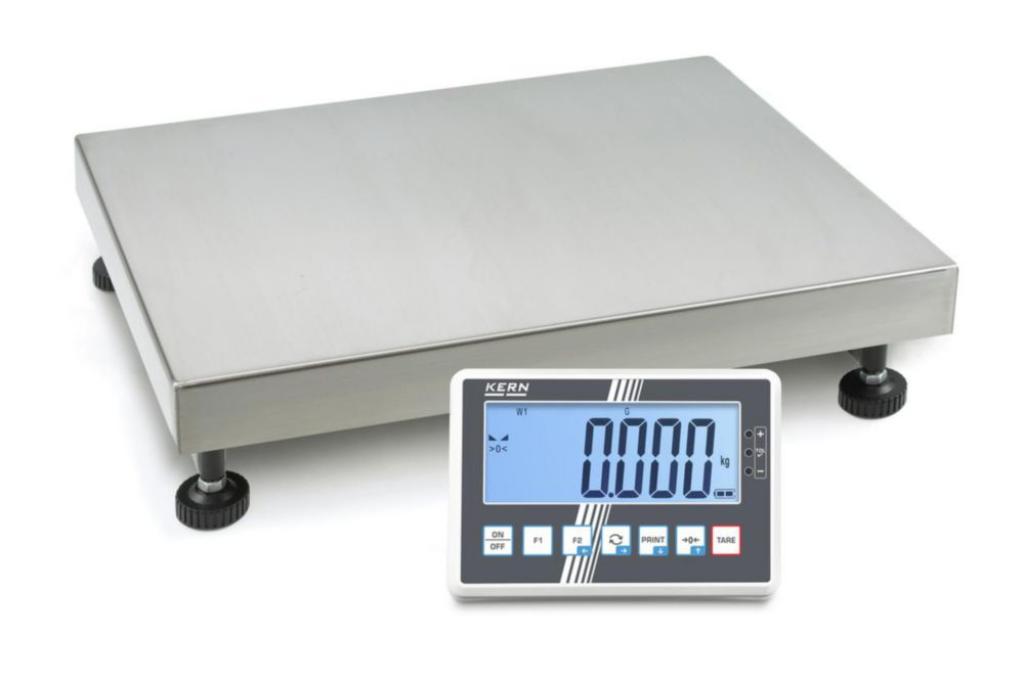

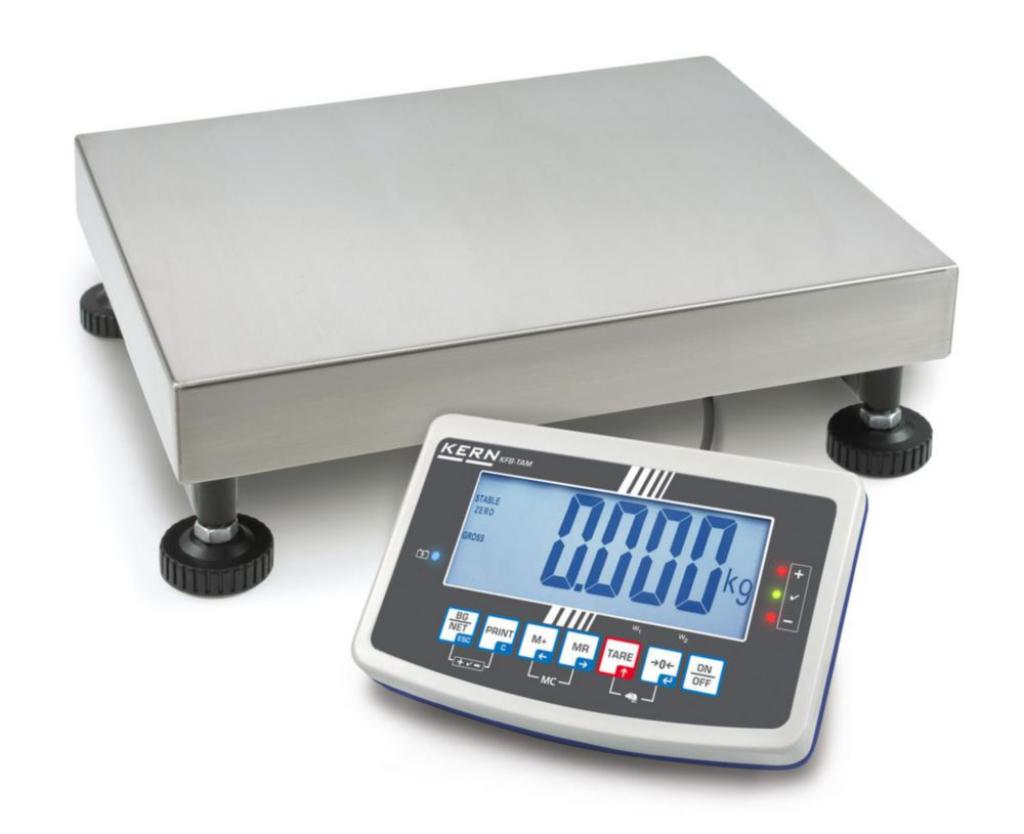

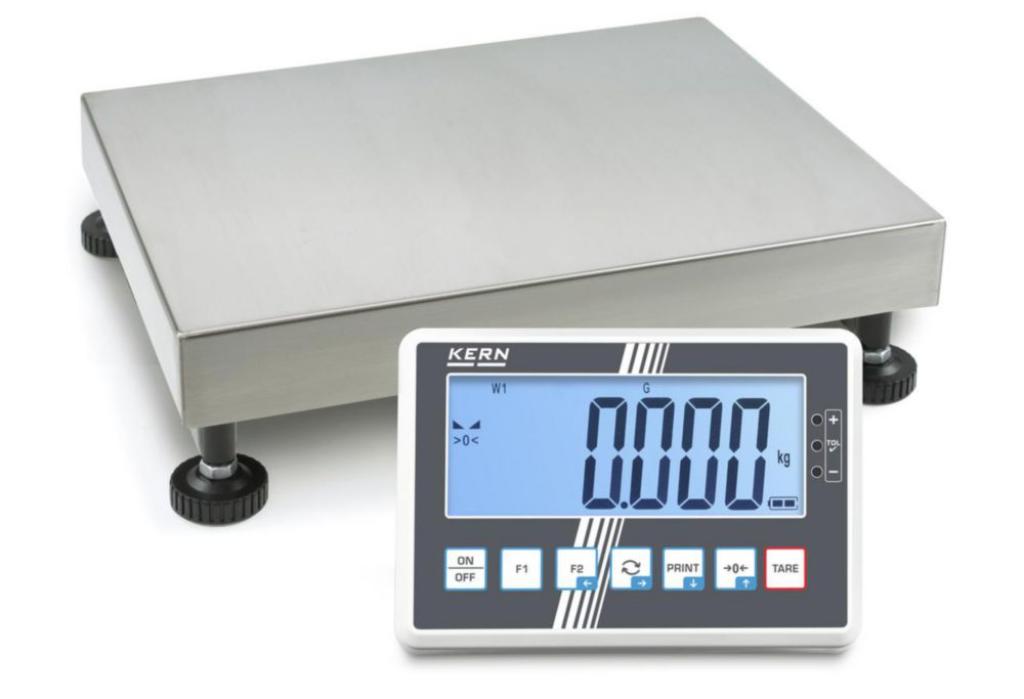

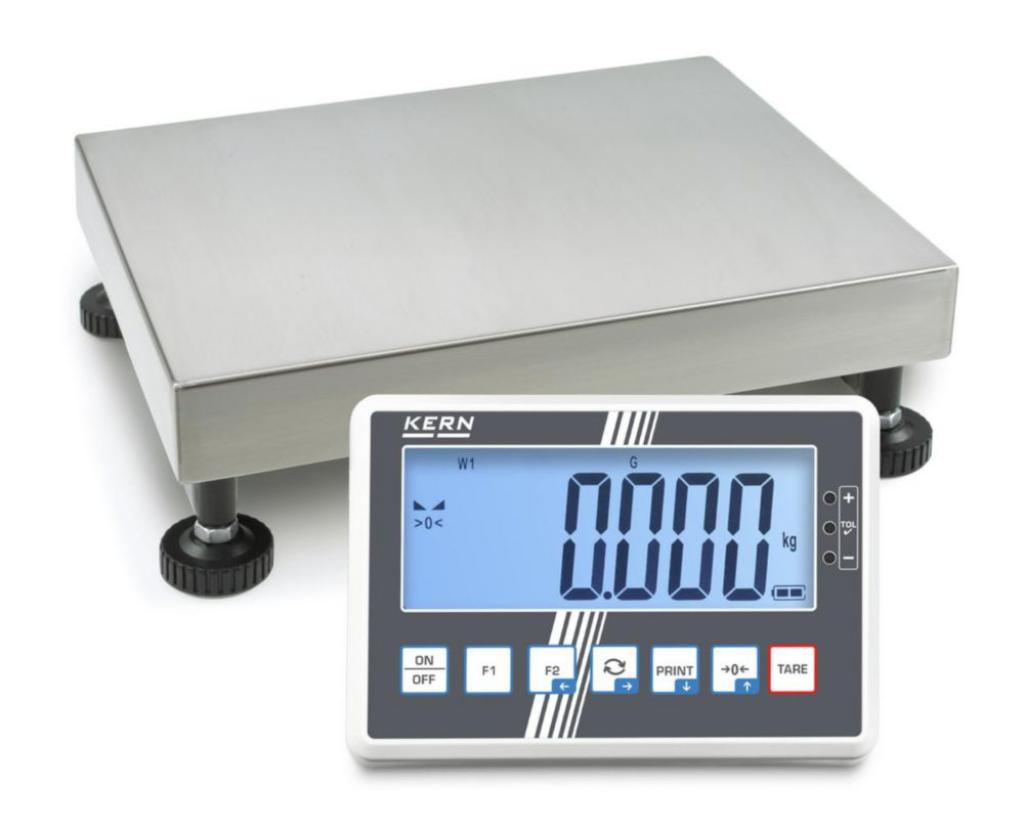

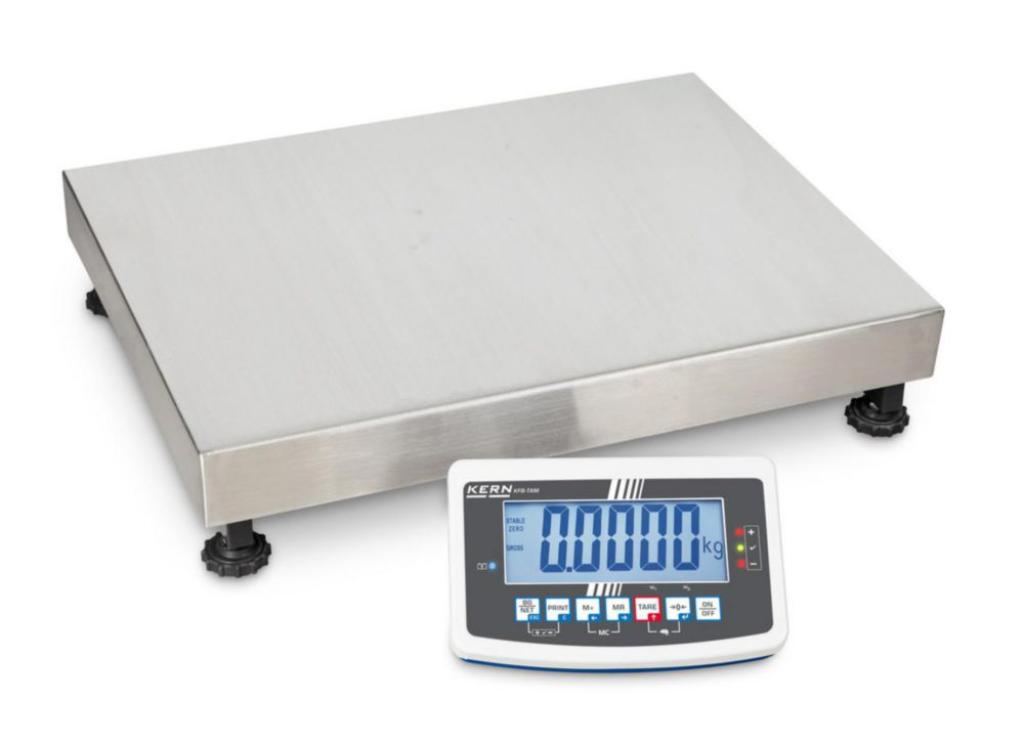

Platform scales IFB

High-resolution scale in heavy version.

  • Weighing plate stainless steel, painted steel base, silicone-coated aluminium load cell

  • Display device with large backlit LCD display, digit height 52 mm

  • Level indicator and levelling feet for precise levelling of the scale

  • Weighing with tolerance range (checkweighing)

  • Totalising of weights and piece counts

  • Hold function

  • Interface RS-232


Scope of supply:
Platform scale, protective working cover, benchtop stand incl. wall mount for display device, universal mains adapter
Choose a variant
Manufacturer
  • Kern & Sohn GmbH
Category

Product variant

Name Hermes code and manufacturer code
Weight ( g ) Type Safety Data Sheet Readability ( N ) Max. load ( g ) Depth weighing plate ( mm ) Width weighing plate ( mm ) Weighing plate (WxD)
Pieces in a package Price without VAT
Obrázek produktové varianty IFB 100K-3L
4660286 / IFB 100K-3L
Weight ( g )
20 kg
Type
IFB 100K-3L
Safety Data Sheet
-
Readability ( N )
5 g
Max. load ( g )
150 kg
Depth weighing plate ( mm )
500 mm
Width weighing plate ( mm )
650 mm
Weighing plate (WxD)
650 x 500 mm
Pieces in a package
1
Upon request
Obrázek produktové varianty IFB 10K-4
4660287 / IFB 10K-4
Weight ( g )
5 kg
Type
IFB 10K-4
Safety Data Sheet
-
Readability ( N )
0,5 g
Max. load ( g )
15 kg
Depth weighing plate ( mm )
240 mm
Width weighing plate ( mm )
300 mm
Weighing plate (WxD)
300 x 240 mm
Pieces in a package
1
Upon request
Obrázek produktové varianty IFB 10K-4L
4660288 / IFB 10K-4L
Weight ( g )
8 kg
Type
IFB 10K-4L
Safety Data Sheet
-
Readability ( N )
0,5 g
Max. load ( g )
15 kg
Depth weighing plate ( mm )
300 mm
Width weighing plate ( mm )
400 mm
Weighing plate (WxD)
400 x 300 mm
Pieces in a package
1
Upon request
Obrázek produktové varianty IFB 300K-2
4660290 / IFB 300K-2
Weight ( g )
20 kg
Type
IFB 300K-2
Safety Data Sheet
-
Readability ( N )
10 g
Max. load ( g )
300 kg
Depth weighing plate ( mm )
500 mm
Width weighing plate ( mm )
650 mm
Weighing plate (WxD)
650 x 500 mm
Pieces in a package
1
Upon request
Obrázek produktové varianty IFB 30K-3
4660291 / IFB 30K-3
Weight ( g )
8 kg
Type
IFB 30K-3
Safety Data Sheet
-
Readability ( N )
1 g
Max. load ( g )
30 kg
Depth weighing plate ( mm )
300 mm
Width weighing plate ( mm )
400 mm
Weighing plate (WxD)
400 x 300 mm
Pieces in a package
1
Upon request
Obrázek produktové varianty IFB 600K-2
4660293 / IFB 600K-2
Weight ( g )
44 kg
Type
IFB 600K-2
Safety Data Sheet
-
Readability ( N )
20 g
Max. load ( g )
600 kg
Depth weighing plate ( mm )
600 mm
Width weighing plate ( mm )
800 mm
Weighing plate (WxD)
800 x 600 mm
Pieces in a package
1
Upon request
Obrázek produktové varianty IFB 60K-3
4660294 / IFB 60K-3
Weight ( g )
8 kg
Type
IFB 60K-3
Safety Data Sheet
-
Readability ( N )
2 g
Max. load ( g )
60 kg
Depth weighing plate ( mm )
300 mm
Width weighing plate ( mm )
400 mm
Weighing plate (WxD)
400 x 300 mm
Pieces in a package
1
Upon request
Obrázek produktové varianty IFB 60K-3L
4660295 / IFB 60K-3L
Weight ( g )
11 kg
Type
IFB 60K-3L
Safety Data Sheet
-
Readability ( N )
2 g
Max. load ( g )
60 kg
Depth weighing plate ( mm )
400 mm
Width weighing plate ( mm )
500 mm
Weighing plate (WxD)
500 x 400 mm
Pieces in a package
1
Upon request
Obrázek produktové varianty IFB 3K-4
4691230 / IFB 3K-4
Weight ( g )
4.6 kg
Type
IFB 3K-4
Safety Data Sheet
https://sw.llg.de/search?search=4691230
Readability ( N )
0,1 g
Max. load ( g )
3 kg
Depth weighing plate ( mm )
230 mm
Width weighing plate ( mm )
230 mm
Weighing plate (WxD)
230 x 230 mm
Pieces in a package
1
Upon request
Obrázek produktové varianty IFB 6K-4S
4691232 / IFB 6K-4S
Weight ( g )
4.6 kg
Type
IFB 6K-4S
Safety Data Sheet
https://sw.llg.de/search?search=4691232
Readability ( N )
0,2 g
Max. load ( g )
6 kg
Depth weighing plate ( mm )
230 mm
Width weighing plate ( mm )
230 mm
Weighing plate (WxD)
230 x 230 mm
Pieces in a package
1
Upon request
Obrázek produktové varianty IFB 6K-4
6284382 / IFB 6K-4
Weight ( g )
5 kg
Type
IFB 6K-4
Safety Data Sheet
https://sw.llg.de/search?search=6284382
Readability ( N )
0,2 g
Max. load ( g )
6 kg
Depth weighing plate ( mm )
240 mm
Width weighing plate ( mm )
300 mm
Weighing plate (WxD)
300 x 240 mm
Pieces in a package
1
Upon request
Obrázek produktové varianty IFB 100K-3
6286288 / IFB 100K-3
Weight ( g )
11 kg
Type
IFB 100K-3
Safety Data Sheet
https://sw.llg.de/search?search=6286288
Readability ( N )
5 g
Max. load ( g )
150 kg
Depth weighing plate ( mm )
400 mm
Width weighing plate ( mm )
500 mm
Weighing plate (WxD)
500 x 400 mm
Pieces in a package
1
Upon request

Technical specifications

Power supply frequency 50/60 Hz
IP code IP 65
Max. voltage 240 V
Min. voltage 100 V
Plug type EU/UK/US
Power supply 100 ... 240 V, 50/60 Hz
Type of auxiliary energy Mains connection
UNSPSC 41111509
Verified calibration Not verifiable
