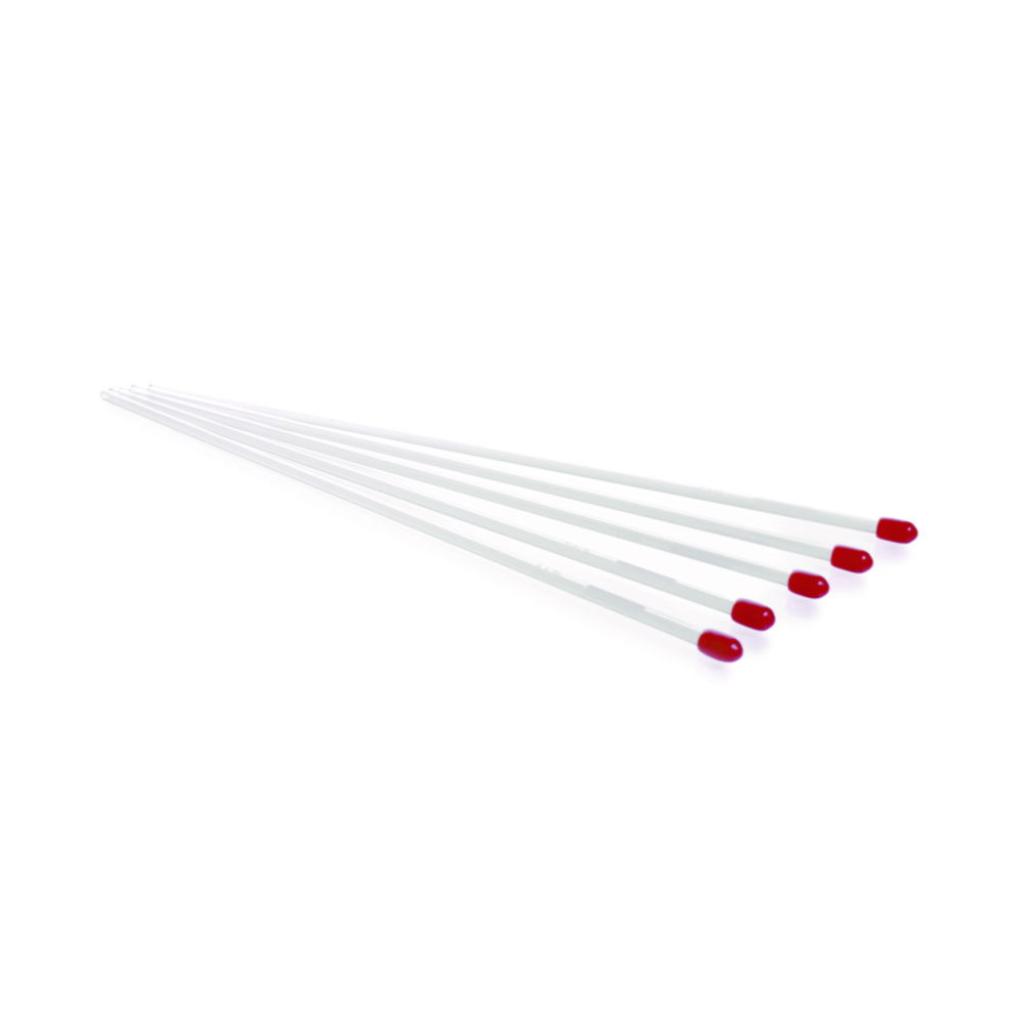

NMR tubes, 3 mm, borosilicate glass 3.3, KIMAX<sup>®</sup>-HQ More photos

NMR tubes, 3 mm, borosilicate glass 3.3, KIMAX®-HQ

Our KIMAX®-HQ NMR tubes are our highest quality NMR tubes and are 100 % gauged for wall thickness, concentricity and camber specifications.

  • High-Quality NMR tubes

  • Polyethylene caps

  • Sandblasted marking spot

  • Manufactured from borosilicate glass 3.3 conforming to USP Type I and ASTM E438, Type I, Class A requirements
Choose a variant
Manufacturer
  • DWK Life Sciences GmbH (Kimble)
Category

Product variant

Name Hermes code and manufacturer code
Ext. Ø ( mm ) Int. Ø ( mm ) Length ( mm ) Frequency Max. frequency ( MHz ) Min. frequency ( MHz )
Pieces in a package Price without VAT
Obrázek produktové varianty 3.0124 mm ± 0.013
9400321 / 897805-0000
Ext. Ø ( mm )
3.0124 mm ± 0.013
Int. Ø ( mm )
2.4003 mm ± 0.013
Length ( mm )
178 mm
Frequency
100 MHz
Max. frequency ( MHz )
100 MHz
Min. frequency ( MHz )
-
Pieces in a package
-
Upon request
Obrázek produktové varianty 3.0124 mm ± 0.013
9400323 / 897825-0000
Ext. Ø ( mm )
3.0124 mm ± 0.013
Int. Ø ( mm )
2.4003 mm ± 0.013
Length ( mm )
178 mm
Frequency
200 MHz
Max. frequency ( MHz )
200 MHz
Min. frequency ( MHz )
-
Pieces in a package
-
Upon request
Obrázek produktové varianty 3.0124 mm ± 0.013
9400324 / 897830-0000
Ext. Ø ( mm )
3.0124 mm ± 0.013
Int. Ø ( mm )
2.4003 mm ± 0.013
Length ( mm )
178 mm
Frequency
400 MHz
Max. frequency ( MHz )
400 MHz
Min. frequency ( MHz )
-
Pieces in a package
5
Upon request
Obrázek produktové varianty 3.0124 mm ± 0.013
9400325 / 897835-0000
Ext. Ø ( mm )
3.0124 mm ± 0.013
Int. Ø ( mm )
2.4003 mm ± 0.013
Length ( mm )
178 mm
Frequency
500 MHz
Max. frequency ( MHz )
500 MHz
Min. frequency ( MHz )
-
Pieces in a package
-
Upon request
Obrázek produktové varianty 3.0124 mm ± 0.013
9400326 / 897835-0008
Ext. Ø ( mm )
3.0124 mm ± 0.013
Int. Ø ( mm )
2.4003 mm ± 0.013
Length ( mm )
203 mm
Frequency
500 MHz
Max. frequency ( MHz )
500 MHz
Min. frequency ( MHz )
-
Pieces in a package
-
Upon request
Obrázek produktové varianty 3.0124 mm ± 0.013
9400327 / 897840-0000
Ext. Ø ( mm )
3.0124 mm ± 0.013
Int. Ø ( mm )
2.4003 mm ± 0.013
Length ( mm )
178 mm
Frequency
600 ... 800 MHz
Max. frequency ( MHz )
800 MHz
Min. frequency ( MHz )
600 MHz
Pieces in a package
-
Upon request

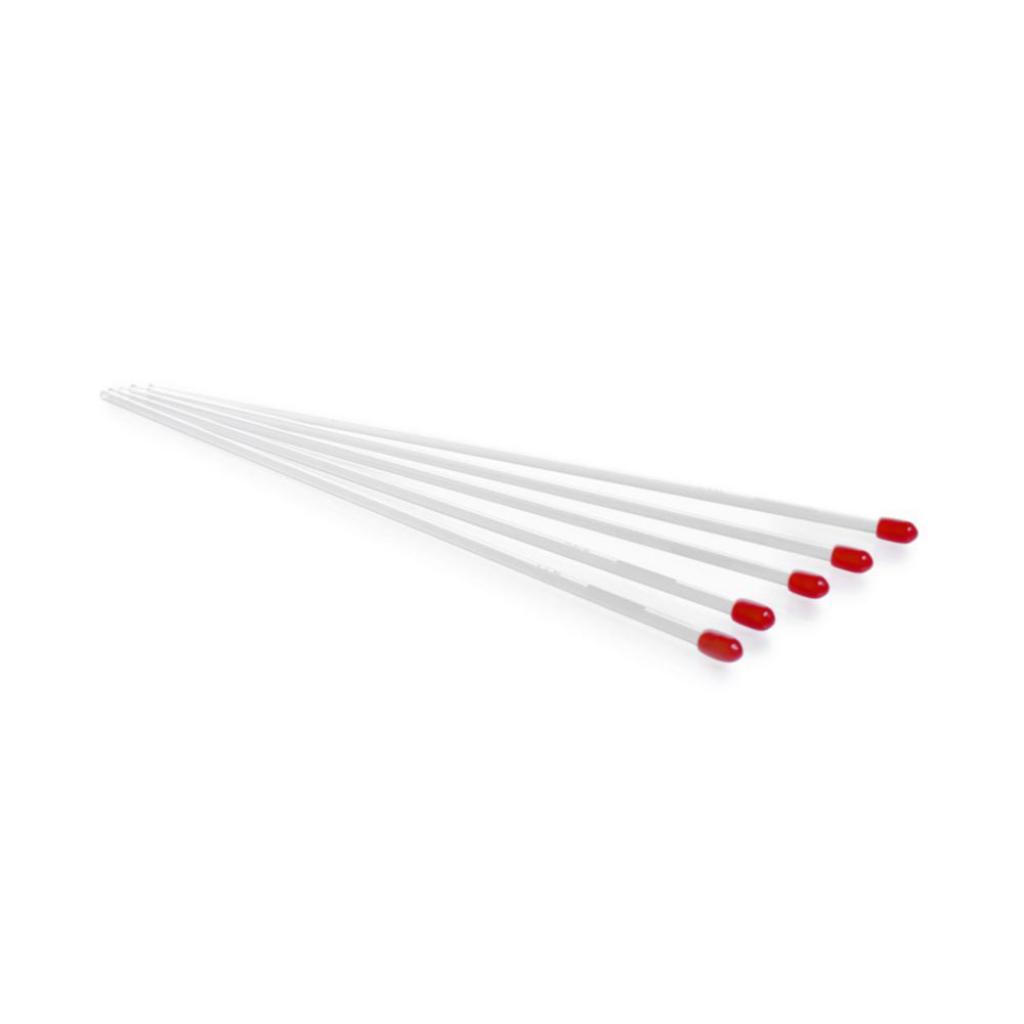

Obrázek produktové varianty 3.0124 mm ± 0.013
9400328 / 897840-0008
Ext. Ø ( mm )
3.0124 mm ± 0.013
Int. Ø ( mm )
2.4003 mm ± 0.013
Length ( mm )
203 mm
Frequency
600 ... 800 MHz
Max. frequency ( MHz )
800 MHz
Min. frequency ( MHz )
600 MHz
Pieces in a package
-
Upon request

Technical specifications

Material Boro 3.3
Tolerance ext. Ø 0.013 mm
Tolerance int. Ø 0.013 mm
Wall thickness 0,284 mm

Photos

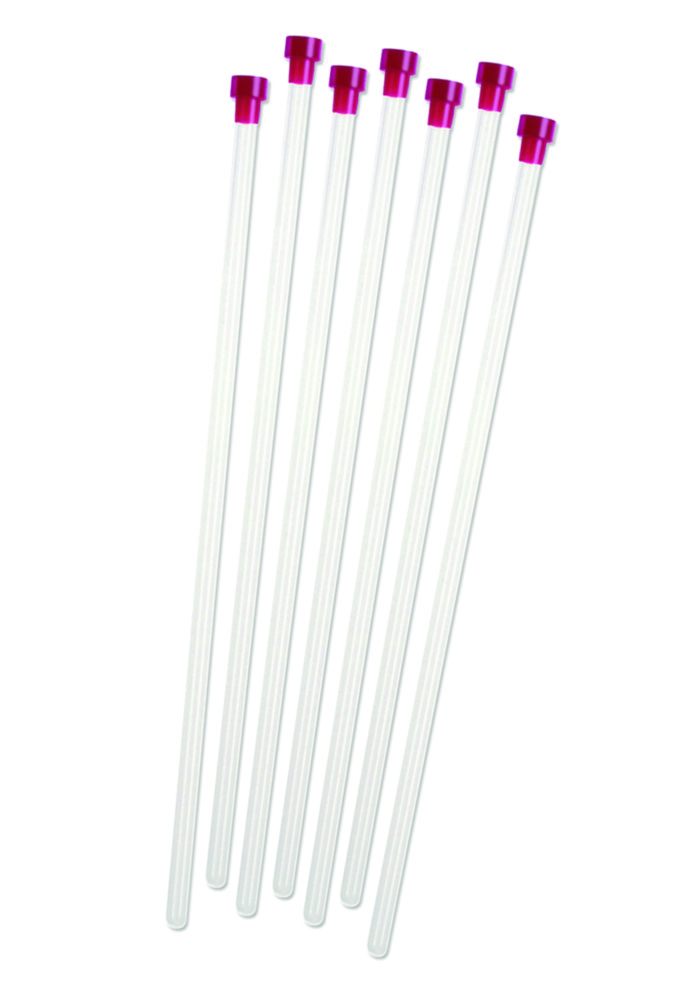

NMR tubes, 3 mm, borosilicate glass 3.3, KIMAX<sup>®</sup>-HQ NMR tubes, 3 mm, borosilicate glass 3.3, KIMAX<sup>®</sup>-HQ NMR tubes, 3 mm, borosilicate glass 3.3, KIMAX<sup>®</sup>-HQ
