Multi vortexer V-32 More photos

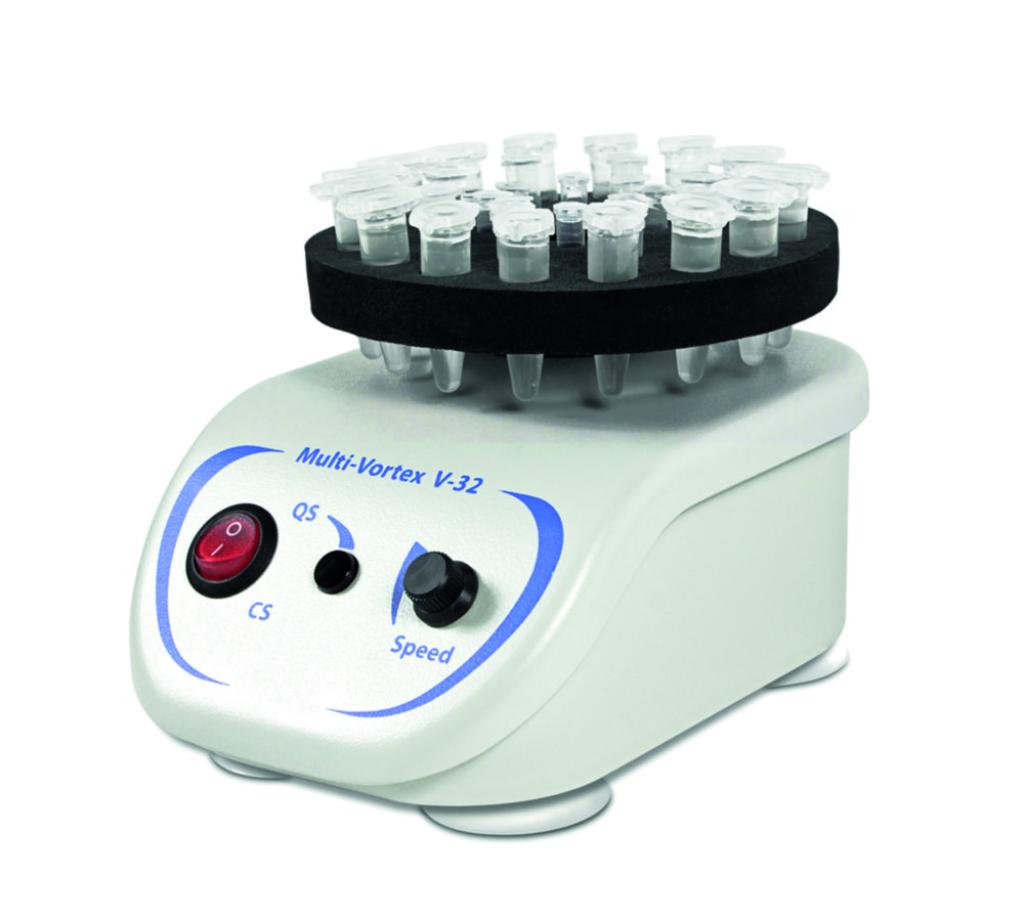

Multi vortexer V-32

The multi vortexer is suitable for vigorous resuspension of cells or chemical pellets. With the universal platform, 16 x 1.5 ml, 8 x 0.5 ml and 8 x 0.2 ml reagent vessels can be shaken simultaneously.

  • Touch or continuous operation

  • Rubber suction pads hold the vortexer to the work surface and absorb vibrations

  • Compact, robust design with powerful motor

  • Incl. head for shaking single-tubes (max. 15 ml tubes)


Scope of supply: Multi vortexer, universal platform PV-32, single-tube head PL-1, manual
Choose a variant
Manufacturer
  • Grant Instruments Ltd.
Category

Product variant

Name Hermes code and manufacturer code Pieces in a package Price without VAT
Obrázek produktové varianty V-32
6237058 / V-32
Pieces in a package
-
Upon request

Technical specifications

Depth 180 mm
Dimensions (WxDxH) 120 x 180 x 100 mm
Power supply frequency 50/60 Hz
Height 100 mm
Max. loading capacity 0.07 kg
Max. permitted ambient temp. 40 °C
Max. relative humidity rate 80 %
Max. speed 3000 1/min
Max. voltage 230 V
Min. permitted ambient temperature 4 °C
Min. speed 500 1/min
Min. voltage 120 V
Permitted ambient temperature 4 ... 40 °C
Power supply 120 ... 230 V, 50/60 Hz
Shaking stroke 2 mm
Speed 500 ... 3,000 1/min
Type V-32
Type of movement Orbital
UNSPSC 41-11-61-16
Weight 1.5 kg
Width 120 mm
With continuous operation Yes
With touch operation Yes
