Mini temperature/pressure data logger EBI 11-P111 More photos

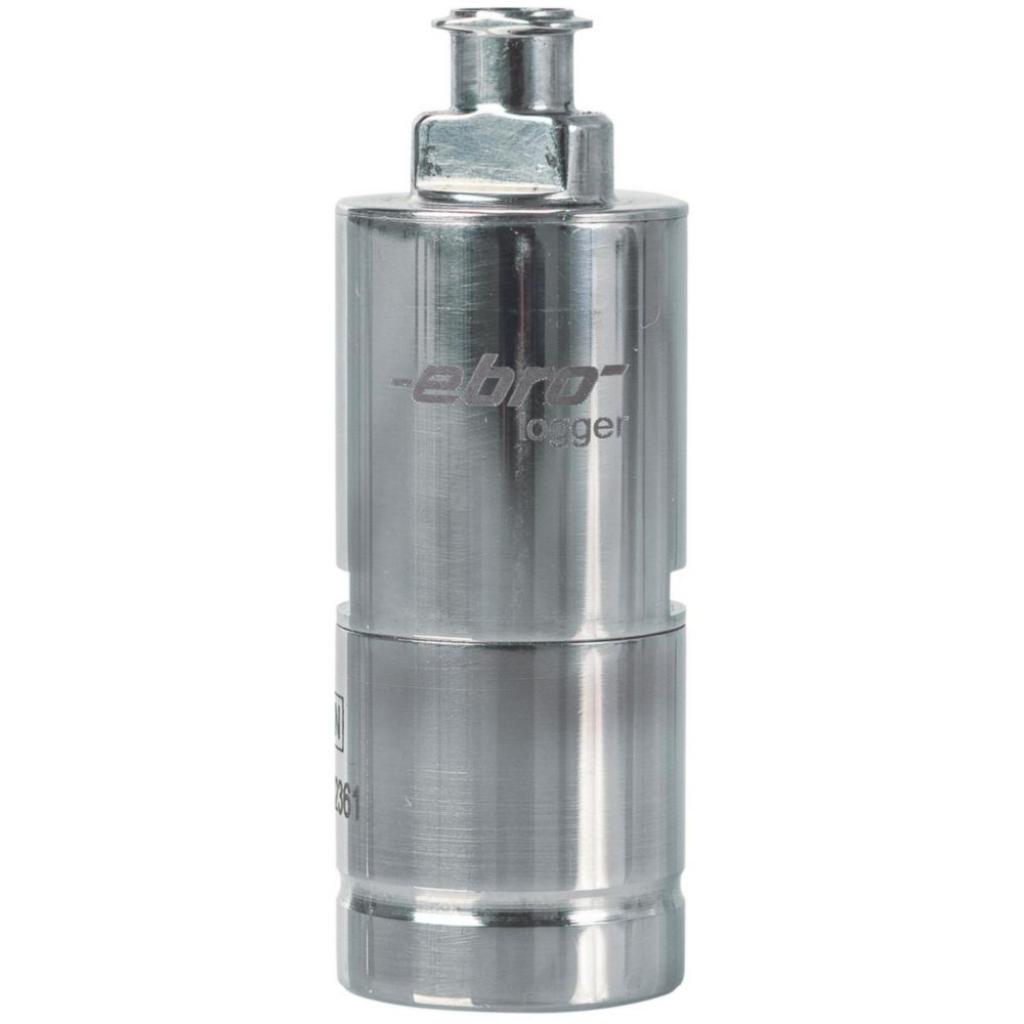

Mini temperature/pressure data logger EBI 11-P111

The temperature/pressure data logger is designed to measure temperature and pressure for process validation and routine monitoring in small sterilizers and cassette autoclaves.

  • Space-saving stainless steel housing

  • Wireless measurement

  • Luer-Lock connection

  • Temperature-compensated pressure measurement over the complete measuring range

  • PT1000 temperature probe and piezoresistive pressure sensor

  • Memory for up to 2 x 7500 measured values

  • Factory calibration certificate: 0 °C, 60 °C, and 134 °C/100 mbar, 3100 mbar, and 6000 mbar at 25 °C, 3100 mbar at 134 °C
Choose a variant
Manufacturer
  • Xylem Analytics Germany (EBRO)
Category

Product variant

Name Hermes code and manufacturer code Pieces in a package Price without VAT
Obrázek produktové varianty Mini Temperatur logger EBI 11-P111 temperature range 0 °C to +150 °C IP 68, external sensor, Luer lock connector
4664589 / 1340-6296
Pieces in a package
1
Upon request

Technical specifications

Air pressure 1 ... 10,000 mbar
Battery/ rechargeable battery 2 x 3 V, Lithium
Ø 16.5 mm
Dimensions (ØxH) 16.5 x 48 mm
Electrochemical system Lithium
Height 48 mm
IP code IP 68
Material housing Stainless steel
Max. air pressure 10000 mbar hPa
Max. measuring cycle 24 h min
Max. temperature 150 °C
Max. voltage battery/ rechargeable battery 3 V
Measuring cycle 1 sec ... 24 h
Min. air pressure 1 mbar hPa
Min. measuring cycle 1 sec
Min. temperature 0 °C
No. of batteries/ rechargeable batteries 2
Resolution 0.01 °C
Resolution air pressure 1 mbar hPa
Temperature 0 ... 150 °C
Type EBI 11-P111
Type of auxiliary energy Battery
Weight 45 g
