Immersion Cylinders More photos

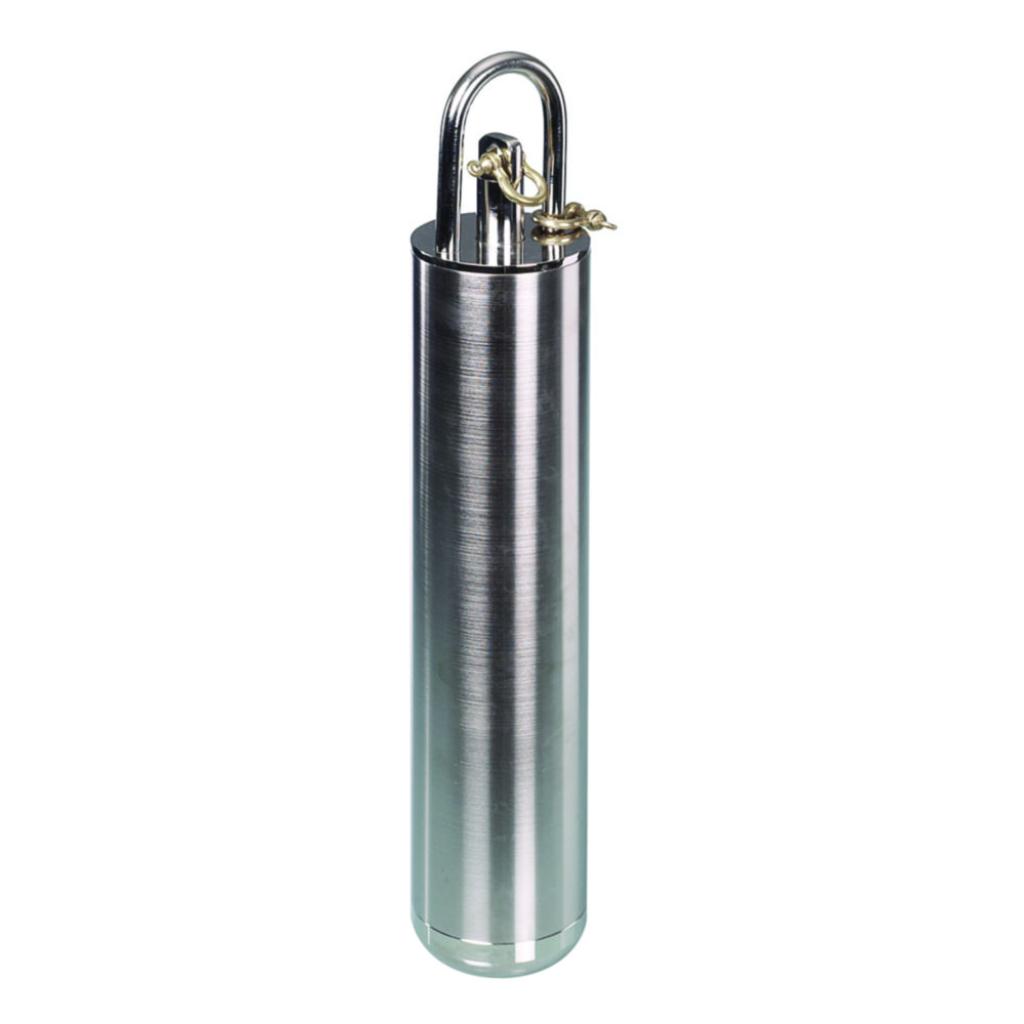

Immersion Cylinders

For target spot and bottom samples of mineral oil products. Made of nickel-plated brass.

  • Screw-off top

  • With handle

  • Heavy design for fast lowering

  • Without lowering and pull cables


Target spot sample: 1. Immersion cylinder is lowered in the tank to be sampled by the manually operated reel. 2. The separate pull cable is used to open the valve when the target spot is reached and the sample then enters the immersion cylinder.
Bottom sample: 1. Lower the immersion cylinder to the bottom. 2. The weight of the immersion cylinder opens the valve automatically when the bottom is reached and the sample then enters the immersion cylinder.
Choose a variant
Manufacturer
  • Bürkle GmbH
Category

Product variant

Name Hermes code and manufacturer code
Height ( mm ) Nominal capacity ( ml ) Weight ( g ) Safety Data Sheet Dimensions (ØxH)
Pieces in a package Price without VAT
Obrázek produktové varianty [LLG] Immersion Cylinders
4681429 / 5365-7500
Height ( mm )
300 mm
Nominal capacity ( ml )
500 ml
Weight ( g )
3000 g
Safety Data Sheet
https://sw.llg.de/search?search=4681429
Dimensions (ØxH)
75 x 300 mm
Pieces in a package
1
Upon request
Obrázek produktové varianty [LLG] Immersion Cylinders
9303939 / 5365-7000
Height ( mm )
450 mm
Nominal capacity ( ml )
1000 ml
Weight ( g )
4300 g
Safety Data Sheet
https://sw.llg.de/search?search=9303939
Dimensions (ØxH)
75 x 450 mm
Pieces in a package
1
Upon request

Technical specifications

Ø 75 mm
Ex protected Yes
Material Brass
UNSPSC 41104000
