Eppendorf ThermoMixer™ F0.5/F1.5/F2.0/FP More photos

Eppendorf ThermoMixer™ F0.5/F1.5/F2.0/FP

To simplify lab routines. Whether work with regularly 0.5, 1.5 or 2.0 ml reaction vessels or plates (MTP and DWP) - the customized systems from Eppendorf offer the perfect solution for special applications. The devices combine precise heating and mixing with the highest stability, even at maximum mixing frequency. Mixing and incubation steps can be performed independently.
  • For 24 reaction vessels or one microplate/deepwell plate
  • Efficient mixing thanks to 2DMix-Control and anti-spill technology
  • Simple and intuitive operation using predefined temperature keys (37 °C, 42 °C, 56 °C and 95 °C)
  • Improved temperature homogeneity with the new ThermoTop
Choose a variant
Manufacturer
  • Eppendorf SE
Category

Product variant

Name Hermes code and manufacturer code
Height ( mm ) Weight ( g ) Type Dimensions (WxDxH) Min. voltage ( V ) Power supply Accuracy temperature Max. speed ( 1/min ) Speed Max. heating rate ( °C/min )
Pieces in a package Price without VAT

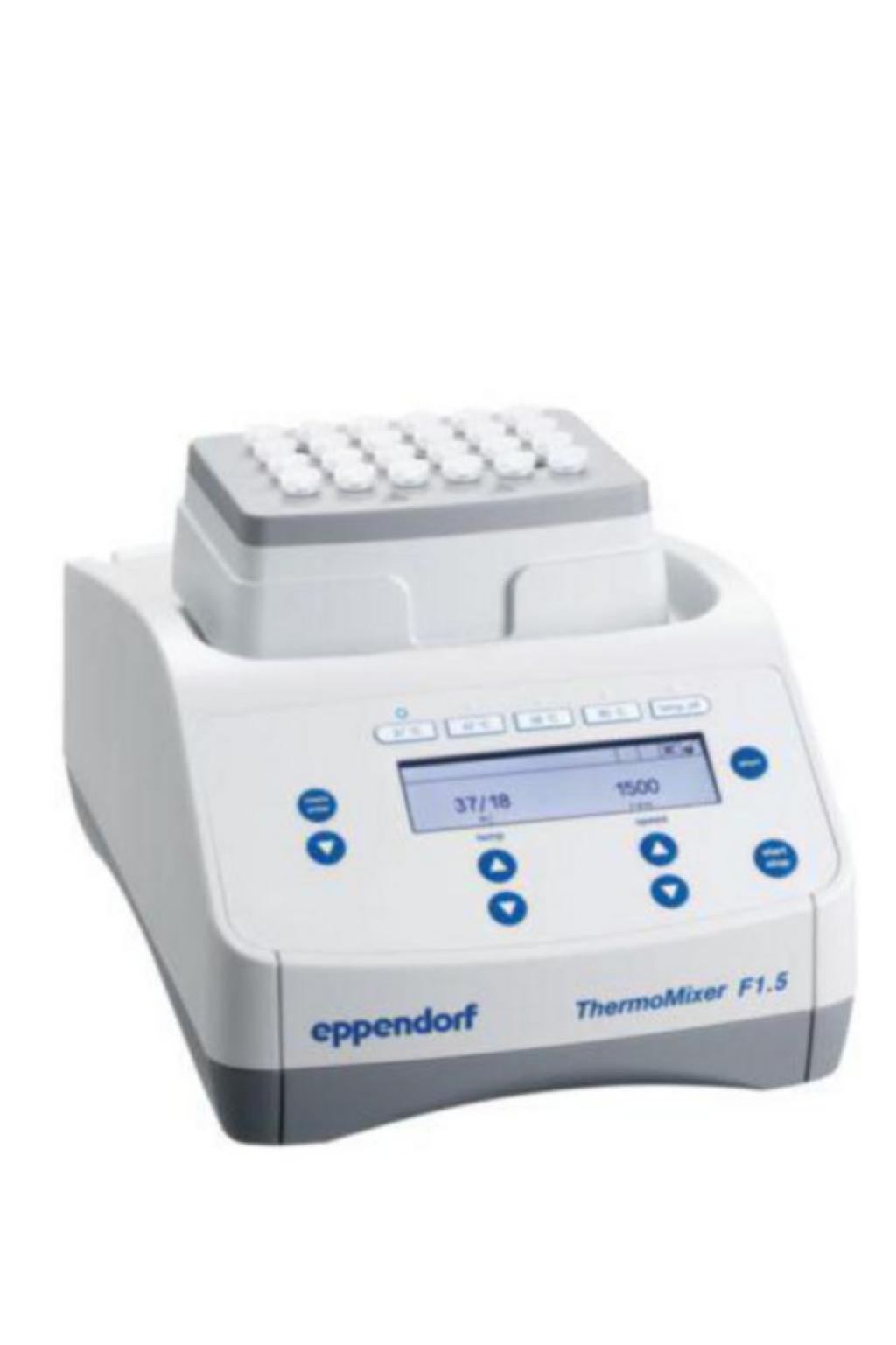

Obrázek produktové varianty ThermoMixer™ F1.5
9776904 / 5384000012
Height ( mm )
170 mm
Weight ( g )
6.3 kg
Type
ThermoMixer™ F1.5
Dimensions (WxDxH)
206 x 304 x 170 mm
Min. voltage ( V )
220 V
Power supply
220 ... 240 V, 50/60 Hz
Accuracy temperature
±0.5 °C
Max. speed ( 1/min )
1500 1/min
Speed
300 ... 1,500 1/min
Max. heating rate ( °C/min )
11 °C/min
Pieces in a package
-
Upon request

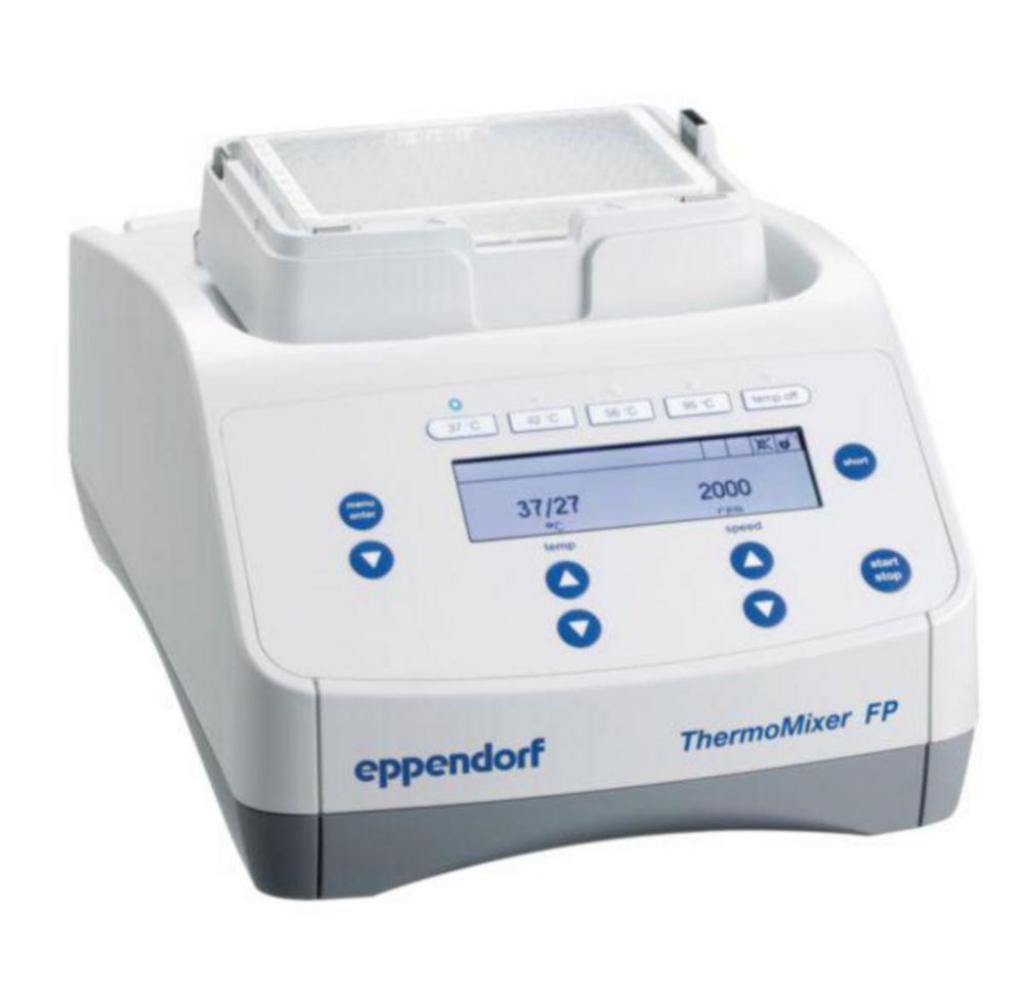

Obrázek produktové varianty ThermoMixer™ FP
9776905 / 5385000016
Height ( mm )
164 mm
Weight ( g )
6.1 kg
Type
ThermoMixer™ FP
Dimensions (WxDxH)
206 x 304 x 164 mm
Min. voltage ( V )
220 V
Power supply
220 ... 240 V, 50/60 Hz
Accuracy temperature
±0.5 °C
Max. speed ( 1/min )
2000 1/min
Speed
300 ... 2,000 1/min
Max. heating rate ( °C/min )
18 °C/min
Pieces in a package
-
Upon request

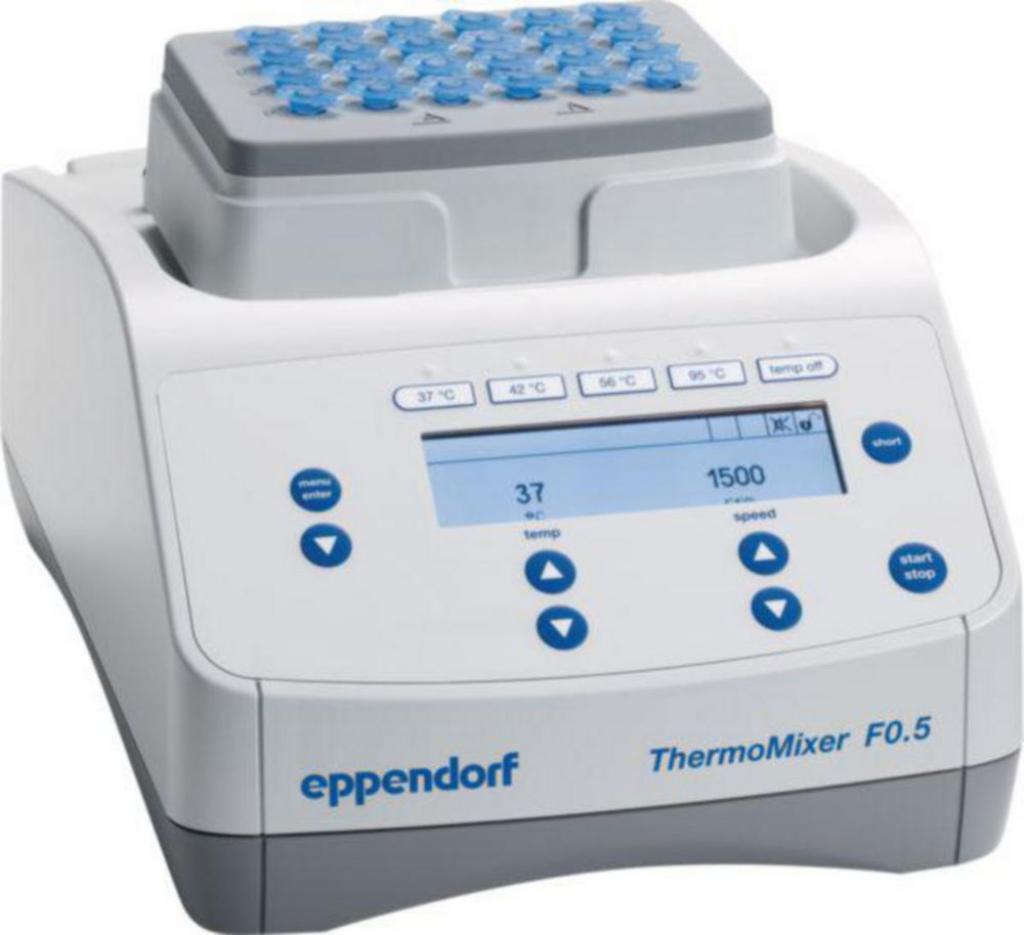

Obrázek produktové varianty ThermoMixer™ F0.5
9776936 / 5386000010
Height ( mm )
163 mm
Weight ( g )
6.2 kg
Type
ThermoMixer™ F0.5
Dimensions (WxDxH)
206 x 304 x 163 mm
Min. voltage ( V )
200 V
Power supply
200 ... 240 V, 50/60 Hz
Accuracy temperature
±0.5 °C
Max. speed ( 1/min )
2000 1/min
Speed
300 ... 2,000 1/min
Max. heating rate ( °C/min )
15 °C/min
Pieces in a package
-
Upon request

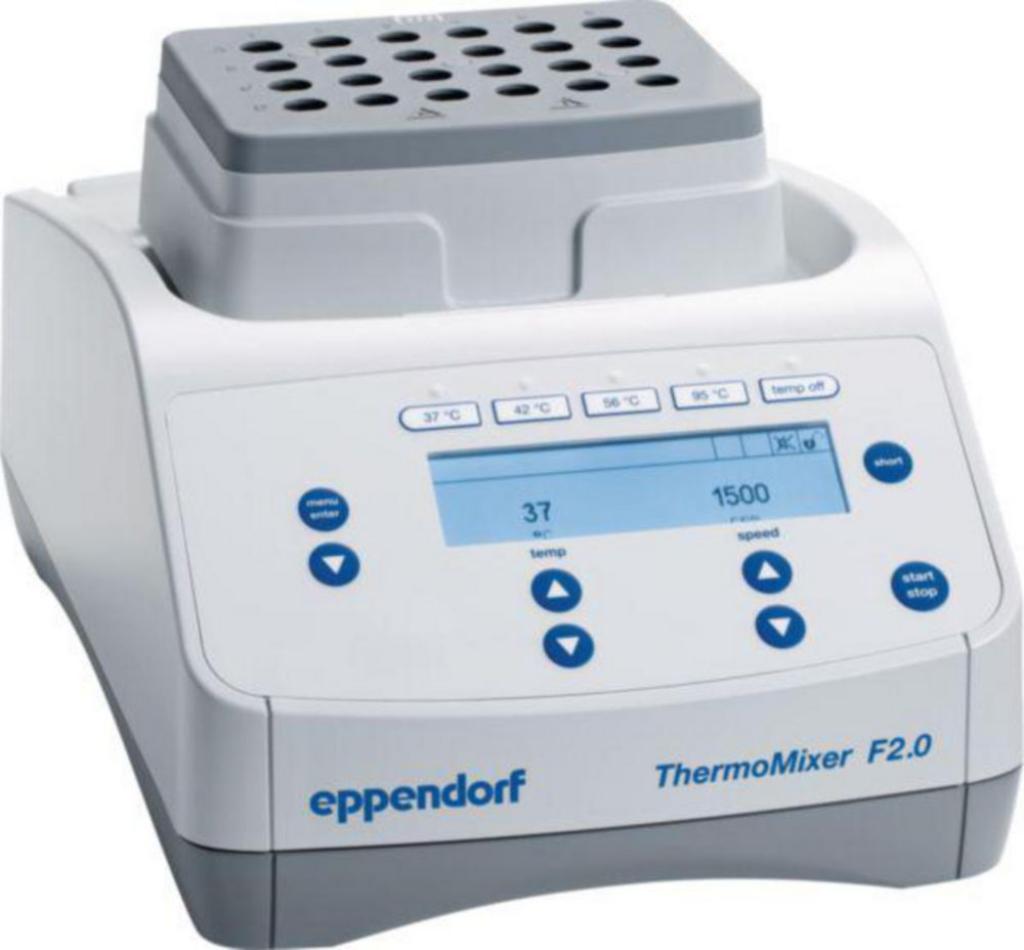

Obrázek produktové varianty ThermoMixer™ F2.0
9776937 / 5387000013
Height ( mm )
170 mm
Weight ( g )
6.3 kg
Type
ThermoMixer™ F2.0
Dimensions (WxDxH)
206 x 304 x 170 mm
Min. voltage ( V )
220 V
Power supply
220 ... 240 V, 50/60 Hz
Accuracy temperature
±0.5 °C
Max. speed ( 1/min )
1500 1/min
Speed
300 ... 1,500 1/min
Max. heating rate ( °C/min )
13 °C/min
Pieces in a package
-
Upon request

Technical specifications

Depth 304 mm mm
Power supply frequency 50/60 Hz Hz
Max. temperature 100 °C °C
Max. voltage 240 V V
Min. speed 300 1/min 1/min
Min. temperature +4 °C °C
Plug type EU
Shaking stroke 3 mm mm
Temperature addition RT
Temperature RT+4 ... 100 °C
UNSPSC 41103801
Width 206 mm mm
