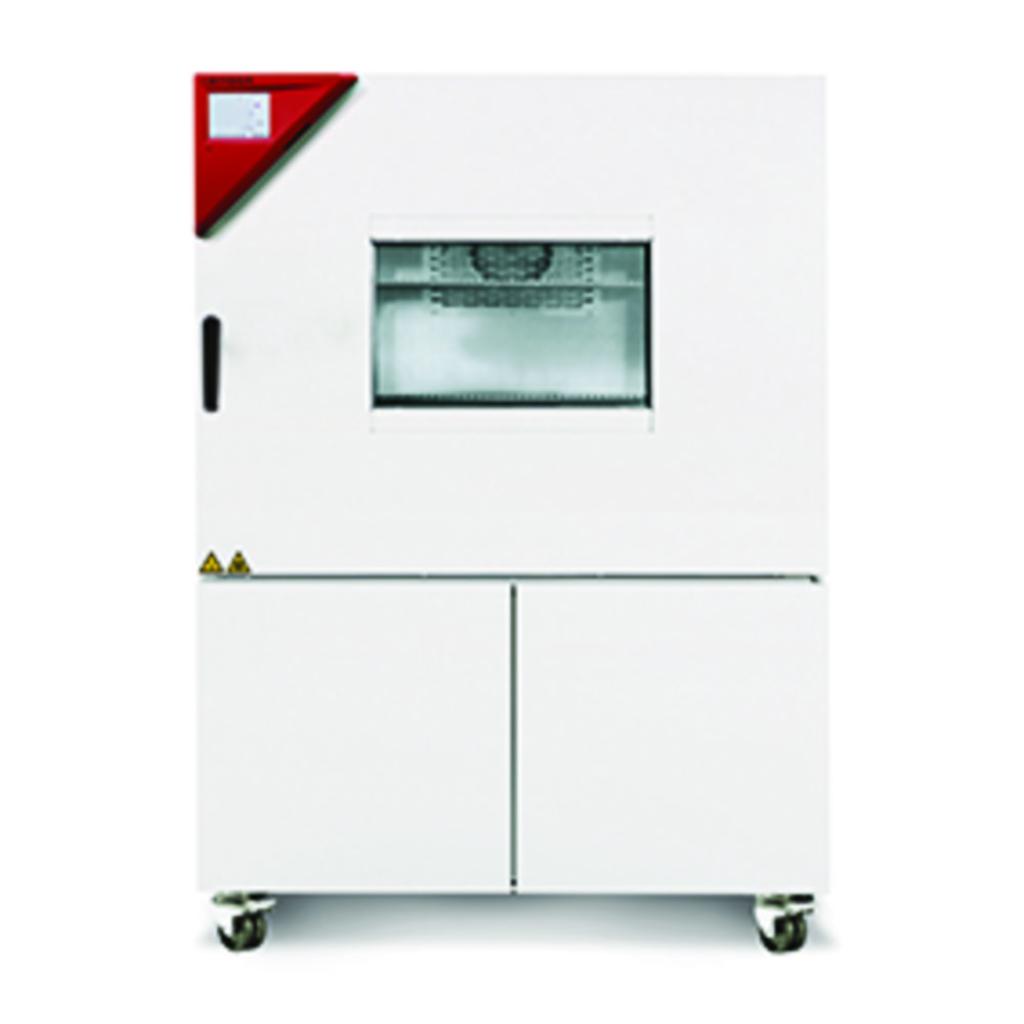

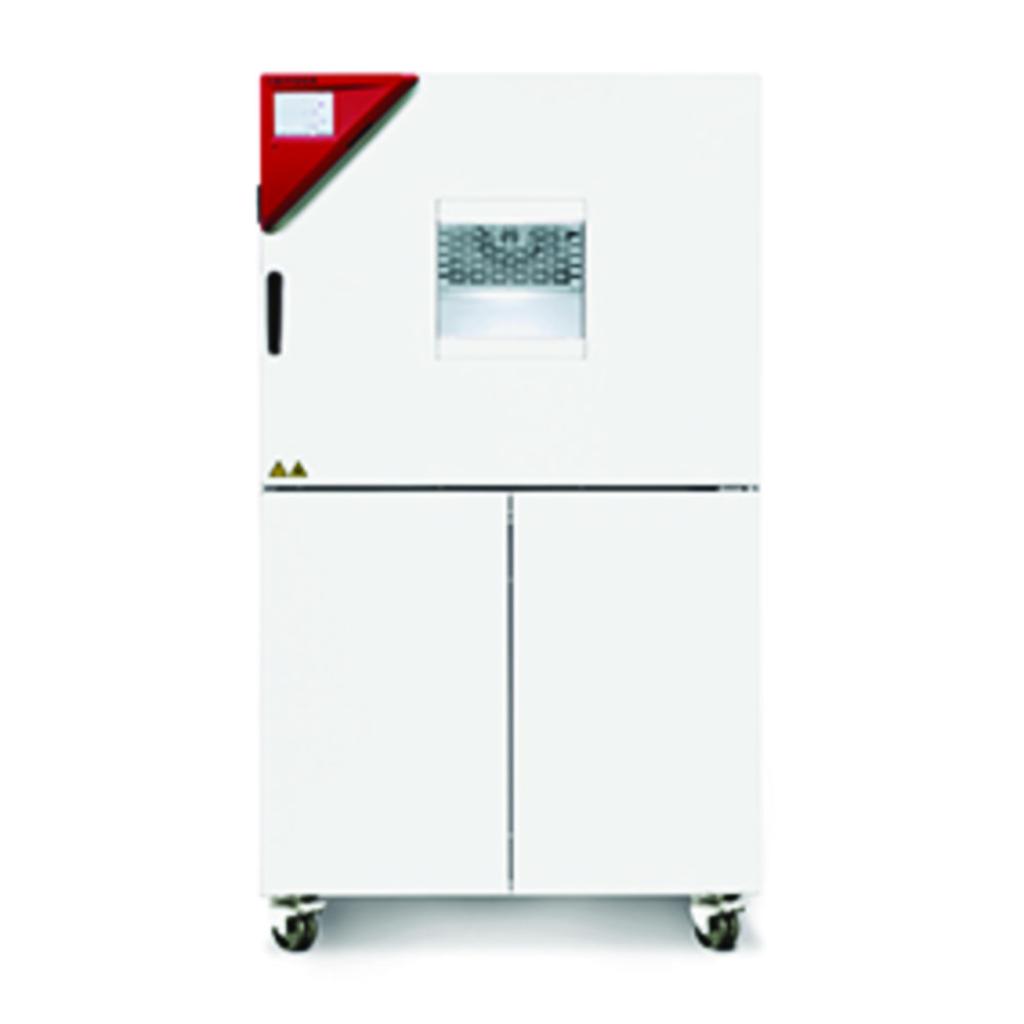

Dynamic climate chambers MKF, with humidity control More photos

Dynamic climate chambers MKF, with humidity control

  • Humidity regulation with capacitive humidity sensor and responsive steam humidification

  • Automatic water and wastewater management

  • Integrated 20 l water storage tank

  • 4 zero-voltage relay contacts

  • CFC-free refrigerant R-452A


Models with 480 V nominal voltage are equipped with a voltage and frequency converter.
Choose a variant
Manufacturer
  • BINDER GmbH
Category

Product variant

Name Hermes code and manufacturer code
Nominal capacity ( ml ) Weight ( g ) Type Depth int. ( mm ) Height int. ( mm ) Int. width ( mm ) Ext. depth ( mm ) Ext. height ( mm ) Ext. width ( mm ) Power supply frequency ( Hz ) Max. voltage ( V ) Plug type Min. voltage ( V ) Rated capacity ( W ) Power supply Ext. dim. (WxDxH) Int. Dim. (WxDxH) Temperature stability ( °C ) Max. no. of inserts
Pieces in a package Price without VAT
Obrázek produktové varianty MKF 400
4685704 / 9020-0408
Nominal capacity ( ml )
417 l
Weight ( g )
432 kg
Type
MKF 400
Depth int. ( mm )
810 mm
Height int. ( mm )
700 mm
Int. width ( mm )
735 mm
Ext. depth ( mm )
1400 mm
Ext. height ( mm )
1710 mm
Ext. width ( mm )
1115 mm
Power supply frequency ( Hz )
50 Hz
Max. voltage ( V )
400 V·3/N/PE
Plug type
CEE
Min. voltage ( V )
-
Rated capacity ( W )
8 kW
Power supply
400 V·3/N/PE, 50 Hz
Ext. dim. (WxDxH)
1,115 x 1,400 x 1,710 mm
Int. Dim. (WxDxH)
735 x 810 x 700 mm
Temperature stability ( °C )
0,1 ... 0,5 K
Max. no. of inserts
6
Pieces in a package
-
Upon request
Obrázek produktové varianty MKF 400
4685705 / 9020-0446
Nominal capacity ( ml )
417 l
Weight ( g )
432 kg
Type
MKF 400
Depth int. ( mm )
810 mm
Height int. ( mm )
700 mm
Int. width ( mm )
735 mm
Ext. depth ( mm )
1400 mm
Ext. height ( mm )
1710 mm
Ext. width ( mm )
1115 mm
Power supply frequency ( Hz )
60 Hz
Max. voltage ( V )
480 V
Plug type
CEE
Min. voltage ( V )
-
Rated capacity ( W )
8 kW
Power supply
480 V, 60 Hz
Ext. dim. (WxDxH)
1,115 x 1,400 x 1,710 mm
Int. Dim. (WxDxH)
735 x 810 x 700 mm
Temperature stability ( °C )
0,1 ... 0,5 K
Max. no. of inserts
6
Pieces in a package
-
Upon request
Obrázek produktové varianty MKF 1020
4685706 / 9020-0409
Nominal capacity ( ml )
991 l
Weight ( g )
636 kg
Type
MKF 1020
Depth int. ( mm )
810 mm
Height int. ( mm )
1020 mm
Int. width ( mm )
1200 mm
Ext. depth ( mm )
1480 mm
Ext. height ( mm )
2005 mm
Ext. width ( mm )
1580 mm
Power supply frequency ( Hz )
50 Hz
Max. voltage ( V )
400 V·3/N/PE
Plug type
CEE
Min. voltage ( V )
-
Rated capacity ( W )
12.5 kW
Power supply
400 V·3/N/PE, 50 Hz
Ext. dim. (WxDxH)
1,580 x 1,480 x 2,005 mm
Int. Dim. (WxDxH)
1,200 x 810 x 1,020 mm
Temperature stability ( °C )
0,1 ... 0,5 K
Max. no. of inserts
11
Pieces in a package
-
Upon request
Obrázek produktové varianty MKF 1020
4685707 / 9020-0448
Nominal capacity ( ml )
991 l
Weight ( g )
636 kg
Type
MKF 1020
Depth int. ( mm )
810 mm
Height int. ( mm )
1020 mm
Int. width ( mm )
1200 mm
Ext. depth ( mm )
1480 mm
Ext. height ( mm )
2005 mm
Ext. width ( mm )
1580 mm
Power supply frequency ( Hz )
60 Hz
Max. voltage ( V )
480 V
Plug type
CEE
Min. voltage ( V )
-
Rated capacity ( W )
12.5 kW
Power supply
480 V, 60 Hz
Ext. dim. (WxDxH)
1,580 x 1,480 x 2,005 mm
Int. Dim. (WxDxH)
1,200 x 810 x 1,020 mm
Temperature stability ( °C )
0,1 ... 0,5 K
Max. no. of inserts
11
Pieces in a package
-
Upon request
Obrázek produktové varianty MKF 56
4705664 / 9020-0389
Nominal capacity ( ml )
60 l
Weight ( g )
175 kg
Type
MKF 56
Depth int. ( mm )
348 mm
Height int. ( mm )
420 mm
Int. width ( mm )
400 mm
Ext. depth ( mm )
780 mm
Ext. height ( mm )
1445 mm
Ext. width ( mm )
720 mm
Power supply frequency ( Hz )
60 Hz
Max. voltage ( V )
240 V
Plug type
US
Min. voltage ( V )
200 V
Rated capacity ( W )
2.8 kW
Power supply
200 ... 240 V, 60 Hz
Ext. dim. (WxDxH)
720 x 780 x 1,445 mm
Int. Dim. (WxDxH)
400 x 348 x 420 mm
Temperature stability ( °C )
0,1 ... 0,5 K
Max. no. of inserts
4
Pieces in a package
1
Upon request
Obrázek produktové varianty MKF 115
4705665 / 9020-0379
Nominal capacity ( ml )
115 l
Weight ( g )
280 kg
Type
MKF 115
Depth int. ( mm )
400 mm
Height int. ( mm )
480 mm
Int. width ( mm )
600 mm
Ext. depth ( mm )
865 mm
Ext. height ( mm )
1725 mm
Ext. width ( mm )
980 mm
Power supply frequency ( Hz )
50 Hz
Max. voltage ( V )
400 V·3/N/PE
Plug type
CEE
Min. voltage ( V )
-
Rated capacity ( W )
4.8 kW
Power supply
400 V·3/N/PE, 50 Hz
Ext. dim. (WxDxH)
980 x 865 x 1,725 mm
Int. Dim. (WxDxH)
600 x 400 x 480 mm
Temperature stability ( °C )
0,1 ... 0,6 K
Max. no. of inserts
4
Pieces in a package
1
Upon request
Obrázek produktové varianty MKF 115
4705666 / 9020-0357
Nominal capacity ( ml )
115 l
Weight ( g )
280 kg
Type
MKF 115
Depth int. ( mm )
400 mm
Height int. ( mm )
480 mm
Int. width ( mm )
600 mm
Ext. depth ( mm )
865 mm
Ext. height ( mm )
1725 mm
Ext. width ( mm )
980 mm
Power supply frequency ( Hz )
60 Hz
Max. voltage ( V )
480 V
Plug type
CEE
Min. voltage ( V )
-
Rated capacity ( W )
4.8 kW
Power supply
480 V, 60 Hz
Ext. dim. (WxDxH)
980 x 865 x 1,725 mm
Int. Dim. (WxDxH)
600 x 400 x 480 mm
Temperature stability ( °C )
0,1 ... 0,6 K
Max. no. of inserts
4
Pieces in a package
1
Upon request
Obrázek produktové varianty MKF 240
4705667 / 9020-0358
Nominal capacity ( ml )
228 l
Weight ( g )
360 kg
Type
MKF 240
Depth int. ( mm )
443 mm
Height int. ( mm )
700 mm
Int. width ( mm )
735 mm
Ext. depth ( mm )
925 mm
Ext. height ( mm )
1715 mm
Ext. width ( mm )
1115 mm
Power supply frequency ( Hz )
60 Hz
Max. voltage ( V )
480 V
Plug type
CEE
Min. voltage ( V )
-
Rated capacity ( W )
6.8 kW
Power supply
480 V, 60 Hz
Ext. dim. (WxDxH)
1,115 x 925 x 1,715 mm
Int. Dim. (WxDxH)
735 x 443 x 700 mm
Temperature stability ( °C )
0,1 ... 0,5 K
Max. no. of inserts
6
Pieces in a package
1
Upon request
Obrázek produktové varianty MKF 720
4705668 / 9020-0381
Nominal capacity ( ml )
734 l
Weight ( g )
590 kg
Type
MKF 720
Depth int. ( mm )
600 mm
Height int. ( mm )
1020 mm
Int. width ( mm )
1200 mm
Ext. depth ( mm )
1140 mm
Ext. height ( mm )
2005 mm
Ext. width ( mm )
1580 mm
Power supply frequency ( Hz )
50 Hz
Max. voltage ( V )
400 V·3/N/PE
Plug type
CEE
Min. voltage ( V )
-
Rated capacity ( W )
11 kW
Power supply
400 V·3/N/PE, 50 Hz
Ext. dim. (WxDxH)
1,580 x 1,140 x 2,005 mm
Int. Dim. (WxDxH)
1,200 x 600 x 1,020 mm
Temperature stability ( °C )
0,1 ... 0,5 K
Max. no. of inserts
11
Pieces in a package
1
Upon request
Obrázek produktové varianty MKF 720
4705669 / 9020-0359
Nominal capacity ( ml )
734 l
Weight ( g )
590 kg
Type
MKF 720
Depth int. ( mm )
600 mm
Height int. ( mm )
1020 mm
Int. width ( mm )
1200 mm
Ext. depth ( mm )
1140 mm
Ext. height ( mm )
2005 mm
Ext. width ( mm )
1580 mm
Power supply frequency ( Hz )
60 Hz
Max. voltage ( V )
480 V
Plug type
CEE
Min. voltage ( V )
-
Rated capacity ( W )
11 kW
Power supply
480 V, 60 Hz
Ext. dim. (WxDxH)
1,580 x 1,140 x 2,005 mm
Int. Dim. (WxDxH)
1,200 x 600 x 1,020 mm
Temperature stability ( °C )
0,1 ... 0,5 K
Max. no. of inserts
11
Pieces in a package
1
Upon request
Obrázek produktové varianty MKF 56
7984336 / 9020-0378
Nominal capacity ( ml )
60 l
Weight ( g )
175 kg
Type
MKF 56
Depth int. ( mm )
348 mm
Height int. ( mm )
420 mm
Int. width ( mm )
400 mm
Ext. depth ( mm )
780 mm
Ext. height ( mm )
1445 mm
Ext. width ( mm )
720 mm
Power supply frequency ( Hz )
50 Hz
Max. voltage ( V )
230 V
Plug type
EU
Min. voltage ( V )
200 V
Rated capacity ( W )
2.8 kW
Power supply
200 ... 230 V, 50 Hz
Ext. dim. (WxDxH)
720 x 780 x 1,445 mm
Int. Dim. (WxDxH)
400 x 348 x 420 mm
Temperature stability ( °C )
0,1 ... 0,5 K
Max. no. of inserts
4
Pieces in a package
-
Upon request
Obrázek produktové varianty MKF 240
7984339 / 9020-0380
Nominal capacity ( ml )
228 l
Weight ( g )
360 kg
Type
MKF 240
Depth int. ( mm )
443 mm
Height int. ( mm )
700 mm
Int. width ( mm )
735 mm
Ext. depth ( mm )
925 mm
Ext. height ( mm )
1715 mm
Ext. width ( mm )
1115 mm
Power supply frequency ( Hz )
50 Hz
Max. voltage ( V )
400 V·3/N/PE
Plug type
CEE
Min. voltage ( V )
-
Rated capacity ( W )
6.8 kW
Power supply
400 V·3/N/PE, 50 Hz
Ext. dim. (WxDxH)
1,115 x 925 x 1,715 mm
Int. Dim. (WxDxH)
735 x 443 x 700 mm
Temperature stability ( °C )
0,1 ... 0,5 K
Max. no. of inserts
6
Pieces in a package
-
Upon request

Technical specifications

Material inserts Stainless steel
Material interior Stainless steel
Max. relative humidity 98 %
Max. temperature 180 °C
Min. relative humidity 10 %
Min. temperature -40 °C
Relative humidity 10 ... 98 %
Temperature -40 ... 180 °C
Type of auxiliary energy Mains connection
With CO₂ control No

Photos

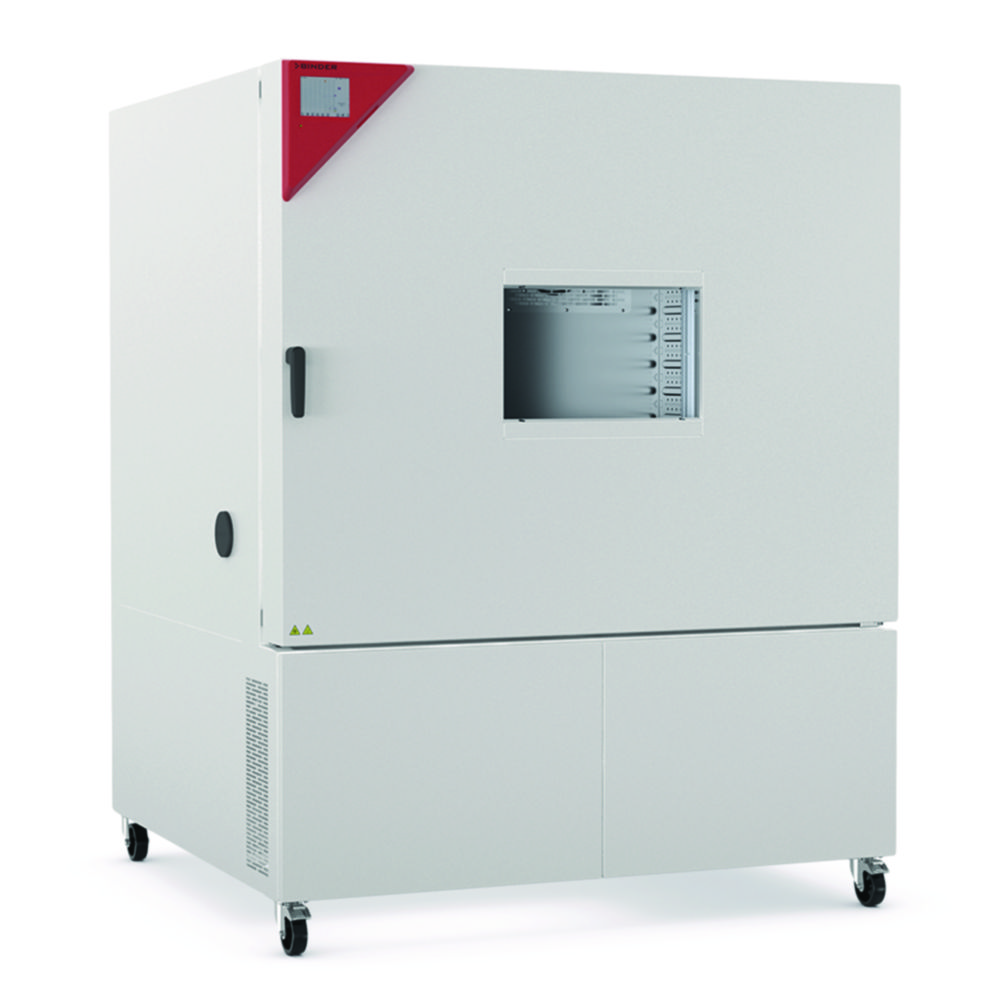

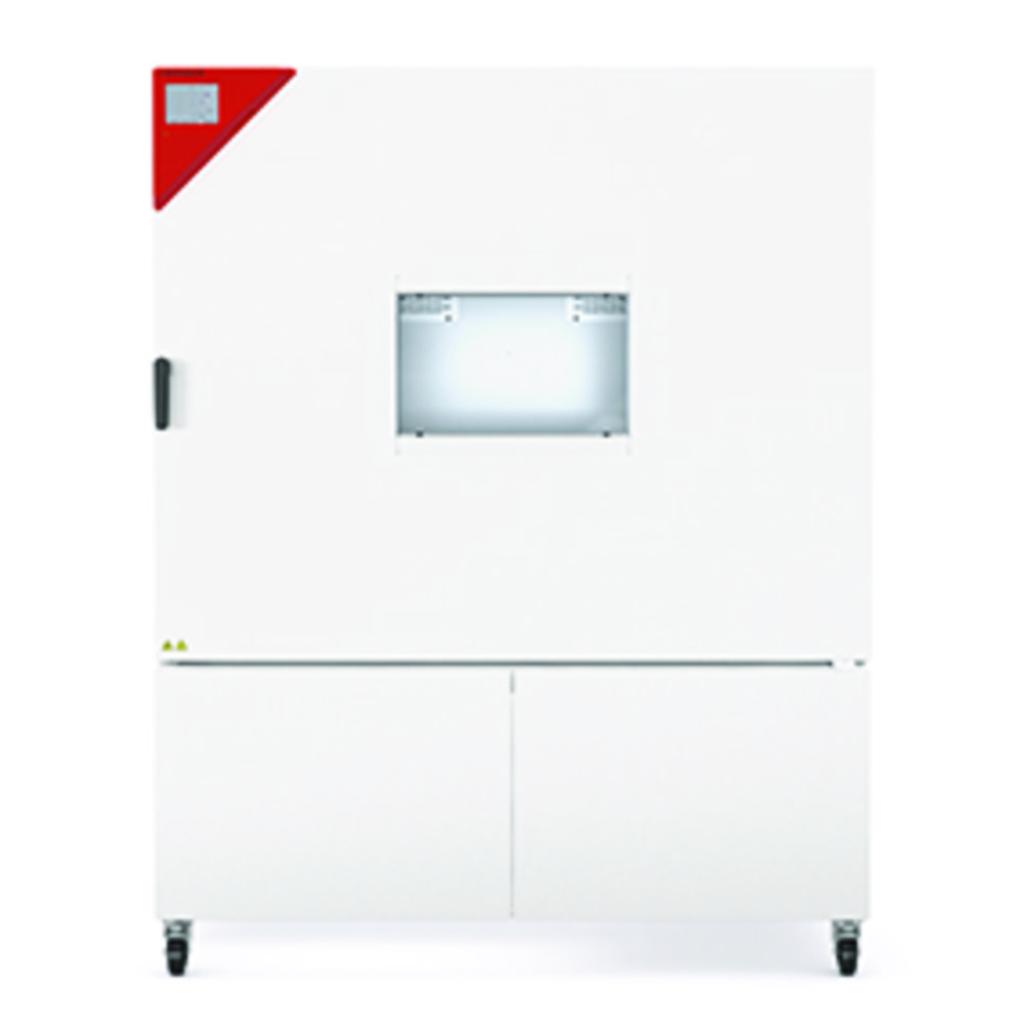

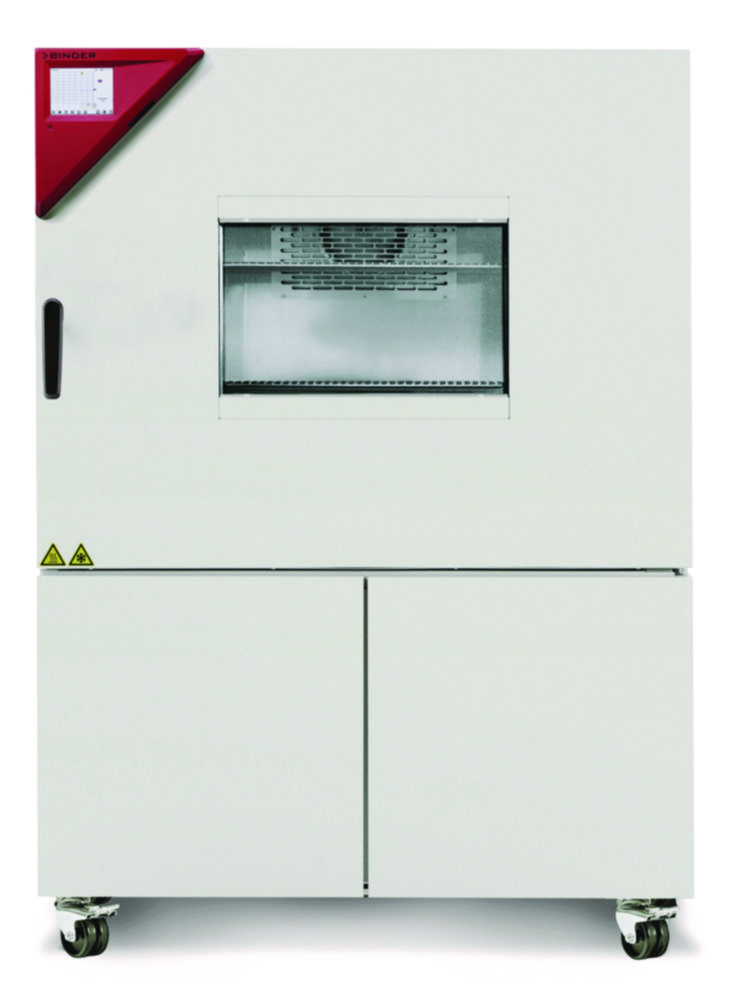

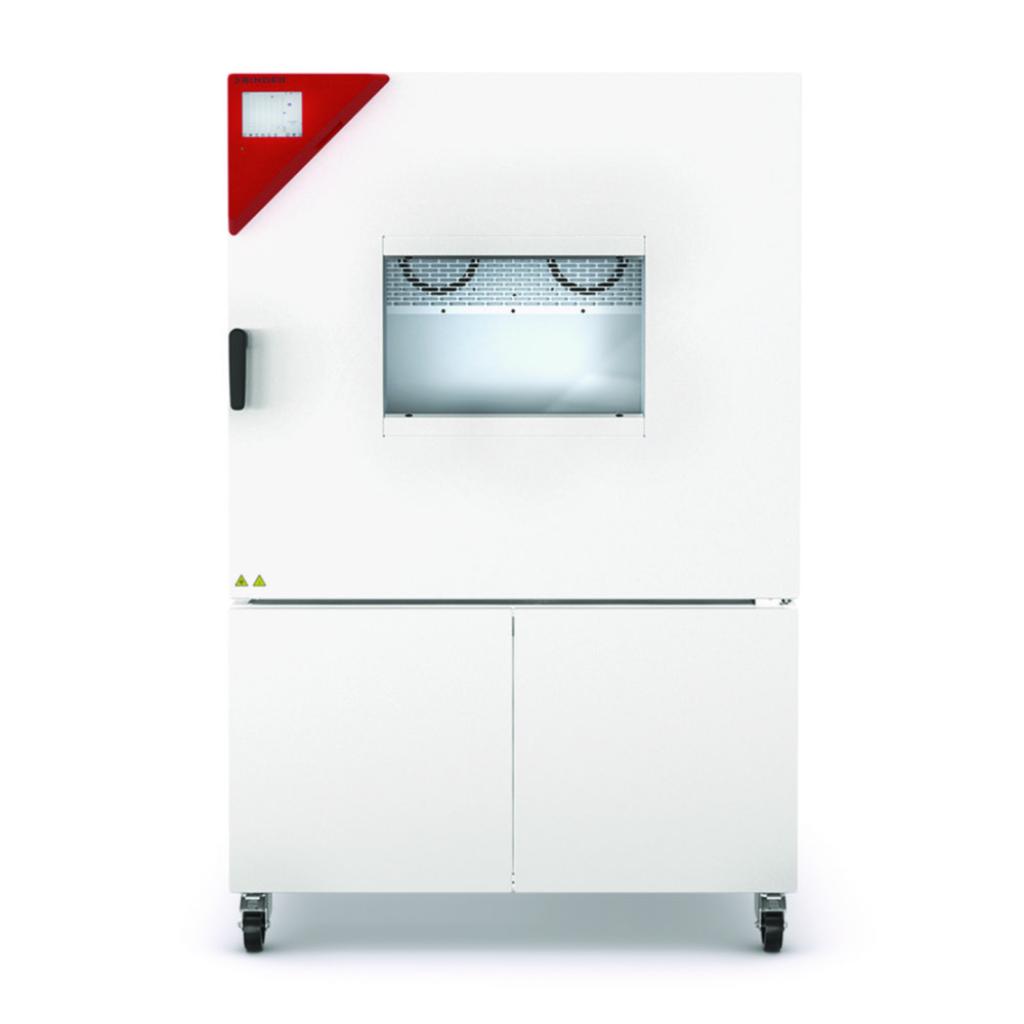

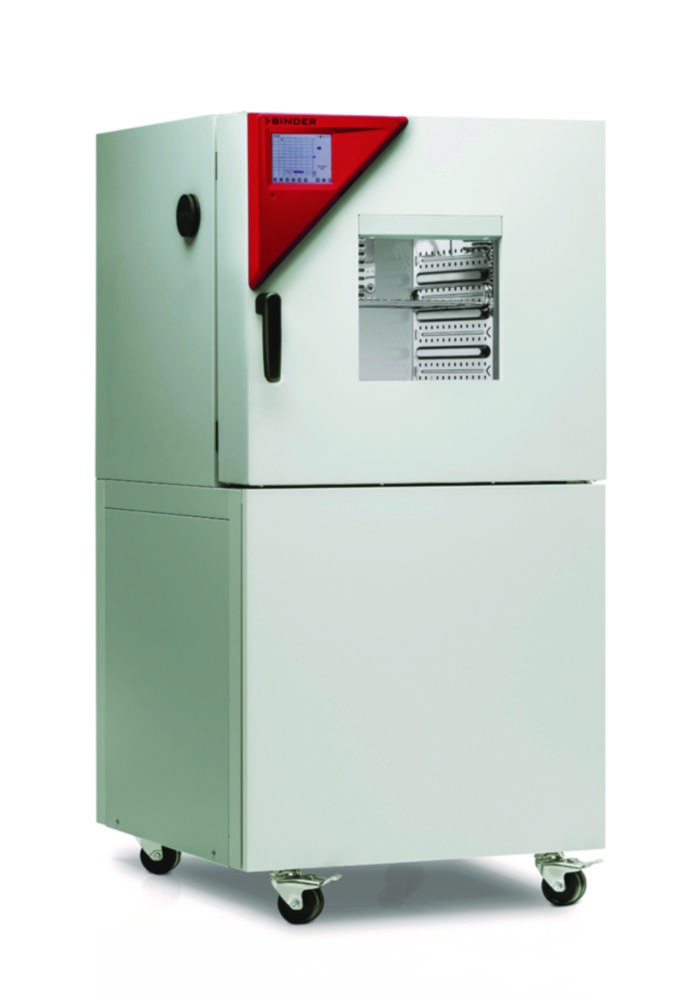

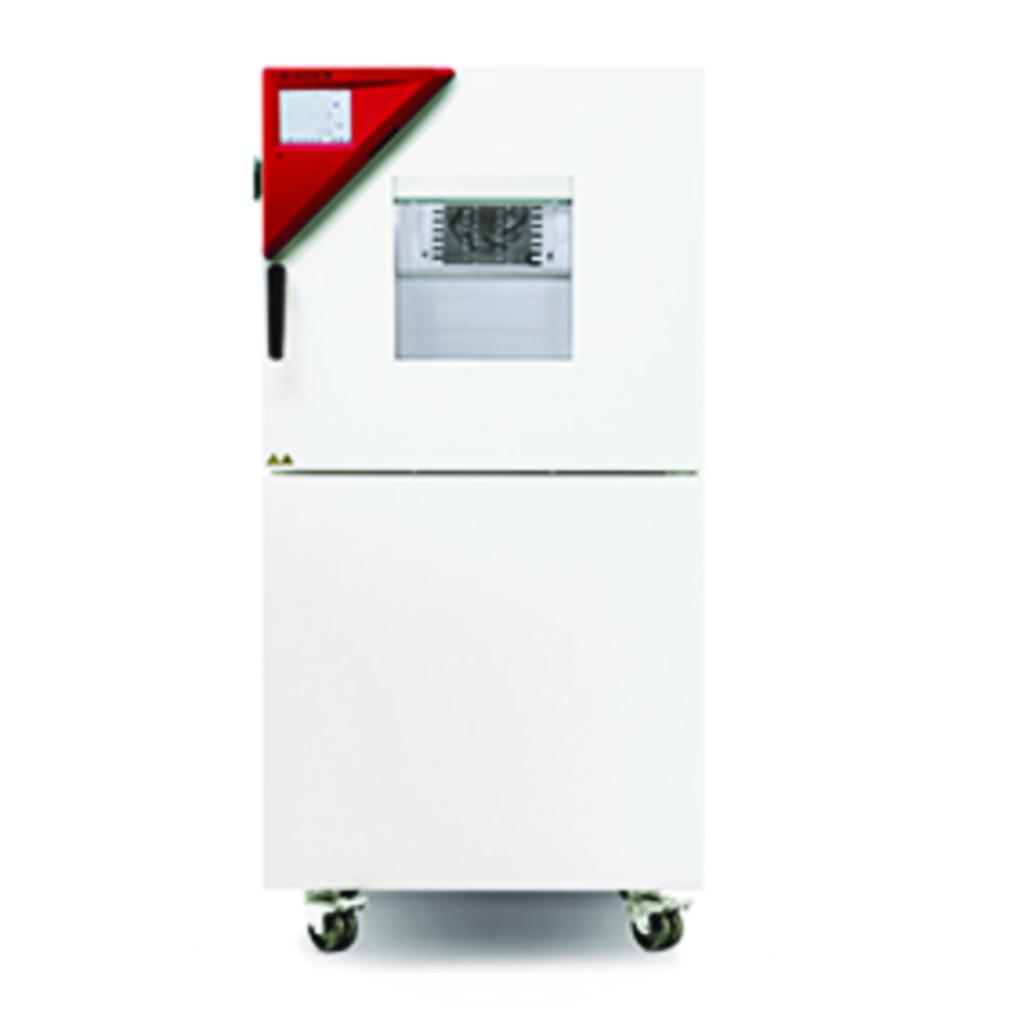

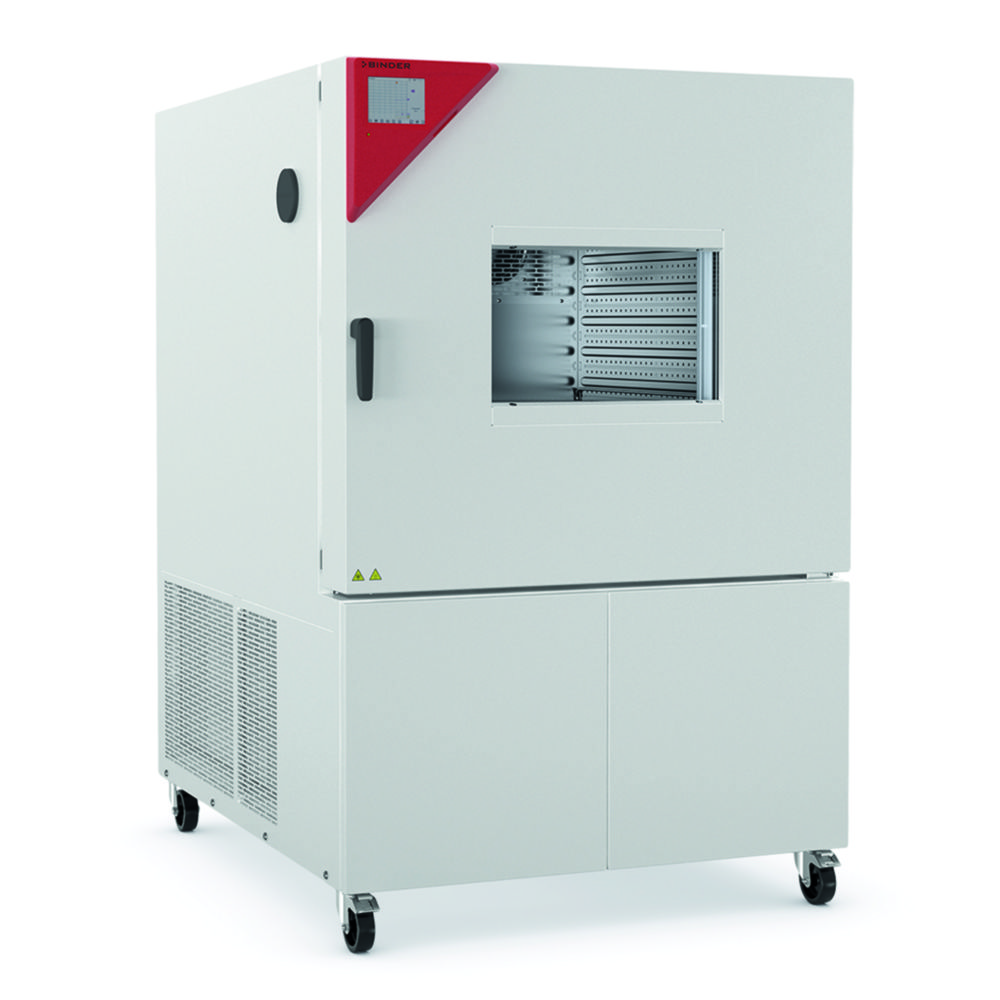

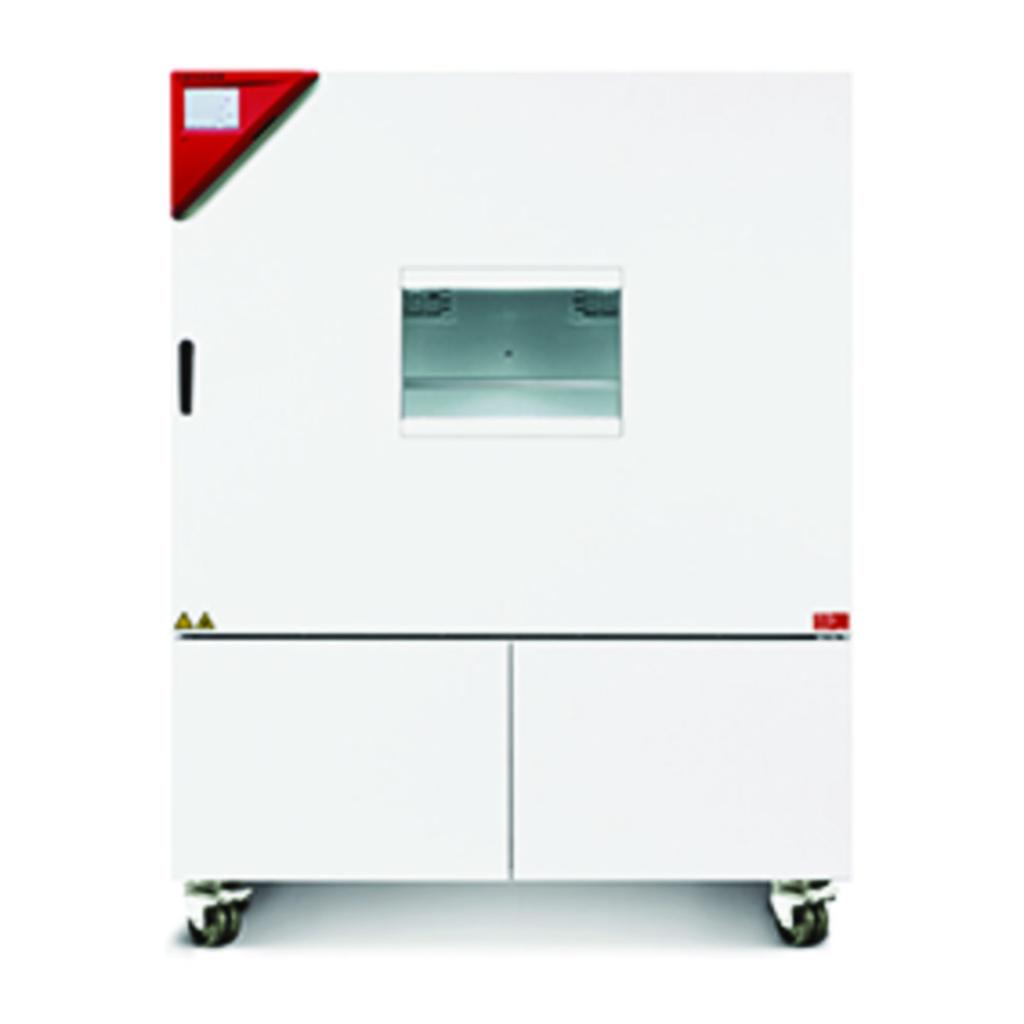

Dynamic climate chambers MKF, with humidity control Dynamic climate chambers MKF, with humidity control Dynamic climate chambers MKF, with humidity control Dynamic climate chambers MKF, with humidity control Dynamic climate chambers MKF, with humidity control Dynamic climate chambers MKF, with humidity control Dynamic climate chambers MKF, with humidity control Dynamic climate chambers MKF, with humidity control Dynamic climate chambers MKF, with humidity control Dynamic climate chambers MKF, with humidity control
