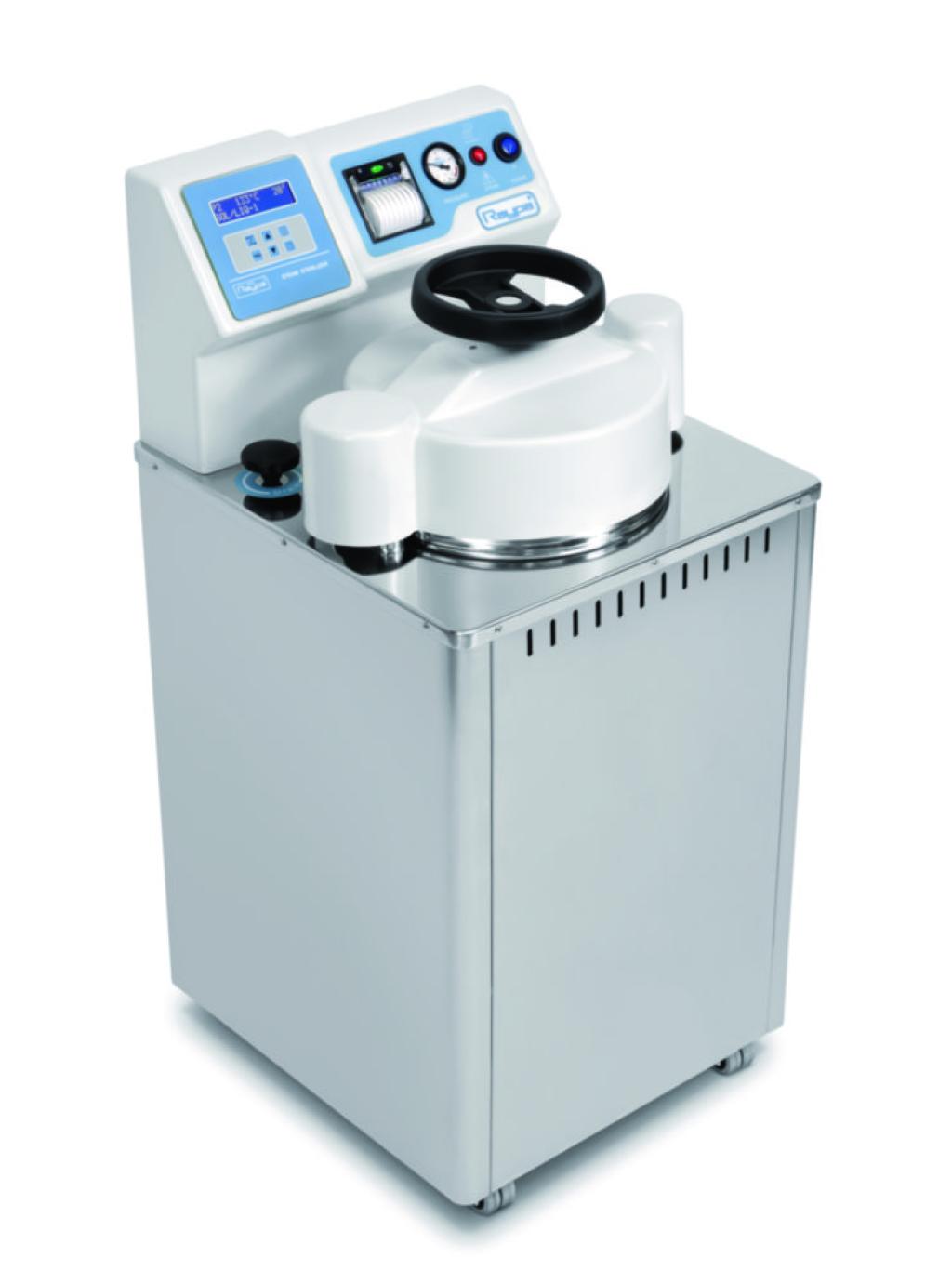

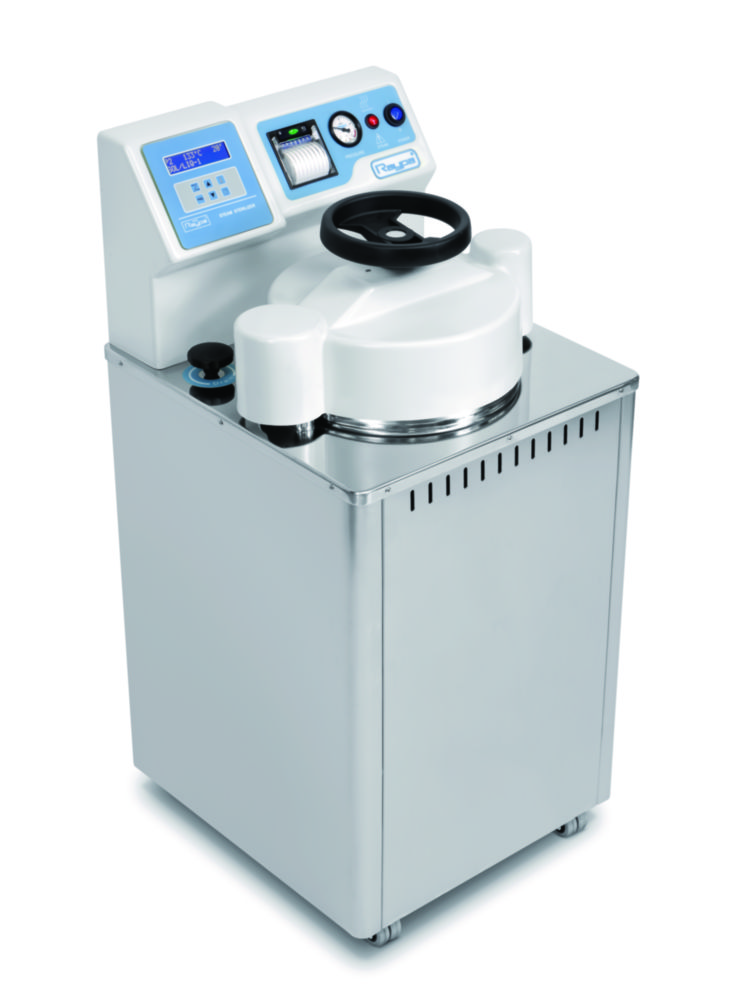

Digital vertical autoclaves, AES series More photos

Digital vertical autoclaves, AES series

These autoclaves are microprocessor controlled and monitored with 10 sterilisation programmes of which 4 are fixed and 6 are freely programmable.

  • On request also available with with vacuum pump and steam generator

  • Agar modus (40 °C to 80 °C)

  • RS 232 interface

  • Timer

  • Programmable auto-start (24 h)

  • Fully automatic functions

  • Case and lid shrouding are AISI 304 stainless steel

  • Sterilisation chamber, lid and sealing system are AISI 316 stainless steel

  • Electrical heating with protected heating elements in the interior of the chamber

  • Safety pressure valve

  • Safety thermostat

  • Automatic steam controlled by microprocessor

  • Manual valves for emptying the sterilisation chamber and for draining steam
Choose a variant
Manufacturer
  • RT Espinal S.L. (Raypa)
Category

Product variant

Name Hermes code and manufacturer code
Nominal capacity ( ml ) Int. Ø ( mm ) Weight ( g ) Type Height int. ( mm ) Ext. depth ( mm ) Ext. height ( mm ) Ext. width ( mm ) Max. voltage ( V ) Power supply Safety Data Sheet Heating capacity ( W ) Dim. Int. (Ø x H) Ext. dim. (WxDxH)
Pieces in a package Price without VAT
Obrázek produktové varianty AES-50
6267578 / AES-50
Nominal capacity ( ml )
50 l
Int. Ø ( mm )
300 mm
Weight ( g )
65 kg
Type
AES-50
Height int. ( mm )
710 mm
Ext. depth ( mm )
580 mm
Ext. height ( mm )
1290 mm
Ext. width ( mm )
505 mm
Max. voltage ( V )
230 V
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=6267578
Heating capacity ( W )
2800 W
Dim. Int. (Ø x H)
300 x 710 mm
Ext. dim. (WxDxH)
505 x 580 x 1,290 mm
Pieces in a package
-
Upon request
Obrázek produktové varianty AES-12
9851893 / AES-12
Nominal capacity ( ml )
12 l
Int. Ø ( mm )
250 mm
Weight ( g )
-
Type
AES-12
Height int. ( mm )
270 mm
Ext. depth ( mm )
500 mm
Ext. height ( mm )
650 mm
Ext. width ( mm )
490 mm
Max. voltage ( V )
230 V
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=9851893
Heating capacity ( W )
1000 W
Dim. Int. (Ø x H)
250 x 270 mm
Ext. dim. (WxDxH)
490 x 500 x 650 mm
Pieces in a package
-
Upon request
Obrázek produktové varianty AES-28
9851894 / AES-28
Nominal capacity ( ml )
31 l
Int. Ø ( mm )
300 mm
Weight ( g )
61 kg
Type
AES-28
Height int. ( mm )
440 mm
Ext. depth ( mm )
580 mm
Ext. height ( mm )
1110 mm
Ext. width ( mm )
505 mm
Max. voltage ( V )
230 V
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=9851894
Heating capacity ( W )
2000 W
Dim. Int. (Ø x H)
300 x 440 mm
Ext. dim. (WxDxH)
505 x 580 x 1,110 mm
Pieces in a package
-
Upon request
Obrázek produktové varianty AES-75
9851895 / AES-75
Nominal capacity ( ml )
75 l
Int. Ø ( mm )
400 mm
Weight ( g )
98 kg
Type
AES-75
Height int. ( mm )
600 mm
Ext. depth ( mm )
700 mm
Ext. height ( mm )
1185 mm
Ext. width ( mm )
610 mm
Max. voltage ( V )
230 V
Power supply
230 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=9851895
Heating capacity ( W )
3200 W
Dim. Int. (Ø x H)
400 x 600 mm
Ext. dim. (WxDxH)
610 x 700 x 1,185 mm
Pieces in a package
-
Upon request
Obrázek produktové varianty AES-110
9851896 / AES-110
Nominal capacity ( ml )
110 l
Int. Ø ( mm )
400 mm
Weight ( g )
122 kg
Type
AES-110
Height int. ( mm )
850 mm
Ext. depth ( mm )
700 mm
Ext. height ( mm )
1435 mm
Ext. width ( mm )
610 mm
Max. voltage ( V )
400 V
Power supply
400 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=9851896
Heating capacity ( W )
4500 W
Dim. Int. (Ø x H)
400 x 850 mm
Ext. dim. (WxDxH)
610 x 700 x 1,435 mm
Pieces in a package
-
Upon request
Obrázek produktové varianty AES-150
9851897 / AES-150
Nominal capacity ( ml )
153 l
Int. Ø ( mm )
500 mm
Weight ( g )
198 kg
Type
AES-150
Height int. ( mm )
780 mm
Ext. depth ( mm )
820 mm
Ext. height ( mm )
1400 mm
Ext. width ( mm )
750 mm
Max. voltage ( V )
400 V
Power supply
400 V, 50/60 Hz
Safety Data Sheet
https://sw.llg.de/search?search=9851897
Heating capacity ( W )
6000 W
Dim. Int. (Ø x H)
500 x 780 mm
Ext. dim. (WxDxH)
750 x 820 x 1,400 mm
Pieces in a package
-
Upon request

Technical specifications

Power supply frequency 50/60 Hz
Loading Vertical
Max. temperature 134 °C
Min. temperature 100 °C
Temperature 100 ... 134 °C
Type of auxiliary energy Mains connection
