Diaphragm vacuum pumps LABOPORT<sup>®</sup>, ATEX-compliant More photos

Diaphragm vacuum pumps LABOPORT®, ATEX-compliant

  • In accordance with ATEX II 2/-G IIB+H2 T3 Gb internal atmosphere only
Choose a variant
Manufacturer
  • KNF NEUBERGER GmbH
Category

Product variant

Name Hermes code and manufacturer code
Height ( mm ) Width ( mm ) Depth ( mm ) Type Dimensions (WxDxH) Flow rate ( l/min )
Pieces in a package Price without VAT

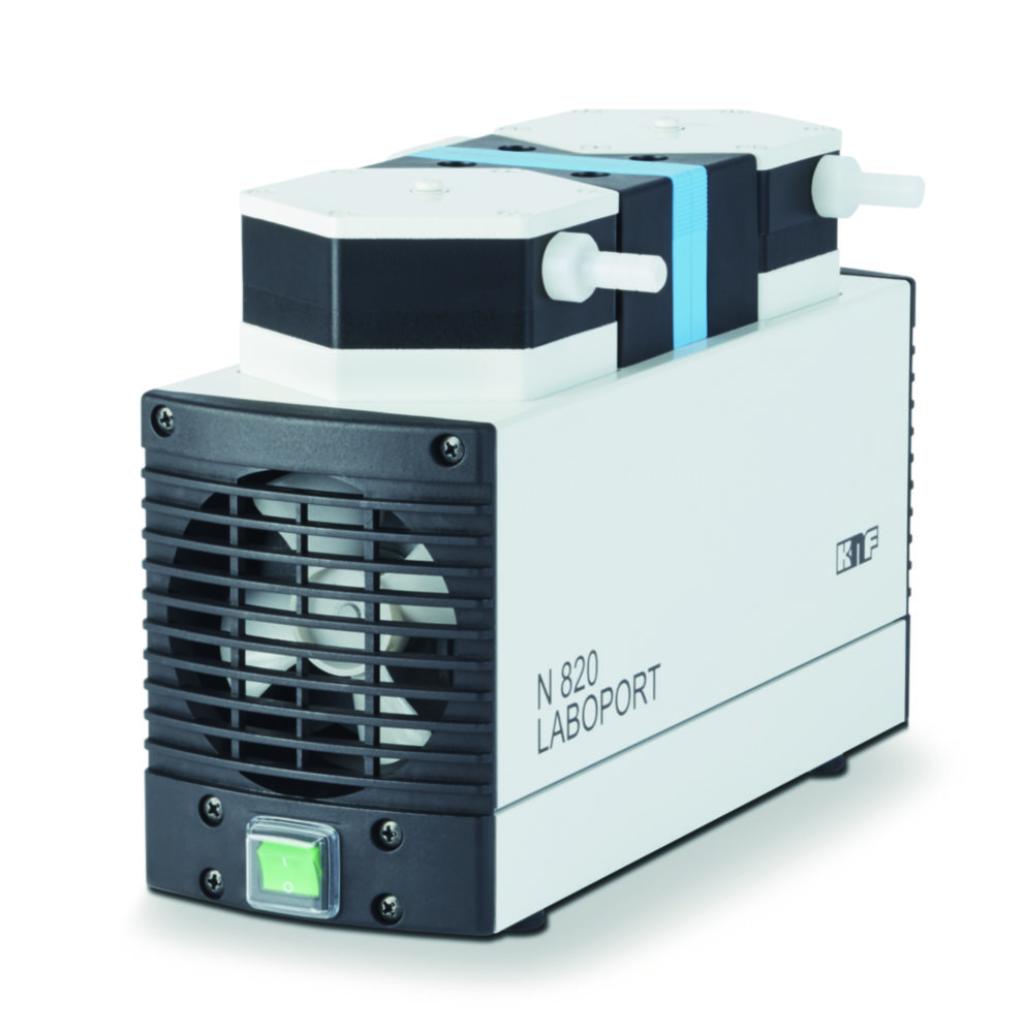

Obrázek produktové varianty N 820.3 FT.18
9880613 / 309577/026366
Height ( mm )
207 mm
Width ( mm )
154 mm
Depth ( mm )
312 mm
Type
N 820.3 FT.18
Dimensions (WxDxH)
154 x 312 x 207 mm
Flow rate ( l/min )
20 l/min
Pieces in a package
-
Upon request

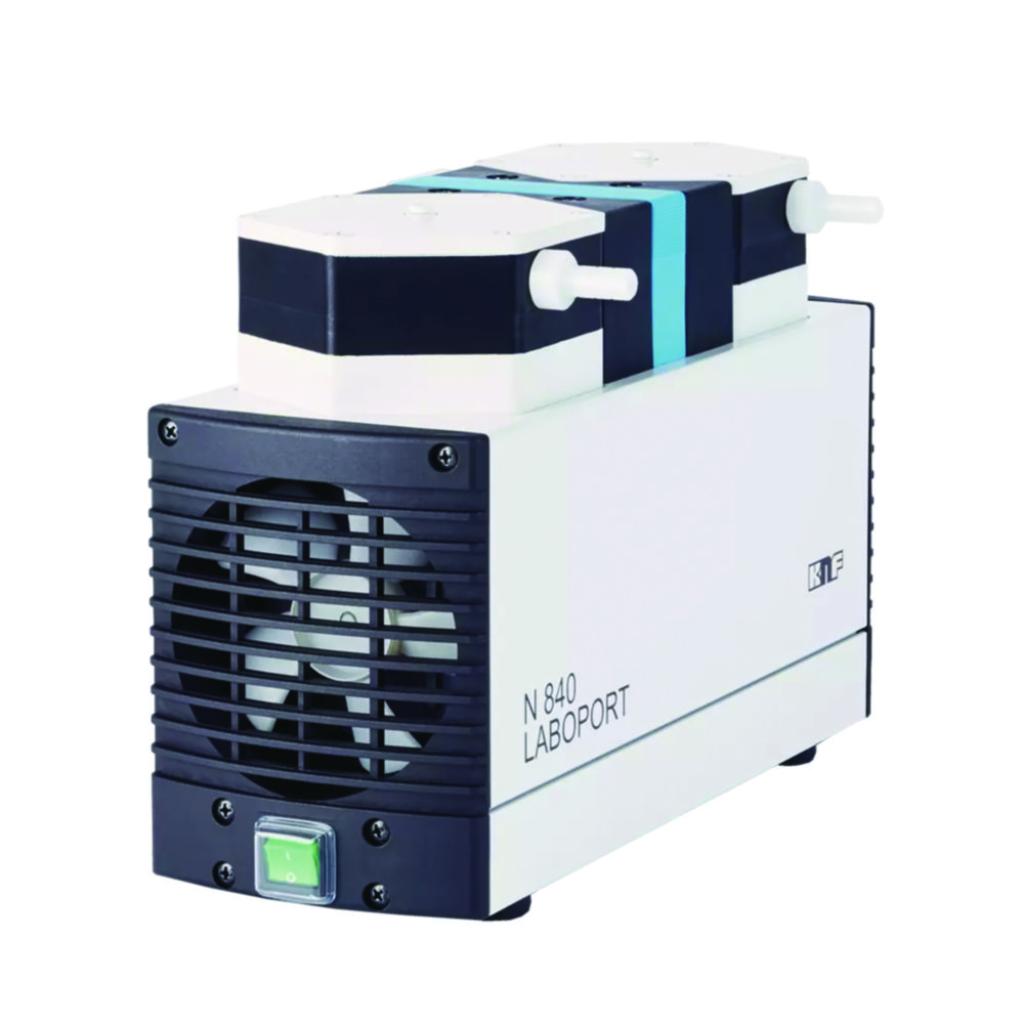

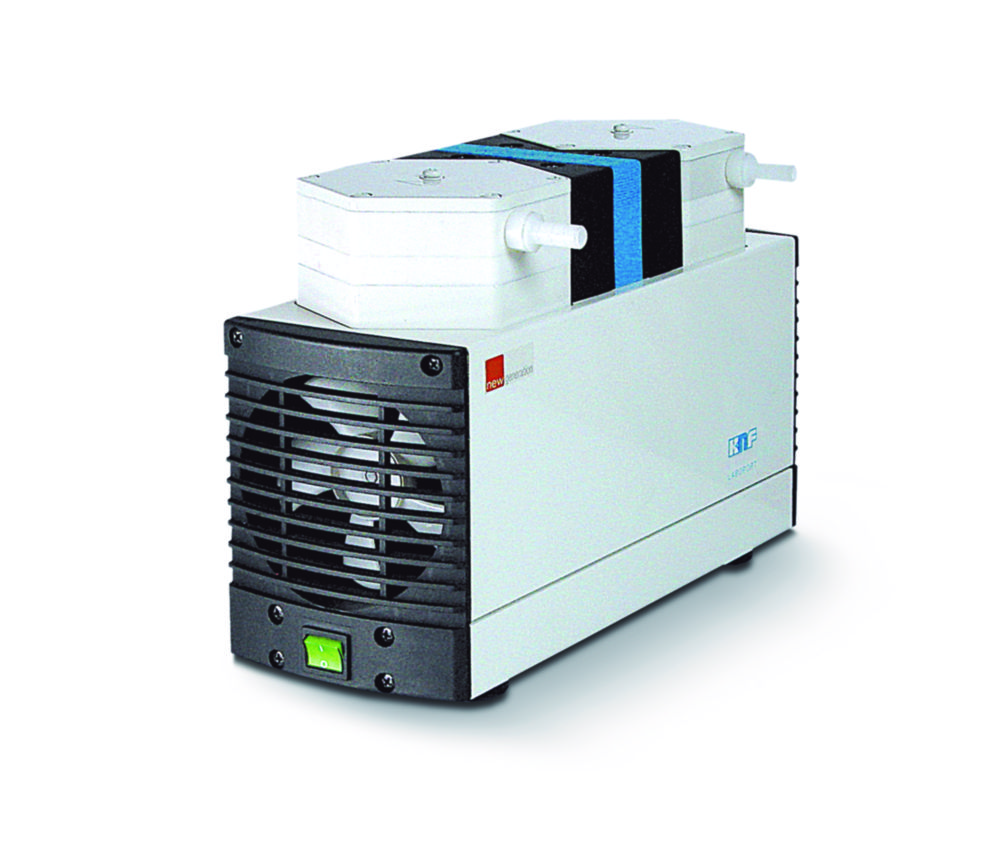

Obrázek produktové varianty N 840.3 FT.18
9880614 / 309579/026365
Height ( mm )
226 mm
Width ( mm )
166 mm
Depth ( mm )
341 mm
Type
N 840.3 FT.18
Dimensions (WxDxH)
166 x 341 x 226 mm
Flow rate ( l/min )
34 l/min
Pieces in a package
-
Upon request

Technical specifications

Connection pressure side ID 10 mm
Connection suction side ID 10 mm
Material media contact PTFE/FFPM
Max. overpressure 1 bar
Max. permitted ambient temp. 40 °C
Min. permitted ambient temperature 5 °C
Type of auxiliary energy Mains connection
Ultimate vacuum 8 mbar
