Diaphragm pump MPC 101 Z More photos

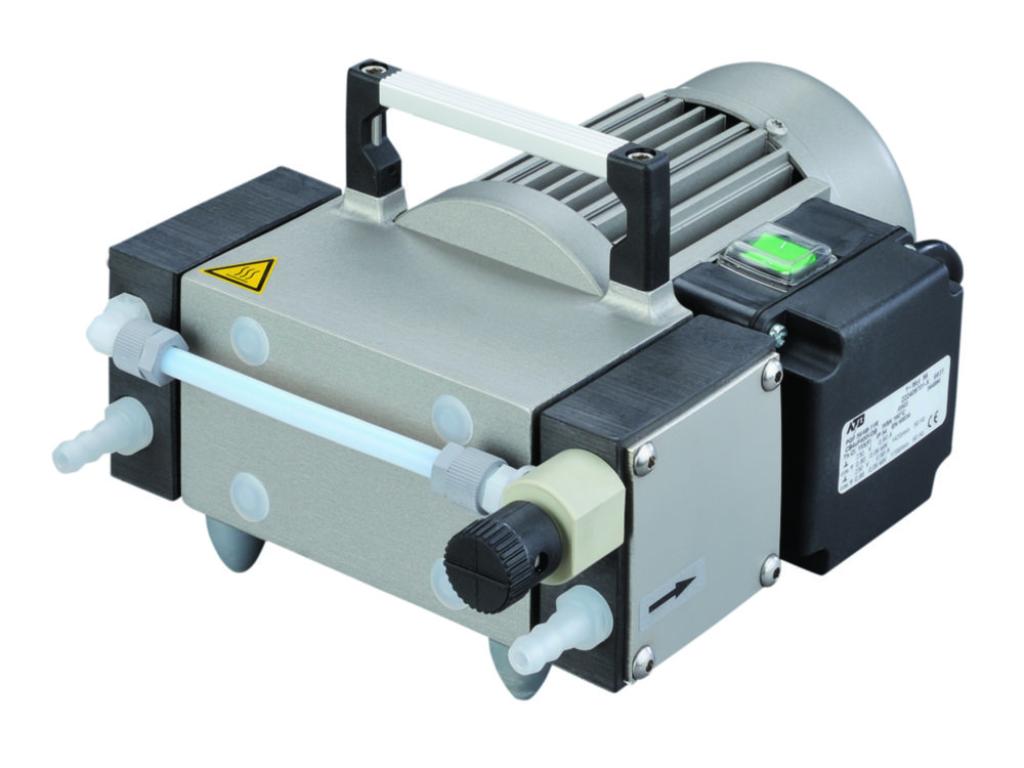

Diaphragm pump MPC 101 Z

The two-stage pump is designed for pumping and compressing gases and vapours and generate vacuum e.g. for rotary evaporators, vacuum ovens and vacuum filtration. Their electrical conductivity prevents electrostatic charging and minimizes the risk of the gas mixture igniting inside the pump.
  • For tubes with ID = 8 mm
  • Chemically resistant
  • Resistant to aggressive solvents and acid vapours
  • Elastomer diaphragms with PTFE layer
  • Pump and connection heads are carbon fibre reinforced
  • Integrated motor protection switch
  • Vibration isolating feet

Scope of delivery: 2-head chemical diaphragm pump, external power supply and device connection cable with plug (EU, UK).
Choose a variant
Manufacturer
  • Gardner Denver Thomas GmbH
Category

Product variant

Name Hermes code and manufacturer code Pieces in a package Price without VAT
Obrázek produktové varianty MPC 101 Z
6241127 / 412522
Pieces in a package
-
Upon request

Technical specifications

Connection pressure side DN 8
Connection suction side DN 8
Depth 195 mm
Dimensions (WxDxH) 225 x 195 x 147 mm
Flow rate 18.3 l/min
Power supply frequency 50/60 Hz
Height 147 mm
IP code IP 54
Max. voltage 230 V
Power supply 230 V, 50/60 Hz
Rated capacity 60 W
Type MPC 101 Z
Type of auxiliary energy Mains connection
Ultimate vacuum 8 mbar
Weight 6.5 kg
Width 225 mm
