Density meters DMA 35 More photos

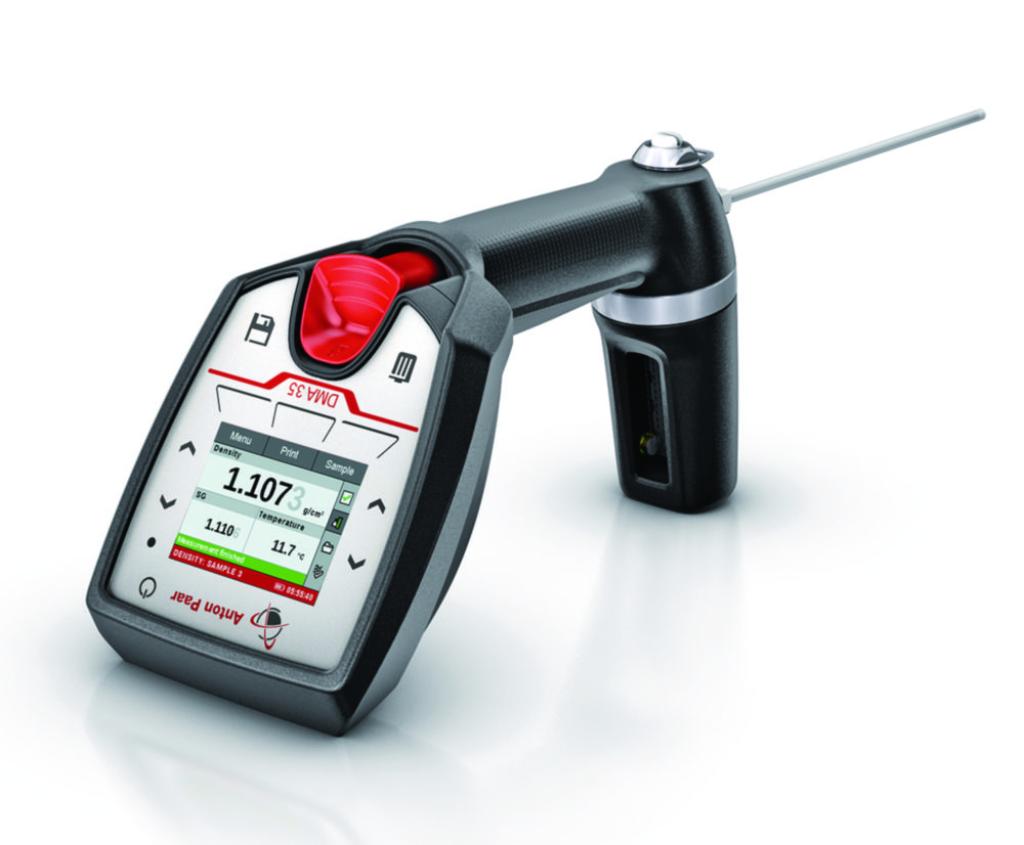

Density meters DMA 35

Portable, digital measuring device for the determination of density, relative density and concentration. DMA 35 EX and DMA 35 EX Petrol are certified according to ATEX for applications in hazardous environments.
  • On-site measurements for fast reactions
  • Oscillator principle (borosilicate glass oscillator)
  • Sample filling via manual filling pump or syringe
  • Complete data control through traceability
  • Viscosity correction for measurements also on highly viscous samples
  • Gesture control for one-handed measurement
  • Recognition of results outside the tolerance limit
  • Measuring of density, relative density, alcohol concentration, sugar/extraction concentration, API functions, H2SO4 concentration, ten programmable custom-specific measuring units
  • Robust case with exchangeable cell
  • 3 years warranty

Scope of supply: Density meter, filling tube, adapter for syringe filling, syringes, transportation case, rubber protection for measuring cell, 3 x batteries, allen key, instructions.
Choose a variant
Manufacturer
  • Anton Paar Germany GmbH
Category

Product variant

Name Hermes code and manufacturer code
Standard Type Safety Data Sheet Accuracy
Pieces in a package Price without VAT
Obrázek produktové varianty DMA 35 Ampere
4691913 / 226130
Standard
ISO 15212-1
Type
DMA 35 Ampere
Safety Data Sheet
https://sw.llg.de/search?search=4691913
Accuracy
±0.001 g/cm³
Pieces in a package
-
Upon request
Obrázek produktové varianty DMA 35 Standard
6313803 / 172244
Standard
ISO 15212-1
Type
DMA 35 Standard
Safety Data Sheet
https://sw.llg.de/search?search=6313803
Accuracy
±0.001 g/cm³
Pieces in a package
1
Upon request
Obrázek produktové varianty DMA 35 EX
6313804 / 183056
Standard
ISO 15212-1
Type
DMA 35 EX
Safety Data Sheet
https://sw.llg.de/search?search=6313804
Accuracy
±0.001 g/cm³
Pieces in a package
1
Upon request
Obrázek produktové varianty DMA 35 EX Petrol
6313805 / 183057
Standard
ISO 15212-1, IP 559, ASTM D7777
Type
DMA 35 EX Petrol
Safety Data Sheet
https://sw.llg.de/search?search=6313805
Accuracy
±0.001 g/cm³
Pieces in a package
-
Upon request

Technical specifications

Battery/ rechargeable battery 3 x 1.5 V, AA
Depth 245 mm
Designation ANSI AA
Dimensions (WxDxH) 103 x 245 x 126 mm
Height 126 mm
Interfaces Bluetooth®, RFID
IP code IP 54
Max. measured value 3 g/cm³ db(A)
Max. temperature sample 100 °C
Max. voltage battery/ rechargeable battery 1.5 V
Max. volume sample 2 ml
Measured range 0 ... 3 g/cm³
Min. measured value 0 g/cm³ db(A)
Min. temperature sample 0 °C
No. of batteries/ rechargeable batteries 3
Resolution 0.0001 g/cm³ °C
Temperature sample 0 ... 100 °C
Type of auxiliary energy Battery
UNSPSC 41103320
Volume sample 2 ml
Warranty 3 years
Weight 660 g
Width 103 mm
