Cross beater mill SK 300 More photos

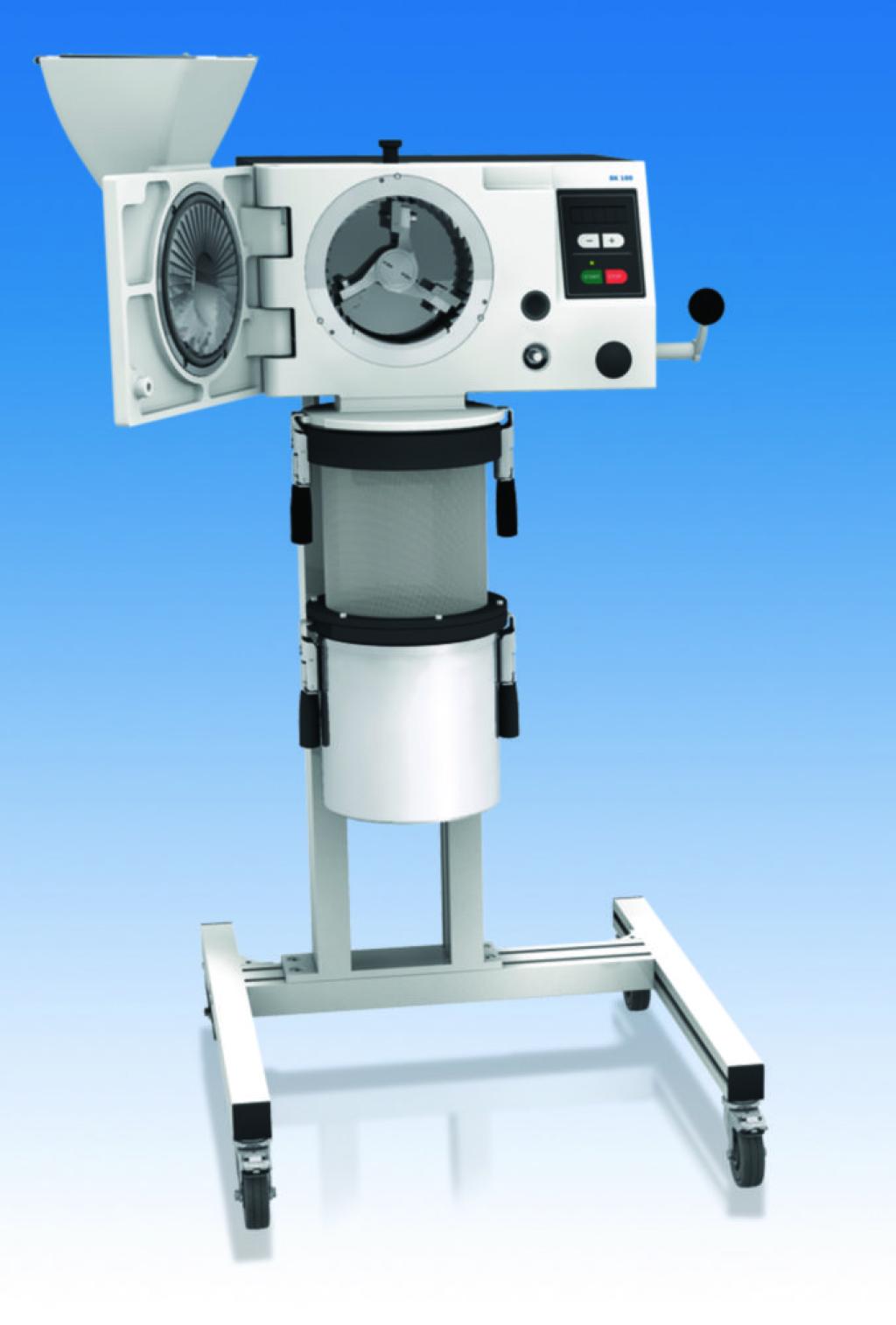

Cross beater mill SK 300

The cross beater mill SK 300 is used for batch-wise or continuous preliminary and fine size reduction. This robust mill is suited for laboratories as well as for the rough conditions of a production environment. Thanks to the powerful drive and rotor speed up to 4000 rpm it is often possible to achieve a final fineness <100 microns in one process.

Features:
  • High throughput for batch-wise size reduction of large sample volumes

  • Defined final fineness due to bottom sieves with aperture sizes from 0.12 to 10 mm

  • Rapid cleaning thanks to easily removable cassette, hopper and push fit rotor

  • Ring filter and collecting vessel with convenient, dust-tight bayonet catch

  • Quick-action door lock safety lock and electric brake


Function principle:
Size reduction in the SK 300 takes place by impact and shearing effects. The air drawn in through the hopper by the cross beater accelerates the discharge of the ground material. The airborne fine fraction is separated off by a downstream filter system.

Scope of supply: Cross Beater Mill with grinding insert, cross beater, baffle plates, filter hose, 5 l collecting vessel

Bottom sieves and base frame, please order separately.
Feeders and bottom sieves in further sizes are available on request.
Choose a variant
Manufacturer
  • Retsch GmbH
Category

Product variant

Name Hermes code and manufacturer code
Material grinding tools
Pieces in a package Price without VAT
Obrázek produktové varianty SK 300
6268112 / 20.751.0002
Material grinding tools
Steel, hardened
Pieces in a package
-
Upon request
Obrázek produktové varianty SK 300
6268113 / 20.751.0001
Material grinding tools
Cast iron
Pieces in a package
1
Upon request
Obrázek produktové varianty SK 300
6268114 / 20.751.0003
Material grinding tools
Steel, stainless
Pieces in a package
-
Upon request

Technical specifications

Depth 700 mm
Dimensions (WxDxH) 600 x 700 x 1,200 mm
Power supply frequency 50/60 Hz
Height 1200 mm
IP code IP 41
Max. feed particle size 25 mm
Max. final fineness 100 µm
Max. speed 4000 1/min
Max. voltage 240 V
Min. speed 2000 1/min
Min. voltage 200 V
Nominal volume collecting vessel 5000 ml
Plug type EU
Power supply 200 ... 240 V, 50/60 Hz
Rated capacity 1.5 kW
Speed 2,000 ... 4,000 1/min
Type SK 300
Type of auxiliary energy Mains connection
Weight 50 kg
Width 600 mm
