Analytical sieve shakers AS 200 control More photos

Analytical sieve shakers AS 200 control

Through the integrated interface the instrument can be connected to a PC and controlled with the evaluation software EasySieve®. This program enables the user to control the whole sieving process and the subsequent documentation with convenience and accuracy.

  • Digital adjustment of all process parameters (time, amplitude or sieve acceleration, interval)

  • Controlled amplitude

  • For dry and wet sieving

  • Short sieving times

  • Efficient electromagnetic drive

  • Throwing motion with angular momentum

  • Maintenance-free

  • Interval operation, 1 ... 99 s

  • Max. number of fractions 11/22


Please order clamping device, test sieves and collecting pan separately.
Choose a variant
Manufacturer
  • Retsch GmbH
Category

Product variant

Name Hermes code and manufacturer code Pieces in a package Price without VAT
Obrázek produktové varianty [LLG] Analytical sieve shakers AS 200 control
6282965 / 30.032.0001
Pieces in a package
-
Upon request

Technical specifications

Amplitude 0.20 ... 3.00 mm
Depth 384 mm
Dimensions (WxDxH) 417 x 384 x 212 mm
Power supply frequency 50/60 Hz
Height 212 mm
IP code IP 21
Max. amplitude 3.00 mm
Max. feed quantity 3000 g ml
Max. measurement 25 mm
Max. sieve stack height 620 mm
Max. sieve stack mass 6 kg
Max. voltage 240 V
Measurement range 0.02 ... 25 mm
Min. amplitude 0.20 mm
Min. measurement 0.02 mm
Min. voltage 100 V
Plug type EU
Power supply 100 ... 240 V, 50/60 Hz
Type of sieving Dry/wet sieving
Usable sieve diameters 100/200/203 mm
Weight 35 kg
Width 417 mm

Photos

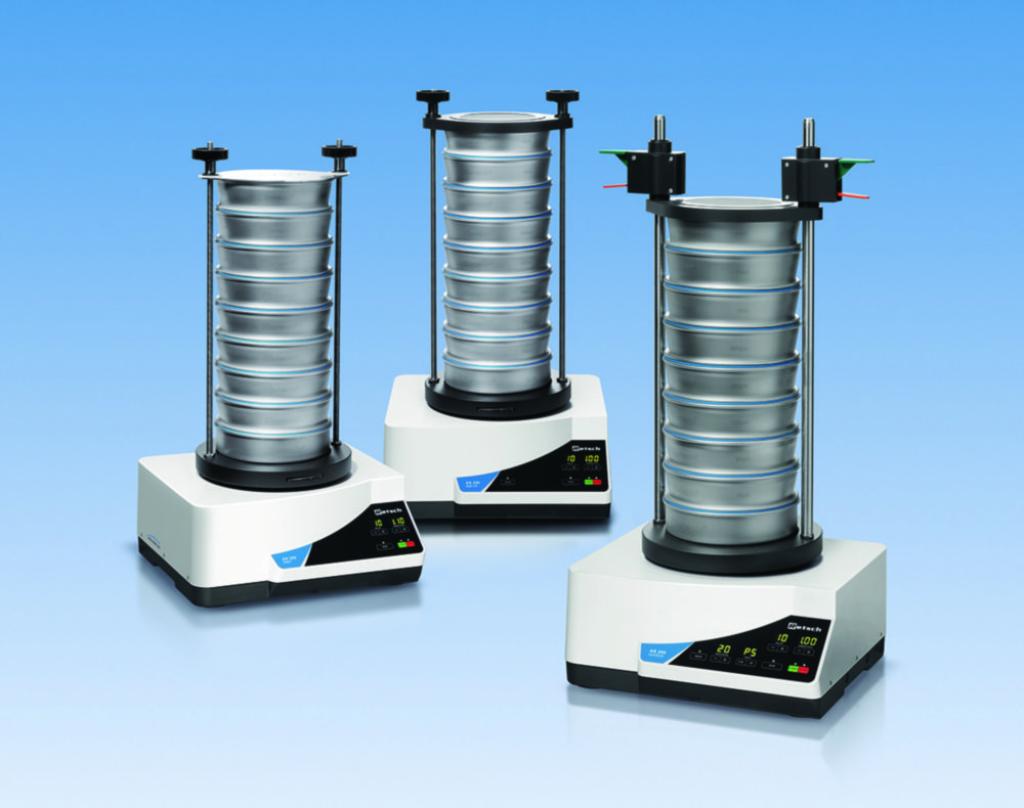

Analytical sieve shakers AS 200 control
