Advanced Microscope for Industrial and Material science, BA310 MET More photos

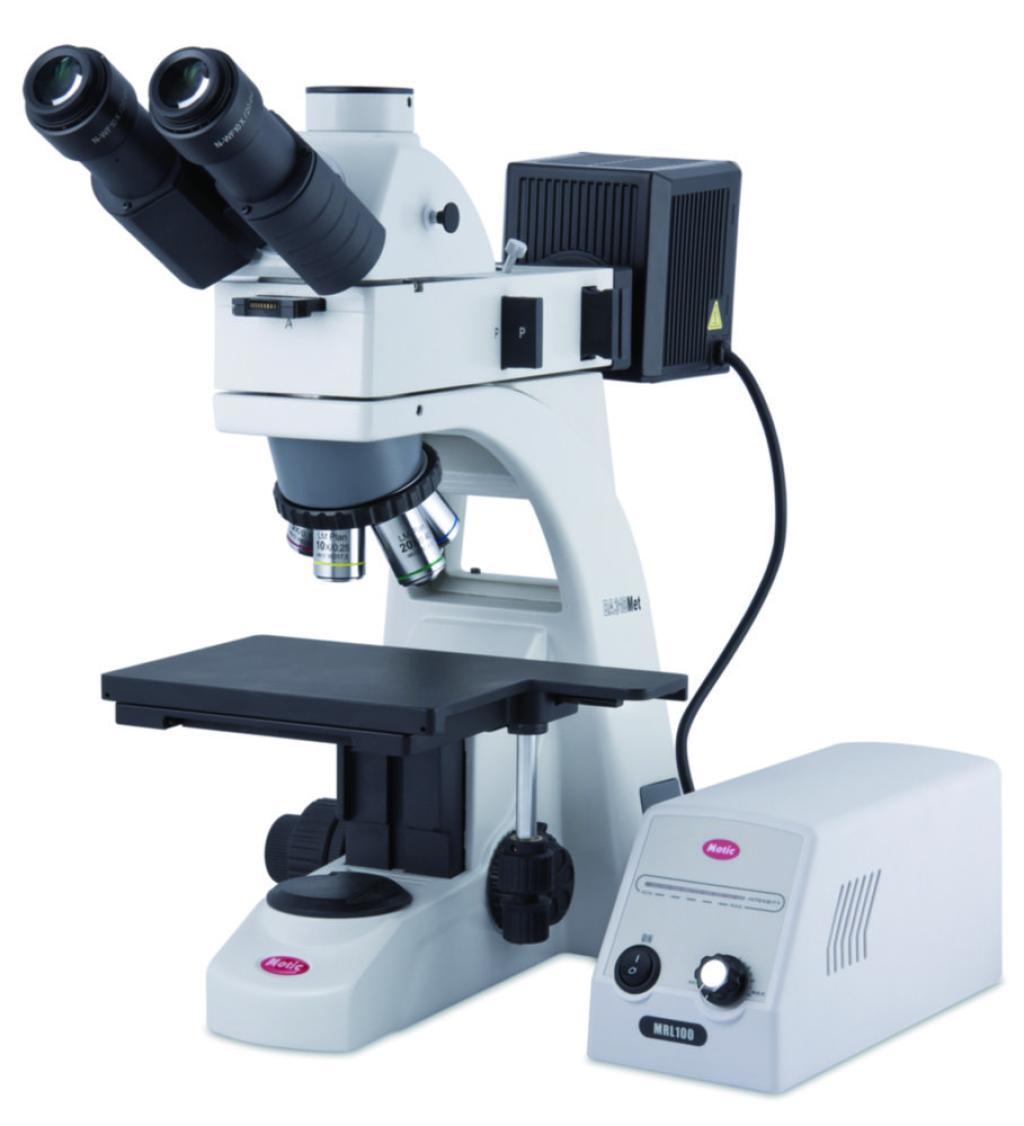

Advanced Microscope for Industrial and Material science, BA310 MET

The BA310 MET series is the ideal microscope for industrial quality inspection or material science. Different alternative stand options also allow applications in brightfield or examination of larger samples

  • Infinity Optics [CCIS®]

  • Observation Tube Trinocular 30° (Light split 100:00/20:80), F.N. 20

  • Interpupillary distance 48-75mm

  • Widefield high eyepoint eyepieces N-WF10X/20mm with diopter adjustment on both eyepieces and rubber eyecups

  • Reversed quintuple revolving nosepiece

  • CCIS LM Plan Achromatic objectives 5X, 10X, 20X, 50X

  • Coaxial course and fine focusing system

  • Mechanical stage, hard coated with built-in low position coaxial stage control

  • Epi-illuminator 12V/50W quartz halogen with integrated field and aperture diaphragms and external lamphouse

  • Power supply 100-240V (CE)

  • Power cord, Allen hexagonal key, vinyl dust cover
Choose a variant
Manufacturer
  • MOTIC
Category

Product variant

Name Hermes code and manufacturer code Pieces in a package Price without VAT
Obrázek produktové varianty BA310 MET
6264712 / 1100100402042
Pieces in a package
1
Upon request

Technical specifications

Condenser LWD, NA 0.85
Depth 508 mm
Depth stage 140 mm
Dimensions (WxDxH) 198 x 508 x 450 mm
Height 450 mm
Inclination angle tube 30 °
Interpupillary distance 48 ... 75 mm
Light type LED
Magnification eyepieces N-WF 10X/20
Magnification objectives 5x, 10x, 20x, 50x
Max. interpupillary distance 75 mm
Max. voltage 240 V
Min. interpupillary distance 48 mm
Min. voltage 100 V
Power supply 100 ... 240 V
Revolving nosepiece 5-fold
Stage (WxD) 180 x 140 mm
Tube Trinocular
Type BA310 MET
Type of auxiliary energy Mains connection
Type of illumination Transmitted light
Width 198 mm
Width stage 180 mm
Safety Data Sheet https://sw.llg.de/search?search=6264712
