Universal drying oven LLG-uni<i>OVEN</i> 42 and LLG-uni<i>OVEN</i> 110 More photos

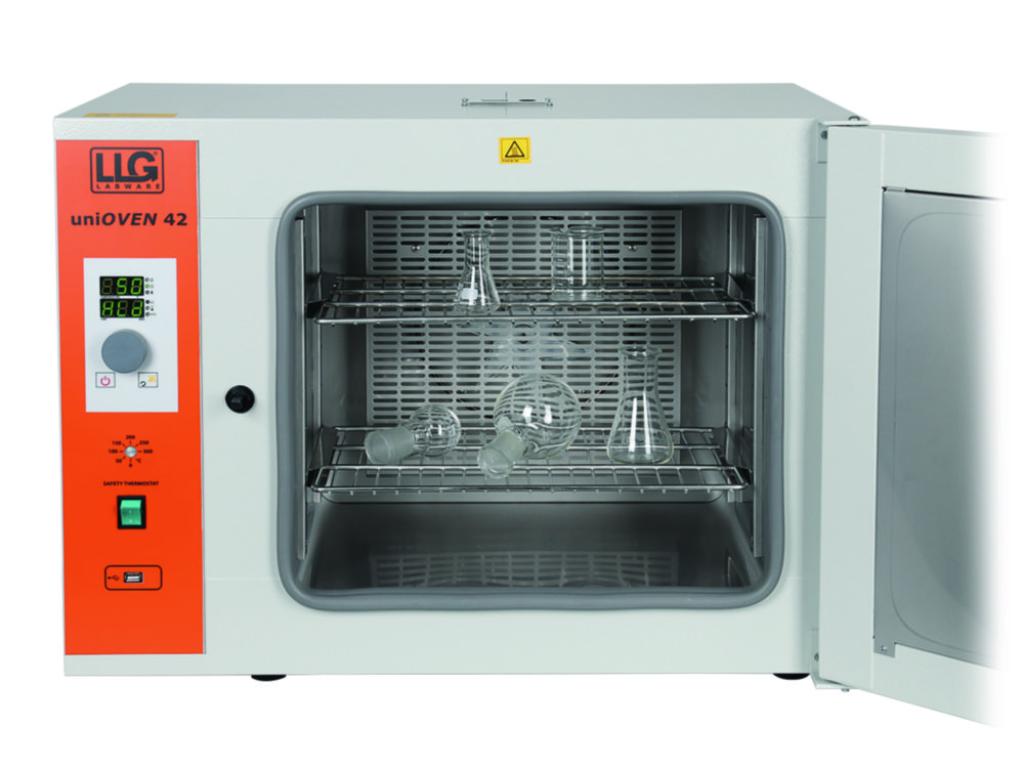

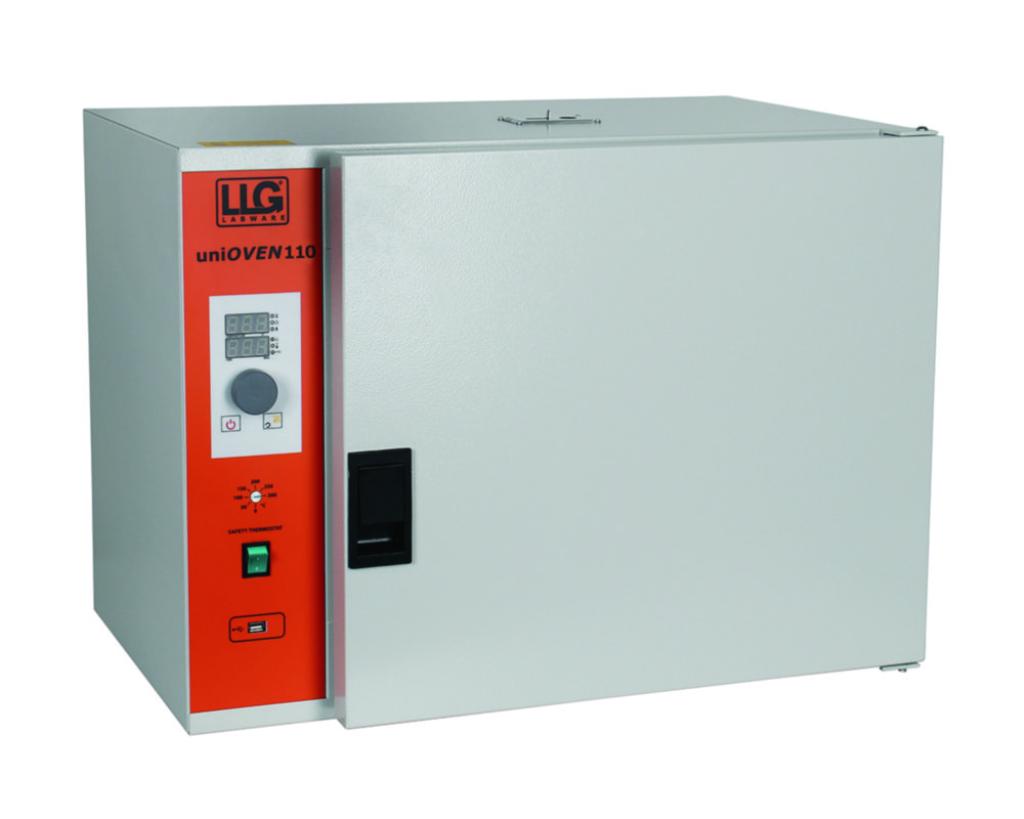

Universal drying oven LLG-uniOVEN 42 and LLG-uniOVEN 110

Microprocessor controlled universal drying oven with forced convection including two shelves. Each shelf of the uniOVEN 42 and uniOVEN 110 has a load capacity of 20 kg, the total load capacity of each unit is 50 kg. The maximum number of shelves is 7 for uniOVEN 42 and 10 for uniOVEN 110 with a distance of 40 mm between shelves.
  • Quick and intuitive operation

  • Microprocessor control with integrated auto-diagnostic system

  • Forced convection with fan

  • Digital display for time and temperature

  • Timer: 1 minute to 99.9 h and continuous

  • Delayed start timer: 1 minute to 99.9 h

  • Outlet for vapour exhaustion

  • Acoustical and visible information for end of program

  • Acoustical and optical alarm at temperature differences

  • Interior made of stainless steel

  • Adjustable over temperature protection at 300 °C

  • Temperature accuracy: ±1 °C (at 70 °C)

  • Temperature uniformity: ±2 °C (at 70 °C)


Scope of supply: LLG-uniOVEN incl. 2 shelves
Choose a variant
Manufacturer
  • LLG Labware
Category

Product variant

Name Hermes code and manufacturer code
Nominal capacity ( ml ) Weight ( g ) Type Depth int. ( mm ) Height int. ( mm ) Int. width ( mm ) Ext. depth ( mm ) Ext. height ( mm ) Ext. width ( mm ) Plug type Rated capacity ( W ) Ext. dim. (WxDxH) Int. Dim. (WxDxH) Max. no. of inserts
Pieces in a package Price without VAT
Obrázek produktové varianty LLG-uniOVEN 42
6263670 / 6263670
Nominal capacity ( ml )
42 l
Weight ( g )
39 kg
Type
LLG-uniOVEN 42
Depth int. ( mm )
280 mm
Height int. ( mm )
360 mm
Int. width ( mm )
420 mm
Ext. depth ( mm )
505 mm
Ext. height ( mm )
540 mm
Ext. width ( mm )
705 mm
Plug type
EU
Rated capacity ( W )
850 W
Ext. dim. (WxDxH)
705 x 505 x 540 mm
Int. Dim. (WxDxH)
420 x 280 x 360 mm
Max. no. of inserts
7
Pieces in a package
-
Upon request
Obrázek produktové varianty LLG-uniOVEN 42
6263673 / 6263673
Nominal capacity ( ml )
42 l
Weight ( g )
39 kg
Type
LLG-uniOVEN 42
Depth int. ( mm )
280 mm
Height int. ( mm )
360 mm
Int. width ( mm )
420 mm
Ext. depth ( mm )
505 mm
Ext. height ( mm )
540 mm
Ext. width ( mm )
705 mm
Plug type
UK
Rated capacity ( W )
850 W
Ext. dim. (WxDxH)
705 x 505 x 540 mm
Int. Dim. (WxDxH)
420 x 280 x 360 mm
Max. no. of inserts
7
Pieces in a package
-
Upon request
Obrázek produktové varianty LLG-uniOVEN 110
6263675 / 6263675
Nominal capacity ( ml )
110 l
Weight ( g )
66 kg
Type
LLG-uniOVEN 110
Depth int. ( mm )
445 mm
Height int. ( mm )
500 mm
Int. width ( mm )
500 mm
Ext. depth ( mm )
665 mm
Ext. height ( mm )
680 mm
Ext. width ( mm )
790 mm
Plug type
EU
Rated capacity ( W )
1550 W
Ext. dim. (WxDxH)
790 x 665 x 680 mm
Int. Dim. (WxDxH)
500 x 445 x 500 mm
Max. no. of inserts
10
Pieces in a package
-
Upon request
Obrázek produktové varianty LLG-uniOVEN 110
6263678 / 6263678
Nominal capacity ( ml )
110 l
Weight ( g )
66 kg
Type
LLG-uniOVEN 110
Depth int. ( mm )
445 mm
Height int. ( mm )
500 mm
Int. width ( mm )
500 mm
Ext. depth ( mm )
665 mm
Ext. height ( mm )
680 mm
Ext. width ( mm )
790 mm
Plug type
UK
Rated capacity ( W )
1550 W
Ext. dim. (WxDxH)
790 x 665 x 680 mm
Int. Dim. (WxDxH)
500 x 445 x 500 mm
Max. no. of inserts
10
Pieces in a package
-
Upon request

Technical specifications

Power supply frequency 50/60 Hz Hz
Material interior Stainless steel
Max. temperature 250 &deg;C &deg;C
Max. voltage 230 V V
Min. temperature 50 &deg;C &deg;C
Power supply 230 V, 50/60 Hz
Temperature 50 ... 250 °C
Type of auxiliary energy Mains connection
UNSPSC 41104510
Warranty 3 years
With timer Yes
