Multi-position magnetic stirrer Cimarec i Multipoint, with power supply unit More photos

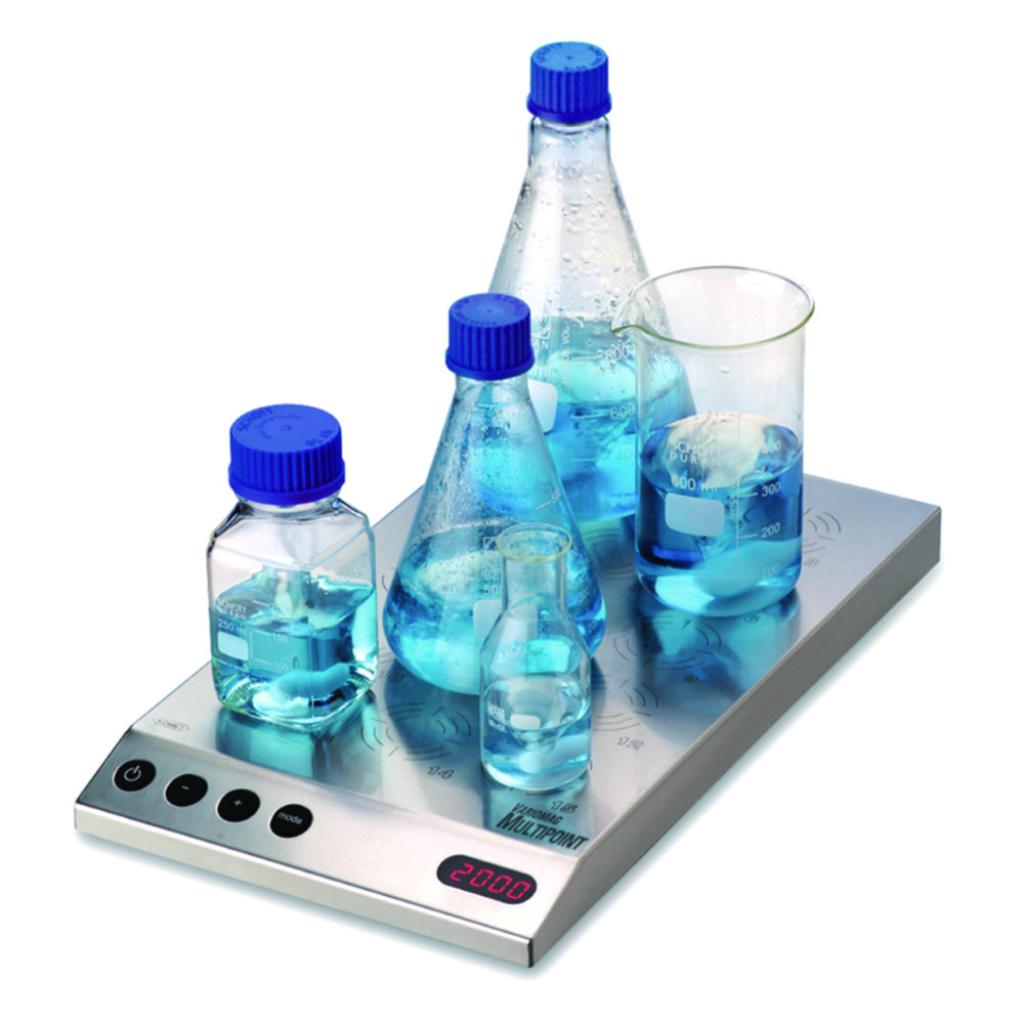

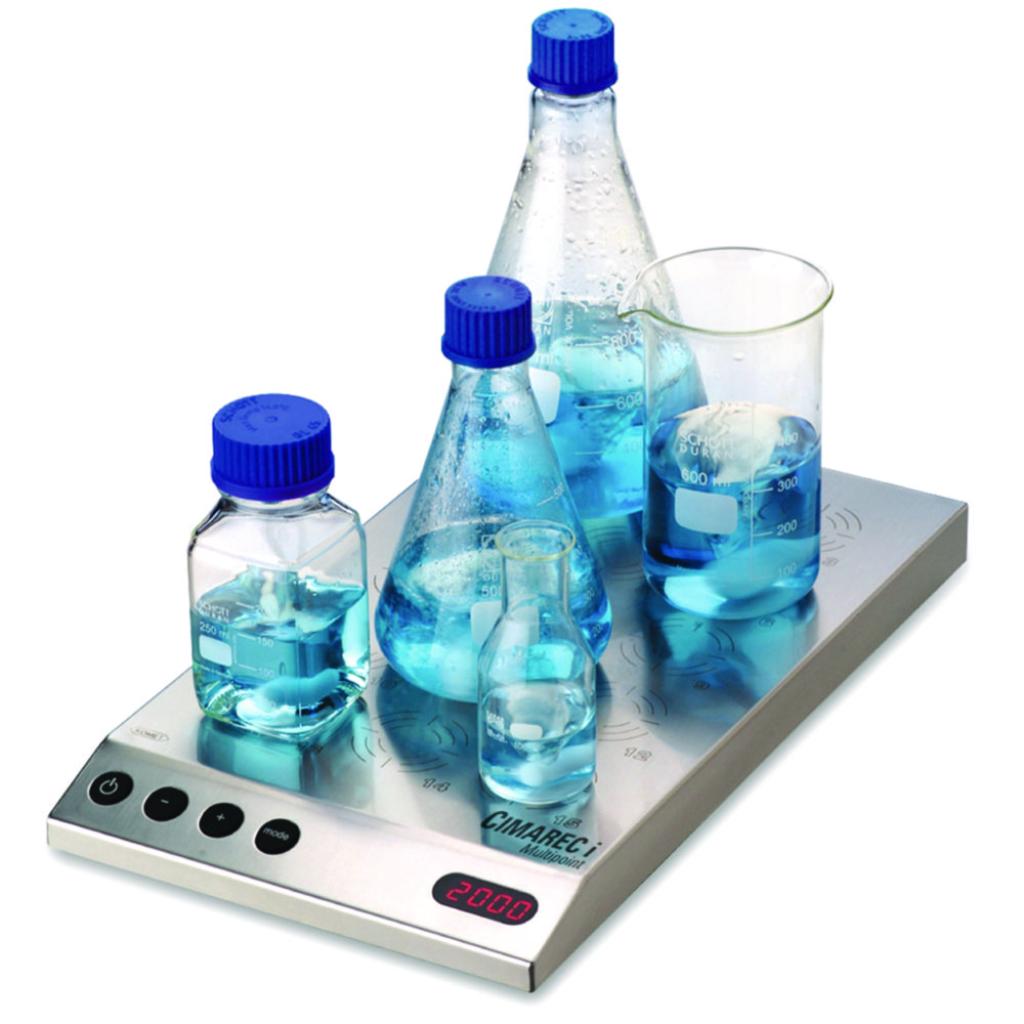

Multi-position magnetic stirrer Cimarec i Multipoint, with power supply unit

Without heating. With 100 % wear- and maintenance-free induction drive. Ideal for serial examinations.

  • Large, flat and easy-to-clean work surface

  • Digital speed display

  • Soft start at beginning of stirring

  • 4-stage stirring power (5 to 20 W) adjustable independently of speed control

  • Memory function stores the last settings

  • Induction drive ensures fully synchronous stirring at all positions
Choose a variant
Manufacturer
  • Thermo Elect.LED GmbH (H+P VM)
Category

Product variant

Name Hermes code and manufacturer code
Type No. of stirring positions Stirring centre distances ( mm )
Pieces in a package Price without VAT
Obrázek produktové varianty Cimarec i Multipoint 6
9720624 / 50093557
Type
Cimarec i Multipoint 6
No. of stirring positions
6
Stirring centre distances ( mm )
130 mm
Pieces in a package
-
Upon request
Obrázek produktové varianty Cimarec i Multipoint 15
9720625 / 50093538
Type
Cimarec i Multipoint 15
No. of stirring positions
15
Stirring centre distances ( mm )
65 mm
Pieces in a package
-
Upon request

Technical specifications

Depth 420 mm
Dimensions (WxDxH) 240 x 420 x 35 mm
Display Digital
Power supply frequency 50/60 Hz
Height 35 mm
IP code IP 64
Material housing Stainless steel
Max. permitted ambient temp. 40 °C
Max. relative humidity rate 95 %
Max. speed 2000 1/min
Max. stirring capacity 3 l
Max. voltage 240 V
Min. permitted ambient temperature 5 °C
Min. speed 80 1/min
Min. voltage 100 V
Permitted ambient temperature 5 ... 40 °C
Power supply 100 ... 240 V, 50/60 Hz
Speed 80 ... 2,000 1/min
Type of auxiliary energy Mains connection
UNSPSC 41103806
Weight 7500 g
Width 240 mm
With timer No
