High-temperature circulators Forte HT More photos

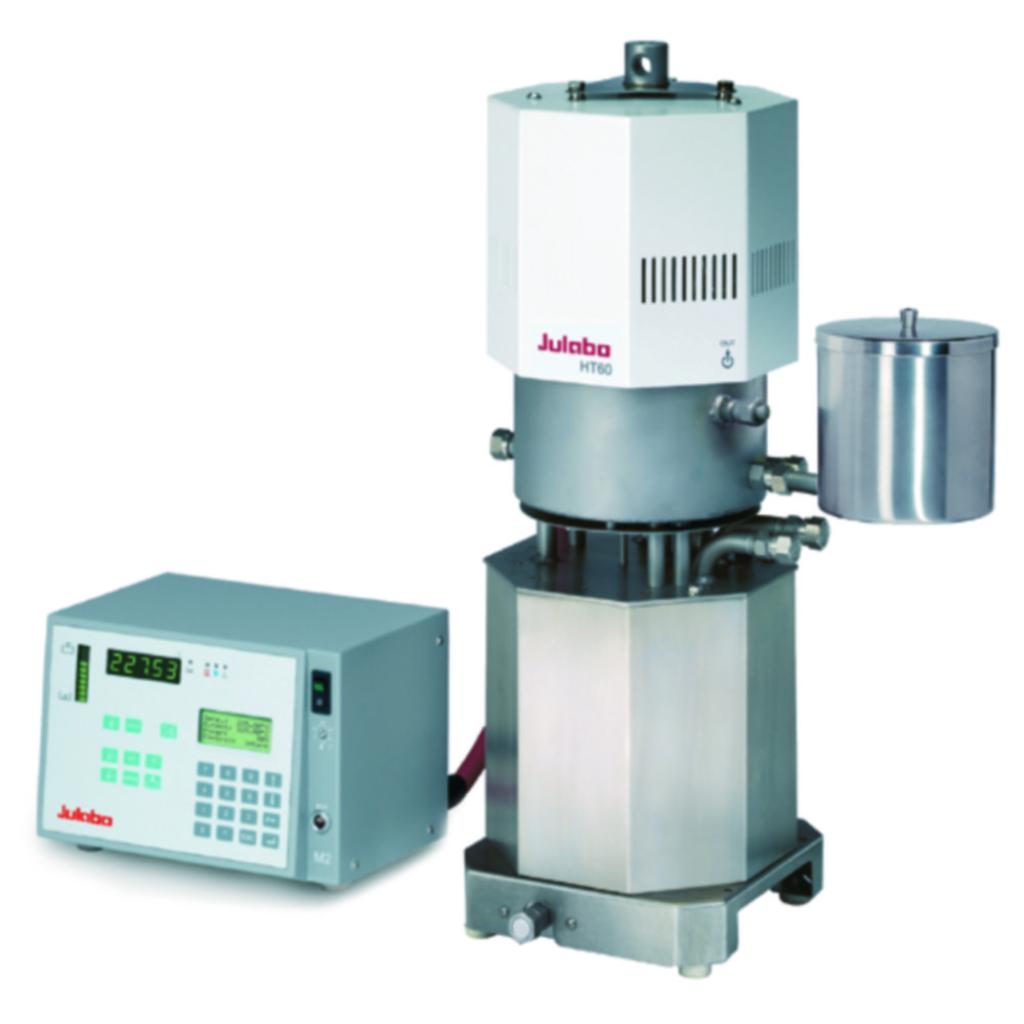

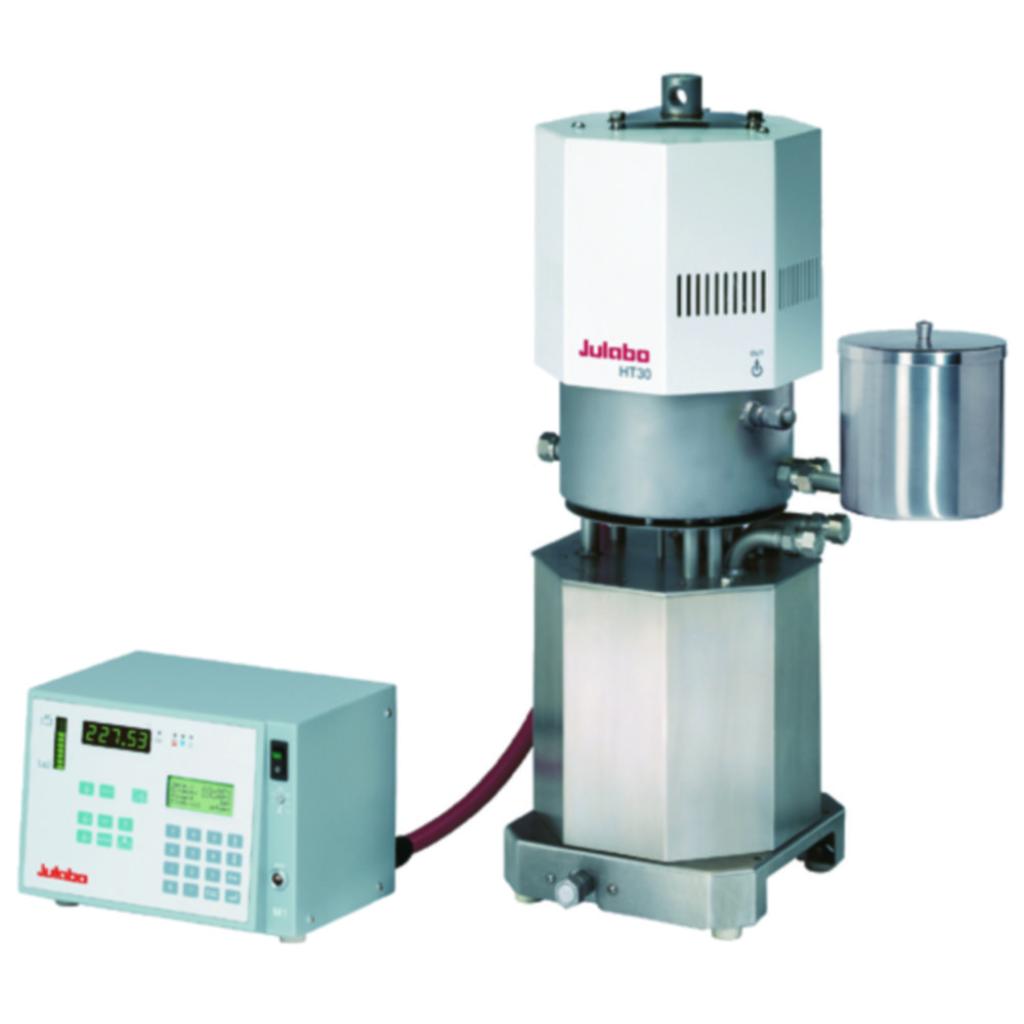

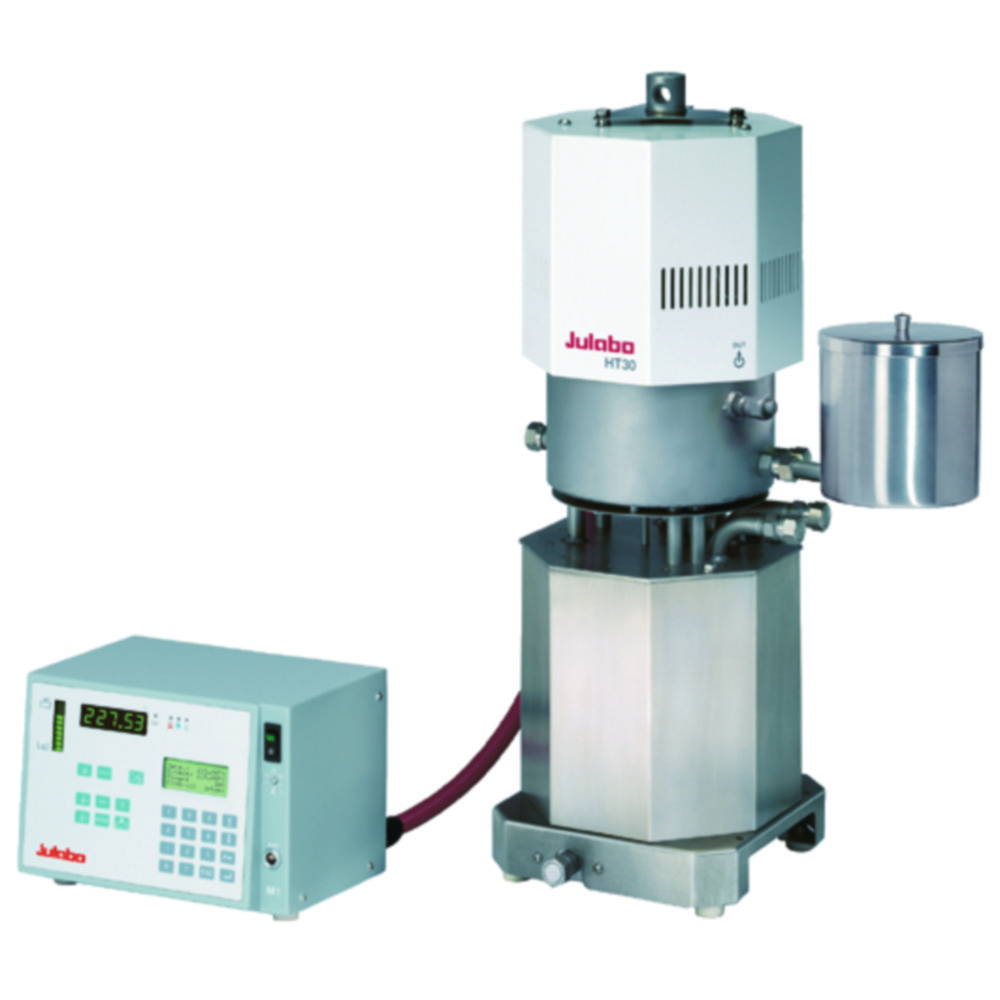

High-temperature circulators Forte HT

High-temperature circulators have a compact, closed construction to prevent the formation of oil fumes even at high temperatures. A powerful heating capacity ensures short heat-up times. Automatic heat-up and cracking protection ensure a long service life of the bath fluid. The entire system can be filled bubble-free thanks to a filling system with automatic venting.

  • Self-optimising ICC cascade temperature control

  • Pump capacity from 14 to 18 l/min

  • Illuminated LCD display

  • Electronic level indicator

  • Integrated programmer with memory for 6 profiles with 60 programme steps each

  • ATC function for simple temperature correction

  • Small filling volume

  • RS232 and RS485 interface, standby-input

  • Integratable e.g. in miniplant systems

  • Classification III (FL) according to DIN 12876-1
Choose a variant
Manufacturer
  • Julabo GmbH
Category

Product variant

Name Hermes code and manufacturer code
UNSPSC Weight ( g ) Type Power supply frequency ( Hz ) Max. voltage ( V ) Type of auxiliary energy Power supply Heating capacity ( W )
Pieces in a package Price without VAT
Obrázek produktové varianty Forte HT60-M3
6289626 / 9800063
UNSPSC
-
Weight ( g )
29 kg
Type
Forte HT60-M3
Power supply frequency ( Hz )
60 Hz
Max. voltage ( V )
208 V
Type of auxiliary energy
-
Power supply
208 V, 60 Hz
Heating capacity ( W )
6 kW
Pieces in a package
-
Upon request
Obrázek produktové varianty Forte HT60-M2
6300656 / 9800062
UNSPSC
41-10-37-15
Weight ( g )
29 kg
Type
Forte HT60-M2
Power supply frequency ( Hz )
50 Hz
Max. voltage ( V )
400 V·3/N/PE
Type of auxiliary energy
Mains connection
Power supply
400 V·3/N/PE, 50 Hz
Heating capacity ( W )
7 kW
Pieces in a package
-
Upon request
Obrázek produktové varianty Forte HT30-M1
9858400 / 9800031
UNSPSC
-
Weight ( g )
27 kg
Type
Forte HT30-M1
Power supply frequency ( Hz )
50 Hz
Max. voltage ( V )
230 V
Type of auxiliary energy
Mains connection
Power supply
230 V, 50 Hz
Heating capacity ( W )
3 kW
Pieces in a package
-
Upon request

Technical specifications

Ext. dim. (WxDxH) 230 x 230 x 580 mm
Ext. depth 230 mm
Ext. height 580 mm
Ext. width 230 mm
IP code IP 21
Max. delivery pressure 1.2 bar
Max. temperature 400 °C
Max. volume bath 2 l
Min. temperature 70 °C
Programmable Yes
Temperature 70 ... 400 °C
Volume bath 2 l
